Description

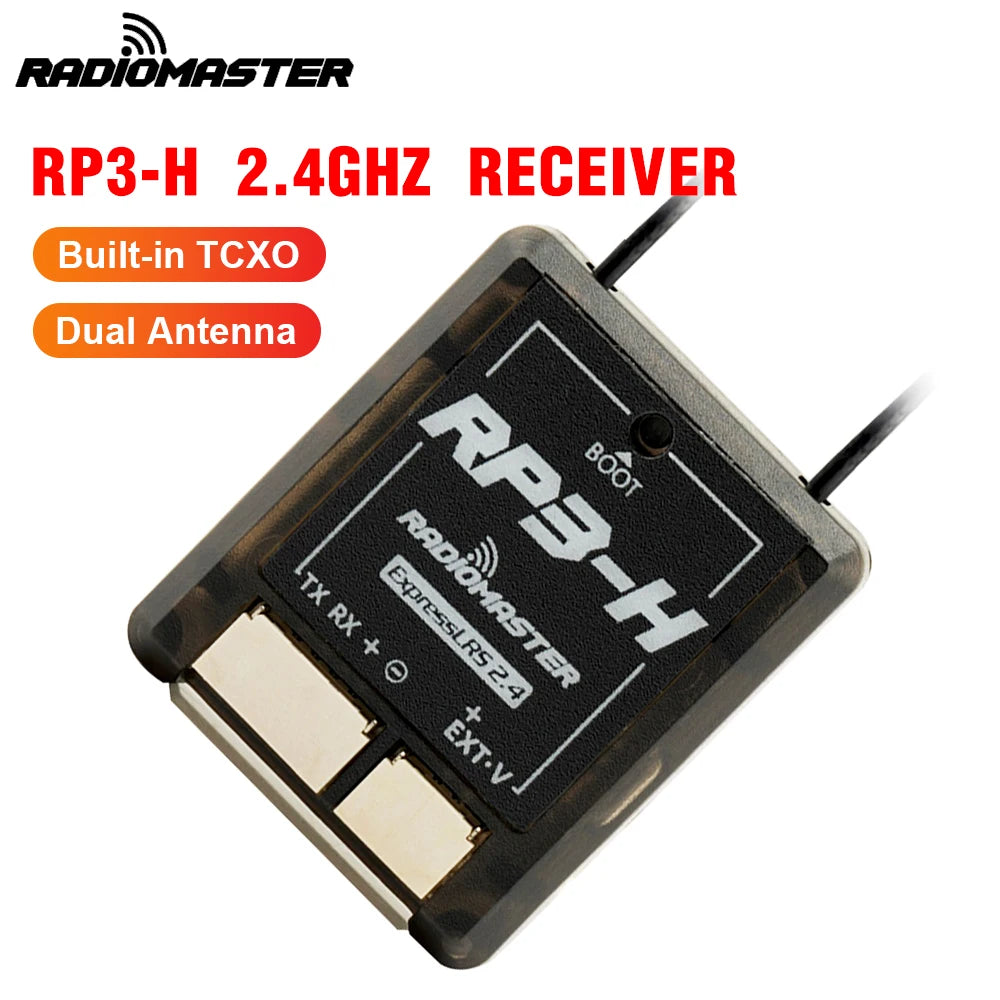

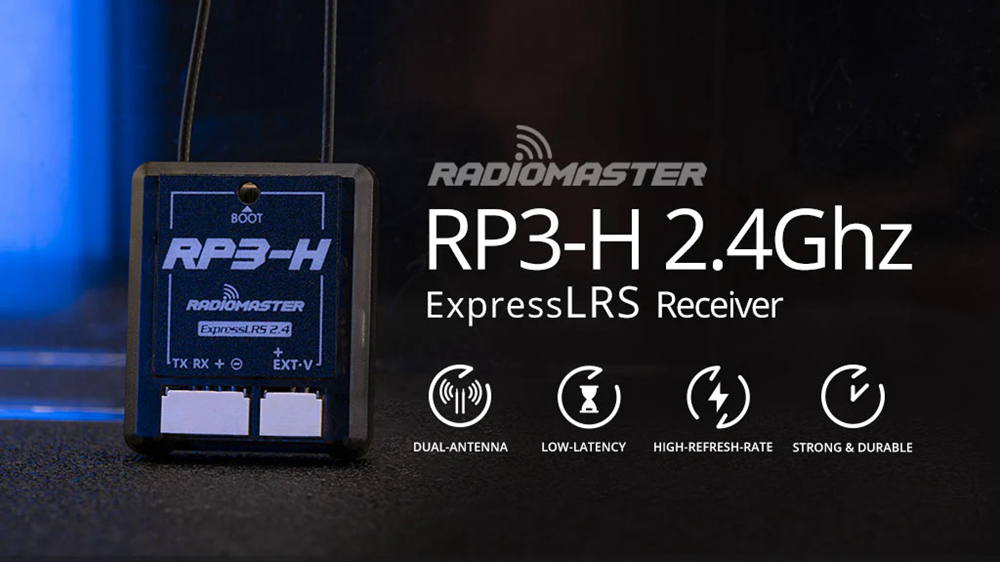

Radiomaster RP3-H 2.4GHz Receiver Dual Antenna Built-in TCXO For RC FPV
Long Range Fixed Wing Helicopter Compatible With NEXUS Heli Flight
Controller
Features:

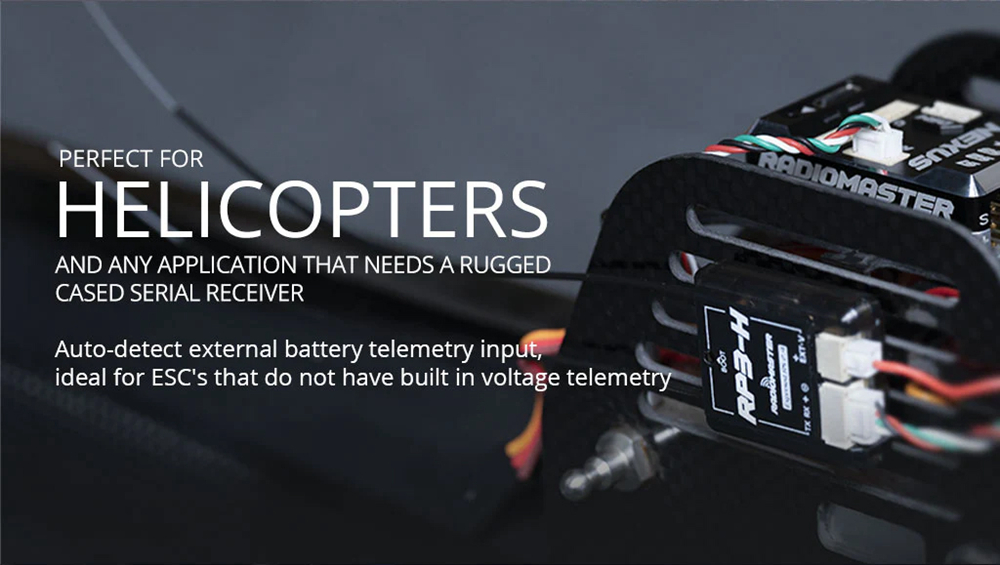

1. Perfect for helicopters and any application that needs a rugged cased serial receiver.

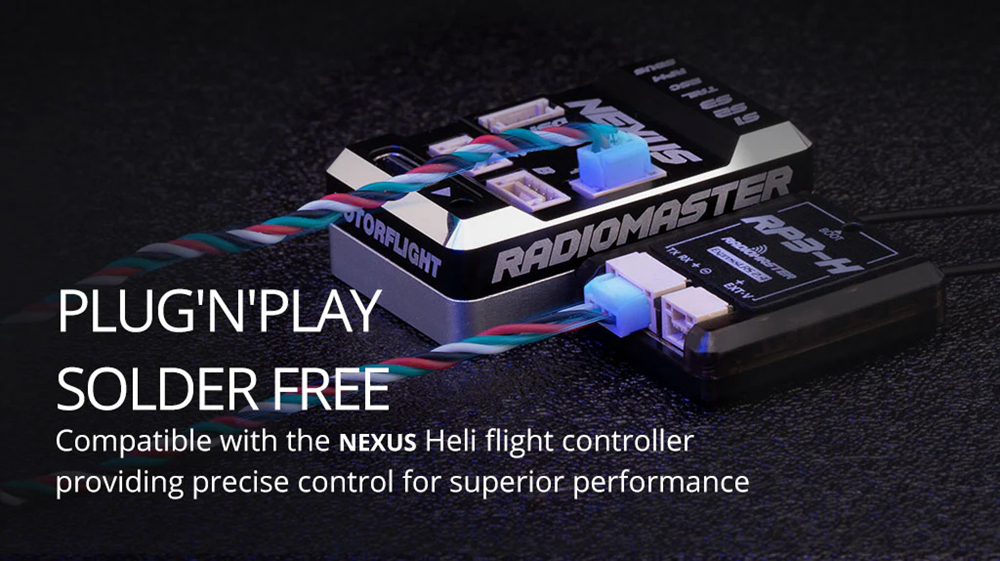

2. Plug’n’play solder free RP3-H ExpressLRS receivers compatible with NEXUS Heli flight controller

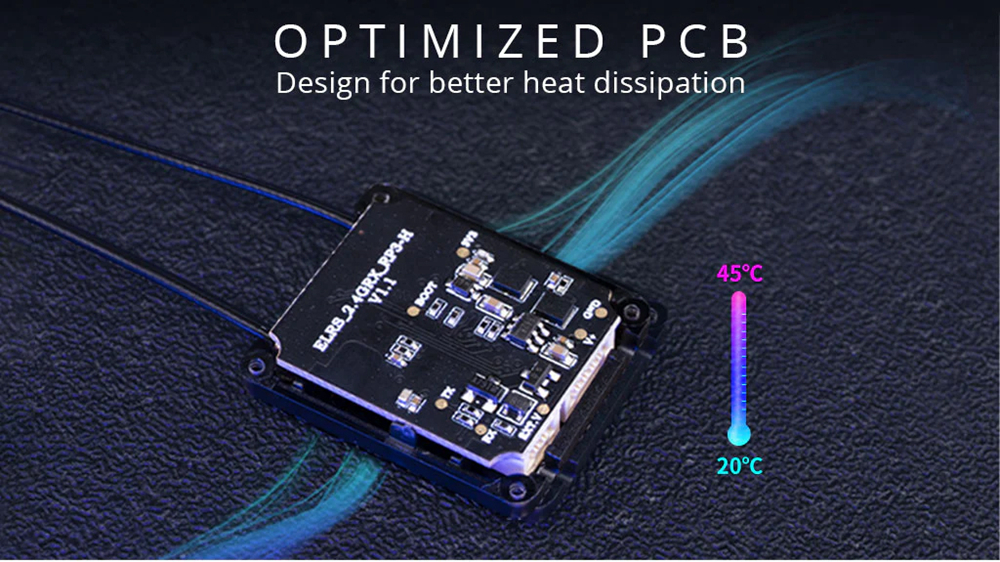

3. Optimized PCB design for better heat dissipation

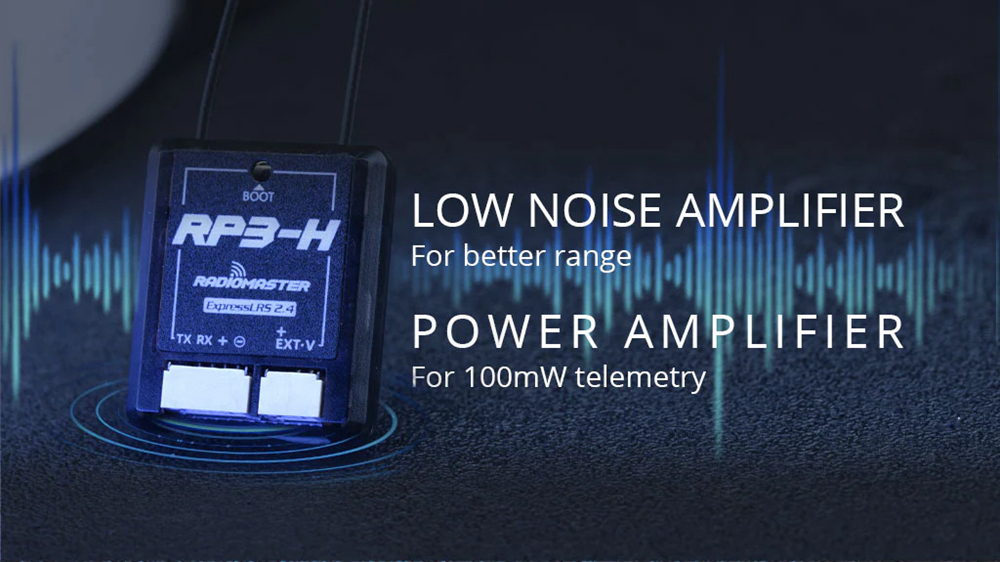

4. LNA for better receiver range
5. PA for better telemetry range

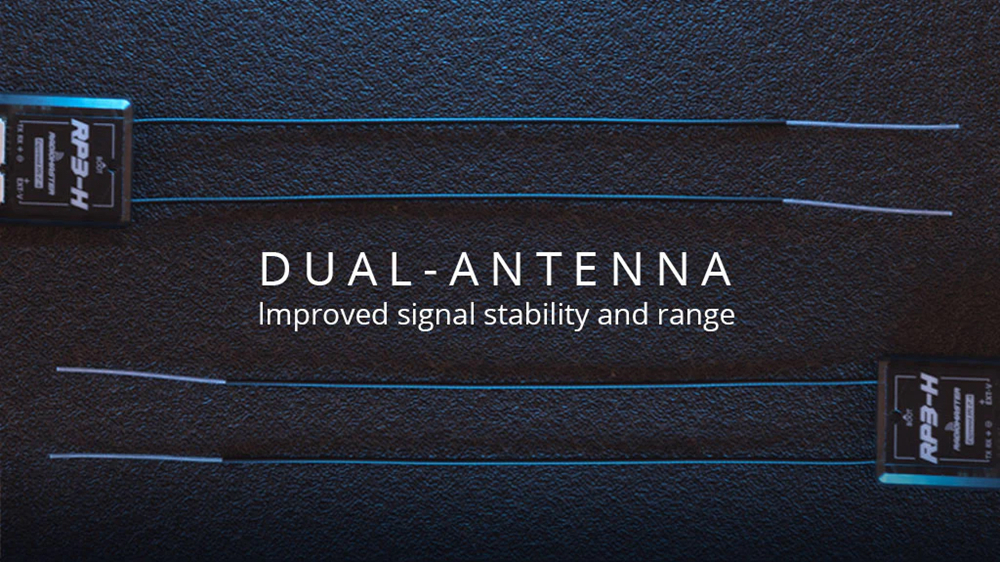

6. Antenna Diversity for improved signal stability and range
7. Built-in a TCXO (temperature compensated crystal oscillator)
8. Automatically detects voltage telemetry of external battery voltage or receiver battery/ESC BEC voltage
9. Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Description:
Radiomaster
RP3-H 2.4GHz Dual Antenna Receiver,Built-in a TCXO,Compatible With All
2.4GHz ExpressLRS Modules And Transmitters With Built In 2.4GHz
ExpressLRS,Perfect For Helicopters And Any Application That Needs A
Rugged Cased Serial Receiver.
Specifications:

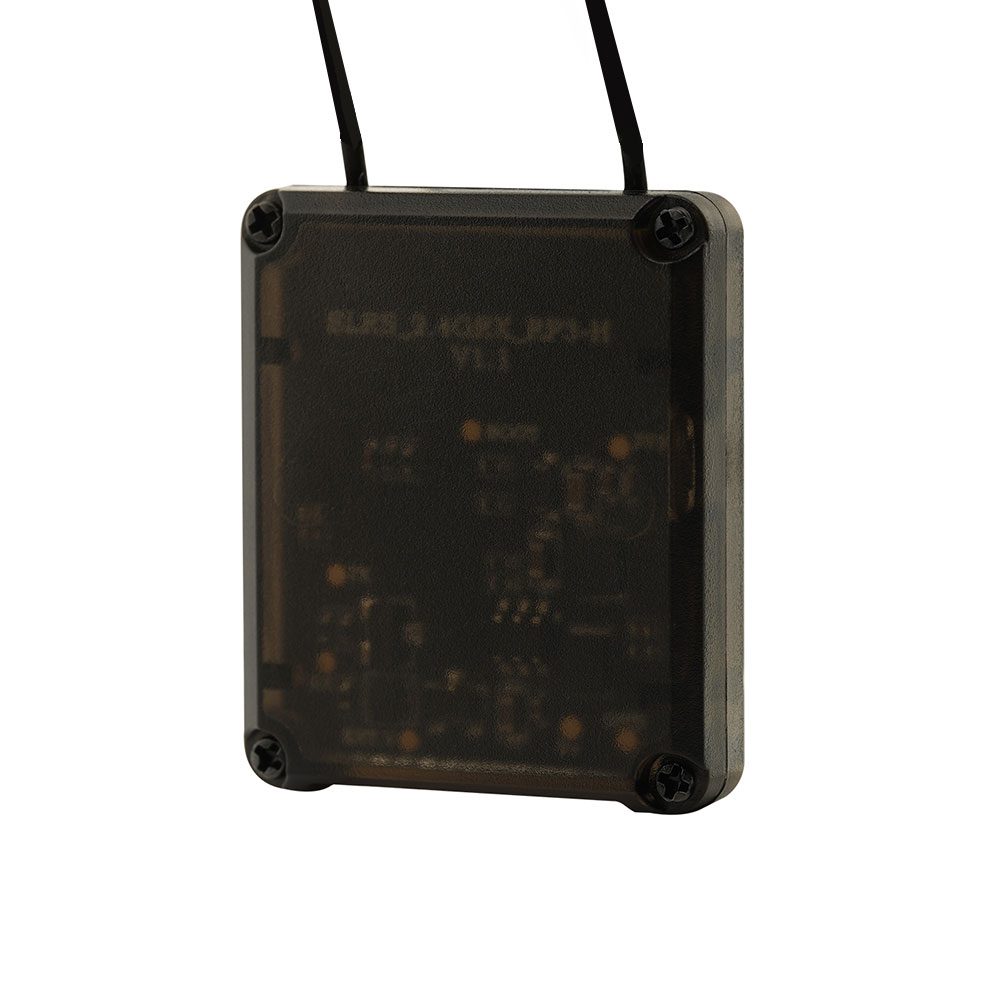

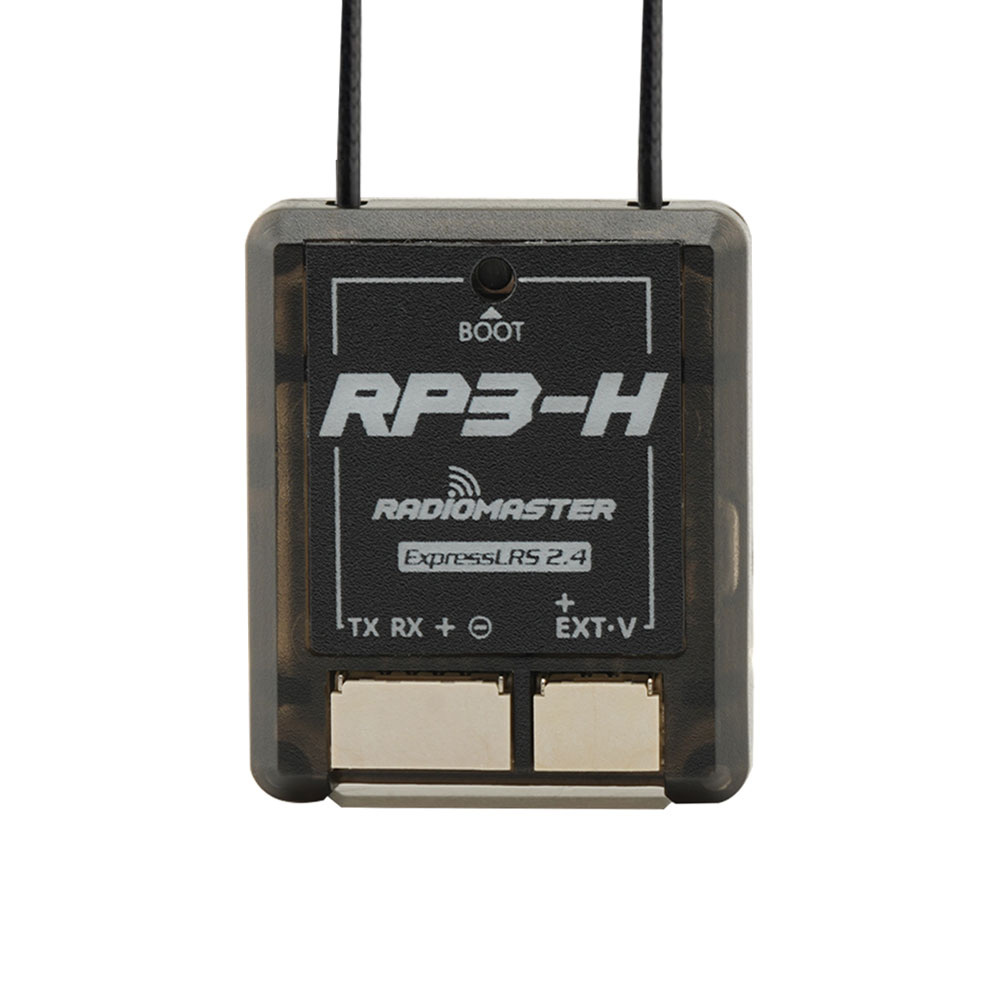

ltem:RP3-H ExpressLRS 2.4GHz Nano Receiver
Type :ISM
MCU:ESP8285
RF Chip:SX1281
Telemetry RF power:Max 100mW
Antenna:150mm 2.4GHz Antenna x2
Frequency Range:2.404 – 2.479 GHz
Maximum receive:500Hz / F1000Hz
Minimum receiver refresh rate:25Hz
Working voltage:DC 4.5-8.4V
Battery voltage detection range:DC 4.0 – 35V

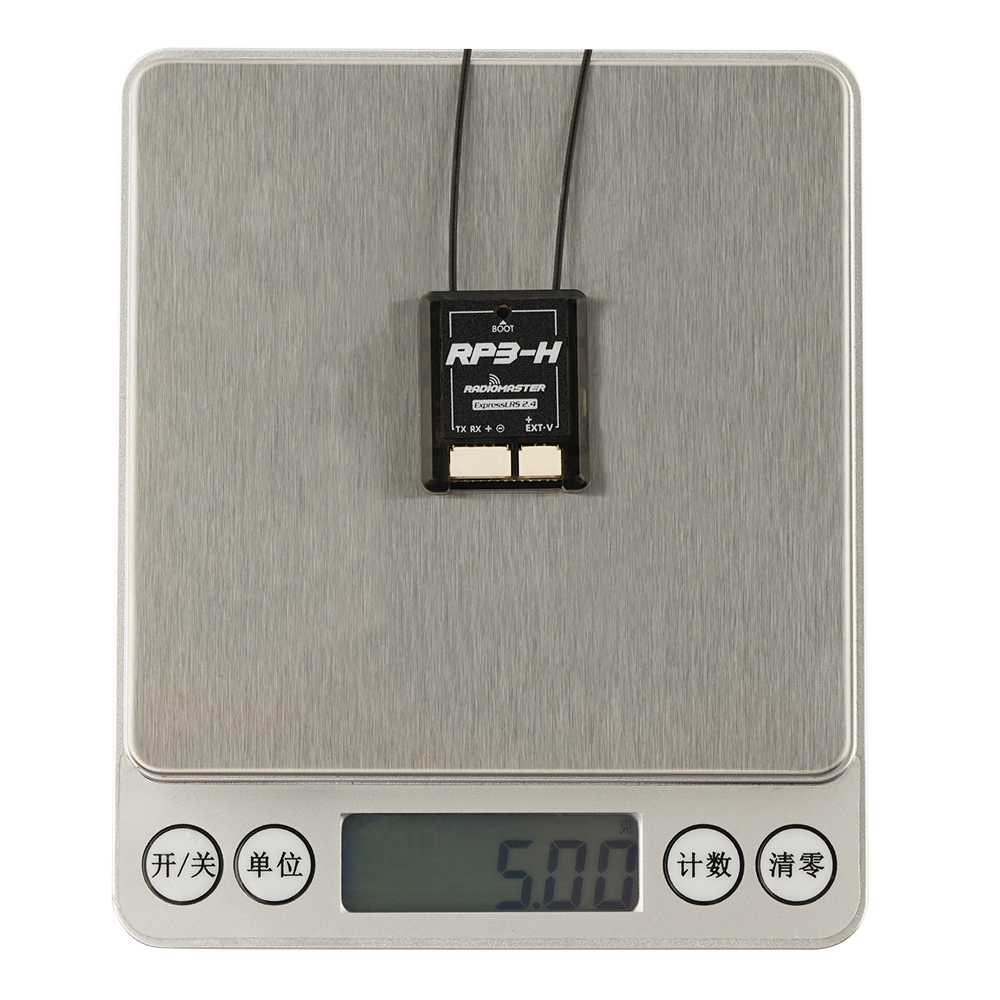

Weight:5.1g (Including two antennas)

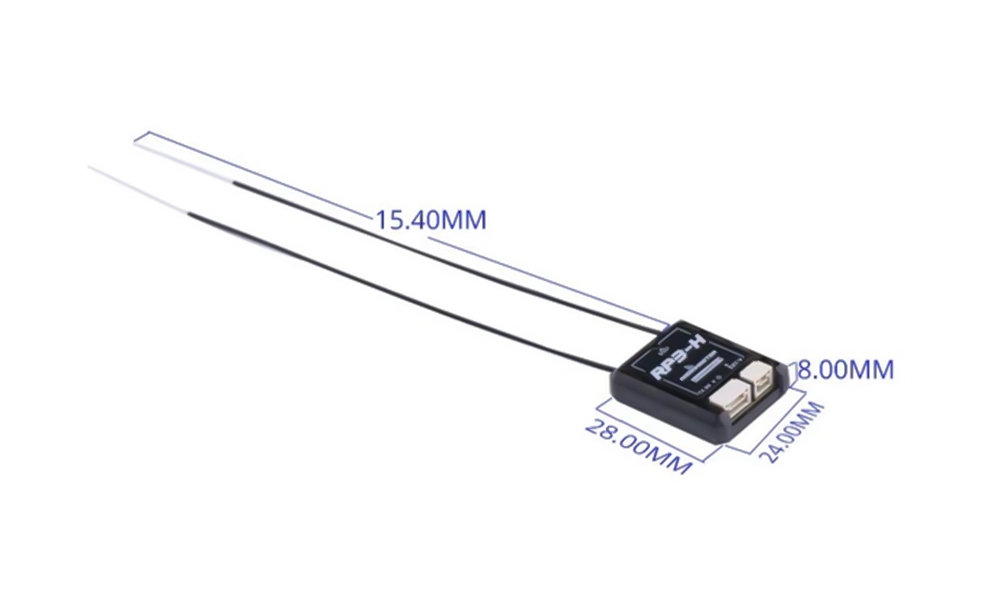

Dimension:28×24 X8mm
Firmware Version:ExpressLRSv3.3.1 pre-installed
FW Target:RadioMaster RP3-H Diversity 2400 RX
Bus interface:CRSF/S.BuS

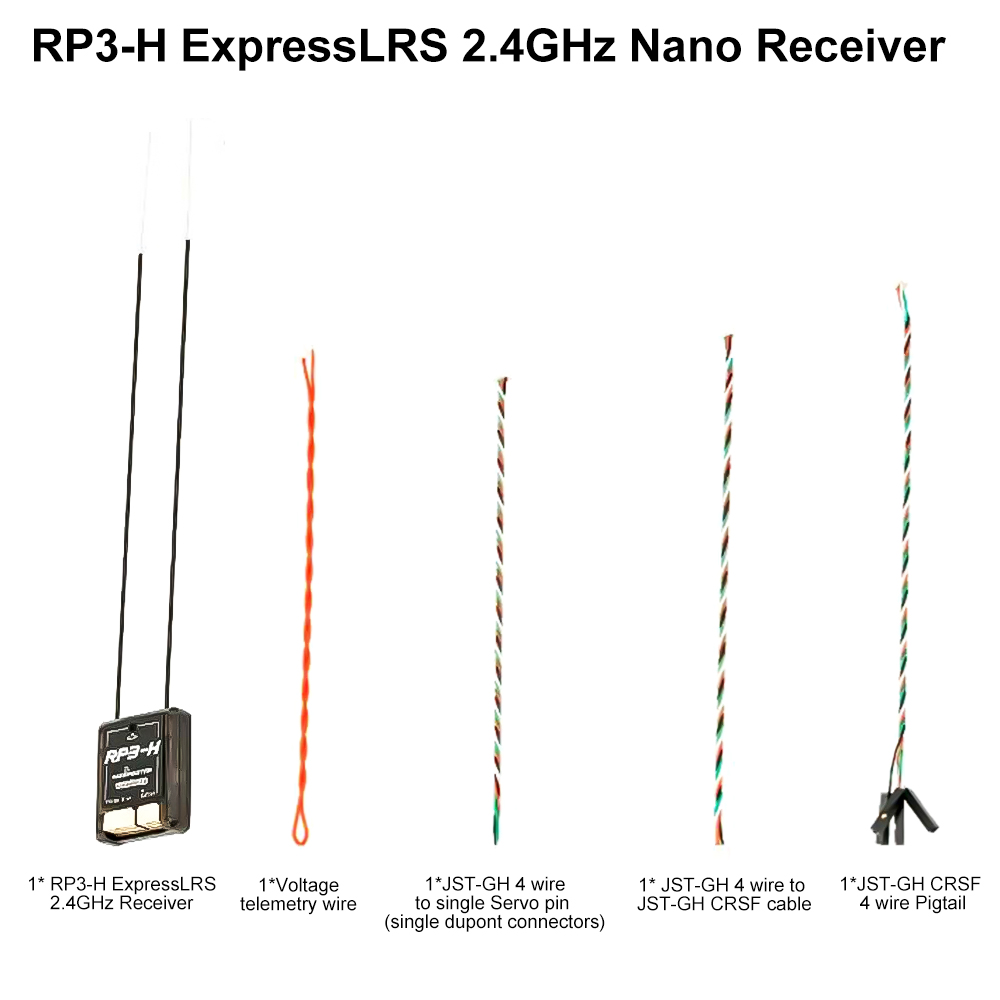

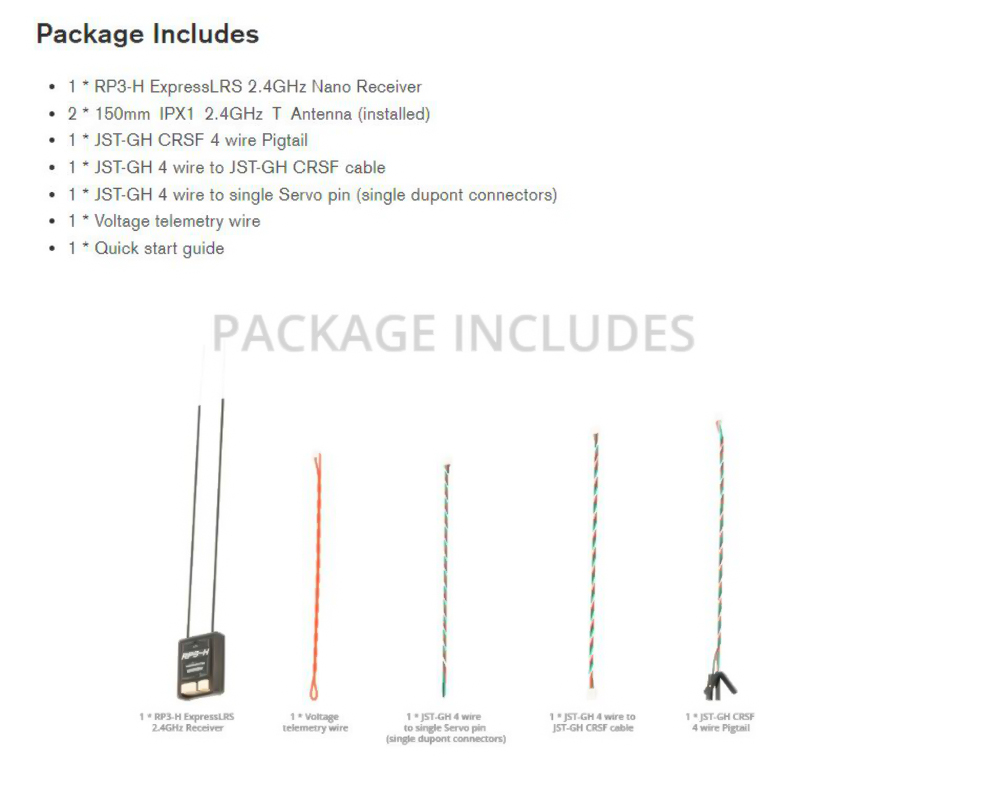

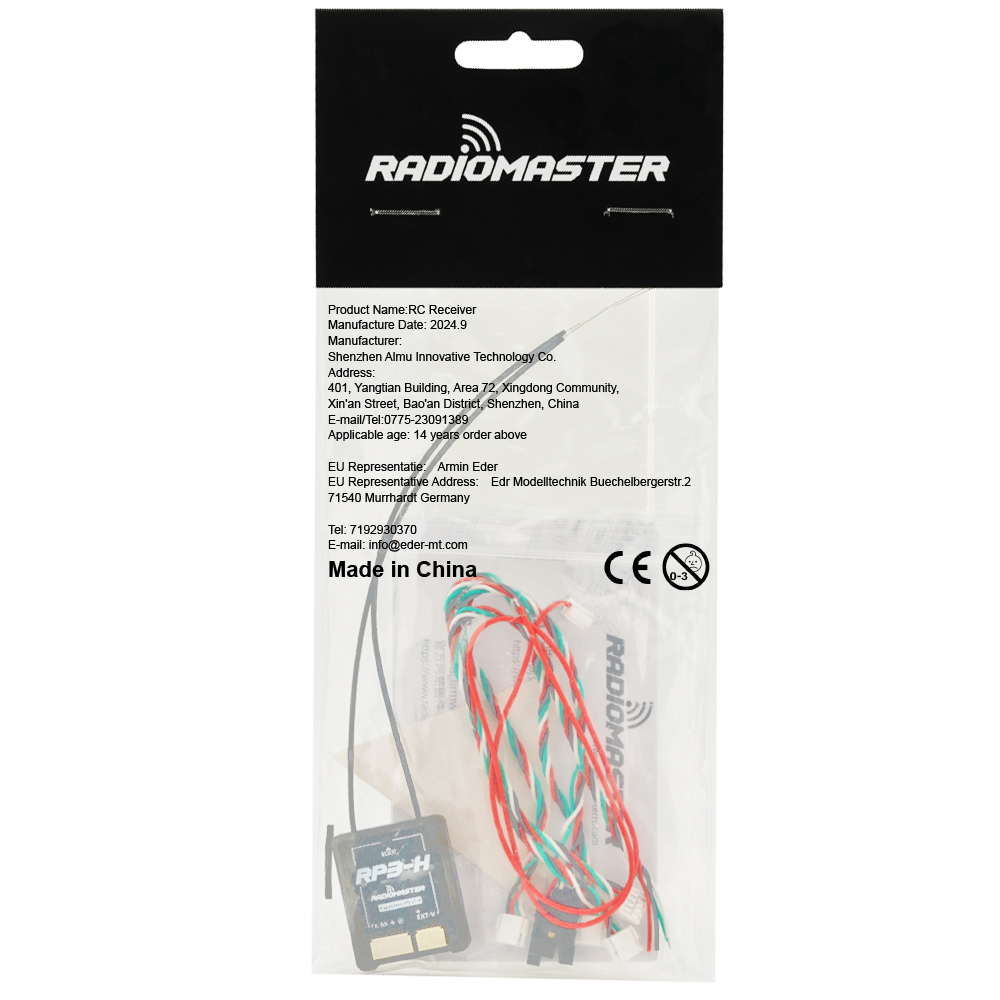

Package contents:
1 * RP3-H ExpressLRS 2.4GHz Nano Receiver
1 * User Manual
1 * JST-GH CRSF 4 wire Pigtail
1 * JST-GH 4 wire to JST-GH CRSF cable
1 * JST-GH 4 wire to single Servo pin (dupont connectors)
1 * Voltage telemetry wire
