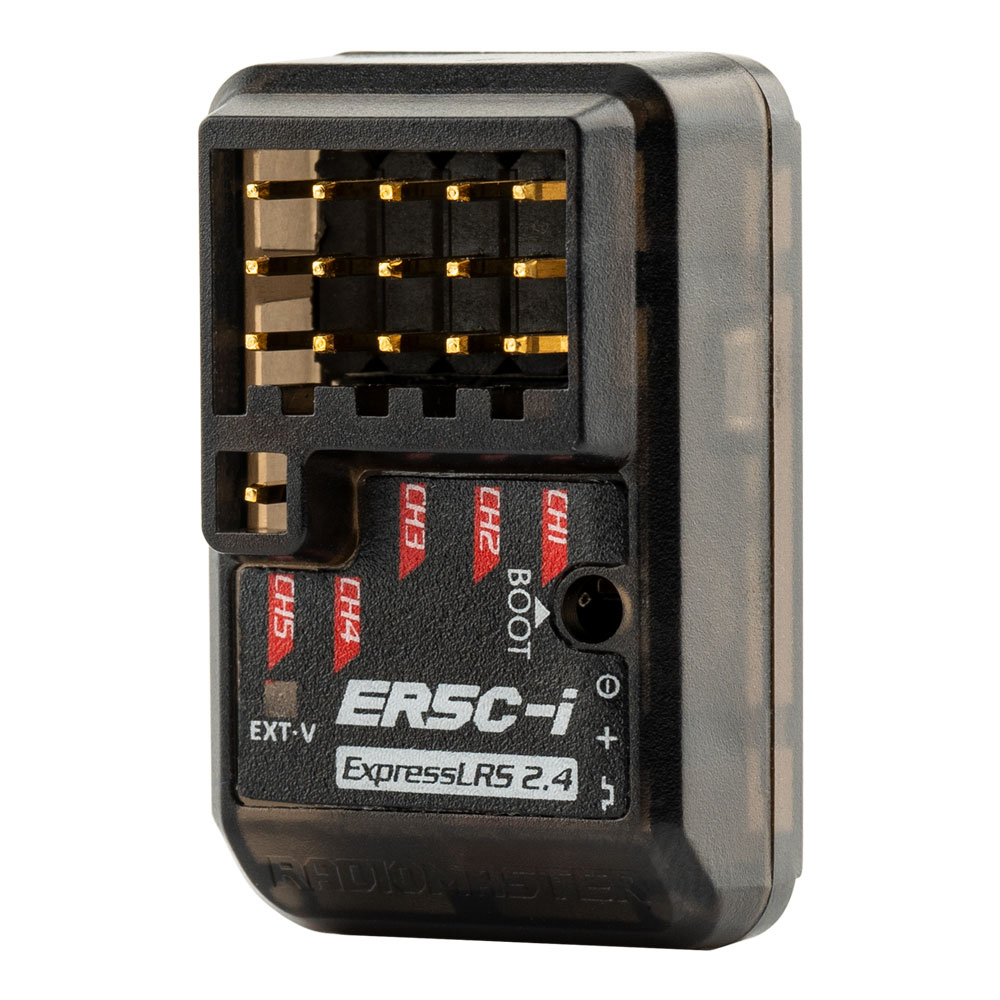

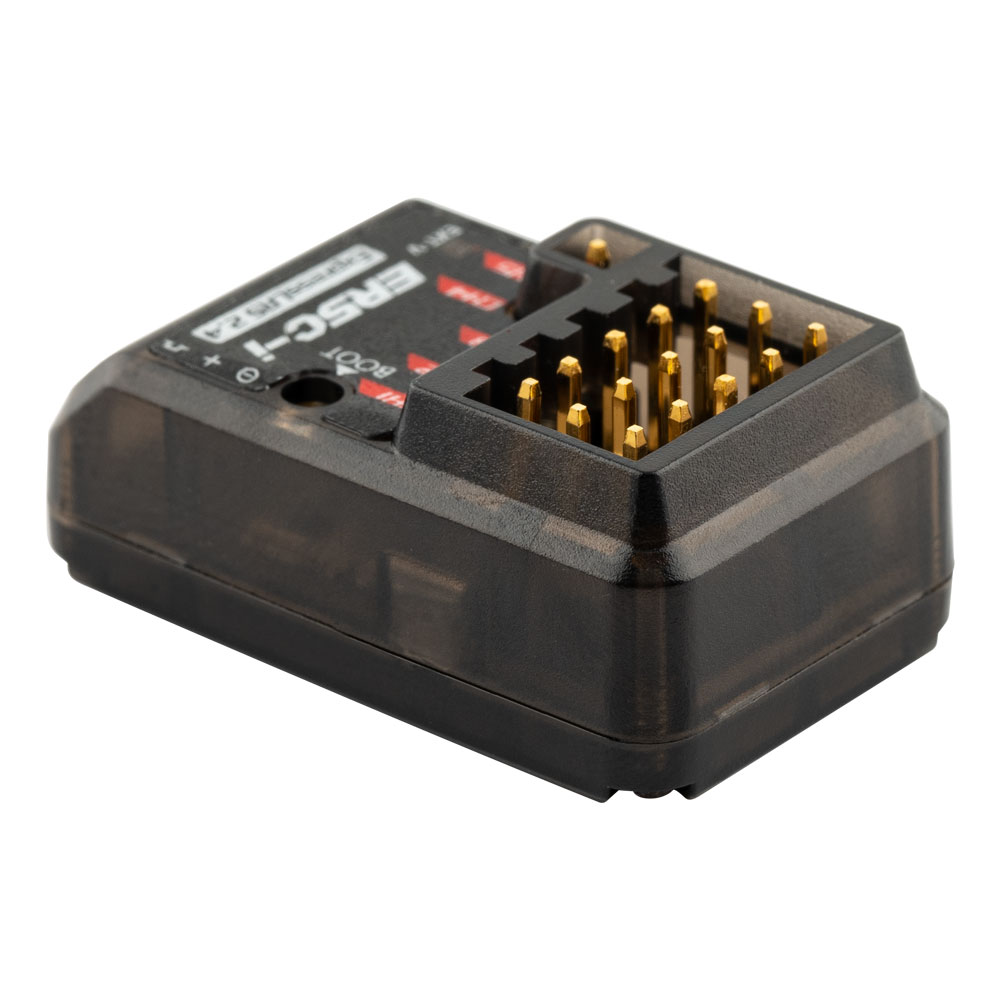

RadioMaster ER5CI 5ch ExpressLRS 2.4GHZ PWM Receiver Built-in a TCXO

ER5C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability,
highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

Feature

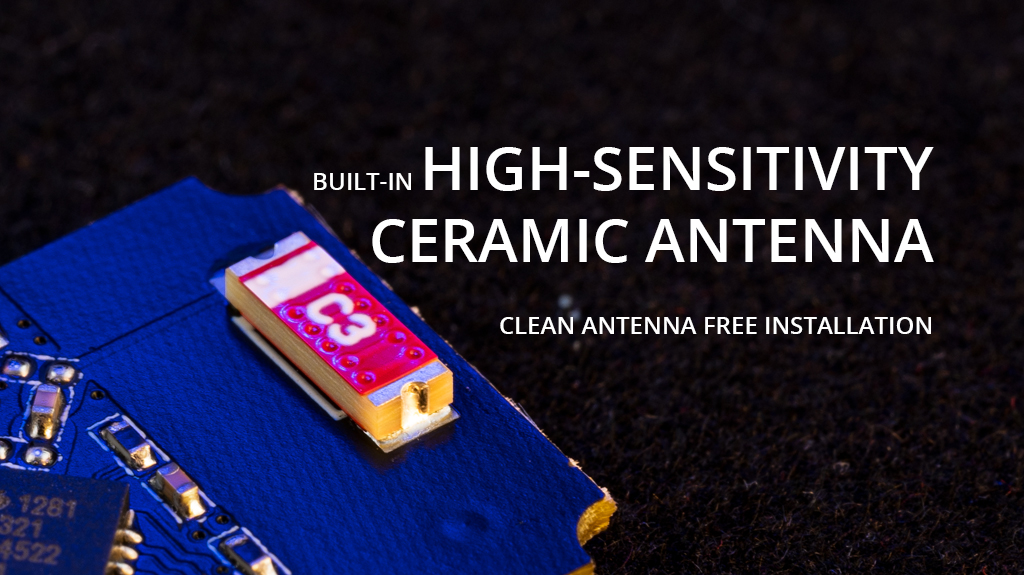

• Built-in high-sensitivity ceramic antenna

• Based on the Revolutionary ExpressLRS System

• High performance, high reliability, flexible
  configuration, fast response speed and ultra-long range

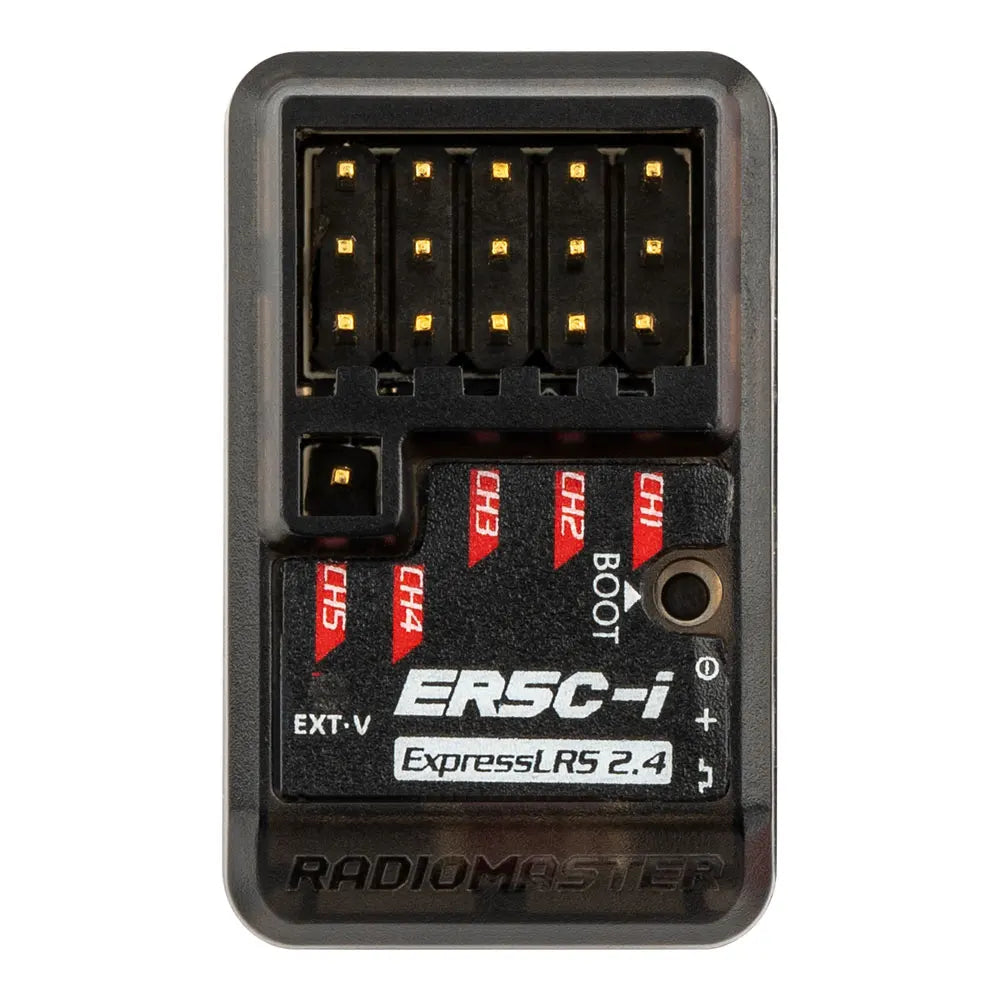

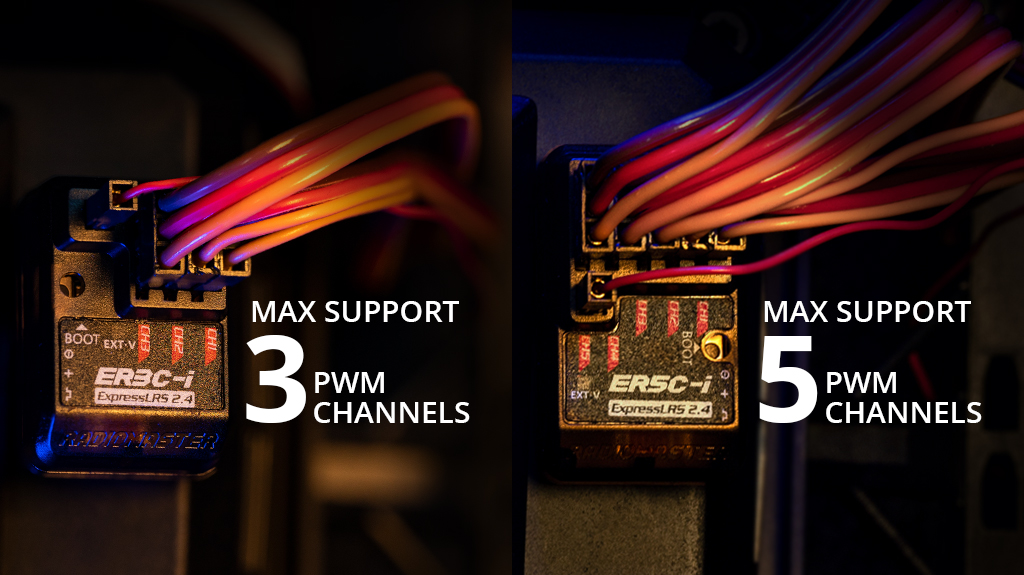

• Support 5 PWM Channels

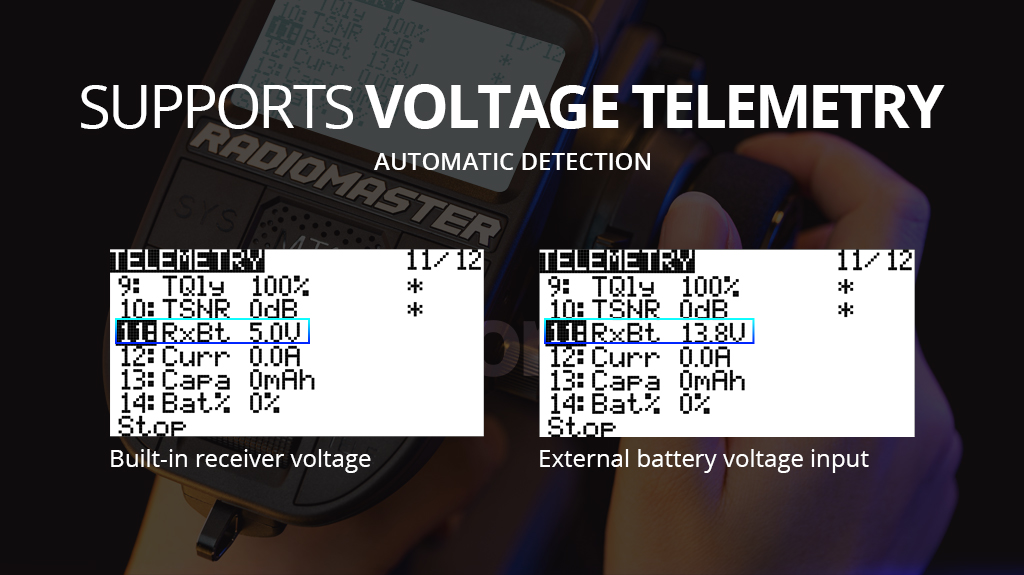

• Automatically detects voltage telemetry of
  external battery voltage or receiver battery /ESC BEC voltage

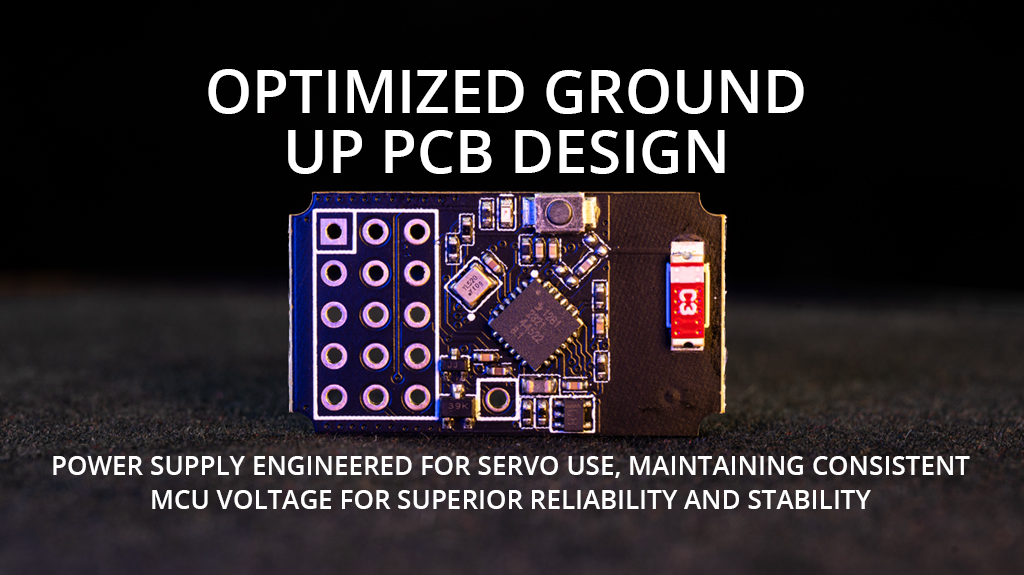

• Optimized ground up PCB design

• Supports Wi-Fi updates and WEBUI configuration

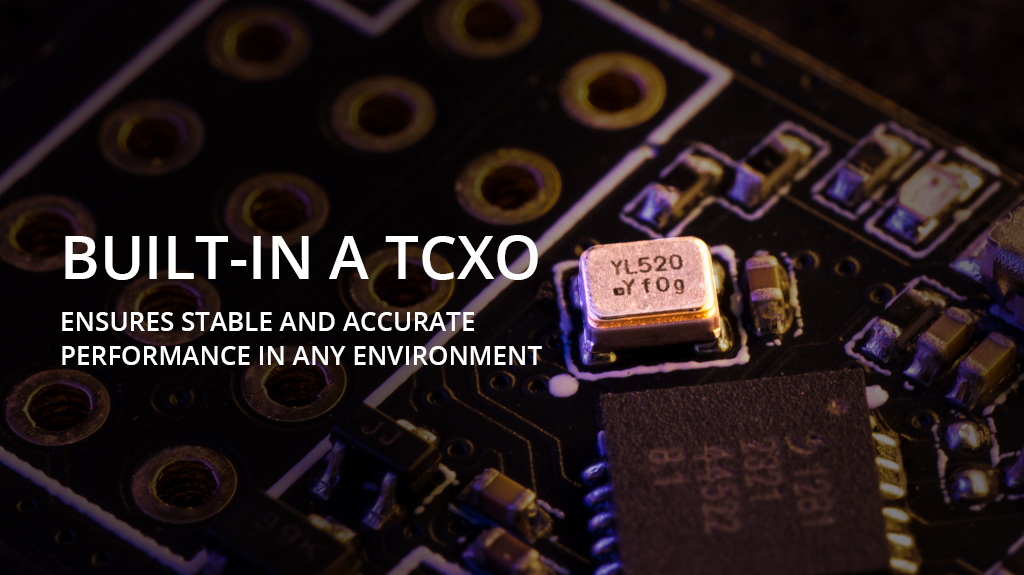

• Built-in a TCXO (temperature compensated crystal
  oscillator)，ensure stable and accurate performance in any environment

• Designed for all types of surface models

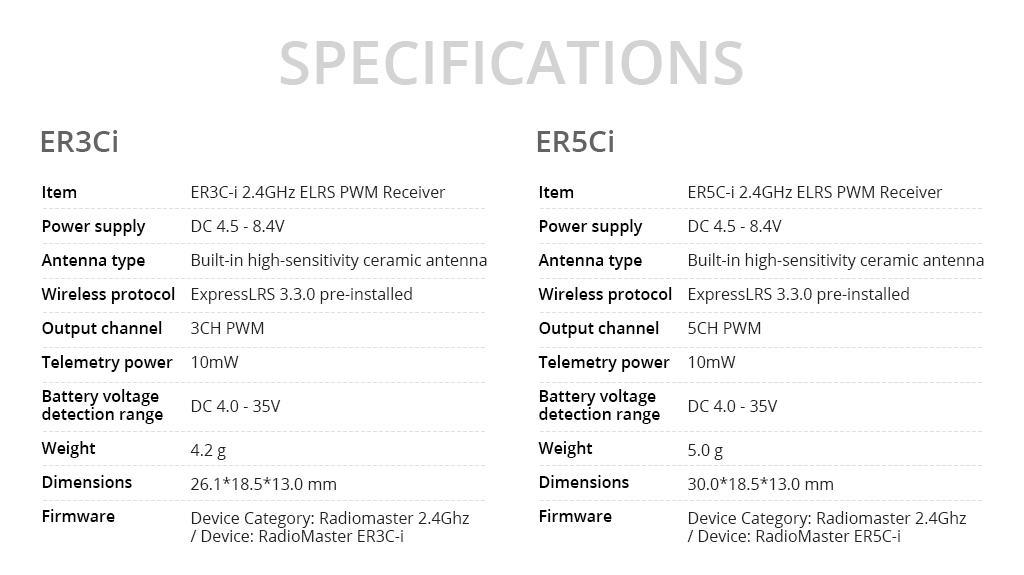

Specifications

• Item: ER5C-i 2.4GHz ELRS PWM Receiver

• Power supply: DC 4.5 – 8.4V

• Antenna type: Built-in high-sensitivity ceramic antenna

• Wireless protocol: ExpressLRS 3.3.0 pre-installed

• Output channel: 5CH PWM

• Telemetry power: 10mW

• Battery voltage detection range: DC 4.0- 35V

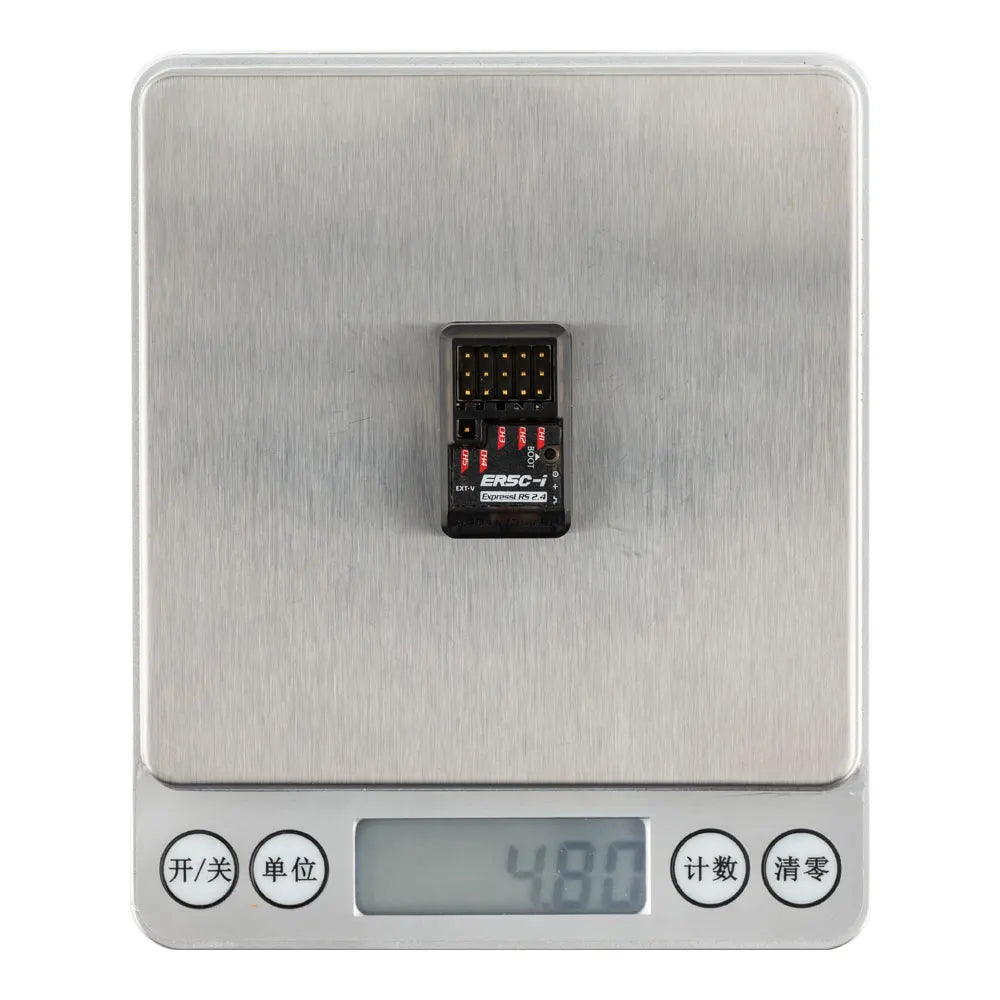

• Weight: 5.0 grams

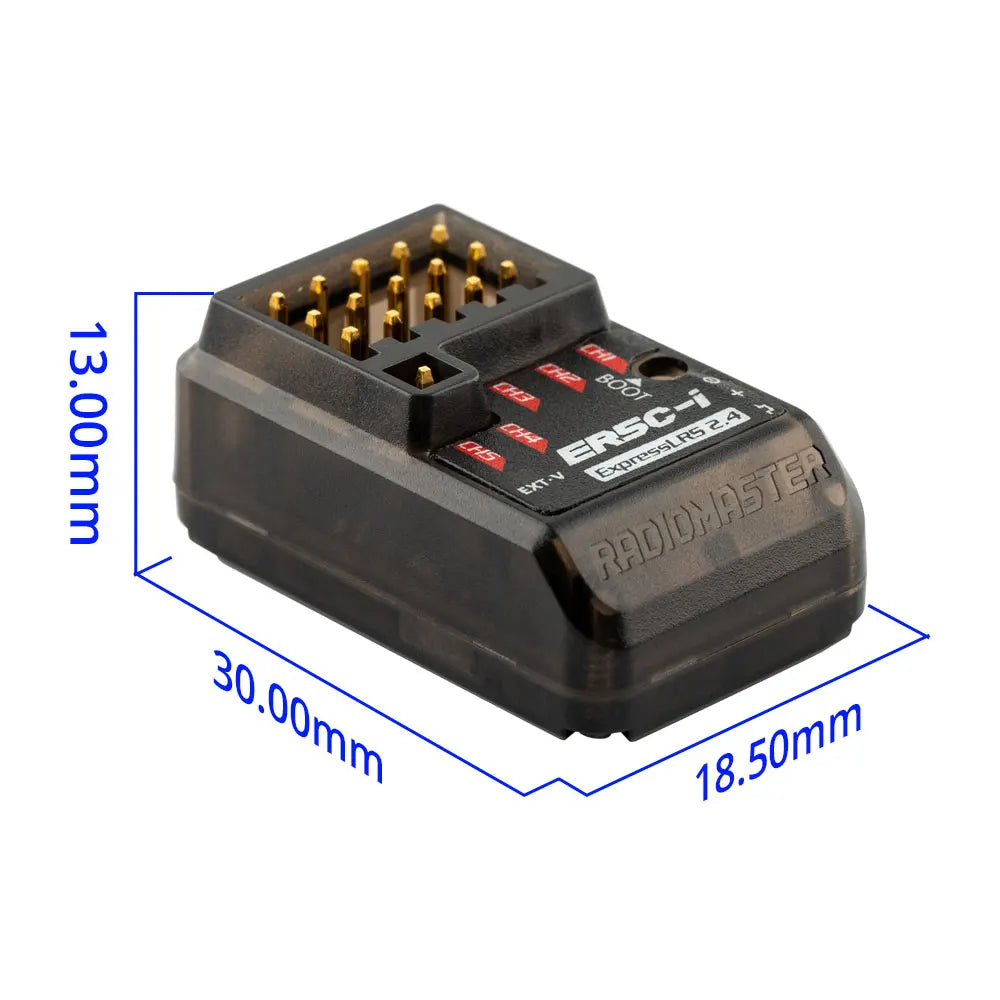

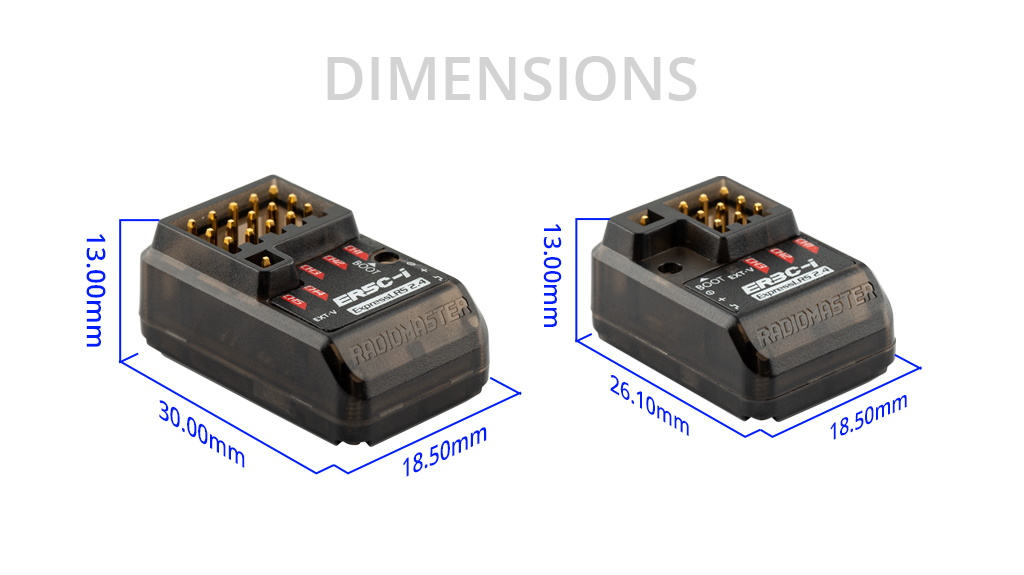

• Dimensions: 30.0*18.5*13.0 mm

• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i

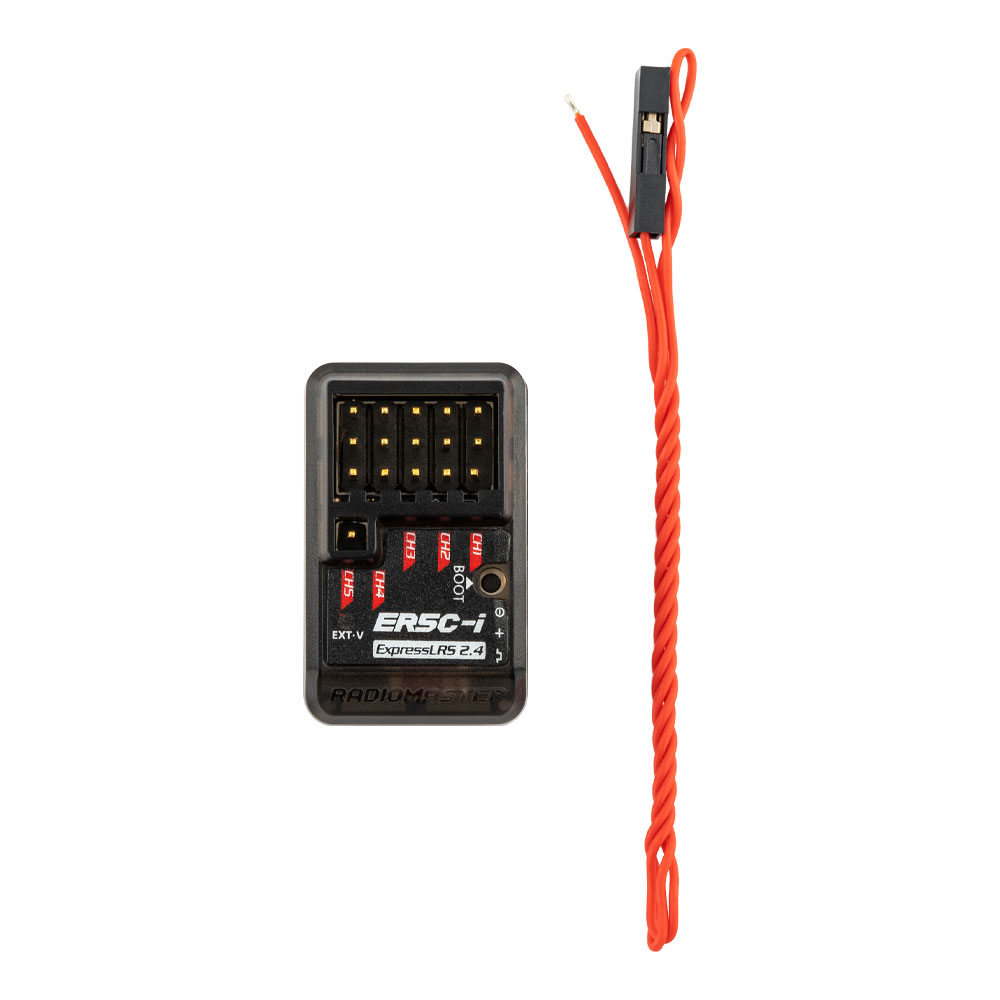

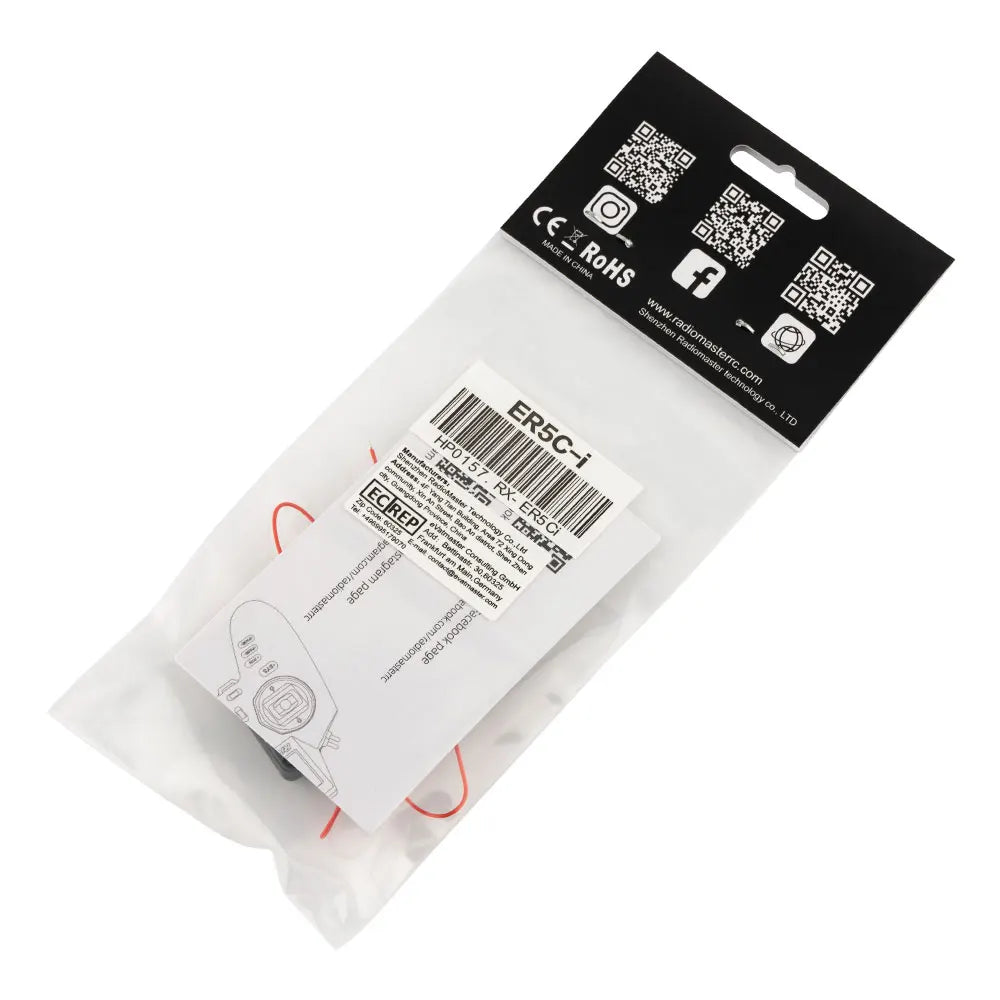

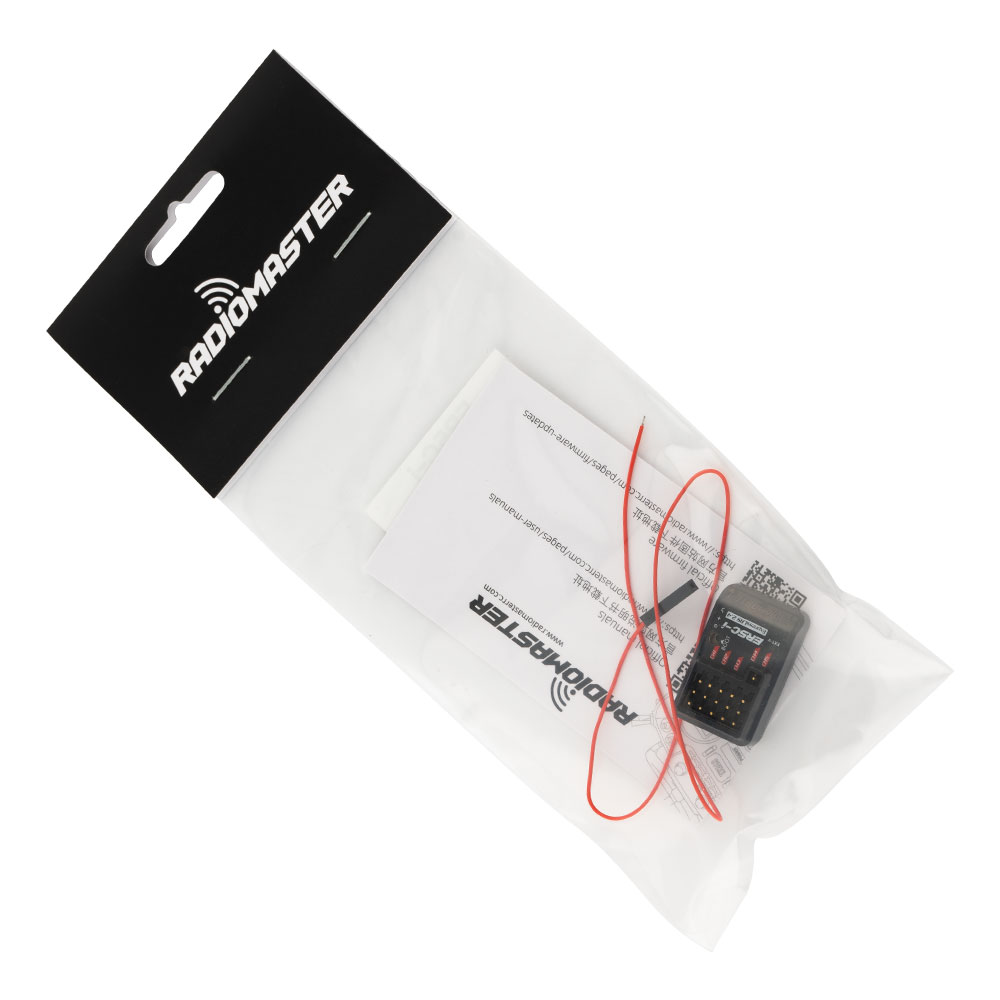

Package Including

• 1 * ER5C-i 2.4GHz ELRS PWM Receiver

• 1 * Voltage telemetry wire

• 1 * User Card
