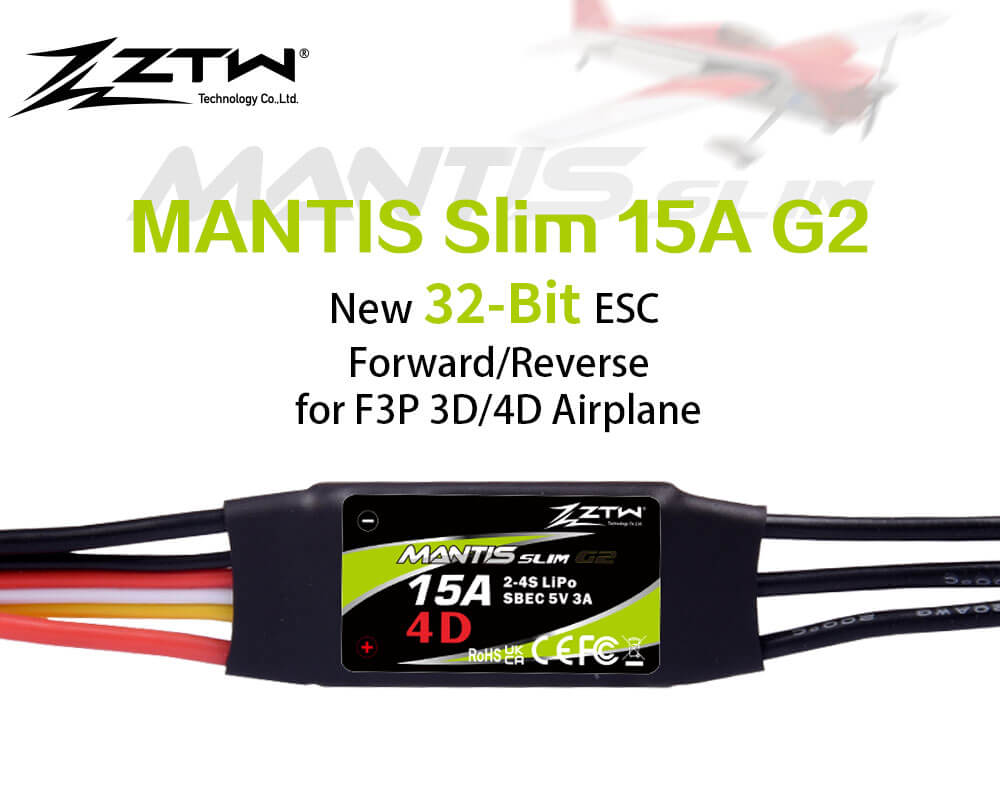

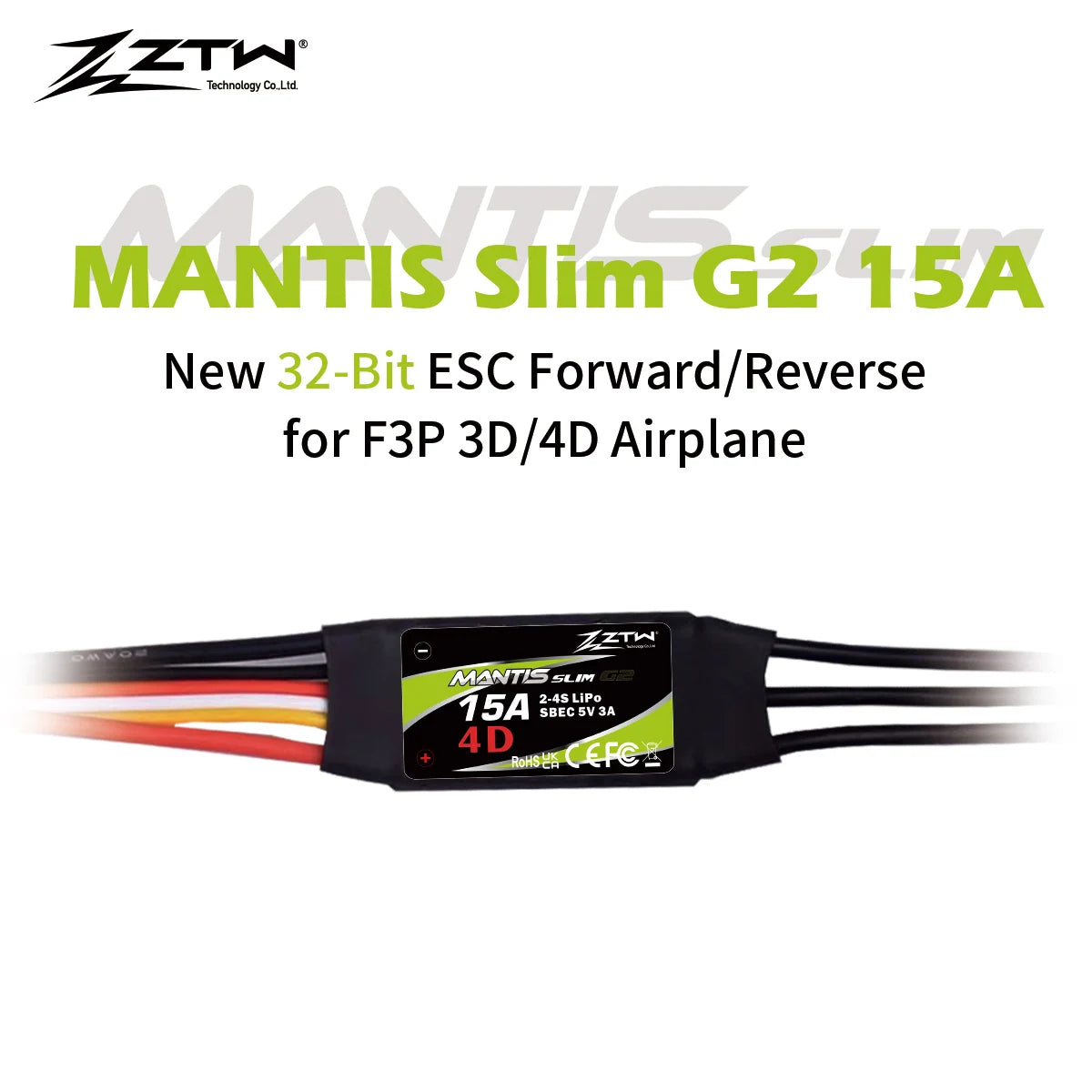

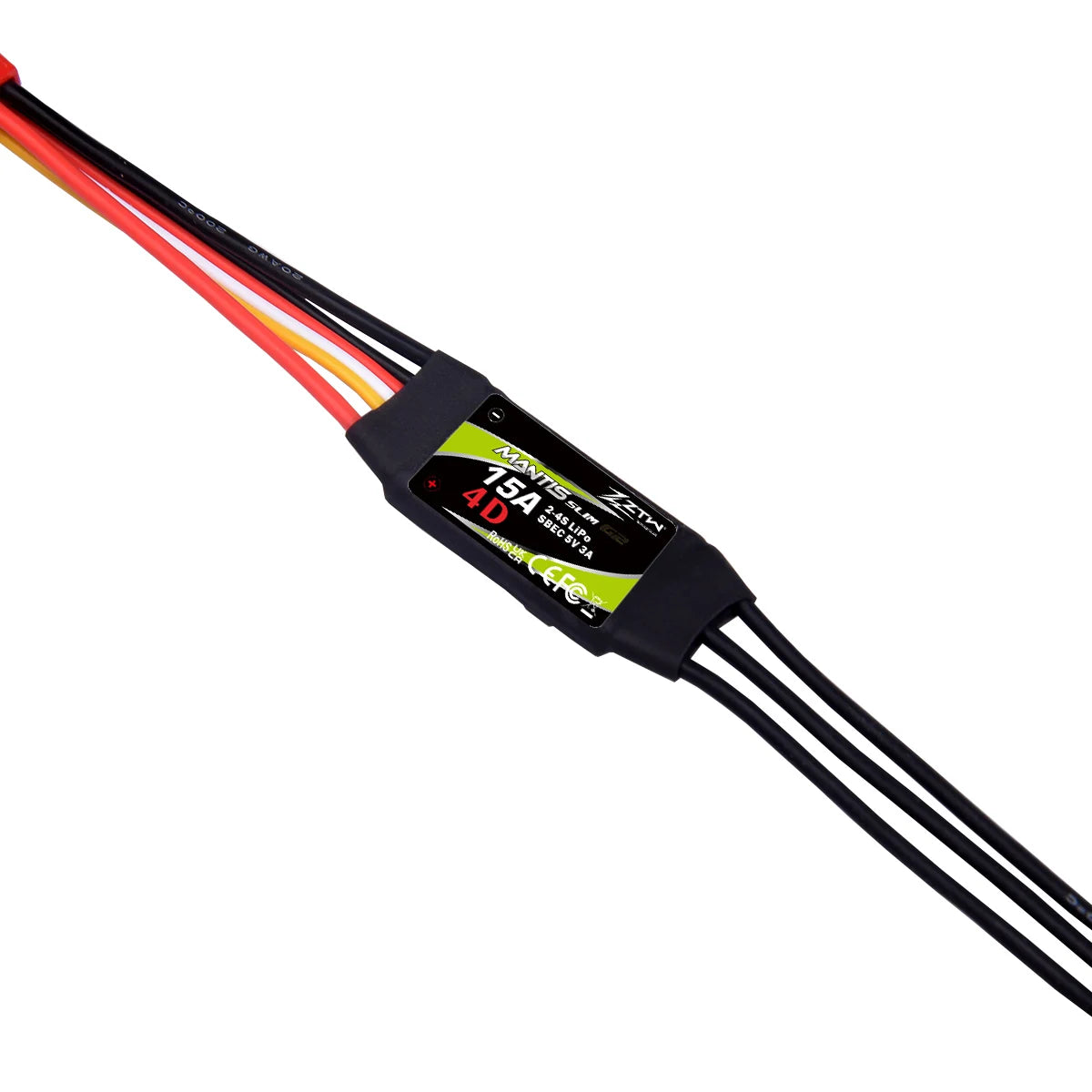

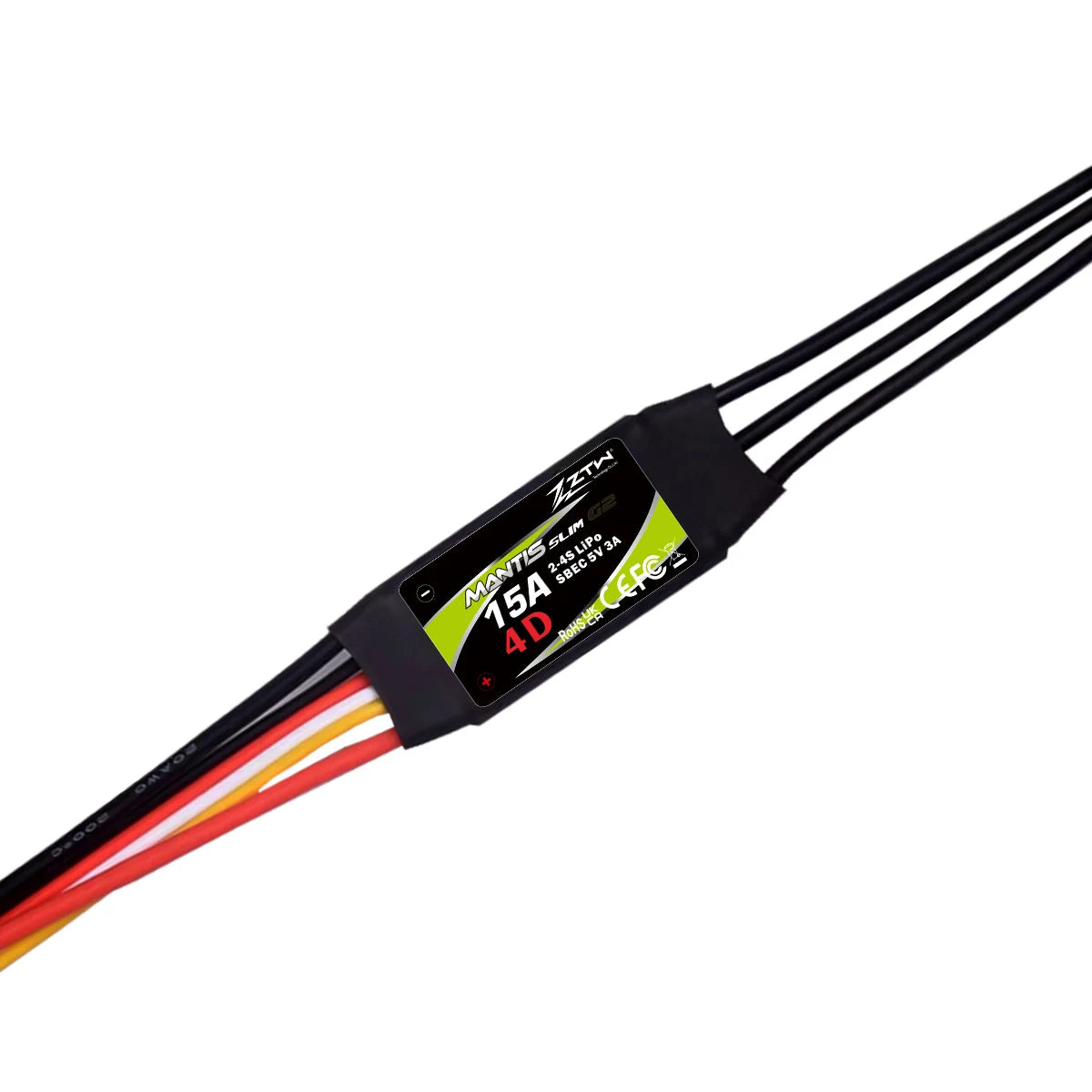

ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A Bidirectional Speed Controller For RC Airplane Fixed-wing Indoor F3P 3D/4D Flying

Key Features:

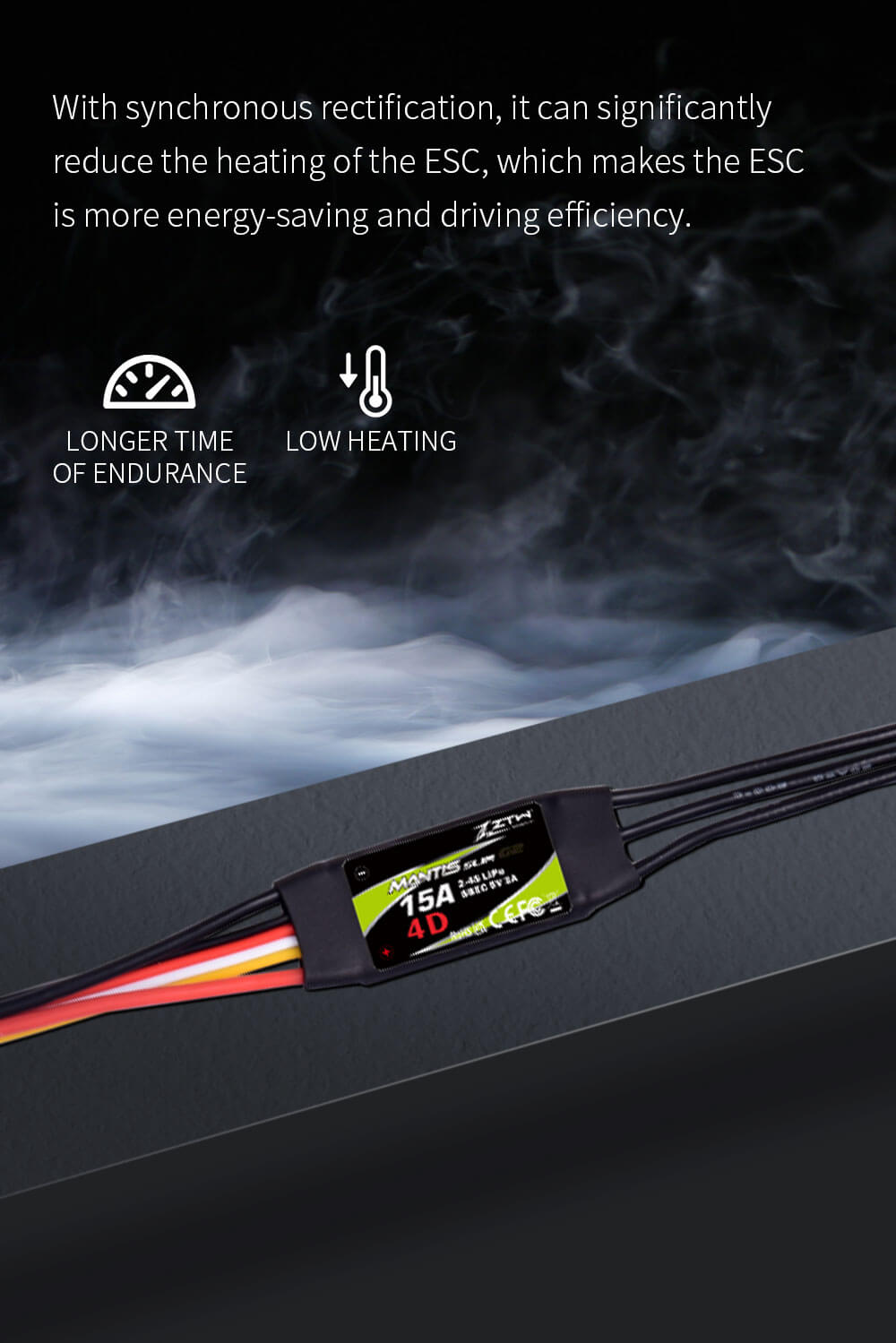

1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.

2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.

3. Super smooth start-up and accurate throttle linearity.

4. Mini size, light weight, Higher driving efficiency and more energy-saving.

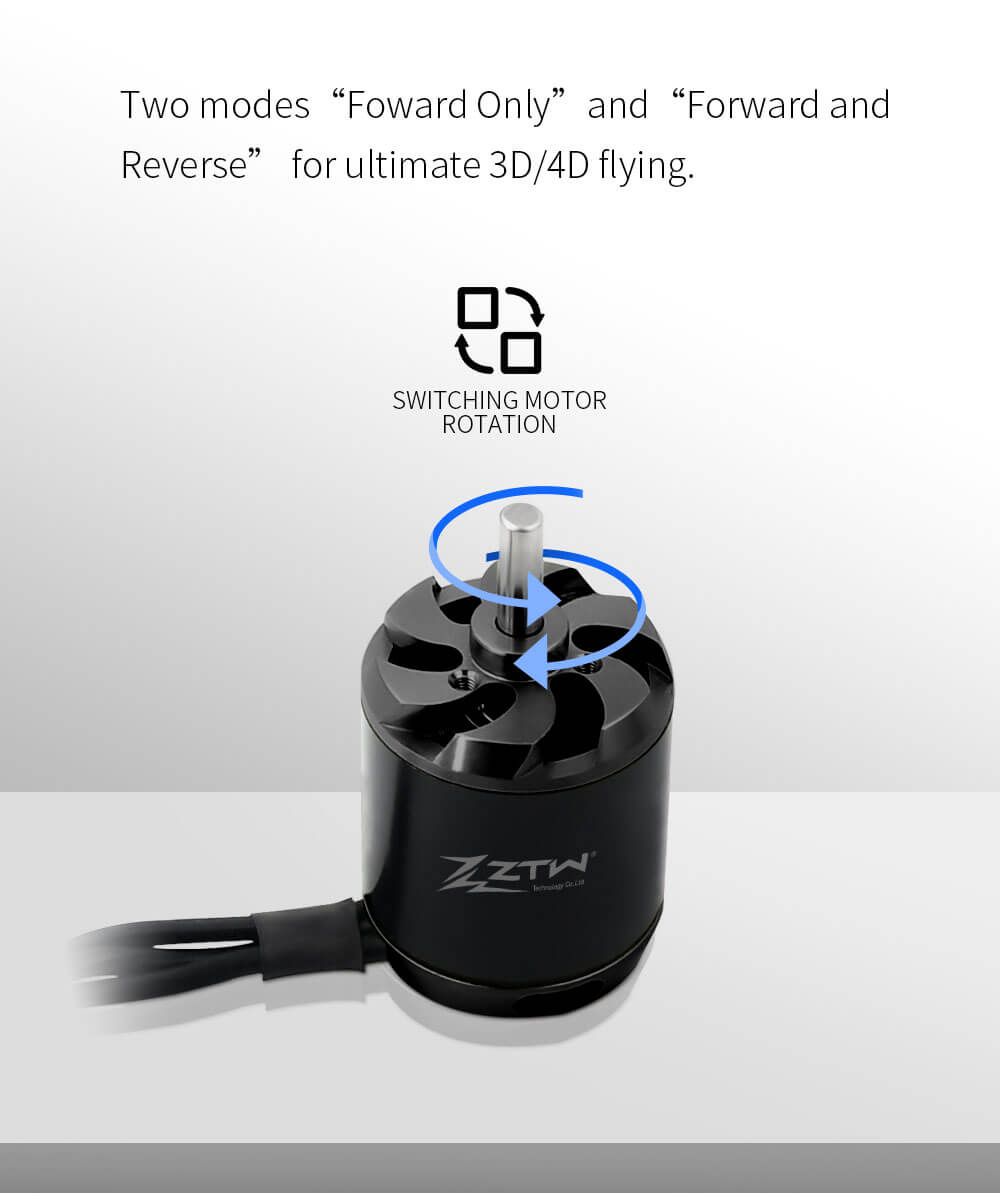

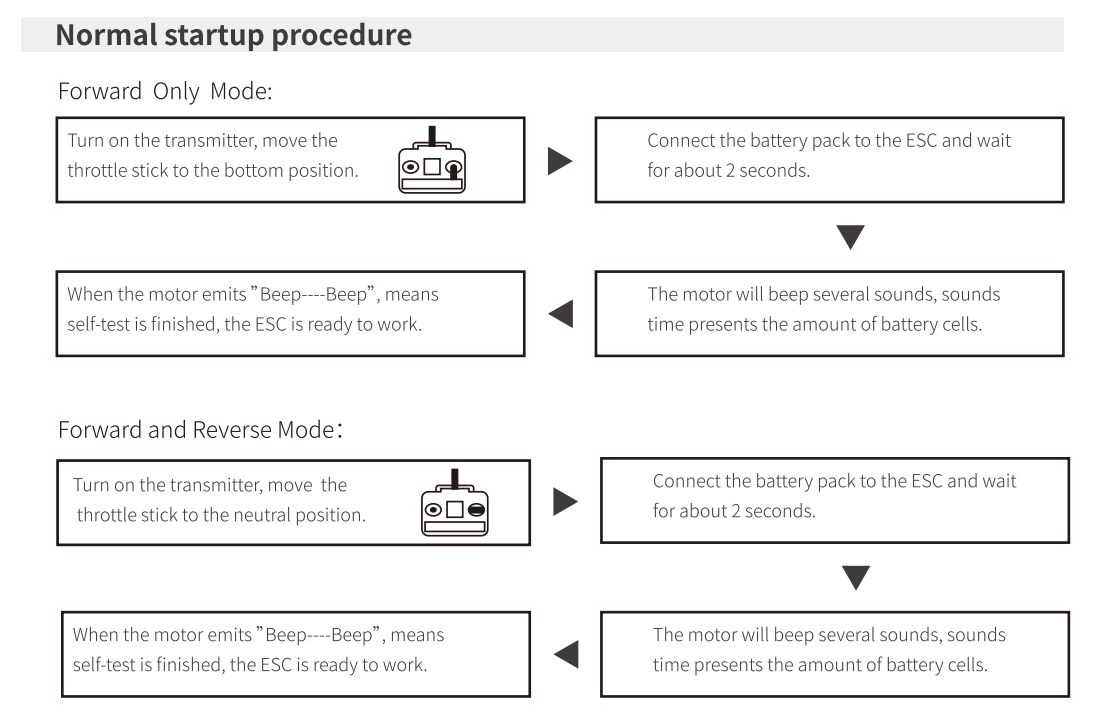

5. Two modes “Forward Only” and “Forward and Reverse” for ultimate 3D/4D flying.

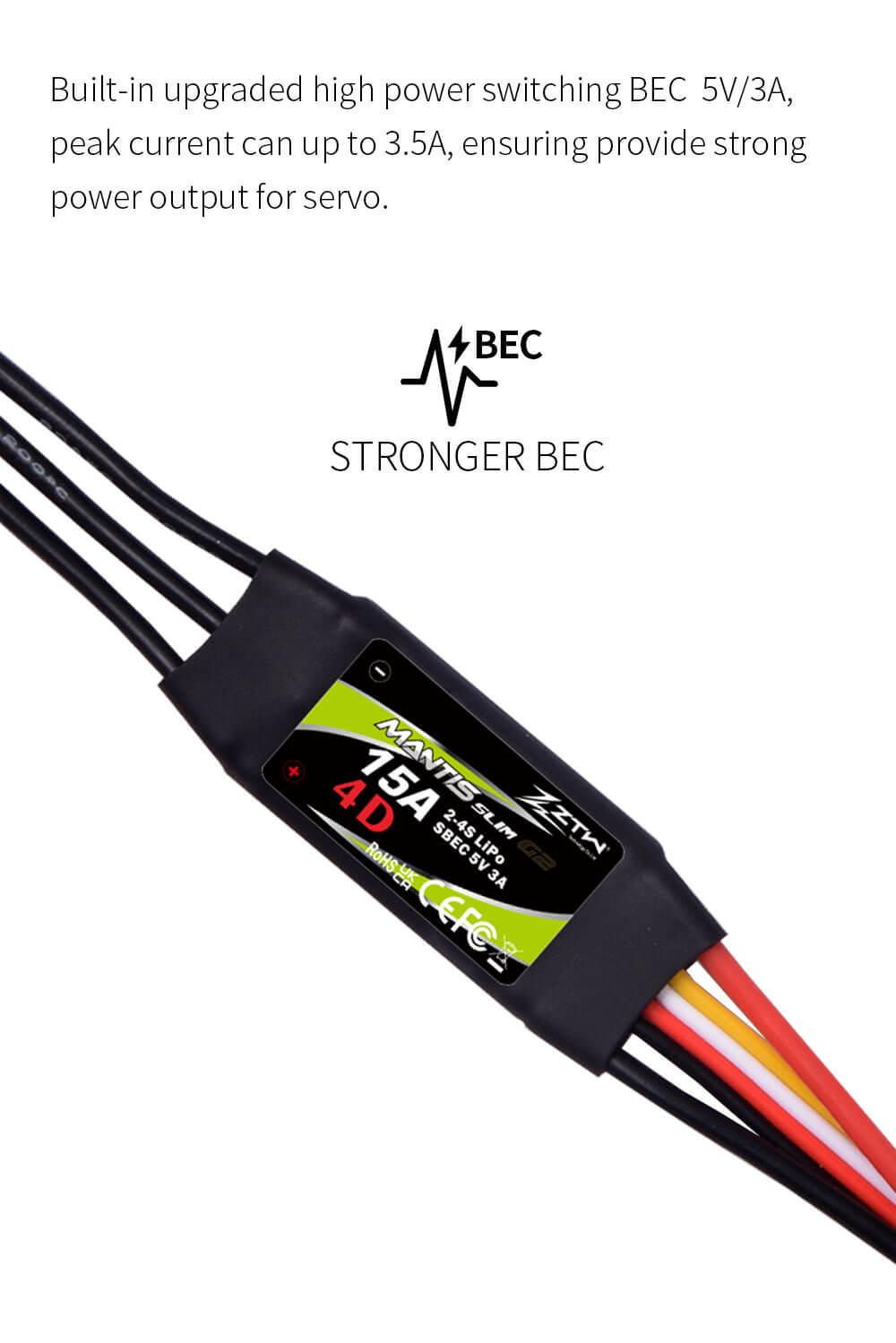

6. Super strong SBEC output, continuous 6V/3A, peak 3.5A current.

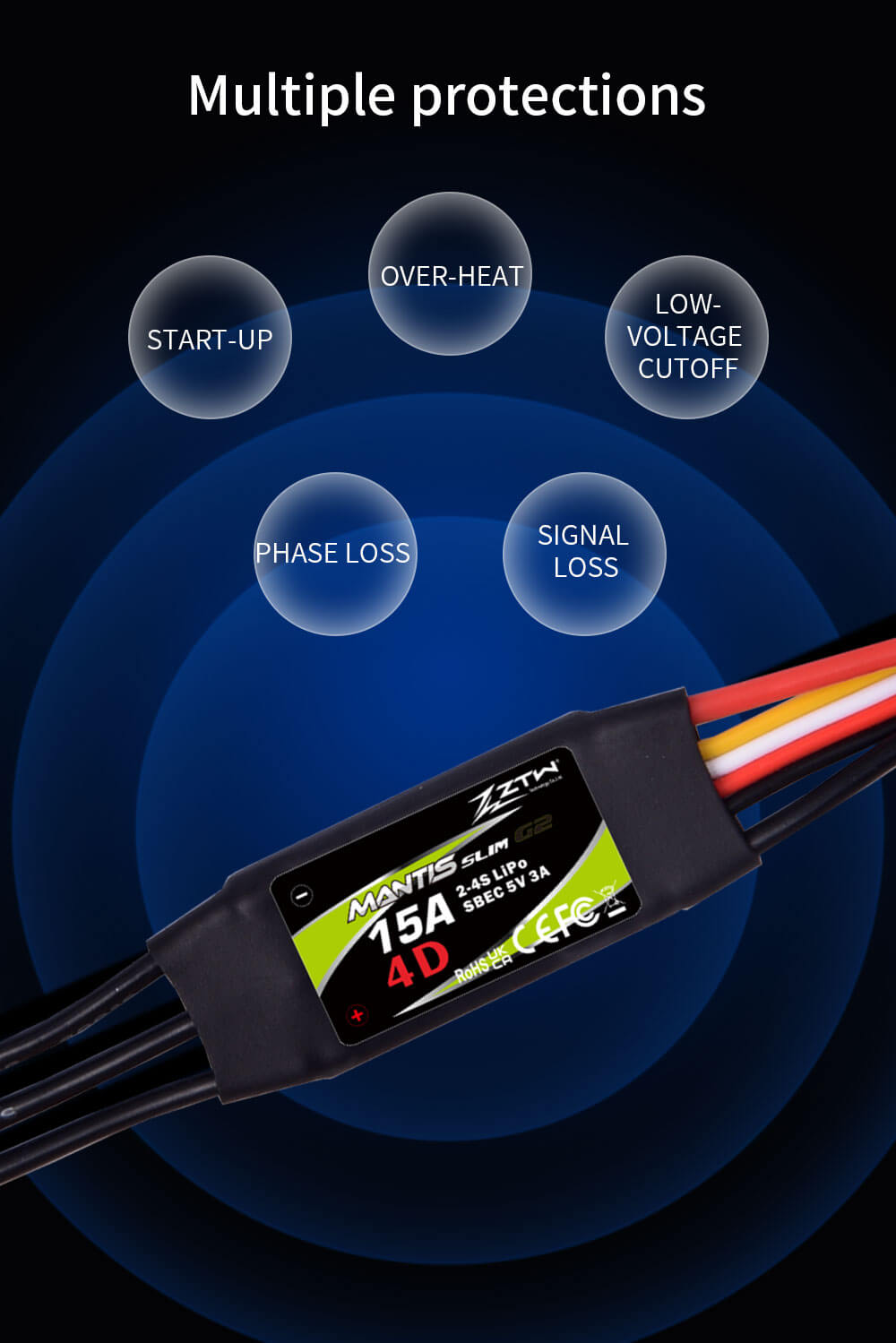

7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.

8. Support high RPM motors, and compatible with most motors in the market.

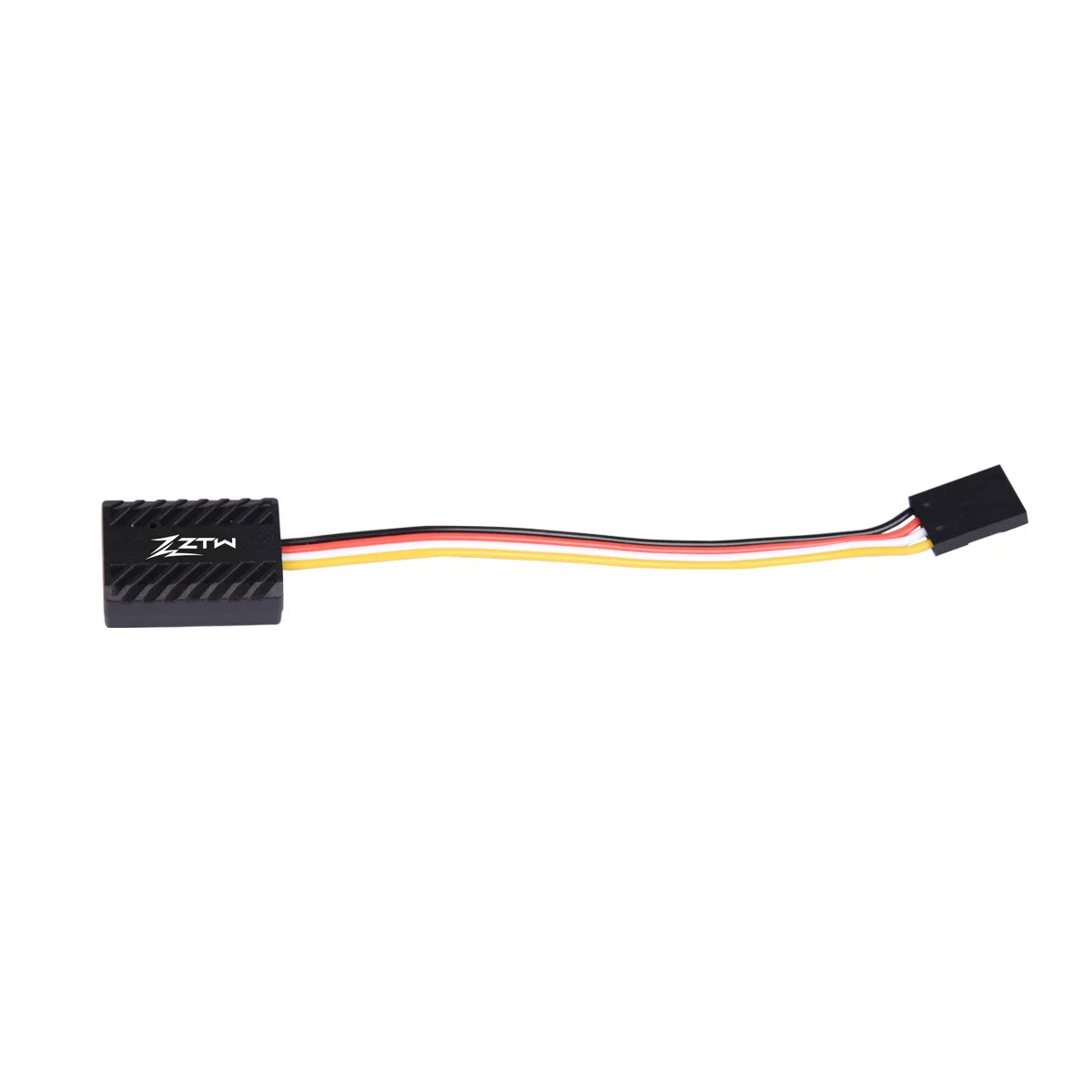

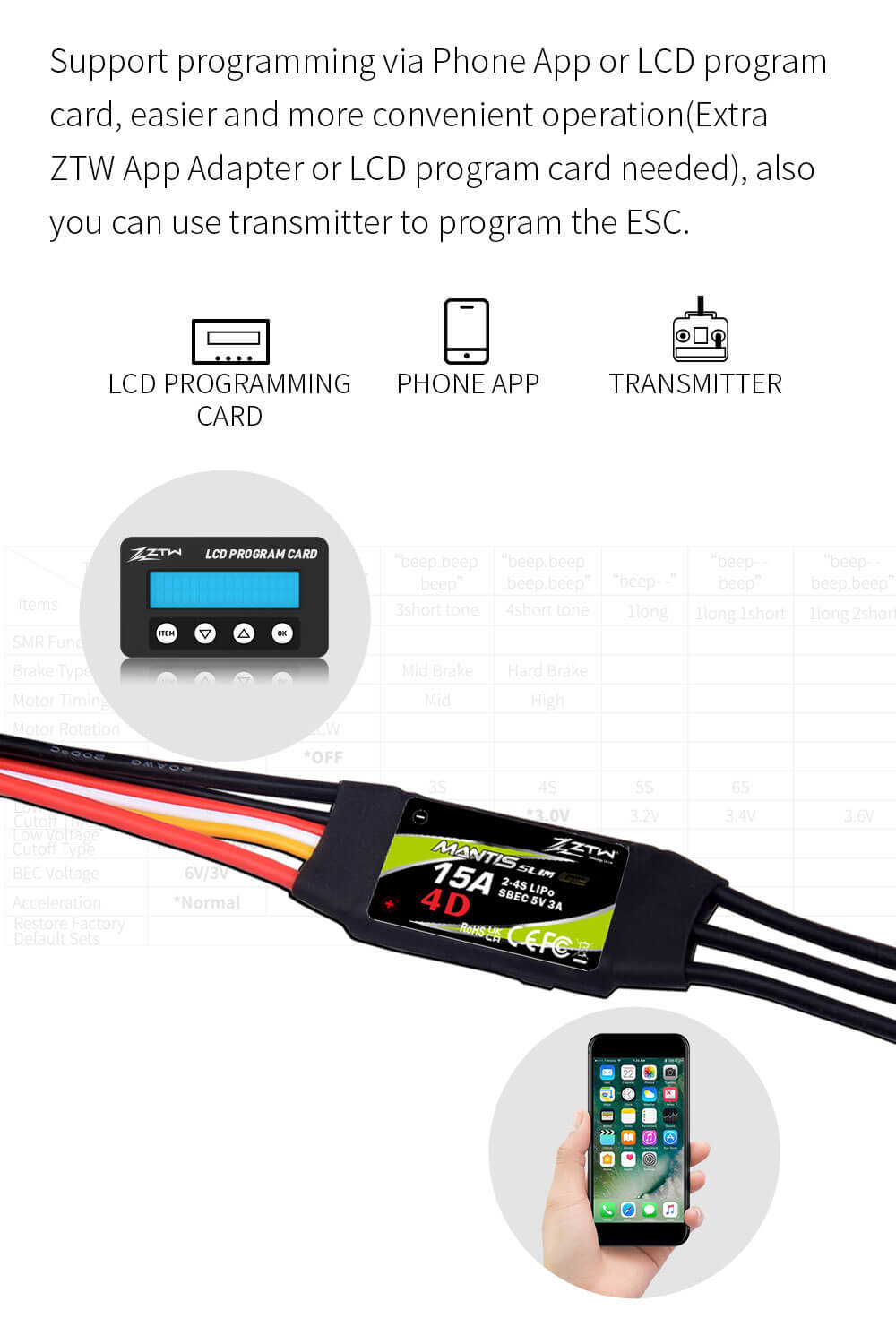

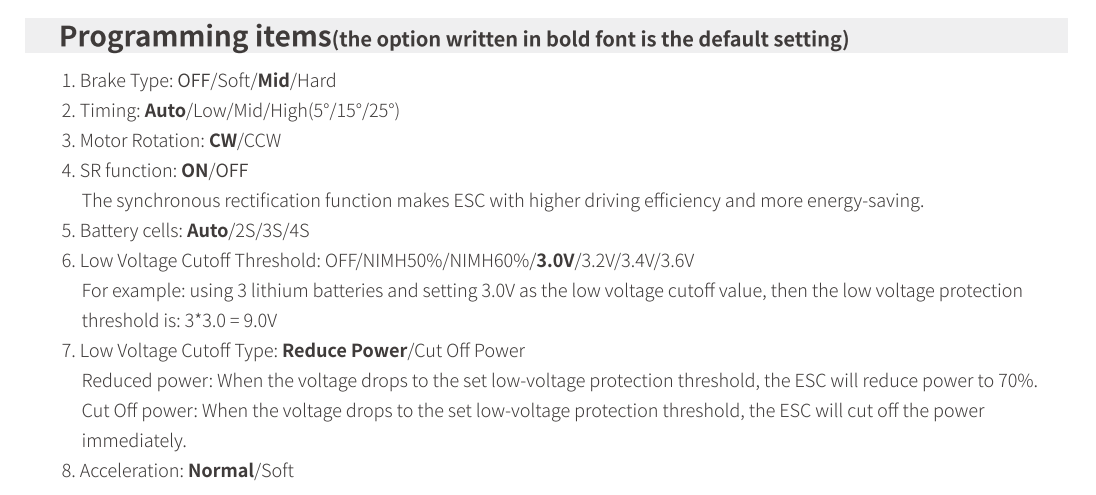

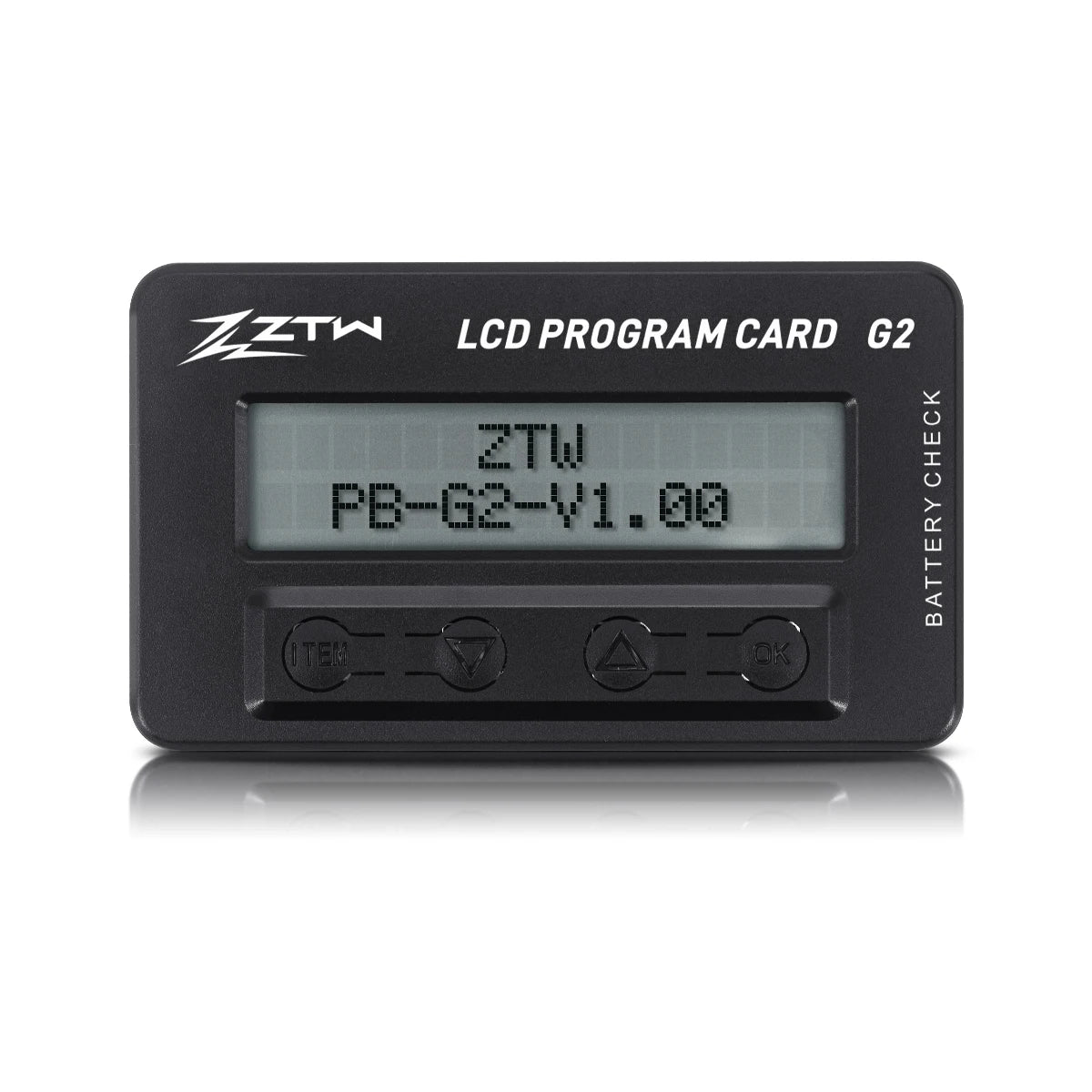

9. Support programming via transmitter or Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card needed).

Specifications:

Model: Mantis Slim G2 15

Cont./Burst Current(A): 15A/30A

Battery cell NiXXLipo: 5-12NC/2-4Lipo

Weight(g): 9

BEC Output: 6V/3A

Size(mm)L*W*H: 25.5*15*5.2

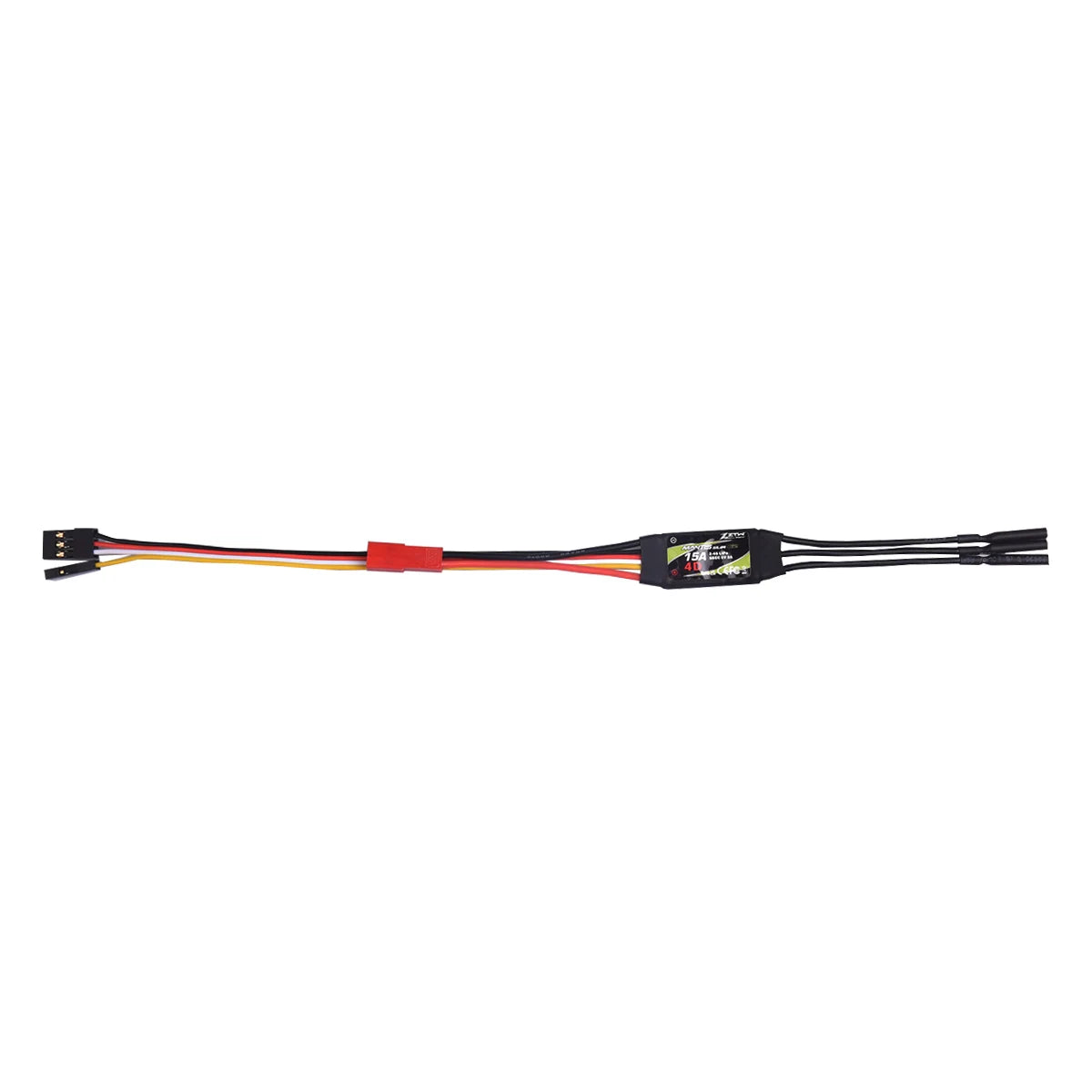

Plug: JST female plug for battery side, 2mm gold plug for motor side
