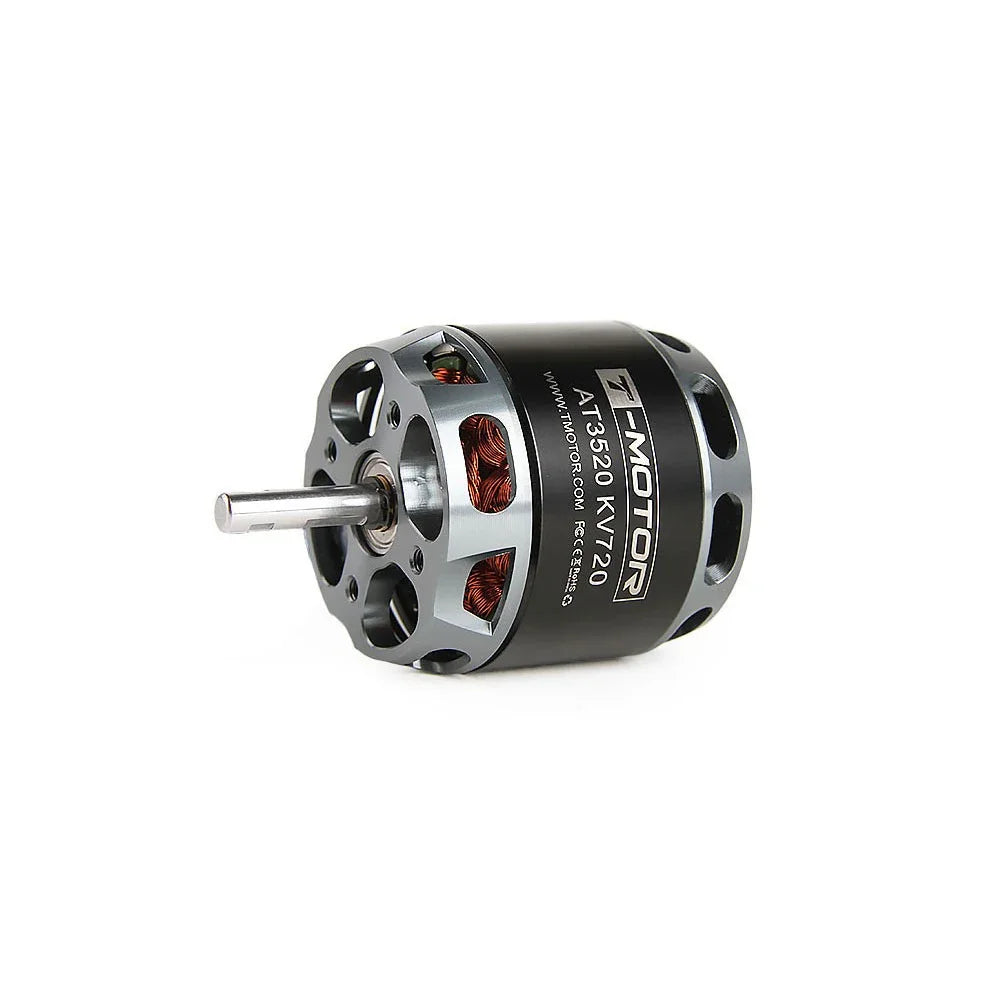

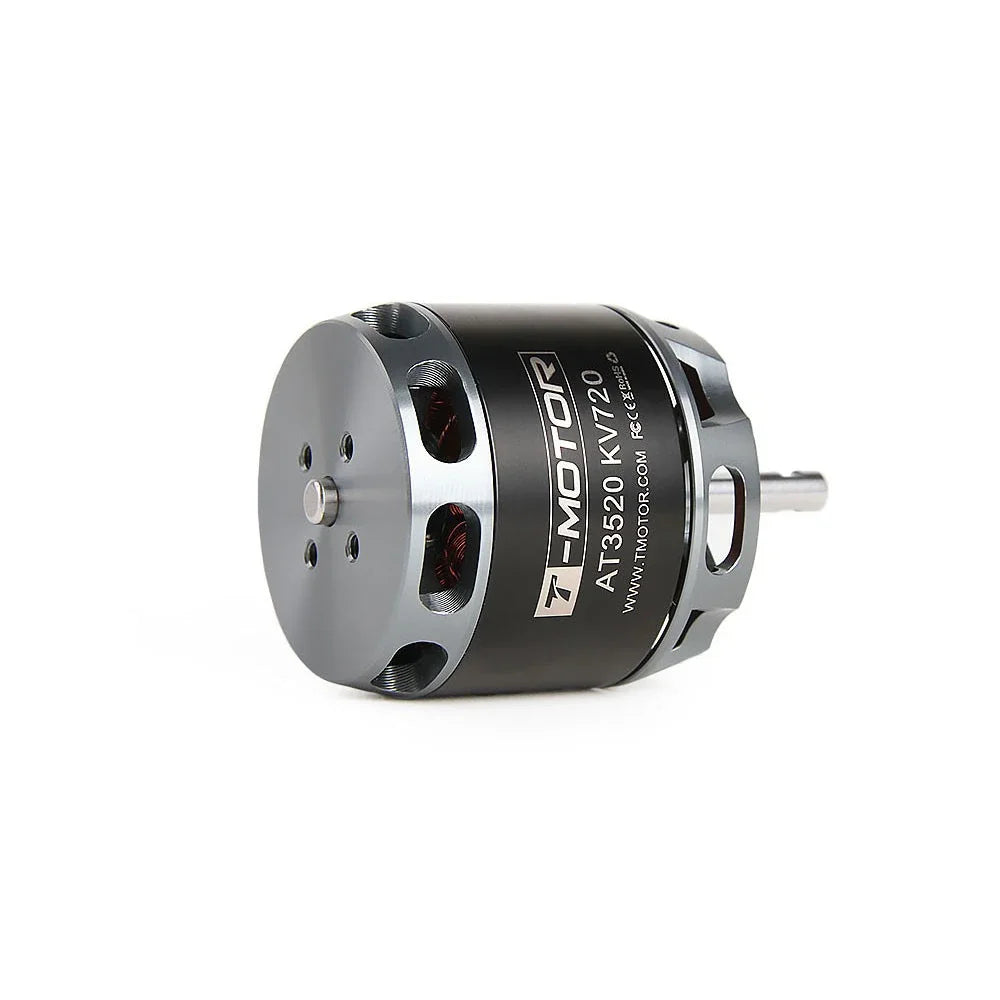

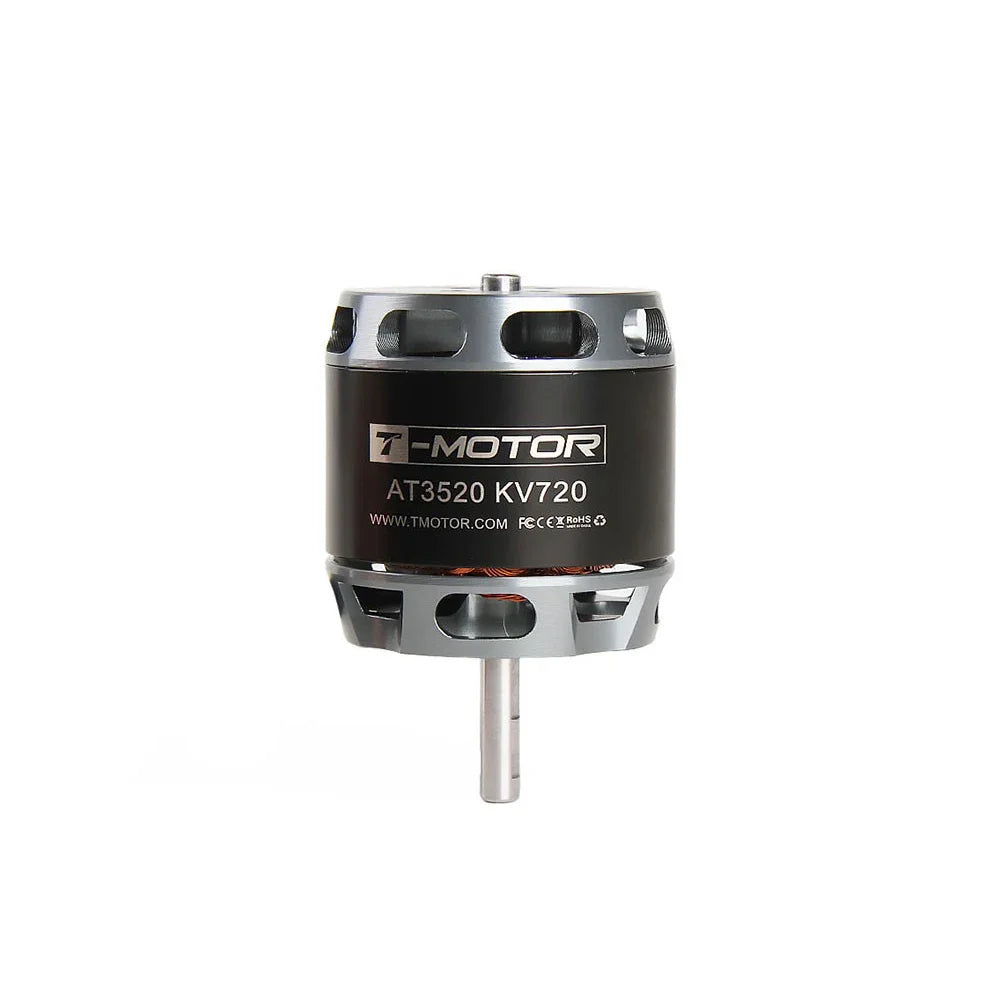

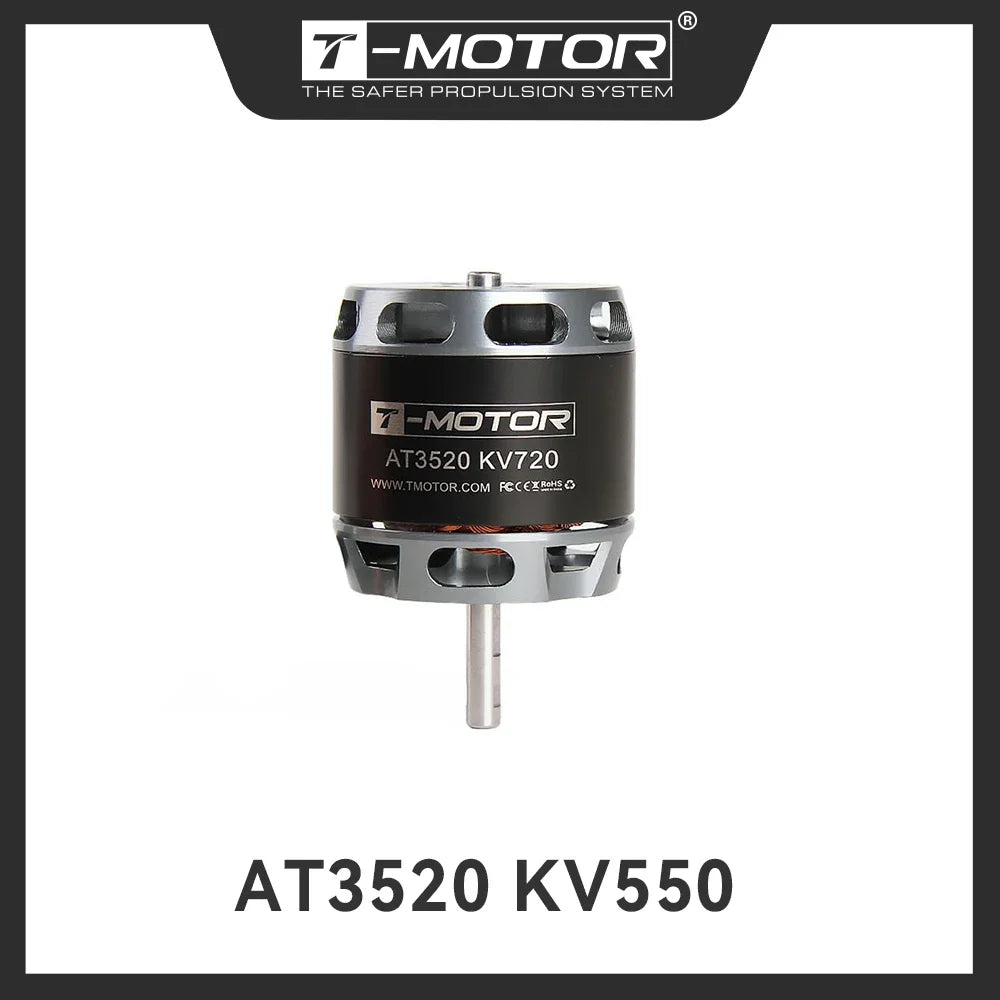

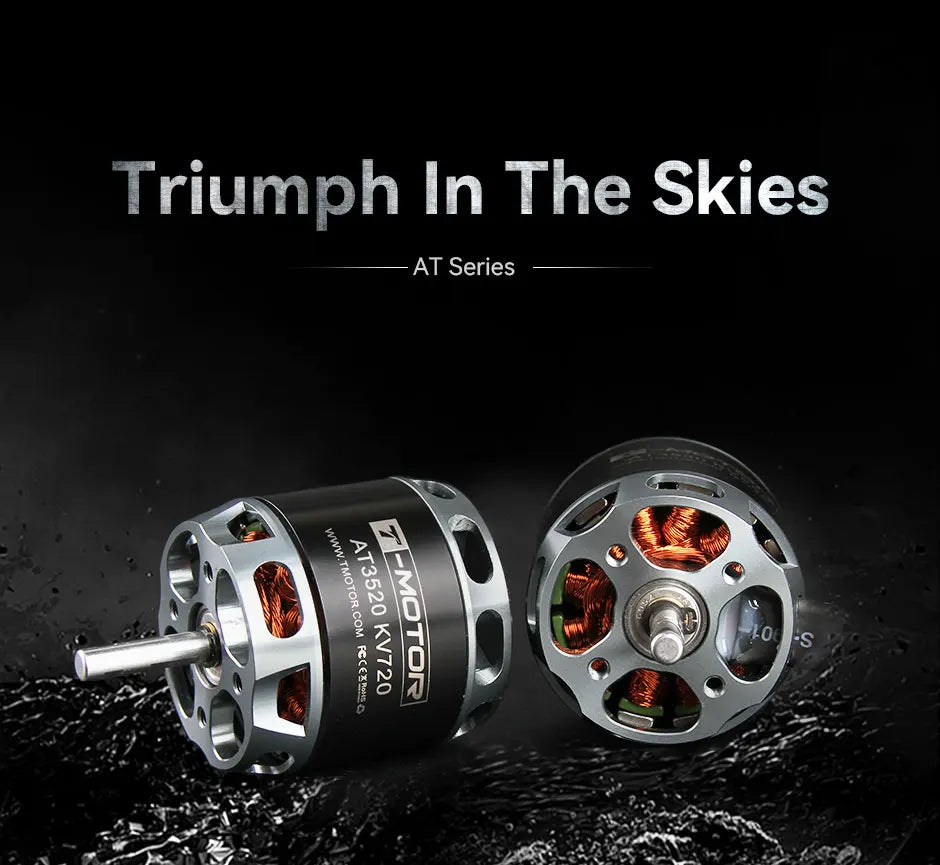

T-MOTOR AT3520 KV550 KV720 KV850 Long Shaft Brushless Motor
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
|
Test Item |
Long Shaft KV850 |
Weight (Incl. Cable) |
221g |
|

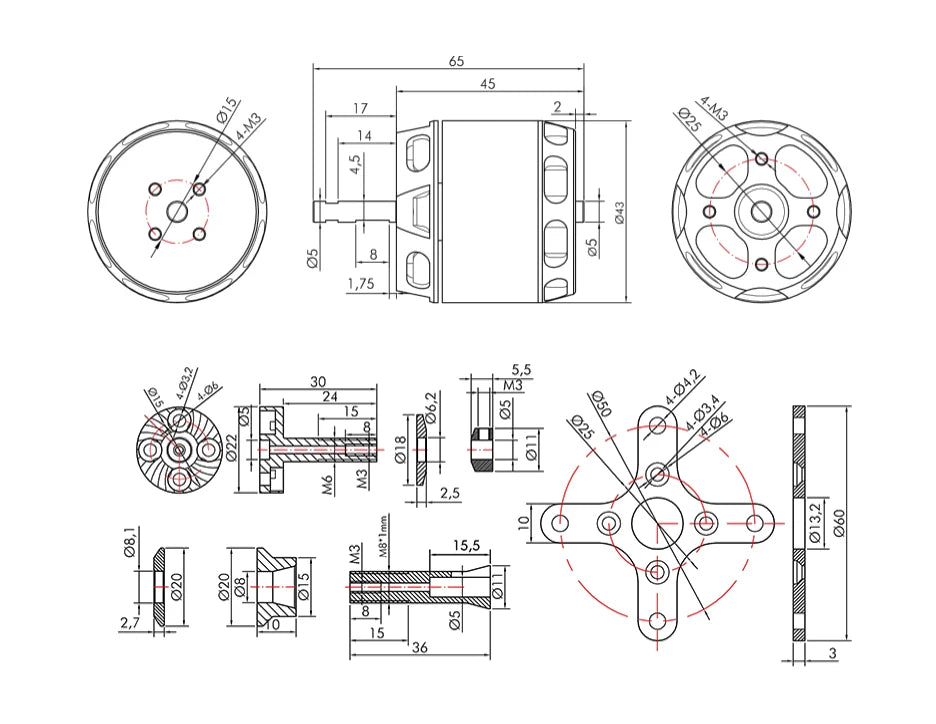

Motor Dimensions |
Φ43*65mm |
Internal Resistance |
14mΩ |
|
Lead |
Enameled Wire100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN：5mm |
Rated Voltage(Lipo) |
3-4S |
|
Idle Current(10V) |
2.0A |
Peak Current(180s) |
70A |
|
Max. Power(180s) |
1100W |
Recommendation |
/ |
|
Test Item |
Long Shaft KV720 |
Weight (Incl. Cable) |
219g |
|
Motor Dimensions |
Φ43*65mm |
Internal Resistance |
20mΩ |
|
Lead |
Enameled Wire100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN：5mm |
Rated Voltage(Lipo) |
4-5S |
|
Idle Current(10V) |
1.6A |
Peak Current(180s) |
70A |
|
Max. Power(180s) |
1300W |
Recommendation |
/ |
|
Test Item |
Long Shaft KV550 |
Weight (Incl. Cable) |
218g |
|
Motor Dimensions |
Φ43*65mm |
Internal Resistance |
31mΩ |
|
Lead |
Enameled Wire100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN：5mm |
Rated Voltage(Lipo) |
4-6S |
|
Idle Current(10V) |
1.1A |
Peak Current(180s) |
50A |
|
Max. Power(180s) |
1100W |
Recommendation |
/ |
