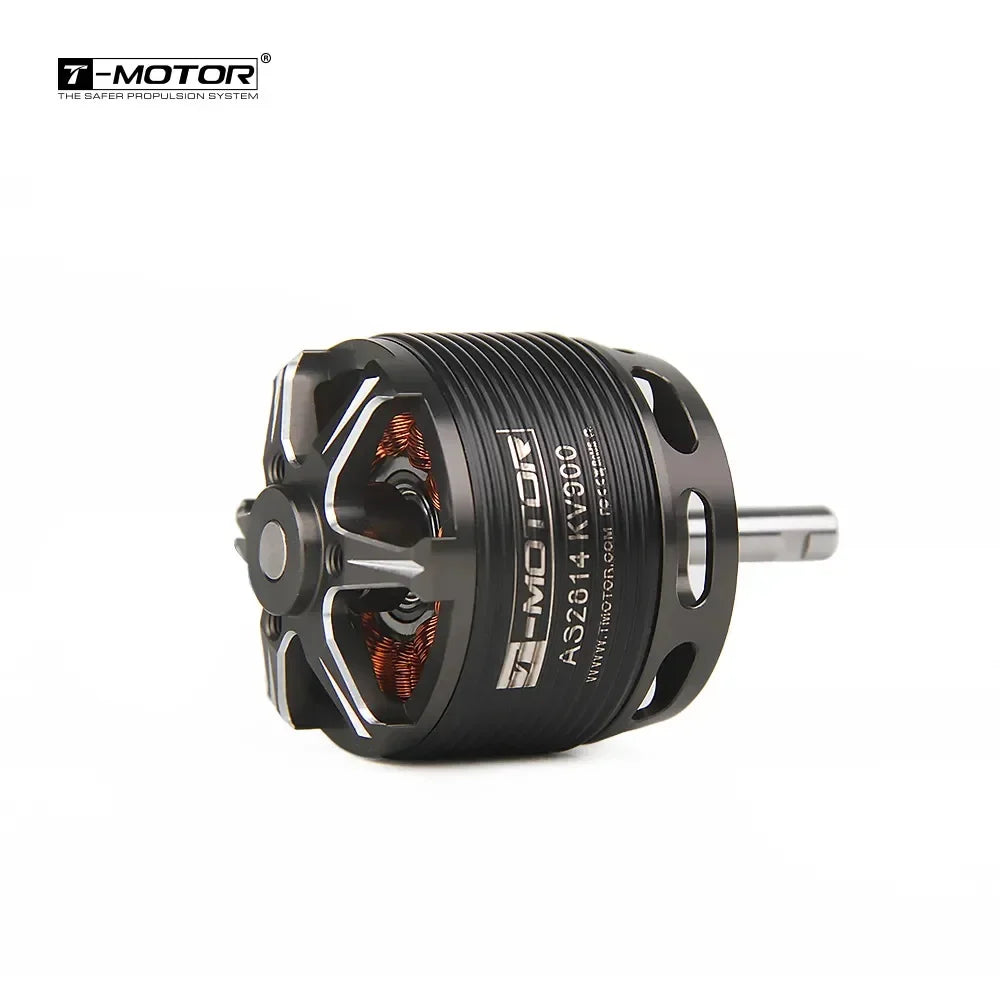

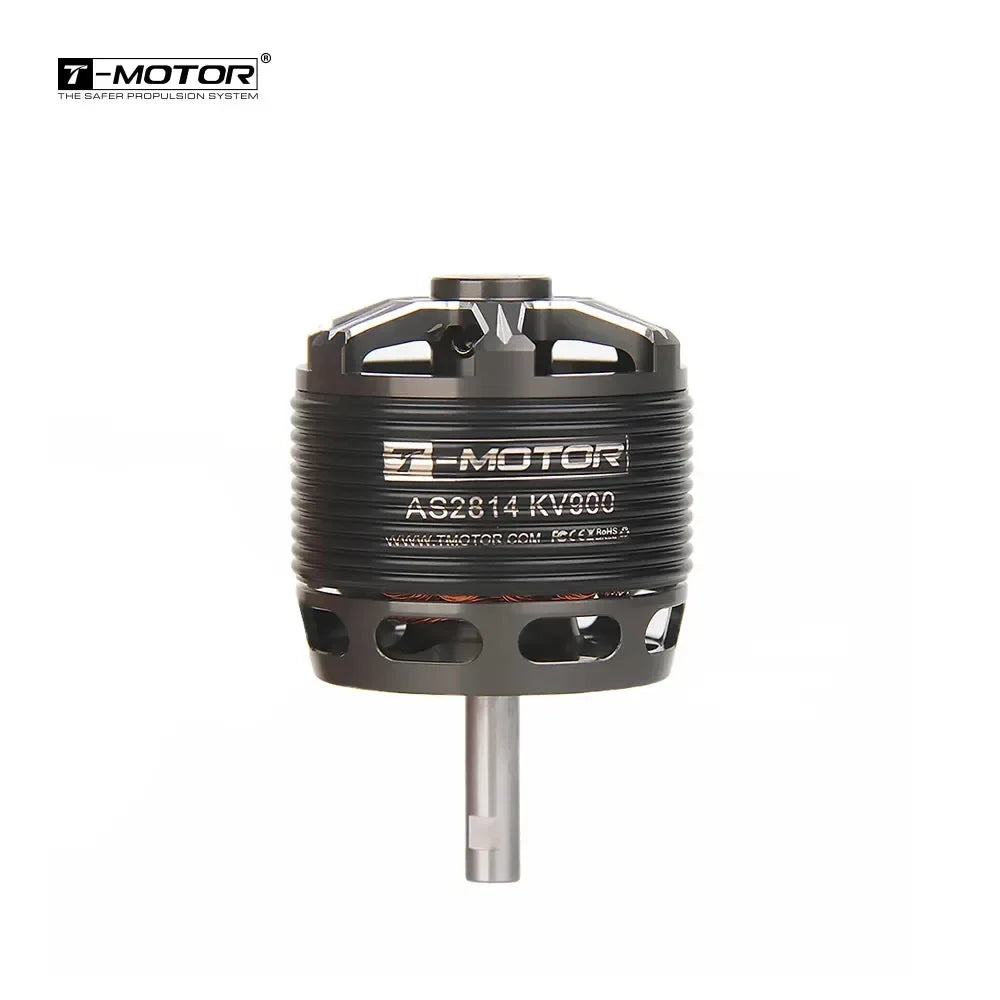

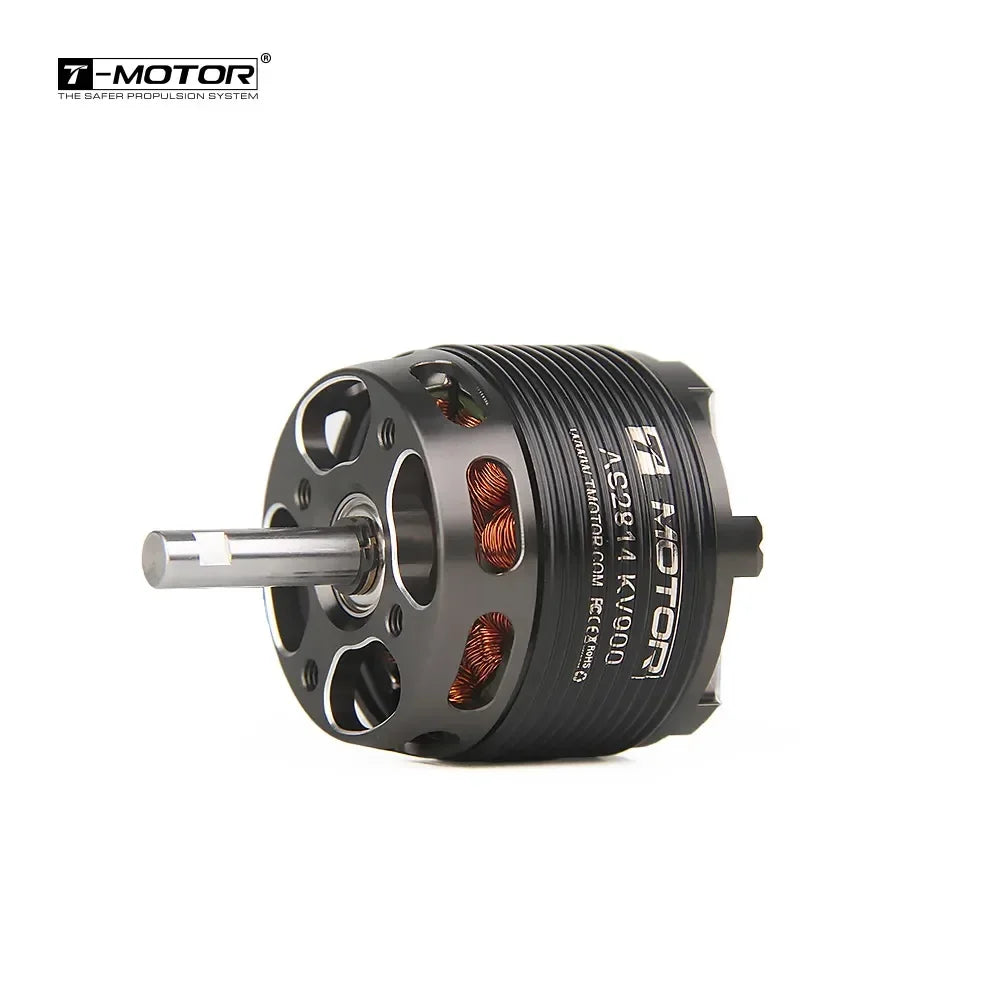

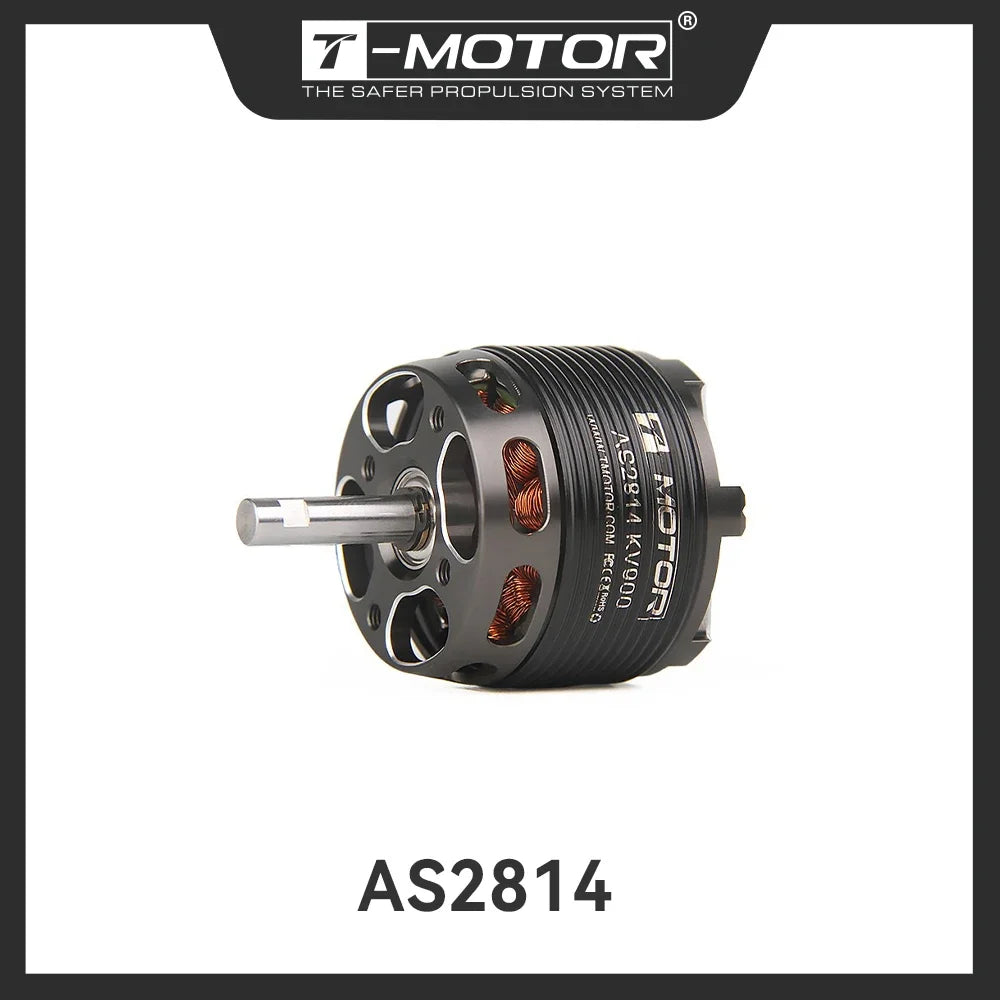

T-MOTOR AS2814 2-4S KV900 KV1050 KV1200 KV2000 Long Shaft 3D F3A Airplane Power
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
|
Test Item |
Long Shaft KV900 |
Weight (Incl. Cable) |
110g |
|

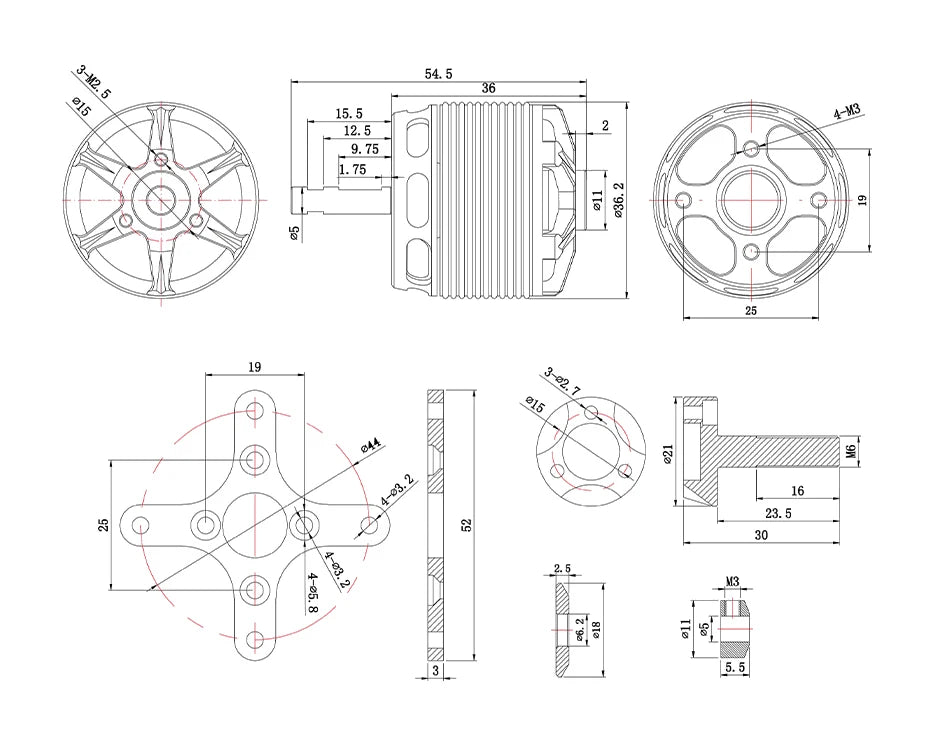

Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
43.5mΩ |
|
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
3-4S |
|
Idle Current(10V) |
1.35A |
Peak Current(180s) |
37A |
|
Max. Power(180s) |
553W |
Recommendation |
/ |
|
Test Item |
Long Shaft KV1050 |
Weight (Incl. Cable) |
112g |
|
Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
34.6mΩ |
|
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
3-4S |
|
Idle Current(10V) |
1.35A |
Peak Current(180s) |
49A |
|
Max. Power(180s) |
718W |
Recommendation |
/ |
|
Test Item |
Long Shaft KV1200 |
Weight (Incl. Cable) |
112g |
|
Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
25.2mΩ |
|
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
3-4S |
|
Idle Current(10V) |
2.21A |
Peak Current(180s) |
61A |
|
Max. Power(180s) |
885W |
Recommendation |
/ |
|
Test Item |
Long Shaft KV2000 |
Weight (Incl. Cable) |
116g |
|
Motor Dimensions |
Φ36.2*54.5mm |
Internal Resistance |
11mΩ |
|
Lead |
Enameled Wire 100mm |
Configuration |
12N14P |
|
Shaft Diameter |
IN:5mm |
Rated Voltage(Lipo) |
2-3S |
|
Idle Current(10V) |
4.5A |
Peak Current(180s) |
42A |
|
Max. Power(180s) |
441W |
Recommendation |
/ |
