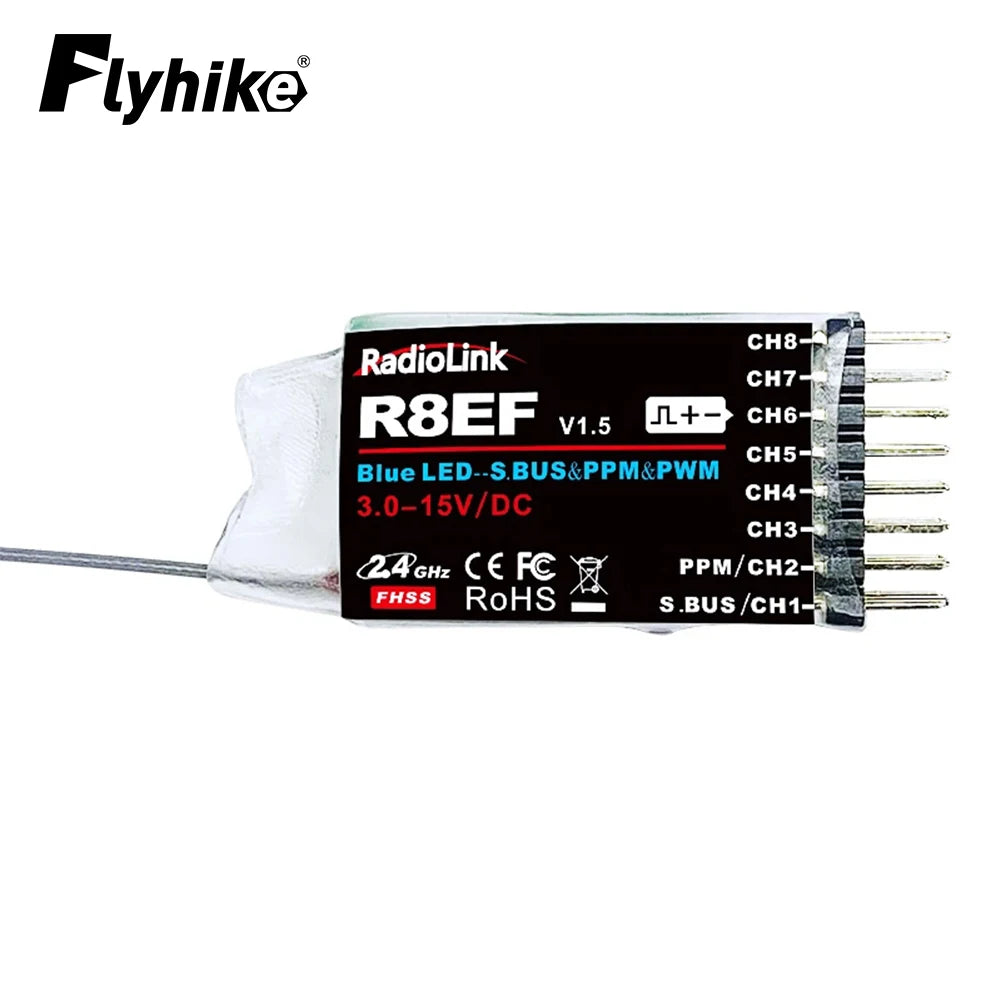

Radiolink R8EF 2.4Ghz 8 Channels RC Receiver Support S-Bus/PPM/PWM Signal for 8CH T8FB T8S RC Transmitter RC Car Boat Airplane

Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters. Our products included: RC transmitter, flight controller, receiver, GPS, drone etc. We are committed to providing customers with a high reliability and high performance product solution, as well as providing technical support and friendly after-sales service.

R8EF 8 Channel Receiver Full Features:

Excellent Anti-interference:Support SBUS/PPM/PWM signal output, 2.4G 8 Channels with FHSS algorithm reduce overall signal interference.

Long Range Control:Outstanding range over 1.2 miles in the air, good choice for FPV drone, fixed wing.

Reverse Polarity Protection:even the polarities are mistakenly connected which not damaged. Support 4.8~10V high voltage servo.

Easy to Bind:wireless bind to transmitter only 1 second.

Works with many types radio T8S T8FB RC4GS RC6GS.

Please note:

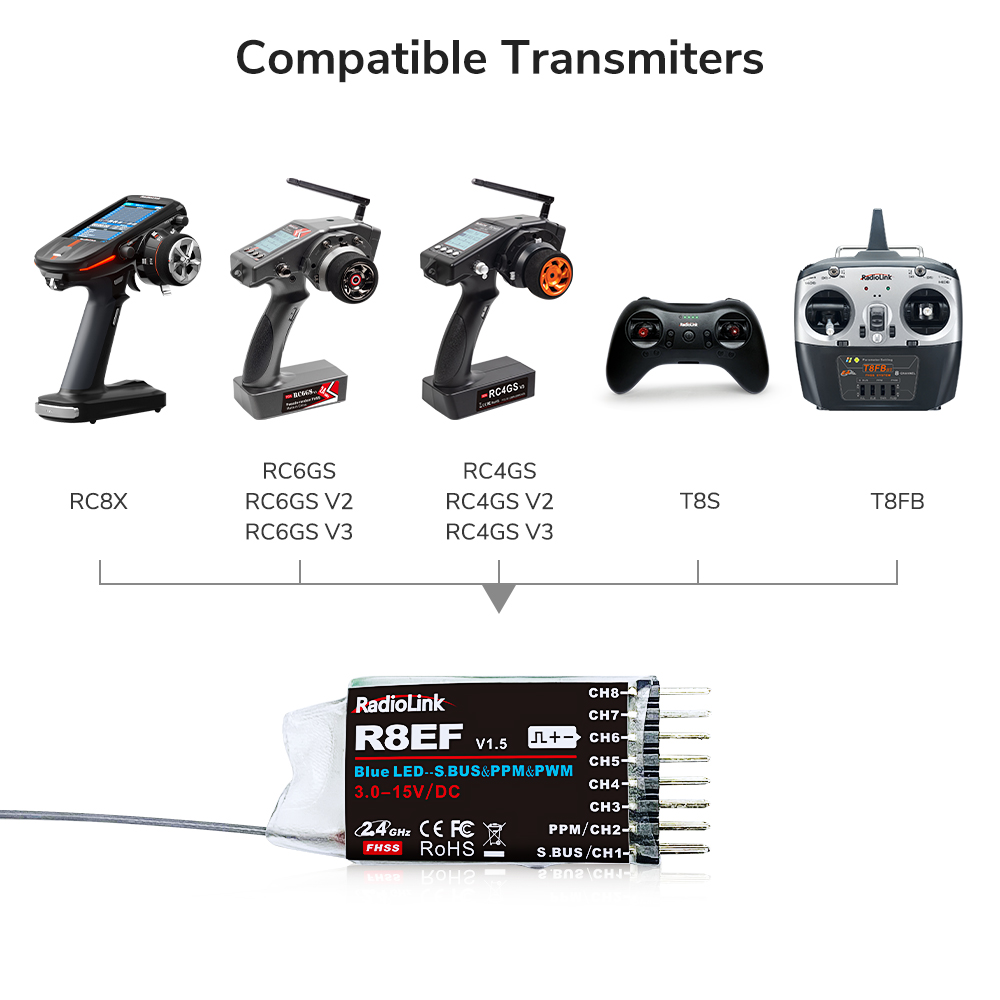

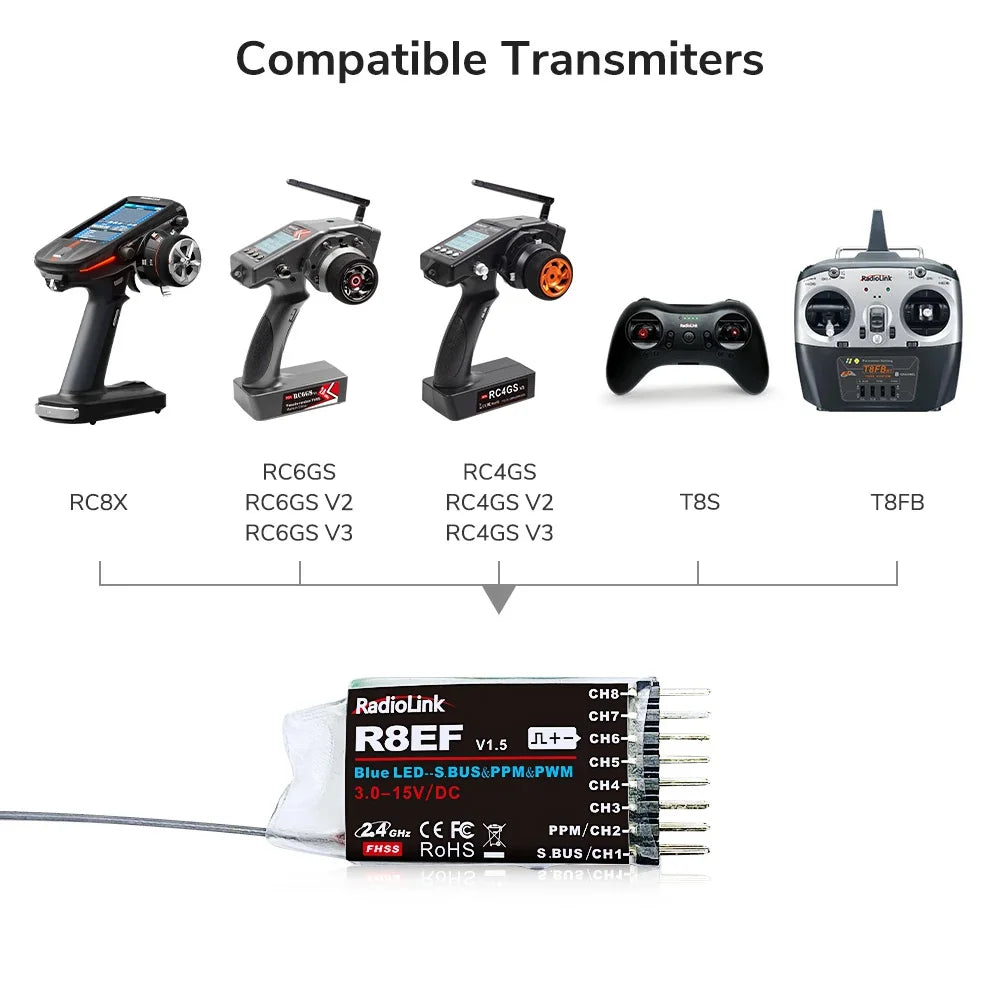

1.R8EF 8CH receiver only work with Radiolink transmitter products:T8FB/T8S/RC4GS/RC6GS/RC4GS V2/RC6GS V2/RC4GS V3/RC6GS V3

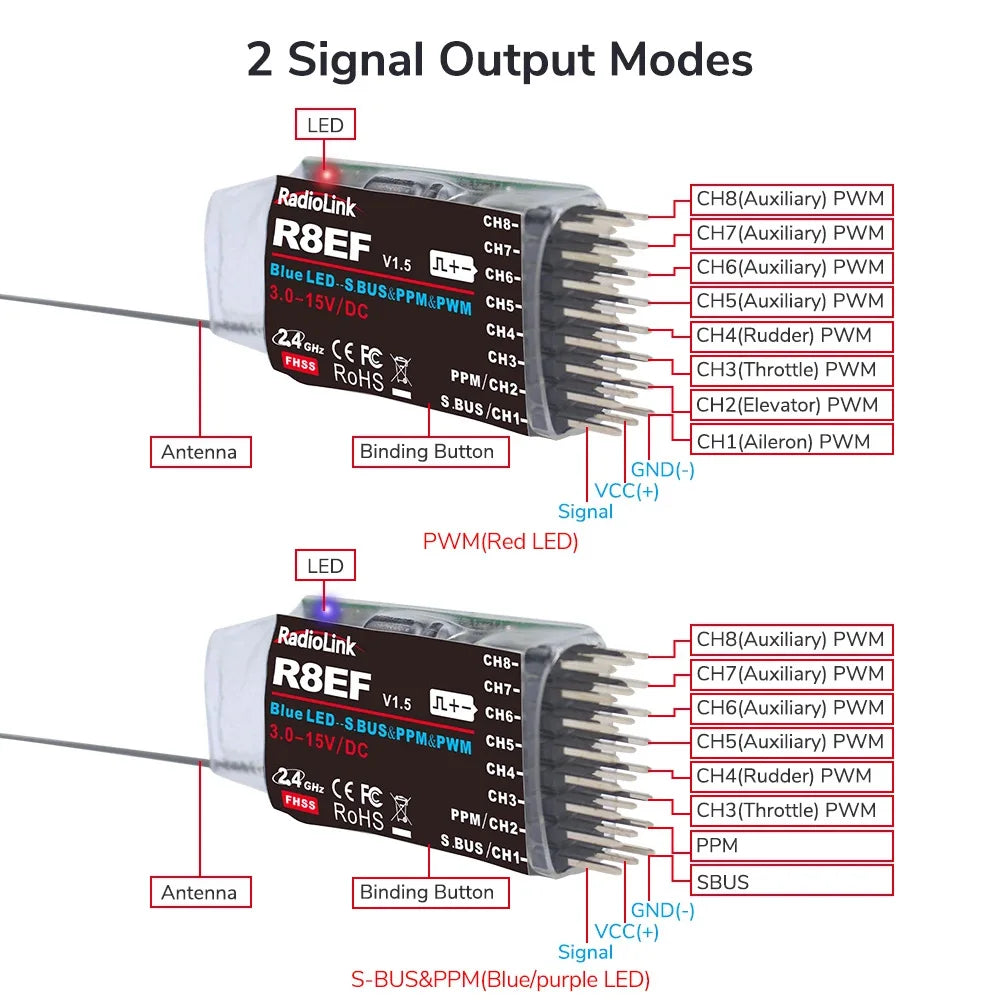

S-BUS and PPM signal change:

1.Quick press the ID SET switch 2 times within 1 second, the signal is changed from PWM to S-BUS&PPM.

2.Red LED indicates PWM signal output with 8 channels totally work, blue/purple LED indicates SBUS&PPM signal output, 8 channels totally work.

3.SBUS and PWM signal possible working at the same time with SBUS&PPM signal output working mode. CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.

How tobindwith transmitter:

1. Put the transmitter and the receiver close to each other about 50 centimeters.

2. Turn on the transmitter, then power on the R8EF.

3. There is a black button on the R8EF, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

Specifications:

Channels: 8 channels

Working voltage: 3-15V

Working current: 30mA（input voltage: 5V）

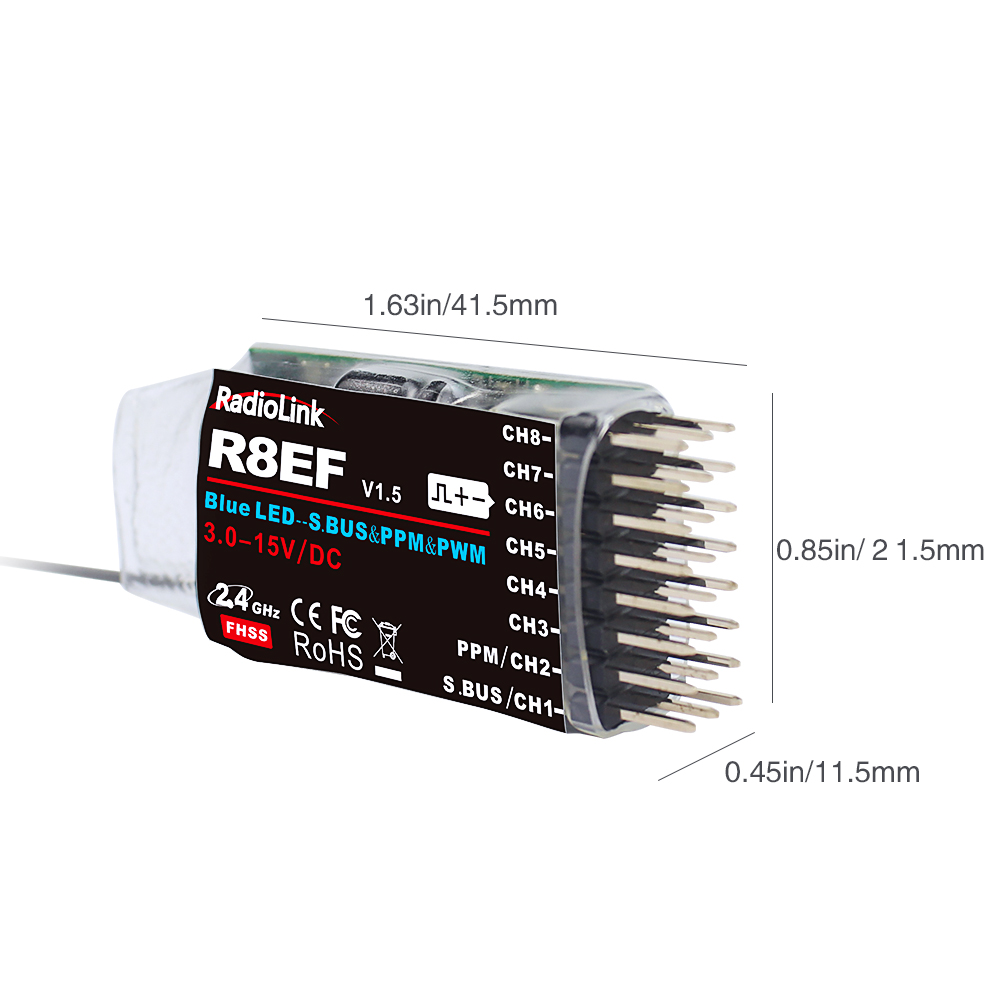

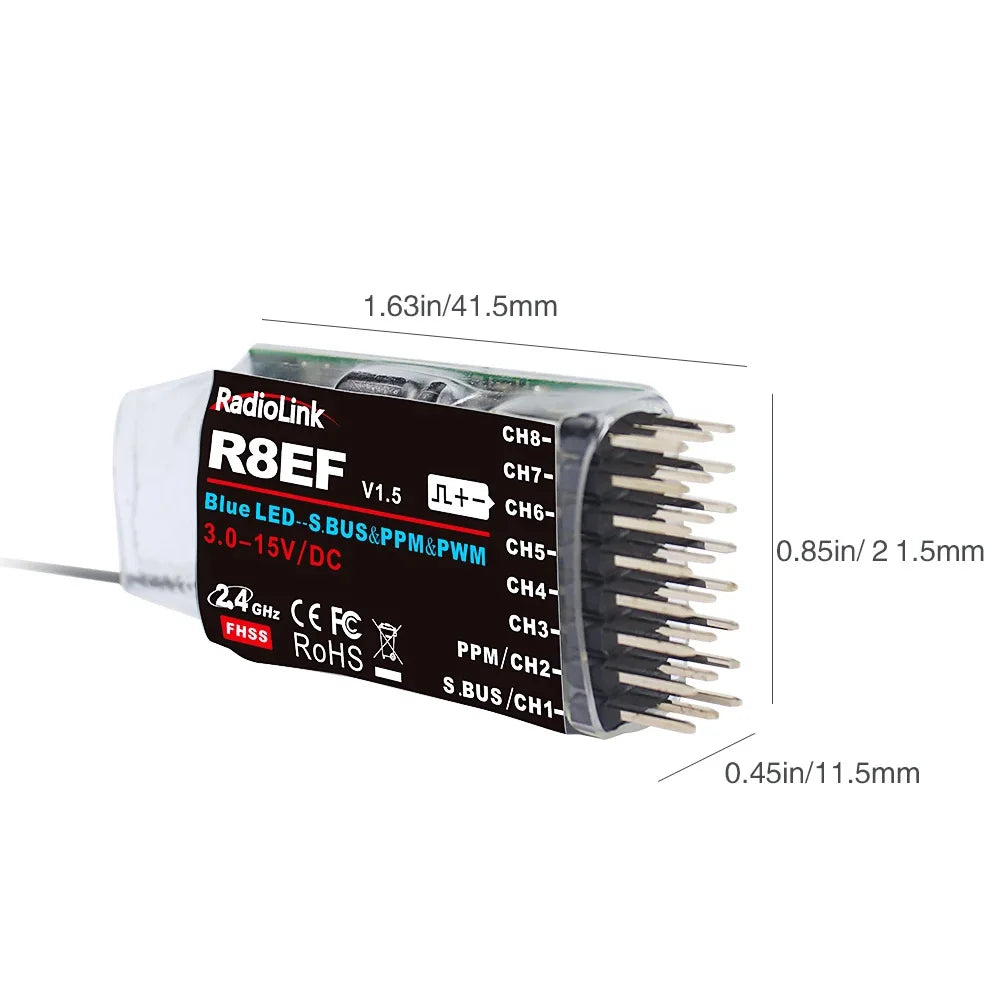

Size: 48.5*21*11mm/1.9*0.8*0.4in

Weight: 7g/0.015lb

2048 section precision, 0.5us per section, servo anti-shake rudder.

Control distance: 2000 meters air, actually control distance depends on the environment.
