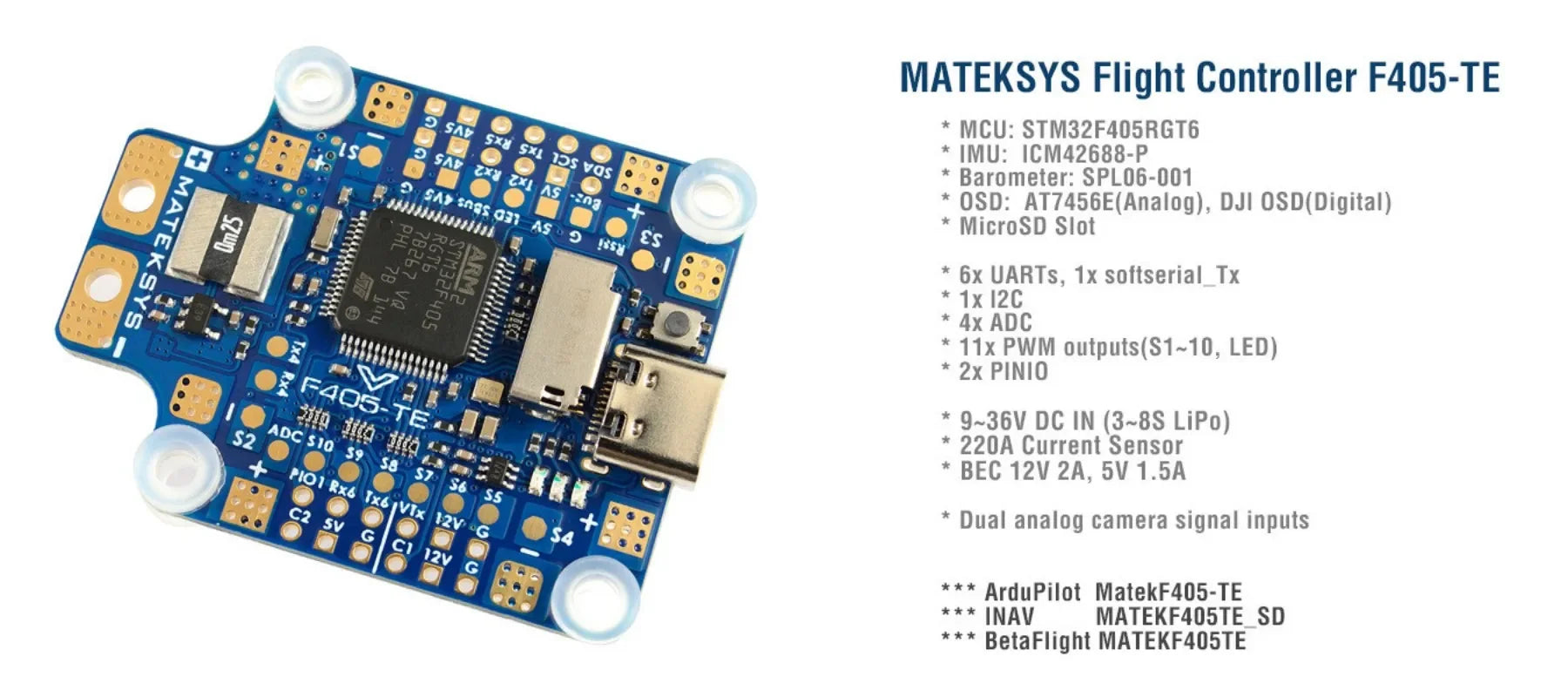

Specifications
●MCU: 168MHz STM32F405RGT6
●IMU: ICM42688-P (SPI)
●Baro: SPL06-001 (I2C)
●OSD: AT7456E (SPI)
●Blackbox: MicroSD slot (SPI)
●6x UARTs, 1x Softserial_Tx option(INAV/BF)
●11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
●1x I2C
●4x ADC (VBAT, Current, RSSI, Airspeed)
●1x spare PINIO
●4x individual ESC power/signal pads
●1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
●Built in inverter on UART2-RX for SBUS input
●Switchable Dual Camera Input
PDB Specifications
●Input: 9~36V (3~8S LiPo)
●PDB: 4x 35A (Max.4x 50A)
●BEC: 5V 1.5A
●BEC: 12V 2A
●LDO 3.3V: 200mA
●Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
●Battery Voltage divider 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)

Firmware
●ArduPilot: MatekF405-TE
●INAV: MATEKF405TE_SD
●BetaFlight: MATEKF405TE

Physical
●Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
●Dimensions: 36 x 46 mm
●Weight: 10g

Including
●1x F405-TE
●6x silicon grommets M4 to M3
●1x Rubycon ZLH 35V/470uF (Low ESR)
