JX PS-1171MG PDI-1171MG 17g 3.5kg Metal Gear Micro Servos For RC Crawler Car Airplane Boat Robot Helicopter Drone Accessories
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Specifications:
Brand: JX
Signal: Digital

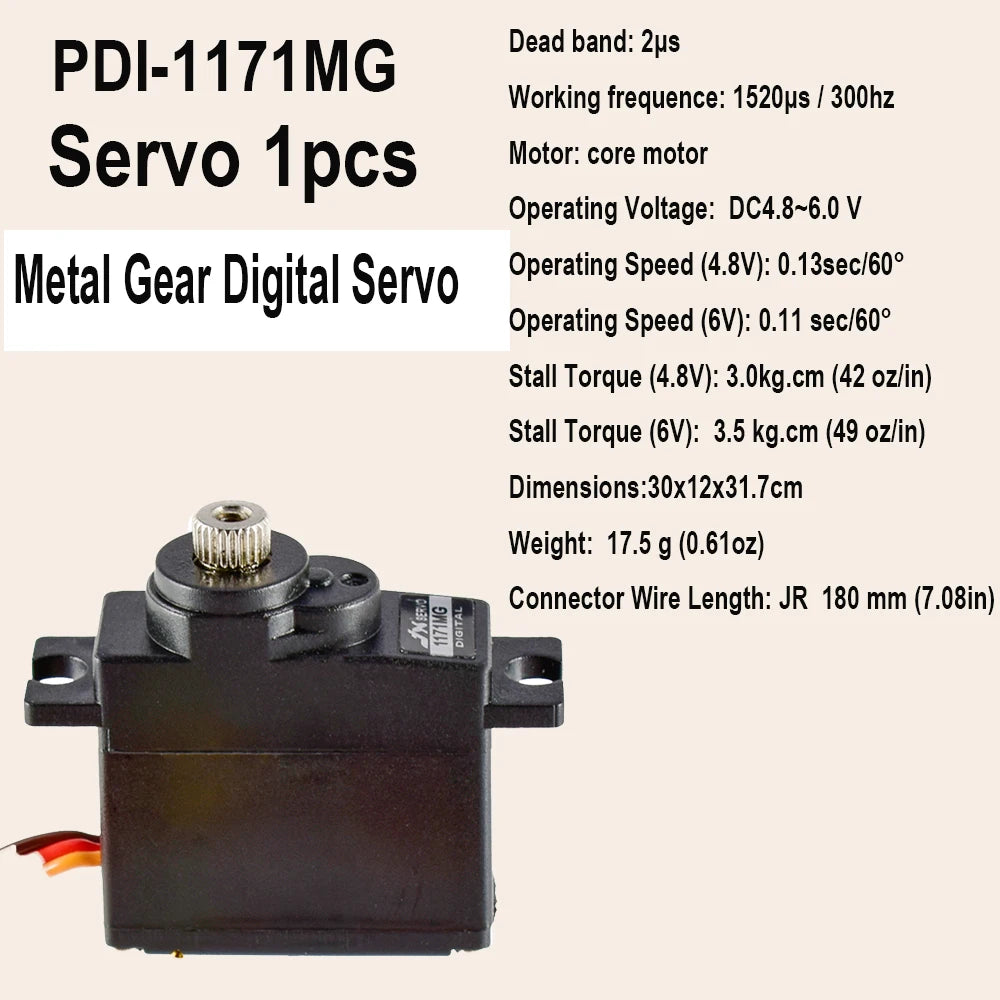

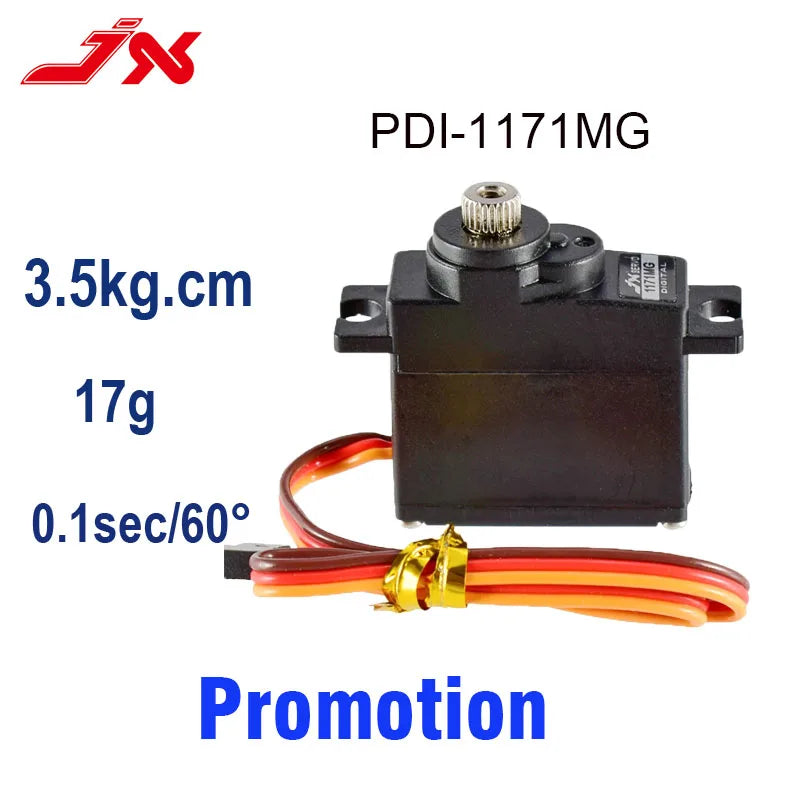

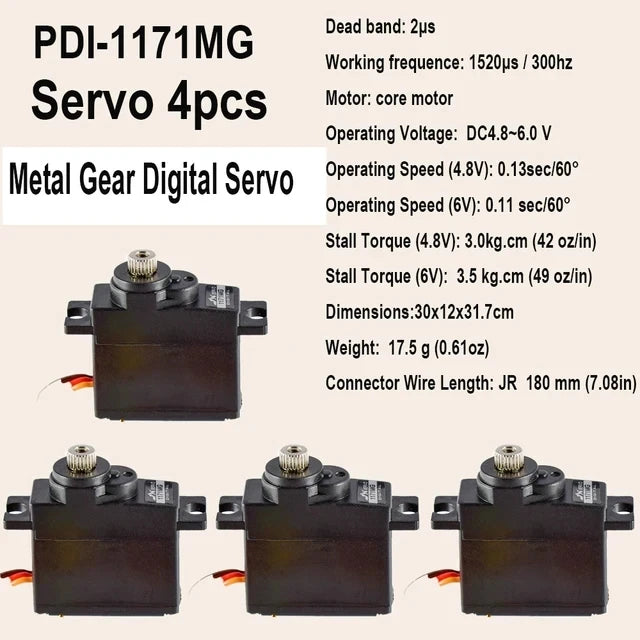

Item NO:PDI-1171MG
Dead band: 2μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm (42 oz/in)
Stall Torque (6V): 3.5 kg.cm (49 oz/in)

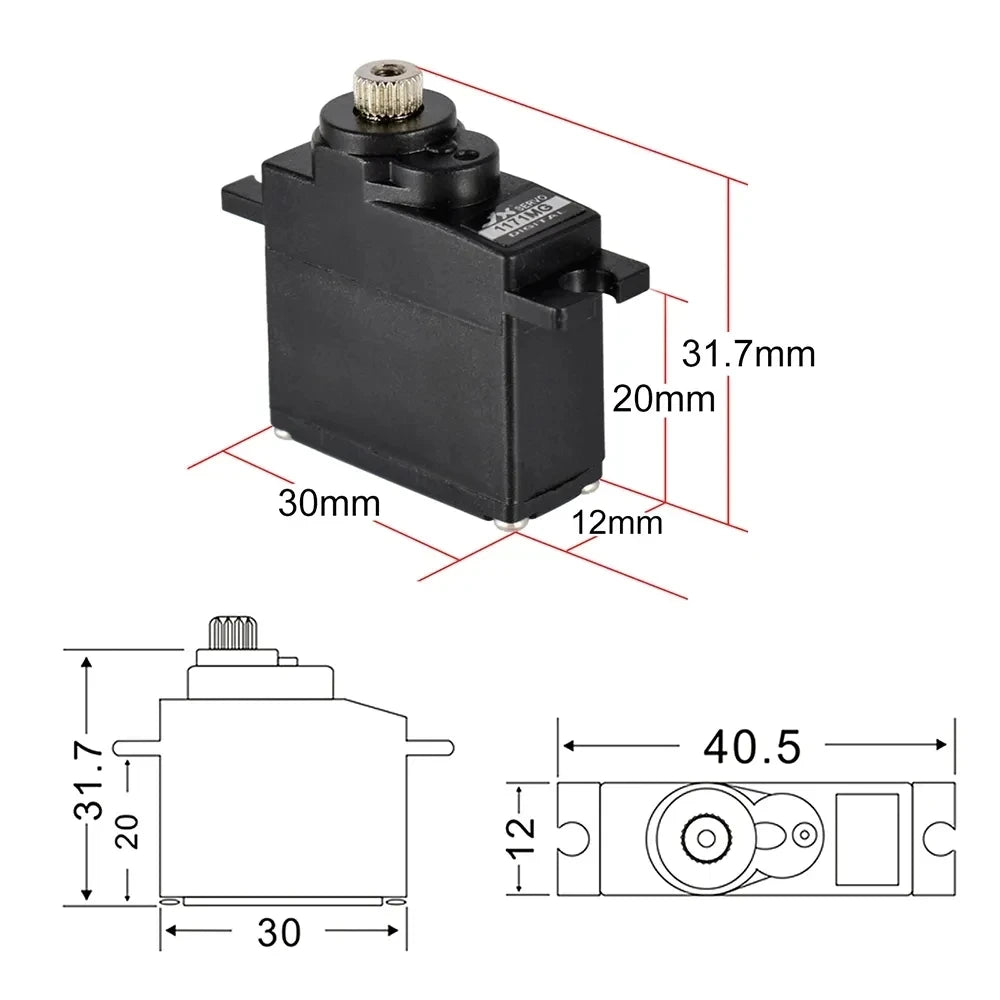

Dimensions:30x12x31.7cm
Weight: 17.5 g (0.61oz)
Connector Wire Length: JR 180 mm (7.08in)

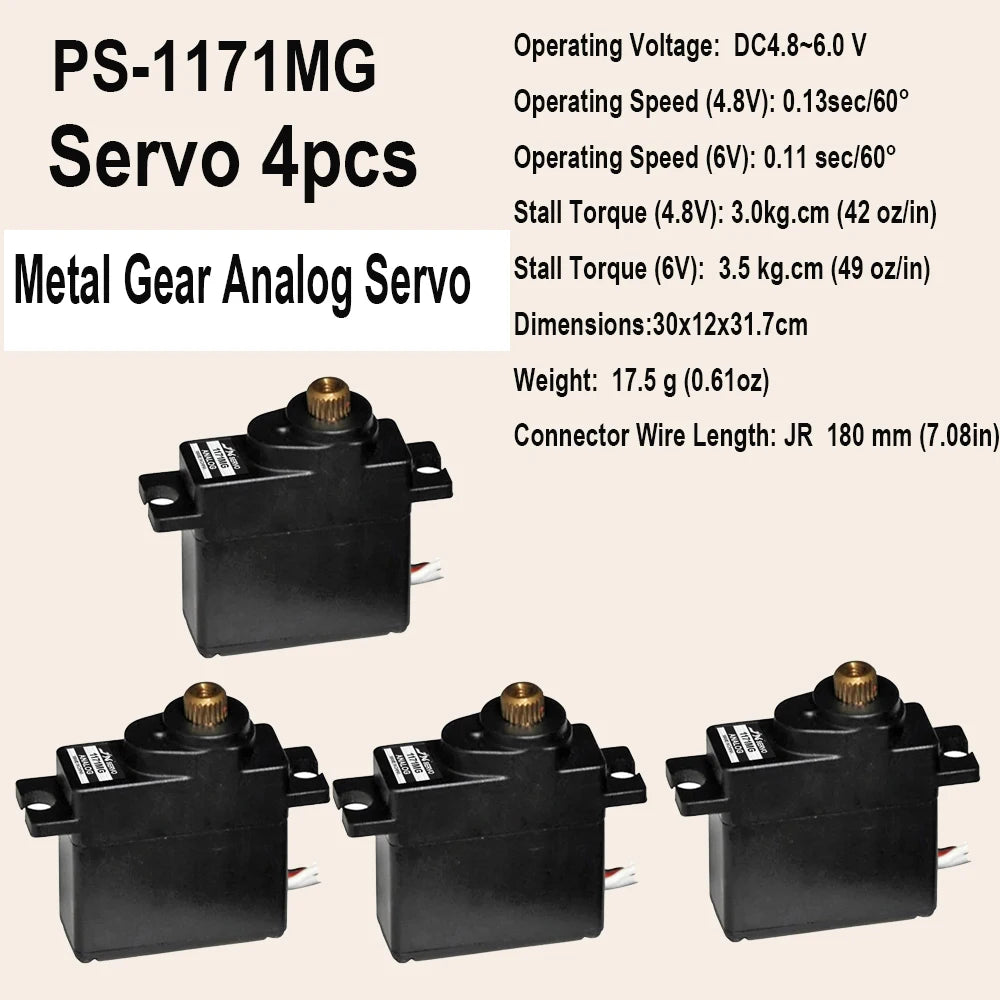

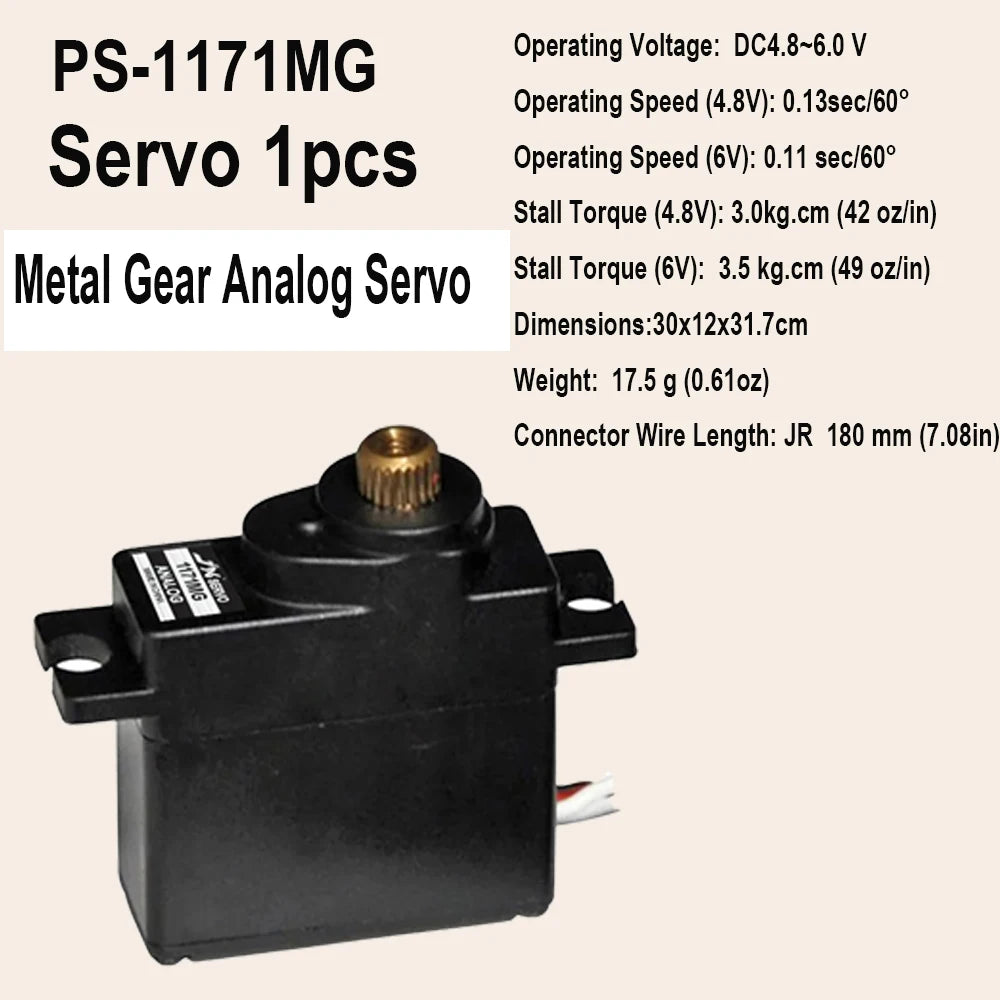

Item NO:PS-1171MG
Signal: Analog
Dead band: 2μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm (42 oz/in)
Stall Torque (6V): 3.5 kg.cm (49 oz/in)
Dimensions:30x12x31.7cm
Weight: 17.5 g (0.61oz)
Connector Wire Length: JR 180 mm (7.08in)
JX PDI/PS-1171MG,17g 3.5kg,Metal Gear,Digital Micro Servos,For RC Crawler Car,Airplane,Boat,Robot ,Helicopter Drone,Accessories
