iFlight Nazgul DC5 V1.1 O4 Pro FPV 5inch Frame Kit with 5mm arm for FPV parts

Description

Description

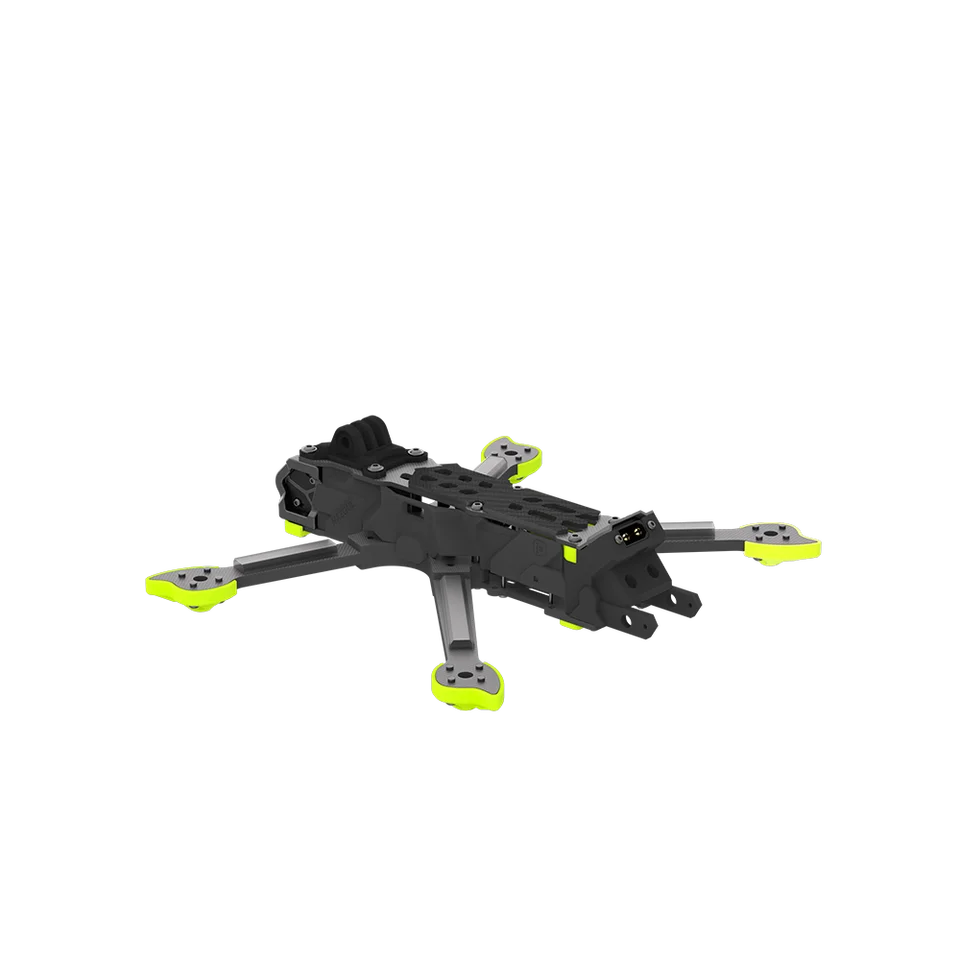

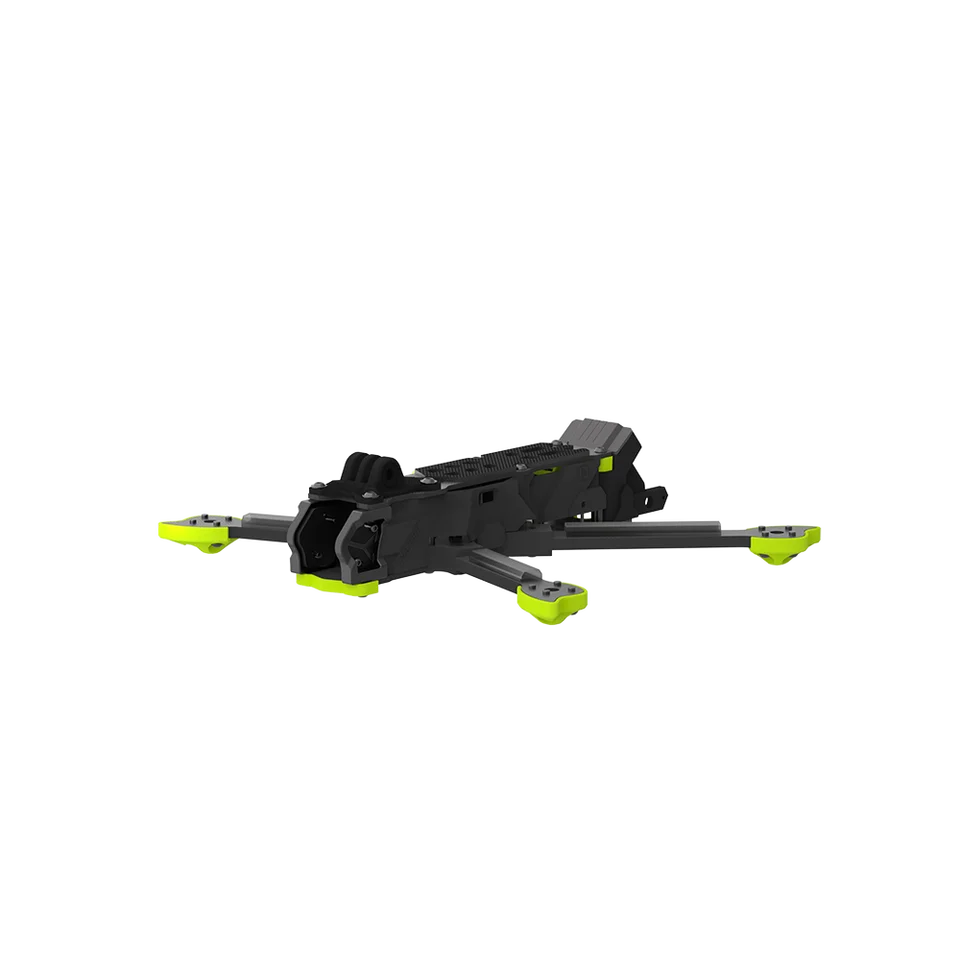

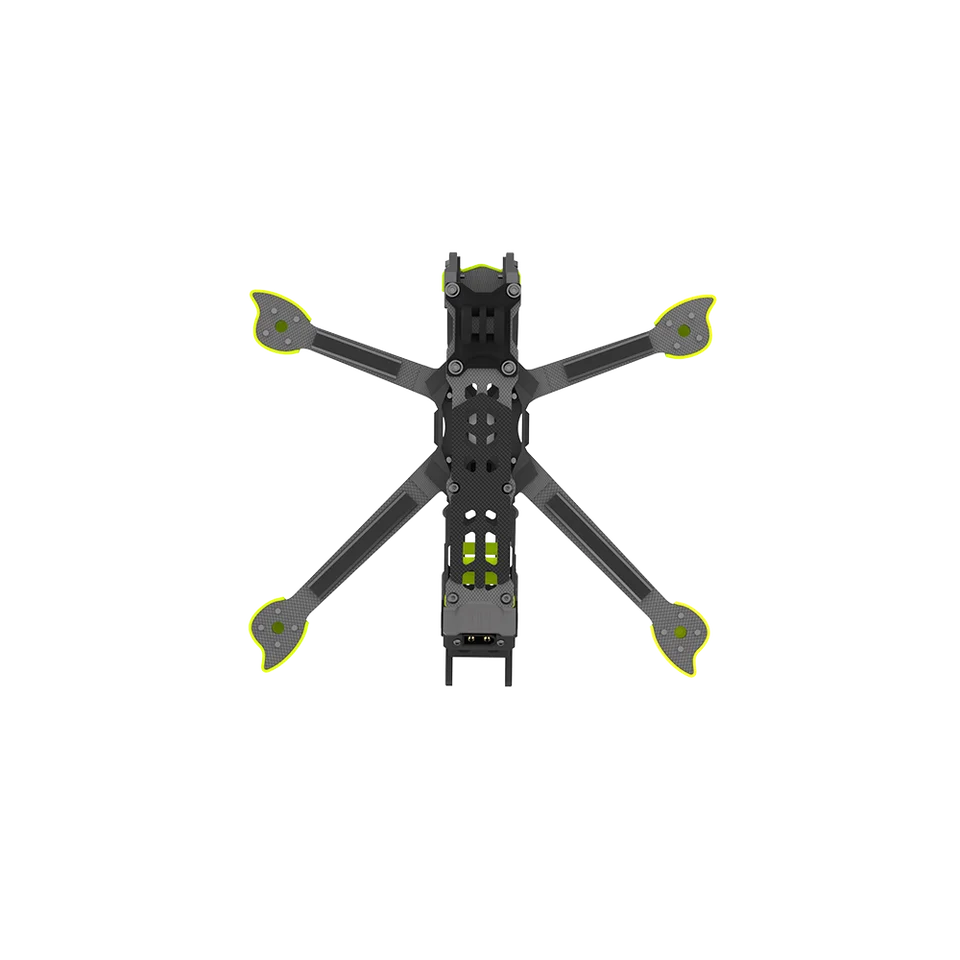

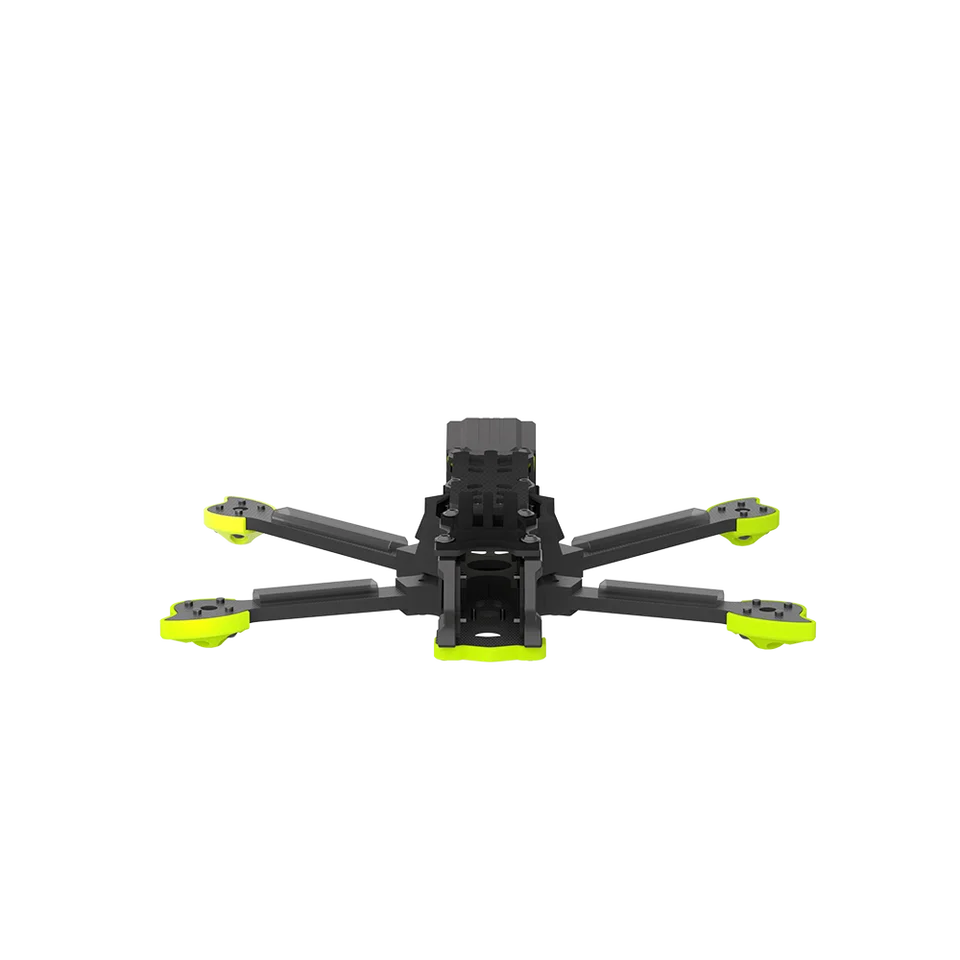

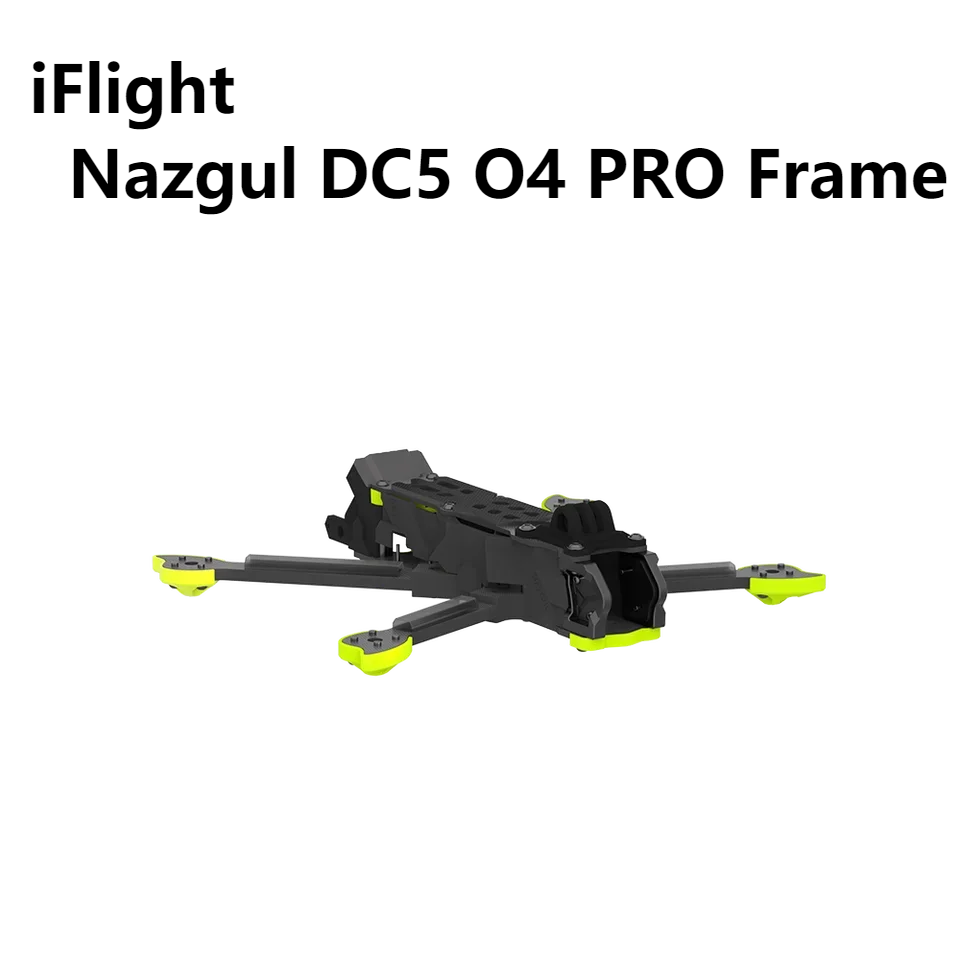

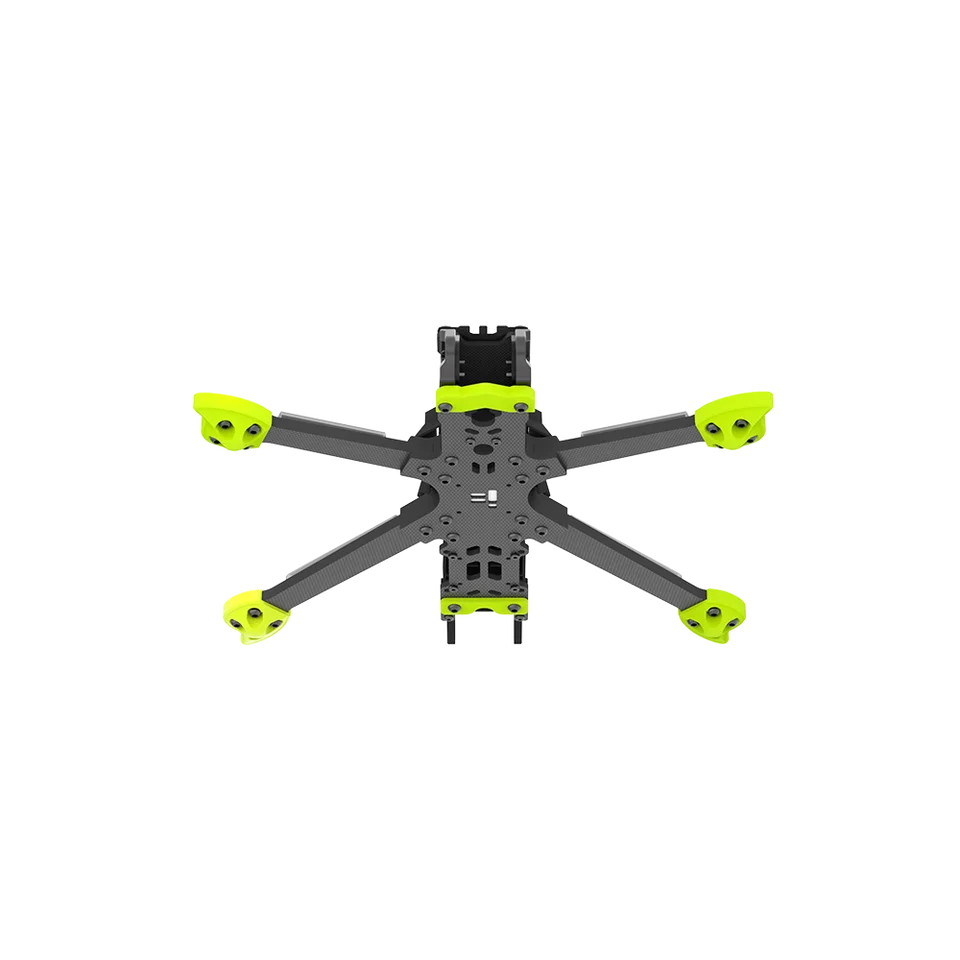

The iFlight Nazgul DC5 frame is a high-value 5-inch freestyle drone frame designed for pilots seeking an optimal balance between performance and cost. Constructed from exceptionally rigid carbon fiber to minimize resonance, it ensures stable and precise flight characteristics. Notably, no props or frames are in view! during flight. Recently updated, the Nazgul DC5 now also supports the DJI O4 Pro Air Unit for enhanced compatibility with professional-grade equipment.

Features
O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
ew Camera Mount for DJI O4 Pro Air Unit
ew Silicone side panels
Different Screws
Specificaitons
Product Name: Nazgul DC5 V1.1 O4 Frame Kit
Geometry: DC (DeadCat)
Wheelbase: 240mm
Frame Dimension: 193*144*34mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2.5mm
Upper Plate Thickness: 3mm
Max Flight Stack Height: 22mm
Max VTX Height: 29mm
FC Mounting: 20*20/Φ2mm 30*30/Φ3mm

Motor Mounting: 16*16/Φ3mm
VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ2mm
Weight: 239g±5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Packing List
1 x Nazgul DC5 V1.1 O4 Frame Kit
1 x TPU set (Inclu. GoPro TPU Base Mount)
1 x Screw Bag
2 x Anti-slip Battery Pad
4 x Motor Wire Shield Tube
2 x Battery Strap
