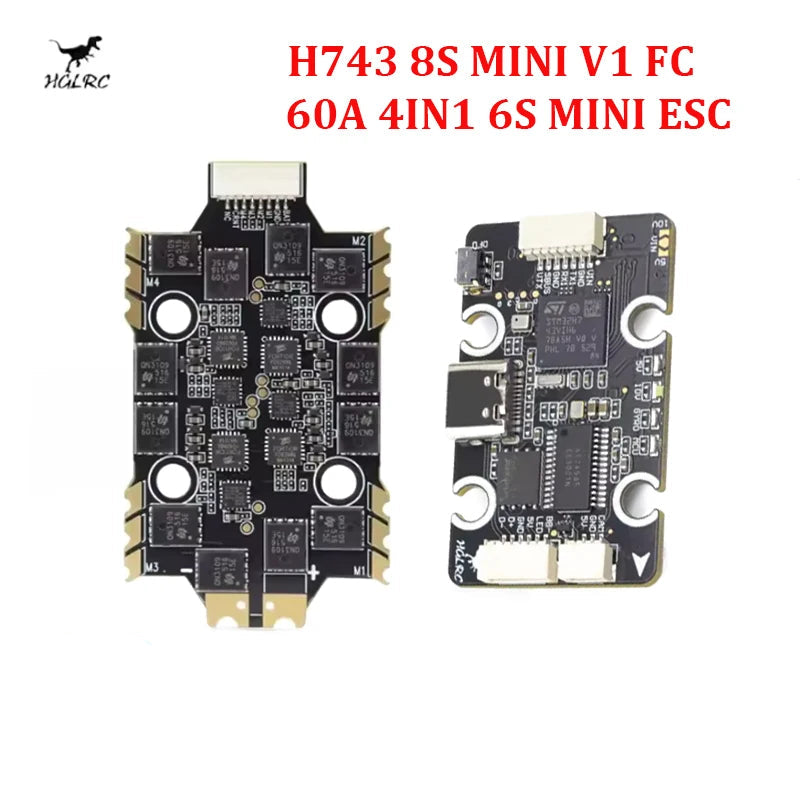

HGLRC H743 8S MINI V1 60A 4IN1 6S 8bit FPV ESC MINI Flight Controller Dual-BEC Modular With Gyro 20x20mm DIY FPV Drone For Adult
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Key Features
-

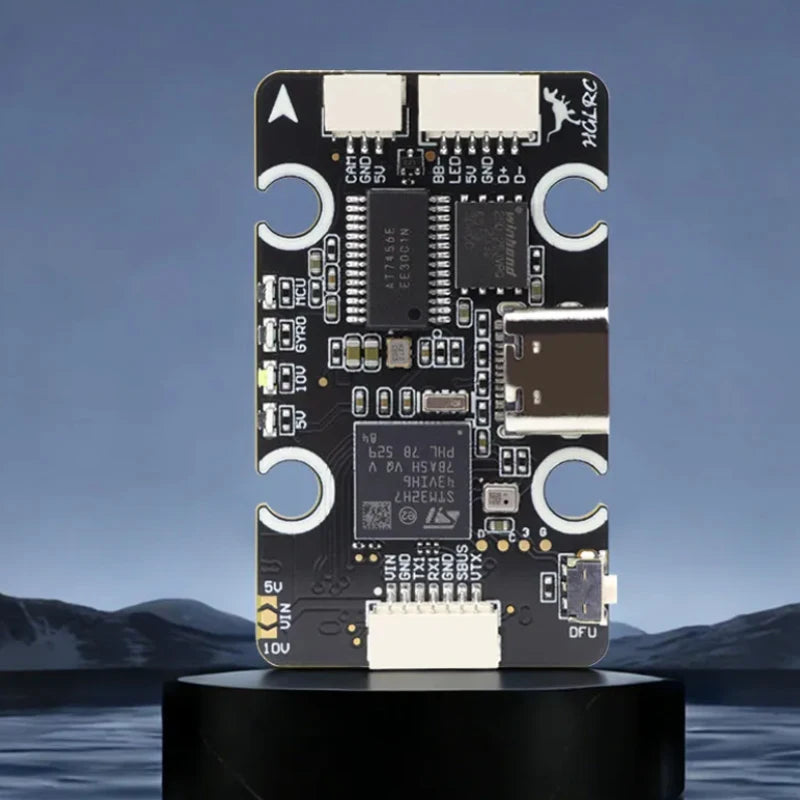

Equipped with the high-performance STM32H743 MCU, delivering powerful computing and rapid response.
-
Chose ICM42688P gyroscope for the FC to enhance the stability.
-
Includes a 16MB large-capacity Blackbox for comprehensive flight data logging.
-
Supports 8S high-voltage input for power output to keep fast response and stable control.
-

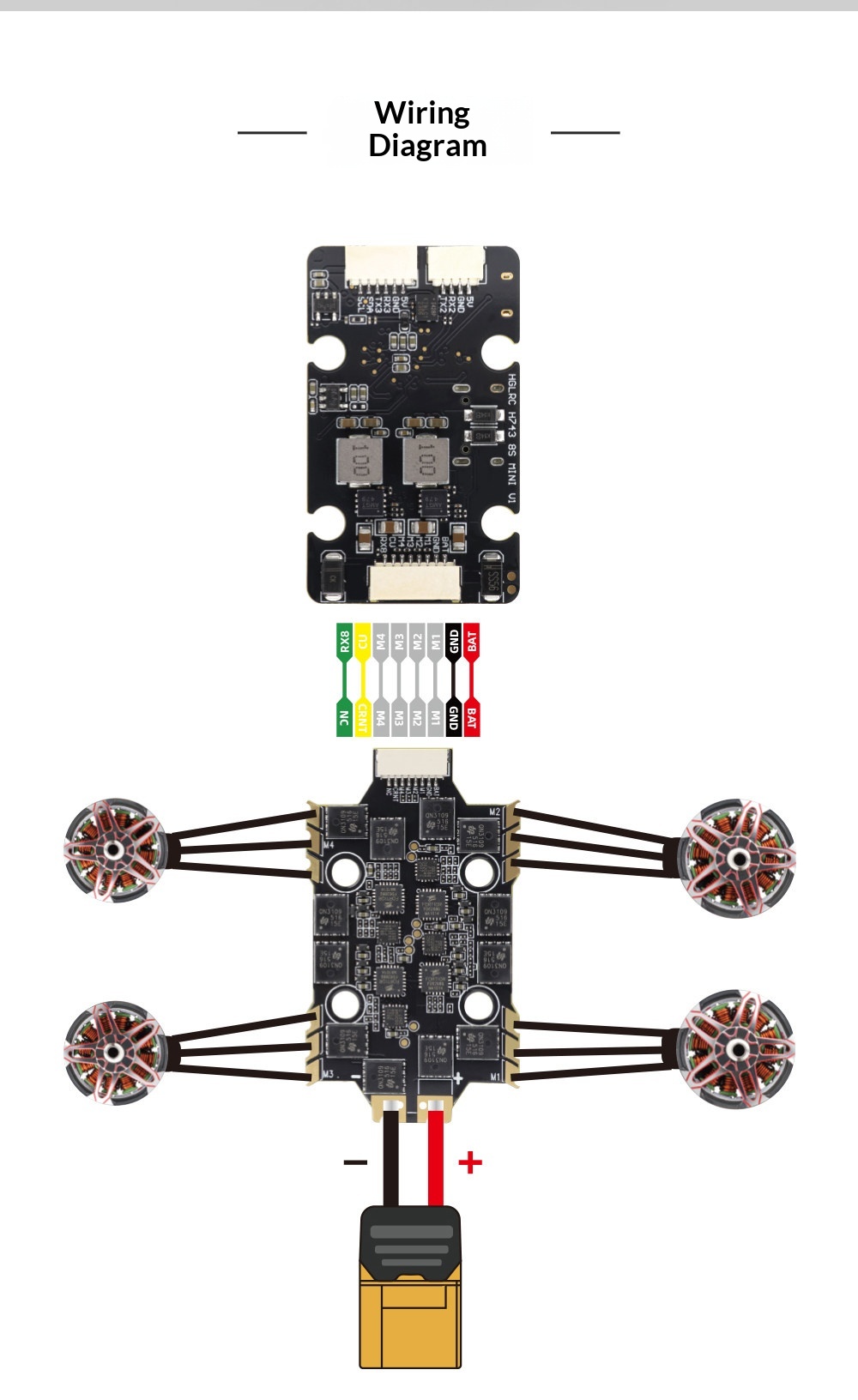

Fully modular plug-and-play design with direct connectors, eliminating the need for soldering.
-
Ultra-narrow size and dual BEC design greatly save installation space, making it compatible with small frames.
Specifications

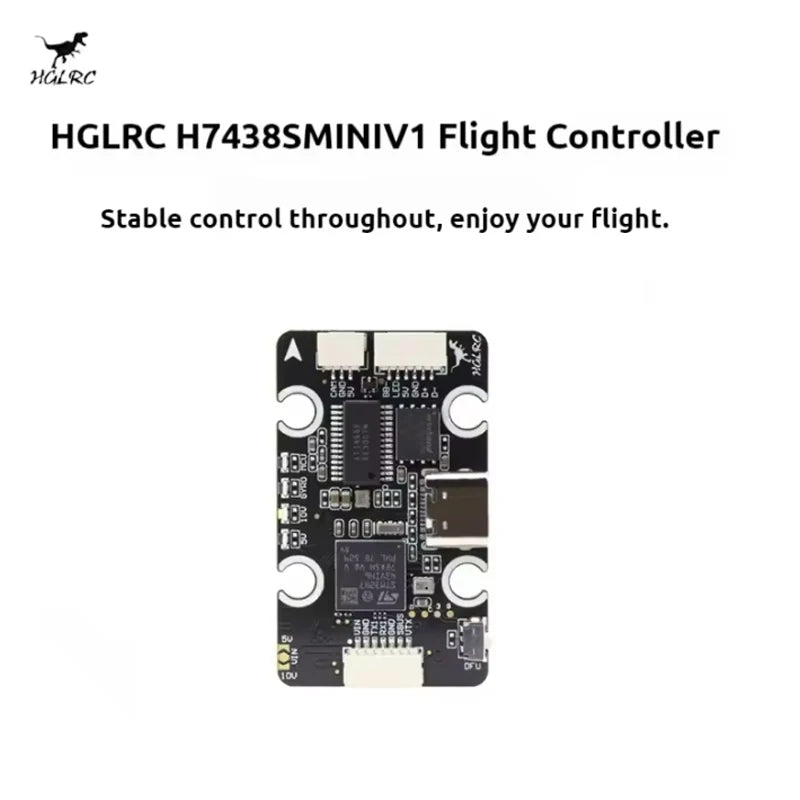

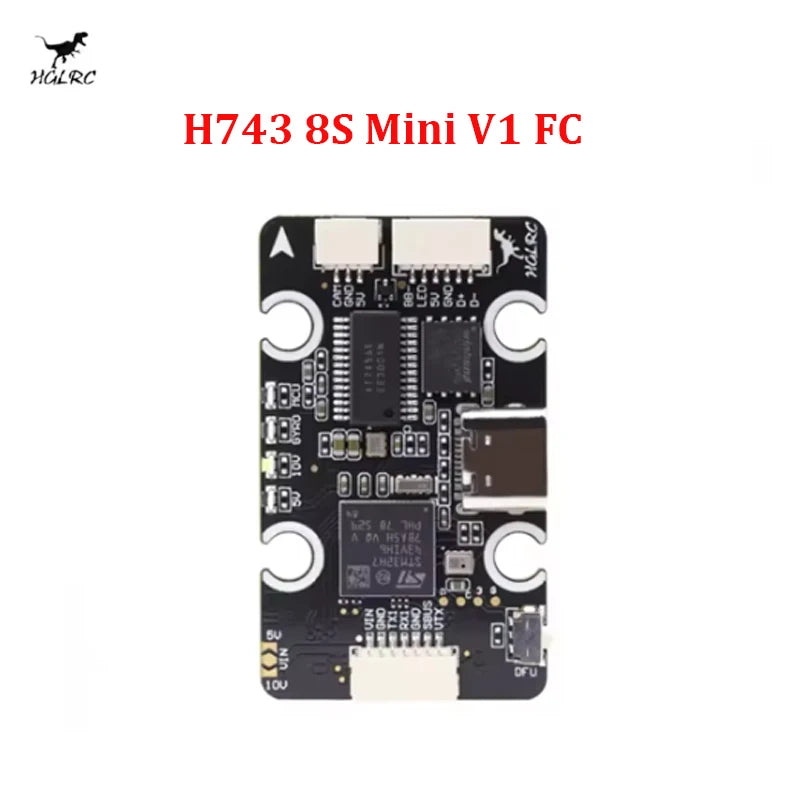

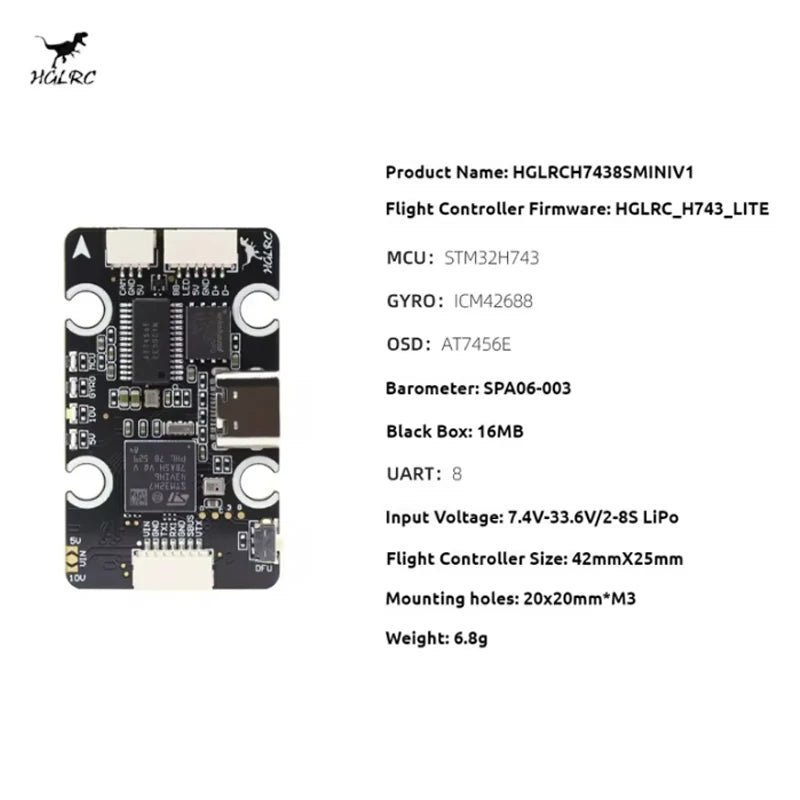

Model Name:HGLRC H743 8S MINI V1
FC Firmware:HGLRC_H743_LITE
MCU:STM32H743
GYRO:ICM42688
OSD: AT7456E
Barometer:SPA06-003
Blackbox:16MB
UART:8
Input Voltage:7.4V-33.6V/2-8SLIPO
Dimensions:42mmx25mm
Mounting Holes:20x20mm，M3
Weight:6.8g
Package Contents：
1x HGLRC H743 8S MINI V1 FC
1x 30AWG 25mm Double-ended SH1.0-8P Cable 1x 30AWG,100mm Double-ended SH1.0-4P Receiver Cable 1x 30AWG,50mm Single SH1.0-3P / Single SH1.25-3P Camera Cable
1x 30AWG 70MM Single GH1.25-6P / Single SH1.0-7P DJI Cable
1x 30AWG 70MM Single SH1.0-7P / Single 1.0-6P VTX Cable
1x 30AWG，120mm total length, Double-ended SH1.0-6P GPS Cable
4x 3*8 Vibration Damping Standoffs
4x 3*6.6 Vibration Damping Standoffs
1x HGLRC Sticker
1x QR Code Card

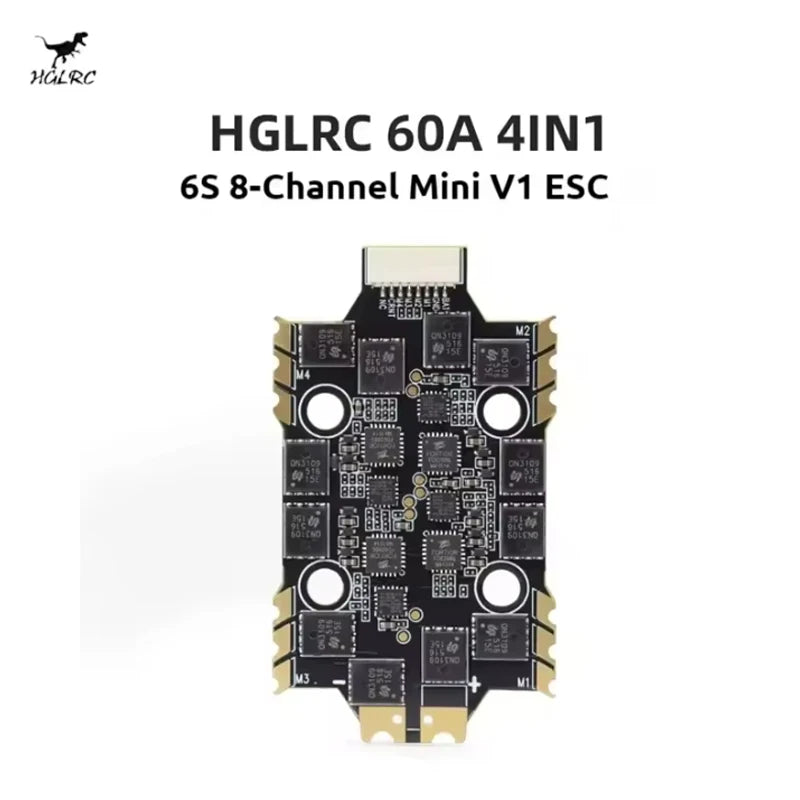

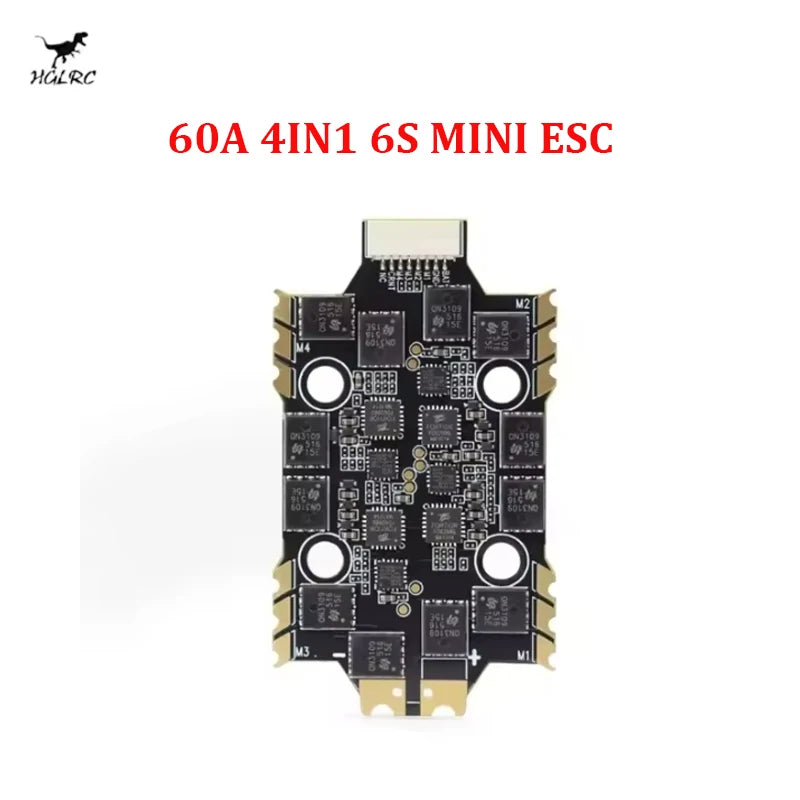

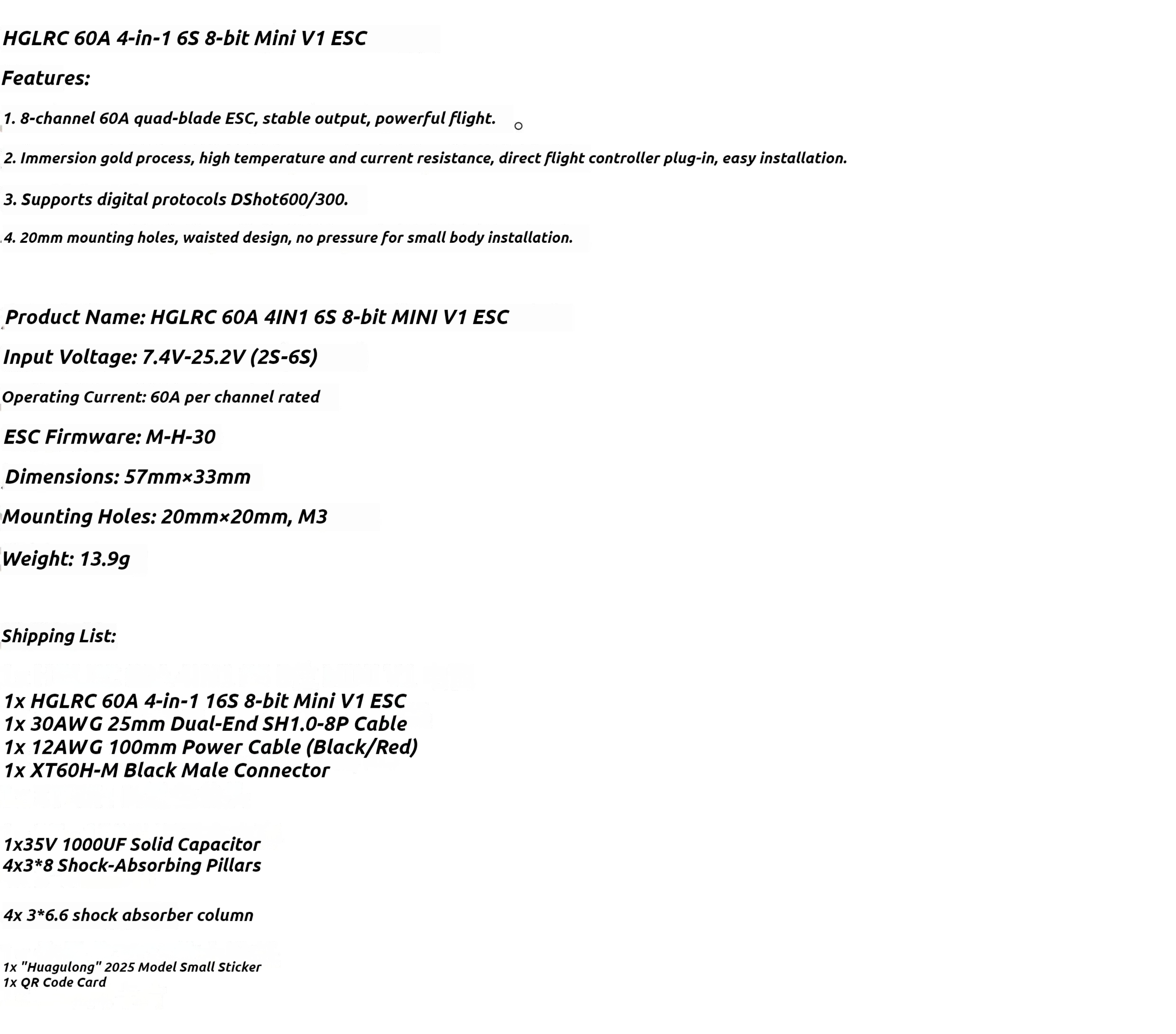

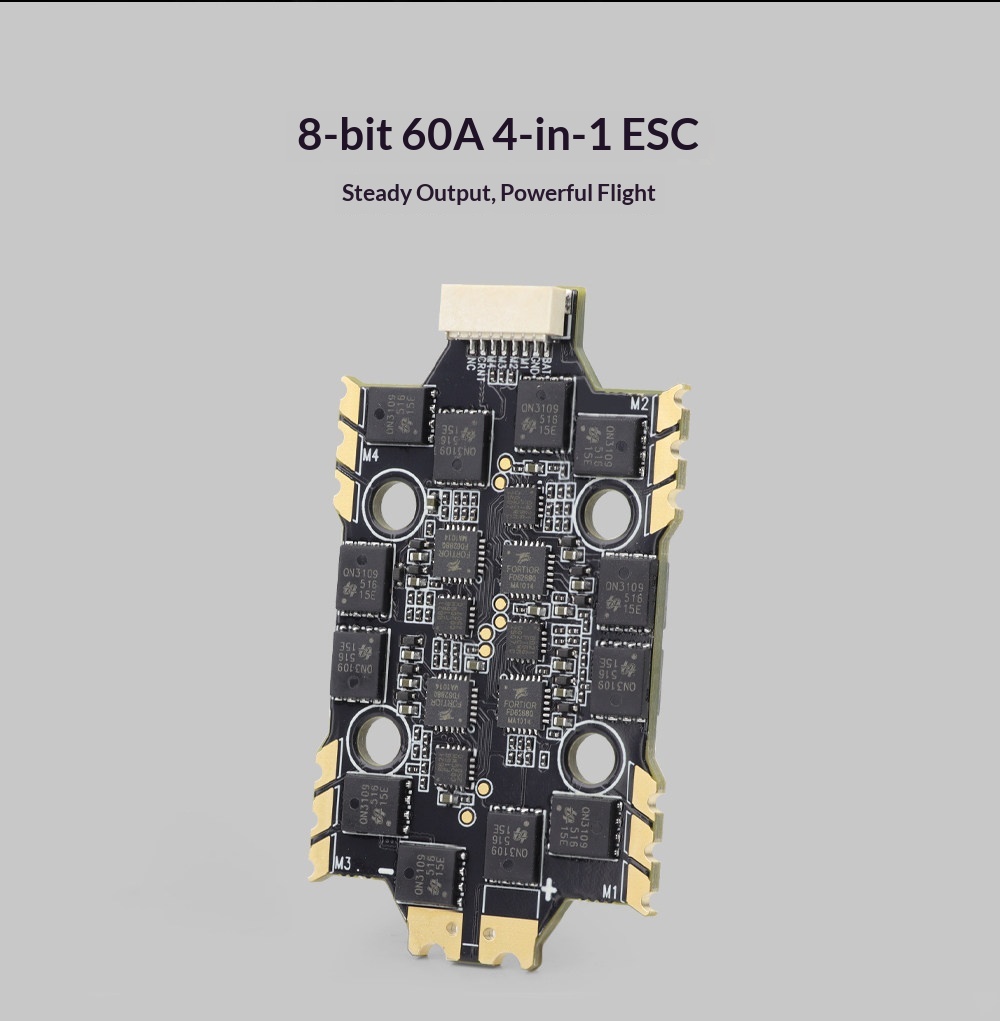

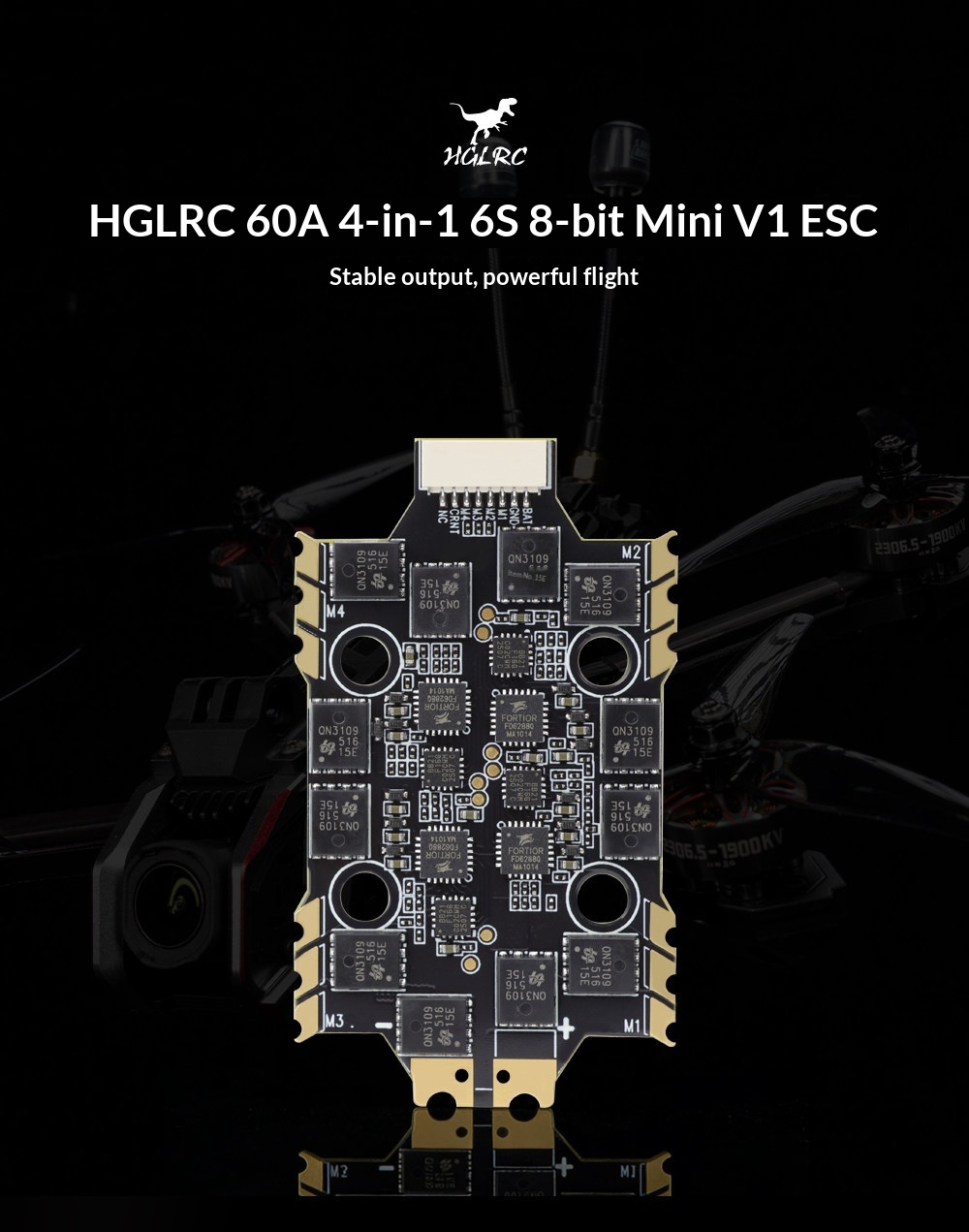

HGLRC 60A 4-in-1 6S 8-bit Mini V1 ESC
Features:
1. 8-channel 60A quad-blade ESC, stable output, powerful flight.

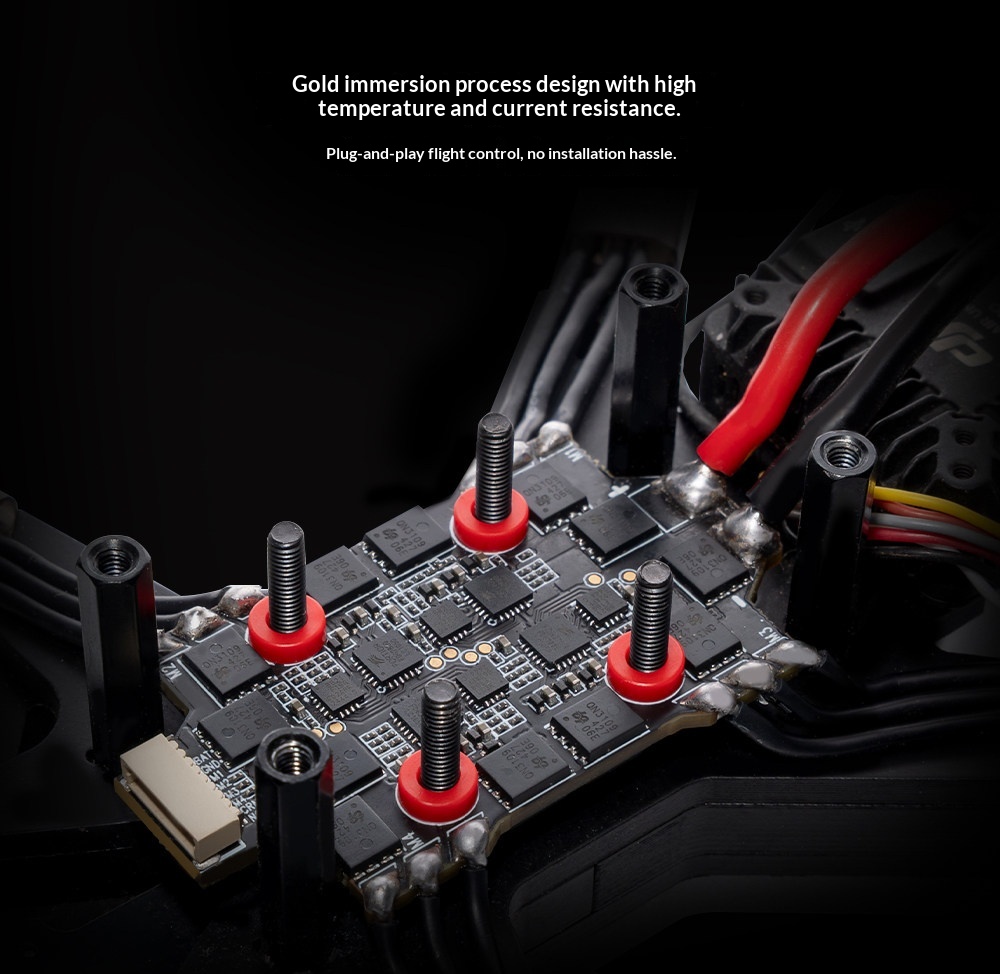

2.Immersion gold process,high temperature and current resistance, direct flight controller plug-in,easy installation

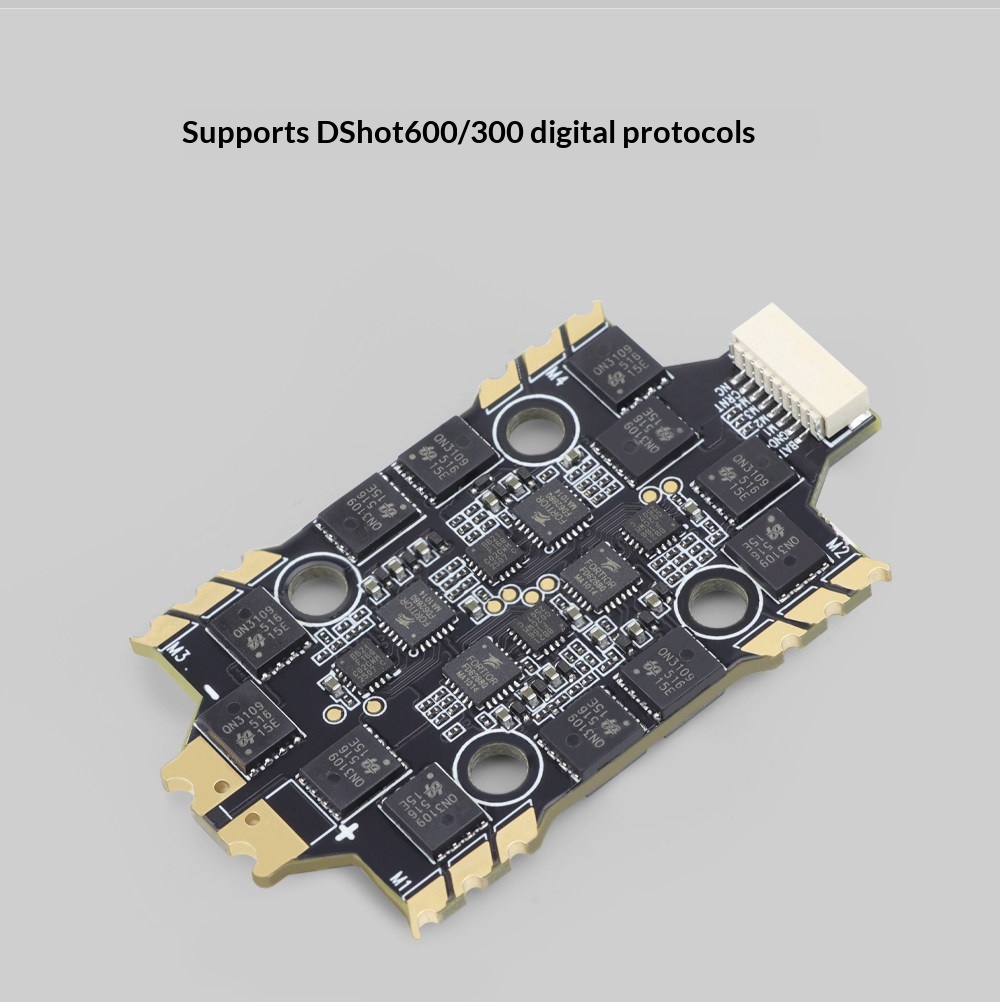

3. Supports digital protocols DShot600/300.

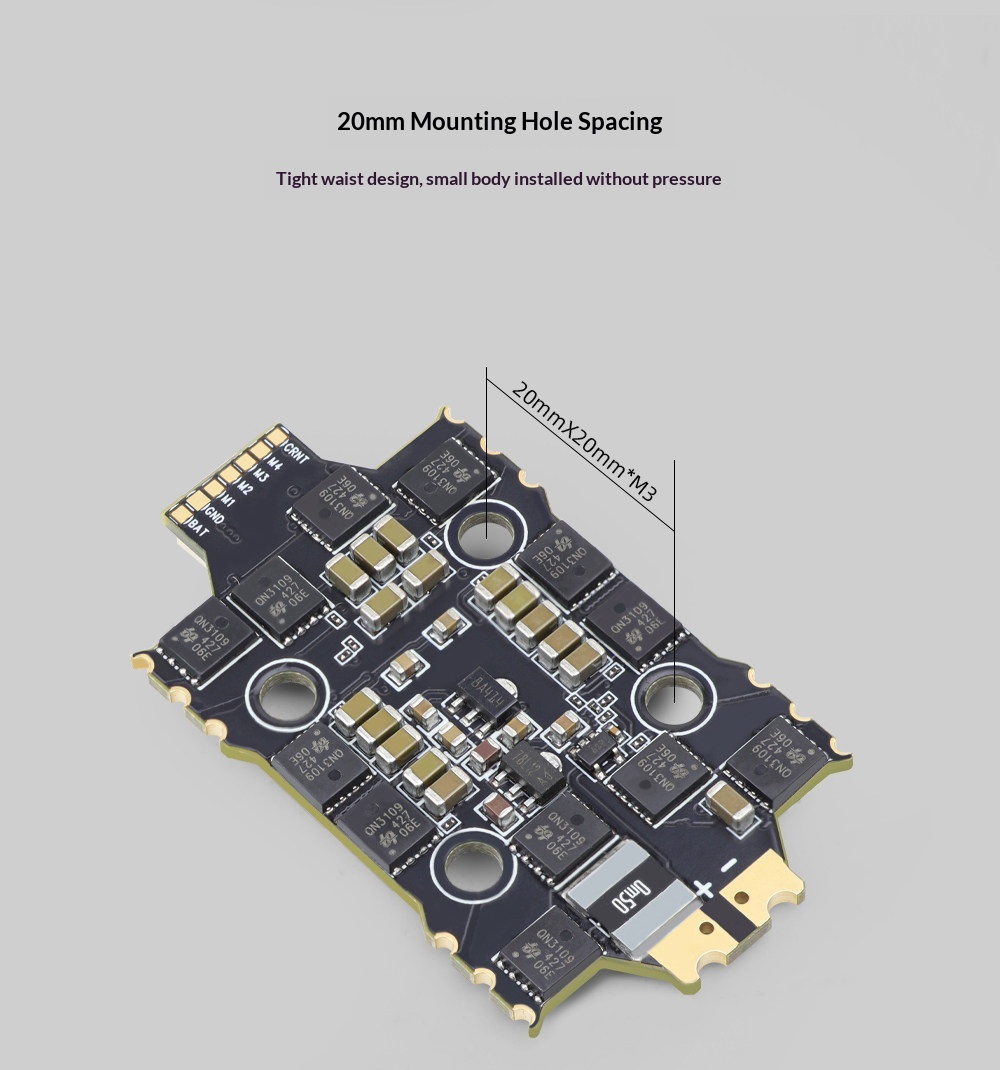

4. 20mm mounting holes, waisted design, no pressure for small body installation.

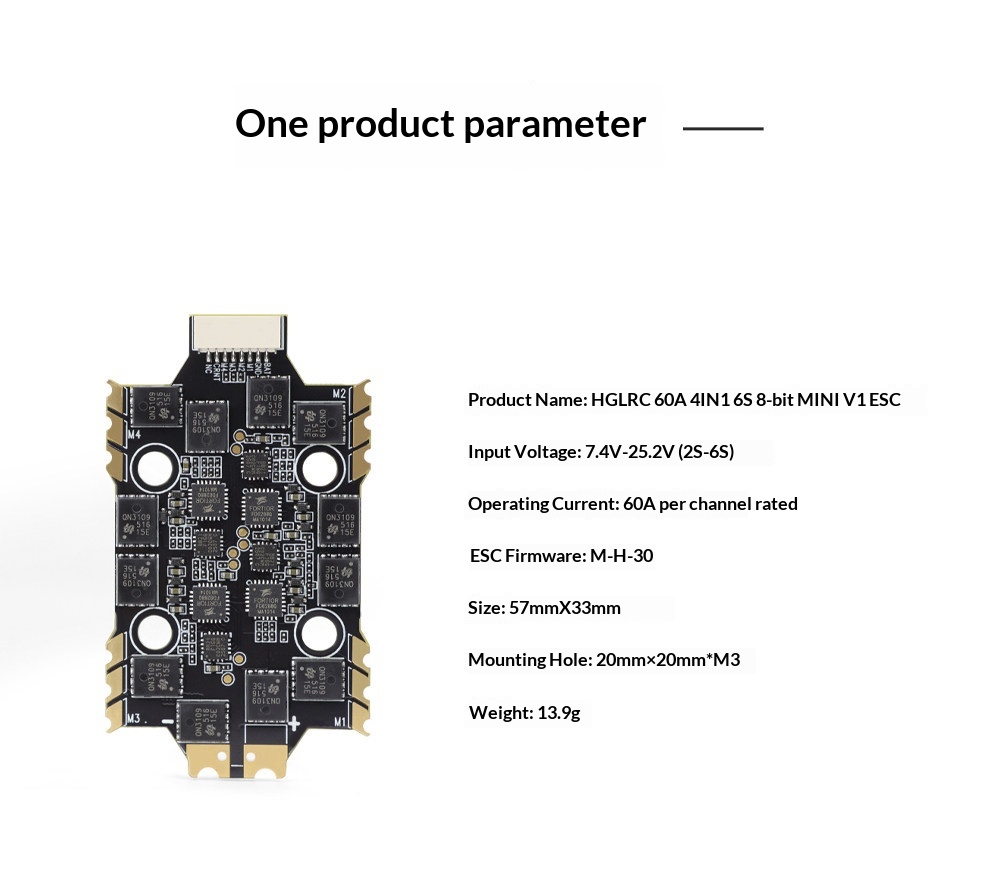

Product Name: HGLRC 60A 4IN1 6S 8-bit MINI V1 ESC
Input Voltage:7.4V-25.2V (2S-6S)
Operating Current:60A per channel rated
ESC Firmware:M-H-30

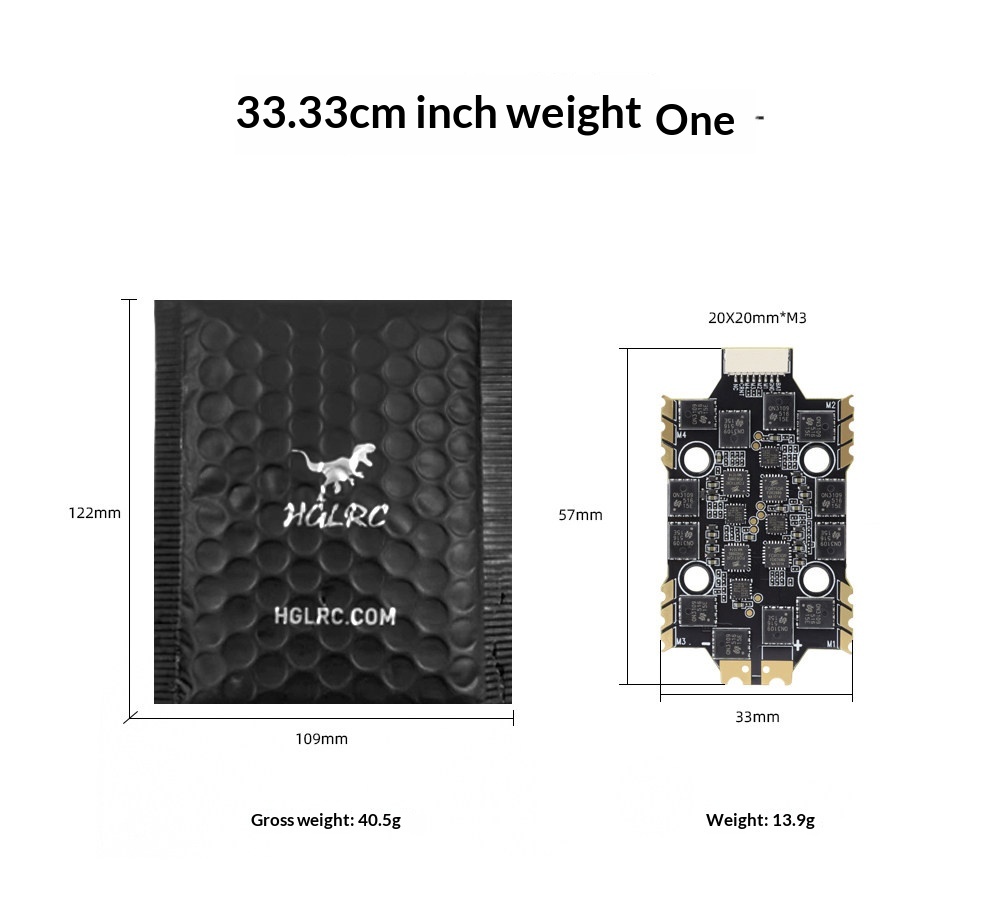

Dimensions:57mmx33mm
Mounting Holes:20mmx20mm,M3
Weight:13.9g

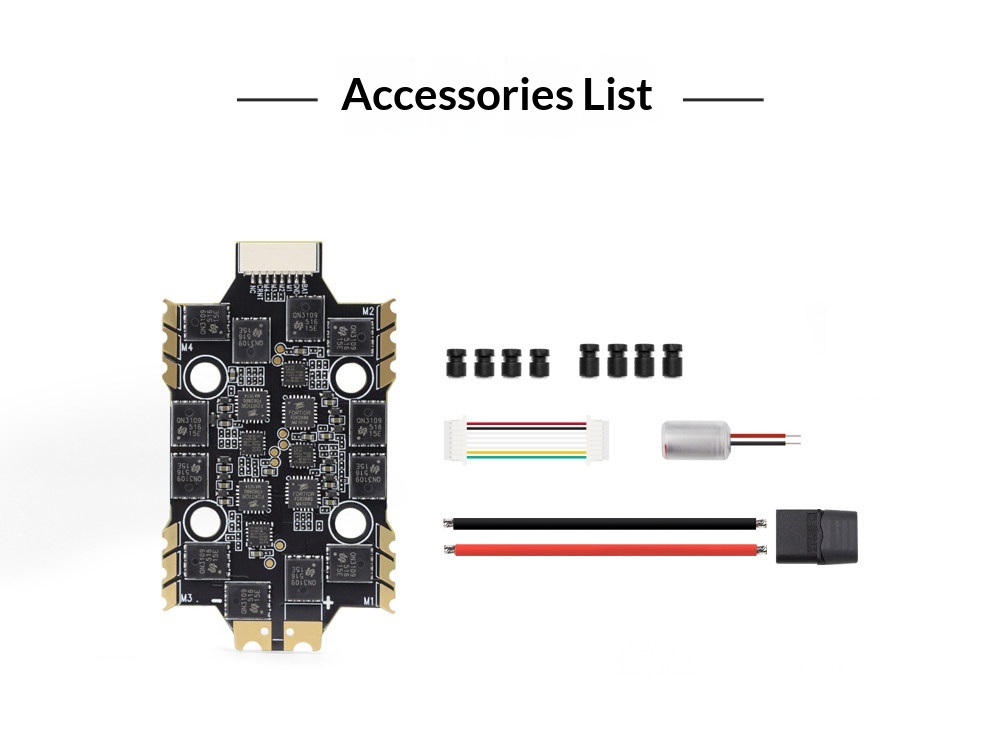

Shipping List:
1x HGLRC 60A 4-in-1 16S 8-bit Mini V1 ESC
1x 30AWG 25mm Dual-End SH1.0-8P Cable
1x12AWG 100mm Power Cable(Black/Red)
1x XT60H-M Black Male Connector
1x35V 1000UF Solid Capacitor4x3*8 Shock-Absorbing Pillars
4x 3*6.6 shock absorber column
1x “Huagulong”2025 Model Small Sticker
1x QR Code Card
