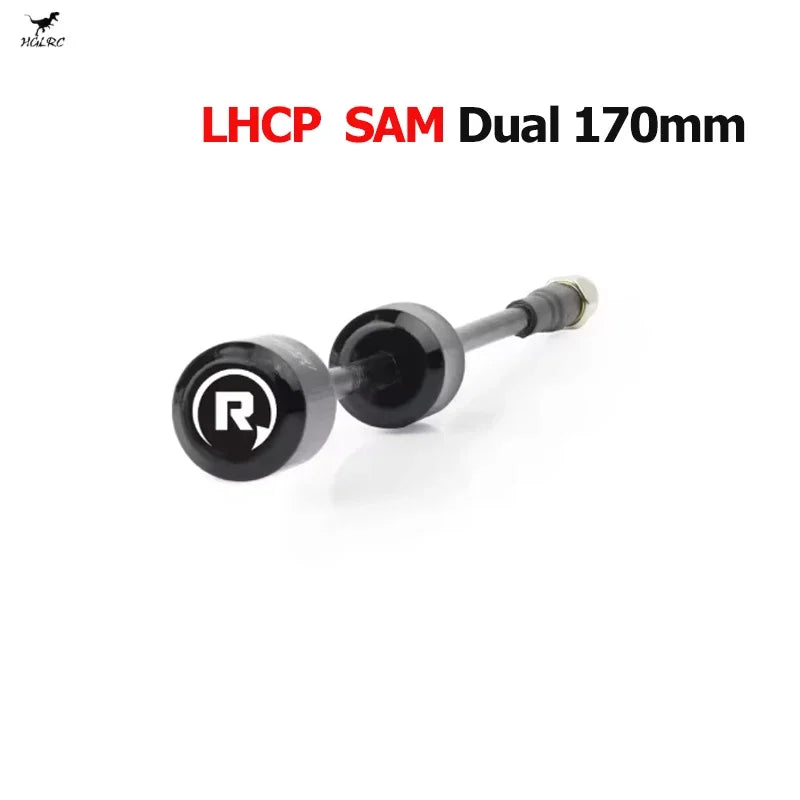

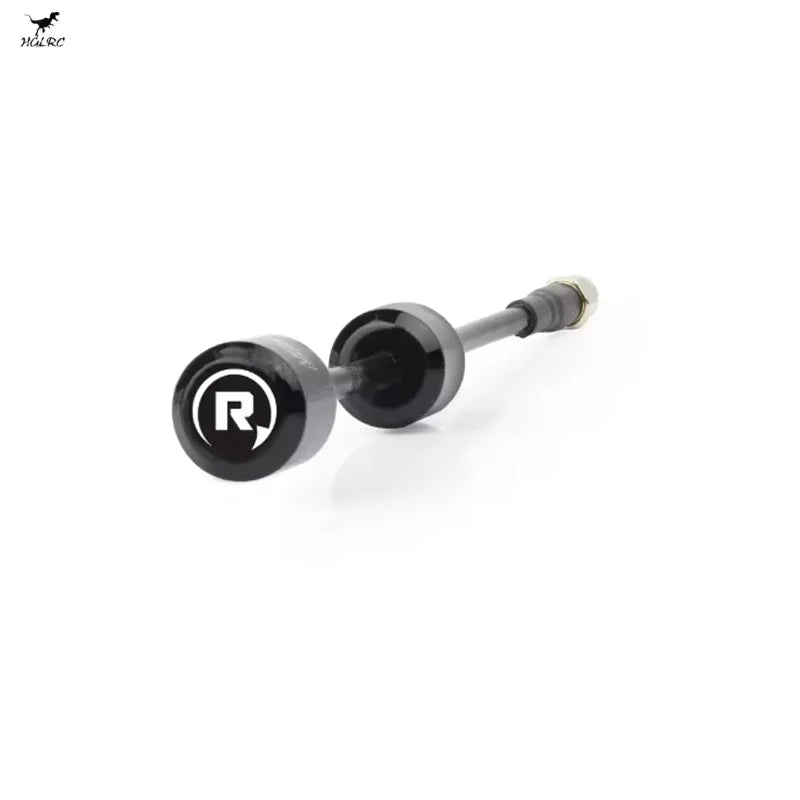

HGLRC 5.8G Hammer Dual Antenna 5.65GHz RHCP LHCP SMA 170mm Dual-core RF RC FPV Quadcopter DIY Drone Freestyle Accessories Parts
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Advantages:

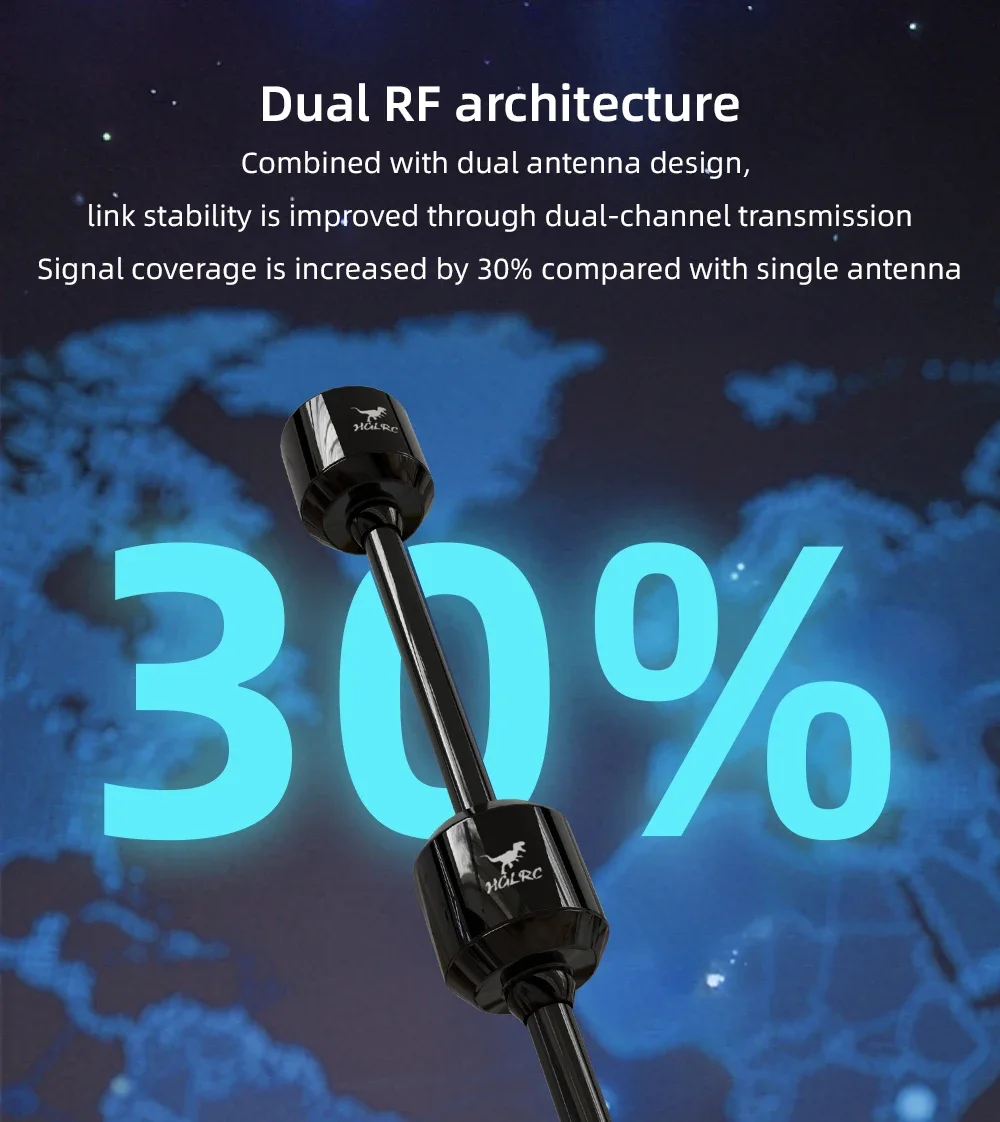

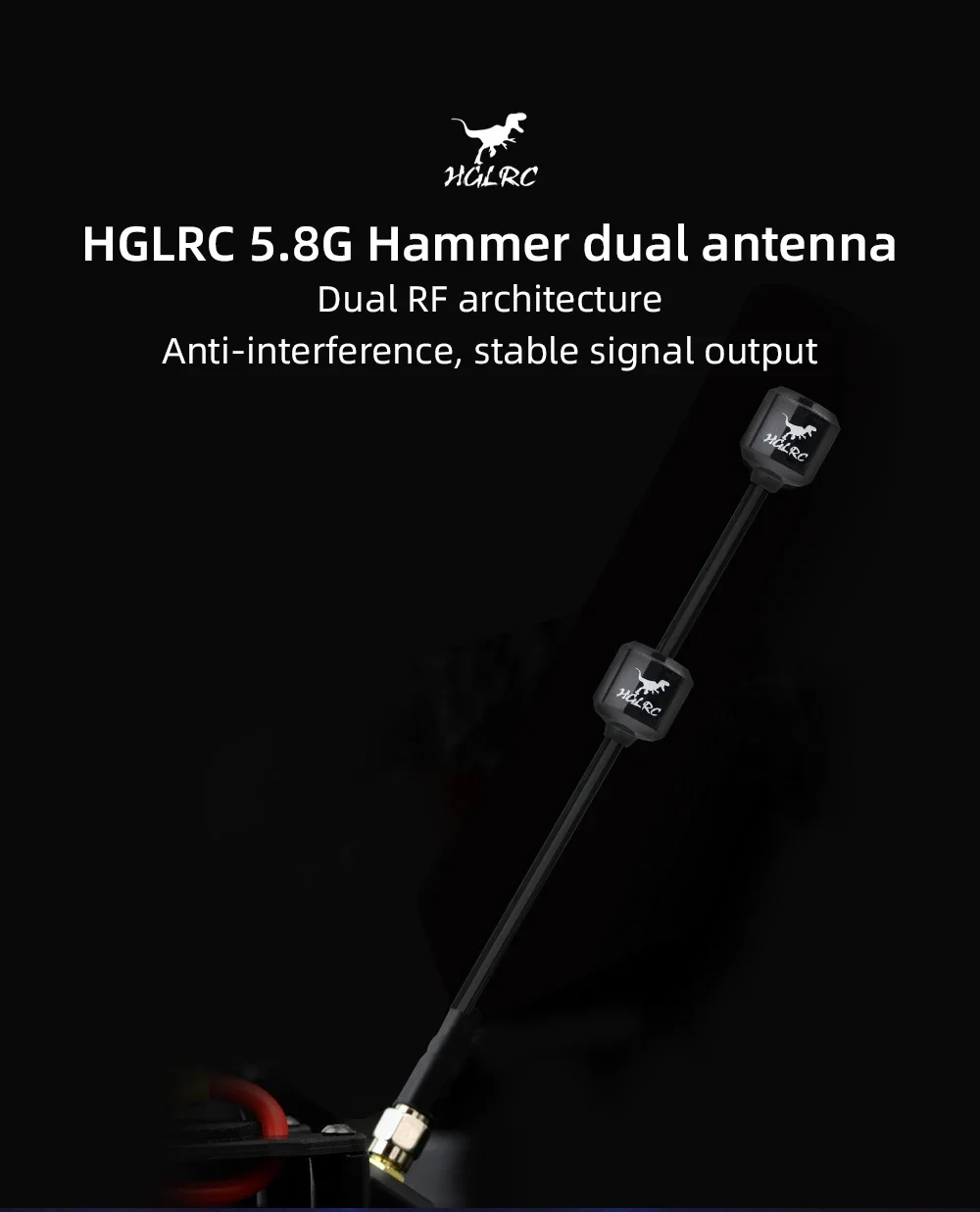

Dual RF Architecture: Combines dual-antenna design with dual-channel transmission to enhance link stability, improving signal coverage by 30% compared to single-antenna systems.

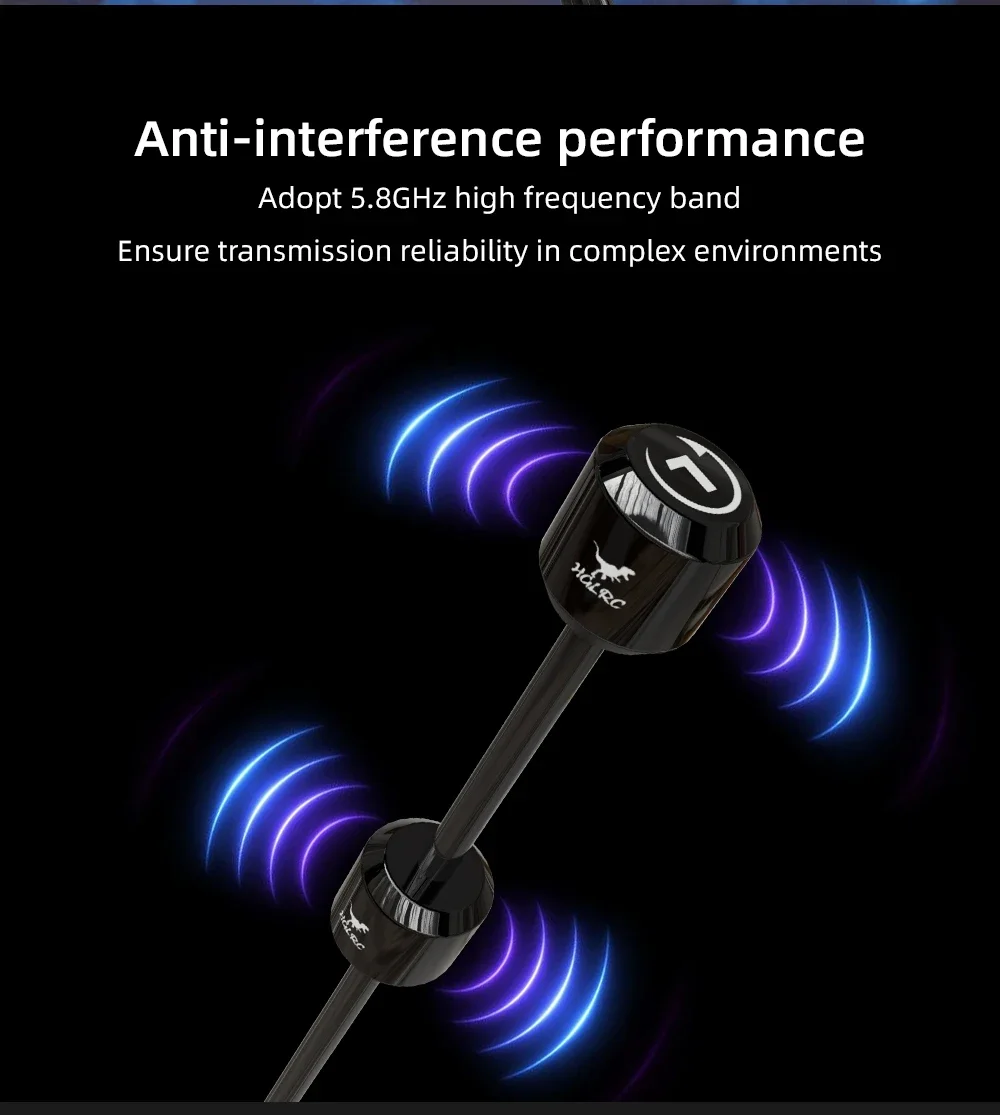

Anti-Interference Performance: Operates on the 5.8GHz high-frequency band to ensure reliable transmission in complex environments.

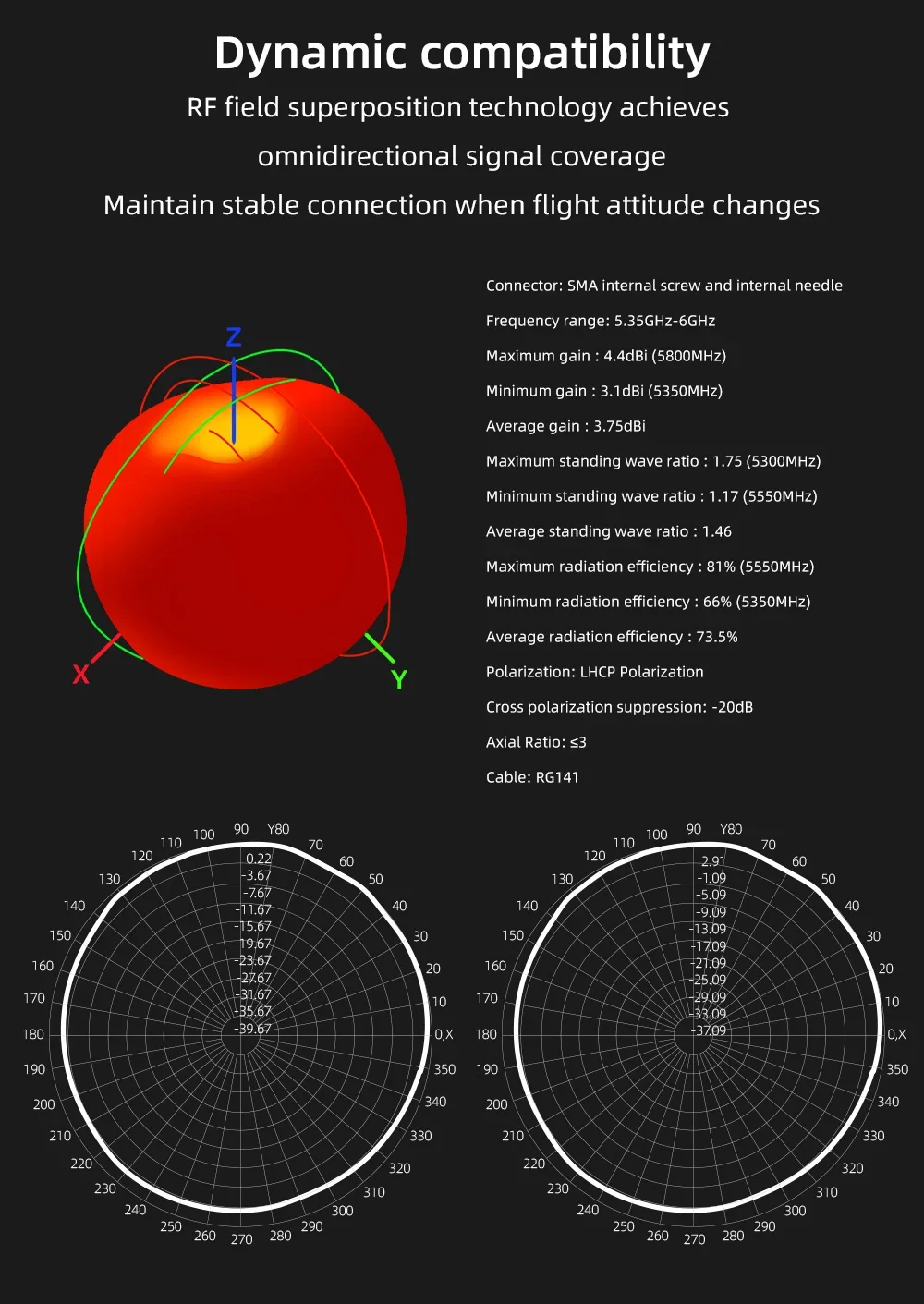

Dynamic Compatibility: Utilizes RF field superposition technology for omnidirectional signal coverage, maintaining stable connectivity during flight attitude changes.

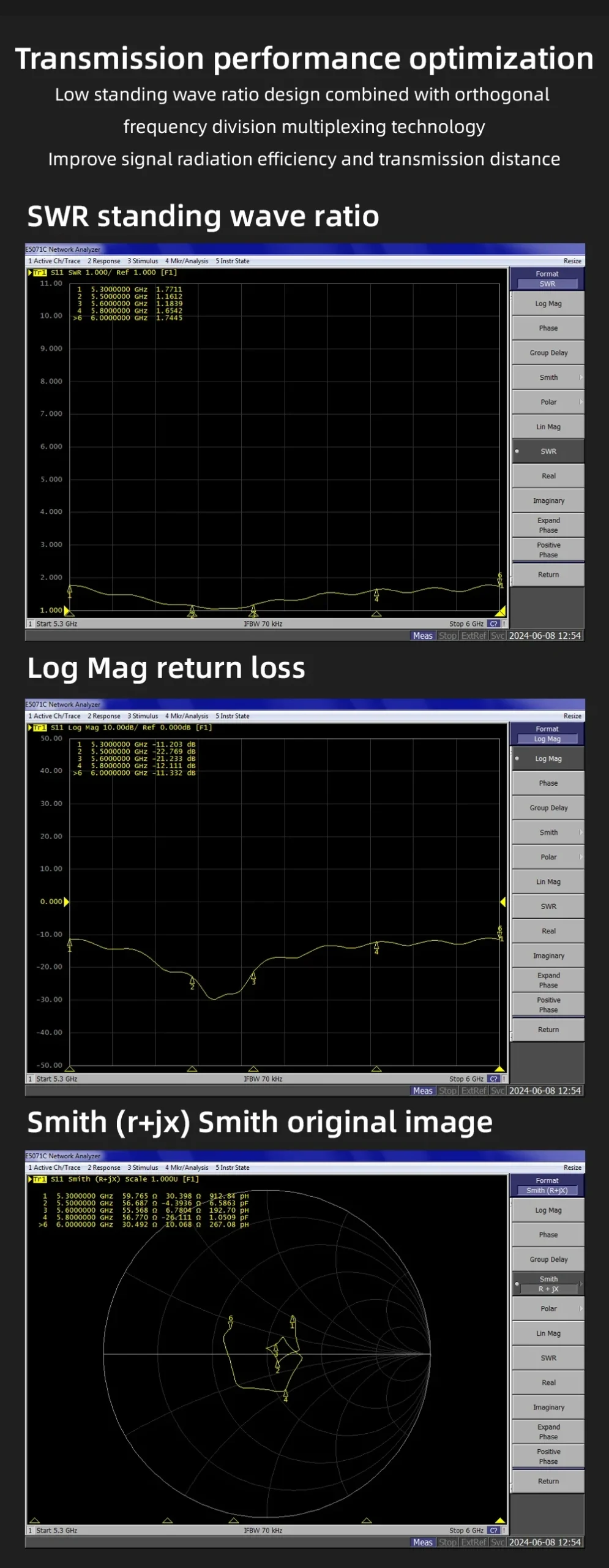

Transmission Efficiency Optimization: Low VSWR design combined with Orthogonal Frequency Division Multiplexing (OFDM) technology enhances radiation efficiency and extends transmission range.

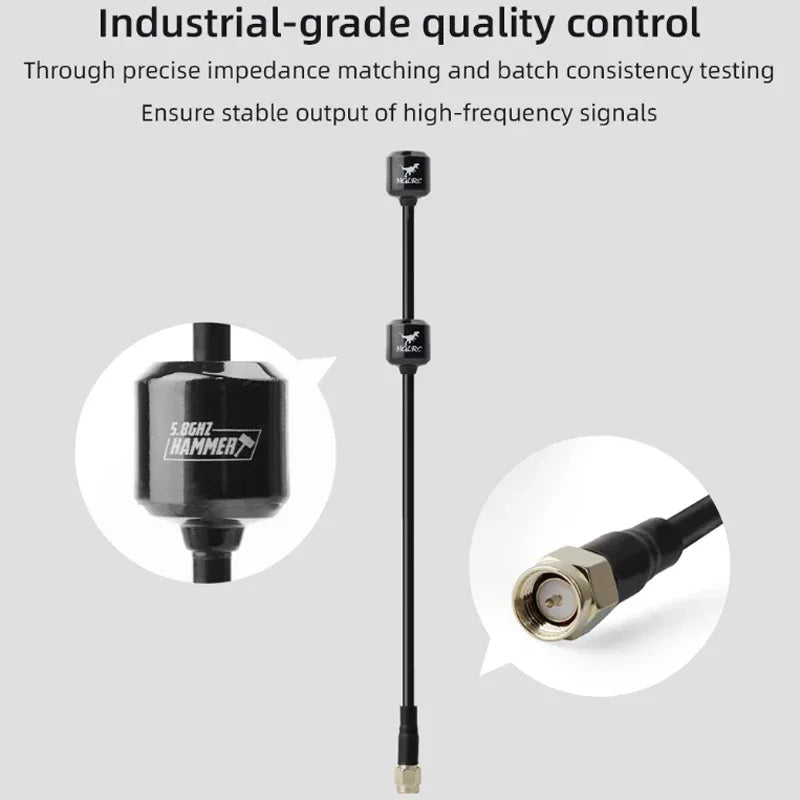

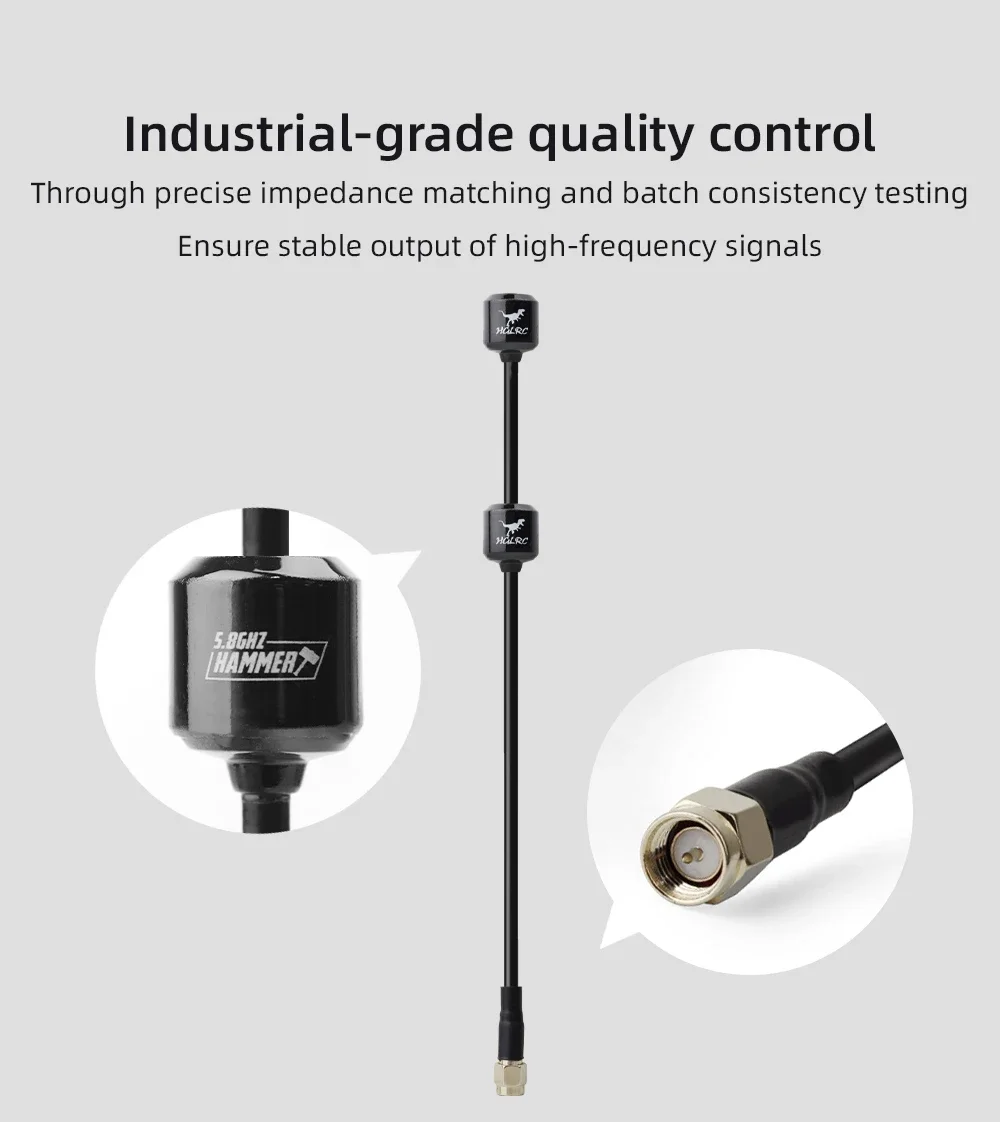

Industrial-Grade Quality Control: Precision impedance matching and batch consistency testing ensure stable high-frequency signal output.

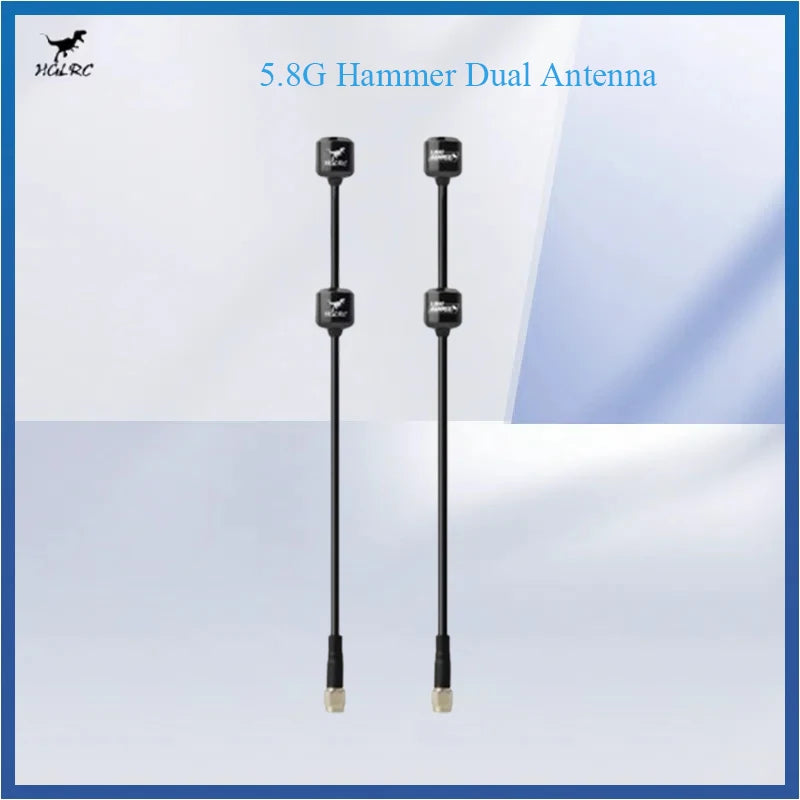

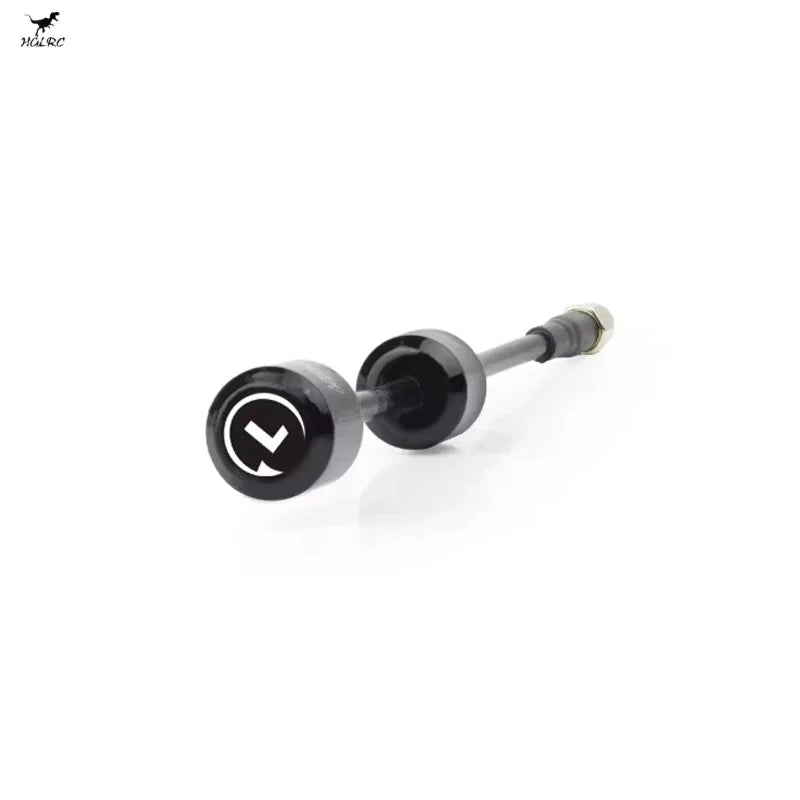

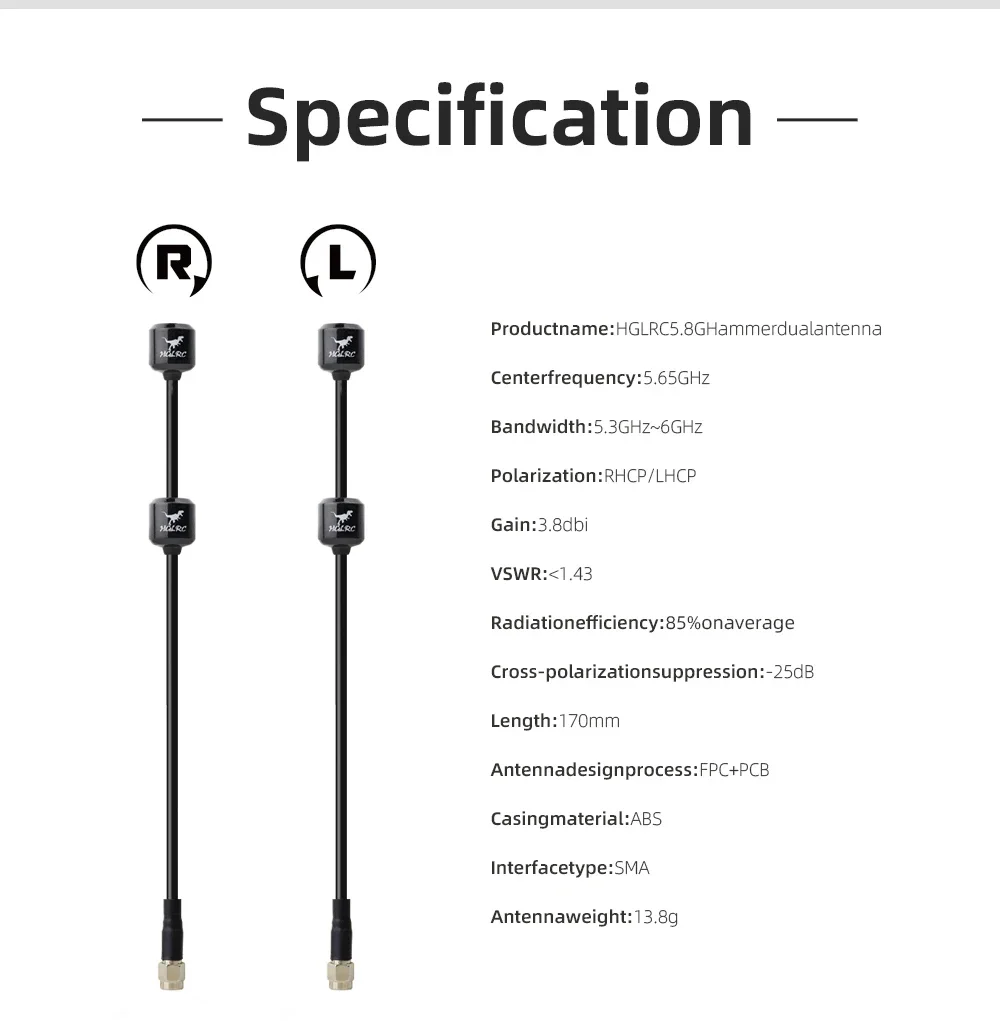

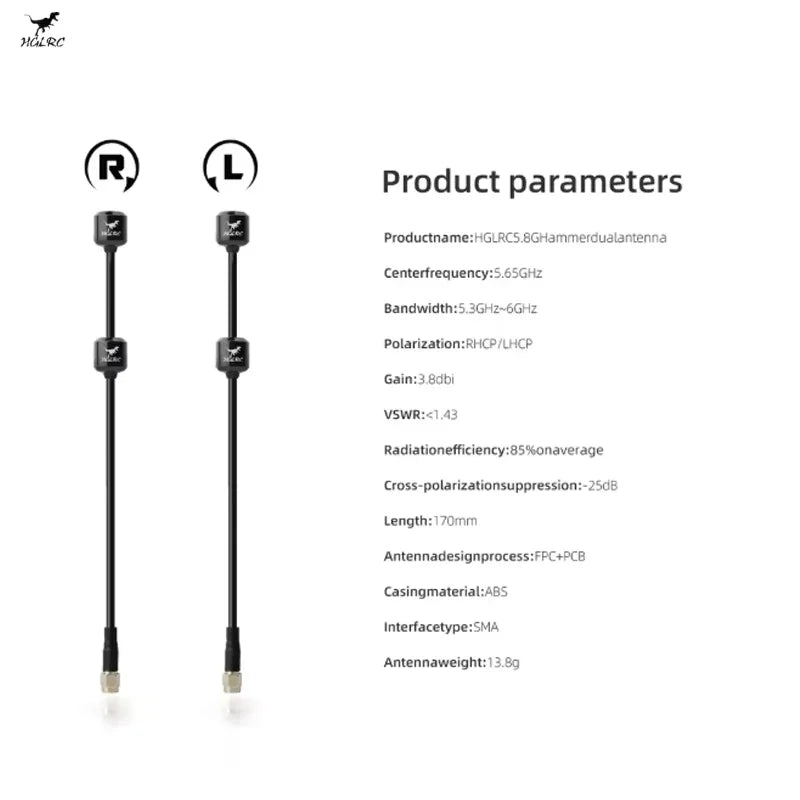

Product Name: HGLRC 5.8G Hammer Dual Antenna
Connector: SMA male (inner pin)
Frequency Range: 5.35GHz–6GHz
Max Gain: 4.4dBi (5800MHz)
Min Gain: 3.1dBi (5350MHz)
Avg Gain: 3.75dBi
Max VSWR: 1.75 (5300MHz)
Min VSWR: 1.17 (5550MHz)
Avg VSWR: 1.46
Max Radiation Efficiency: 81% (5550MHz)
Min Radiation Efficiency: 66% (5350MHz)
Avg Radiation Efficiency: 73.5%
Polarization: Right-Hand Circular Polarization (RHCP)
Cross-Polarization Suppression: -20dB
Axial Ratio: ≤3
Cable: RG141

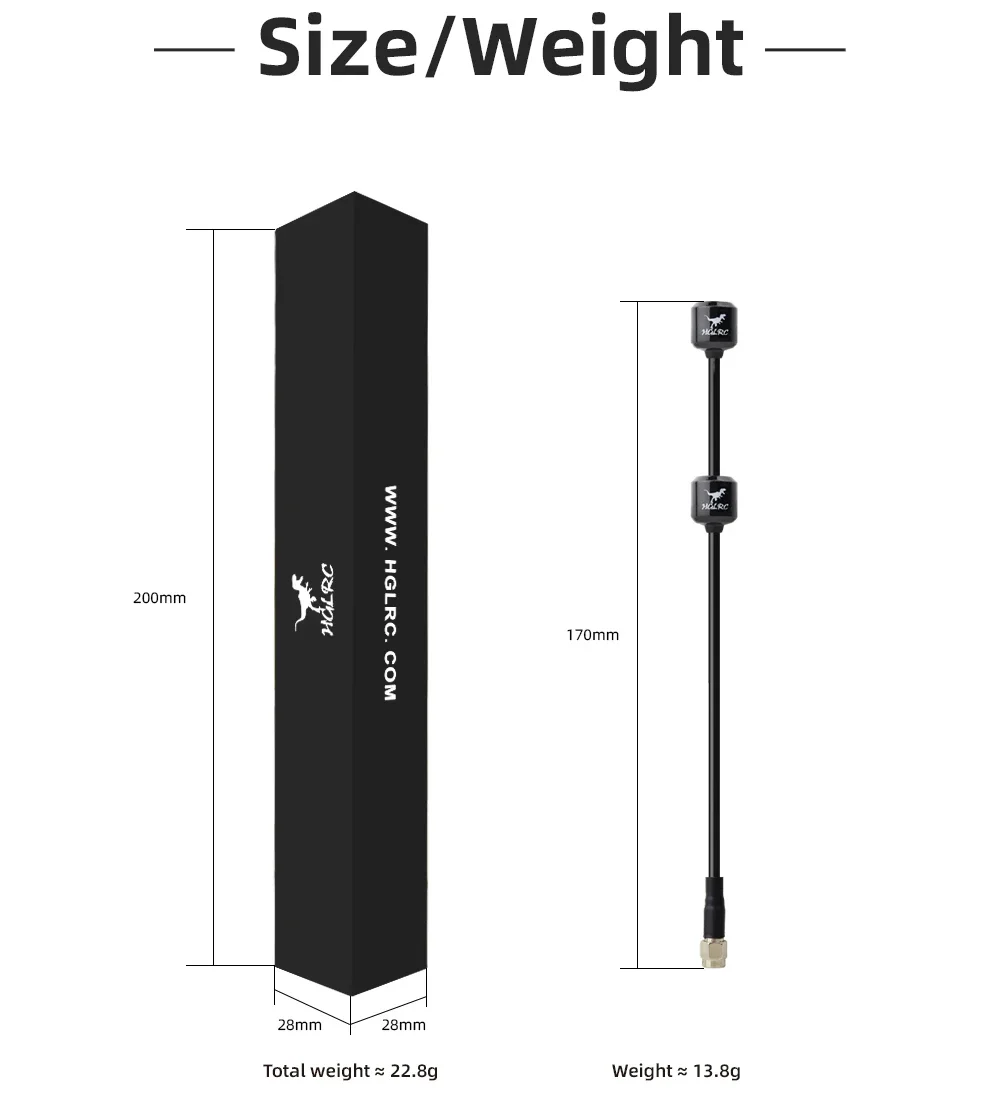

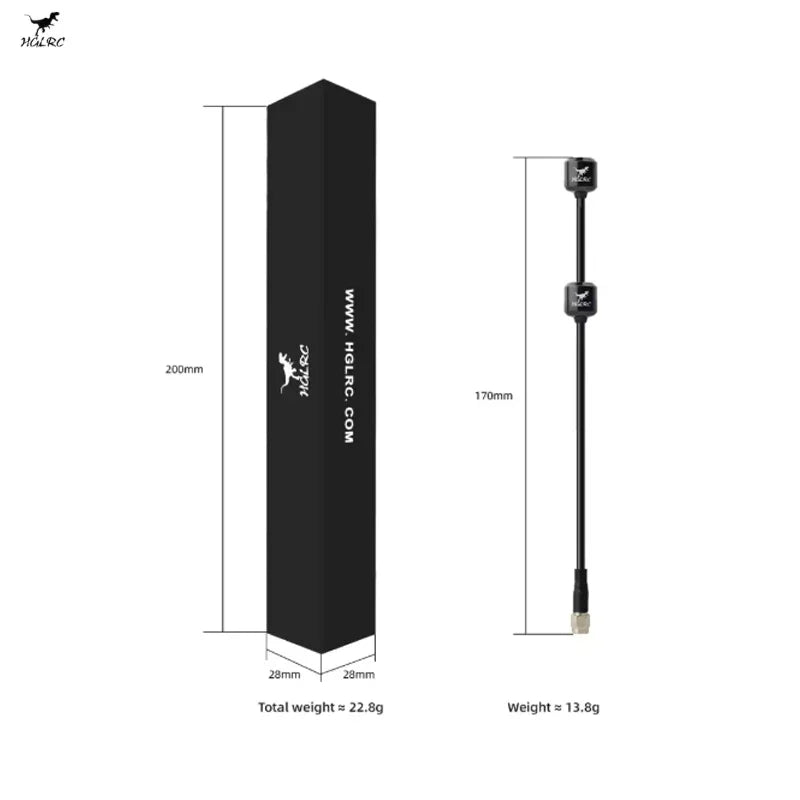

Weight: 13.8g (±0.5g)
Size: Total length 170mm (±5mm)
Package Contents:
1 × HGLRC 5.8G Hammer Dual Antenna
