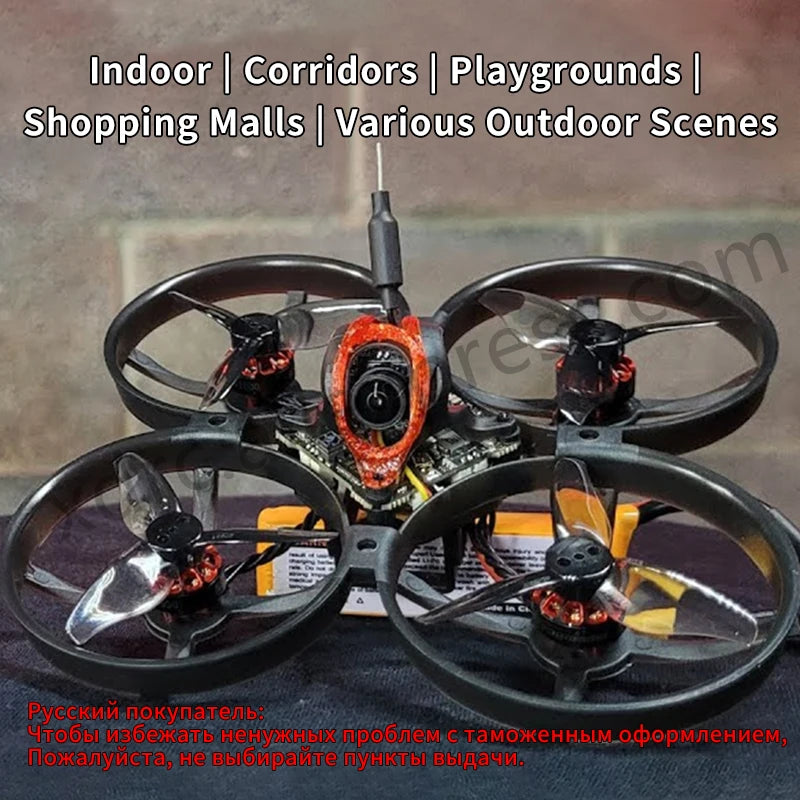

Happymodel Mobula8 Mobula 8 1-2S 85mm Micro FPV Whoop Quadcopter Drone 2.4G ELRS Receiver X12 AIO Caddx Ant Brushless Motor New

(22 customer reviews)
Original price was: $400.72.Current price is: $133.04.

Are you tired of the power performance of the 1S whoop you own? Do you want more power to ripping and roaring in your backyard? Yes, here comes Mobula8, which is Happymodel’s first attempt on 85mm frame. It comes with X12 series flight controller, EX1103 KV11000 motor and Gemfan Hurricane 2023 tri-blade propeller, which has […]

All Prices Include Import Tax & VAT
Ships from supplier warehouse · Usually within 3 business days

Add $29.00 more for FREE shipping!

Category: , , ,
Free shipping over $29ZoneFPV-style store promise for FPV buyers.
Secure checkoutCart and payment remain handled by WooCommerce.
FPV-focused catalogDrones, parts, power and radio gear grouped for builders.

Buying Notes

Product FAQ

Product Details

Description

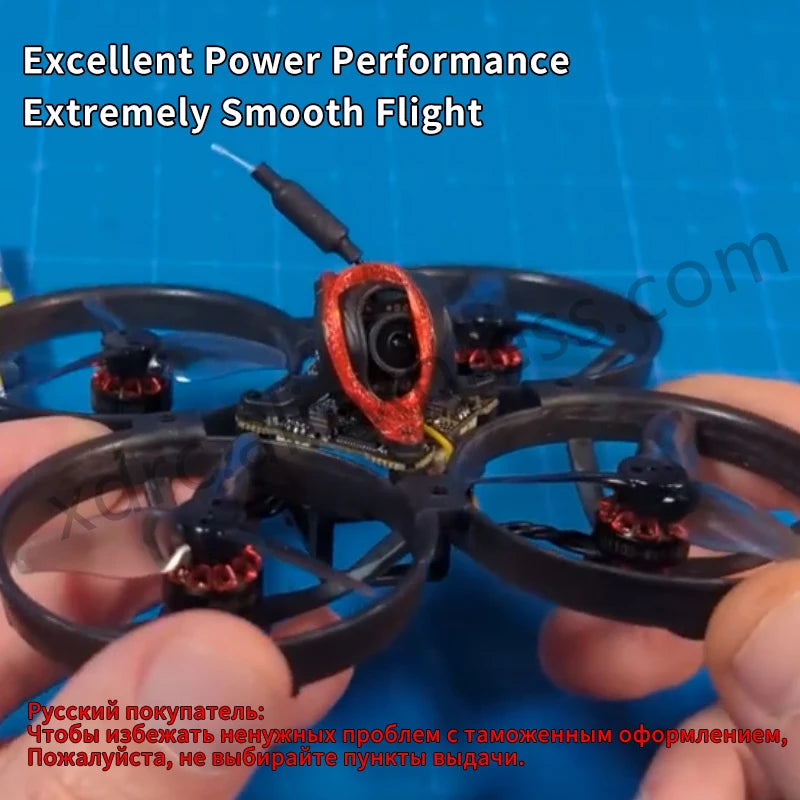

Are you tired of the power performance of the 1S whoop you own? Do you want more power to ripping and roaring in your backyard? Yes, here comes Mobula8, which is Happymodel’s first attempt on 85mm frame. It comes with X12 series flight controller, EX1103 KV11000 motor and Gemfan Hurricane 2023 tri-blade propeller, which has excellent power performance and extremely smooth flight.

Features:

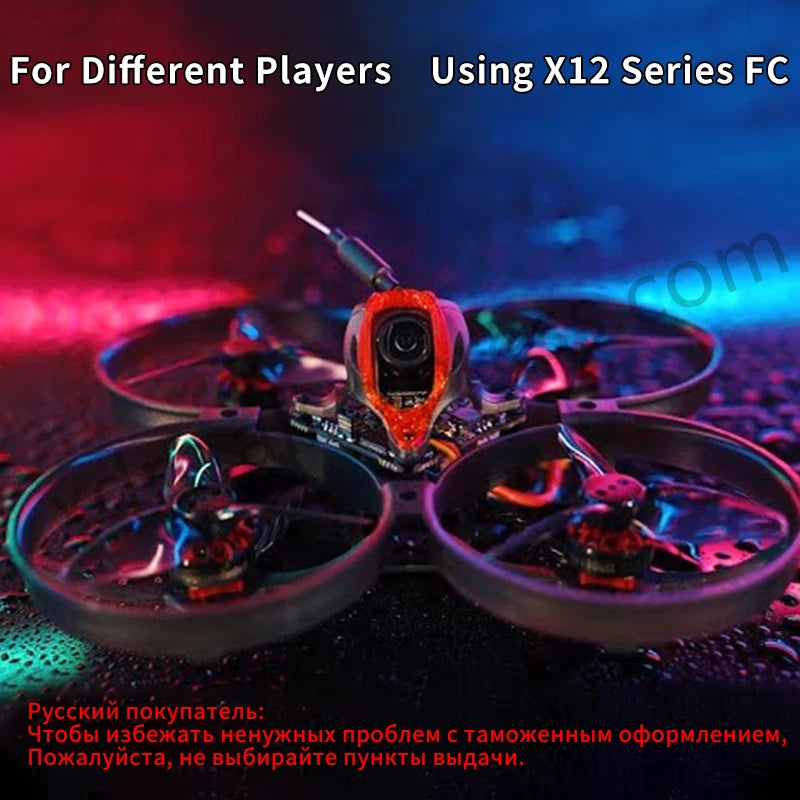

X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
VTX Power up to 400mw
ELRS V2.0 (Default), provide firmware to support ELRS V3.0
EX1103 KV11000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 1S-2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)

Specifications:
Brand Name: Happymodel
Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone

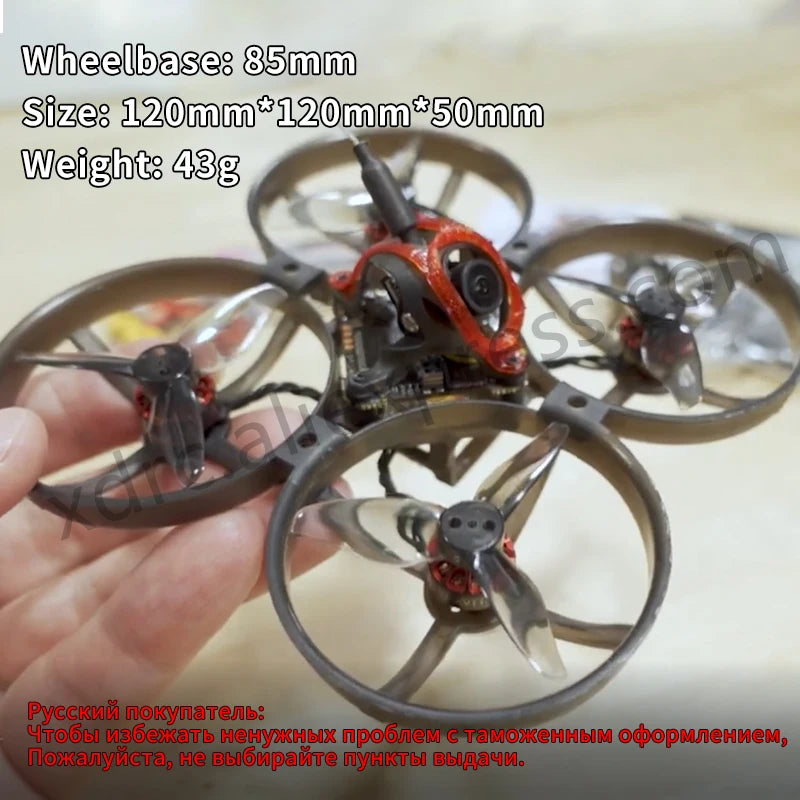

Wheelbase: 85mm
Size: 120mm*120mm*50mm

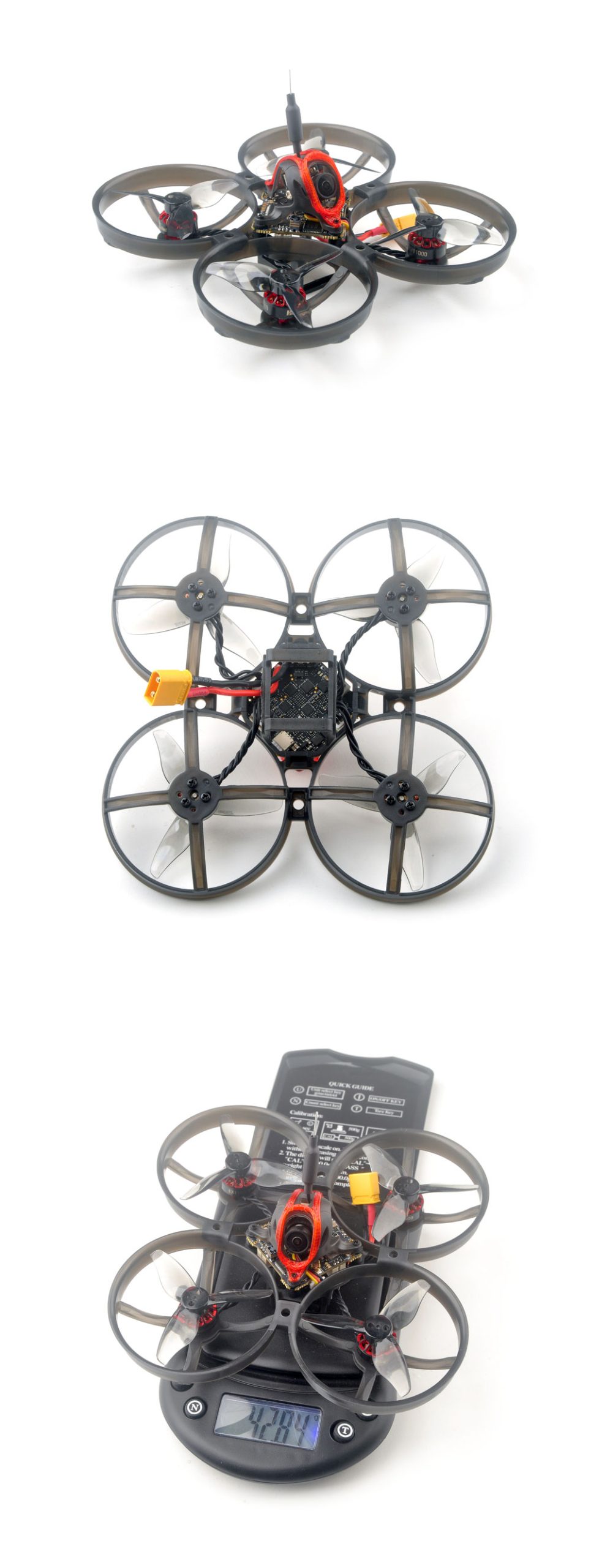

Weight: 43g

Receiver option:
2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
SPI Frsky D8/D16  not compatible with EMAX E6 radio
SPI Flysky AFHDS2A
PNP (without onboard receiver)
TBS version(with external TBS CRSF NANO RX)

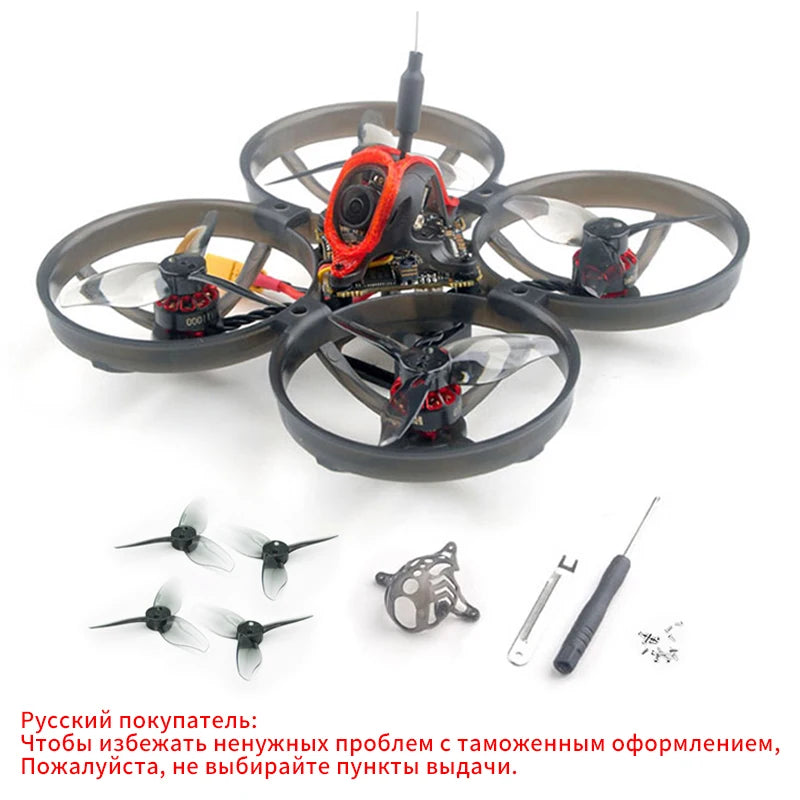

Package includes:

Item Name

Qty

Mobula8 Frame

1

Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver

1

EX1103 KV11000 brushless motor

4

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

1

Caddx ANT 1200TVL Camera

1

Onboard 5.8G Openvtx 0mw~400mw VTX

1

Canopy for 14mmx14mm camera

1

Screw driver

1


Spare parts specifications:

Motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
o.of Cells(Lipo):1-2S

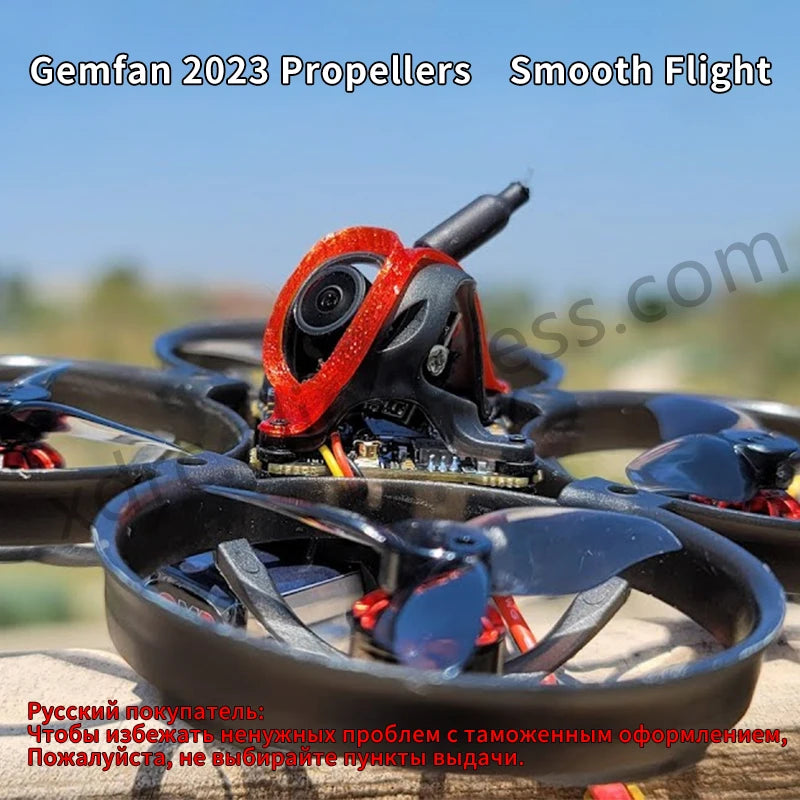

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller

X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Version

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
o ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

Onboard SPI Flysky receiver Version

SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
o ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support

PNP Version
(without onboard receiver)

Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano receiver version

Original TBS CROSSFIRE Receiver  ,CRSF Protocol , Official TBS transmitter compatible

Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera

Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)



>
>









Additional information

Model

SPI ELRS RX

22 reviews for Happymodel Mobula8 Mobula 8 1-2S 85mm Micro FPV Whoop Quadcopter Drone 2.4G ELRS Receiver X12 AIO Caddx Ant Brushless Motor New

  1. Lesley Halvorson –

    As described!

  2. Voncile Gutkowski –

    The seller quickly responded to my order, the goods were sent within a few days, arrived in Ukraine in about 3 weeks, satisfied with the quality of the goods.

  3. Lamonica Douglas –

    Not bad for a beginner. Everything suits me, great toy.Compact quadcopter, convenient to take with you. The drone meets all the declared parameters.Great drone for training, got 100% everything i expected.

  4. Lamonica Douglas –

    Not bad for a beginner. Everything suits me, great toy.Compact quadcopter, convenient to take with you. The drone meets all the declared parameters.Great drone for training, got 100% everything i expected.

  5. Dee Marquardt –

    great deal

  6. Joline Mertz –

    Mobula 8 the best!!! Rp!

  7. Sammy Auer –

    an updated racing drone with a camera that allows pilots of various skill levels to have fun and experience unforgettable emotions from flying. It is perfect for those who want to start racing drones outdoors.

  8. Robena Trantow –

    Flies great! Seems unbreakable, already crashed 20+ times and it's still working :d

  9. Harvey Huel –

    Arrived is what it says it is

  10. Sergio Funk –

    Good, looks and feels like the original

  11. Jone Klocko –

    All ok… thx

  12. Doreen Marks –

    very convenient and lightweight drone, even a beginner can handle it, easy to bind, settings are not complicated, I recommend it

  13. Cori Gislason –

    Ok

  14. Mohammad Sauer –

    an updated racing drone with a camera that allows pilots of different levels of experience to have fun and experience unforgettable emotions from flying. It is quite suitable for those who want to start engaging in outdoor drone racing.

  15. Candance Bins –

    Excellent whooper. Shipped quickly. Flies very well. Great seller.

  16. Hoyt Streich –

    Nice

  17. Isreal Marquardt –

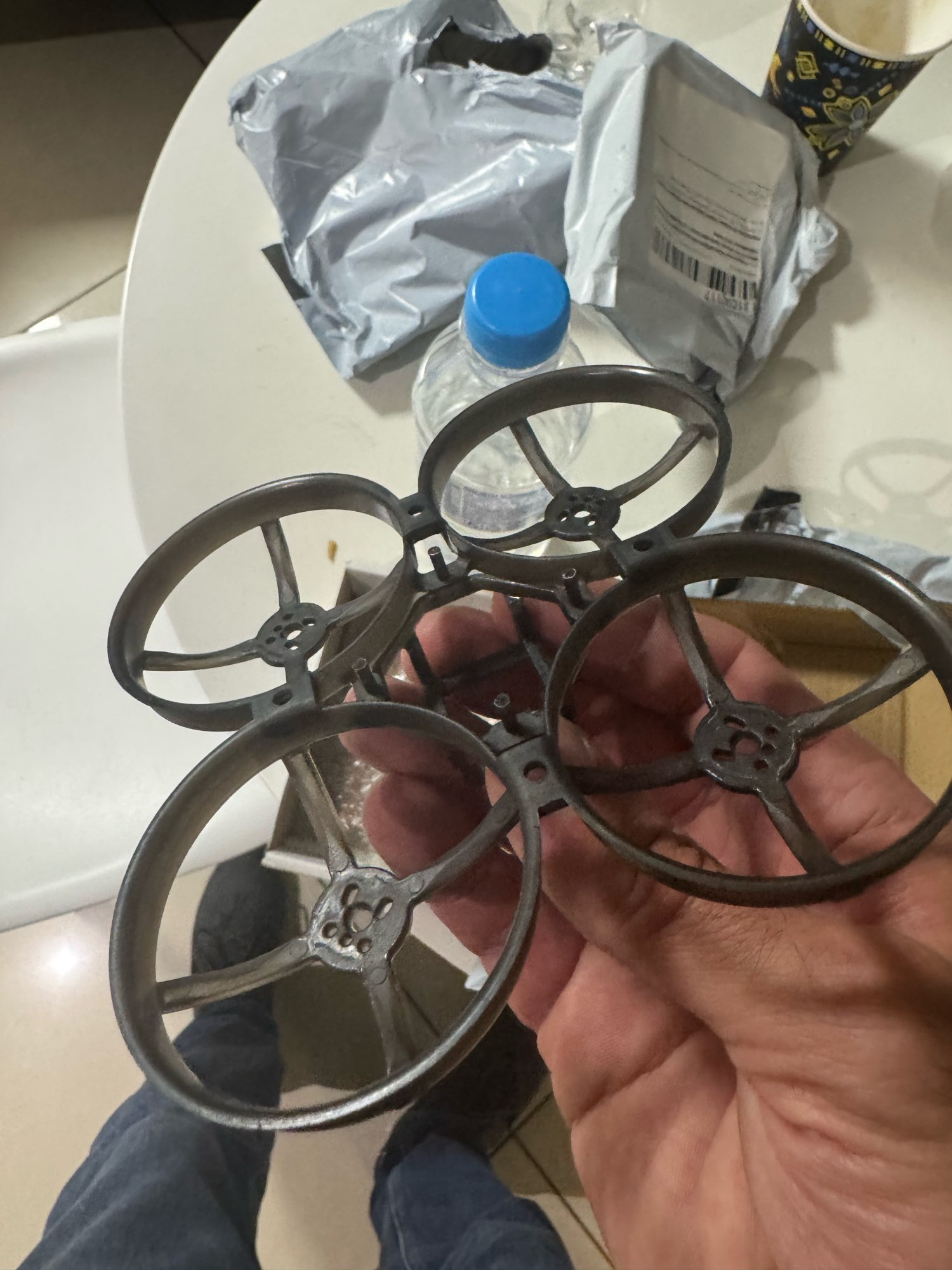

    Happymodel mobula8 frame is quite fragile. My first fly was finished with crash. Battery holder was broken. I fixed it with 2 yellow nylon cable ties. So, spare mobula8 frame must be beside the drone. I have bought 3 pieces. I'm ready to new crashes! Fast delivery to ukraine. Thank you!
