HappyModel Mobula6 2024 1S 65mm Ultra Light Micro FPV Whoop Drone w/ ELRS 2.4GHz SuperX ELRS 800TVL 400mW 0702 KV28000 Upgrade

HappyModel Mobula6 2024 1S 65mm Ultra Light Micro FPV Whoop Drone w/ ELRS 2.4GHz SuperX ELRS 800TVL 400mW 0702 KV28000 Upgrade

Prices include VAT and any applicable duties

usually dispatched in 2-3 business days.

Features:

AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx

Super light 1S 65mm Brushless whoop only 17.7g

Equipment with the lightest brushless motors-SE0702 only 1.46gram

FX17-B 1/3 CMOS 800TVL Camera awesome footage

Smooth and powerful

Compatible for1S Lipo/LIHV

Specifications:

Brand Name: Happymodel

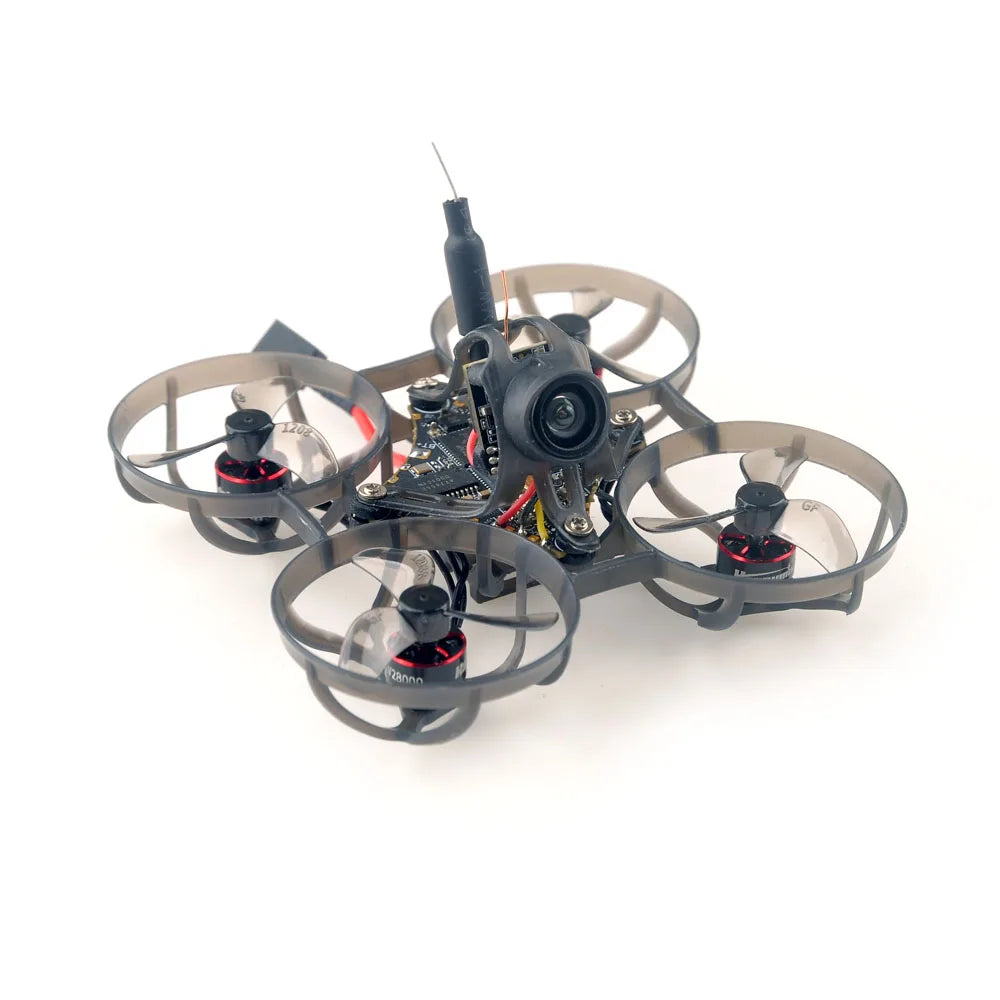

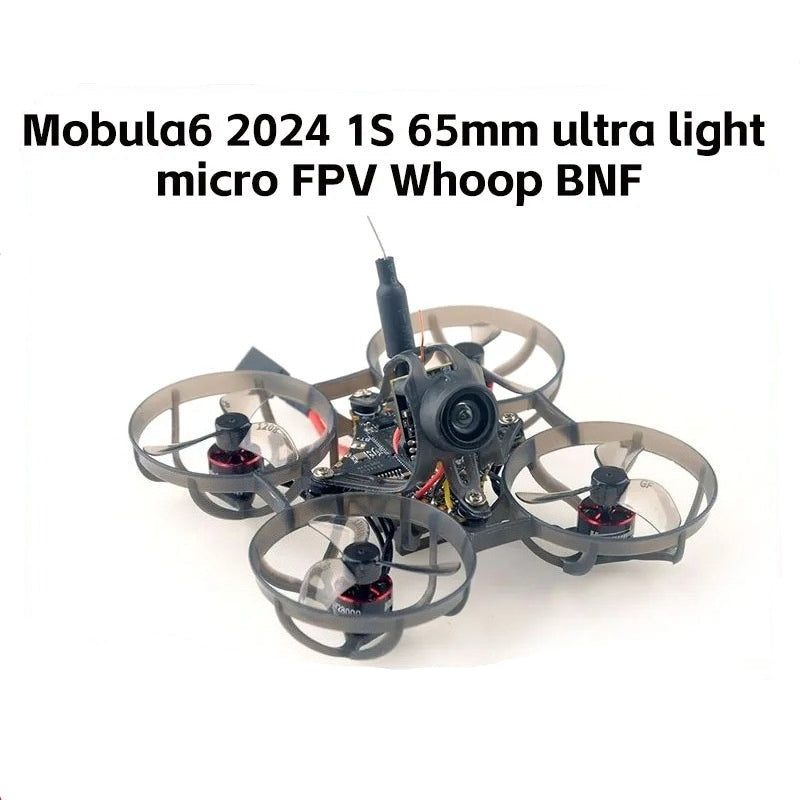

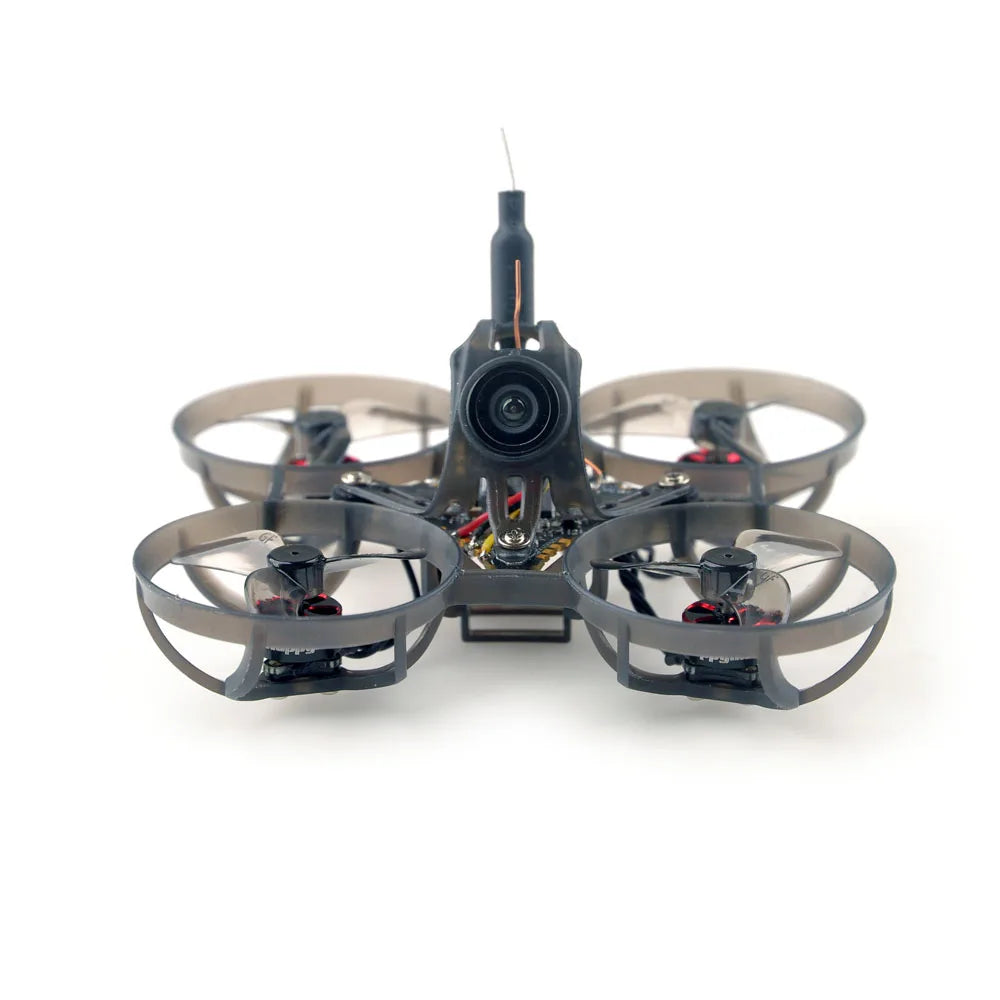

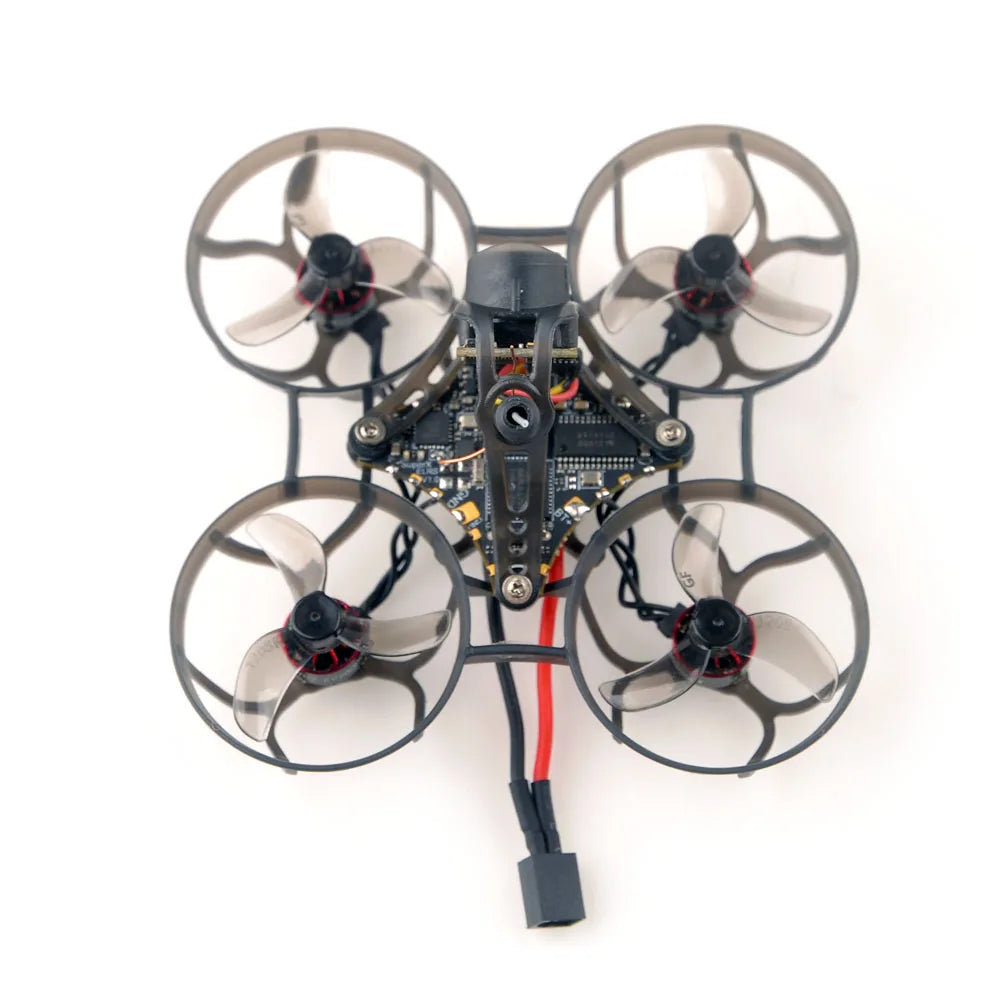

Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
Wheelbase: 65mm
Size: 81mm*81mm*37mm

Weight: 17.7g

Receiver option:

2.4GHz ExpressLRS Serial receiver

	Mobula6 ELRS 2.4G	Mobula6 2024
Flight controller	ELRS F4 2G4	SuperX ELRS
Firmware target	CRAZYBEEF4SX1280	Customized STM32F411
Built-in ExpressLRS receiver	SPI ELRS 2.4GHz	Serial ELRS 2.4GHz
Built-in Dshot ESC	5A	5A
Receiver antenna plug	SMD ceramic antenna	Enameled Copper wire antenna
Onboard VTX power	25mw~300mw	25mw~400mw
Brushless Motor	0702 KV26000	0702 KV28000
Propeller	HQPROP 31mm Bi-blade	Gemfan 1208-3 tri-blade

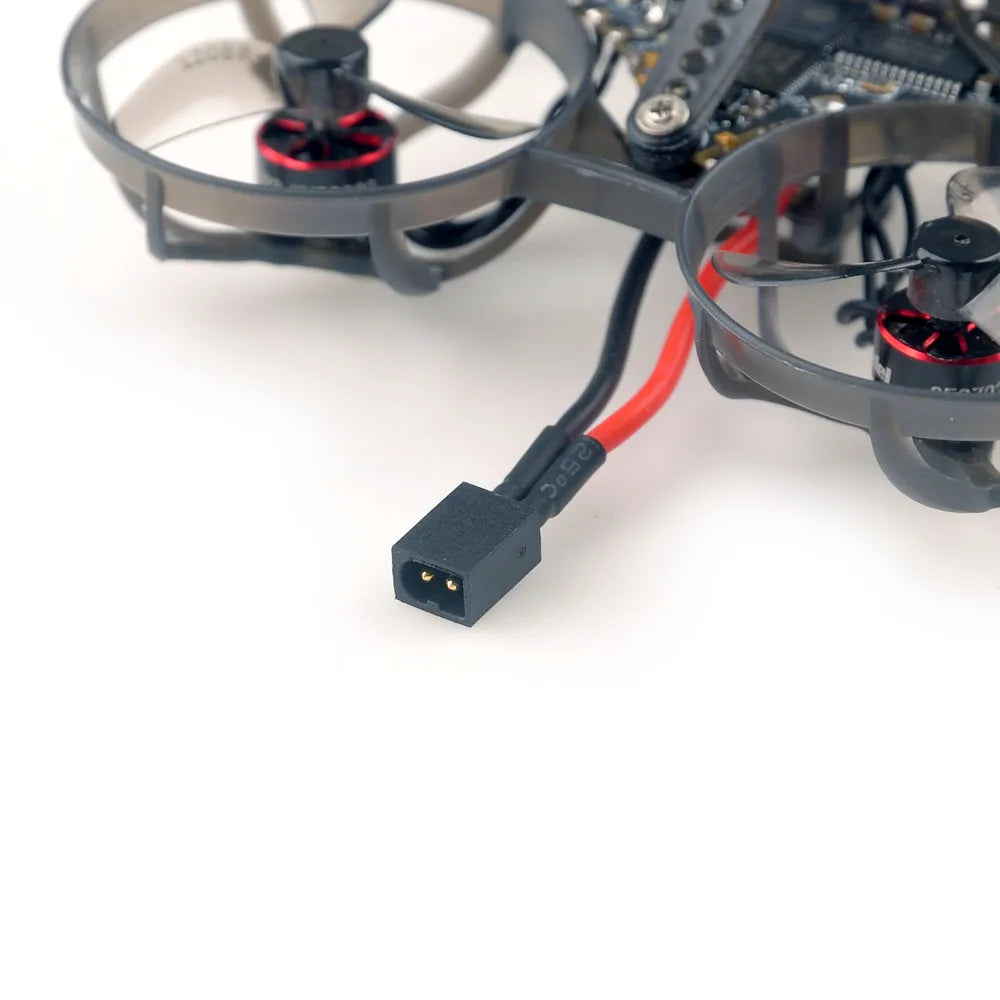

Battery plug	PH2.0	A30(compatible with BT2.0)
Frame	Mobula6 frame 3.3gram	Mobula6 2024 frame 2.76gram

Package includes:

Item Name	Qty
Mobula6 2024 1S 65mm whoop Drone Frame +Canopy	1
SuperX ELRS AIO 5-IN-1 Flight controller	1
SE0702 KV28000 brushless motor	4
Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)	1
FX17-B 1/3 CMOS 800TVL camera NTSC 4:3	1
Onboard 5.8G 25mw~400mw VTX	1
Spare canopy	1
Propeller disassemble tool	1
Screw driver	1

Spare parts specifications:

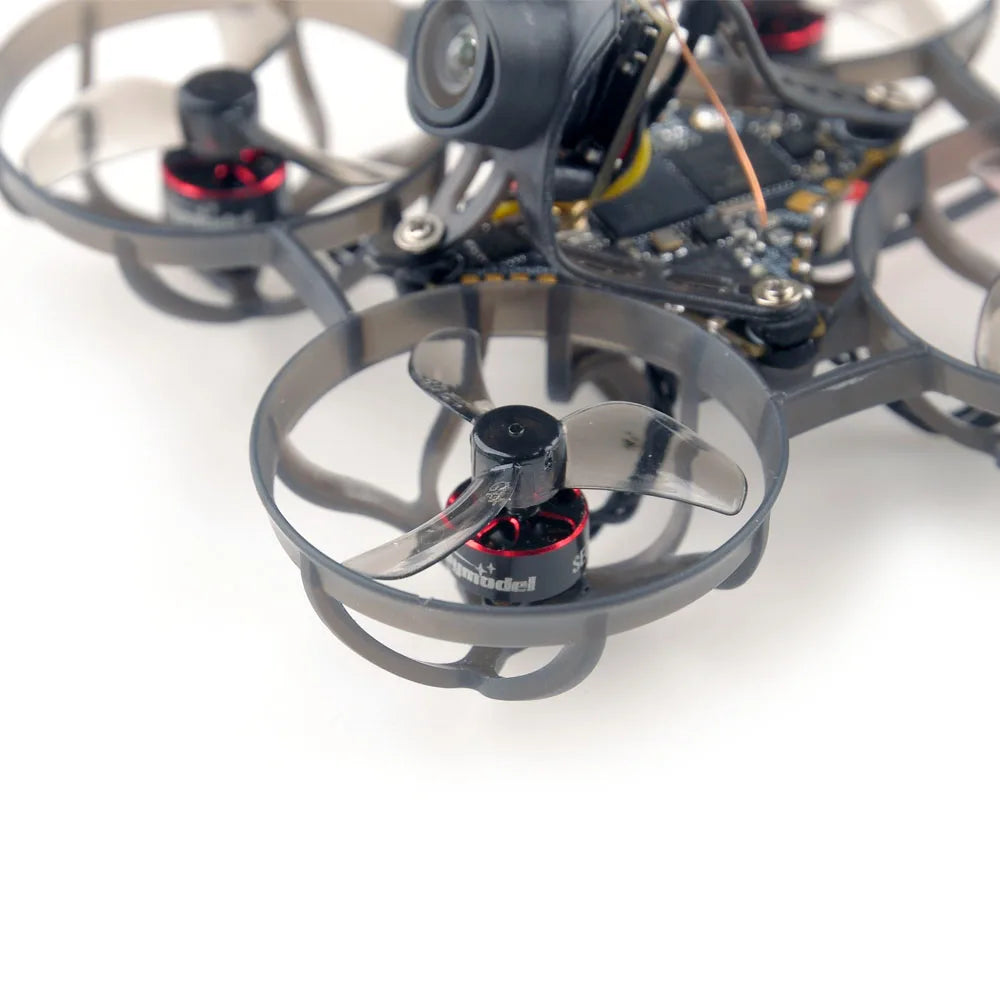

Motor	Mode: SE0702 KV28000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ9.5mm14mm Weight(g):1.46g No.of Cells(Lipo):1S only
Propellers	Materials: PC Inch: 31mm Pitch: 0.8 in Weight: 0.21g Mounthole diameter: 1mm
Flight controller	SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH),ESP32-PICO-D4 Sensor:BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw(MSP control) Built-in UART ExpressLRS v3.0.0 Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 1175
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.19.2 Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200
Onboard SerialExpressLRS receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : Enameled copper wireantenna Telemetry output Power: <12dBm Receiver protocol: Serial_basedCRSF Compatible with ExpressLRS V3.x.xTX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target:Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g VTX	Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL
FX17-B Camera	Model:FX17-B Image Sensor: 1/3; CMOS Horizontal Resolution: 800TVL FOV 150° Signal System: NTSC Net Weight: 1.5g Dimensions: L14mmW14mmH13mm
