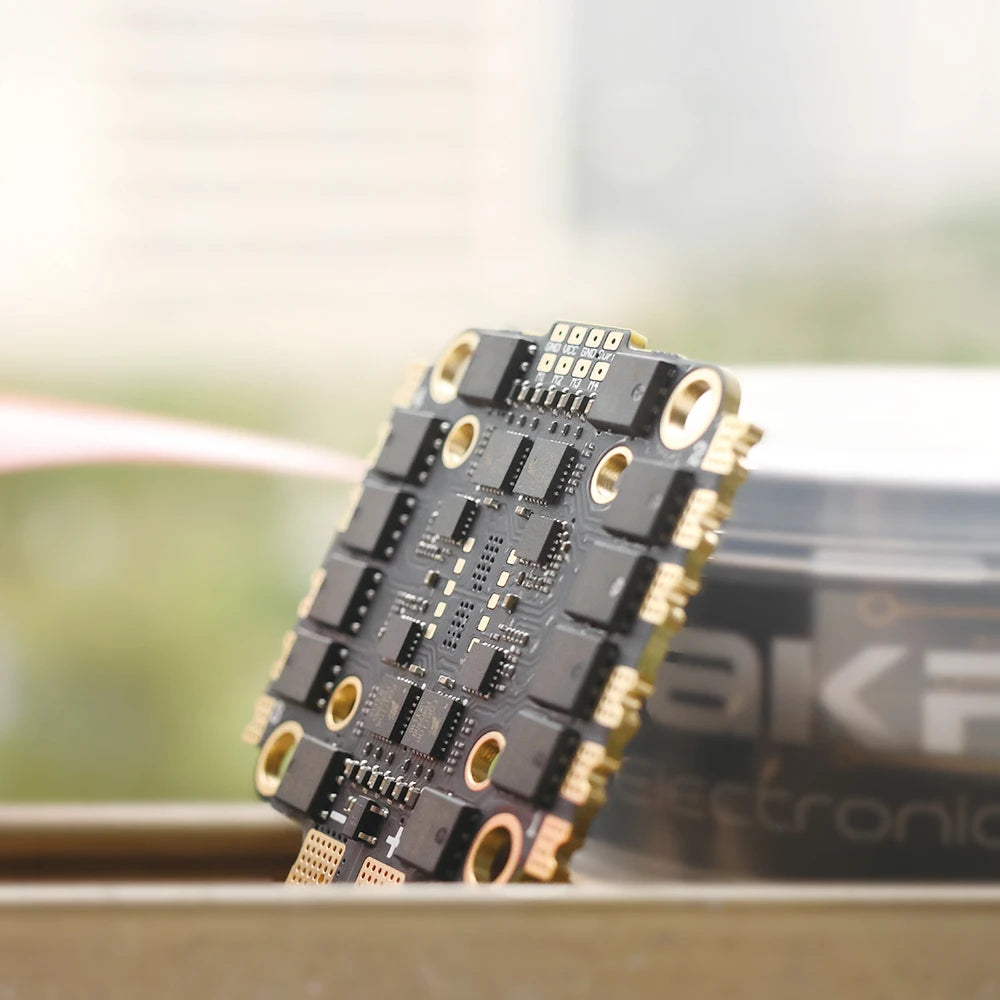

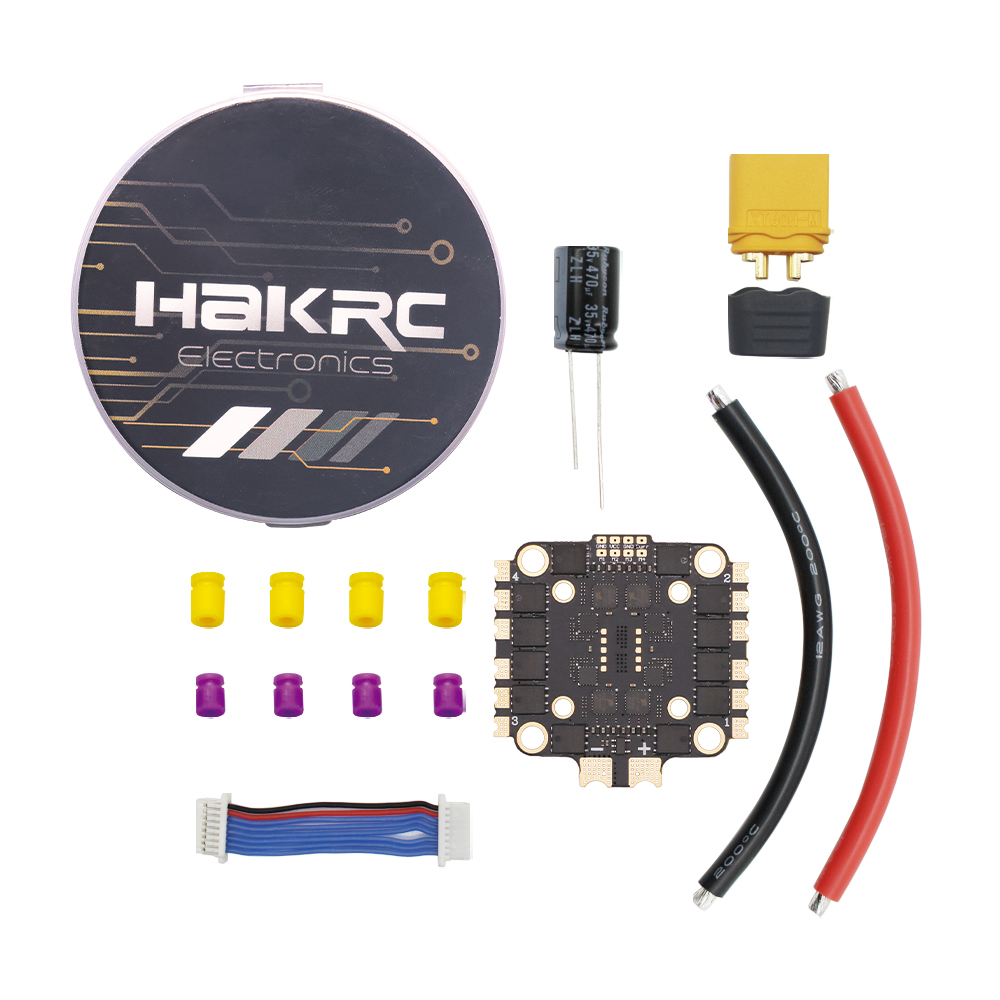

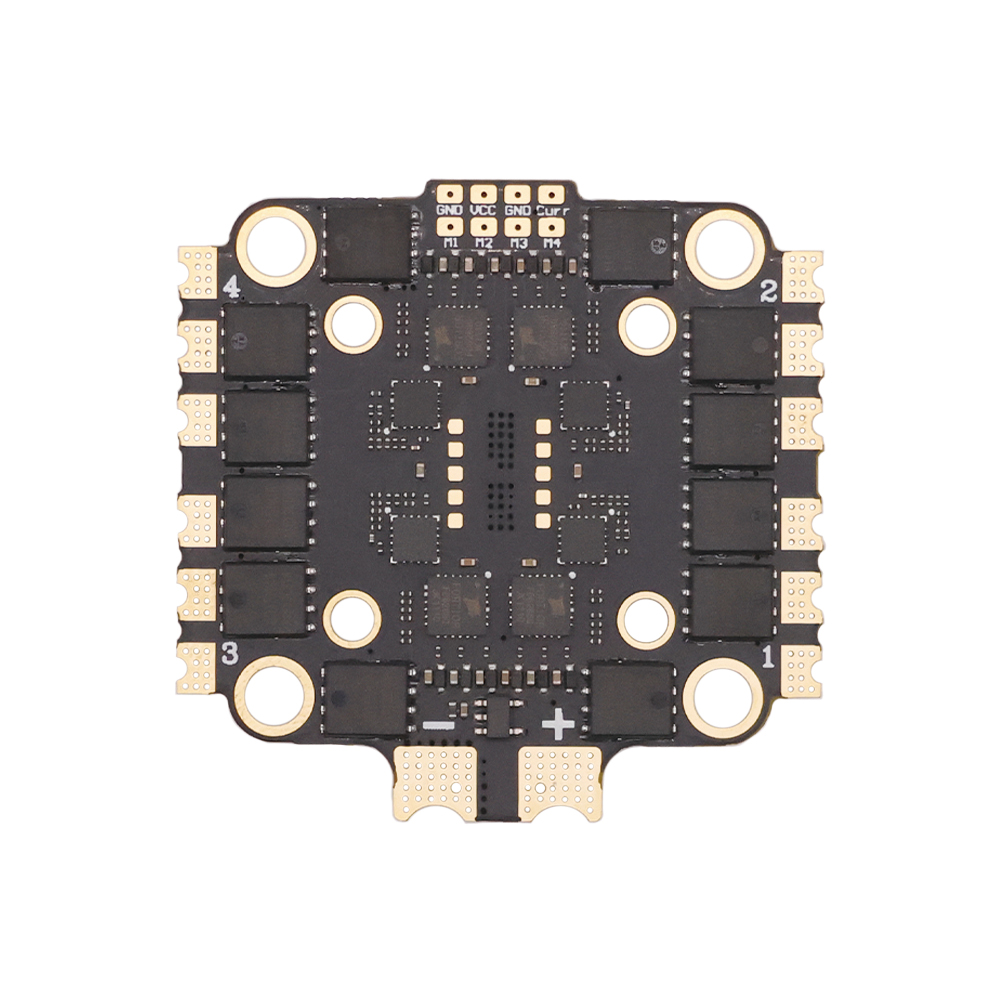

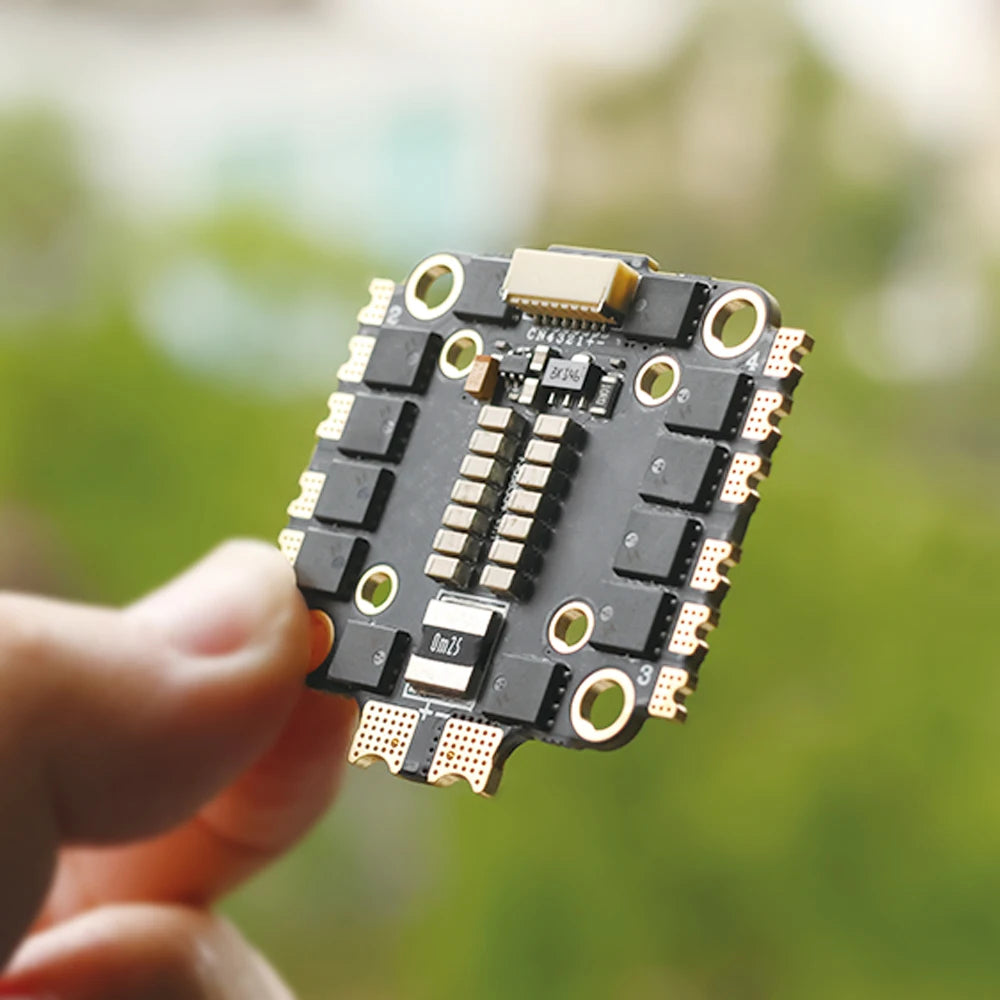

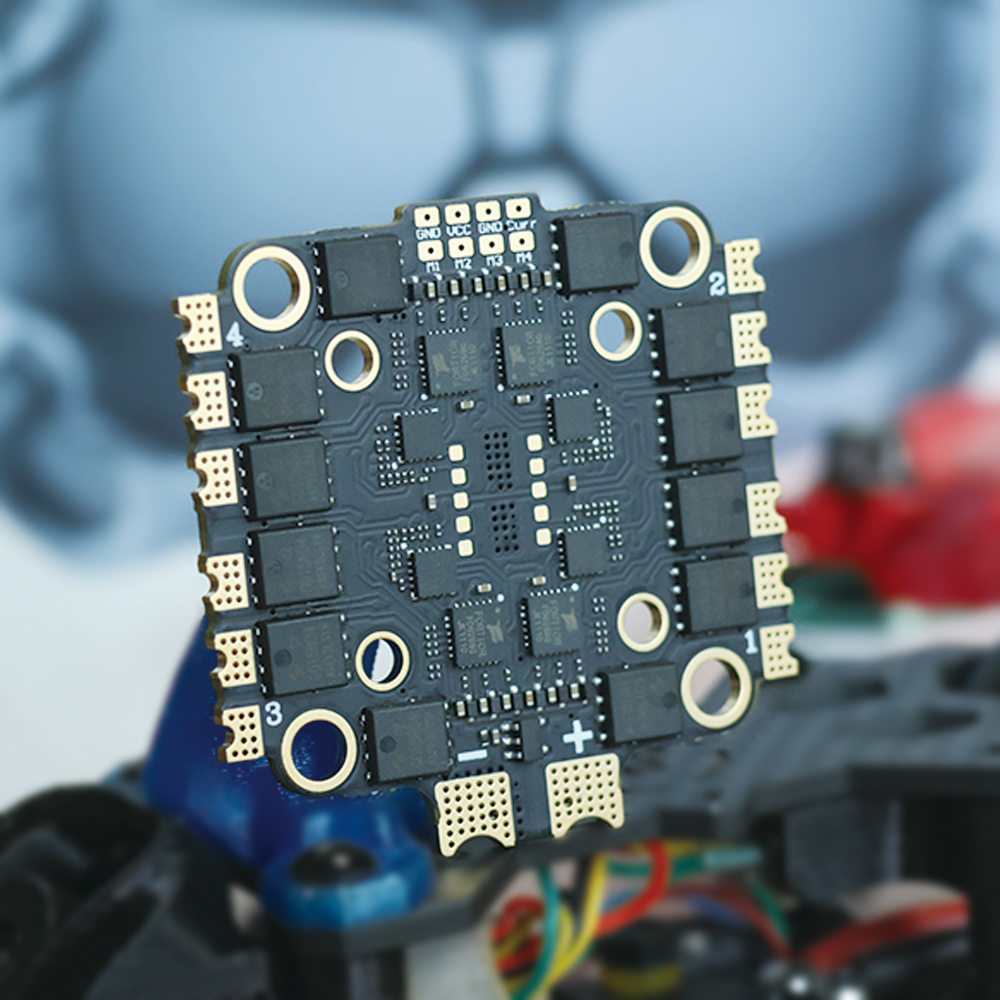

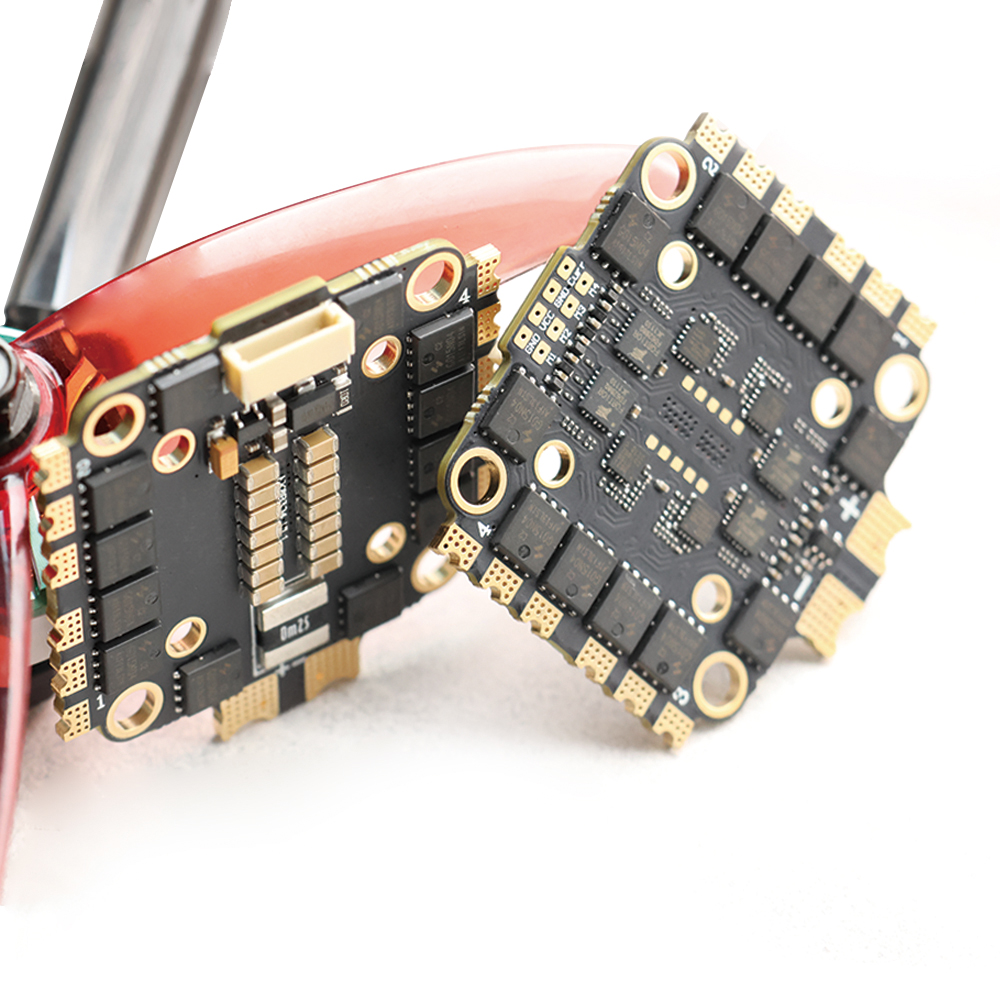

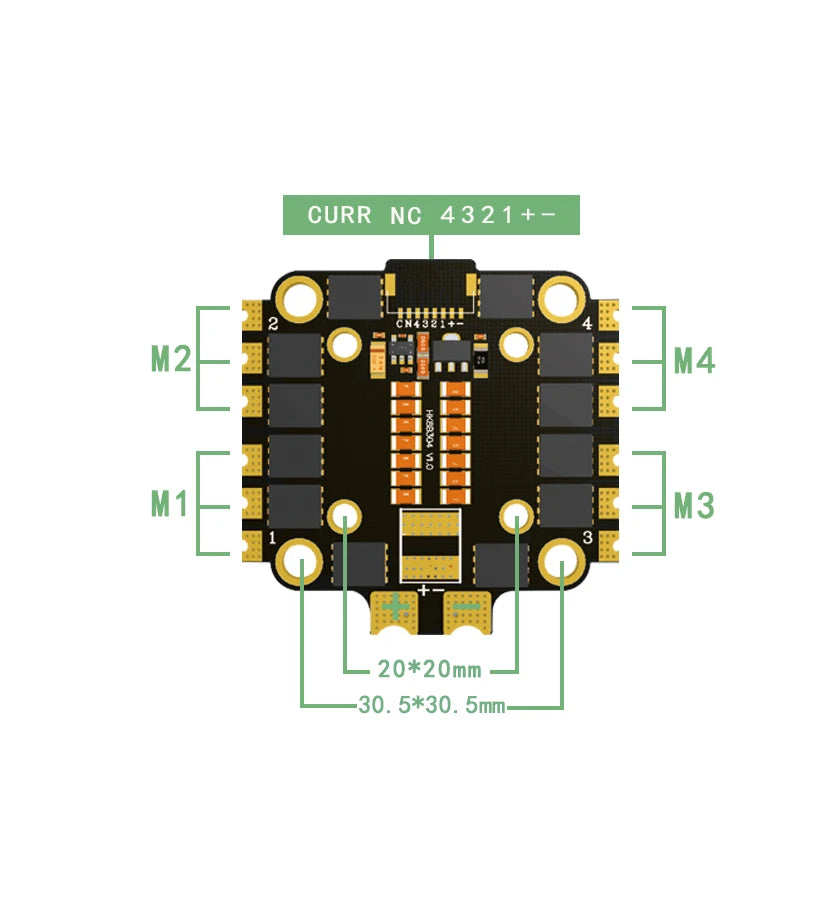

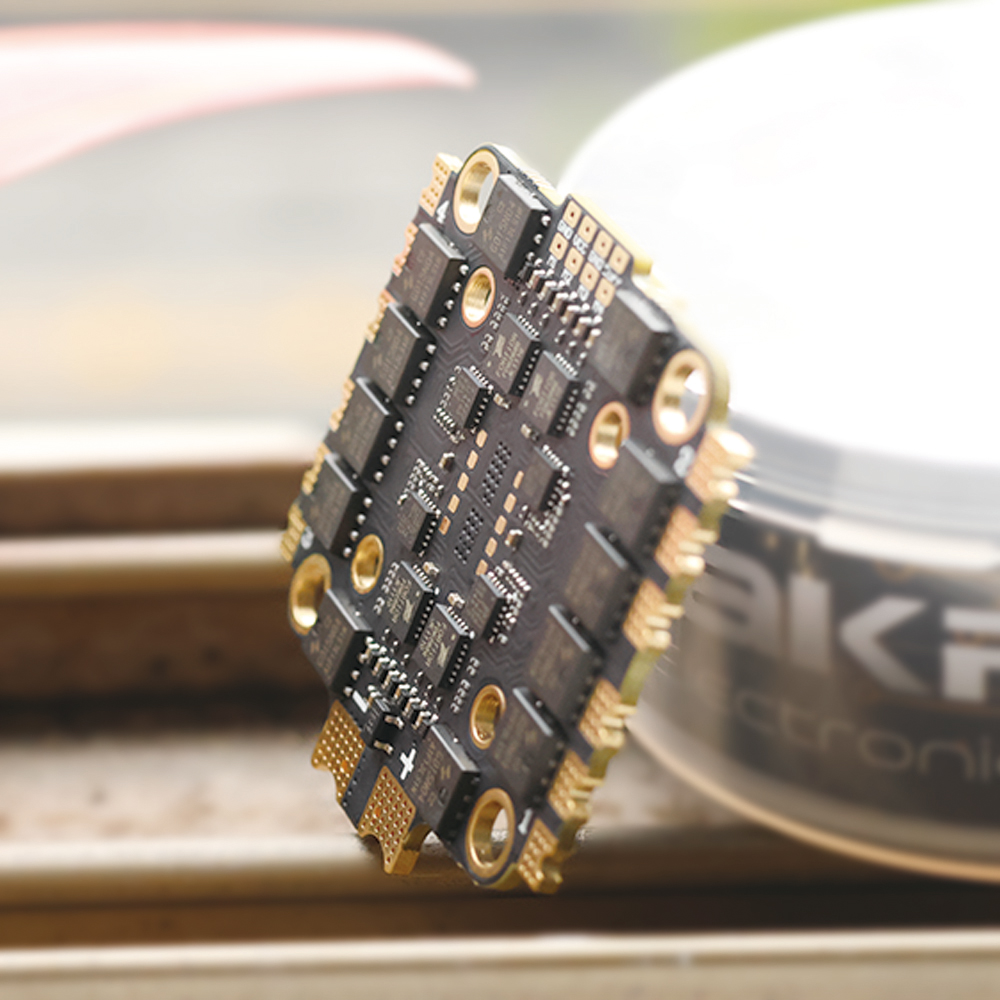

HAKRC FPV Drone 50A 4 in 1 ESC Support DShot600 20×20 30.5×30.5mm Mounting Dual-Hole for Racing RC Quadcopter Flight Controller

Features:

High-Quality Hardware

Features an EMF8BB21F16G main control chip with a clock speed of up to 48MHz. Uses imported MOSFETs, a three-in-one IC driver, and imported high-quality high-frequency ceramic capacitors. High-end PCB manufacturing process with metallized edge plating on all pads to prevent pad detachment during use; 3-ounce copper thickness, 6-layer board, significantly reducing heat generation and increasing efficiency.

Highly Integrated and Compact

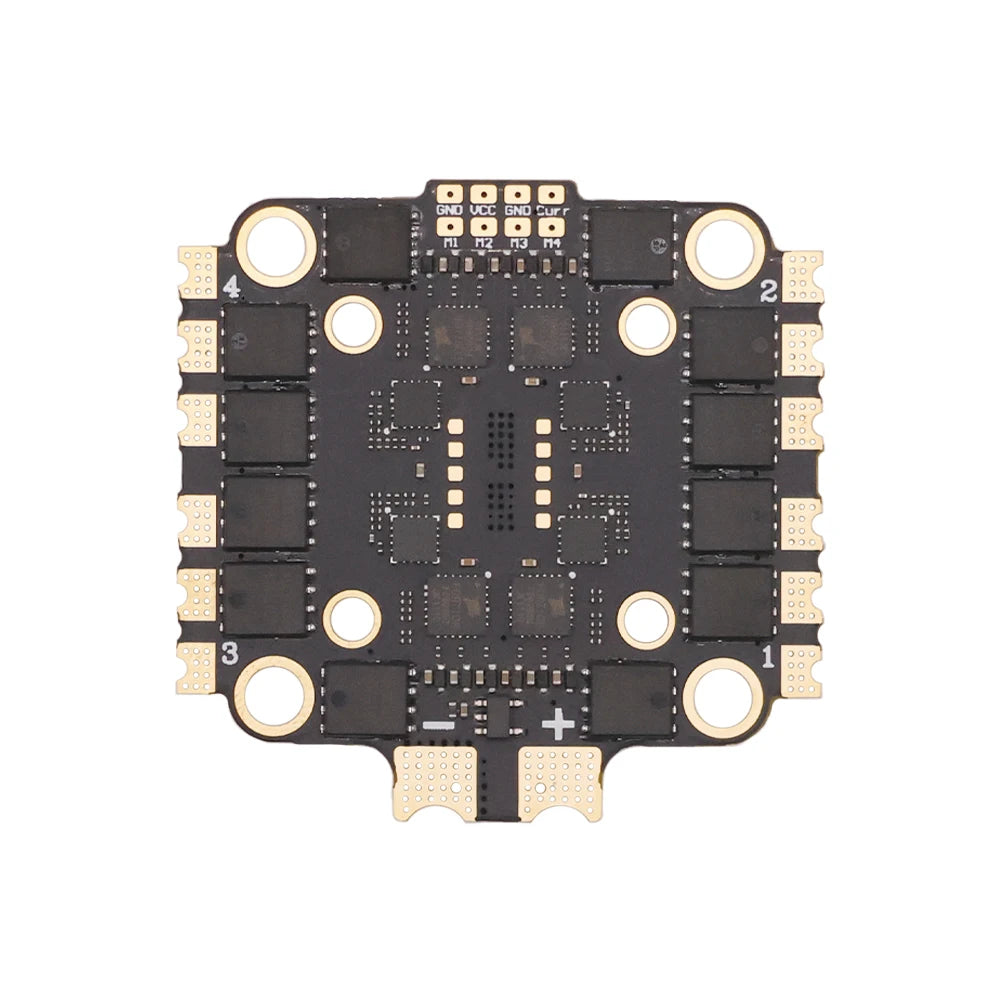

Integrates four high-performance 50A ESCs, with a built-in ammeter. Utilizes advanced SMT technology and a dual-hole spacing design. This high level of integration results in a size comparable to a typical racing drone flight controller, making installation and wiring very simple. This incredibly small size and volume are specifically tailored for competition-grade racing drones.

Native BLHeli-S Support

Uses BLHeli-S firmware, offering powerful performance and rich features; supports multiple methods for setting ESC parameters and upgrading ESC firmware (such as via throttle signal lines, using other development boards, or using Cleanflight or Betaflight flight controller firmware to configure or upgrade the ESCs).

Hardware PWM, Damped Light

Hardware PWM drives the motors, resulting in lower noise and smoother throttle response. Damped Light technology provides regenerative braking, making motor deceleration more sensitive and effective, and control more precise; active freewheeling technology allows the battery to recover energy, extending flight time.

DShot150/300/600 Ready

Supports not only standard PWM throttle signal modes, Oneshot125, Oneshot42, and Multshot ultra-high-speed throttle signals, but also the latest DShot150/300/600 digital throttle, offering strong anti-interference capabilities and rapid response. Input and output wires use soft silicone wire, which is very durable, heat-resistant, and easy to solder.
