GEPRC TAKER S100 8S BLS 100A ESC 3-8S Lipo Input Voltage 100A/80A/60A Continuous Current Support Dshot 150/300/600 Protocols
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Please carefully check the version you have purchased before placing the order.
1.GEPRC TAKER S100 8S BLS 100A ESC/GEPRC TAKER S100 8S BLS 100A ESC With Case Version
2.GEPRC TAKER S80 8S BLS 80A ESC/GEPRC TAKER S80 8S BLS 80A ESC With Case Version
3.GEPRC TAKER S60 BLS 60A ESC/GEPRC TAKER S60 BLS 60A ESC With Case Version
Feature
- Self-contained MOS heat sink for efficient cooling under high current loads, ensuring more stable performance.
- Wide battery voltage compatibility, with high-quality MOS for stable operation under high power.
- Compatible with BLHeli_S and BlueJay firmware — switch freely for more versatile flight options.
- Custom-molded heat-dissipating case with a hollow design to enhance cooling efficiency.

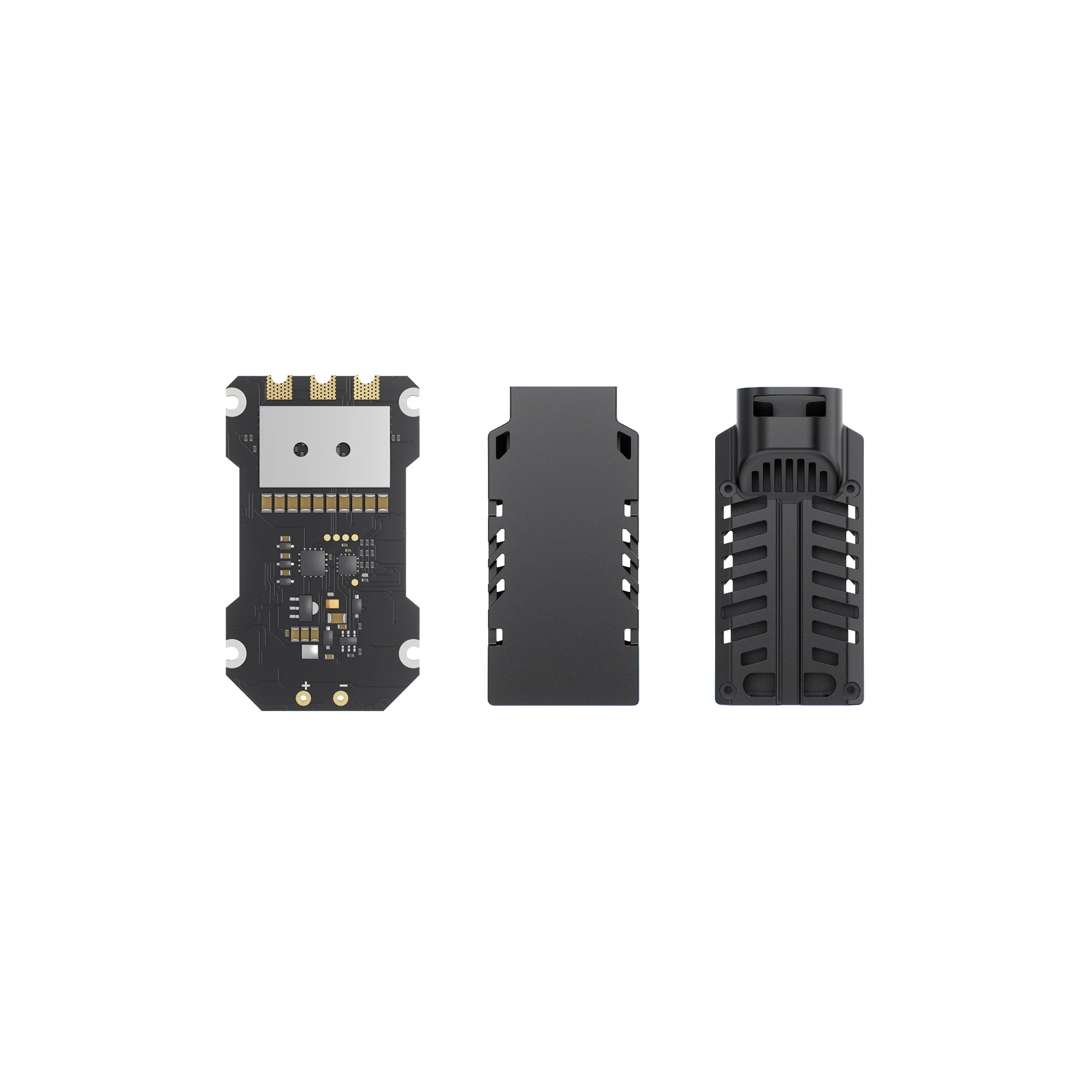

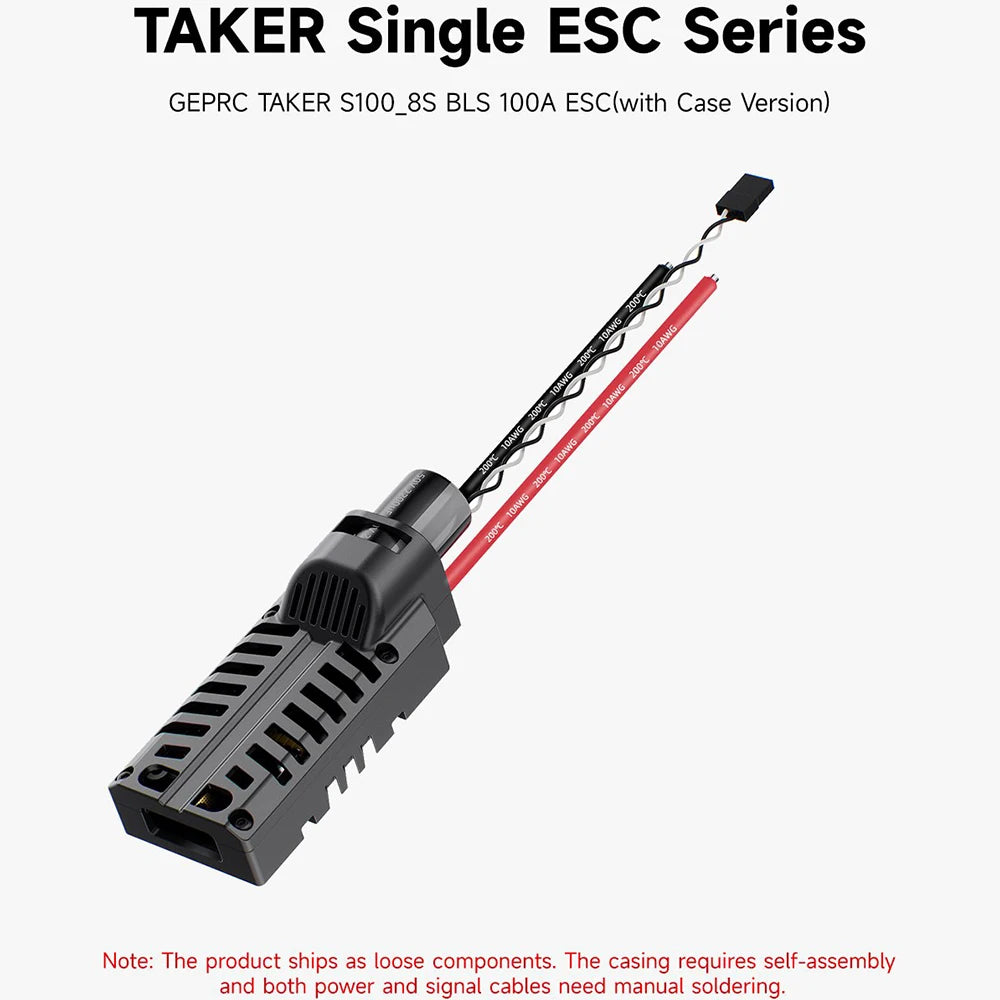

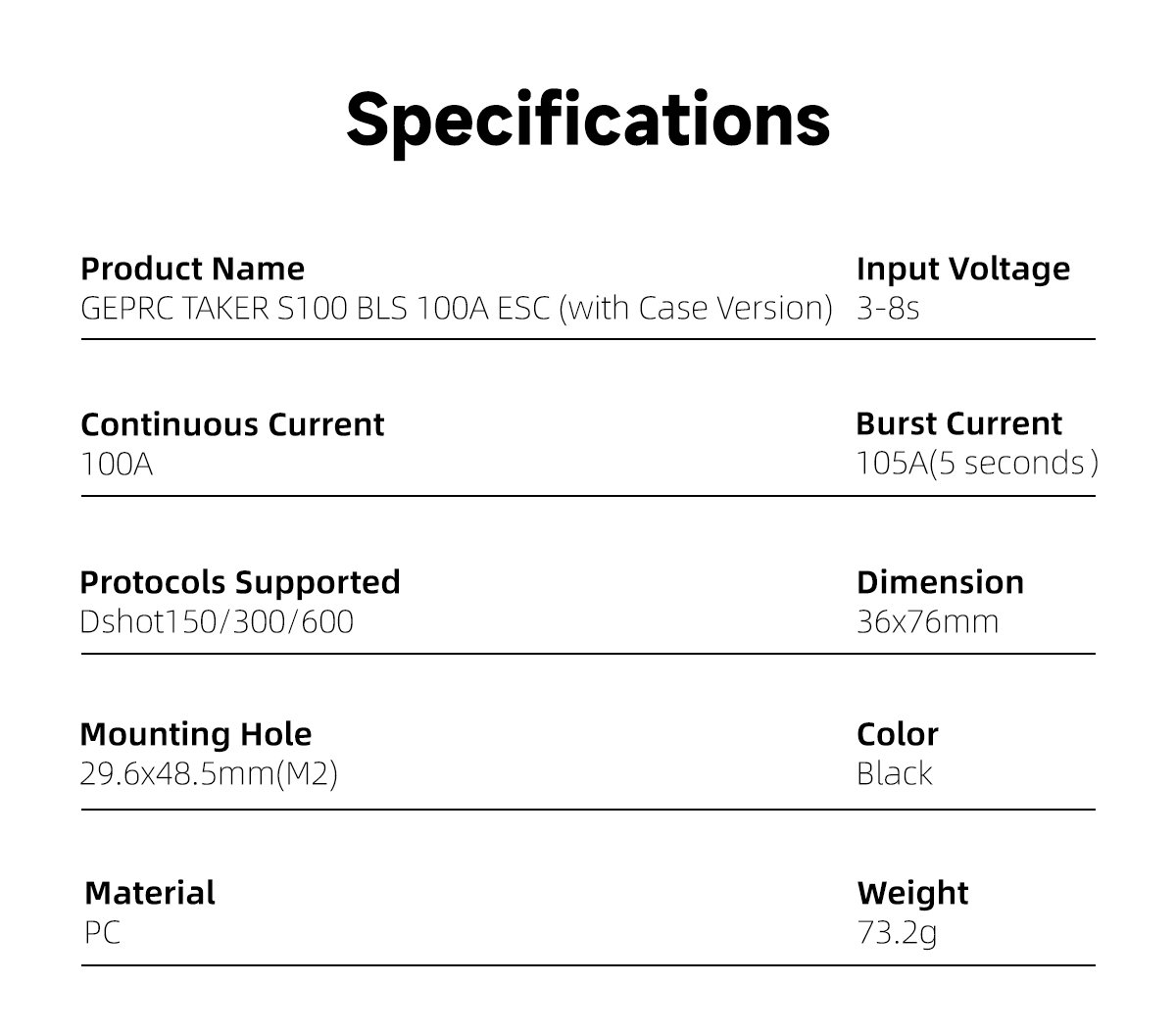

GEPRC TAKER S100 8S BLS 100A ESC (With Case Version)
Specifications
- Input Voltage: 3-8S Lipo
- Ammeter: Not Supported
- Continuous Current: 100A
- Burst Current: 105A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- ESC Dimension: 32.5x55mm
- Mounting Holes: 29.6×48.5mm
- Case Material: PC
- Case Dimension: 36x76mm
- Weight: 73.2g
Includes
1 x TAKER S100 8S BLS 100A ESC
1 x 50V 2200μF Capacitor
1 x 10AWG (3.4mm²) Black Silicone Wire (240mm)
1 x 10AWG (3.4mm²) Red Silicone Wire (240mm)
1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
1 x Single ESC Top Case (Black) Molded Part
1 x Single ESC Bottom Case (Black) Molded Part
8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]

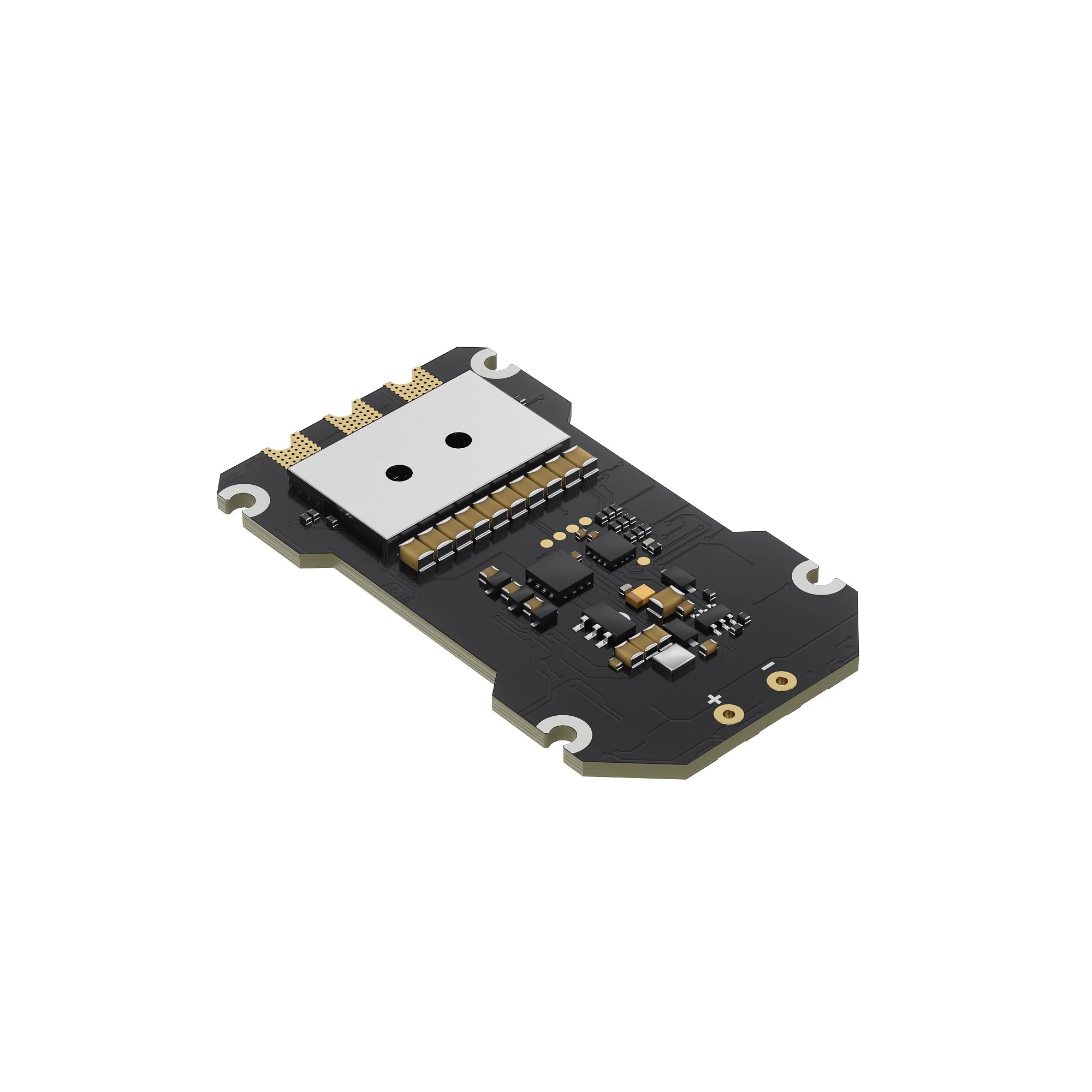

GEPRC TAKER S100 8S BLS 100A ESC
Specifications
- Input Voltage: 3-8S Lipo
- Ammeter: Not Supported
- Continuous Current: 100A
- Burst Current: 105A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- Dimension: 32.5x55mm
- Mounting Holes: 29.6×48.5mm
- Weight: 13.7g
Includes
1 x TAKER S100 8S BLS 100A ESC
1 x 50V 2200μF Capacitor
1 x 10AWG (3.4mm²) Red Silicone Wire (240mm)
1 x 10AWG (3.4mm²) Black Silicone Wire (240mm)
1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)

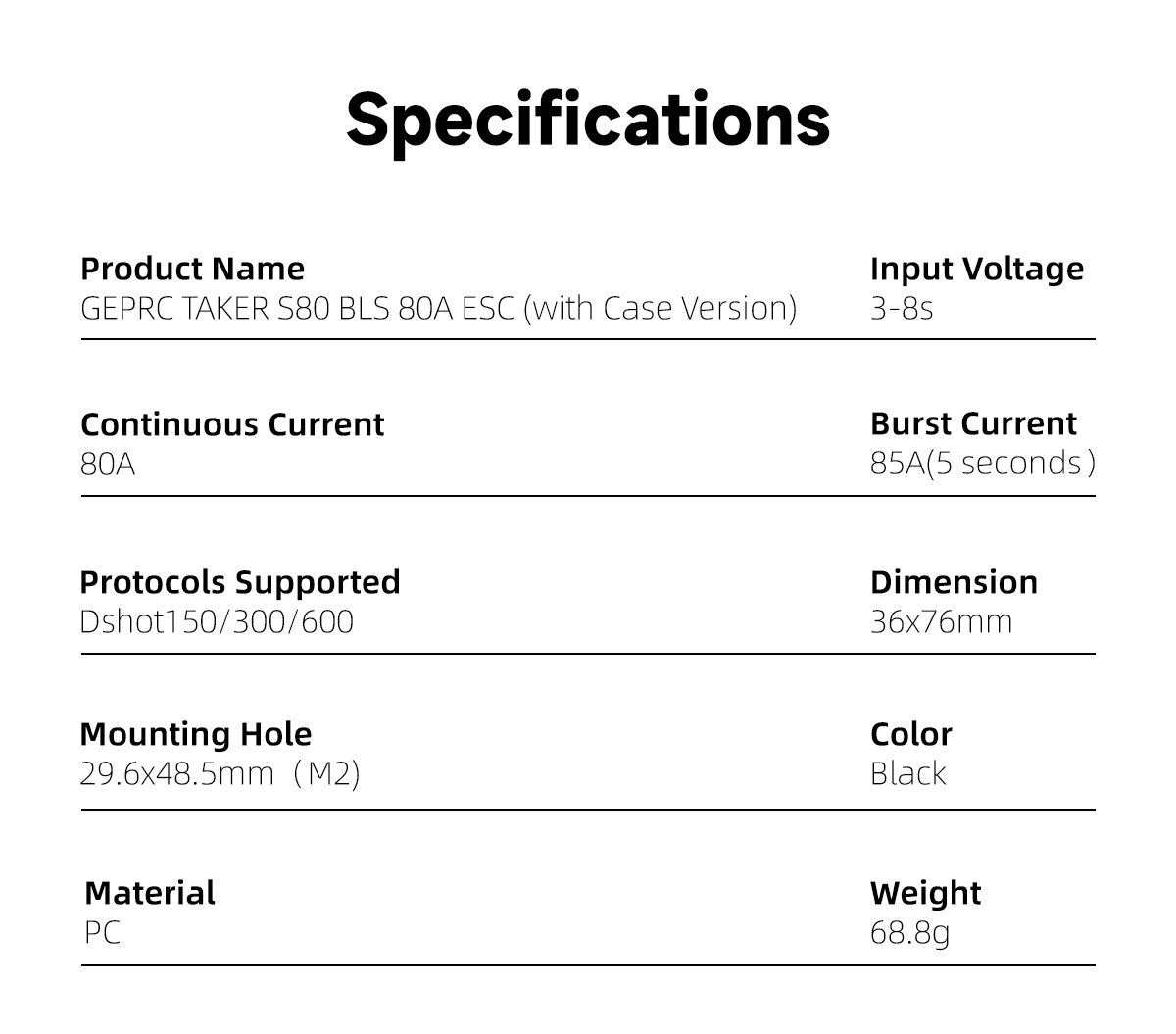

GEPRC TAKER S80 BLS 80A ESC (With Case Version)
Specifications
- Input Voltage: 3-8S Lipo
- Ammeter: Not Supported
- Continuous Current: 80A
- Burst Current: 85A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- ESC Dimension: 32.5x55mm
- Mounting Holes: 29.6×48.5mm
- Case Material: PC
- Case Dimension: 36x76mm
- Weight: 68.8g
Includes
1 x TAKER S80 8S BLS 80A ESC
1 x 50V 2200μF Capacitor
1 x 10AWG (3.4mm²) Black Silicone Wire (240mm)
1 x 10AWG (3.4mm²) Red Silicone Wire (240mm)
1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (110mm)
1 x Single ESC Top Case (Black) Molded Part
1 x Single ESC Bottom Case (Black) Molded Part
8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]
GEPRC TAKER S80 8S BLS 80A ESC
Specifications
- Input Voltage: 3-8S Lipo
- Ammeter: Not Supported
- Continuous Current: 80A
- Burst Current: 85A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- Dimension: 31.55×54.6mm
- Mounting Holes: 29.6×48.55mm
- Weight:13.7g
Includes
1 x TAKER S80 8S BLS 80A ESC
1 x 50V 2200μF Capacitor
1 x Black Power Cable (10AWG 240mm)
1 x Red Power Cable (10AWG 240mm)
1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)

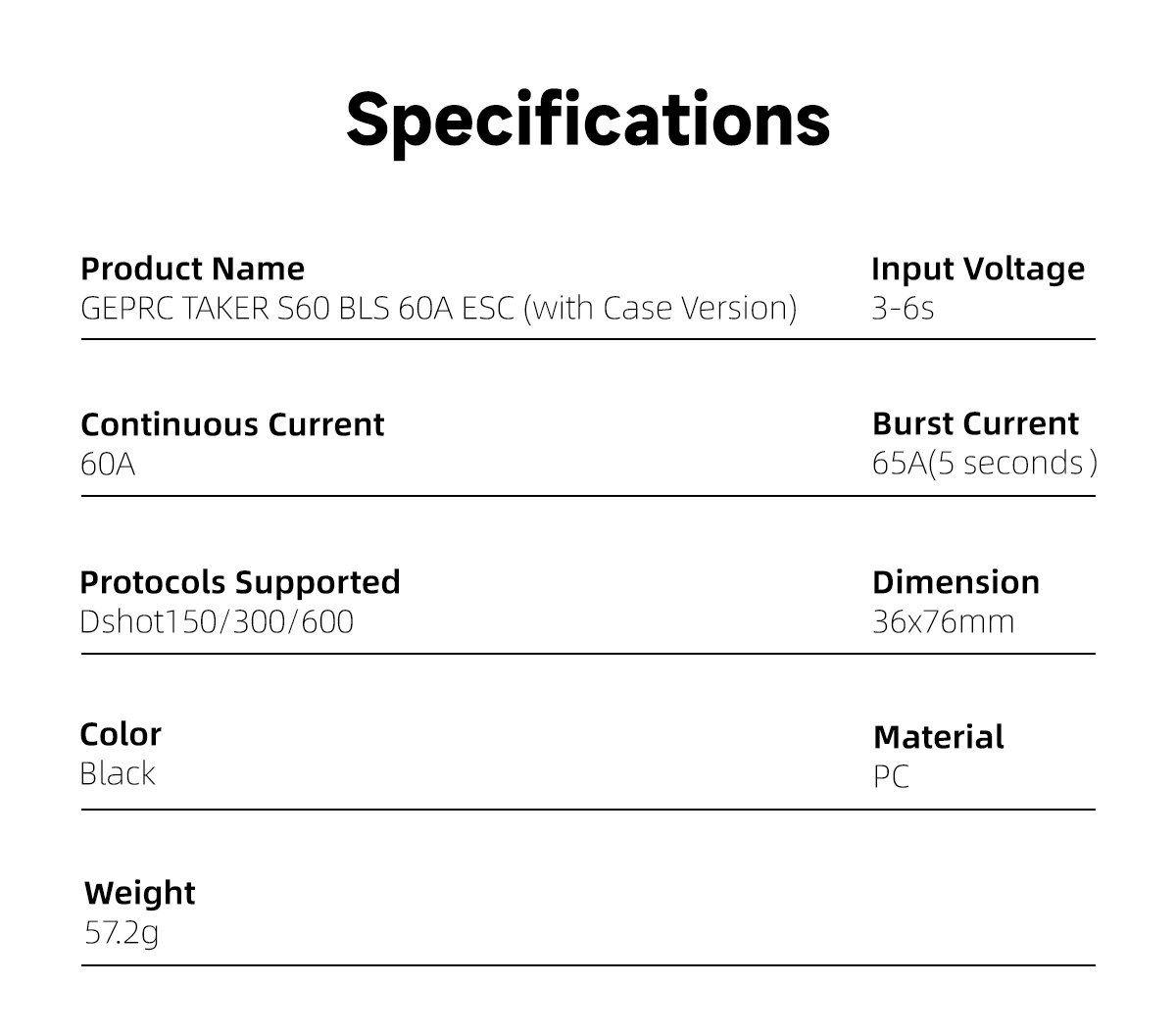

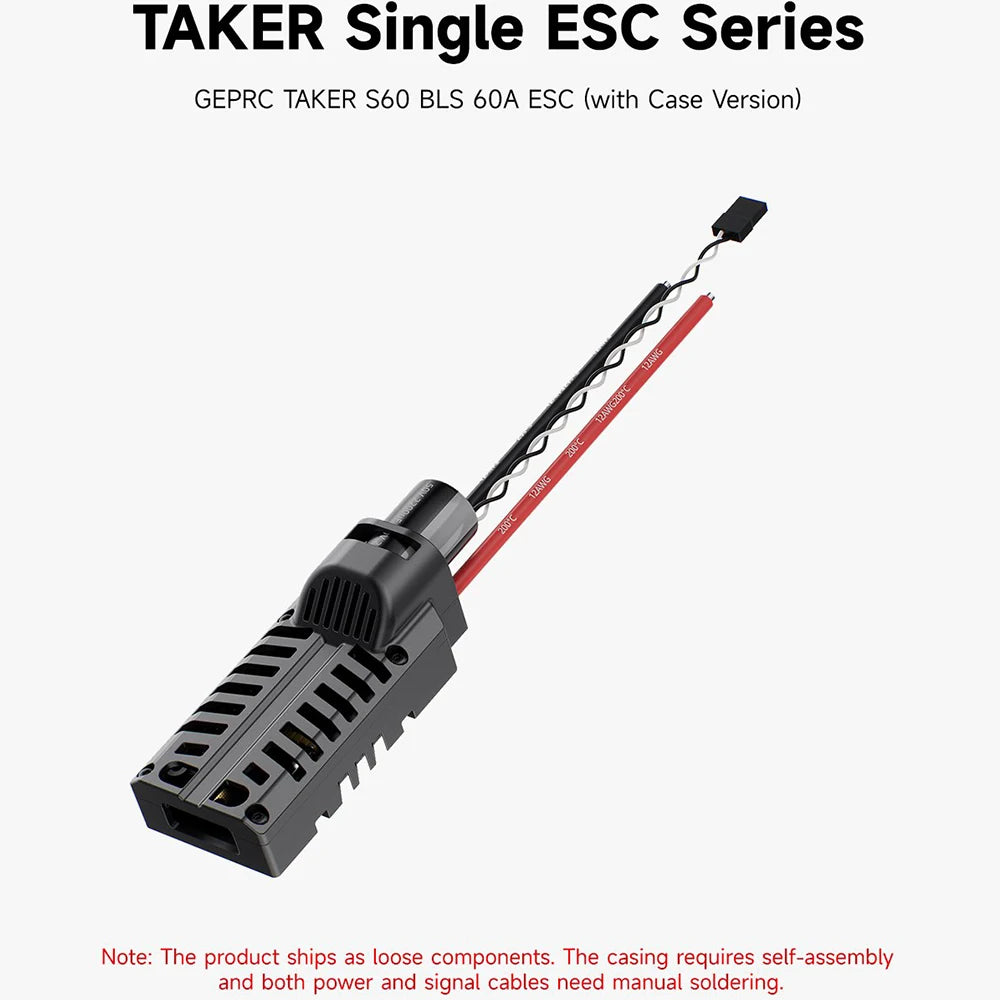

GEPRC TAKER S60 BLS 60A ESC (With Case Version)
Specifications
- Input Voltage: 3-6S Lipo
- Ammeter: Not Supported
- Continuous Current: 60A
- Burst Current: 65A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- ESC Dimension: 32.5x55mm
- Mounting Holes: 29.6×48.5mm
- Case Material: PC
- Case Dimension: 36x76mm
- Weight: 57.2g

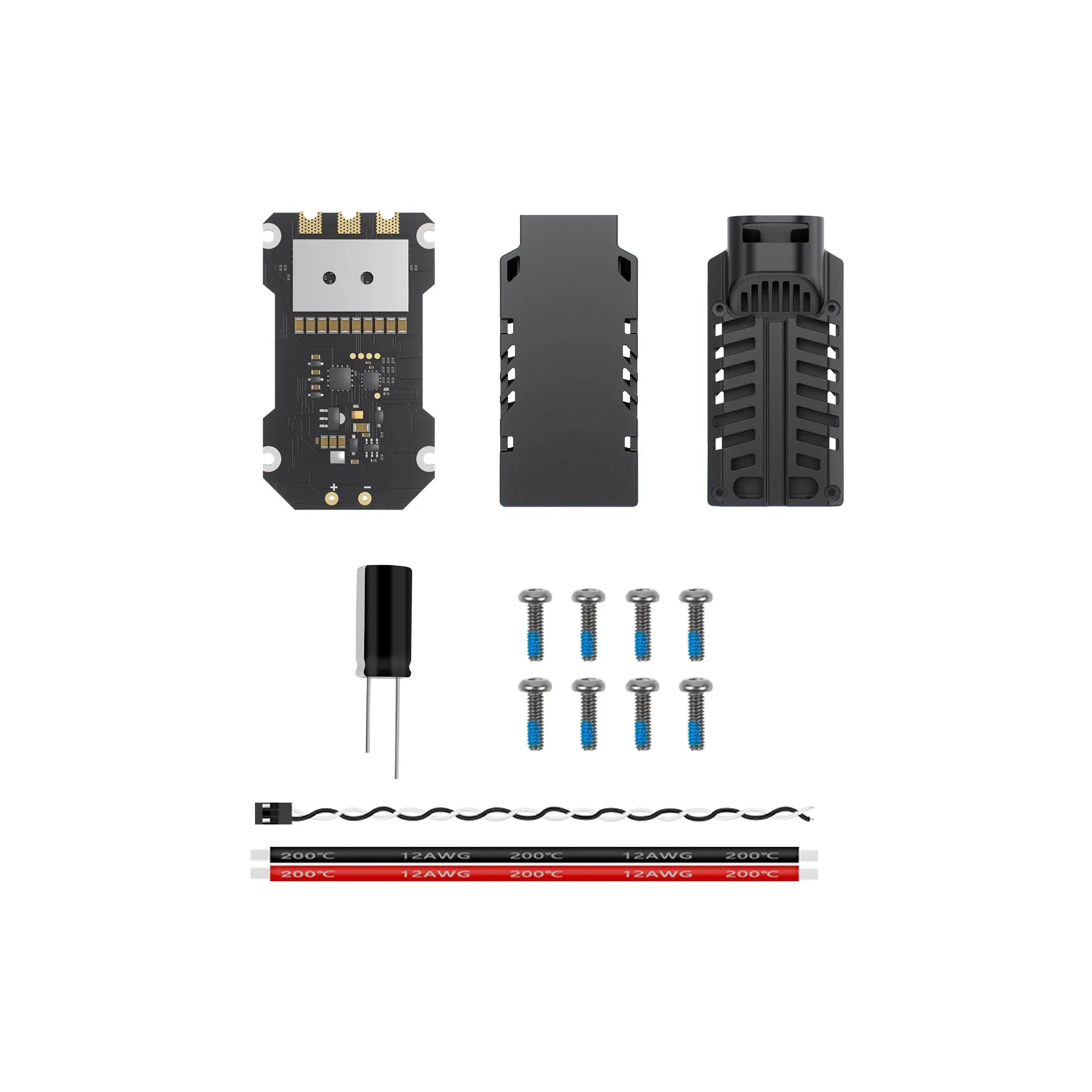

Includes
1 x TAKER S60 BLS 60A ESC
1 x 50V 2200μF Capacitor
1 x 12AWG (3.4mm²) Red Silicone Wire (240mm)
1 x 12AWG (3.4mm²) Black Silicone Wire (240mm)
1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
1 x Single ESC Top Case (Black) Molded Part
1 x Single ESC Bottom Case (Black) Molded Part
8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]
GEPRC TAKER S60 BLS 60A ESC
Specifications
- Input Voltage: 3-6S Lipo
- Ammeter: Not Supported
- Continuous Current: 60A
- Burst Current: 65A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- Dimension: 32.5x55mm
- Mounting Holes: 29.6×48.5mm
- Weight: 11.2g
Includes
1 x TAKER S60 BLS 60A ESC
1 x 50V 2200μF Capacitor
1 x 12AWG (3.4mm²) Red Silicone Wire (240mm)
1 x 12AWG (3.4mm²) Black Silicone Wire (240mm)
1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
