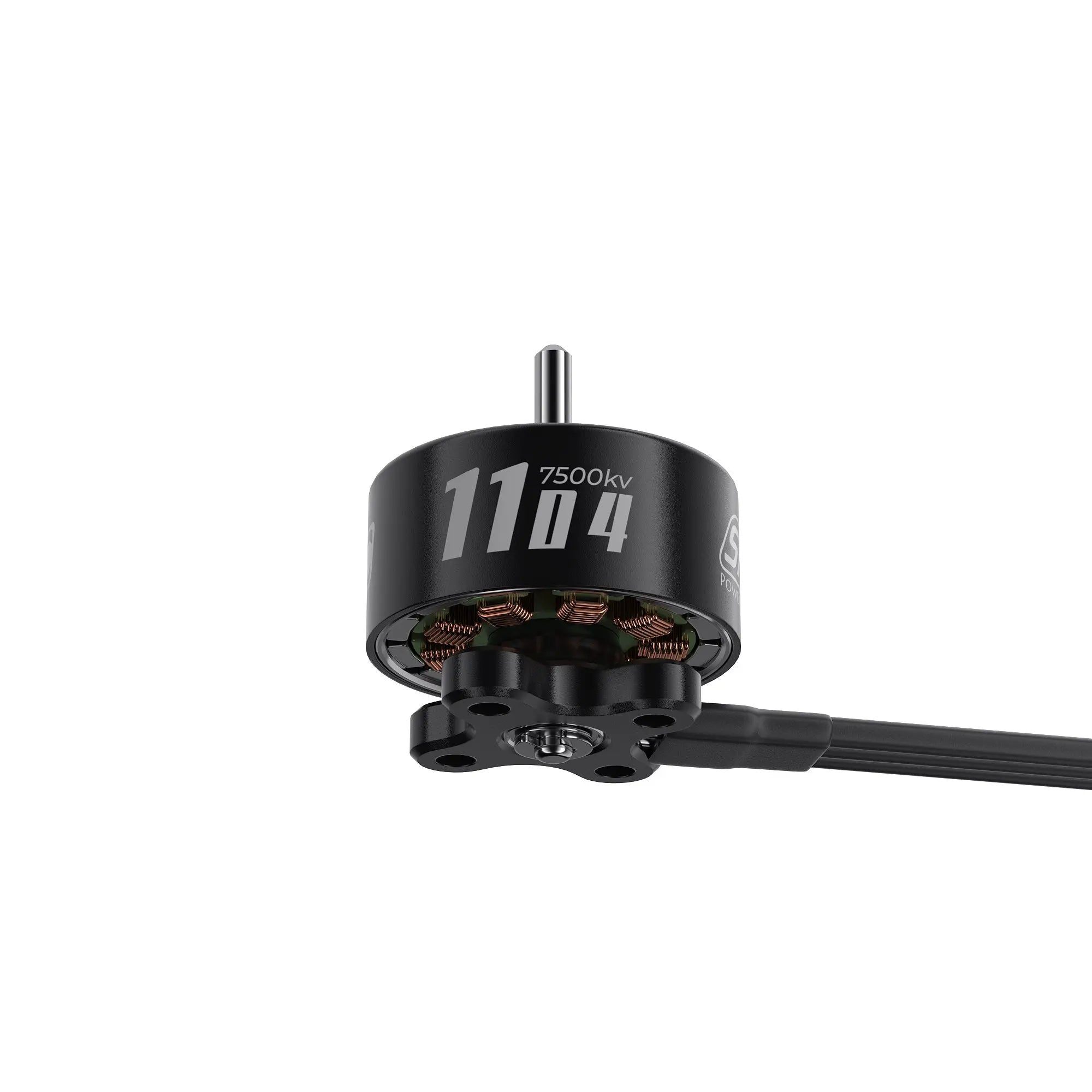

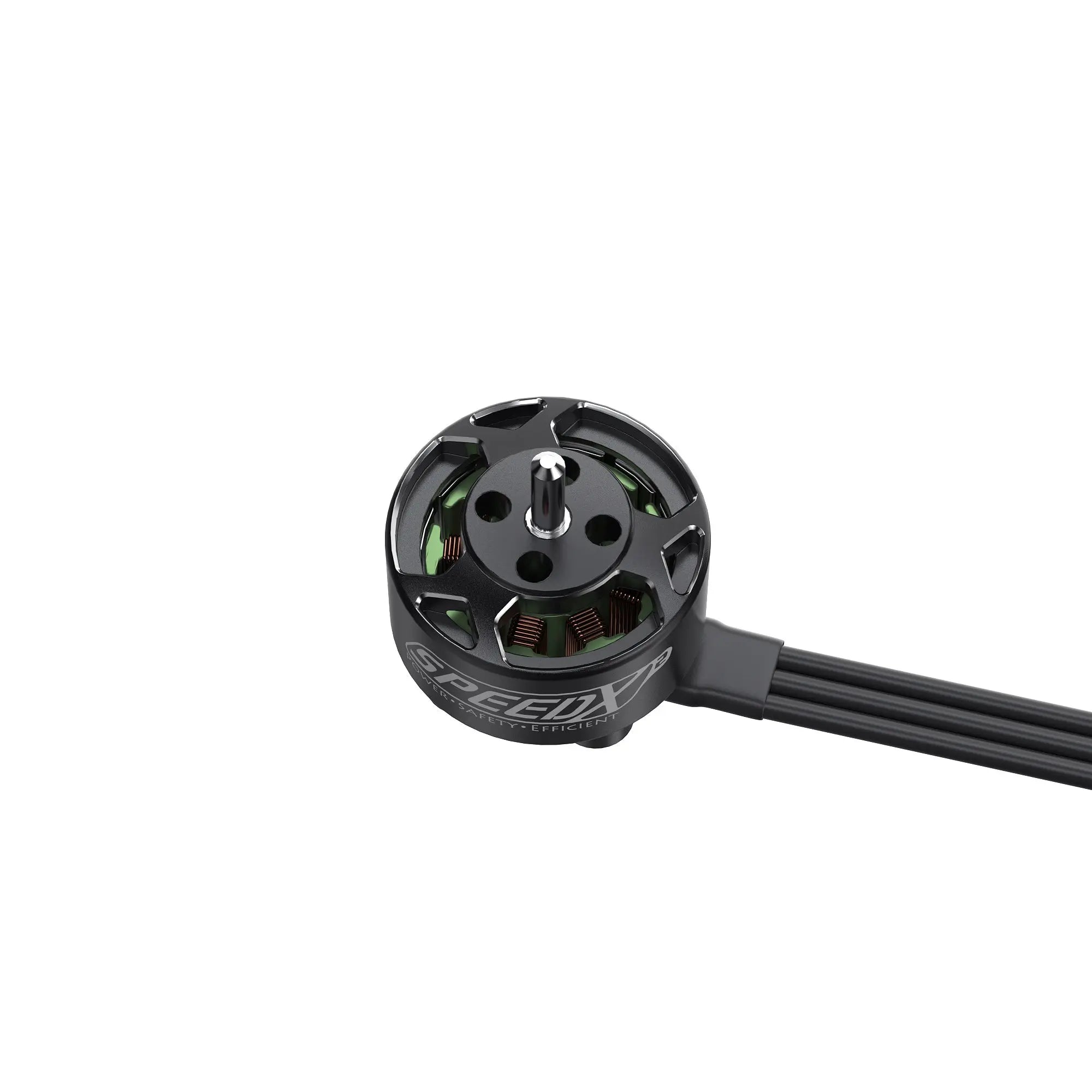

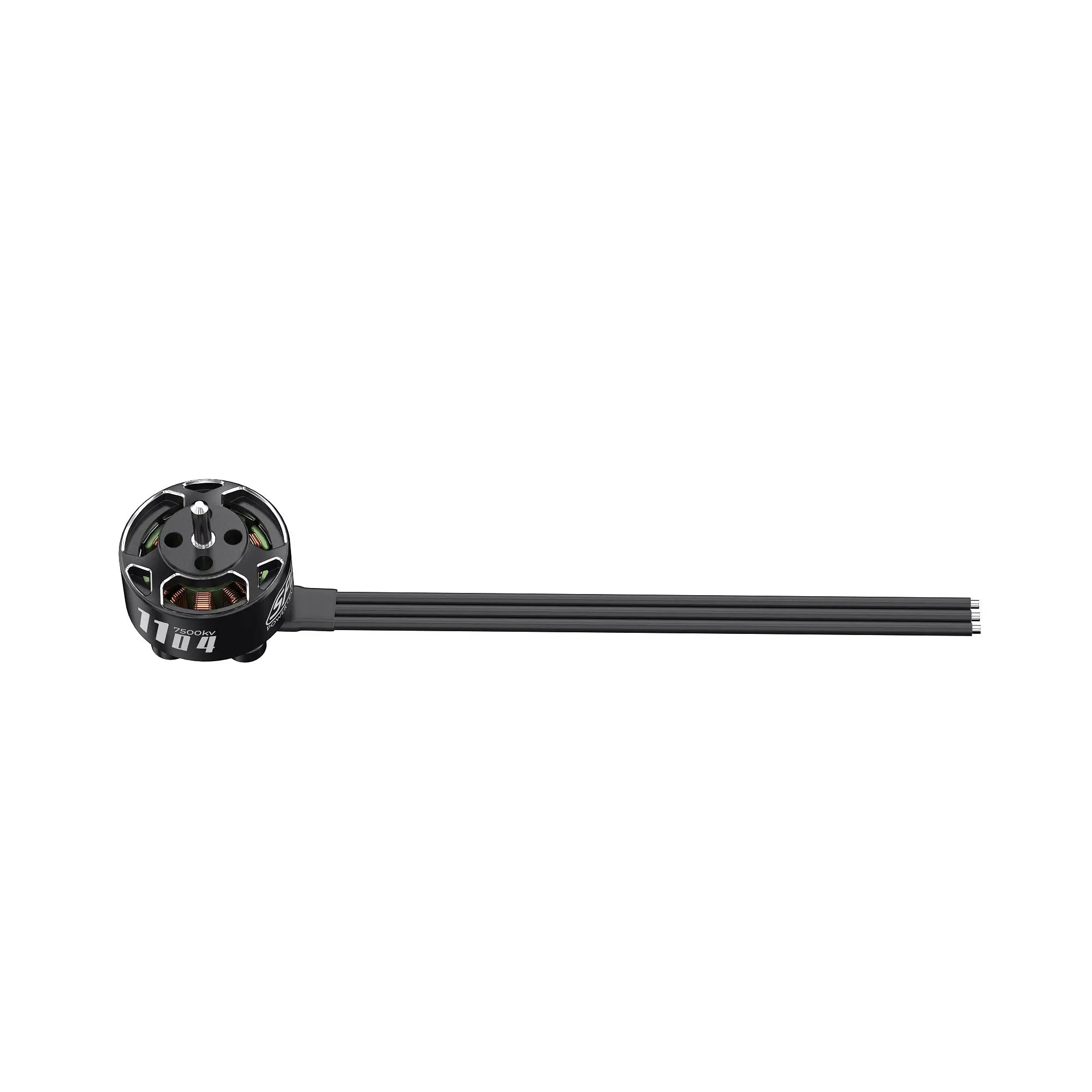

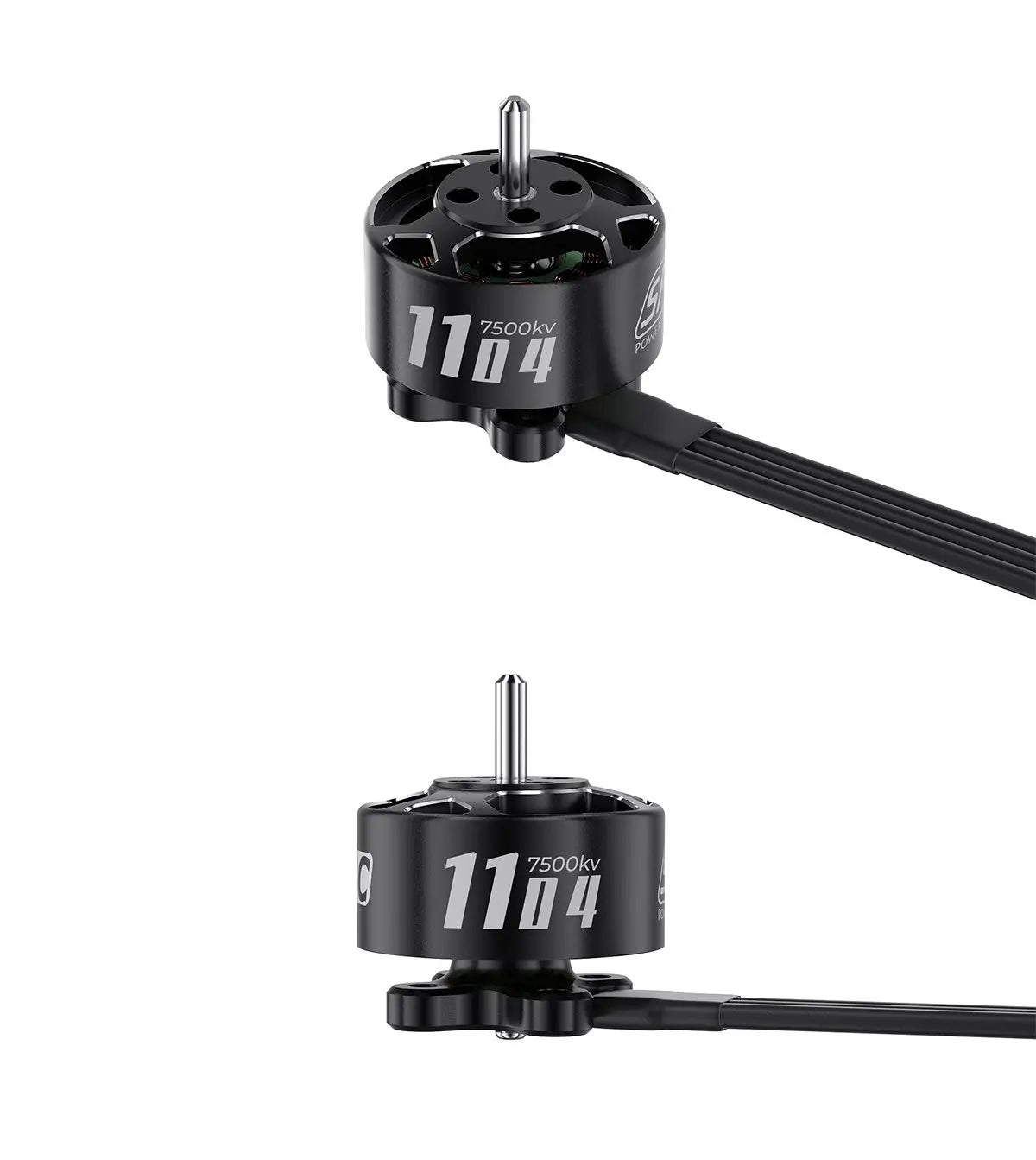

GEPRC SPEEDX2 1104 7500KV Motor for 1.6-2.2 Inch Lightweight Drones Brushless FPV Racing Multicopter Drone Motor Accessories
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.

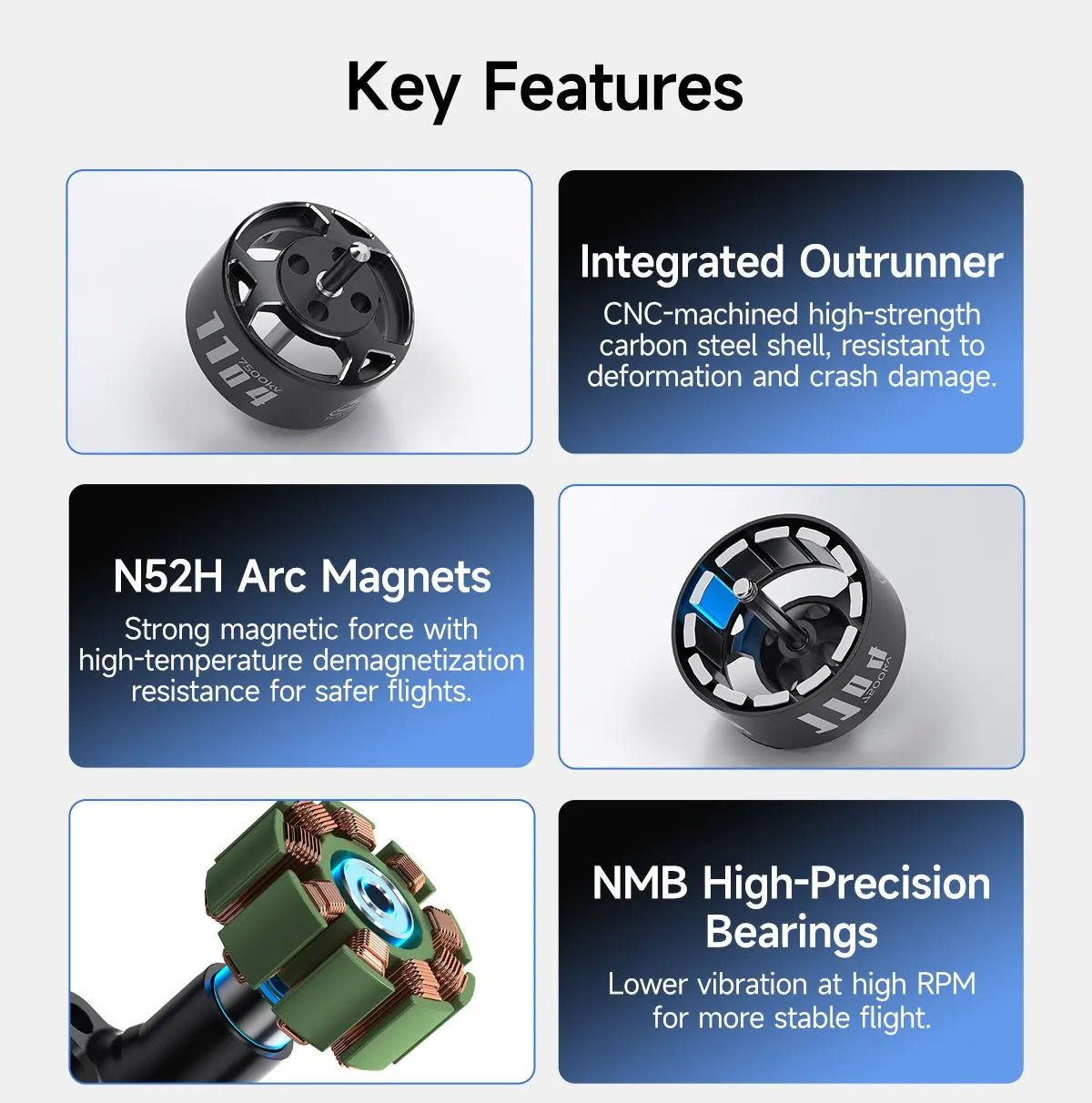

Feature
-
7500KV ultra-high rotational speed, compatible with 3S batteries , with faster response and better control.
-

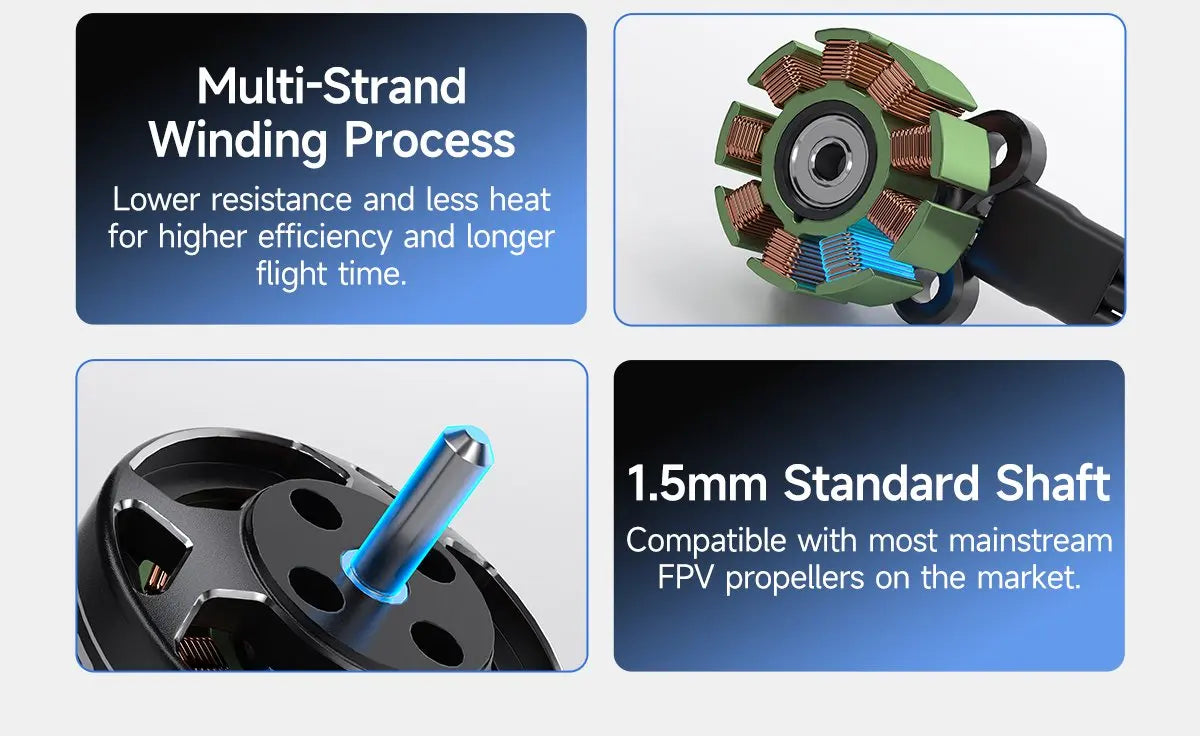

Multi-strand winding and large hollow design for lower copper loss and faster heat dissipation.
-
9N12P slot-type stator assembly, NSK/NMB high-precision bearings, ensuring stability without vibration even at high rotational speeds.
-
The high-precision CNC integrated molding aviation aluminum alloy shell weighs only 5.2g and has stronger impact resistance.

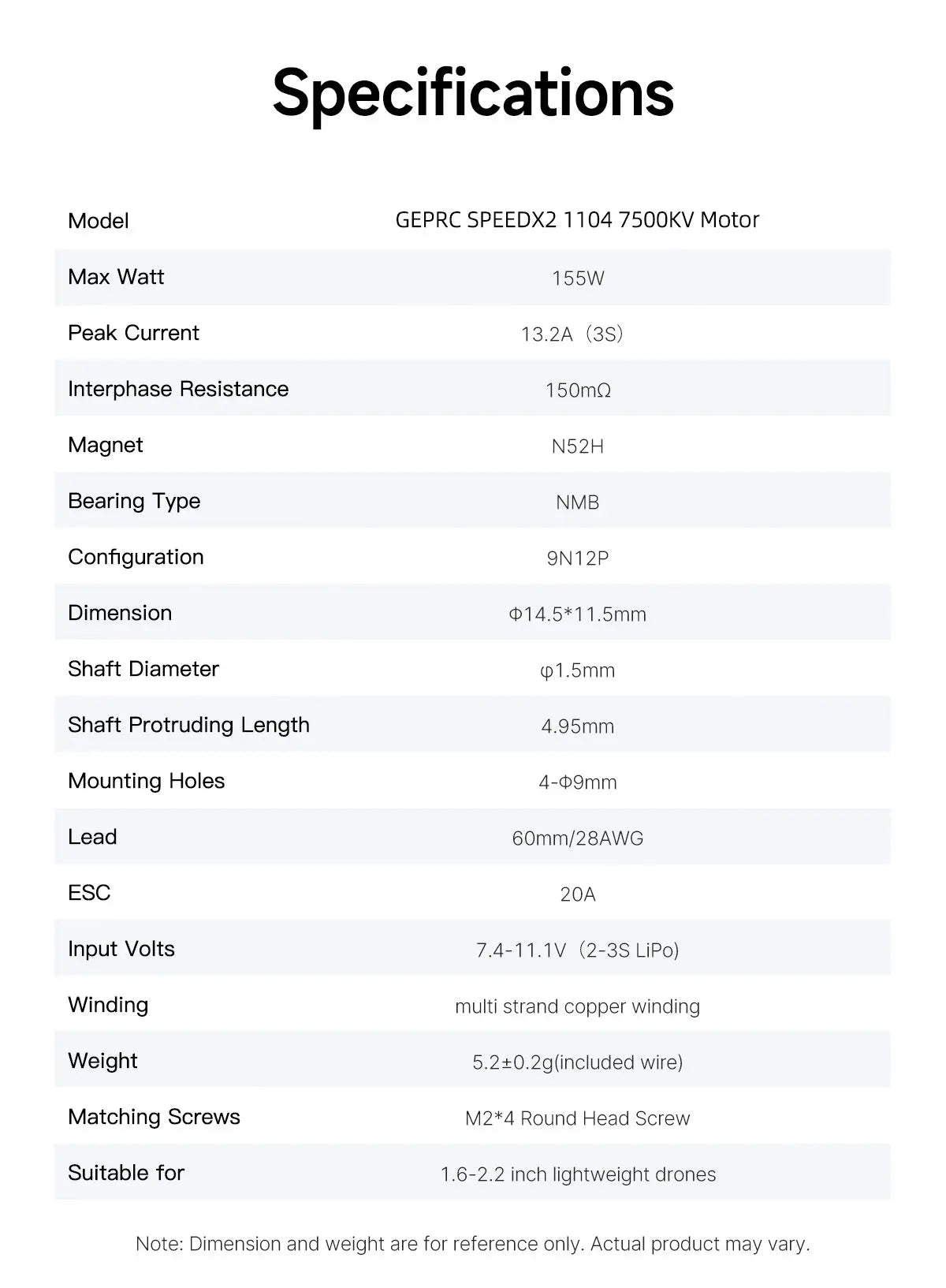

Specifications
-

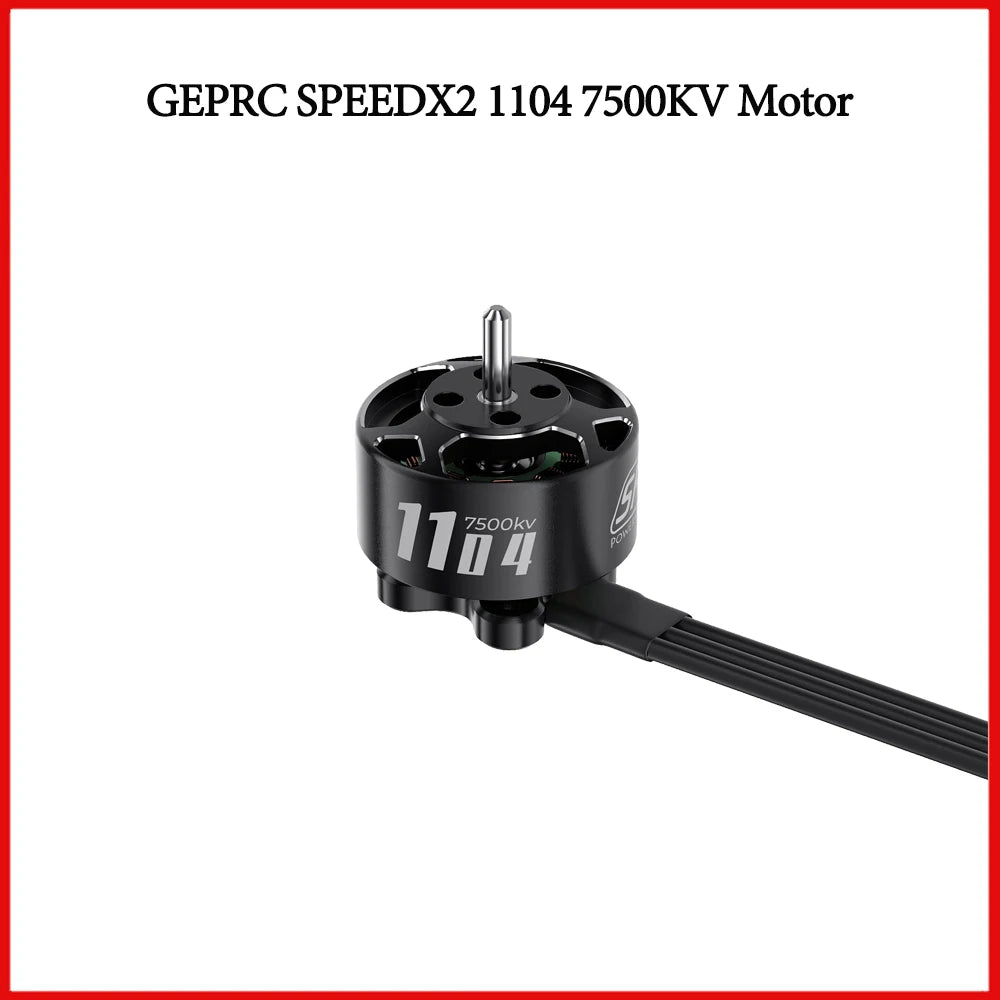

Model: GEPRC SPEEDX2 1104 7500KV Motor
-
Max Watt:155W
-
Peak current: 13.2A（3S）
-
Interphase resistance:150mΩ
-
Magnet: N52H
-
Bearing type: NSK/NMB
-
Configuration: 9N12P
-

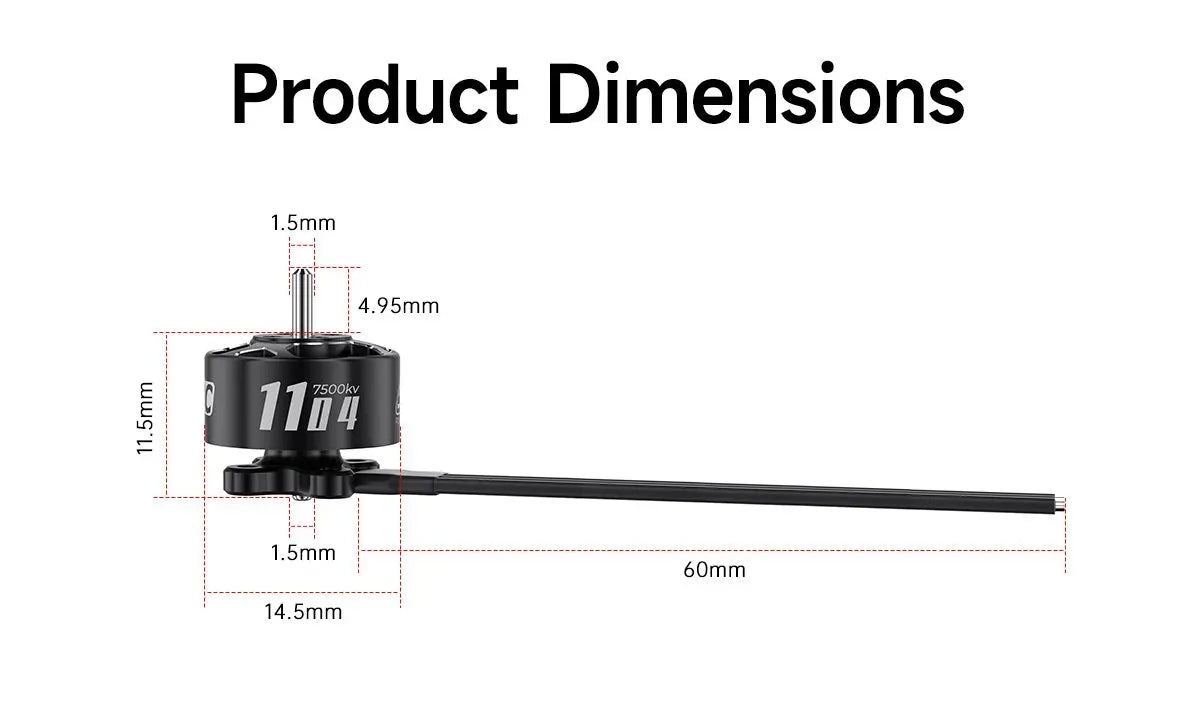

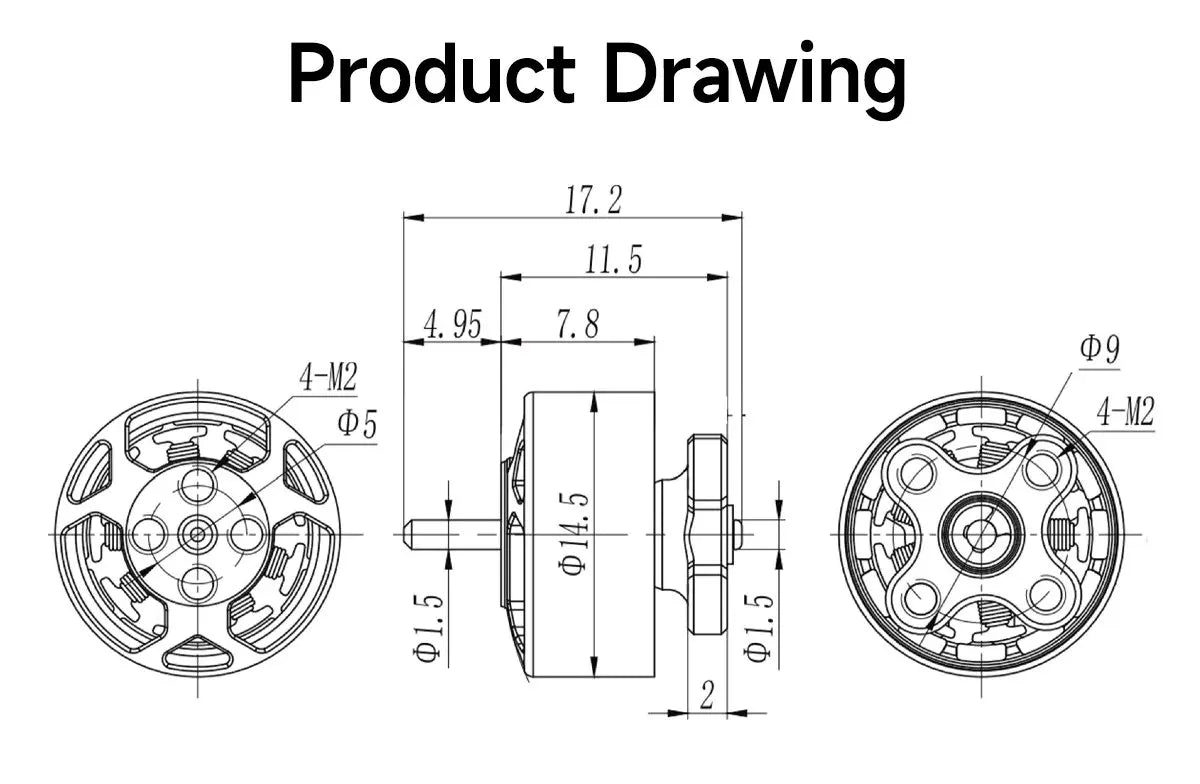

Dimension: Φ14.5*11.5mm
-
Shaft Diameter: φ1.5mm
-
Shaft Protruding Length: 4.95mm
-
Mounting holes: 4-Φ9mm
-
Lead: 60mm/28AWG
-
ESC:20A
-
Input Volts: 7.4-11.1V（2-3S LiPo)
-
Winding: multi strand copper winding
-

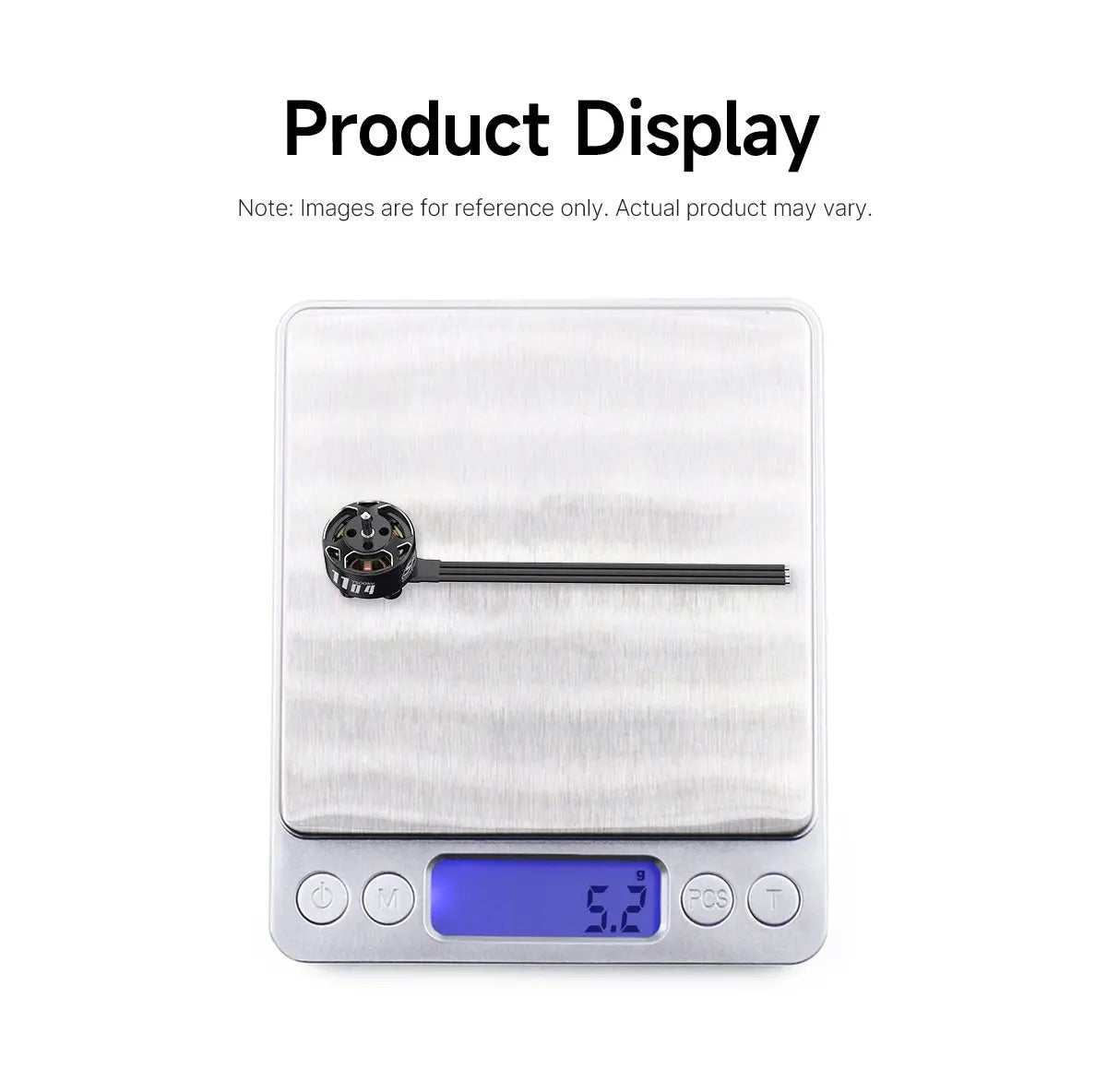

Weight: 5.2±0.2g(included wire)
-
Suitable for: 1.6-2.2 inch lightweight drones

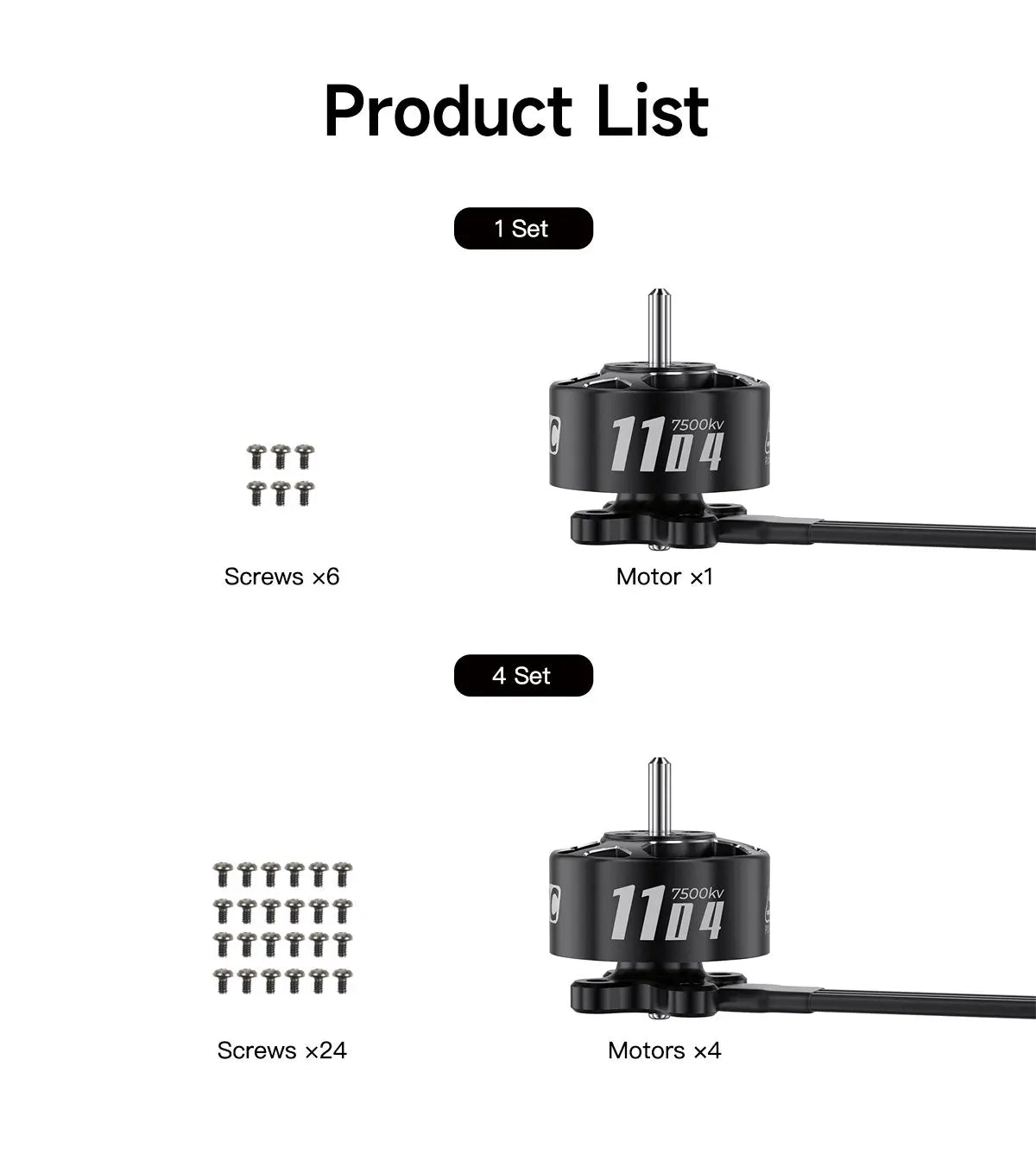

Includes
1 x GEPRC SPEEDX2 1104 7500KV Motor
6 x M2*4 Round Head Screw
