Summary:

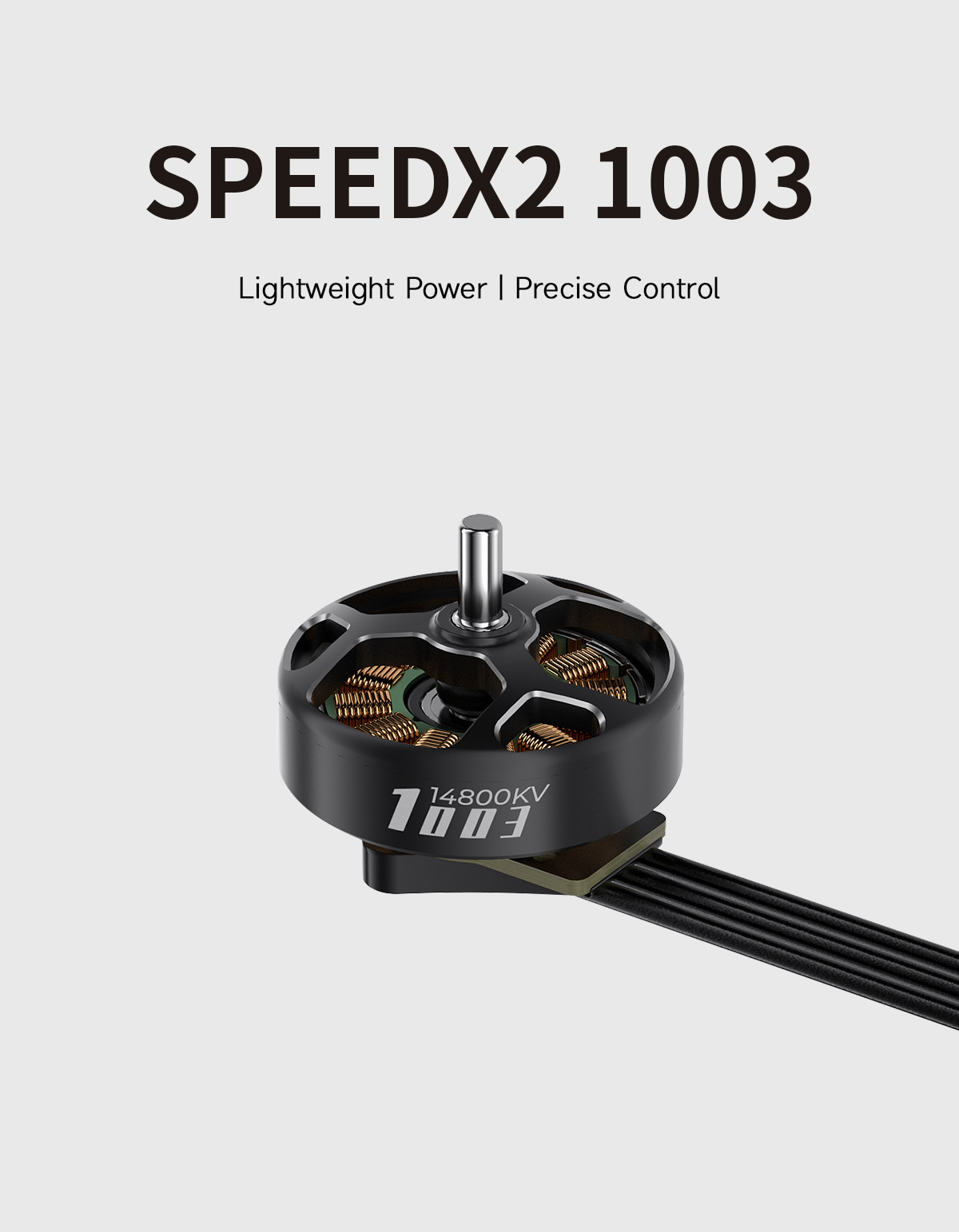

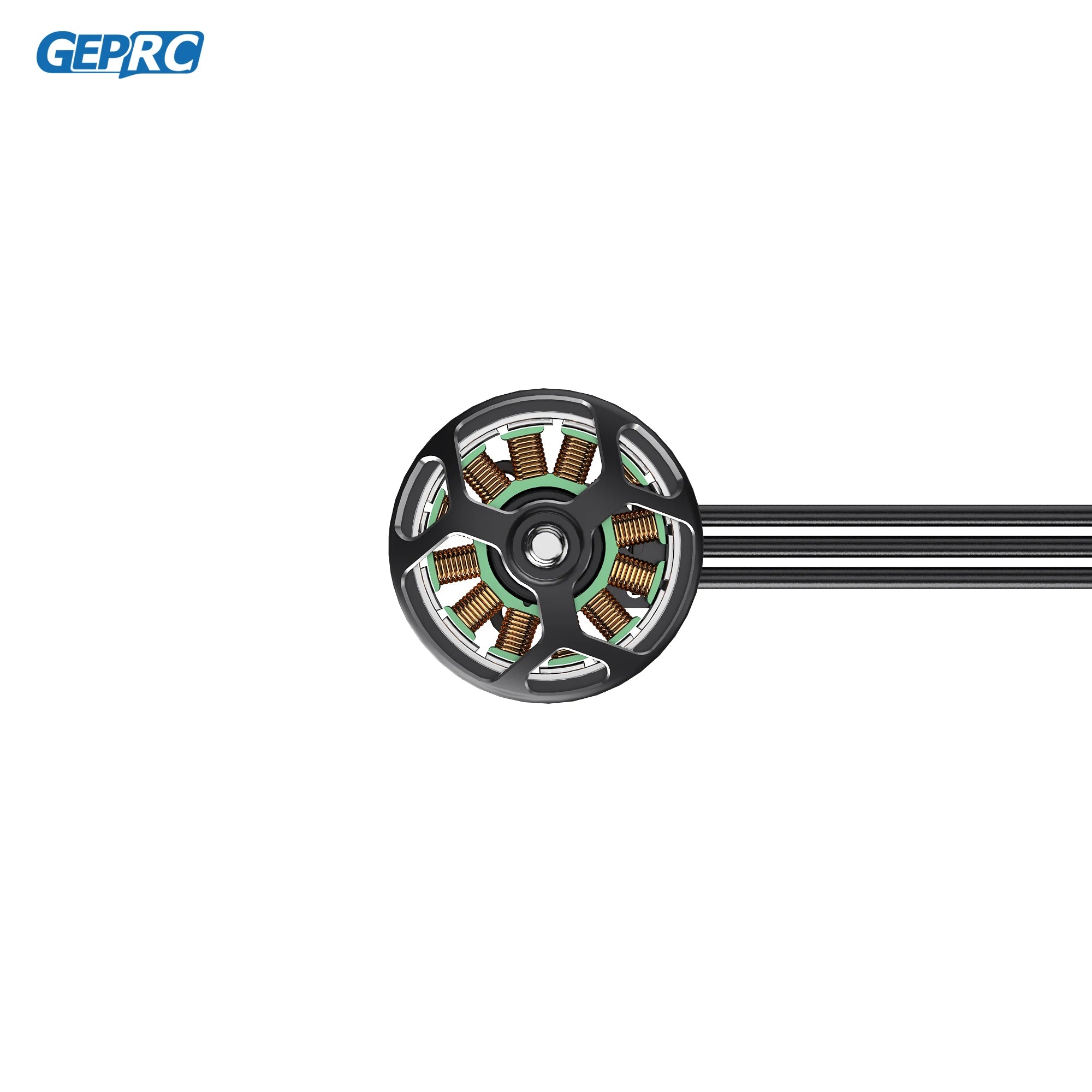

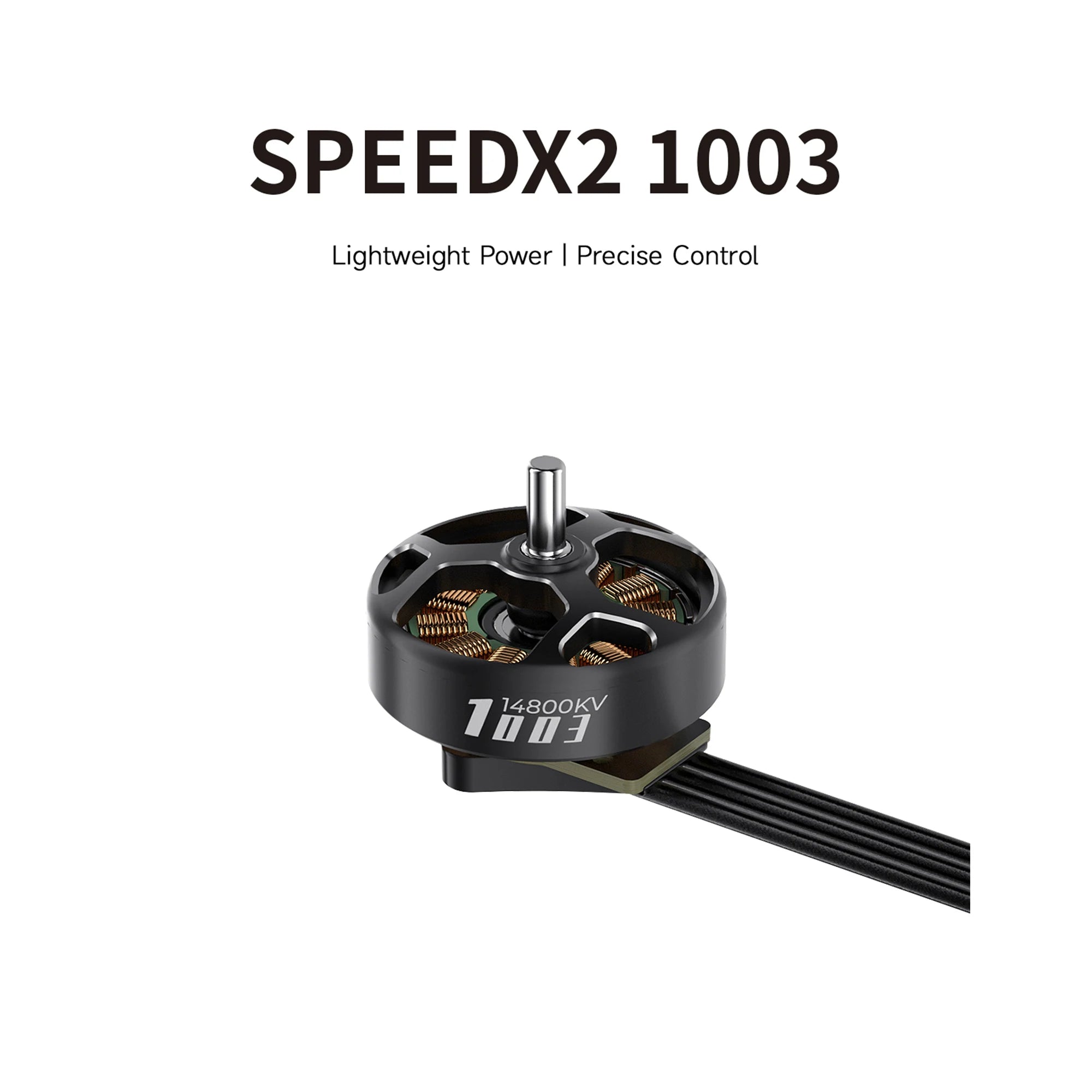

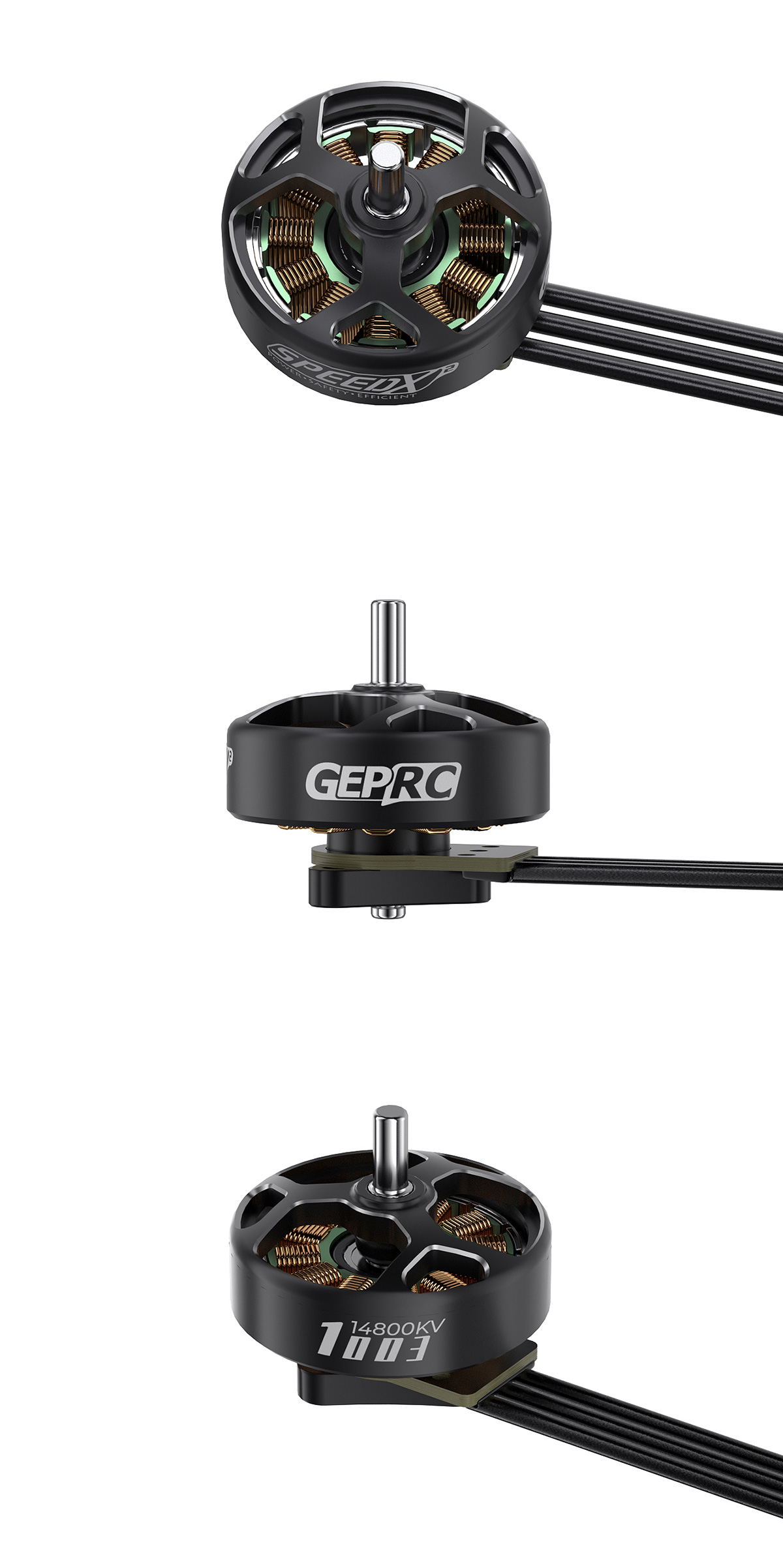

    SPEEDX2 1003 is a high-performance brushless motor specially designed for 1.6-inch to 2-inch FPV drones. Built with N52H magnets and 7075 aviation-grade aluminum, it delivers efficient and stable performance in a compact, lightweight design that effectively reduces overall load. Equipped with a Kawasaki 1200 stator and an engineering-optimized magnetic circuit, the motor achieves remarkable power output and responsiveness.

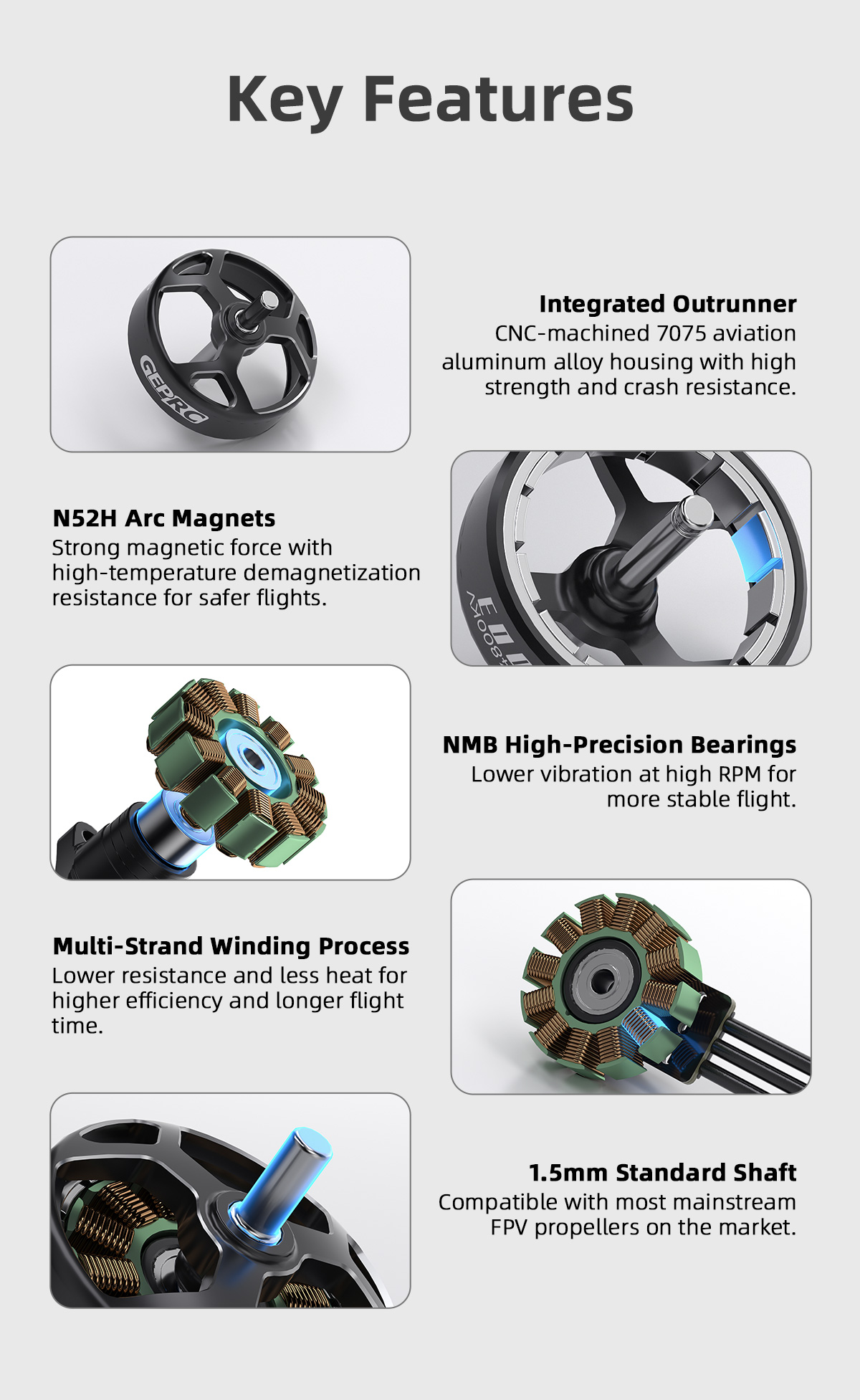

Feature:

1. NMB high-precision bearings provide stability with no vibration even at high RPM.

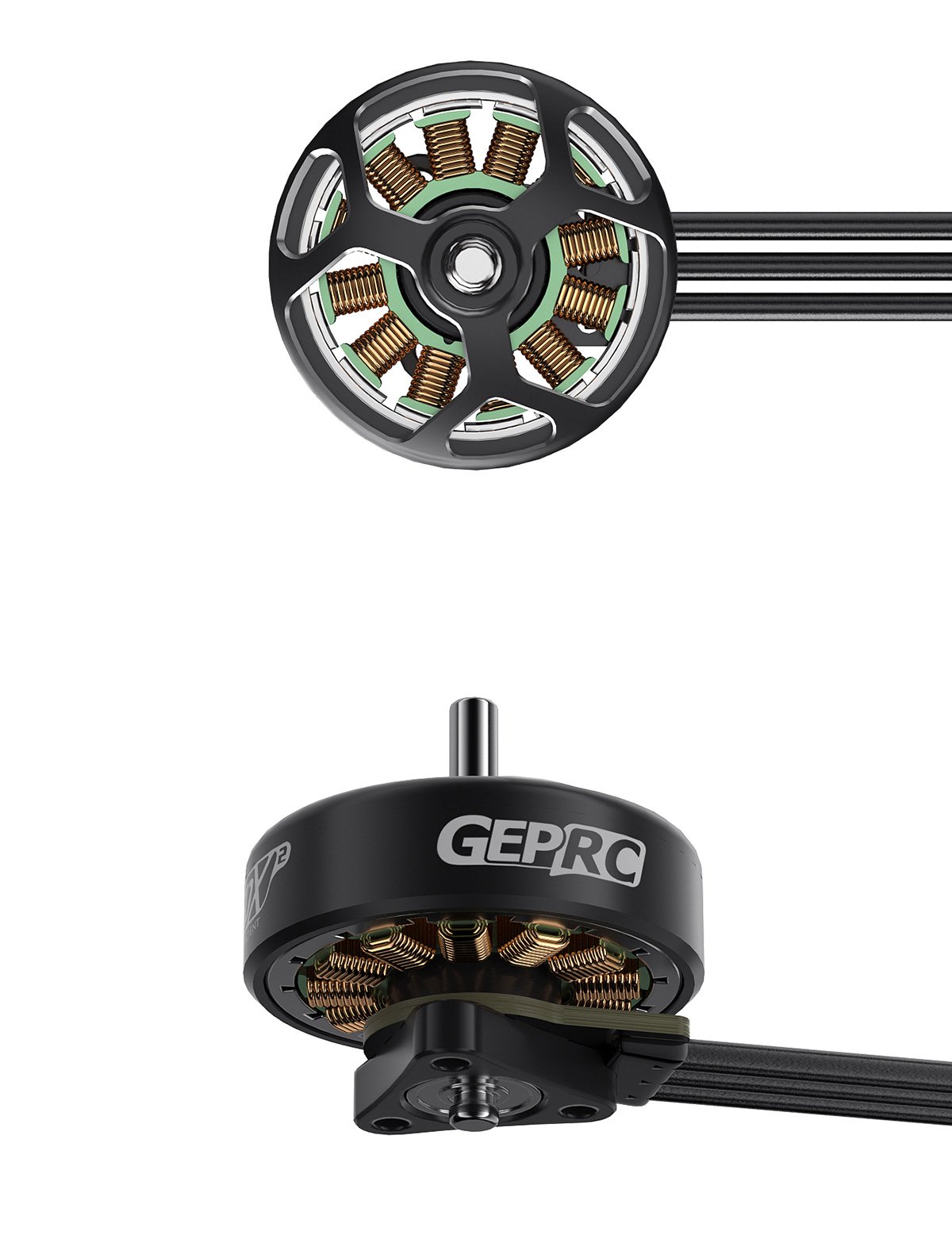

2. With a Kawasaki 1200 stator and excellent magnetic circuit design, the motor responds quickly and follows control precisely.
3. The CNC one-piece aviation aluminum alloy housing weighs only 3.2g, offering greater impact resistance.
4. The matte black finish with polished edges and large hollowed design make it visually appealing while reducing copper loss, lowering heat generation, and improving cooling efficiency.

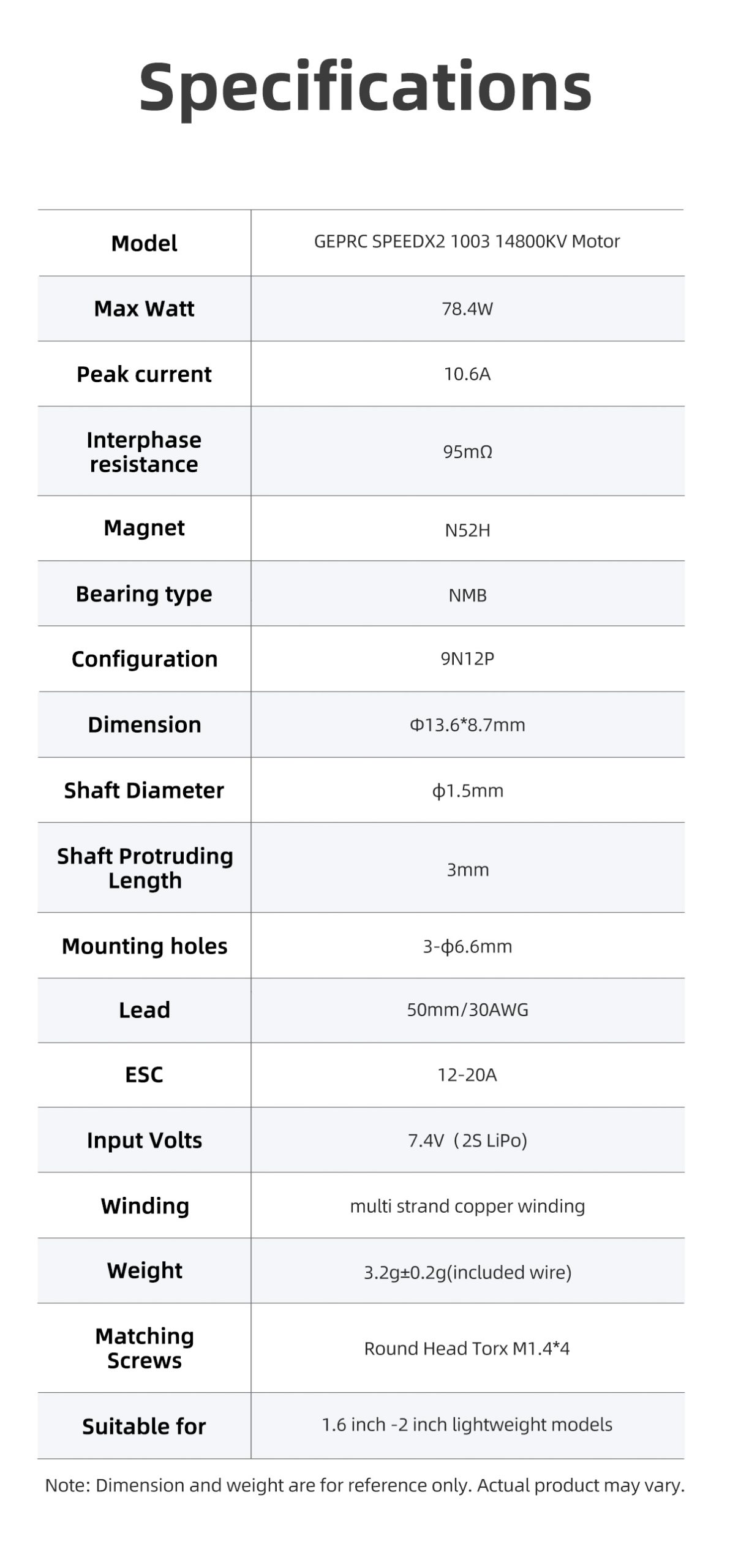

Specification:

• Model: GEPRC SPEEDX2 1003 14800KV Motor

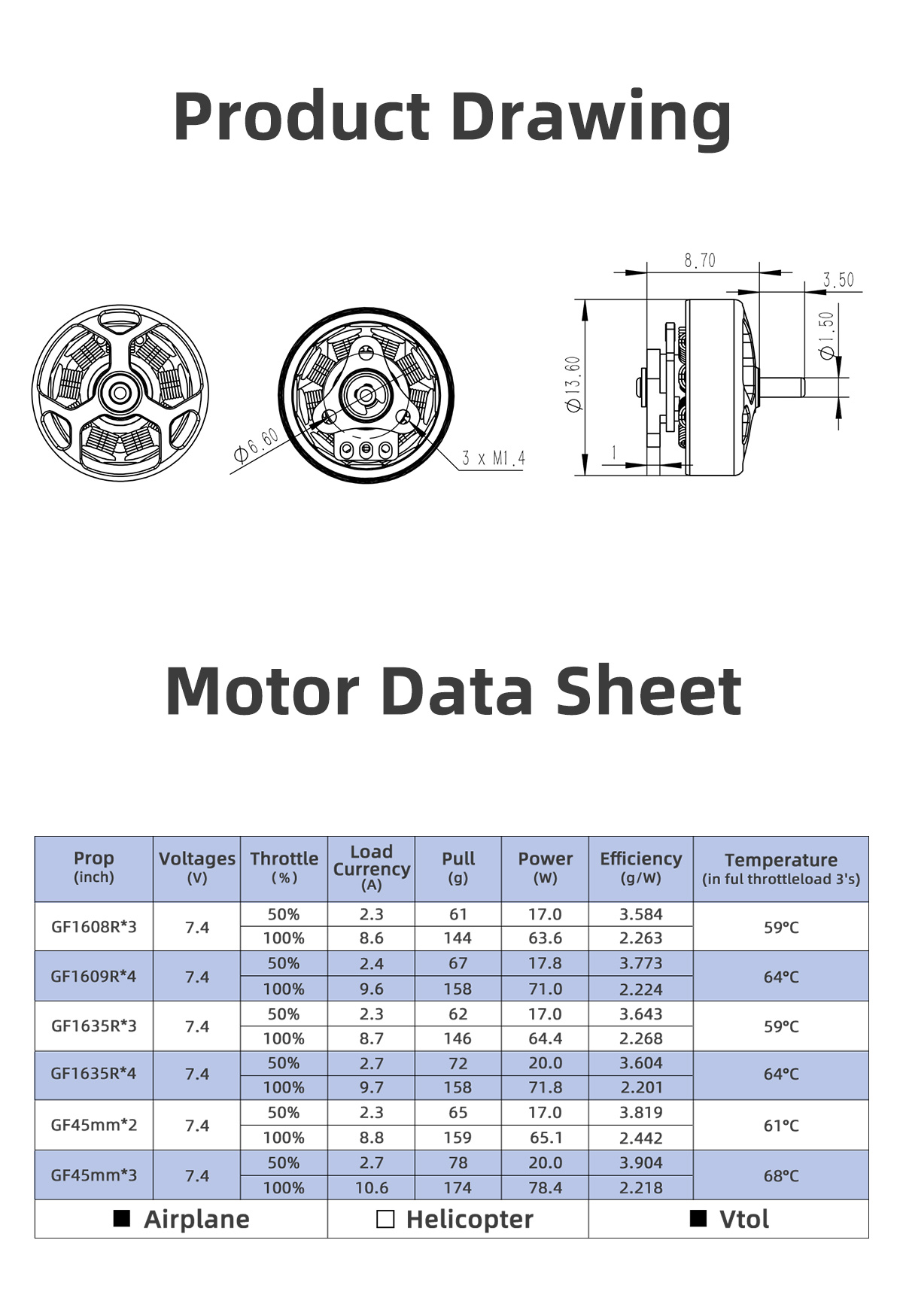

• Max Watt: 78.4W

• Peak current: 10.6A（3S）

• Interphase resistance: 95mΩ

• Magnet: N52H

• Bearing type: NMB

• Configuration: 9N12P

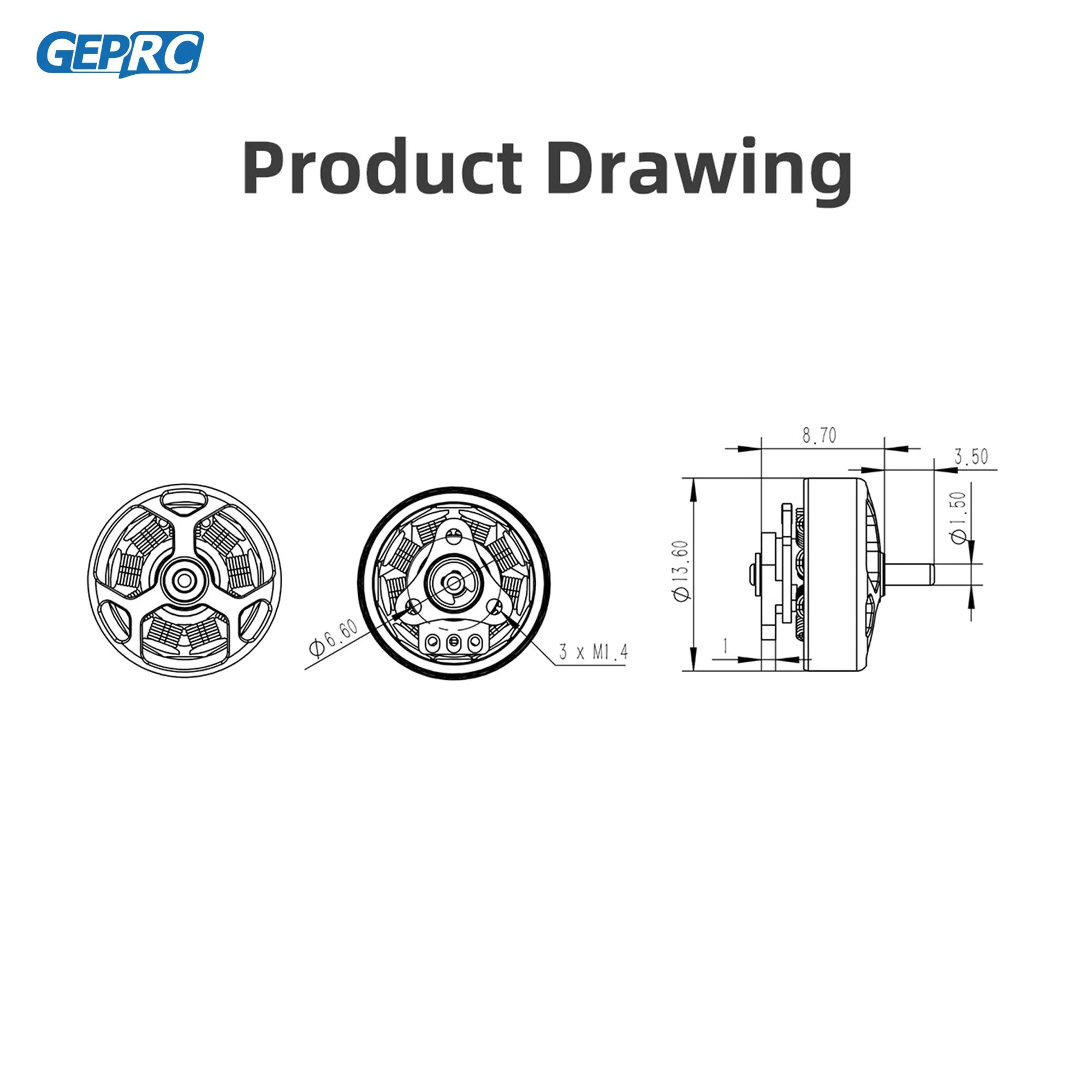

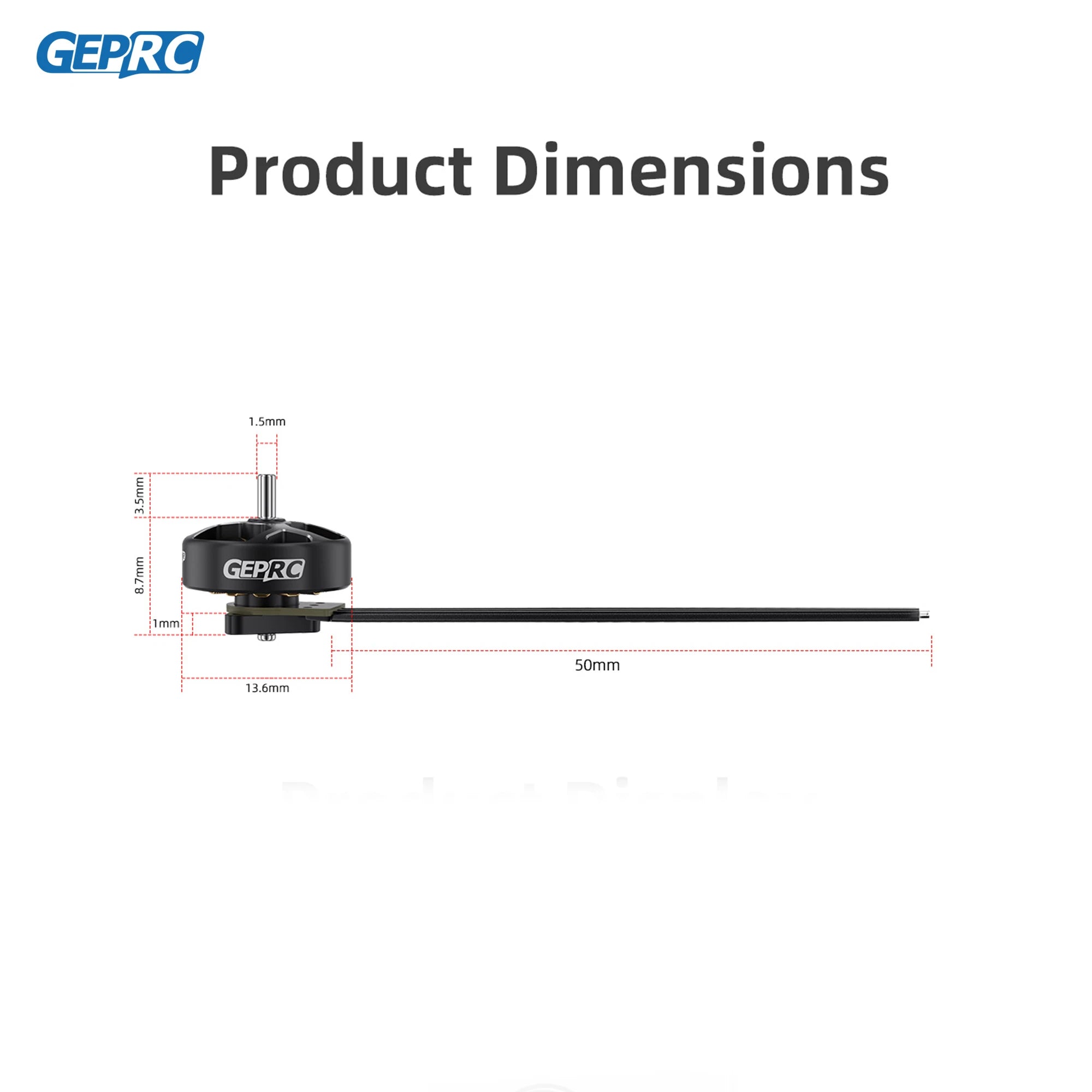

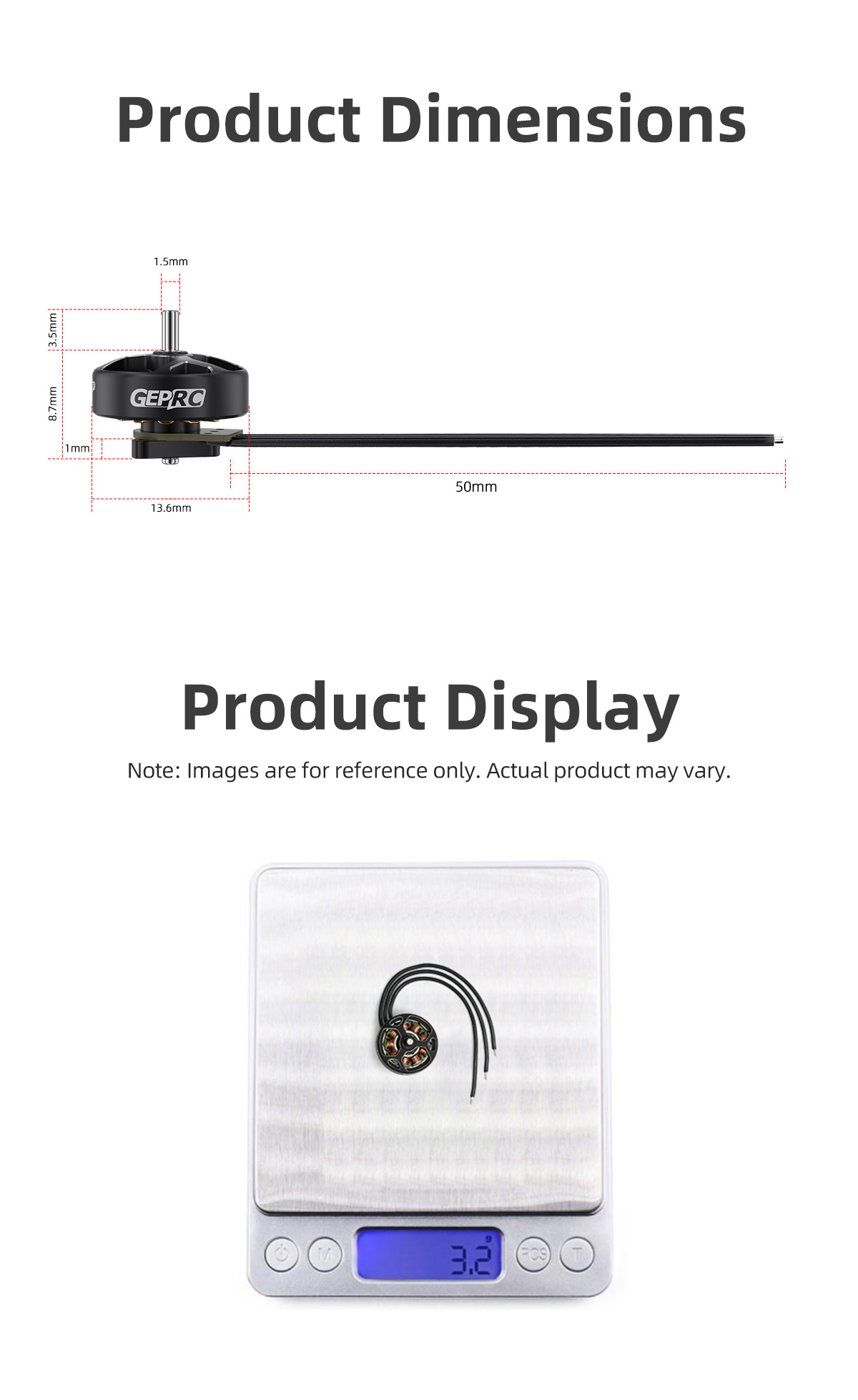

• Dimension: Φ13.6*8.7mm

• Shaft Diameter: φ1.5mm

• Shaft Protruding Length: 3mm

• Mounting holes: 3-φ6.6mm

• Lead: 50mm/30AWG

• ESC:12-20A

• Input Volts: 7.4V（2S LiPo)

• Winding: multi strand copper winding

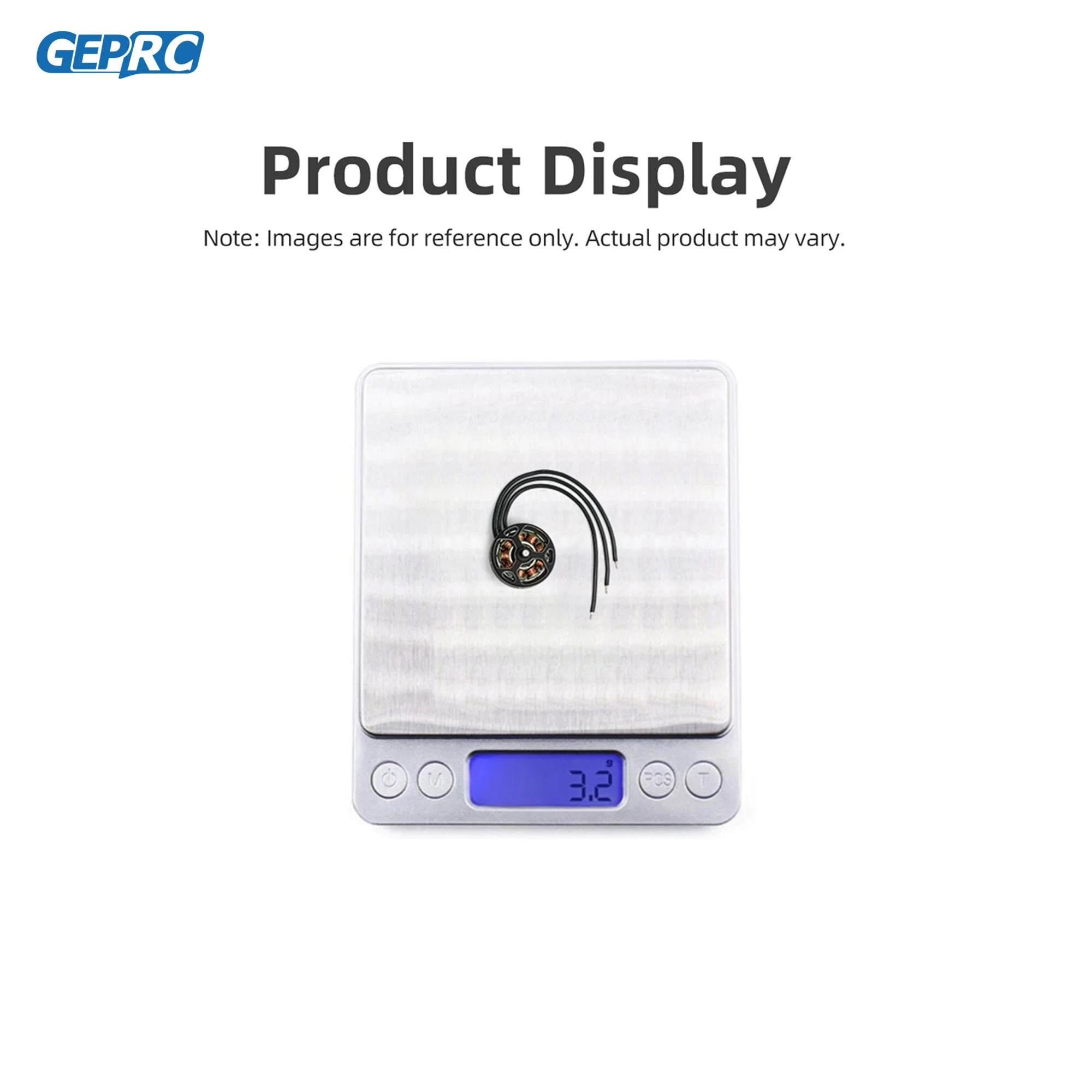

• Weight: 3.2g±0.2g (included wire)

• Suitable for:1.6 inch -2 inch lightweight models

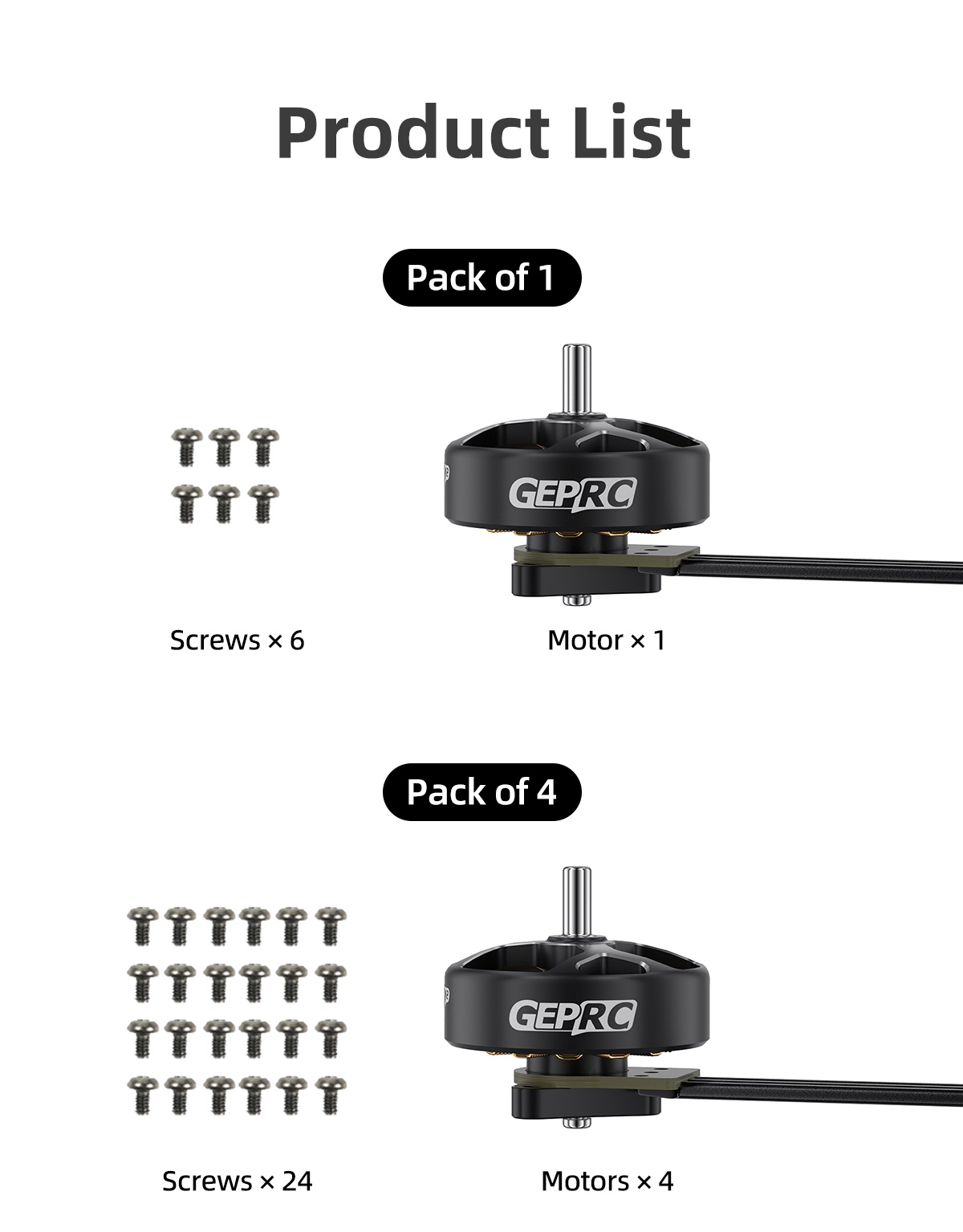

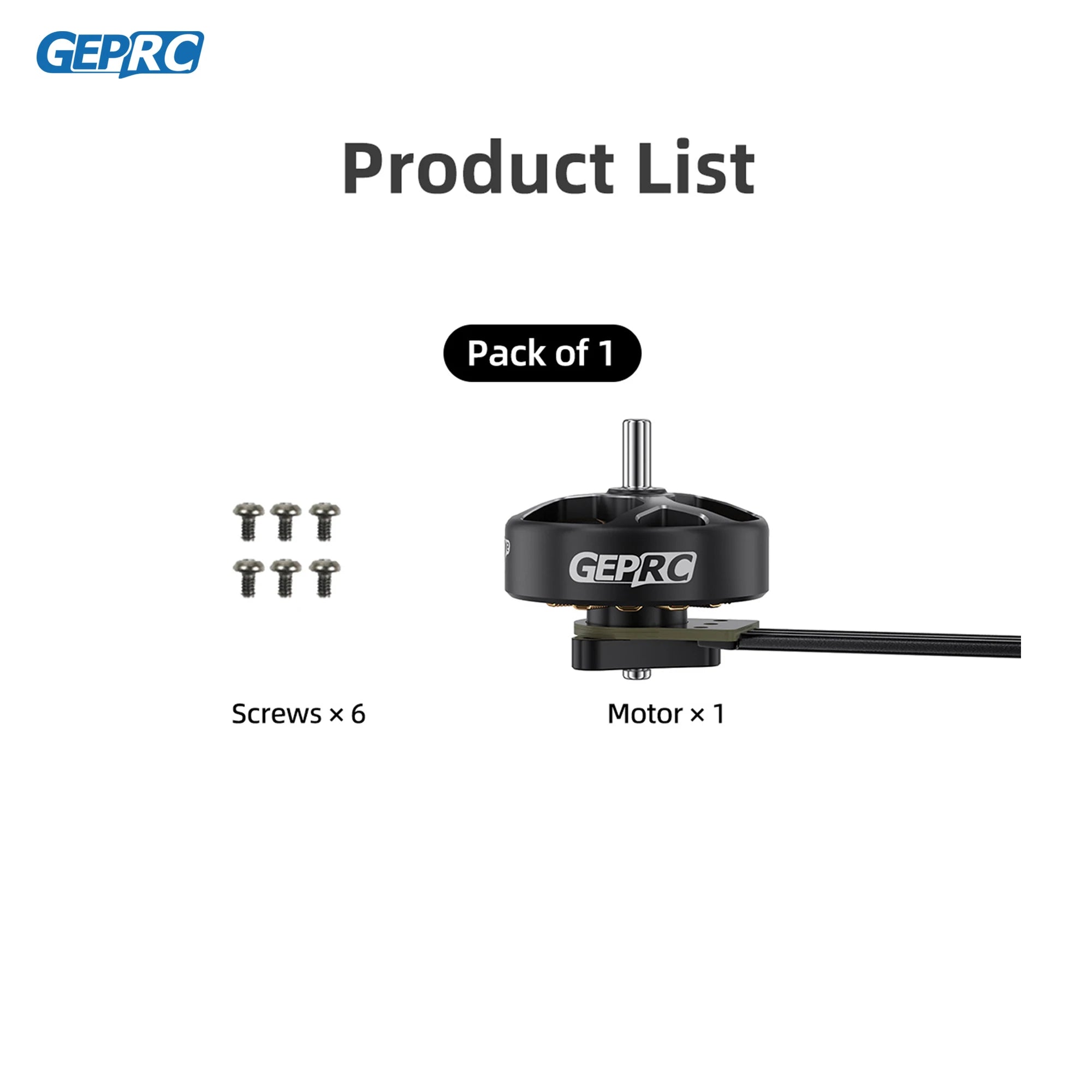

Included:

• 1 x GEPRC SPEEDX2 1003 14800KV motor
  6 x M1.4*4mm screws
