Flywoo GOKU H743 pro 32Bit Flight Controller 55A 128K 30×30 Stack with G55M AM32 4in1 ESC Plug&Play for Drone O4/O4 pro

Description

Specifications

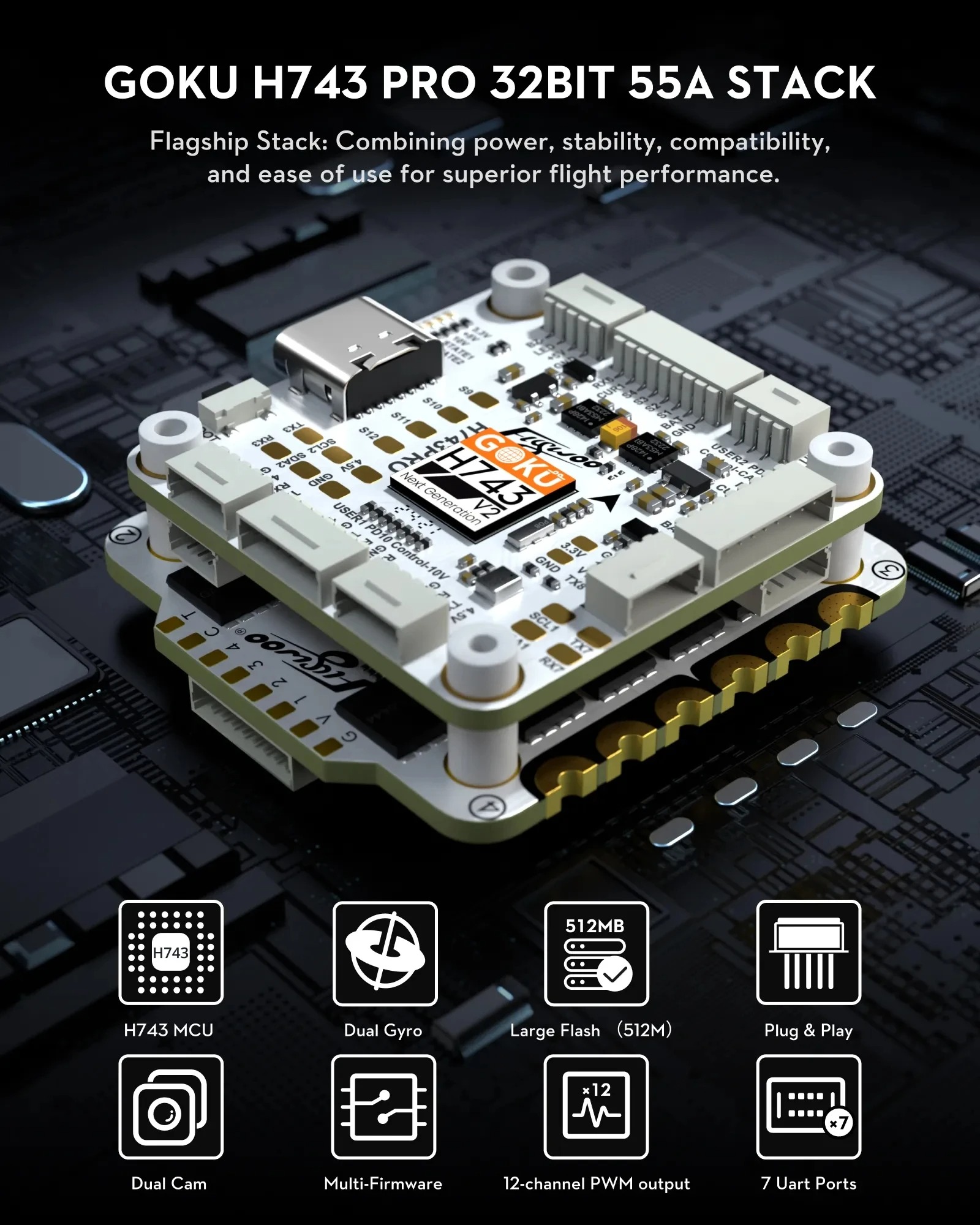

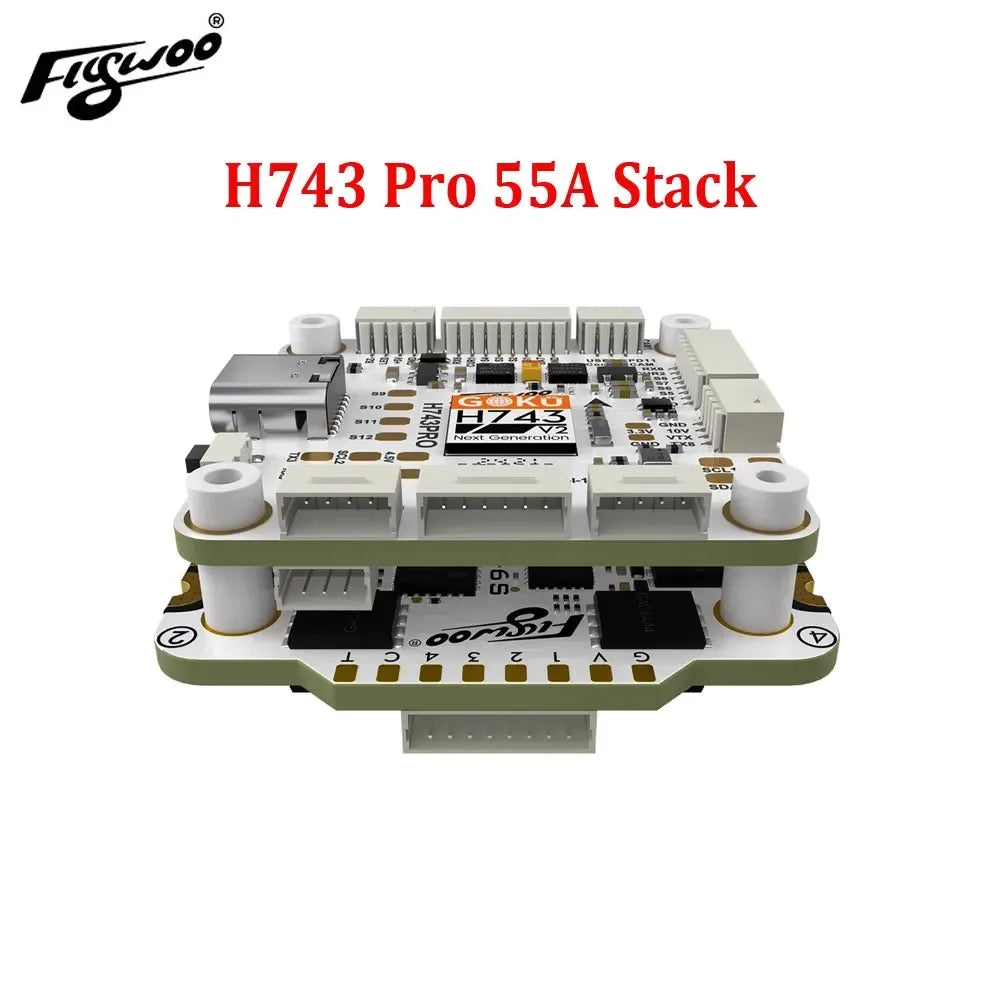

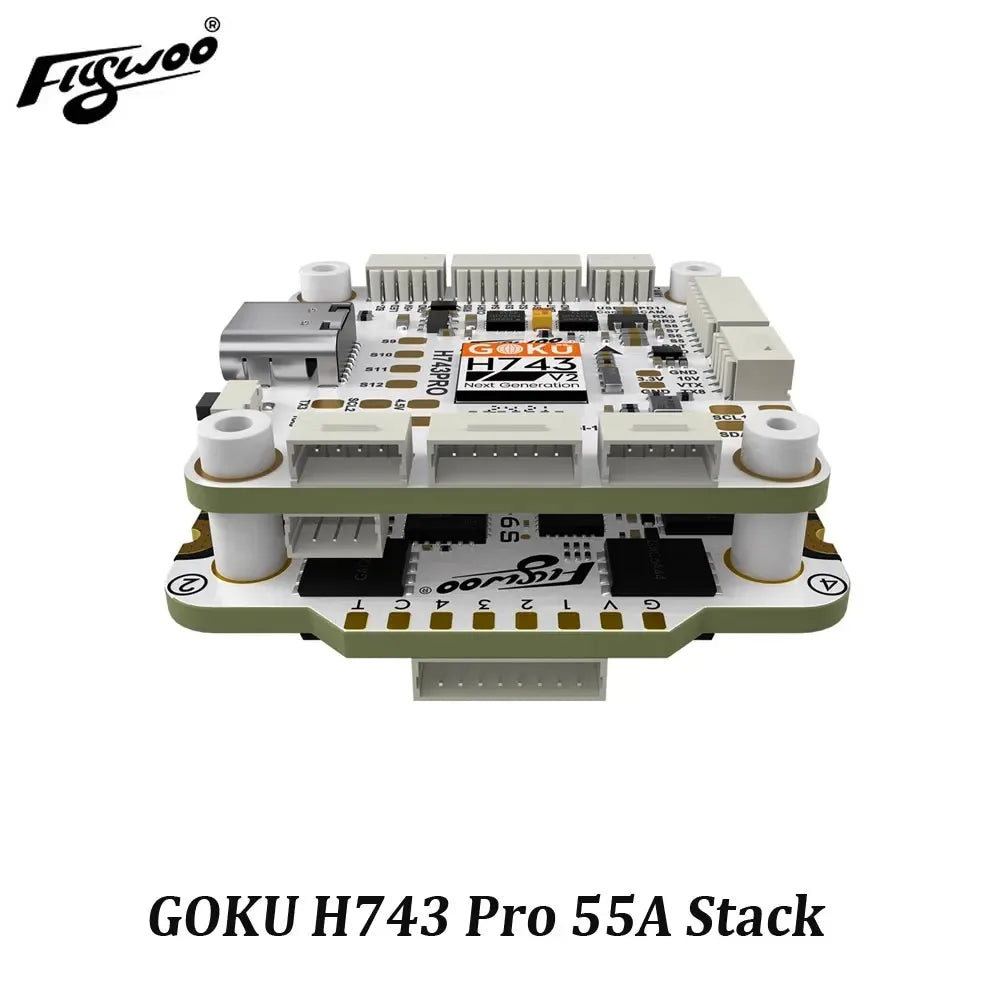

GOKU H743 Pro 32bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.

It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros.

It offers 512MB blackbox , 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor.

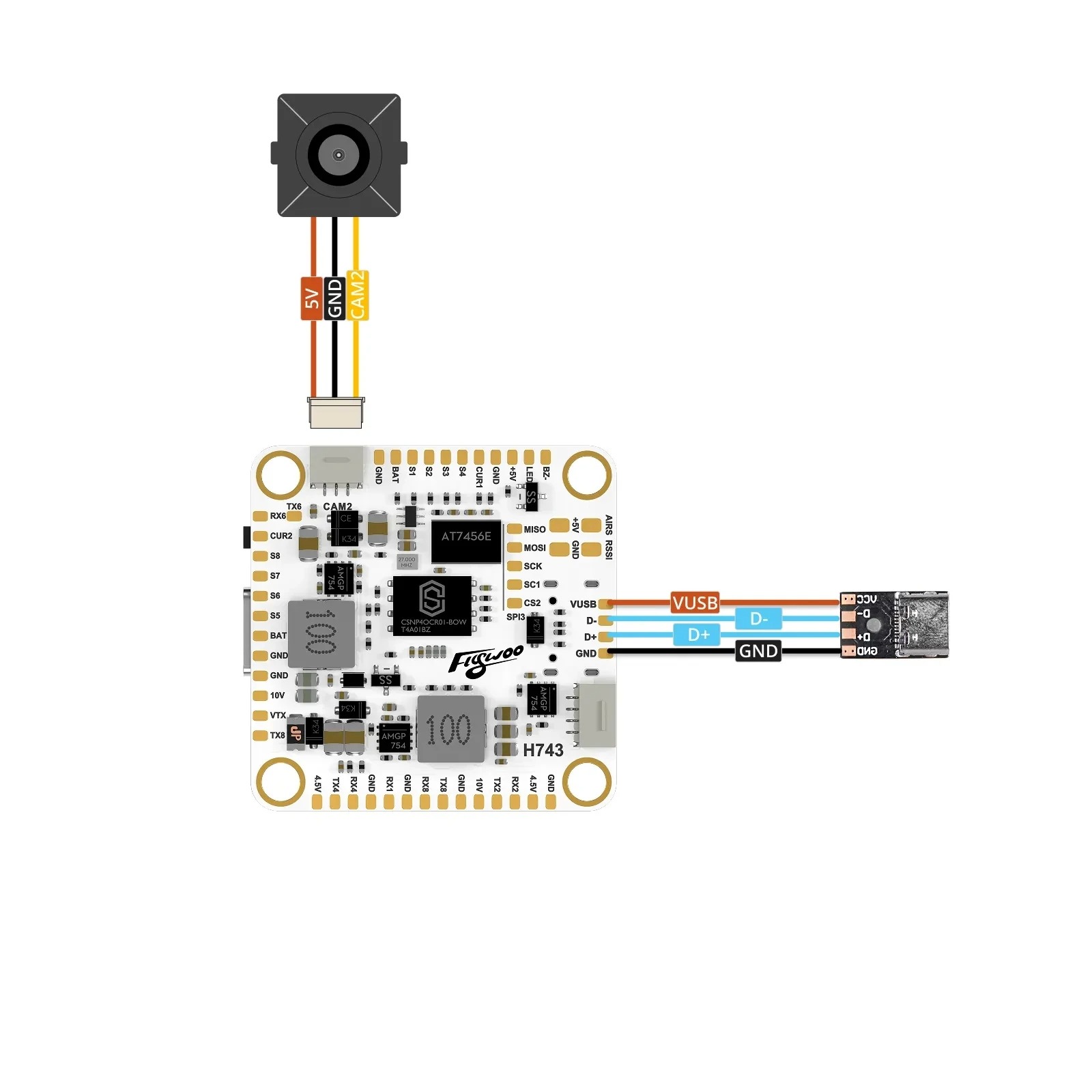

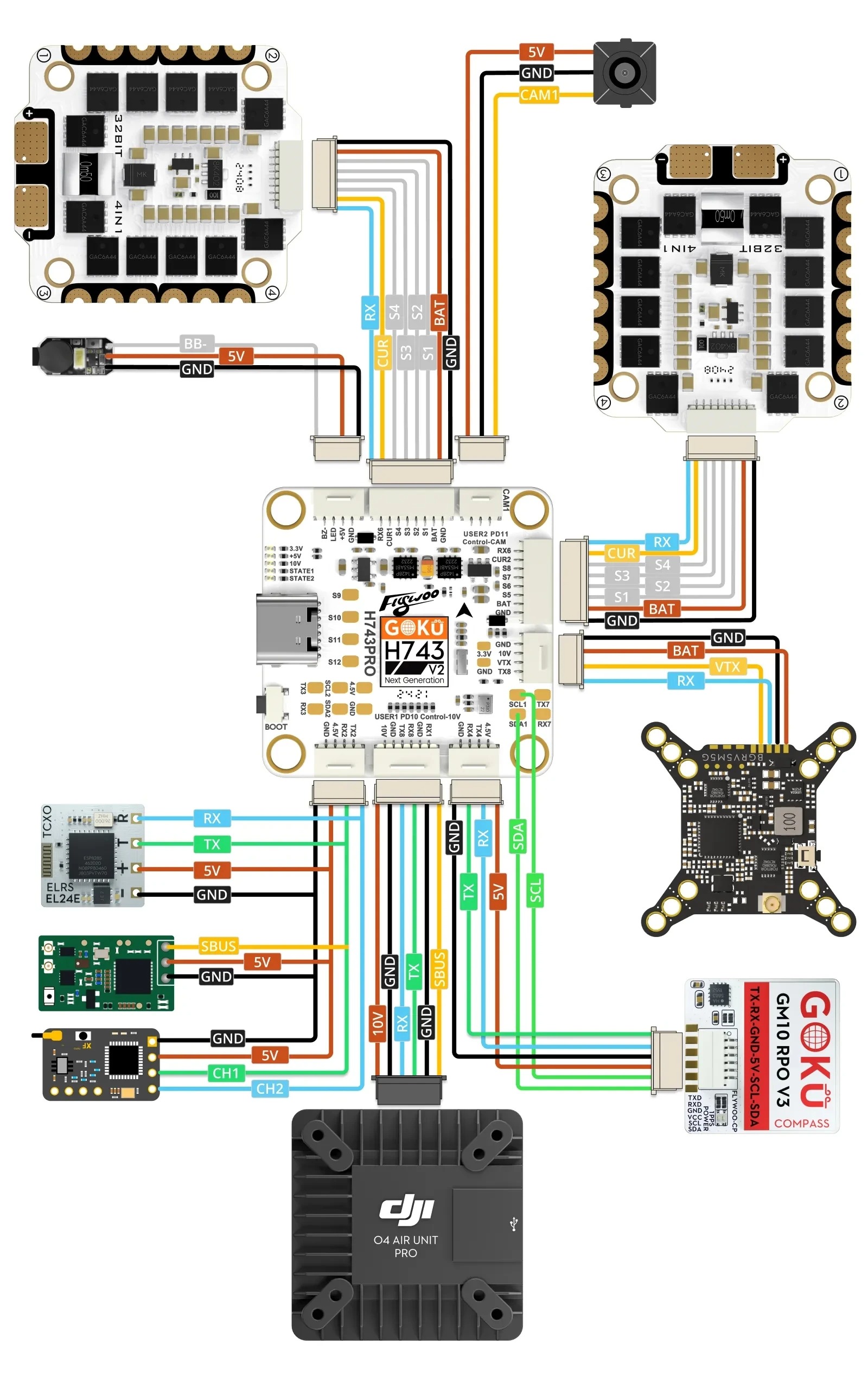

It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.

Paired with the GOKU G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.

Highlights：

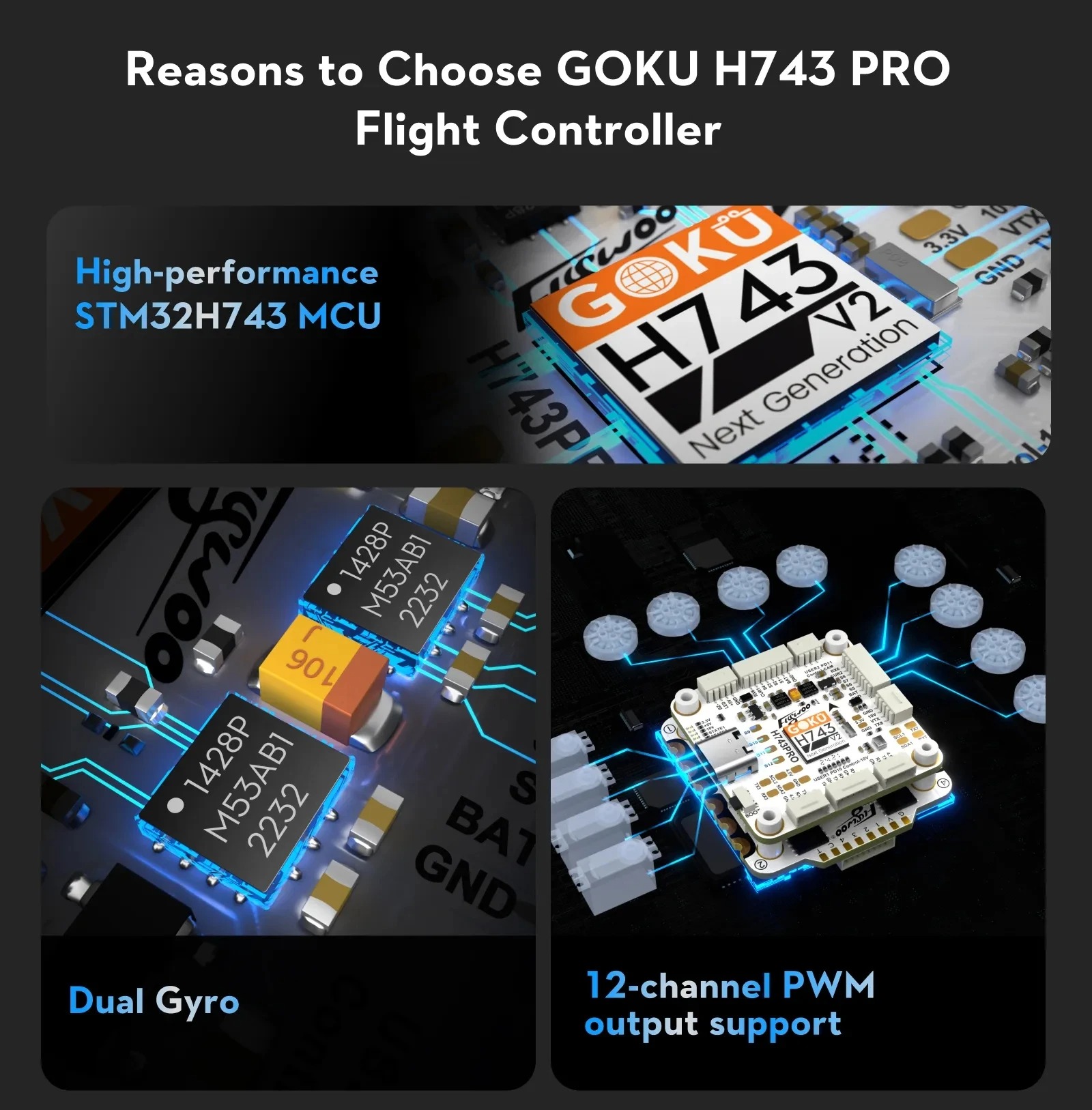

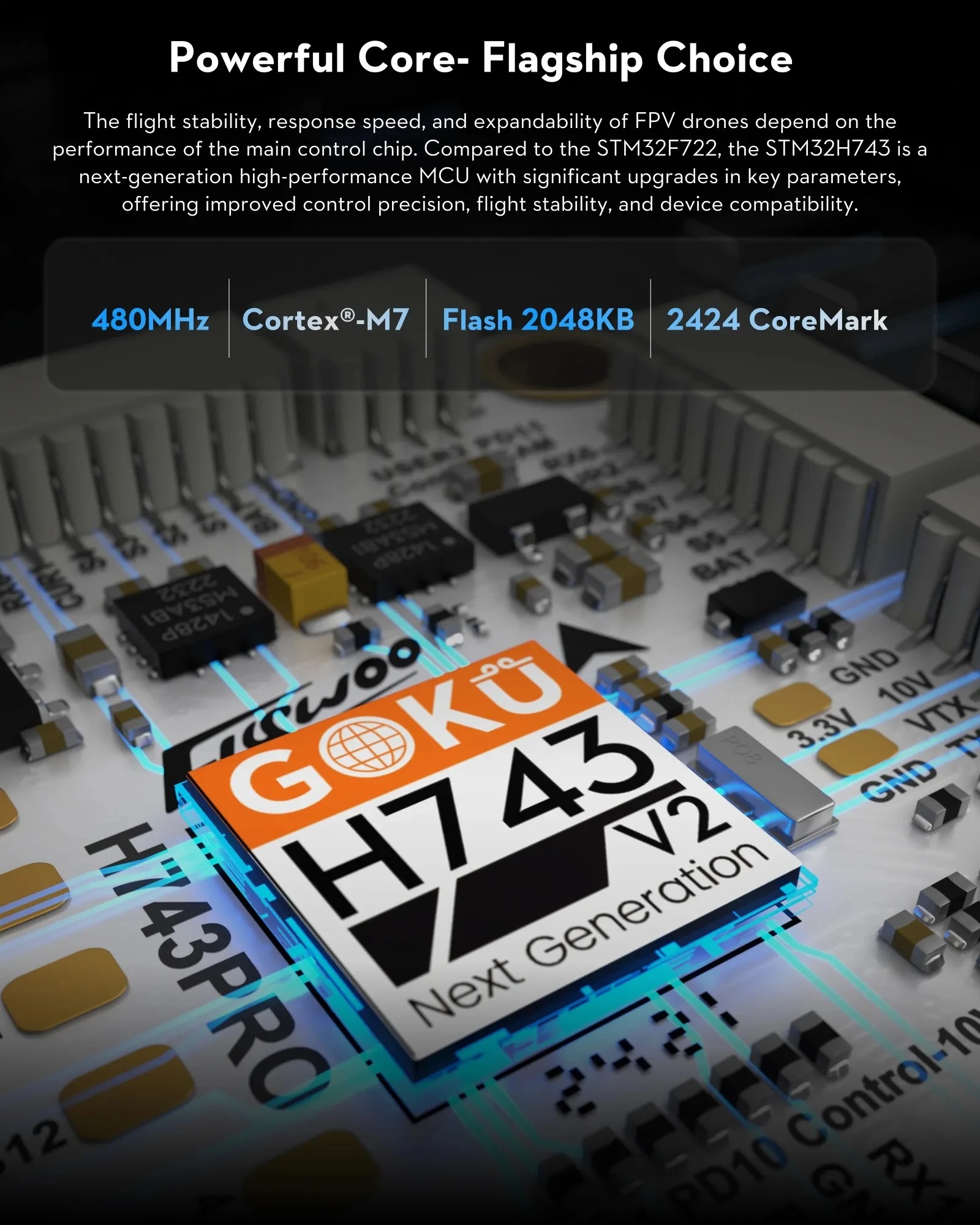

1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.

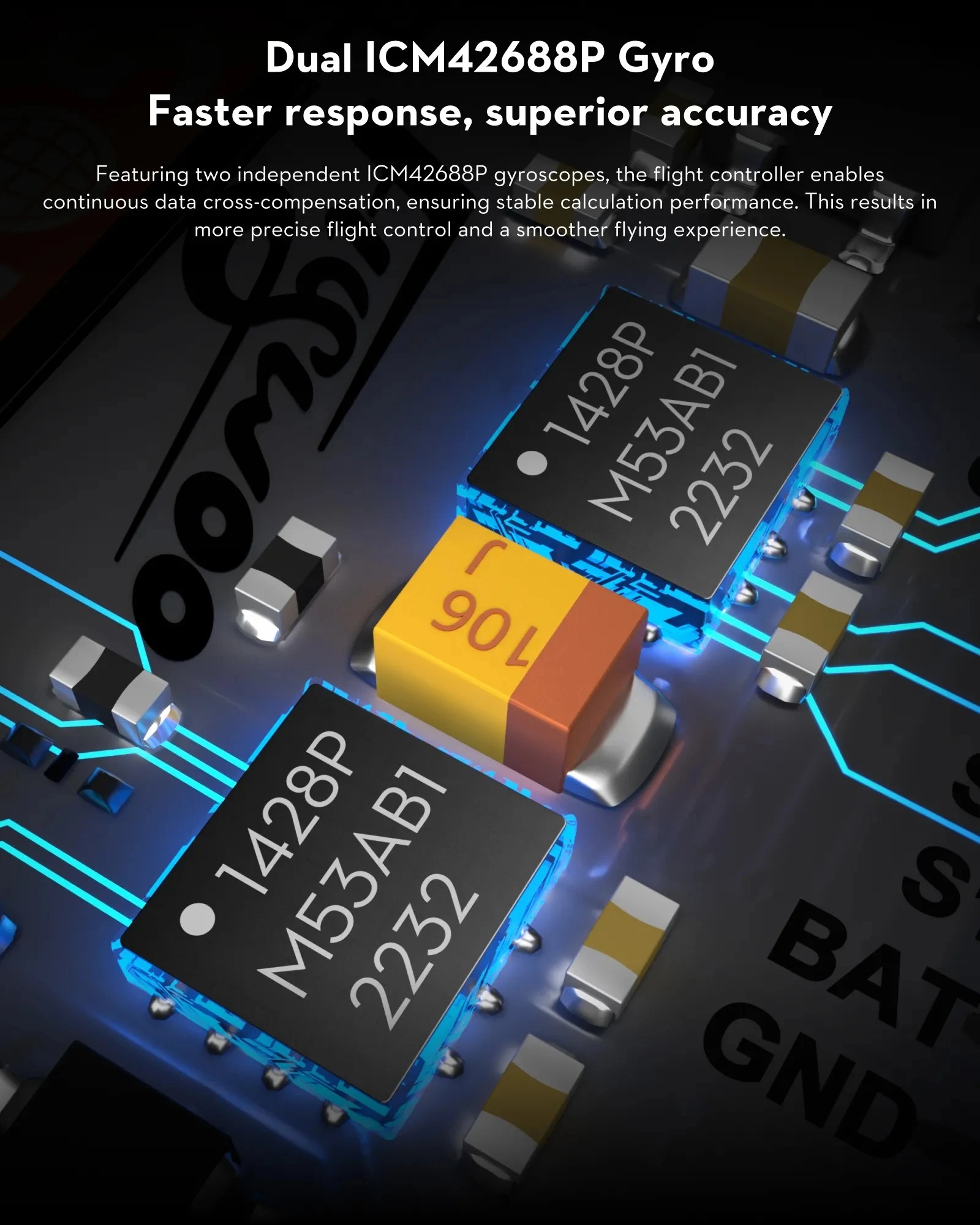

2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.

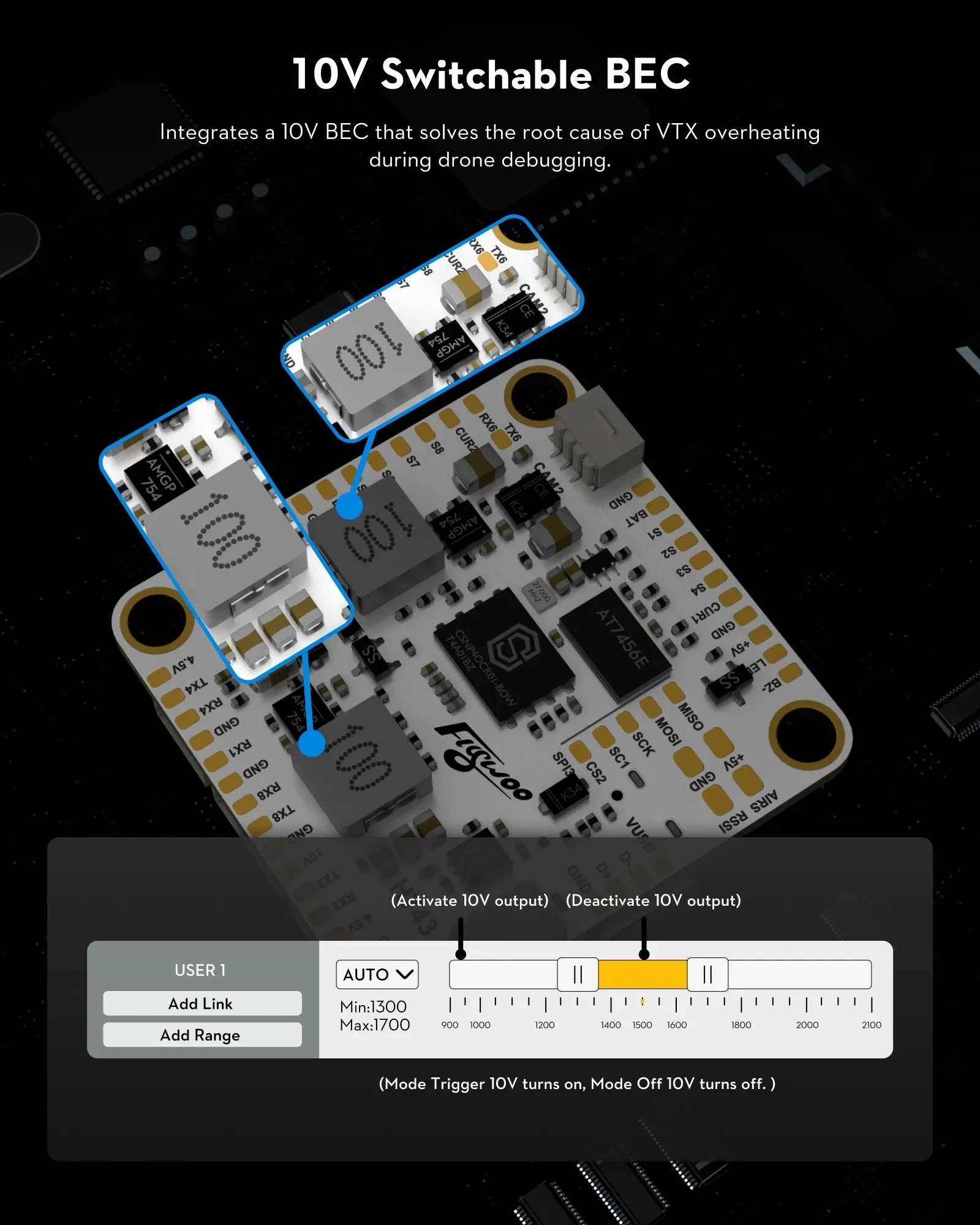

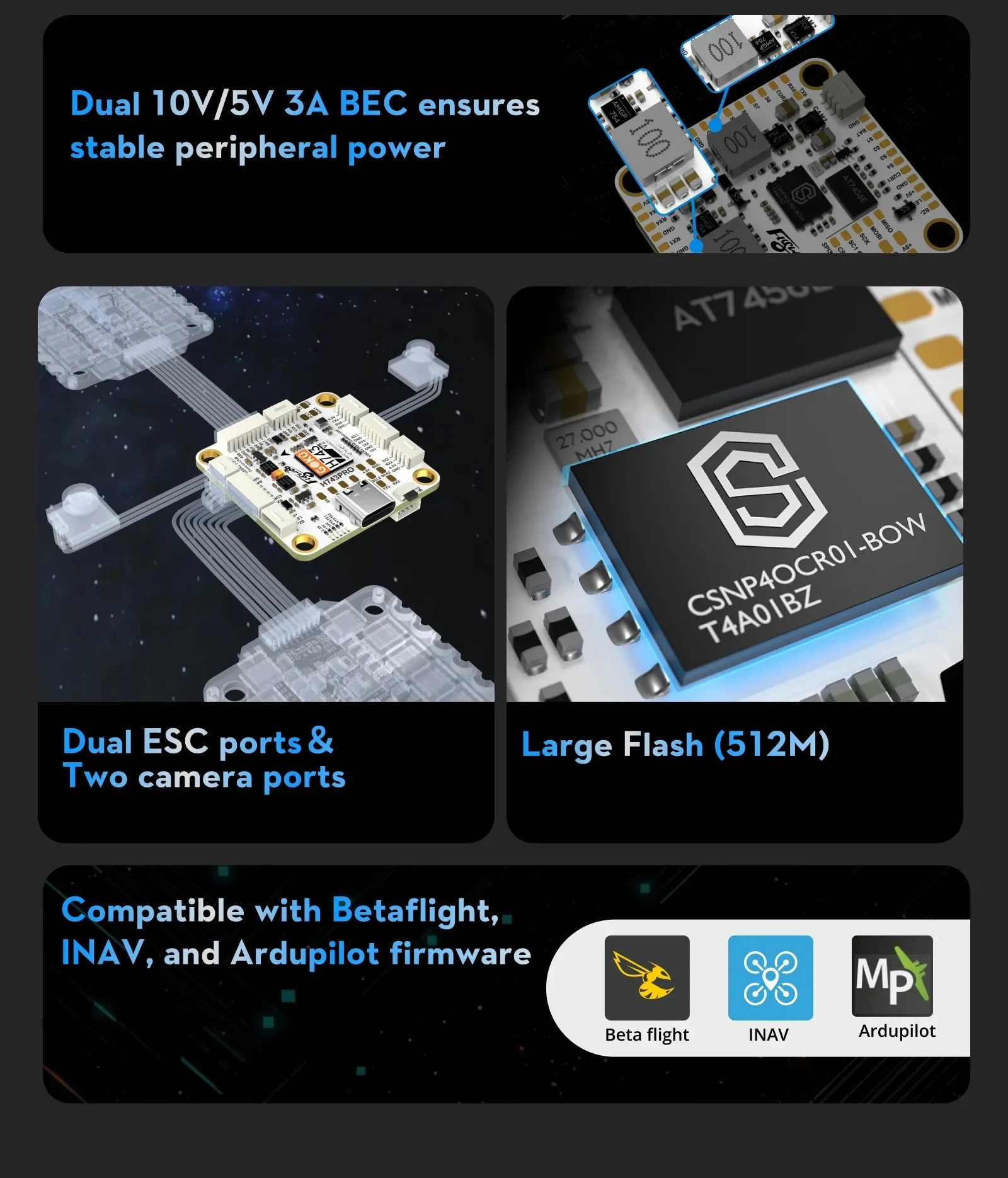

3. Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.

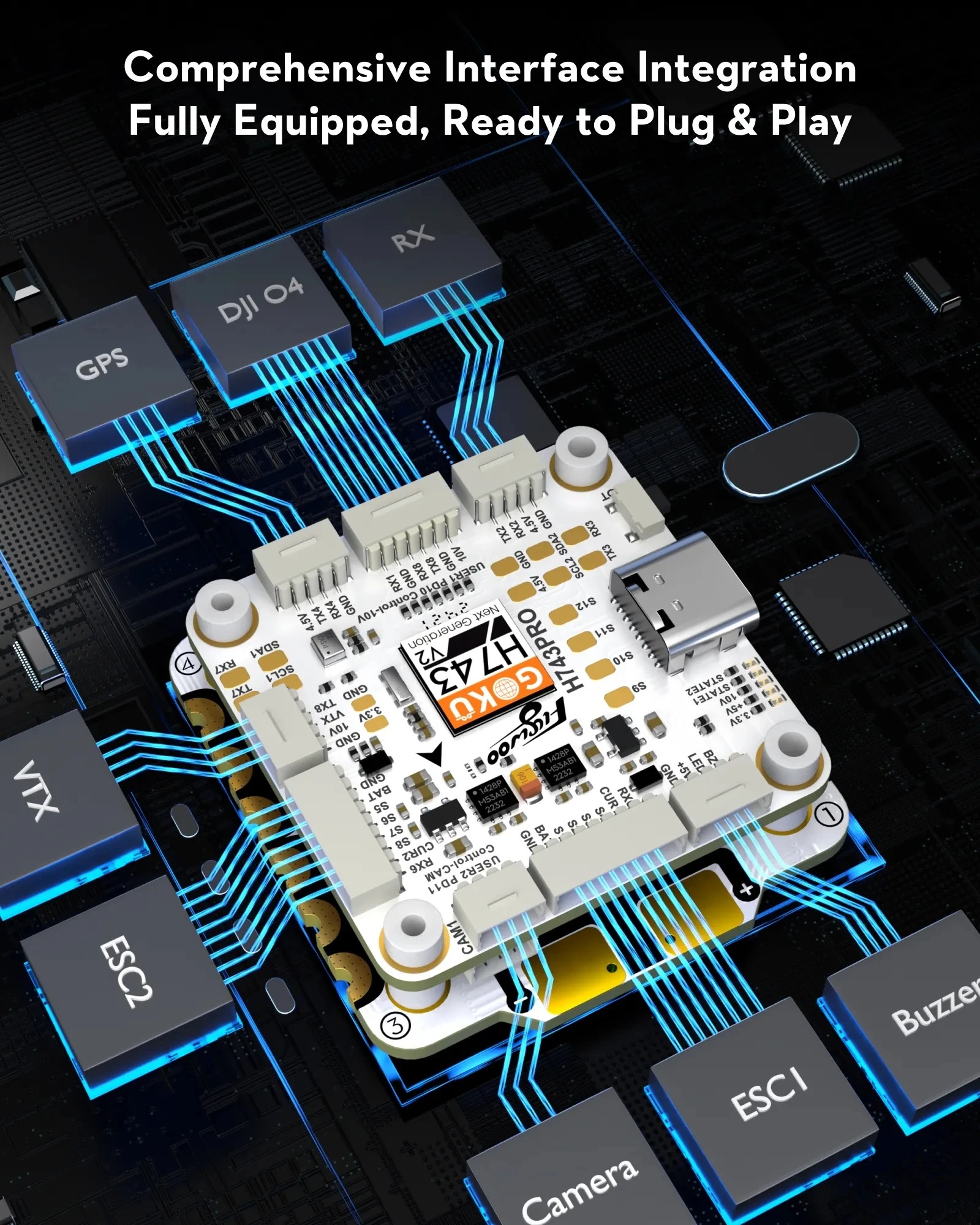

4. Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.

5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.

6. Massive Storage: 512MB blackbox logs full flight data for analysis.

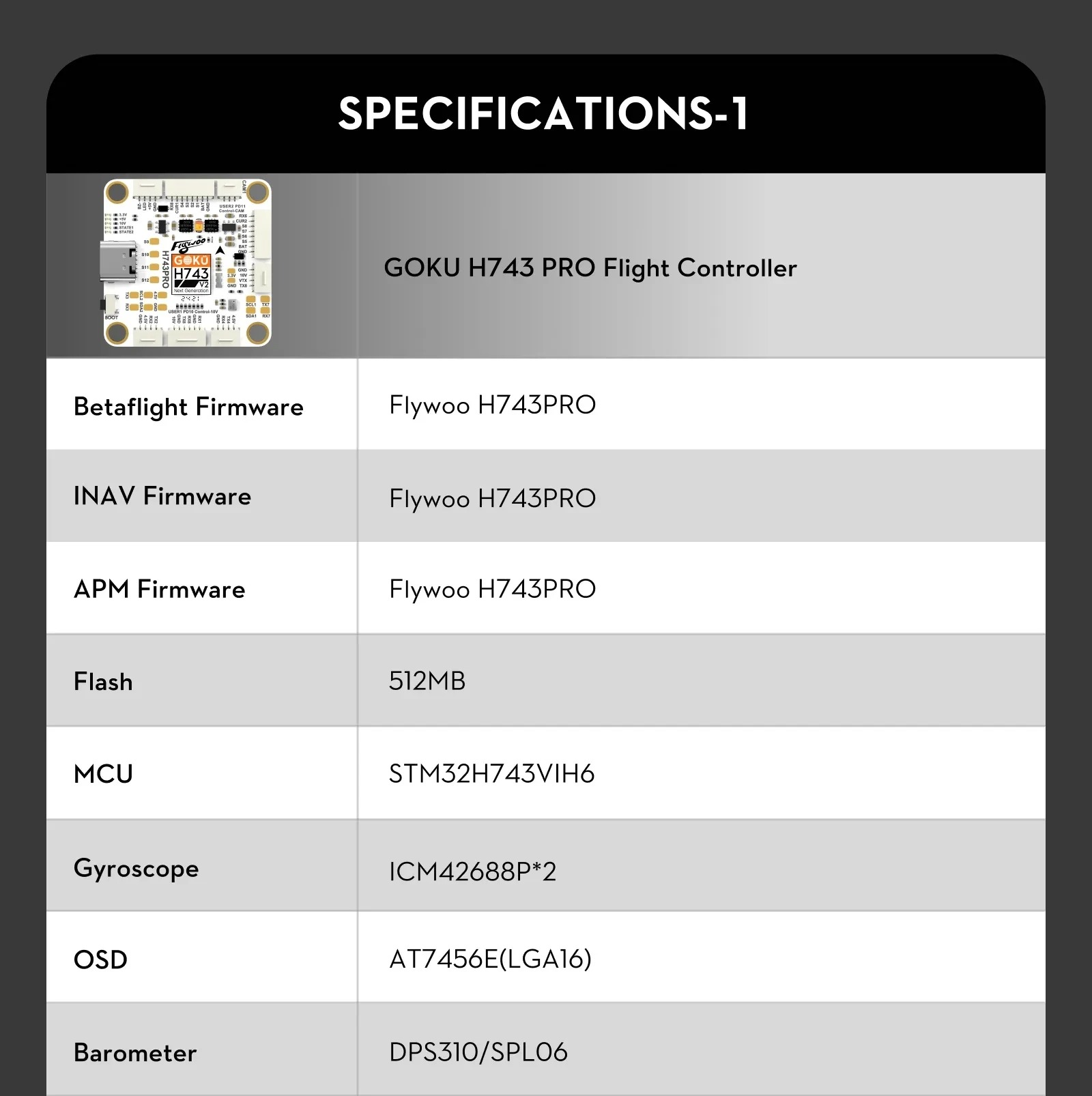

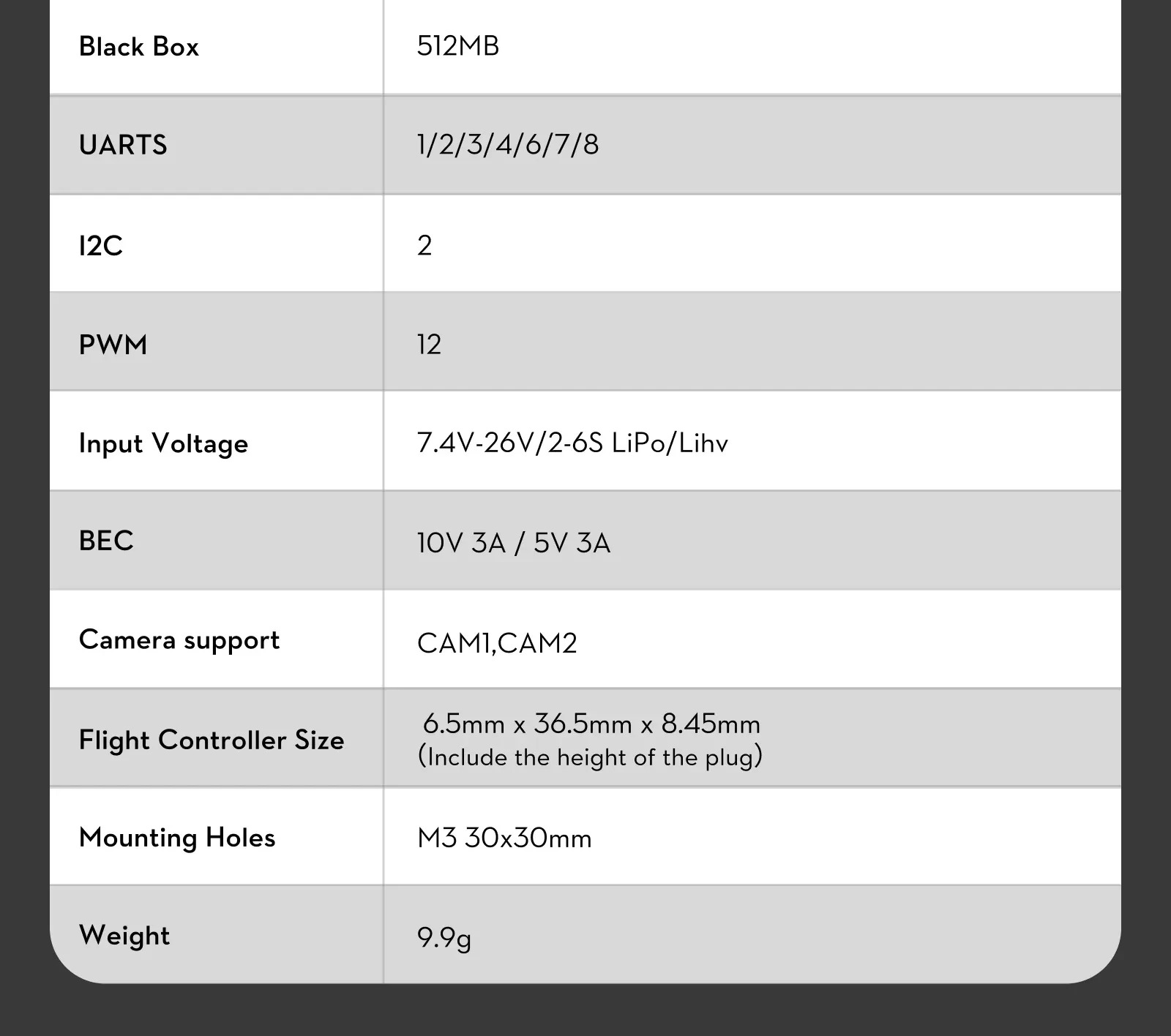

Specifications：

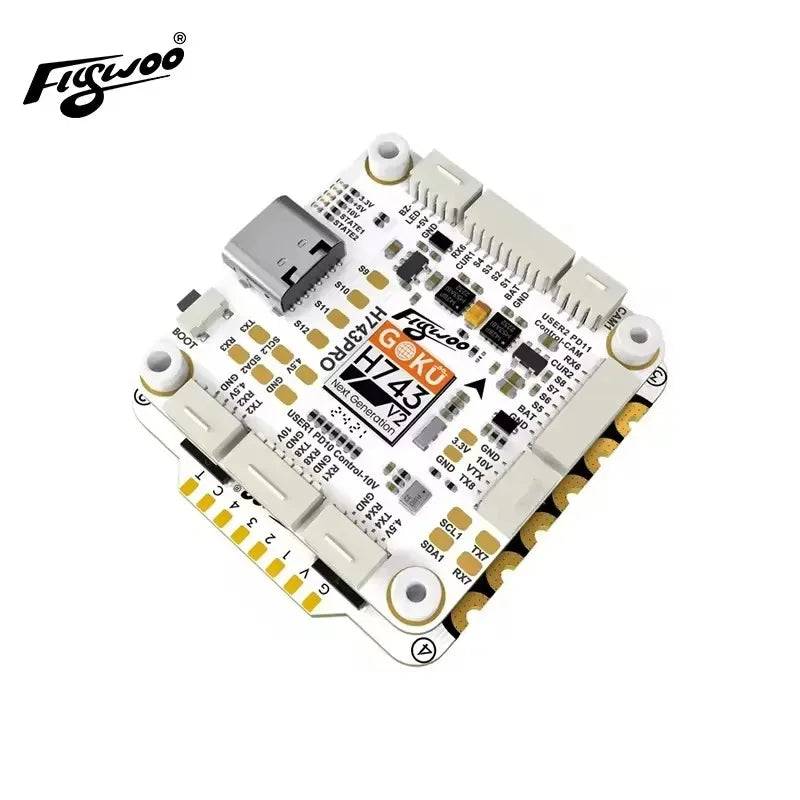

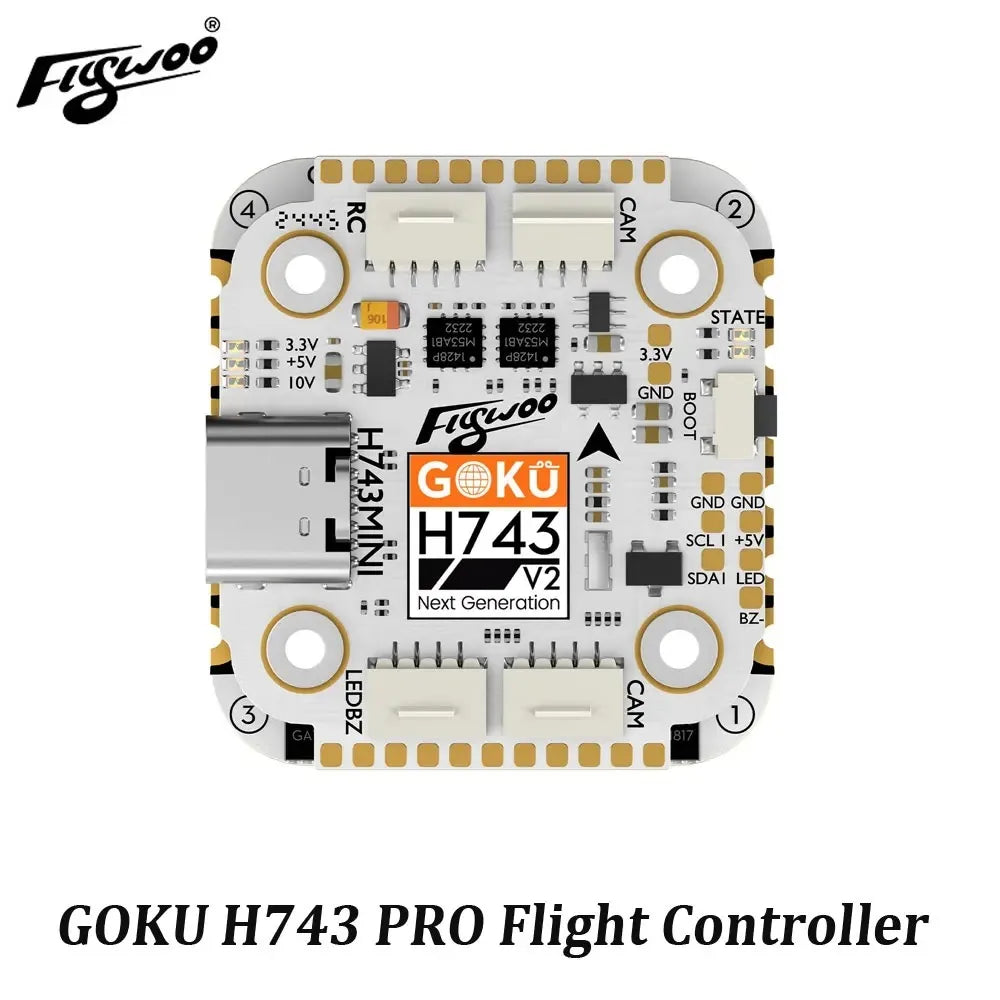

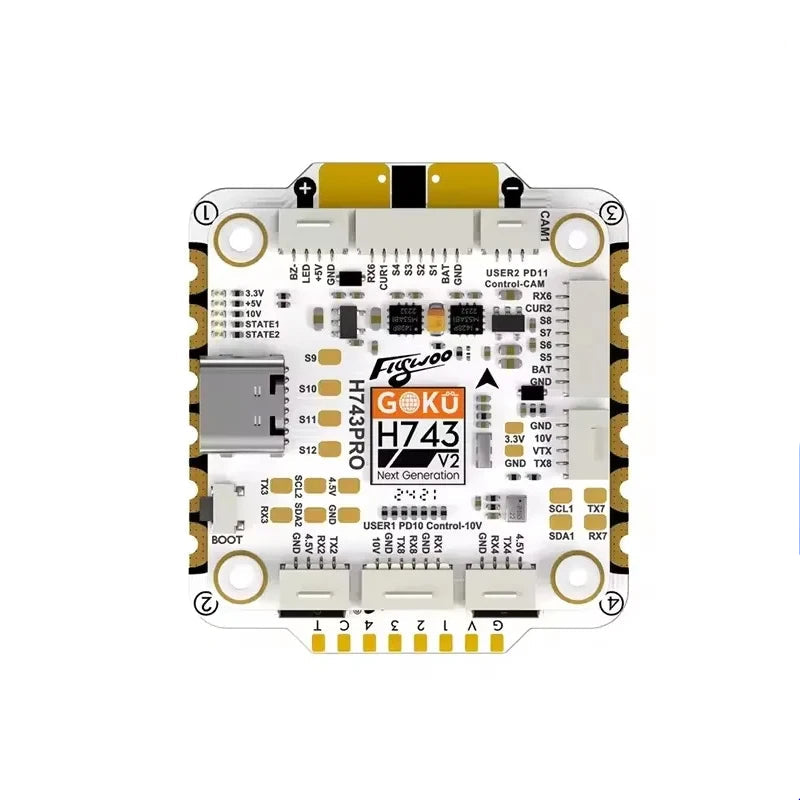

GOKU H743 PRO Flight Controller

• BetaFlight Firmware: Flywoo H743PRO

• INAV Firmware: Flywoo H743PRO

• APM Firmware:Flywoo H743PRO

• Flash: 2MB

• MCU: STM32H743VIH6

• Gyroscope: ICM42688P*2

• OSD: AT7456E(LGA16)

• Barometer: DPS310/SPL06

• Black Box: 512MB

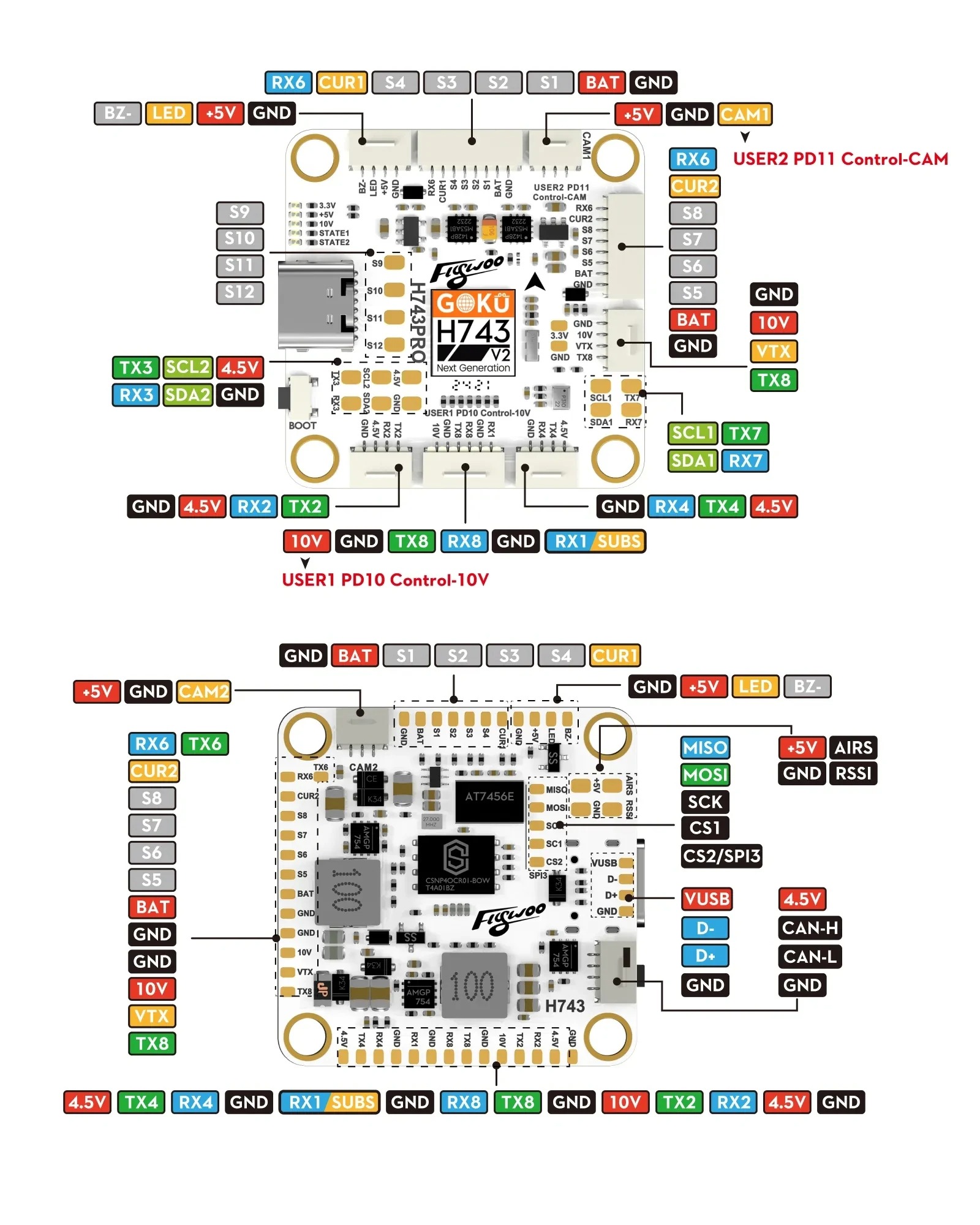

• UARTS: 1/2/3/4/6/7/8

• I2C:2

• PWM:12

• Input Voltage: 7.4V-26V/2-6S LiPo/Lihv

• BEC: 10V3A/5V3A

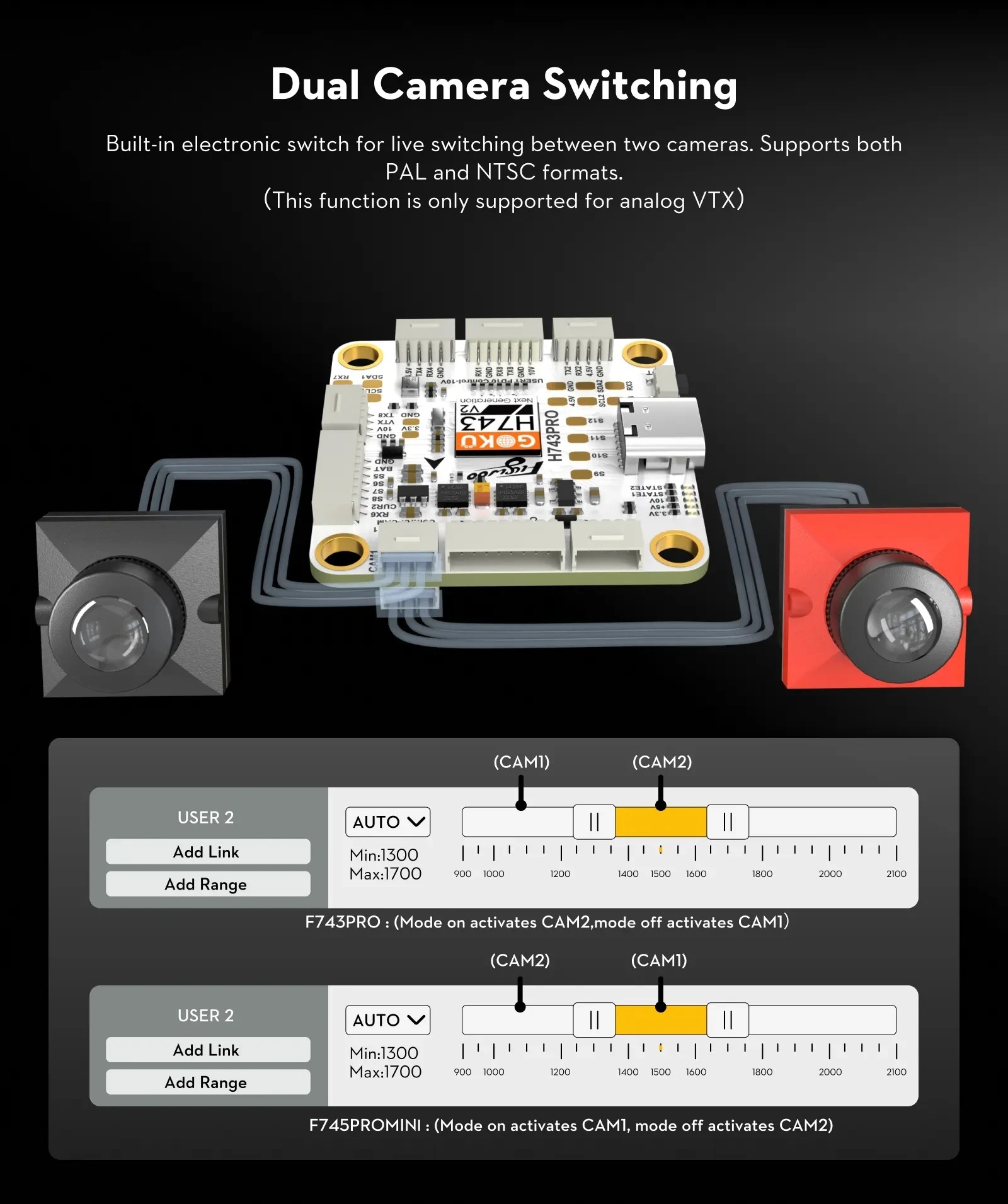

• Camera support：CAM1,CAM2

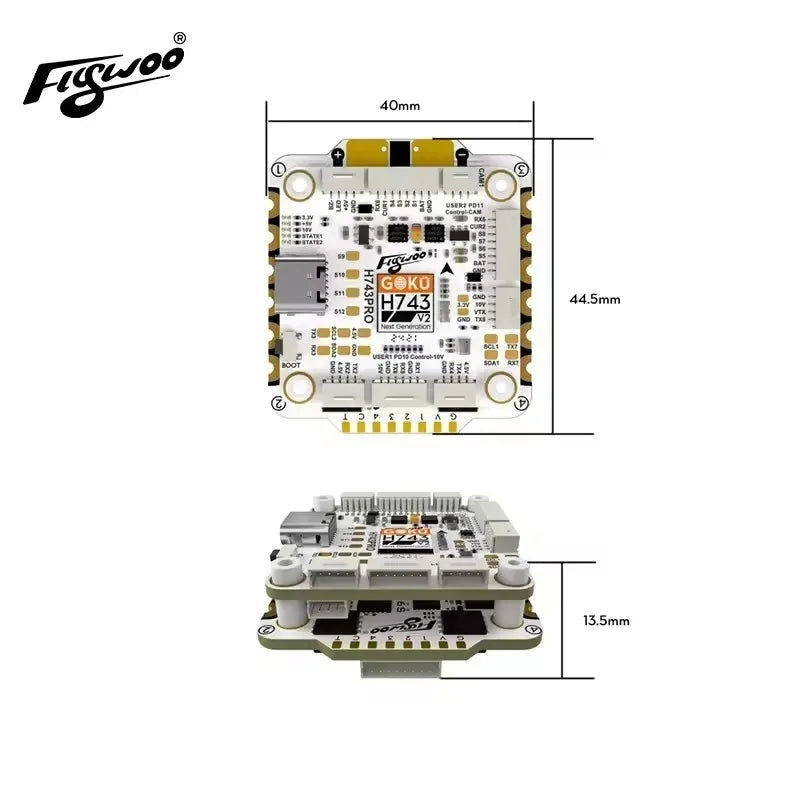

• Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）

• Mounting Holes: M3 30x30mm

• Weight: 9.9g

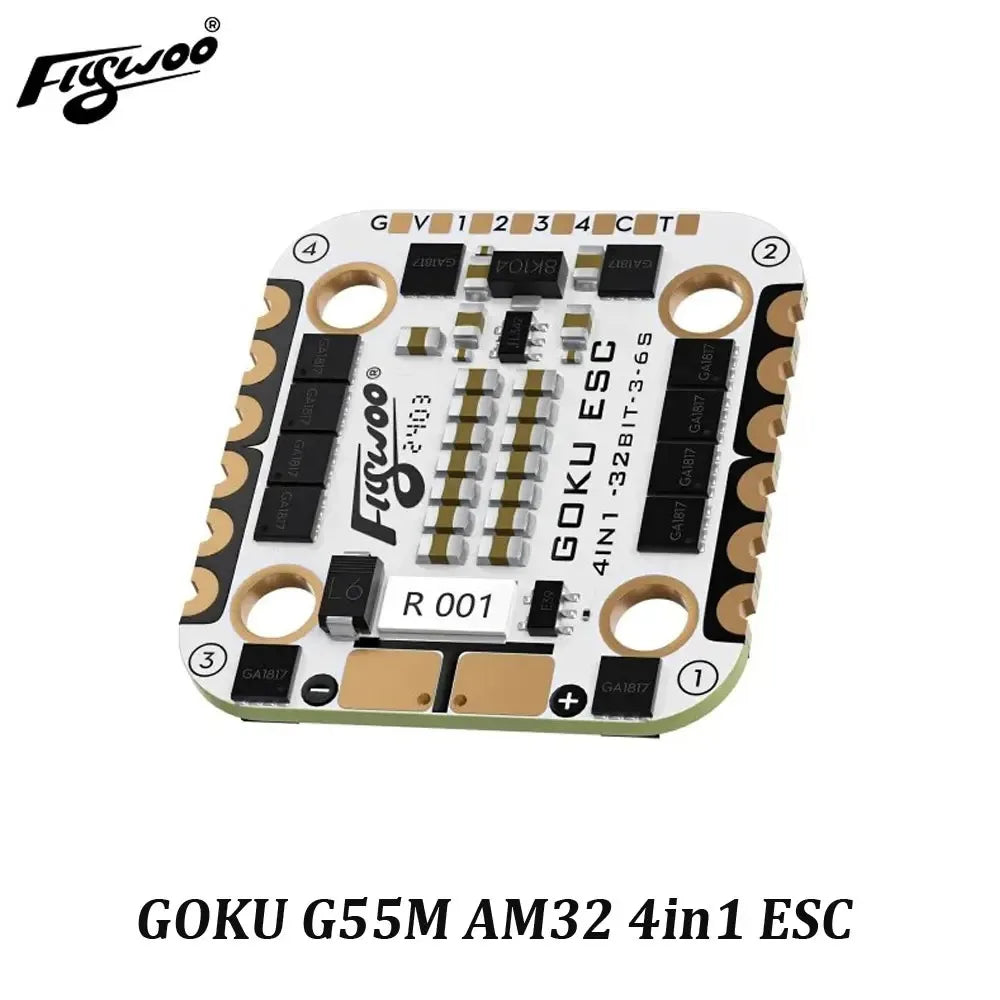

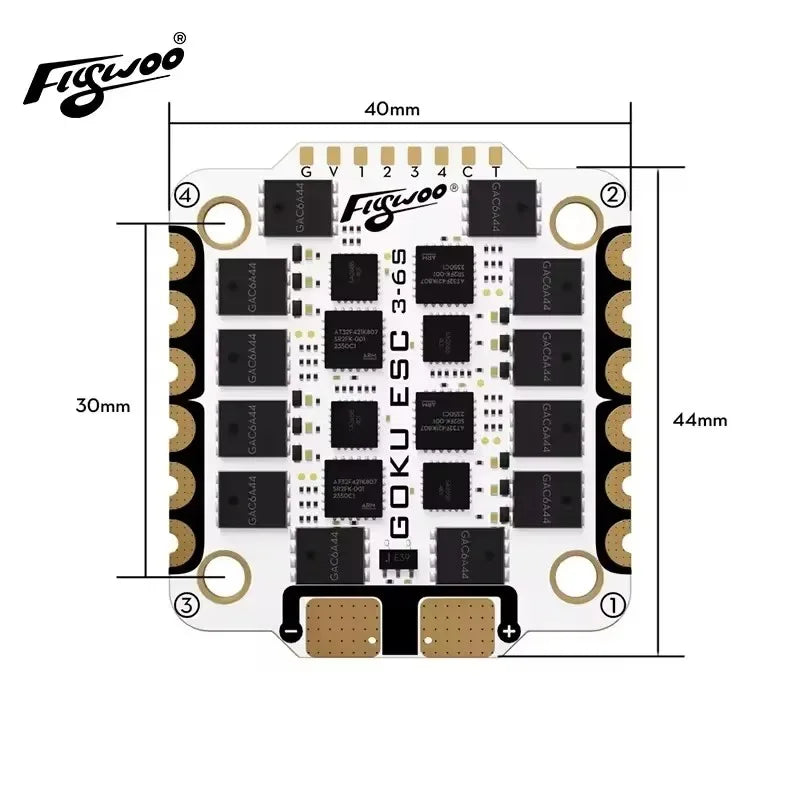

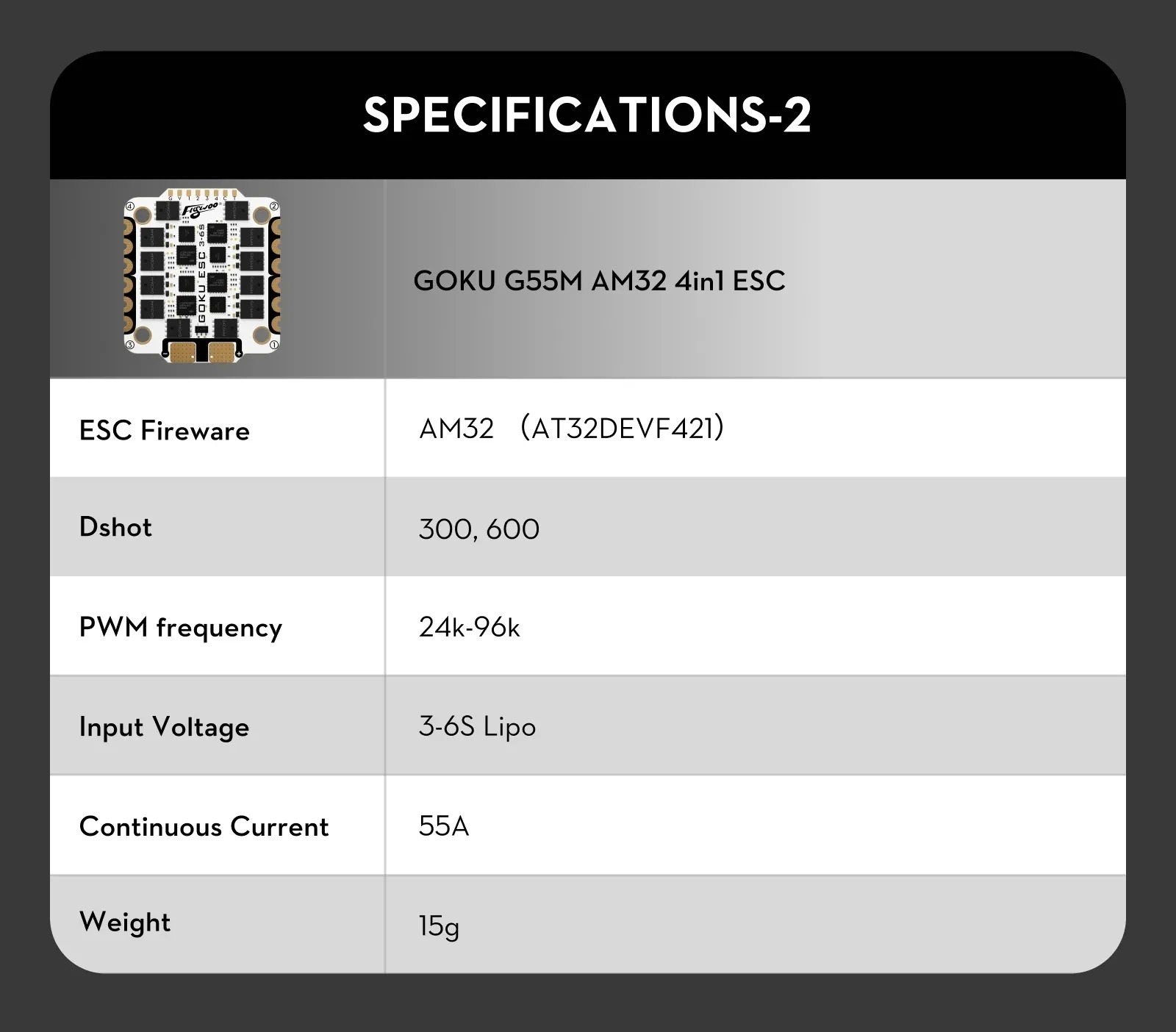

GOKU G55M AM32 4in1 ESC

• Support AM32

• Support Dshot300, Dshot600

• PWM frequency: 24k-128k

• Input Voltage: 3-6S Lipo

• Continuous Current: 55A

• Firmware:

• AM32：AT32DEVF421

• Weight: 15g

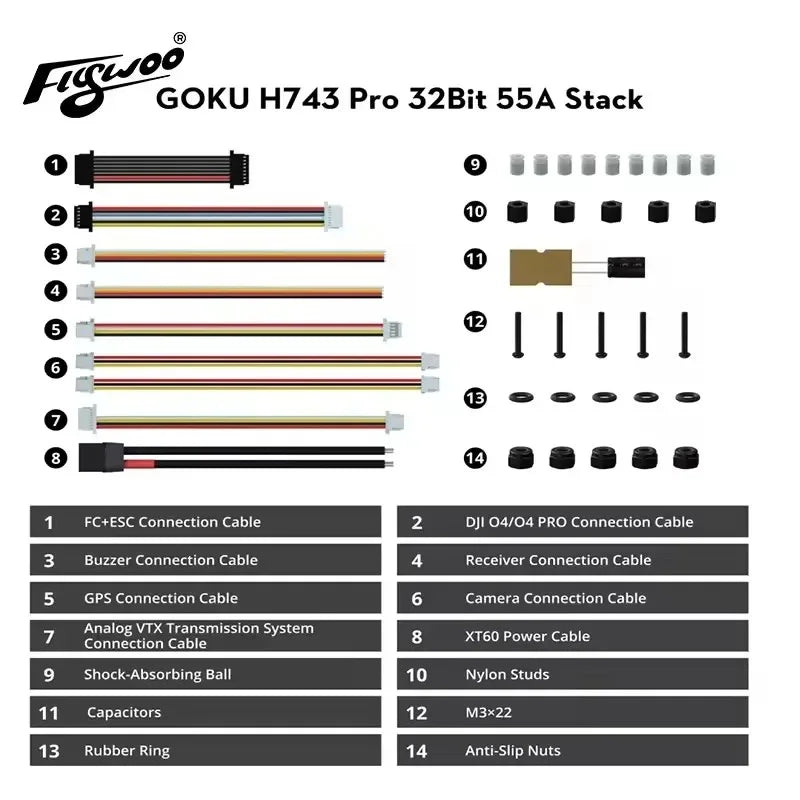

In the Box

• 1 x FC&ESC Connection Cable

• 1 x DJI O4/O4P Connection Cable

• 1 x Buzzer Connection Cable

• 1 x Receiver Connection Cable

• 1 x GPS Connection Cable

• 2 x Camera Connection Cable

• 1 x Analog VTX Connection cable

• 1 x XT60 Power Cable

• 9 x M3 Shock-Absorbing Ball

• 5 x M3 Rubber Ring

• 1 x Capacitors

• 5 x Nylon studs

• 5 x Anti-Slip Nuts
