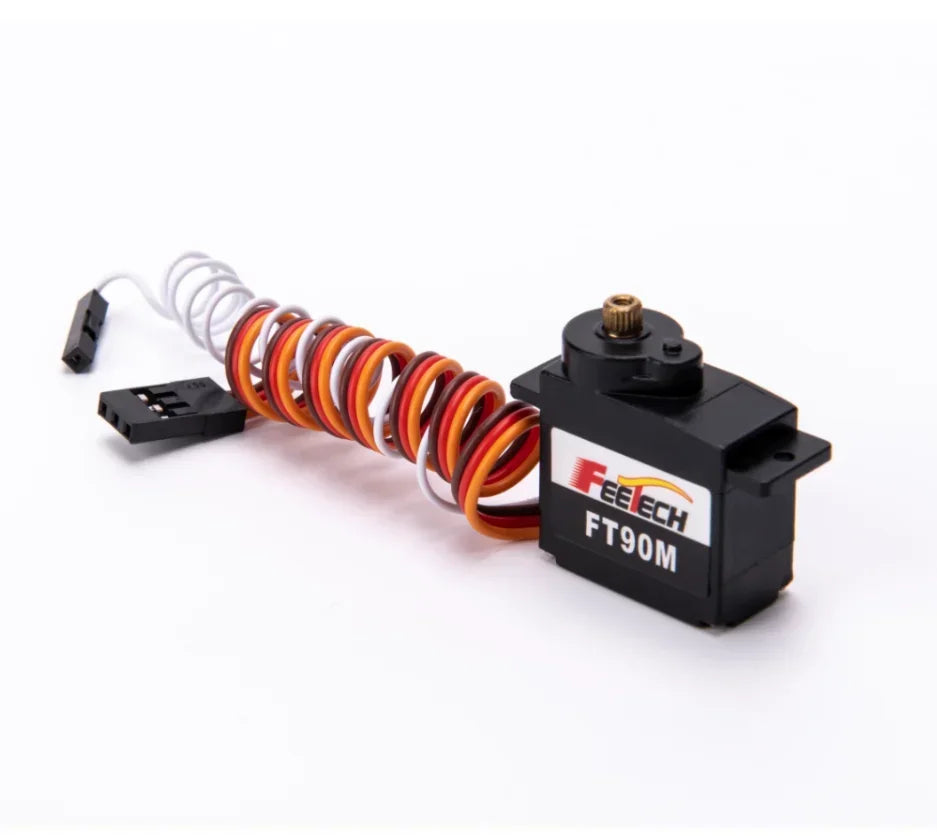

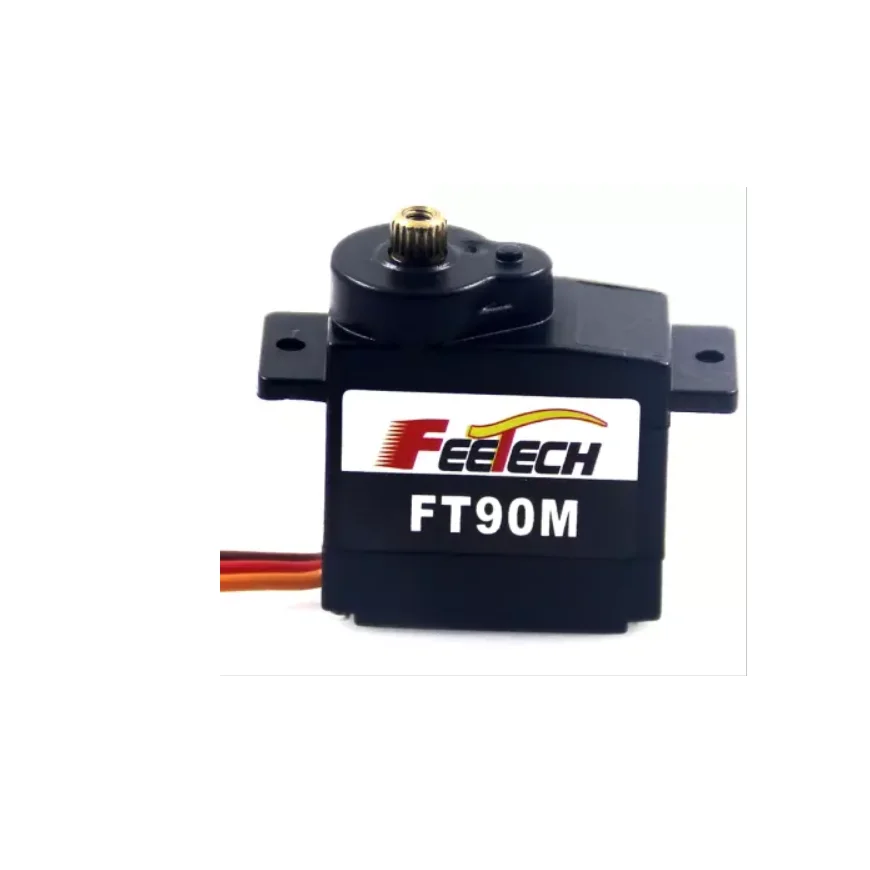

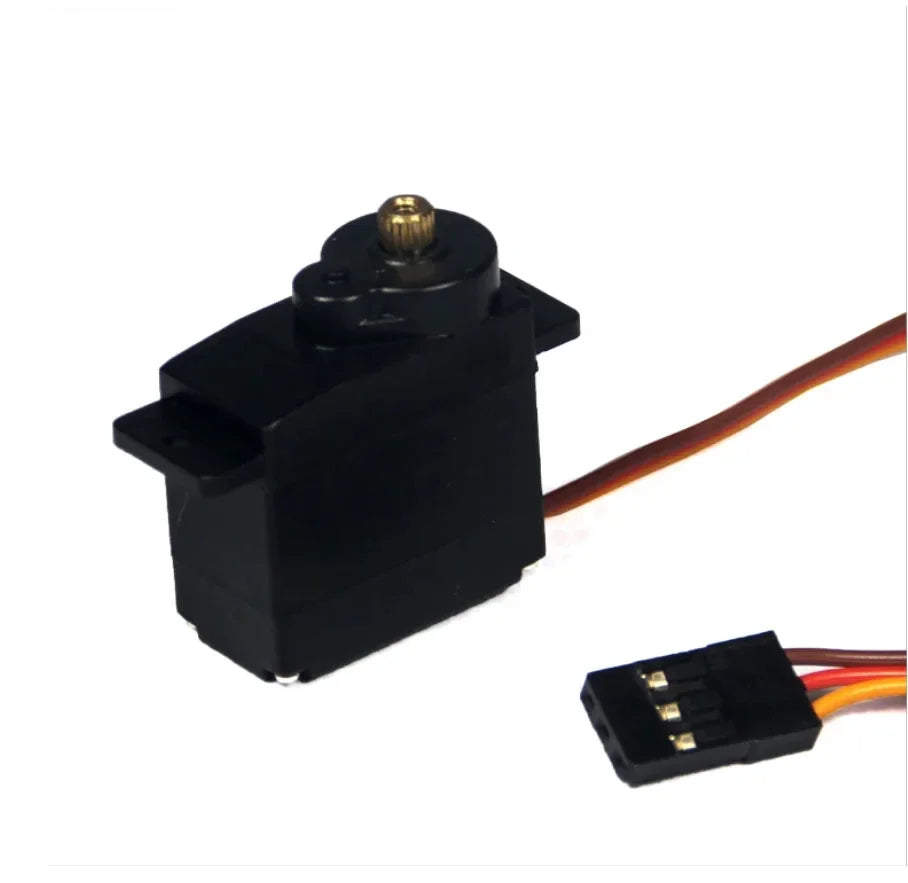

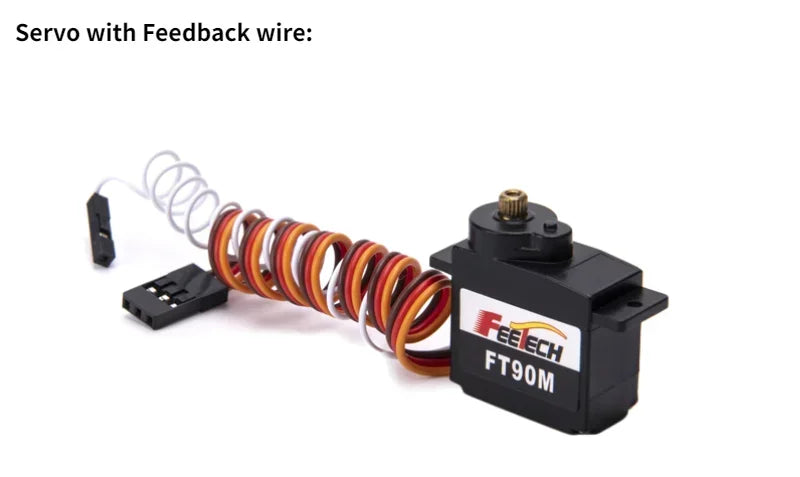

Feetech Mini 180 Degree Angle 2kg Torque Micro Robot RC Servo Motor FT90M Feedback For Automatic Curtain/Smart Lock Airplane
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Features
2kg digital servo FT90M 1.metal gear robot servo 2.Can Rotation 180 Degree 3.Operating Voltage:4.8-6Volts 4.Interface: (like JR) 5.Application: robot -Micro analog metal gears servo -Operating Voltage:4.8-6Volts -Interface: (like JR) -Wire length: 20cm

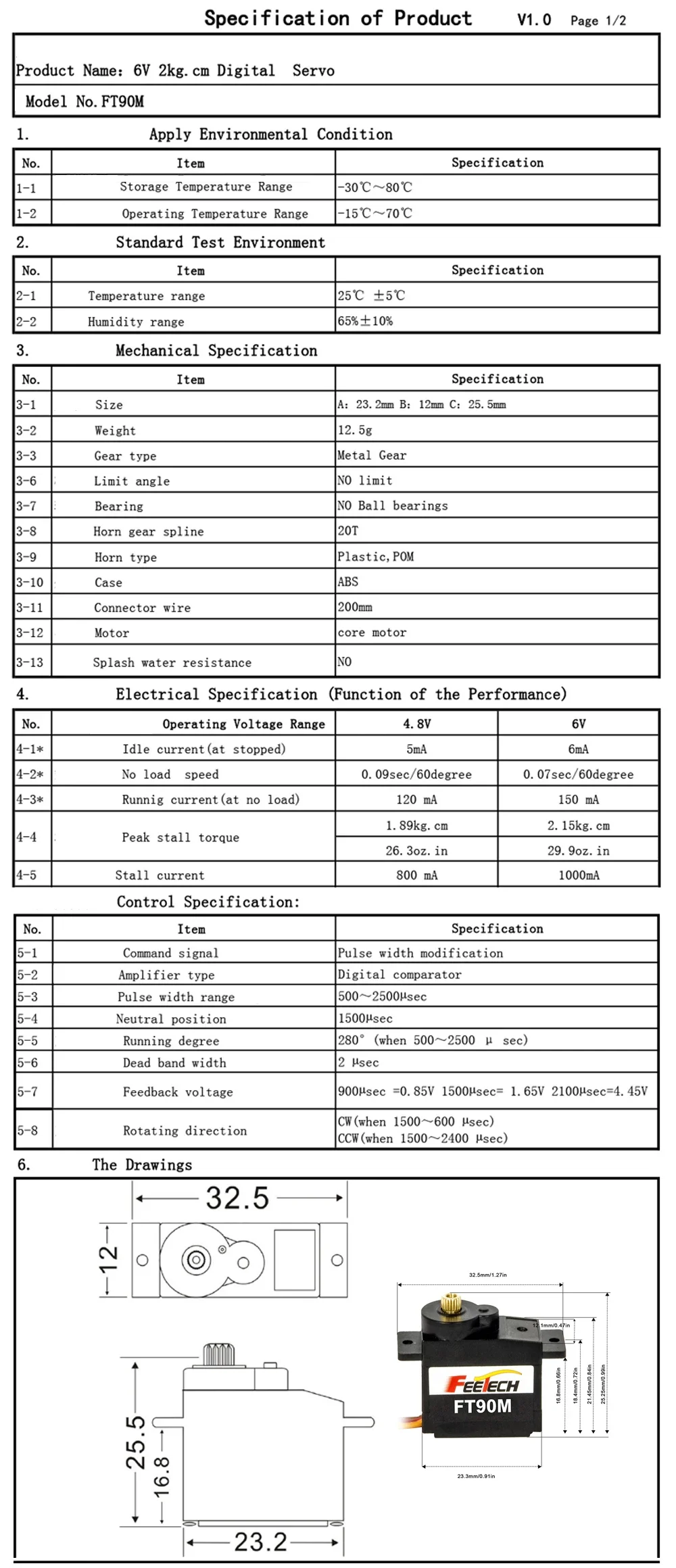

FT90M Servo Parameter:
Weight: 13.5 g

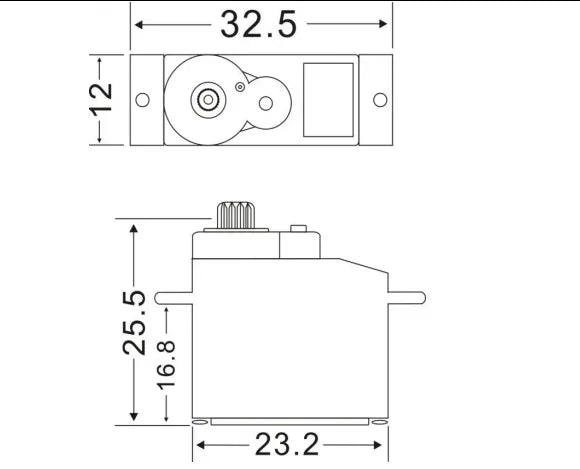

Size: 23.2X12.1X25.25mm

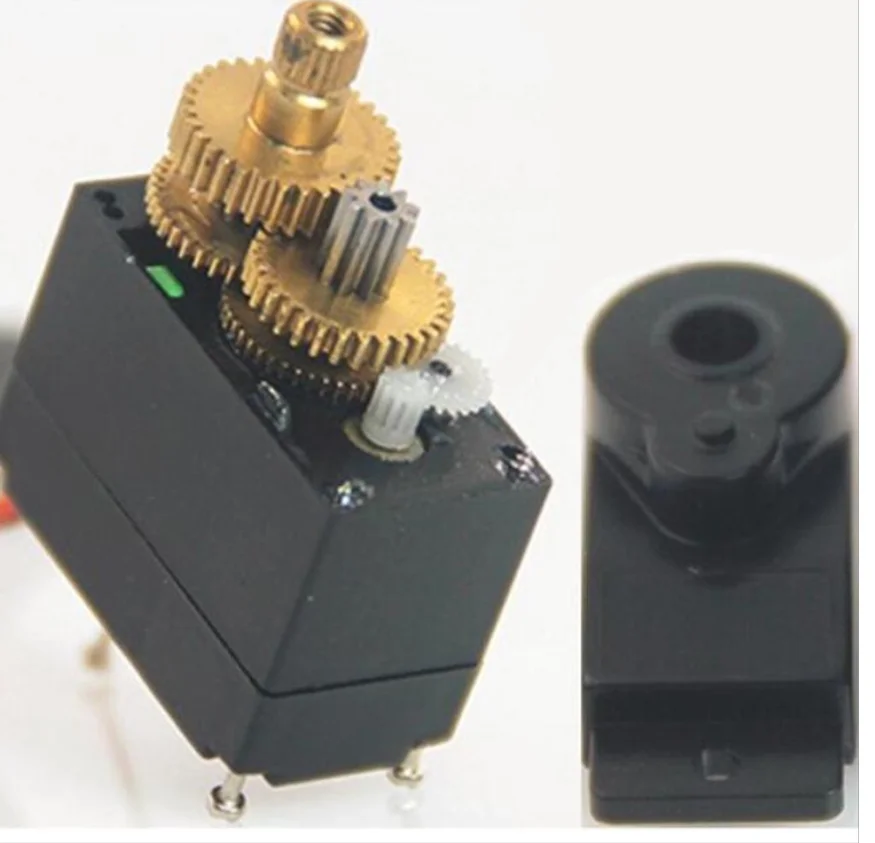

Gear: metal gear
Gear ratio: 1/416
Motor: core motor
Horn type: 20T/3.95mm
Cable and connector: 25cm 3pin wire with JR connector
Opering voltage: 4.8V-6V
No load speed: 0.1sec/60°/6V(100RPM)
No load current: 150mA
Stall torque: 2.3kg.cm/6V; 1.89kg.cm/4.8V
Stall current: 1000mA
Idle current: 6mA
Kt constant: 2.3kg.cm/A
Centering Deviation: ≦2°
Dead Band Width: ≤4 μsec
Operating degree: 280°(CCW at 1000→2000μsec)
Signal Period: 20ms
Electronic protection: stall 2sec
Operating Temperature Range: -20℃～60℃
Images
Packing
-Servo×1PCS -Servo arm×1 bag -GW:18g
