DJI O4 Air Unit PRO FPV 4K 60fps 120fps FPV Camera Digital Transmission System 32g 1/1.3″ CMOS 4G FPV Transmitter Memory Expandable Works with DJI Goggles 2 DJI Goggles3 DJI Goggles N3 DJI Goggles Integra – O4 PRO

Description

Brand:

DJI

Model:

DJI O4 Air Unit Pro DJI O4 AIR UNIT PRO

Weight:

Air Unit (camera module excluded): Approx. 15.6 g

Air Unit (camera module included): Approx. 32 g

Antenna: Approx. 2.1 g/pcs. Dimensions:

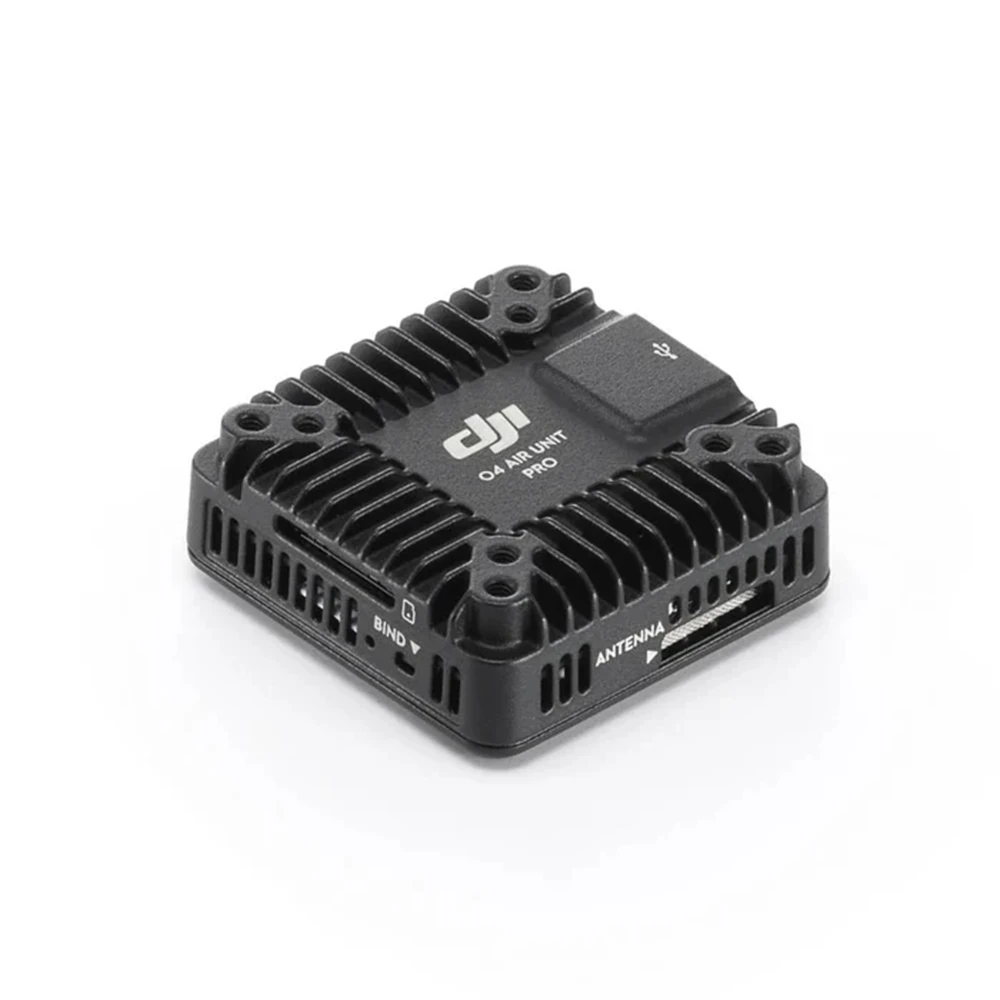

Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H)

Camera Module: 25.55 × 20 × 23.30 mm (L × W × H)

Coaxial Cable: 140 mm

3-in-1 Cable: 100 mm

Antenna: 110 mm VTX Mounting Pattern:

20×20/25.5×25.5mm VIDEO TRANSMISSION

Operating Frequency:

5.170-5.250 GHz

5.725-5.850 GHz

ote: Operating frequency varies by region. Follow local regulations. Transmitter Power (EIRP):

5.1 GHz: <23 dBm (CE)

5.8 GHz:

<33 dBm (FCC)

<14 dBm (CE)

<30 dBm (SRRC) Lowest Latency:

DJI Goggles 3 in Racing Mode: 15 ms (1080p/100fps)

DJI Goggles N3 in Racing Mode: 19 ms (1080p/100fps)

DJI Goggles 2 or Goggles Integra: Less than 30 ms (1080p/100fps)

ote: Latency data was tested in an outdoor environment without interference. Max Video Transmission Rangee:

DJI Goggles 3/DJI Goggles N3:

15 km (FCC)

8 km (CE)

8 km (SRRC)

ote: Transmission rangee varies by flightendurance and environment. Live View Quality:

1080P@30/48/50/60/100fps Communication Bandwidth:

Max 60 MHz Antenna:

2 antennas, 2T2R Channels:

Supports auto and manual mode

DJI Goggles 3/N3:

60 MHz: 1 channel

40 MHz: 1 channel

20 MHz: 3 channels

10 MHz: 3 channels

DJI Goggles 2/Integra:

40 MHz: 1 channel

20 MHz: 3 channels

10 MHz: 3 channels

Channel Info:

FCC/SRRC/CE:

60 MHz/40 MHz:

Channel 1: 5794.5 MHz

20 MHz/10 MHz:

Channel 1: 5768.5 MHz

Channel 2: 5789.5 MHz

Channel 3: 5814.5 MHz CAMERA

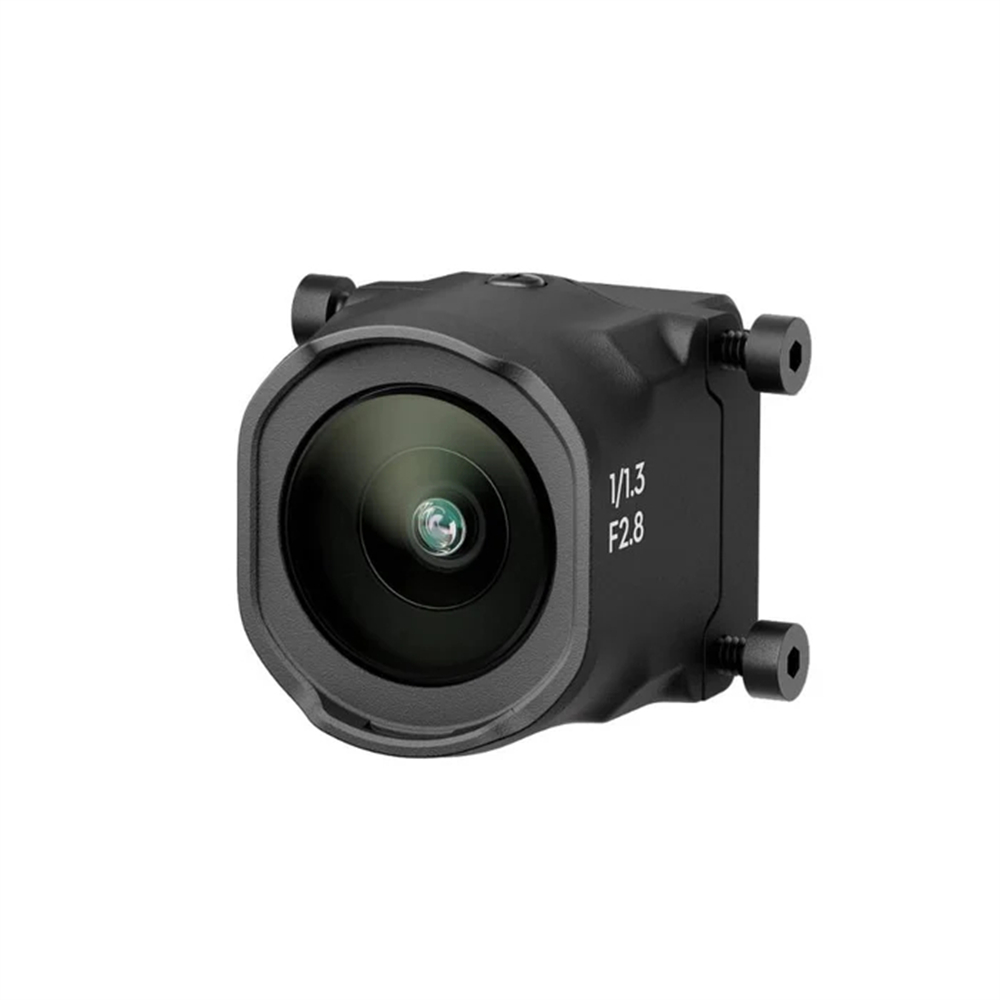

Image Sensor:

1/1.3-inch CMOS Sensor Lens:

FOV: 155°

Equivalent Focal Length: 12 mm

Aperture: f/2.8

Focus: 0.6 m to ∞ ISO Rangee:

100-25600 (Auto)

100-25600 (Manual) Video Resolution:

4K (4:3): 3840 x 2880@30/48/50/60fps

4K (16:9): 3840 x 2160@30/48/50/60/100/120fps

2.7K (4:3): 2888 x 2016@30/48/50/60fps

2.7K (16:9): 2688 x 1512@30/48/50/60/100/120fps

1080P (4:3): 1440 x 1080@30/48/50/60/100/120fps

1080P (16:9): 1920 x 1080@30/48/50/60/100/120fps Video Format:

MP4 Max Video Bitrate:

130 Mbps Color Mode:

Normal Mode

D-Log M Camera FOV:

Standard

Wide-Angle

Ultra Wide-Angle EIS (Electronic Image Stabilization):

RockSteady 3.0+

Stabilization off (supports Gyroflow)

ote: RockSteady only supports standard angles. HARDWARE

Input Voltag:

7.4-26.4 V Operating Temperature:

-10°C to 40°C STORAGE

Built-in :

4GB Supported SD Cards:

micrSD (up to 512 GB) Recommended micrSD Cards:

Lexarr Professional 1066x (64GB, 128GB, 256GB, 512GB)

KingstonCanvasGo! Plus (64GB, 128GB, 256GB, 512GB) COMPATIBILITY

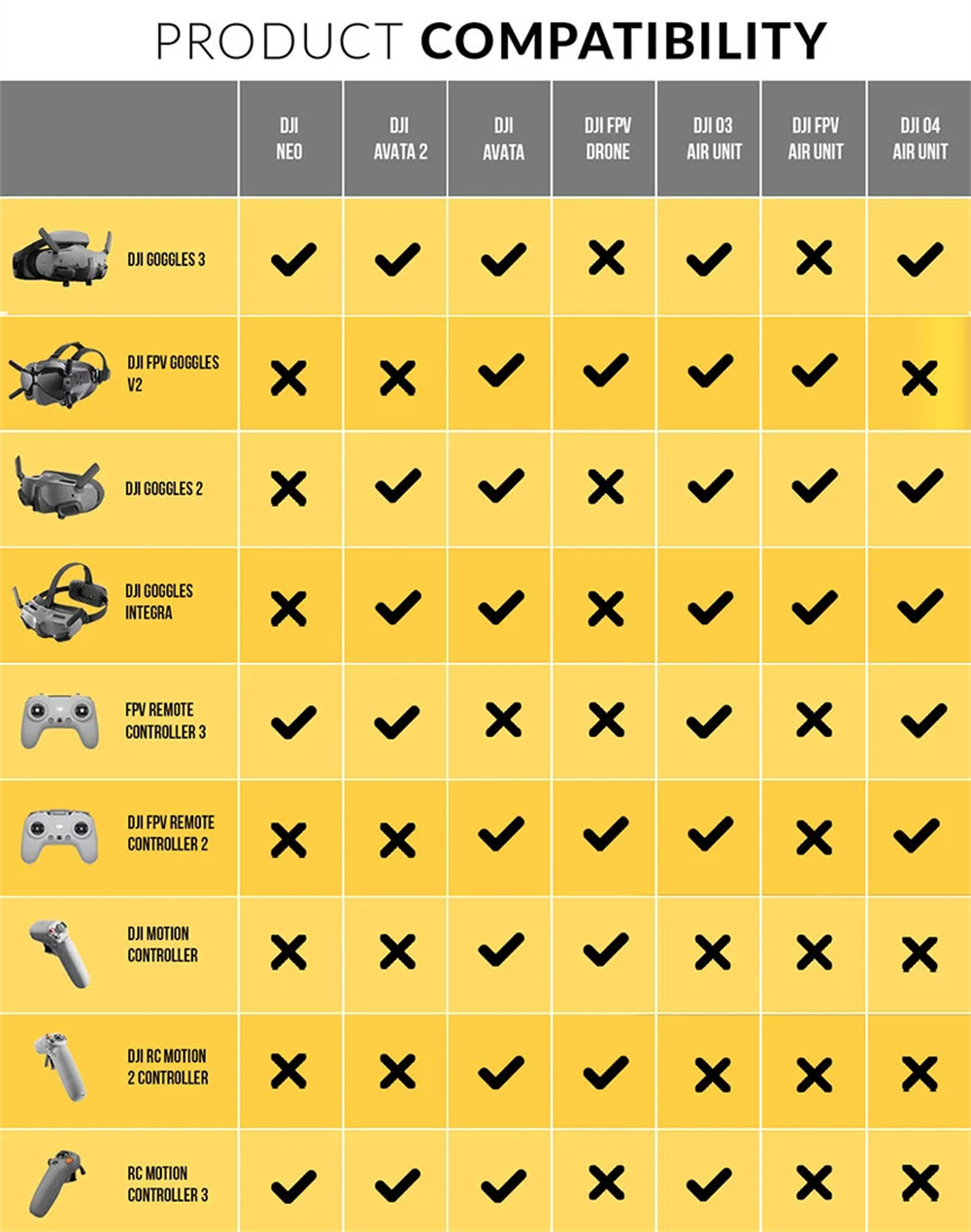

Supported FlightController System:

Betaflight4.3.0 and higher Supported DJI Goggles and Remote Controllers:

DJI Goggles 3 + DJI FPV Remote Controller 3

DJI Goggles N3 + DJI FPV Remote Controller 3

DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2

ote: The flightcontrol firmware must support the SBUS protocol for using the DJI FPV Remote Controller. DJI O4 ANTENNA

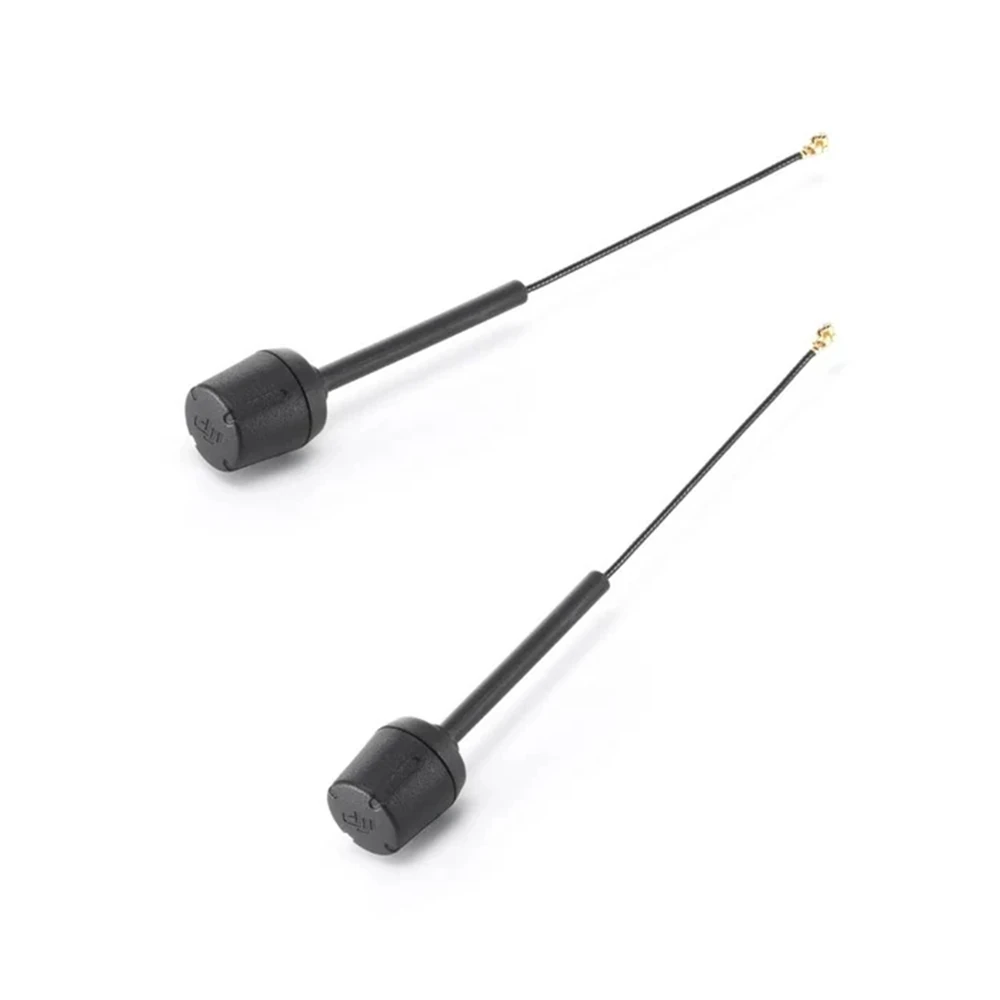

Weight:

Approx. 2.1g Length:

110 mm

• Features:

n- Works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3

n- Compatible with DJI FPV Remote Controller 2 or 3

n- Flagship FHD FPV Digital Video Transmission

n- 155° Ultra-Wide Field of View (FOV)

n- 15 ms Low Latency, 15 km Rangee

n- 4K/120fps Video Recording

n- 1/1.3-inch CMOS Sensor

n- 1080p/100fps Live View

n- 32g Body

– Elevate Signal, Unlock Flight
DJI O4 AirUnit Series: Ultra-low latency O4 transmission. O4 AirUnit Pro (dual antenna) achieves 15 km max range. Intelligent frequency hopping for rock-solid link indoors or out.

– Crisp 4K/60fps, Fluid 1080p/100fps HD
Record 4K/60fps. O4 transmission delivers 1080p/100fps real-time HD feed via H.265 encoding. View stays locked on fast maneuvers.

– Mode: 15ms Latency, 8-Aircraft Sync
ew Mode: 15ms latency.  up to 8 synchronized aircraft.

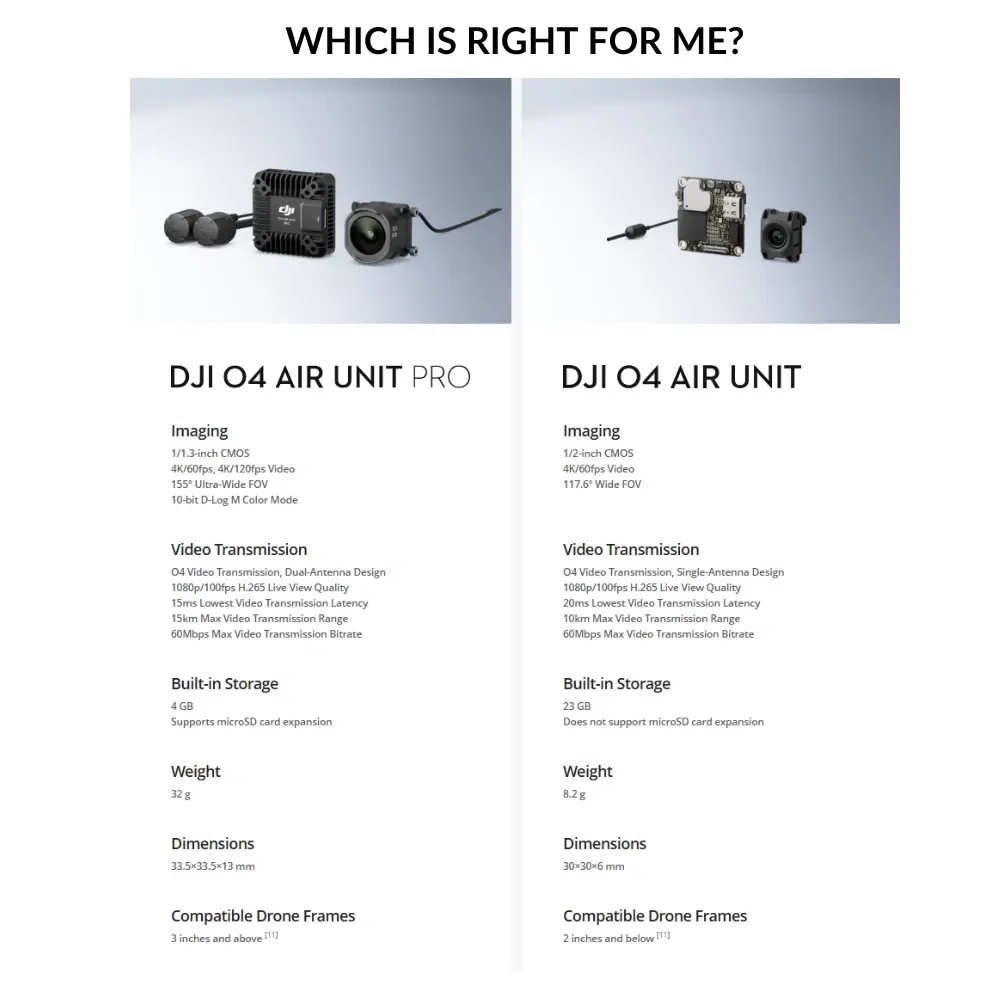

-Pro Imaging: Larger Sensors, Higher FPS
O4 AirUnit: 1/2-inch sensor, 4K/60fps.
O4 AirUnit Pro: 1/1.3-inch sensor, 4K/120fps. Ultra-wide cinematic footage—no extra cam needed.

– Harsh Light? ND Filters Supported (Pro)
O4 AirUnit Pro Camera works with DJI Avata 2 ND Filters (8/16/32). Perfect exposure & colors in bright light. Capture motion blur.

– Custom OSD: CanvasMode & Betaflight
Full screen control. Customize real-time data overlays via CanvasMode & Betaflight OSD.

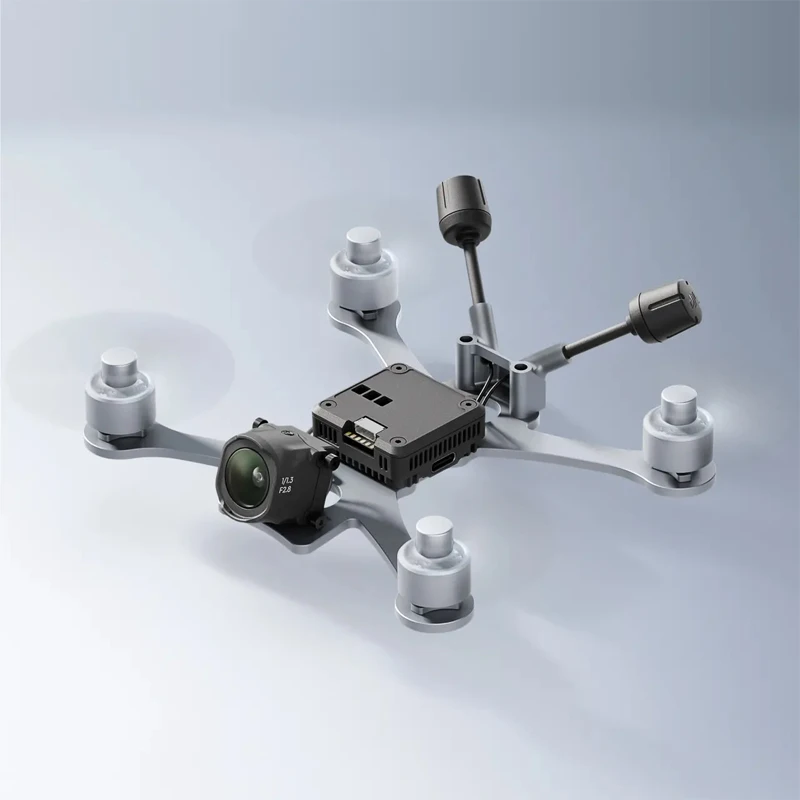

– Lightweight, Wide Compatibility
Compact design fits diverse builds. Standard O4 AirUnit ideal for frames ≤2-inch.

Specifications:

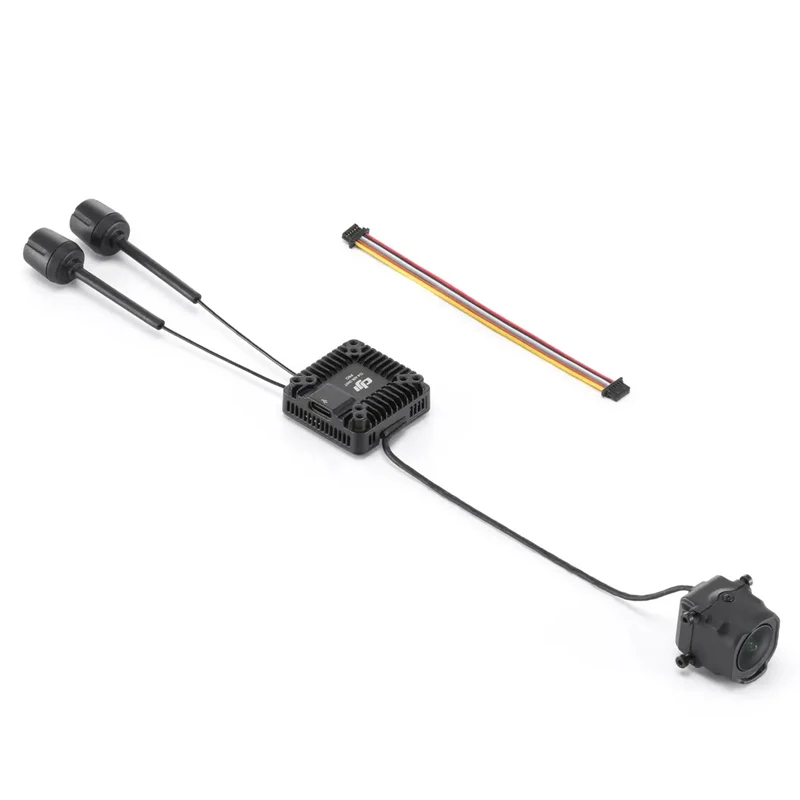

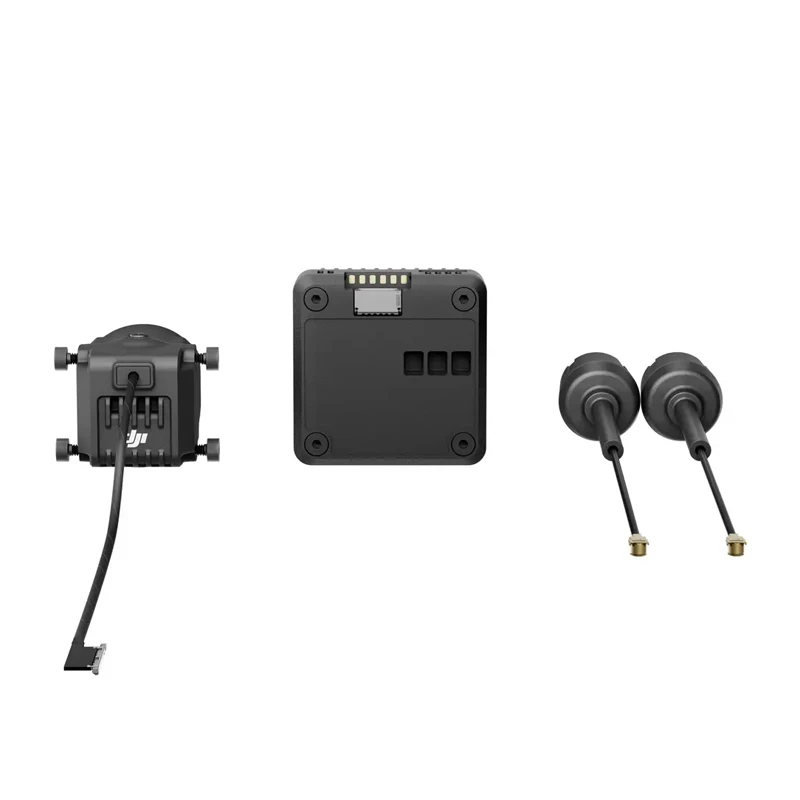

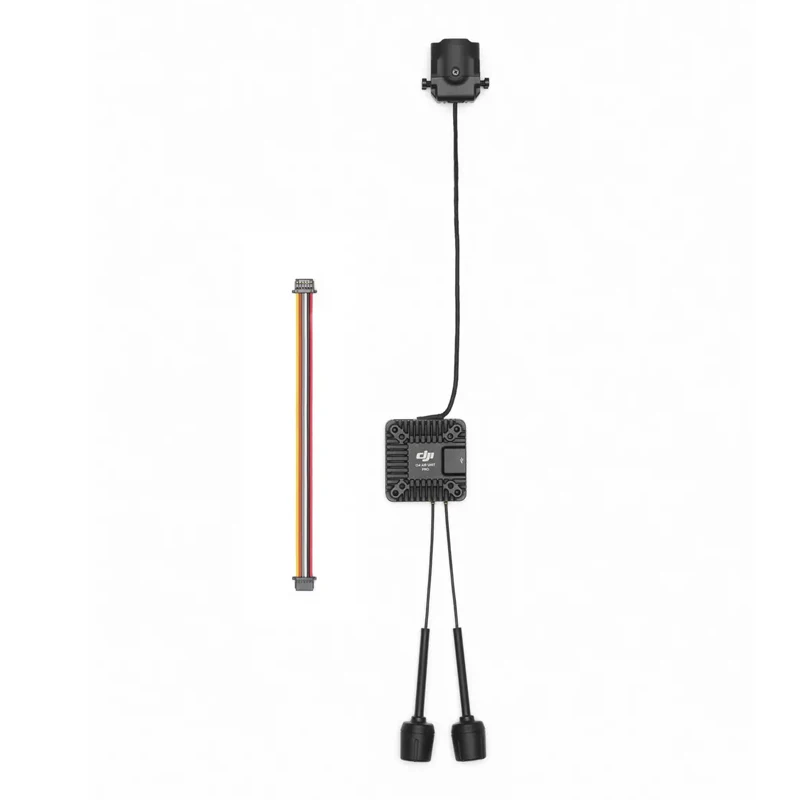

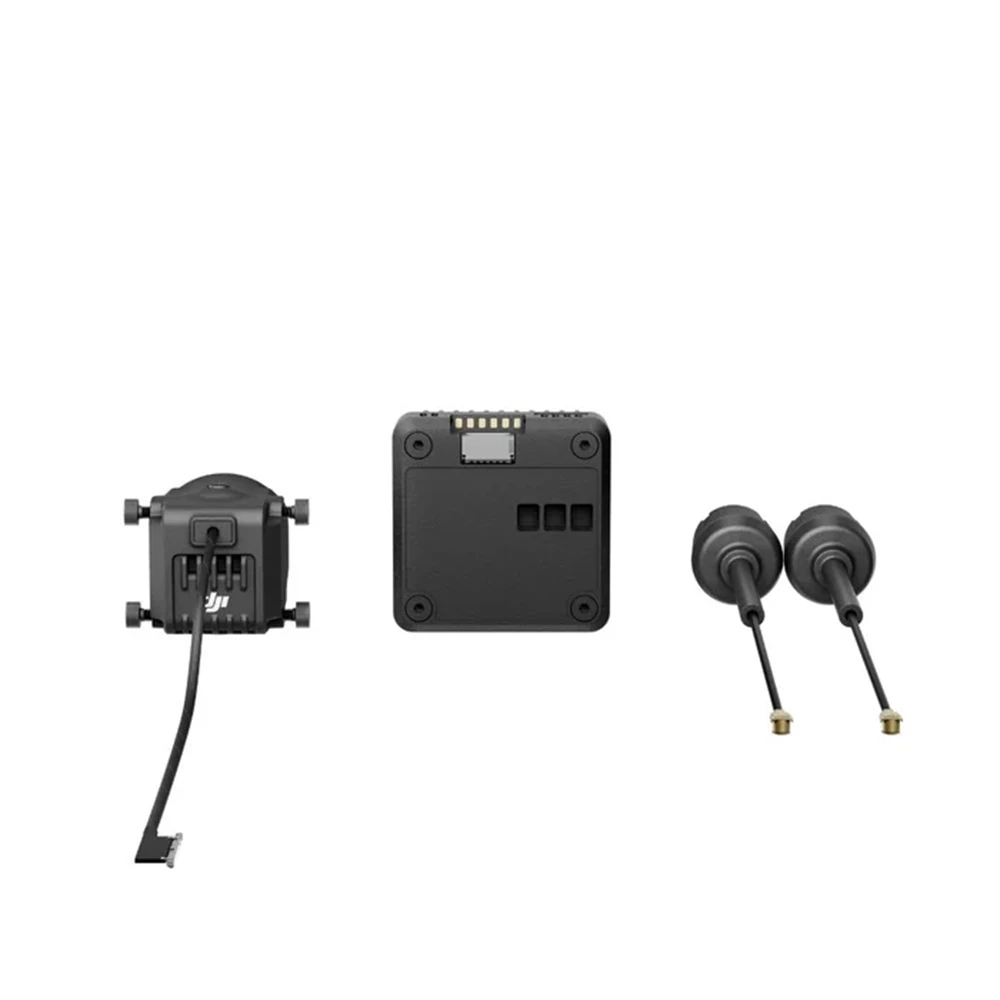

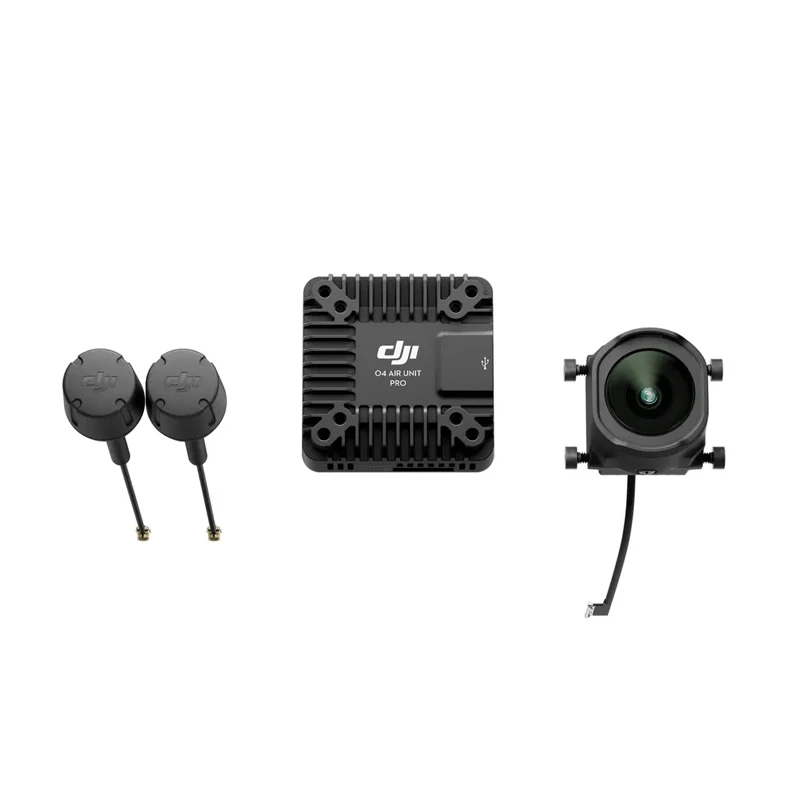

Package Included:

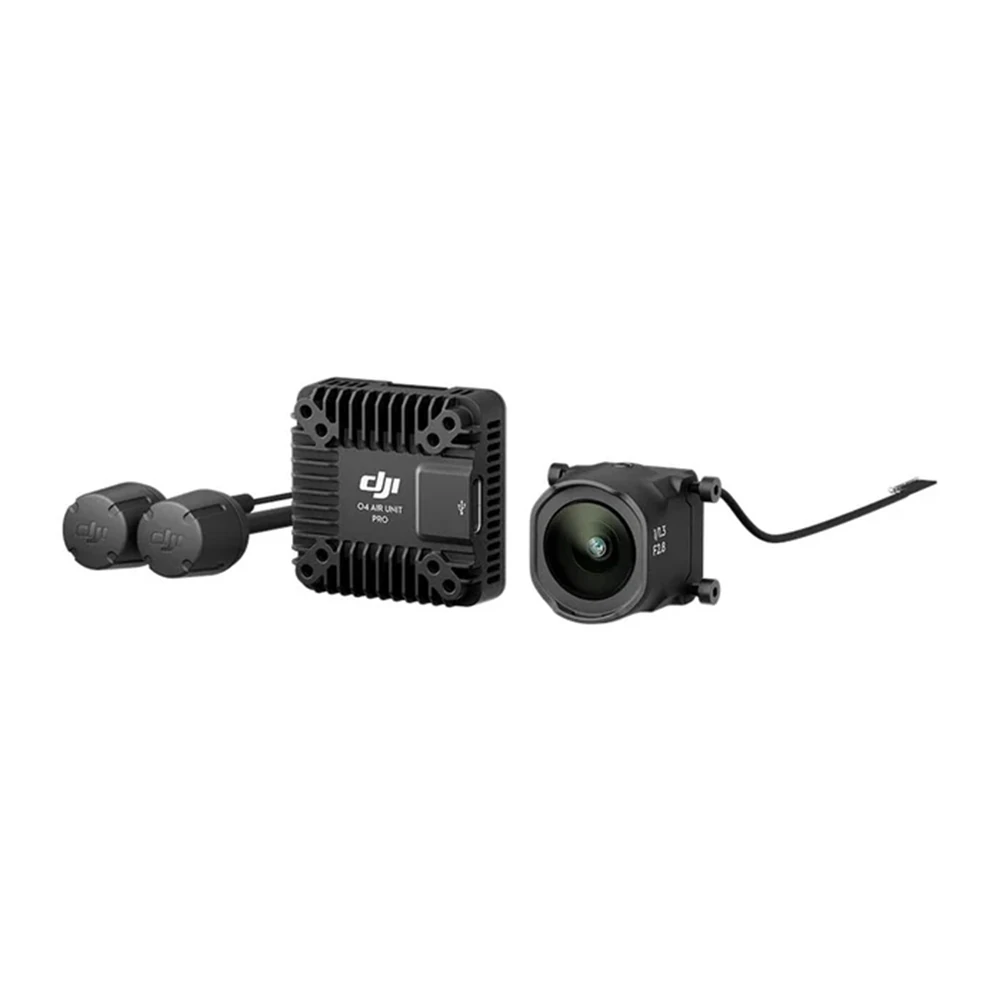

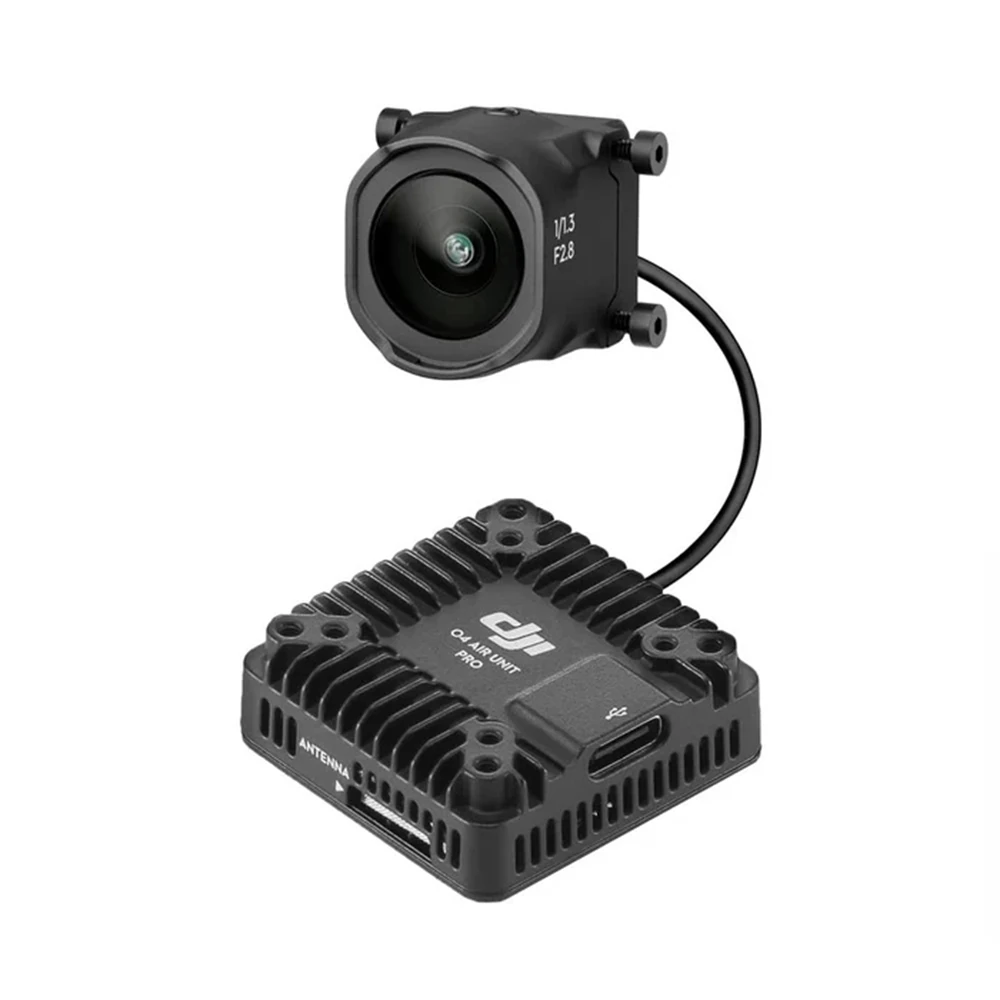

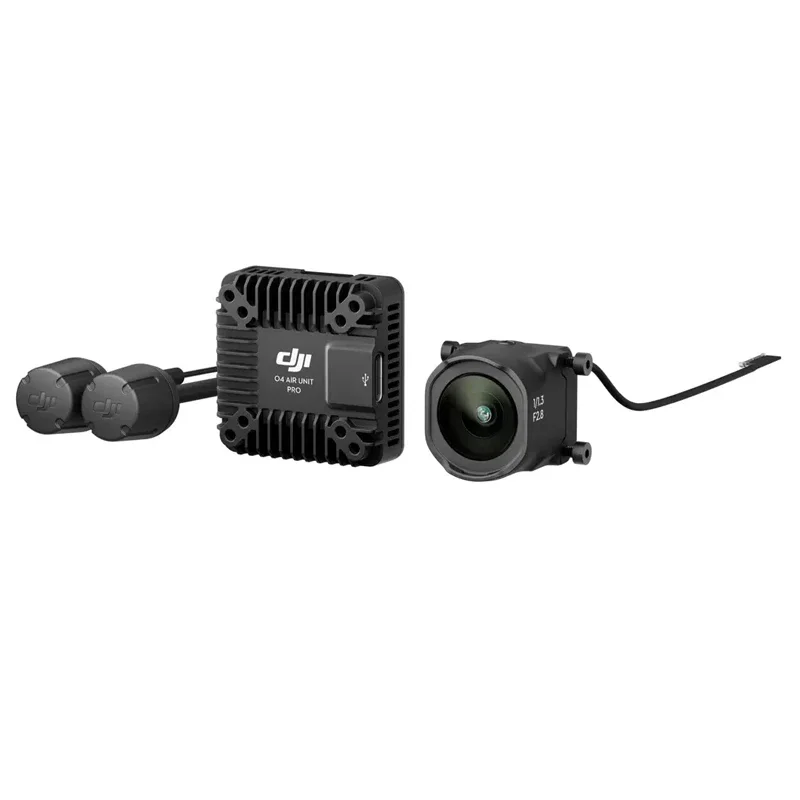

1 x DJI O4 Air Unit Pro Camera Module

1 x DJI O4 Air Unit Pro Transmission Module

2 x DJI O4 Air Unit Pro Antenna

1 x DJI O4 Air Unit Pro 3-in-1 Cable
