CADDX Infra V2 Camera No-Light Night Camera Analog VTX Kit 0 Lux Super WDR 1500TVL 131° FOV Black and White Sensor for FPV Drone

Prices include VAT and any applicable duties

This product is currently out of stock and unavailable.

usually dispatched in 2-3 business days.
CADDX Infra V2 Camera No-Light Night Camera Analog VTx Kit 0 Lux Super WDR 1500TVL 131.6° FOV Black and White Sensor for RC FPV Drone

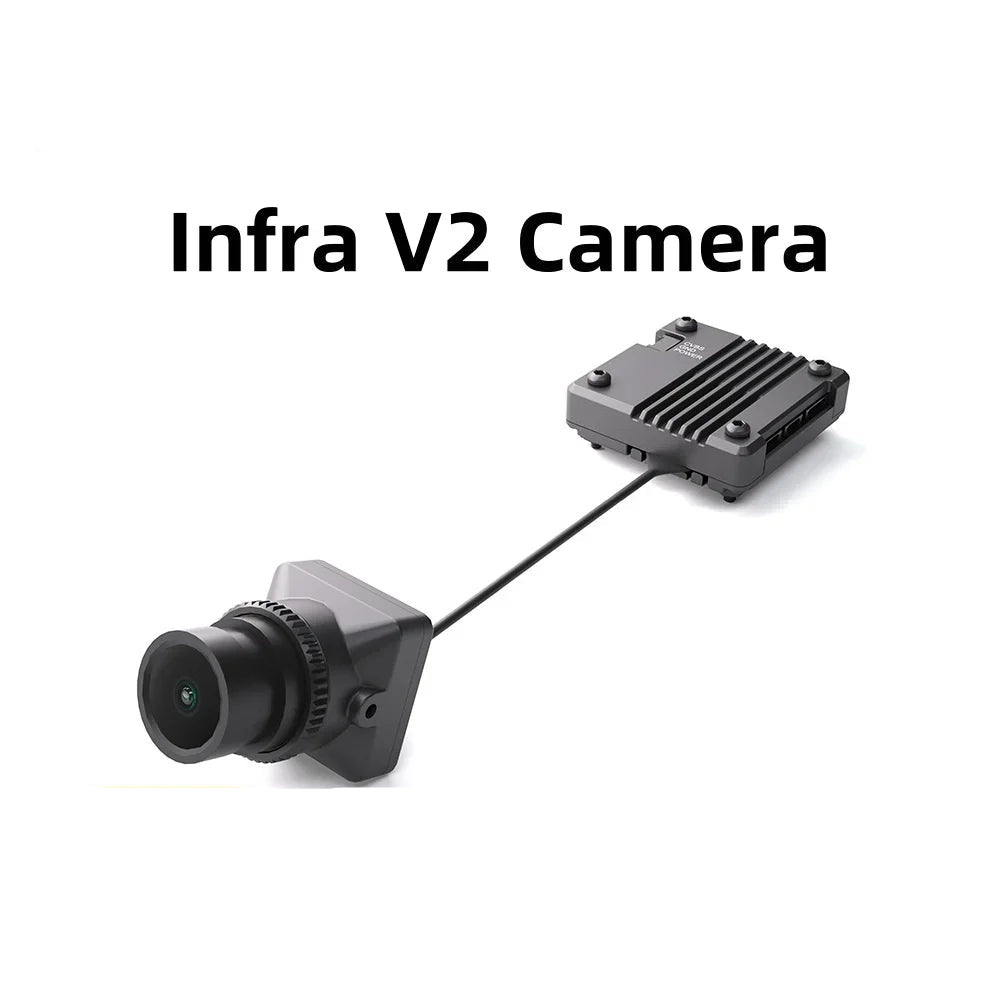

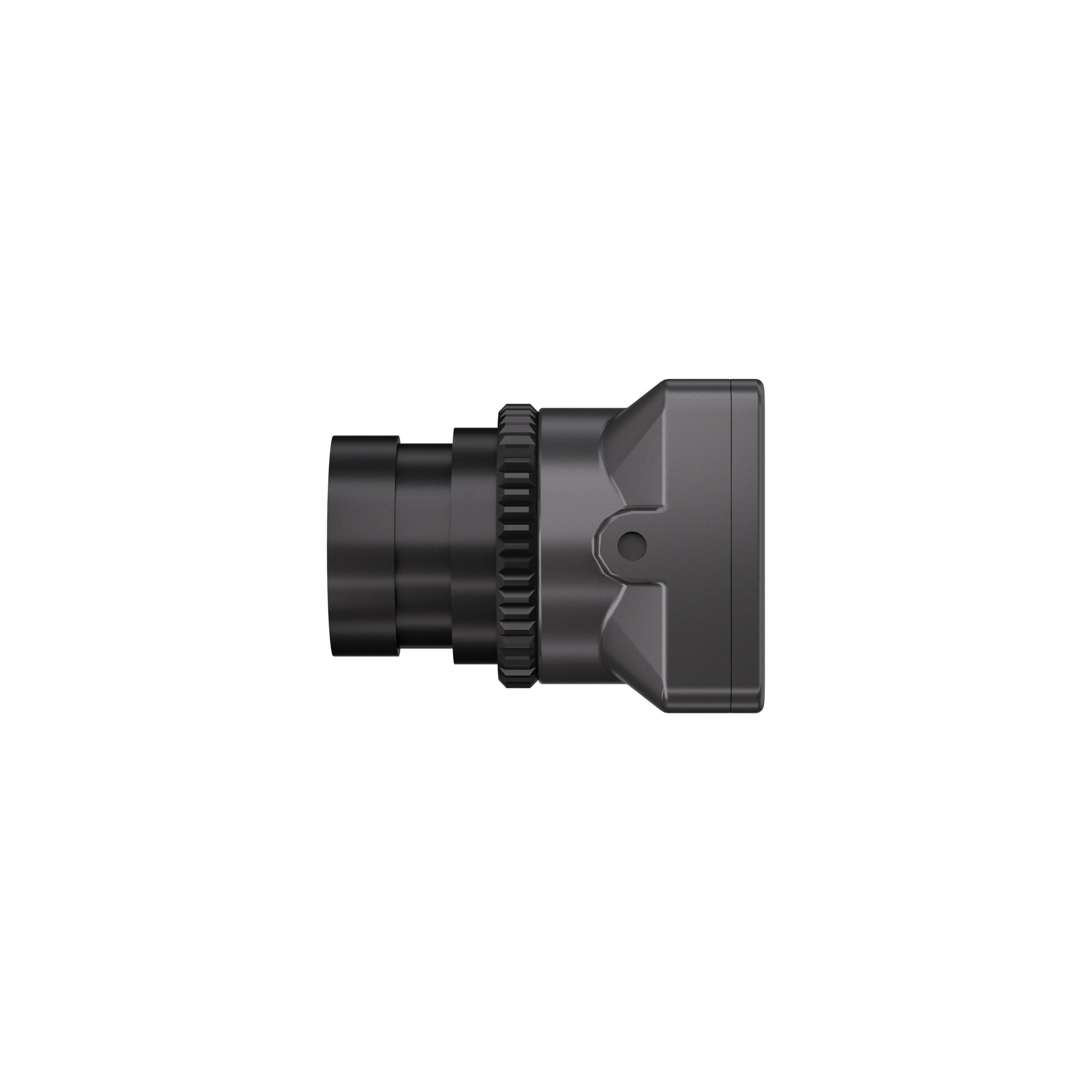

CADDX Infra V2 Camera

Features:

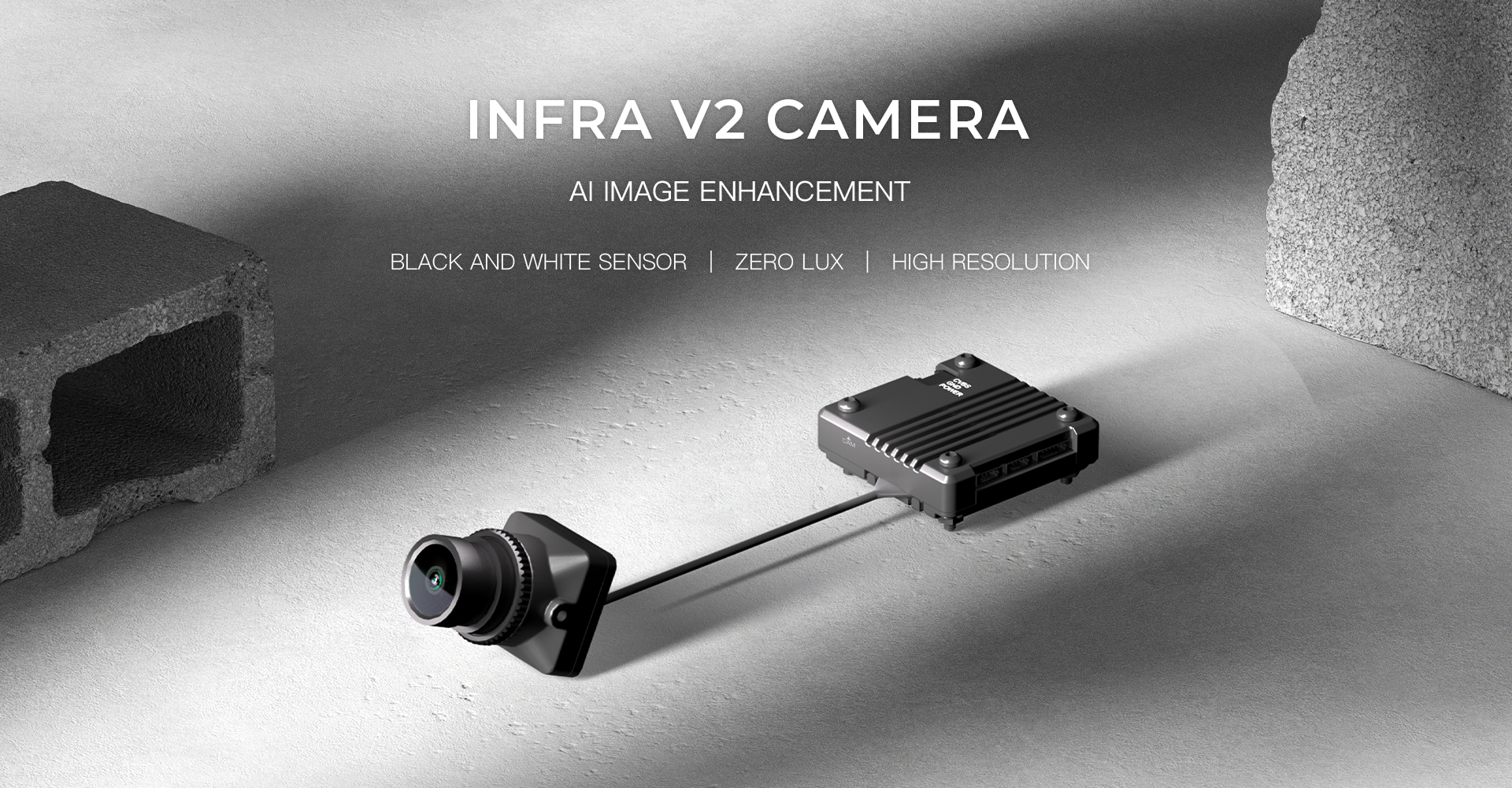

New V2 AI Image Enhancement

High Resolution

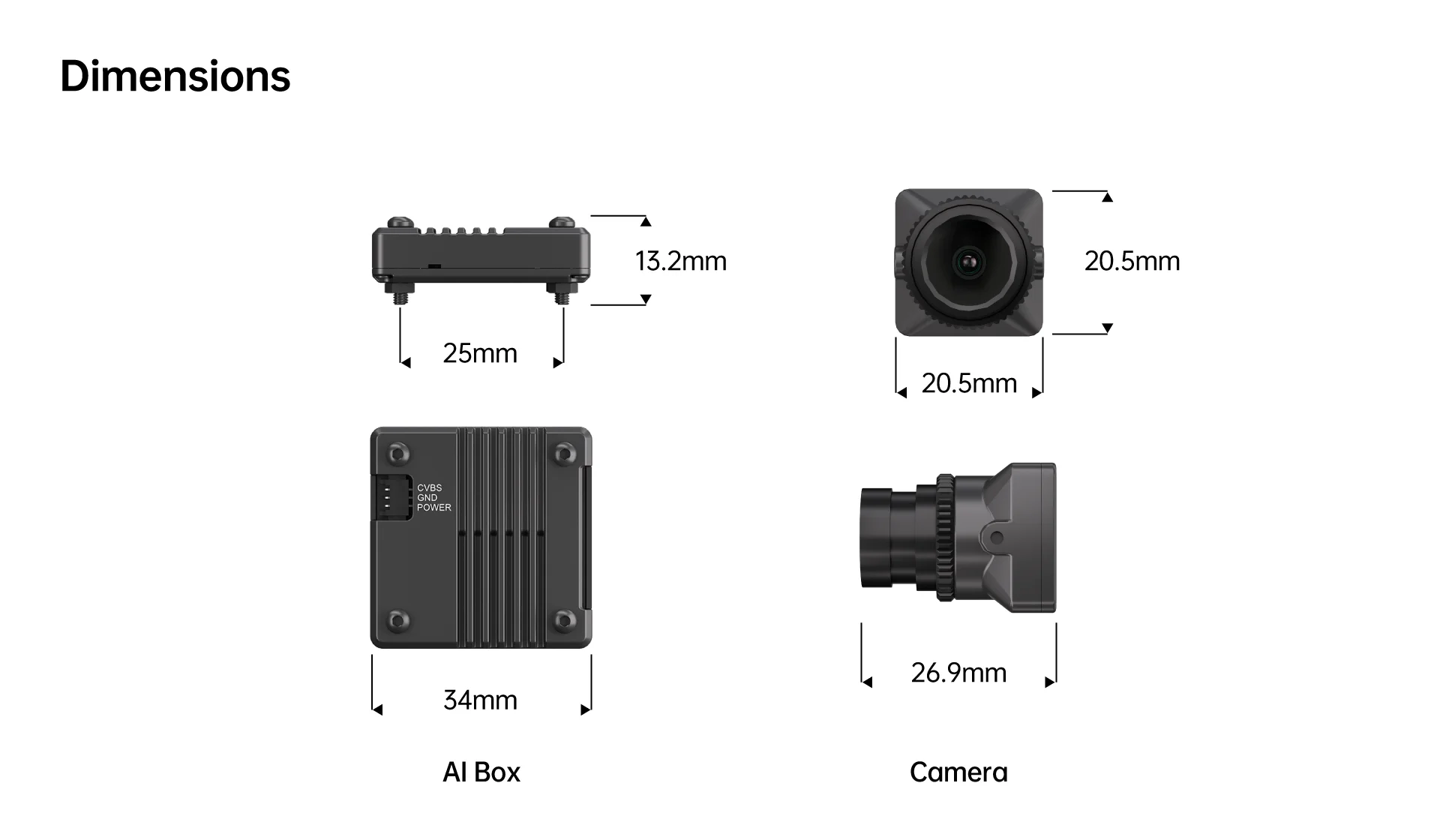

Reduced Size and Dimensions

Black and White Sensor



Bullet Points:

1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.

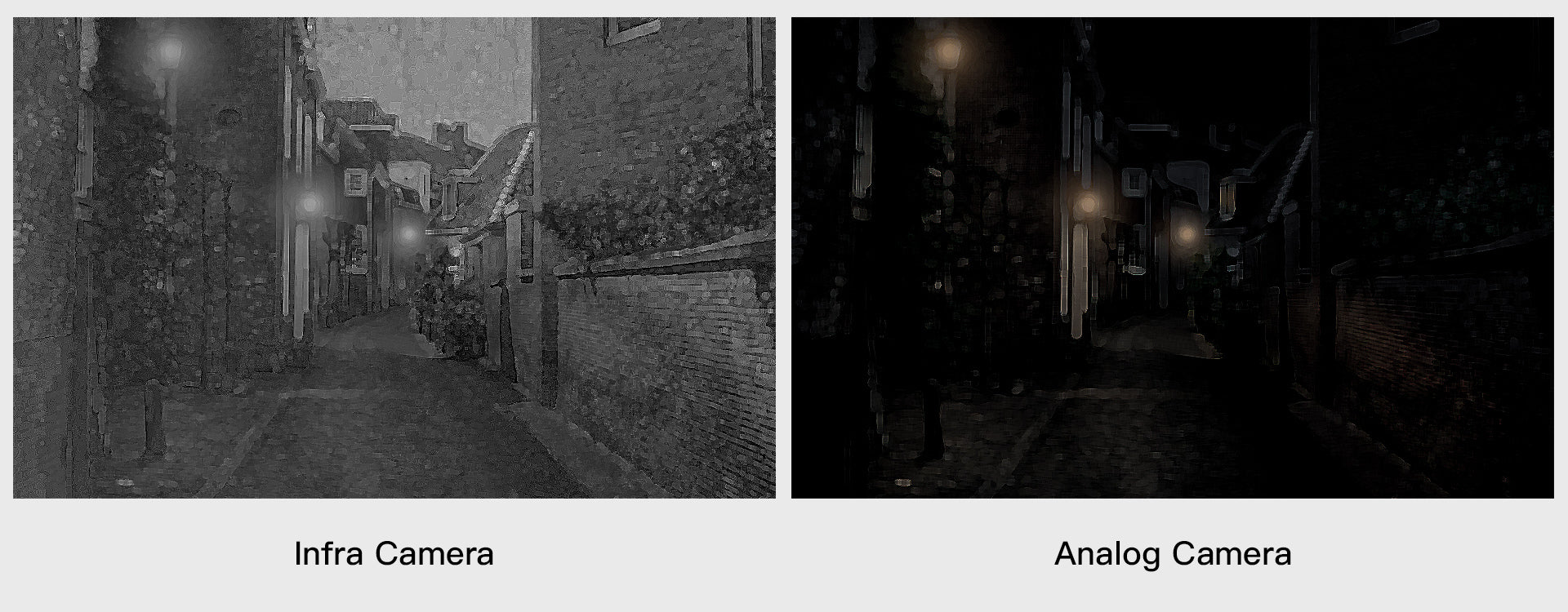

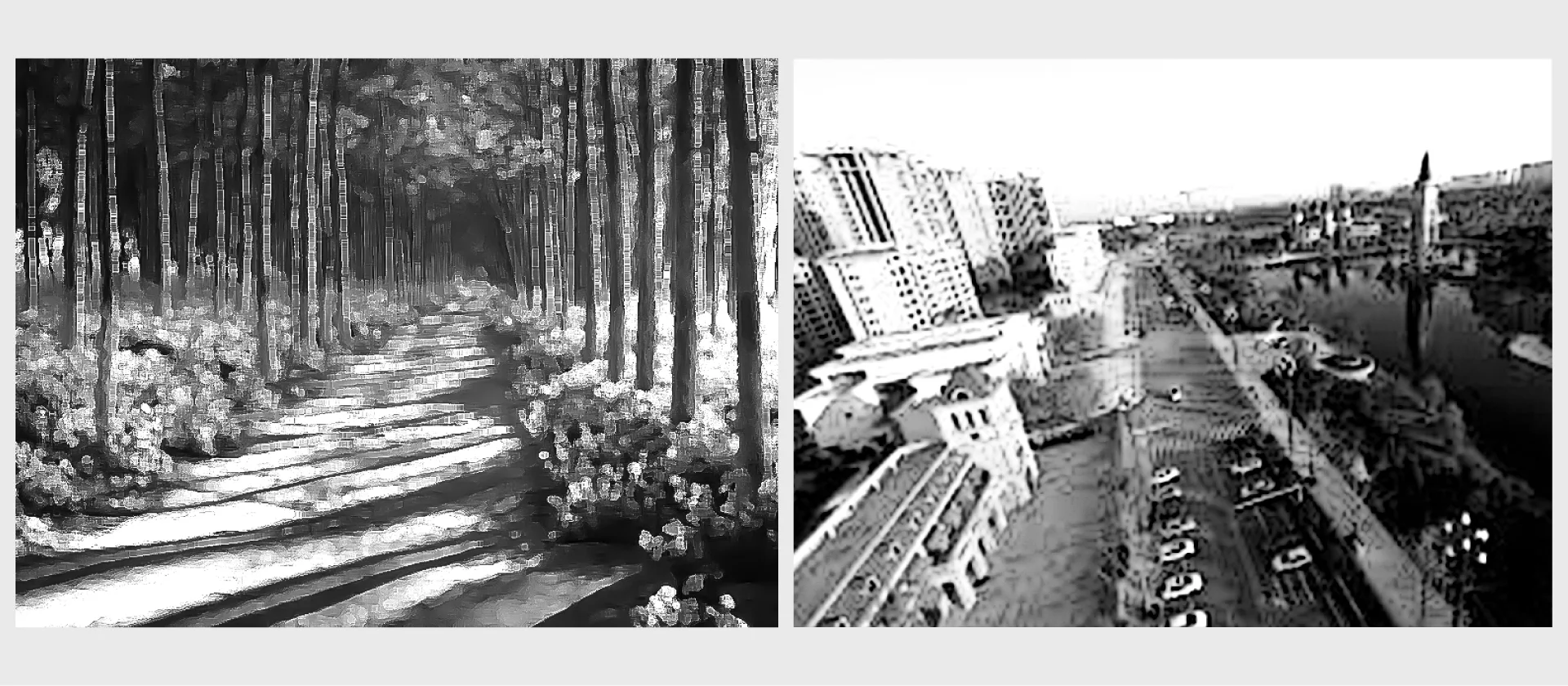

2. The first No-Light night vision analog camera in FPV market, capable of capturing images even in 0 Lux conditions. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.

3.The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.

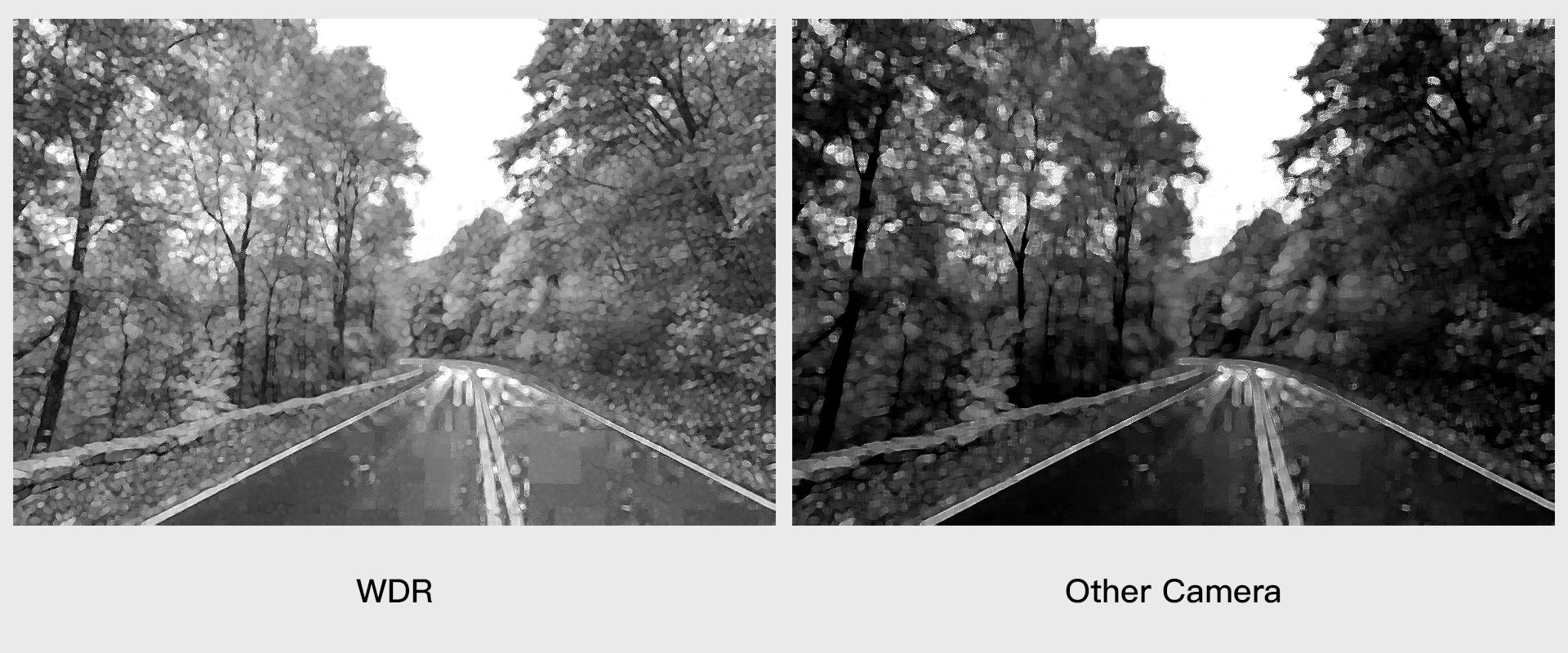

4. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.

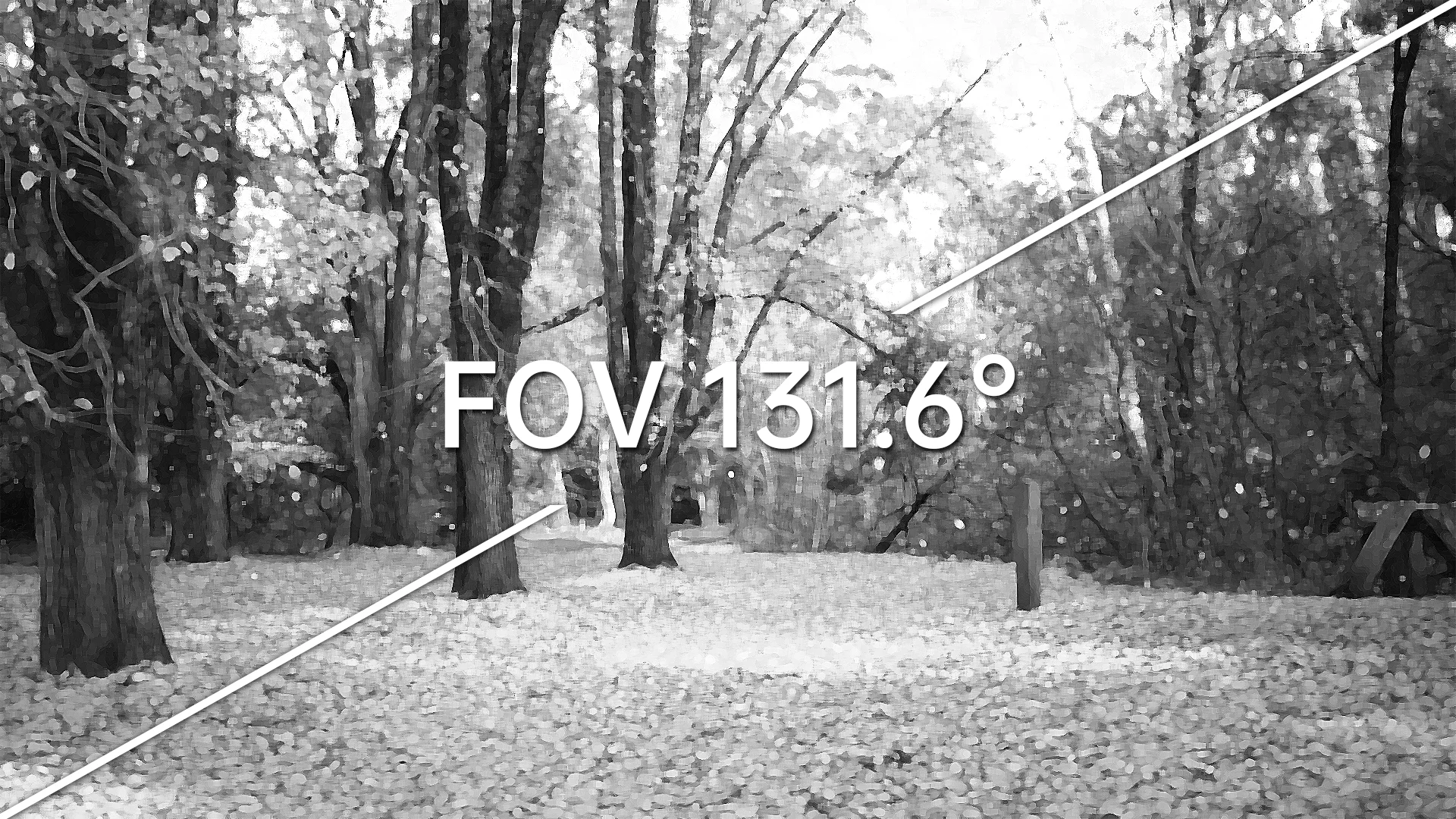

5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.

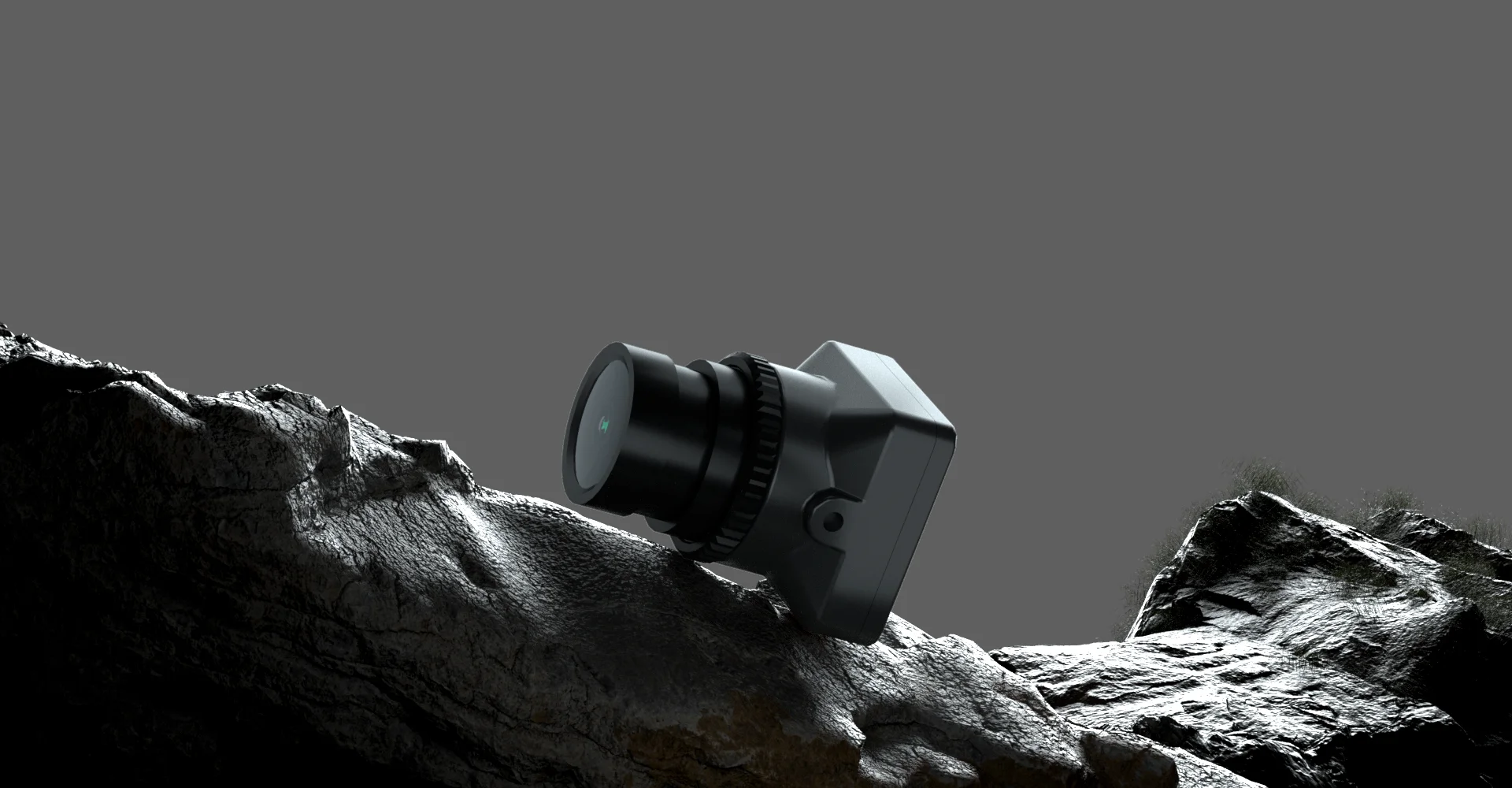

6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.

Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 1 working days.

Q: Does this include VTX?

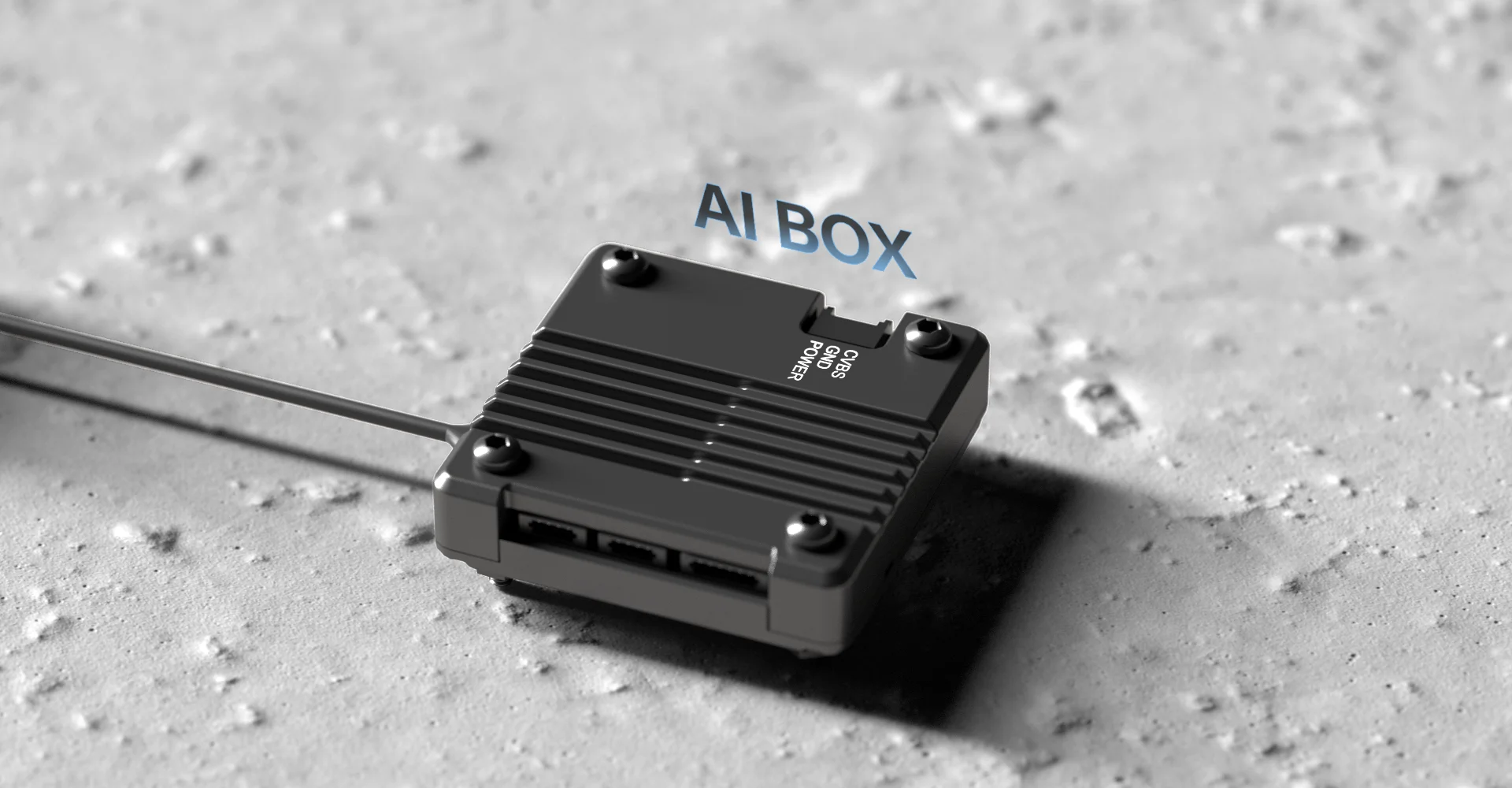

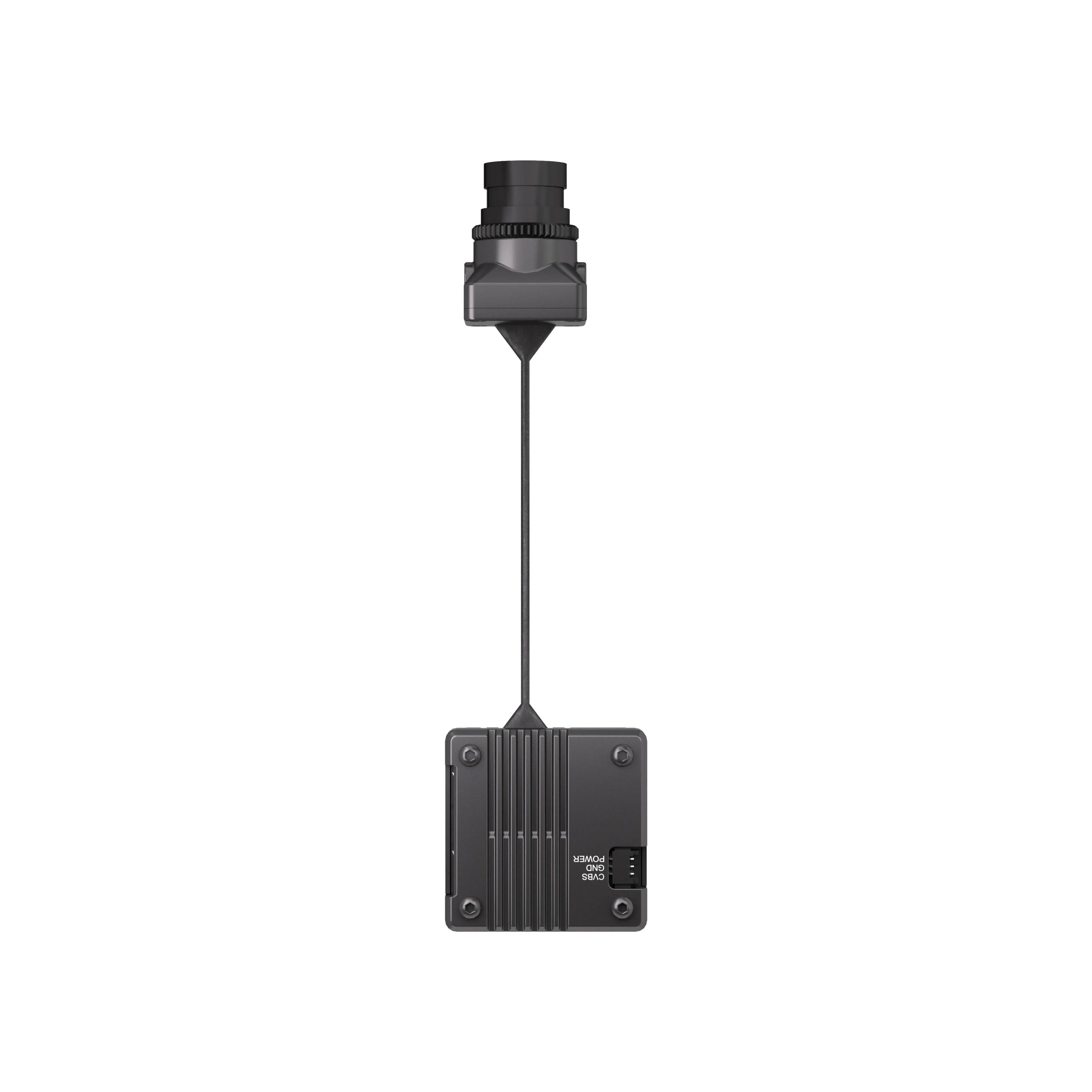

A: Does not include VTX, only Camera +AI Box, AI image enhancement improves image quality.

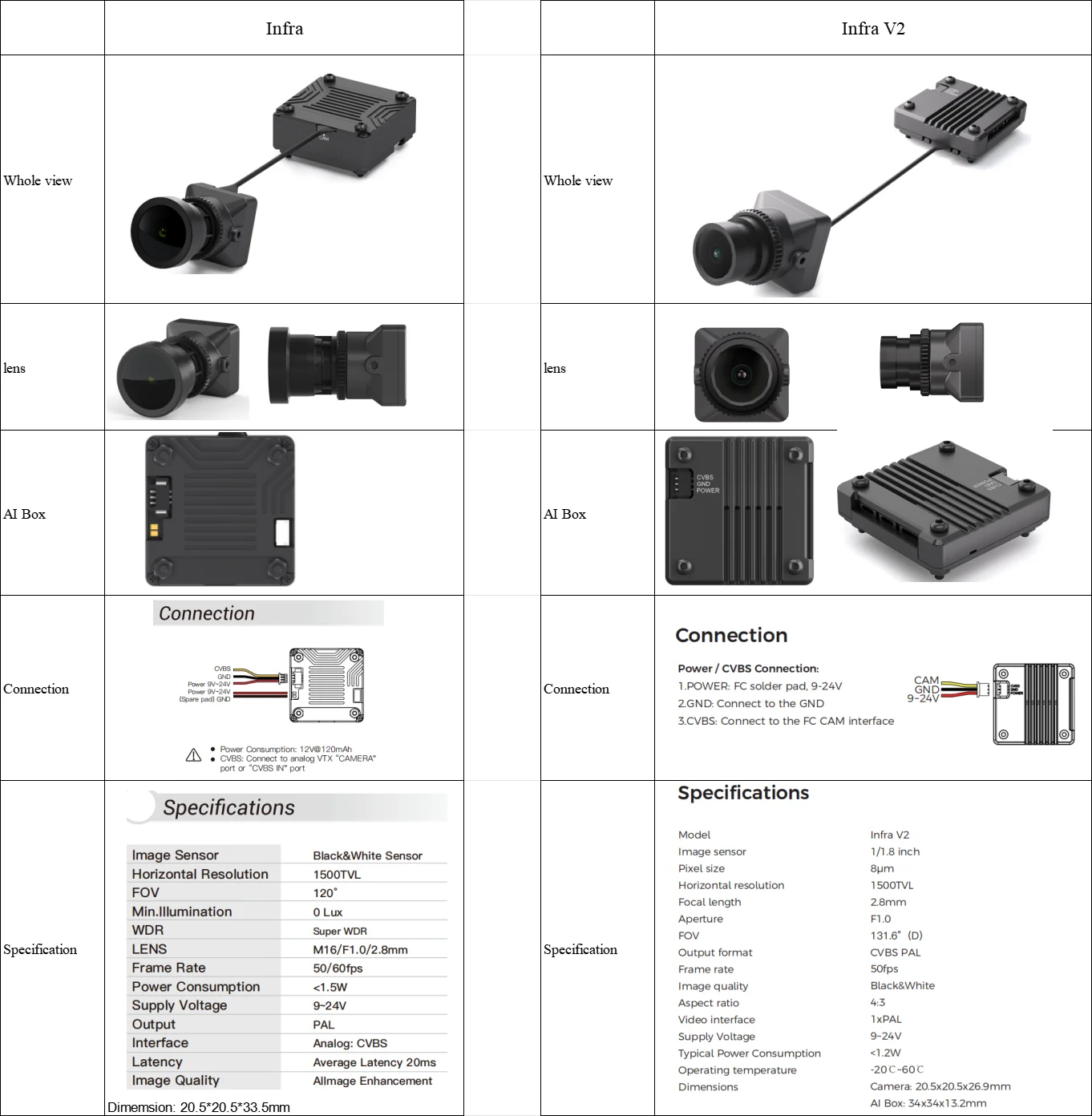

Specification

Model

CADDX Infra V2 Camera

lmage sensor

Black&White Sensor

Horizontal Resolution

1500TVL

FOV

131.6°

Ratio

4:3

Min.lllumination

0 Lux

WDR

Super WDR

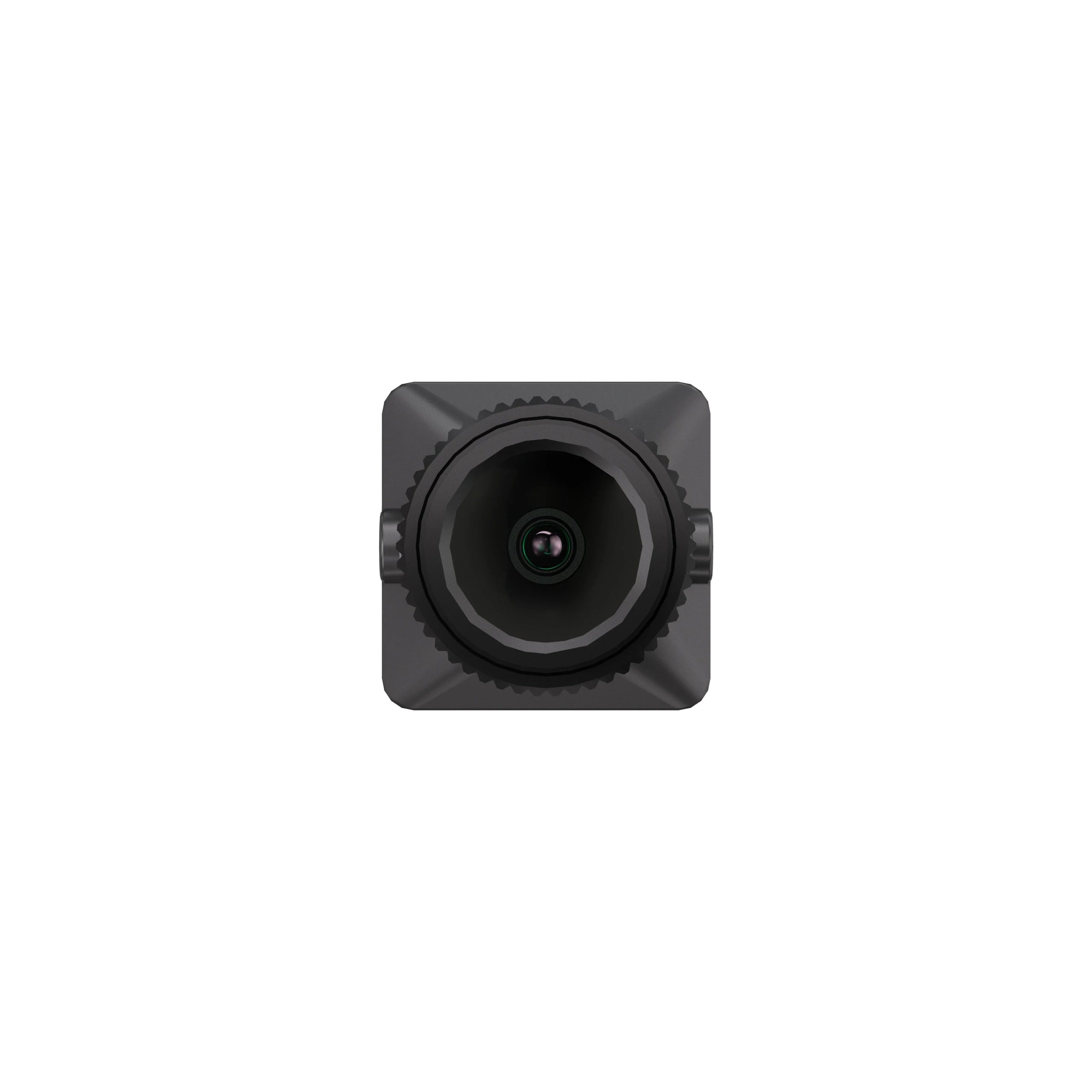

LENS

M16/F1.0/2.8mm

Frame Rate

50fps

Power Consumption

<1.2W

Supply Voltage

9V~24V

Output

PAL

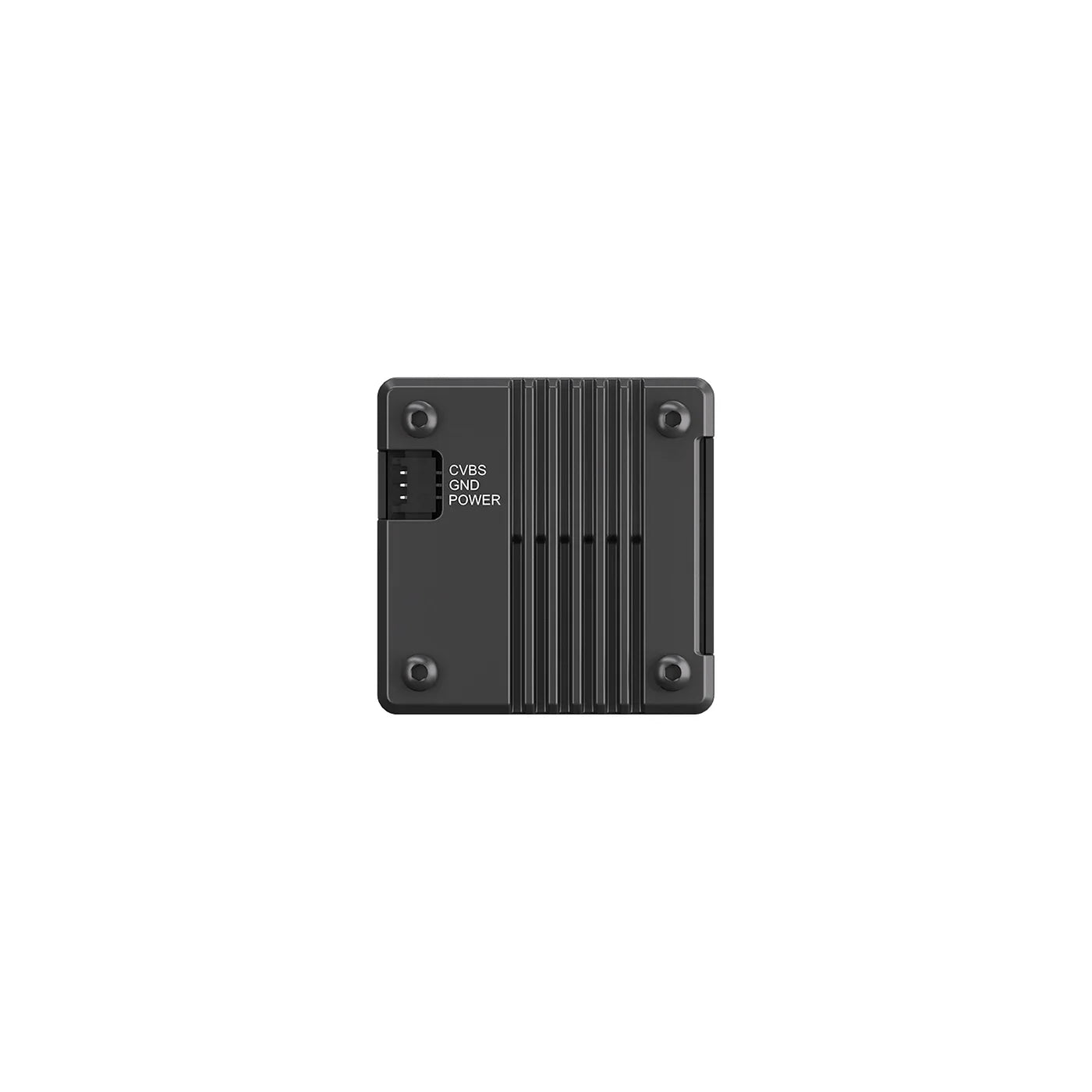

Analog Interface

CVBS

Latency

Average Latency 20ms

lmage Quality

Allmage Enhancement

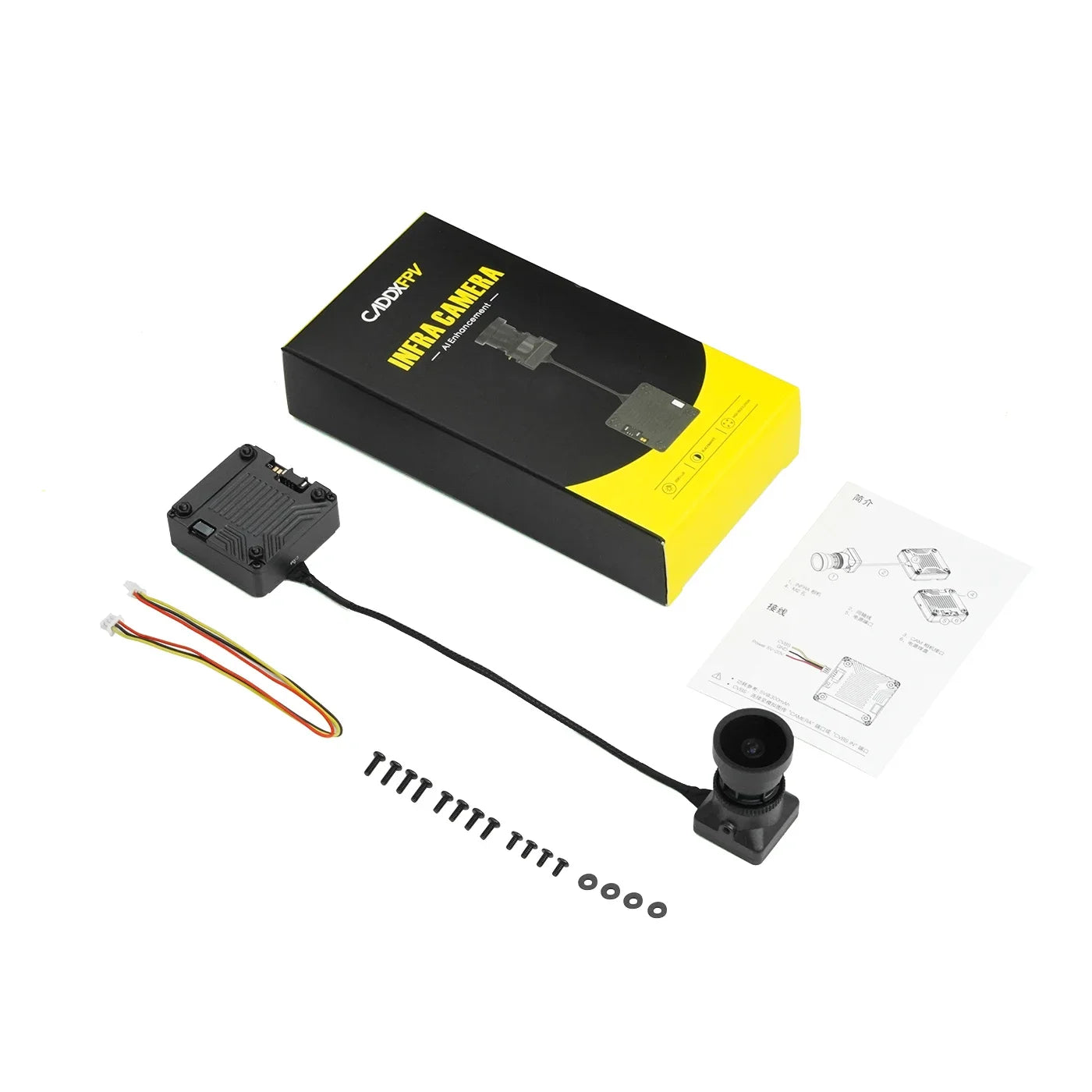

Packing list:

3PIN Power Cable

X1

Quick Guide

X1

M2*5*0.5mm Gasket

X4

M2*4 Screws

X4

M2*5 Screws

X4

M2*6 Screws

X4
