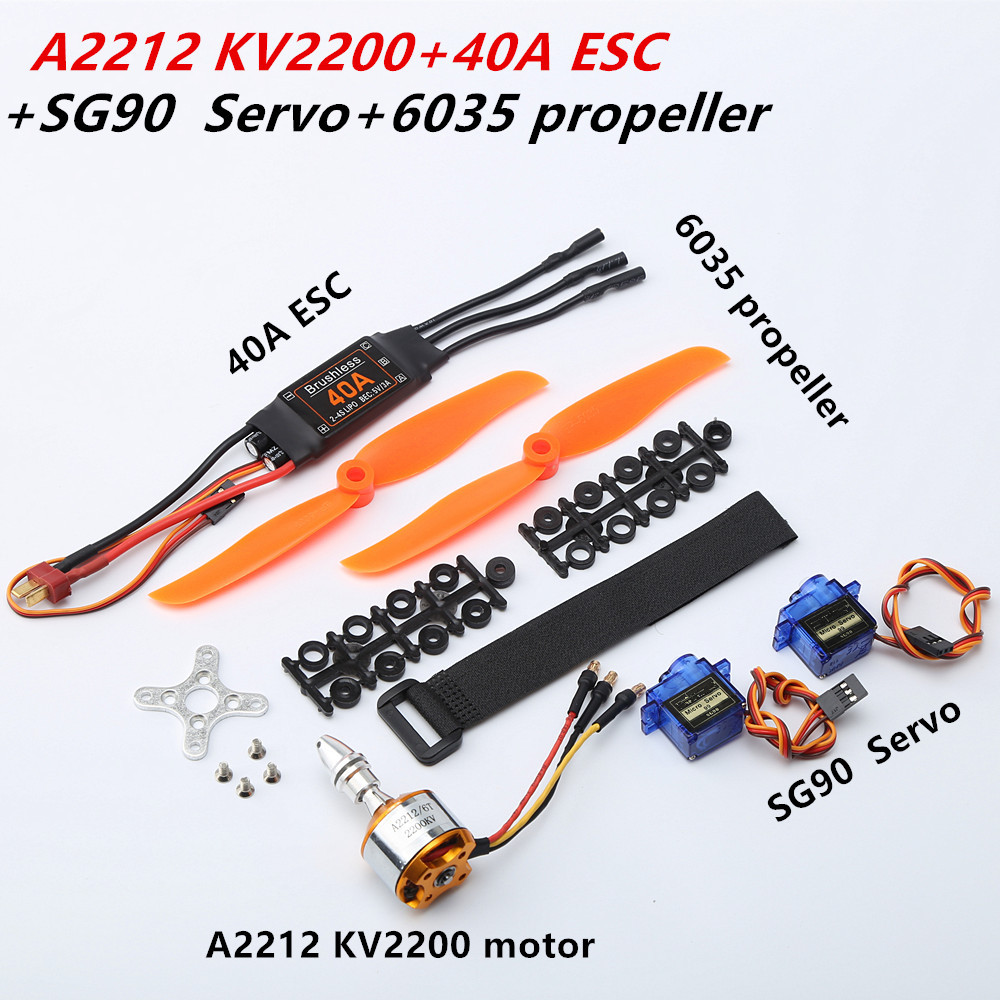

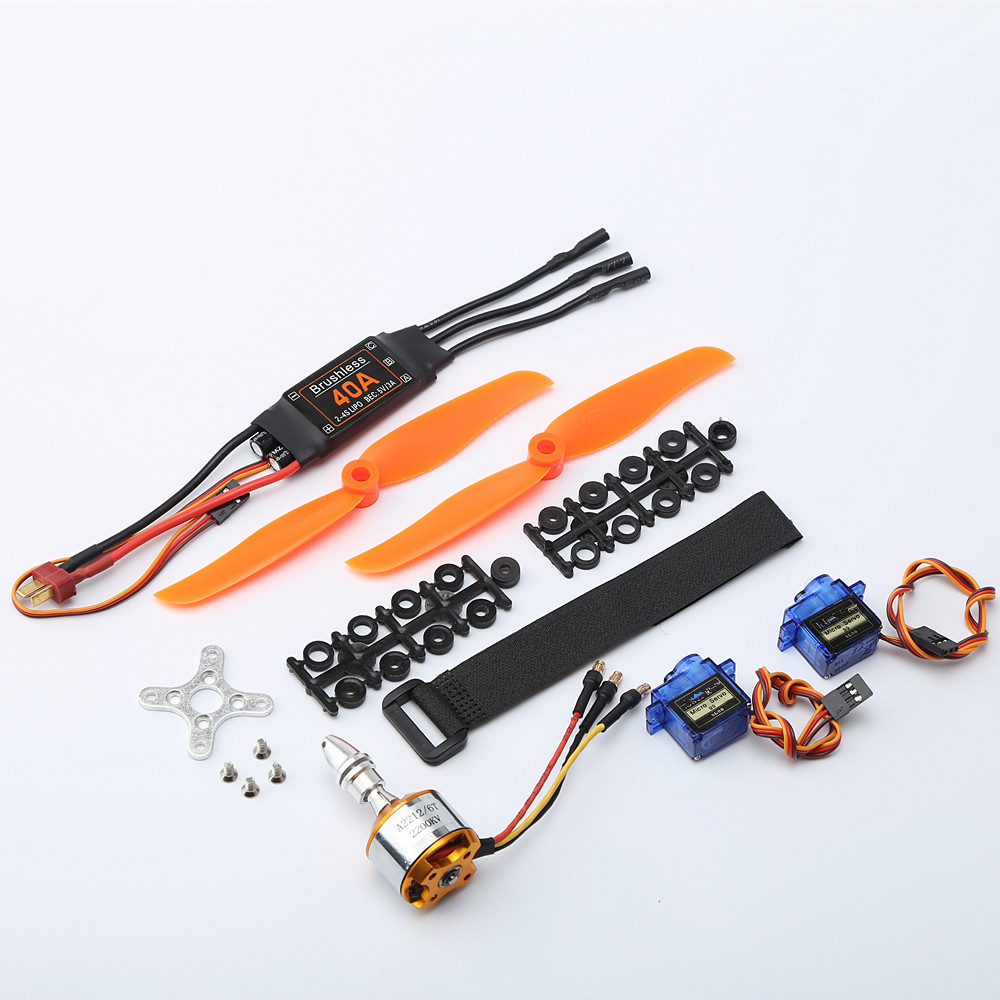

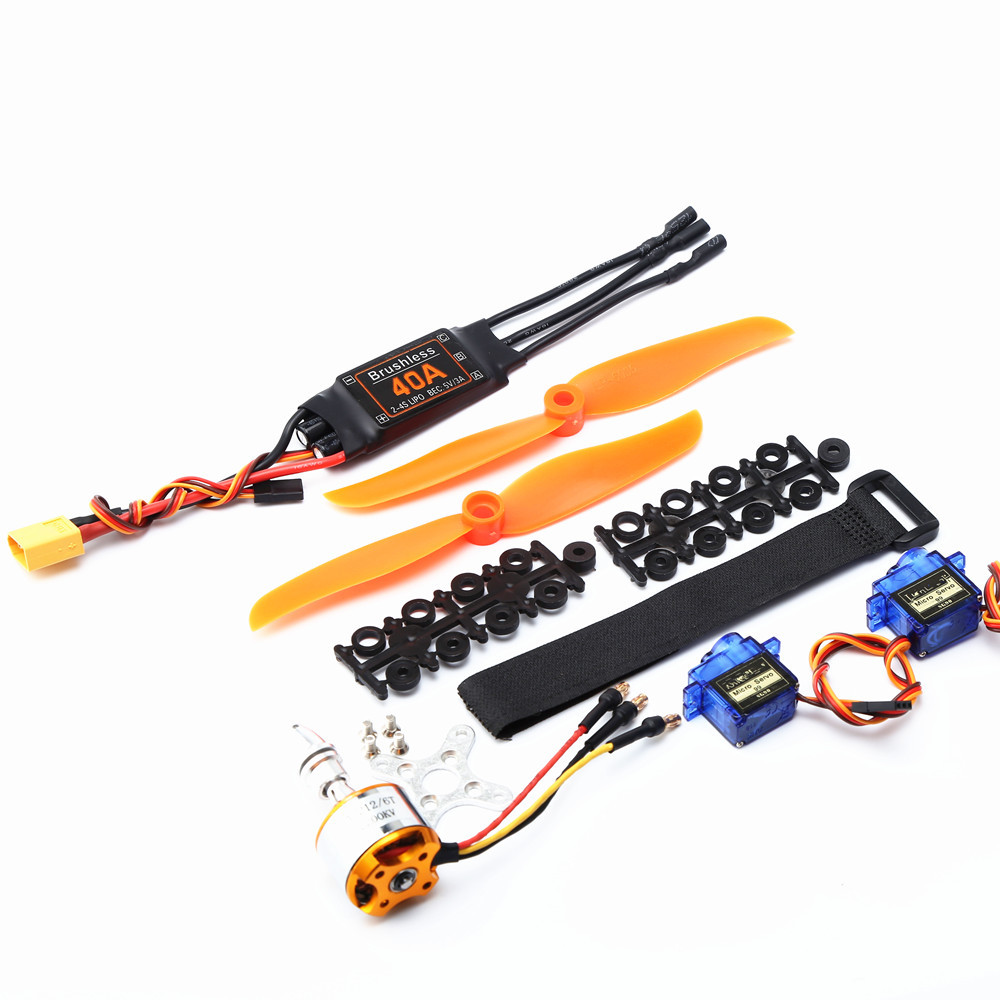

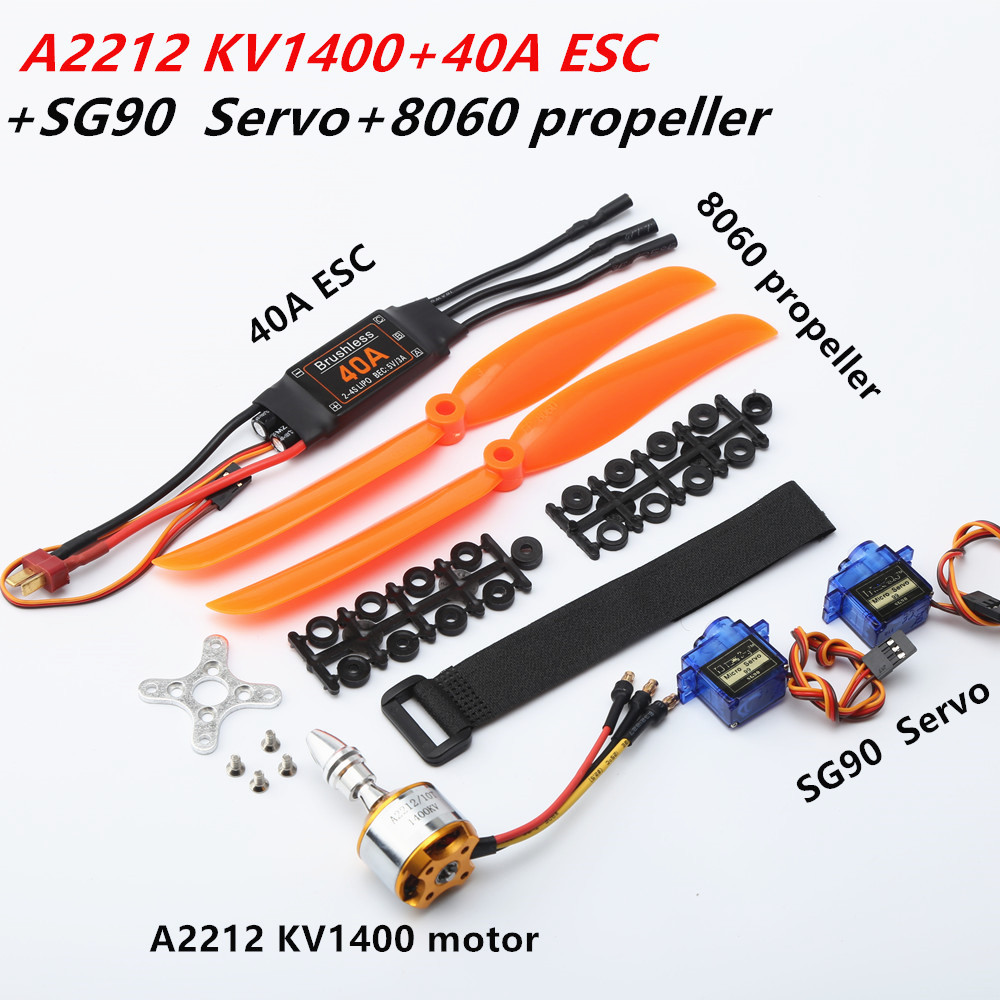

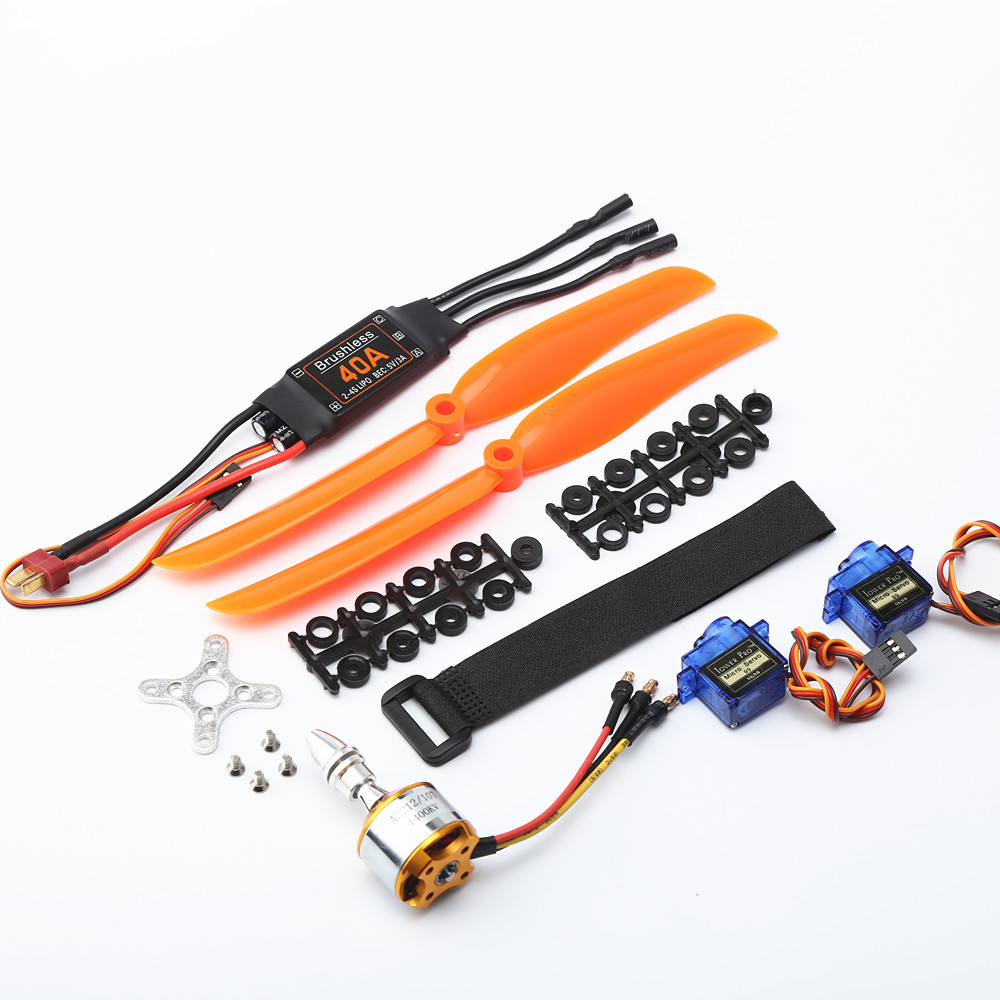

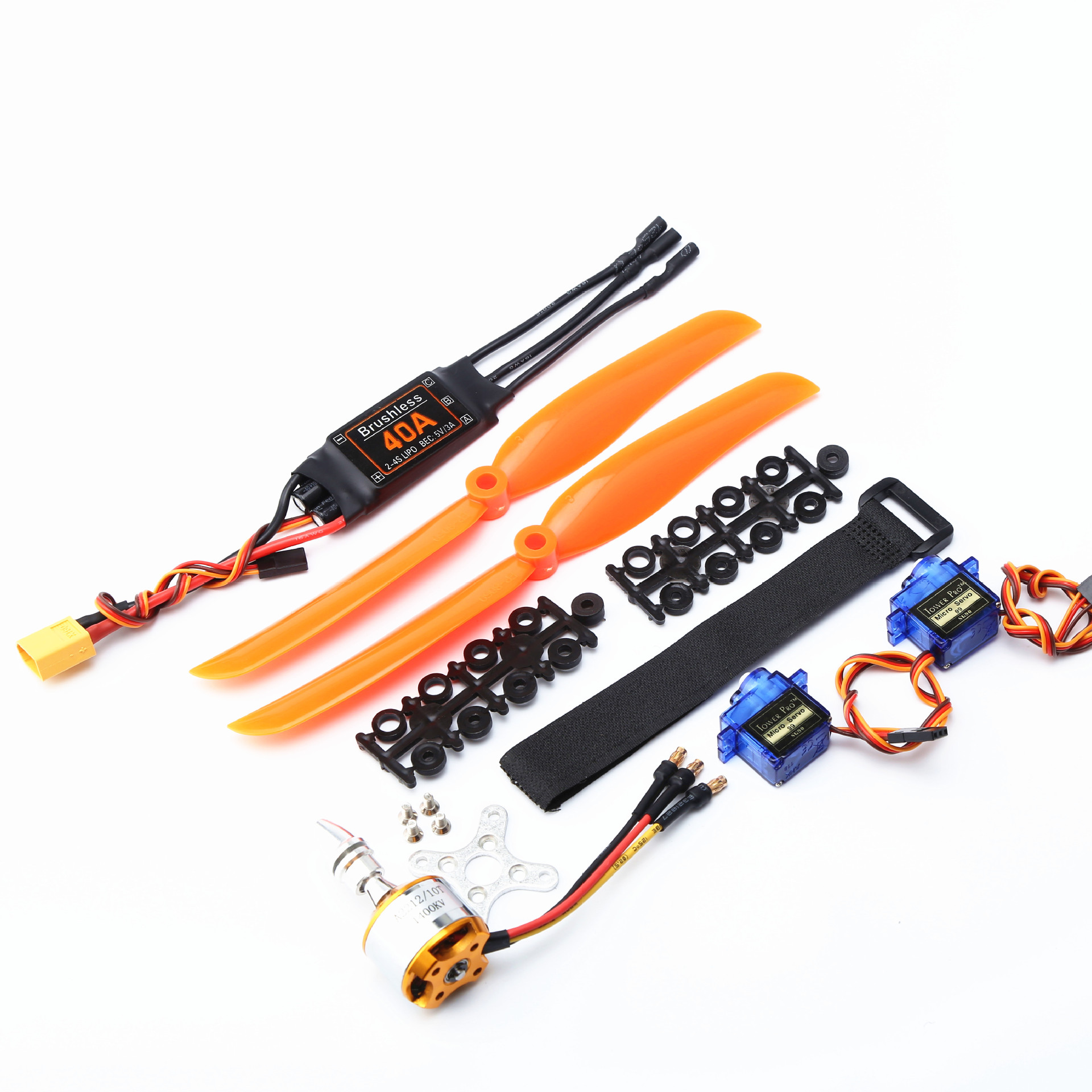

Brushless Motor A2212 2212 2200KV / 1400KV 40A ESC 6035 / 8060 Propeller SG90 9G Micro Servo for RC Fixed Wing Plane Helicopter
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
SG90 9G Micro Servo Features and specifications:
This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key features:
• Translucent body
• Lightweight
• Less noise
SG90 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
100% Brand New and High Quality

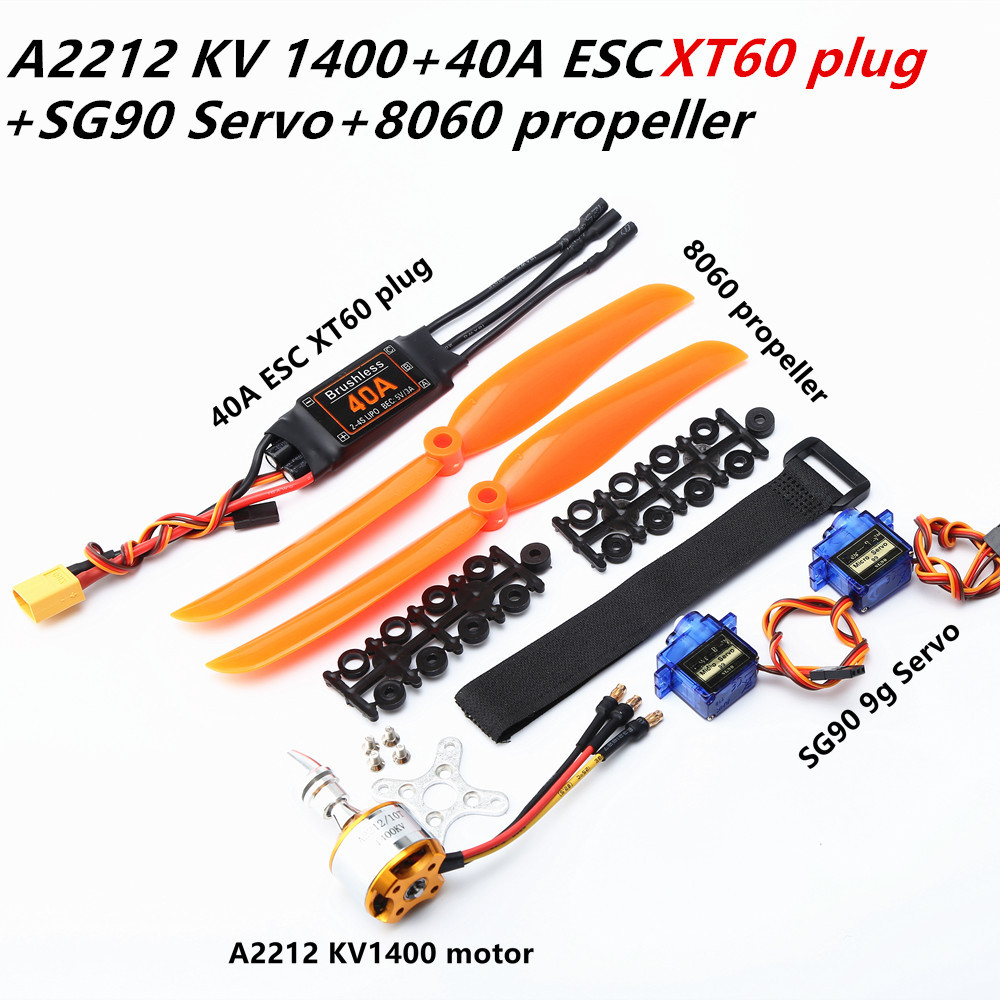

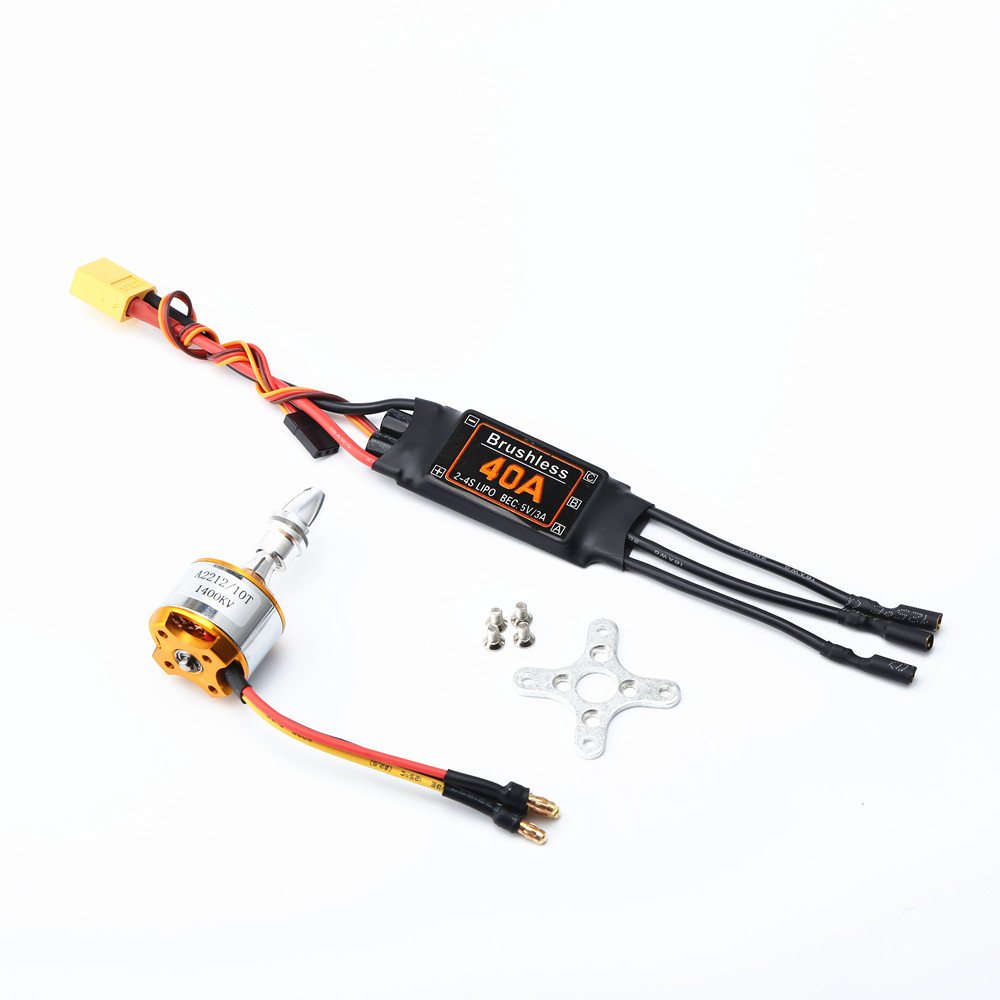

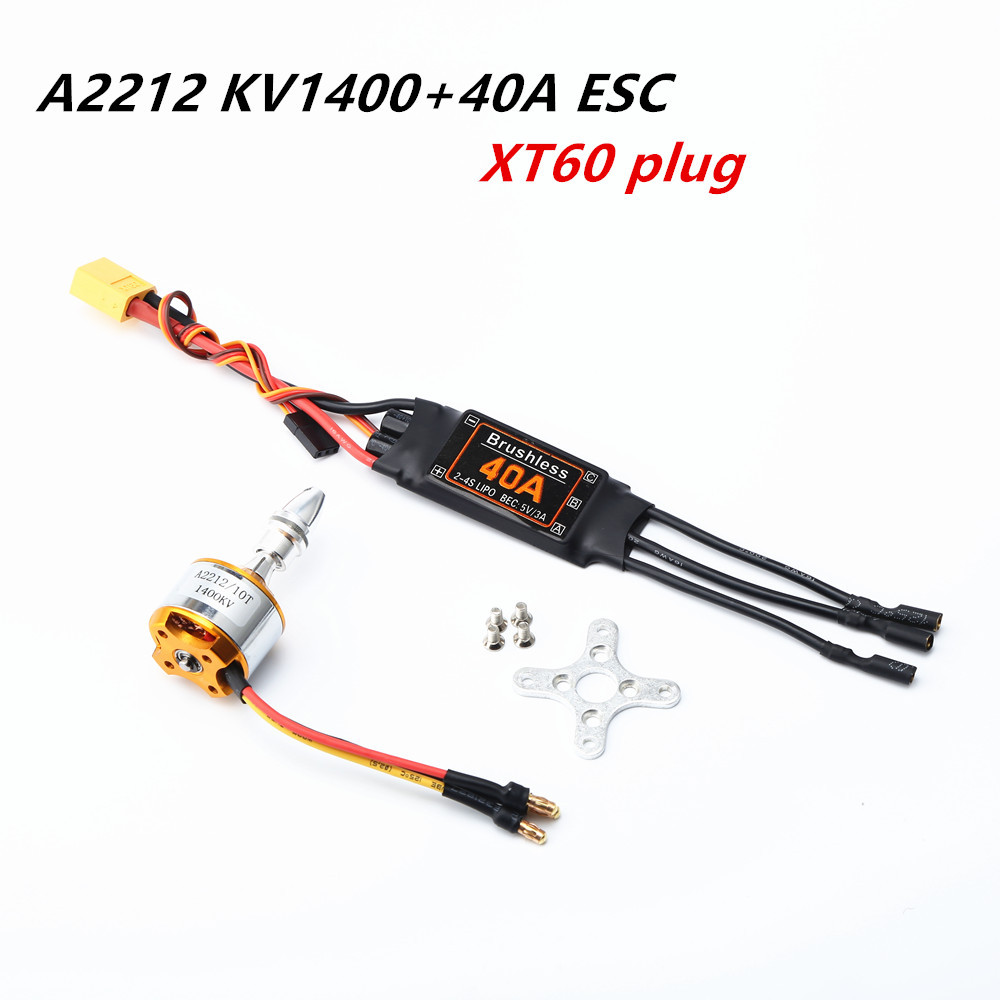

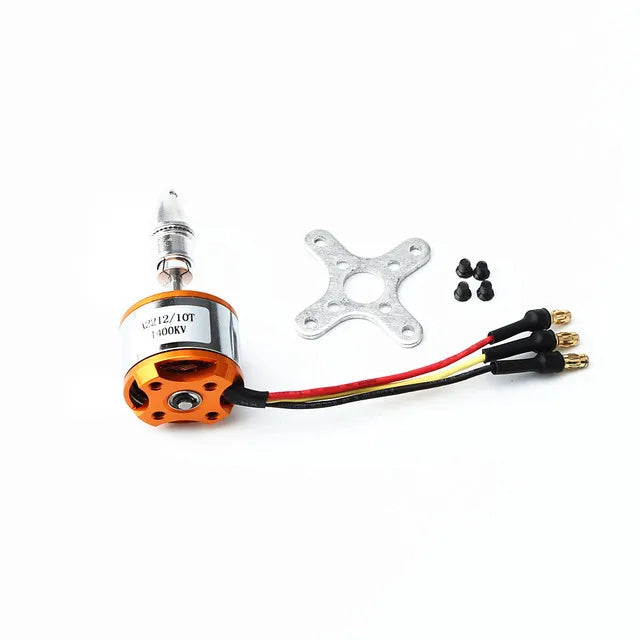

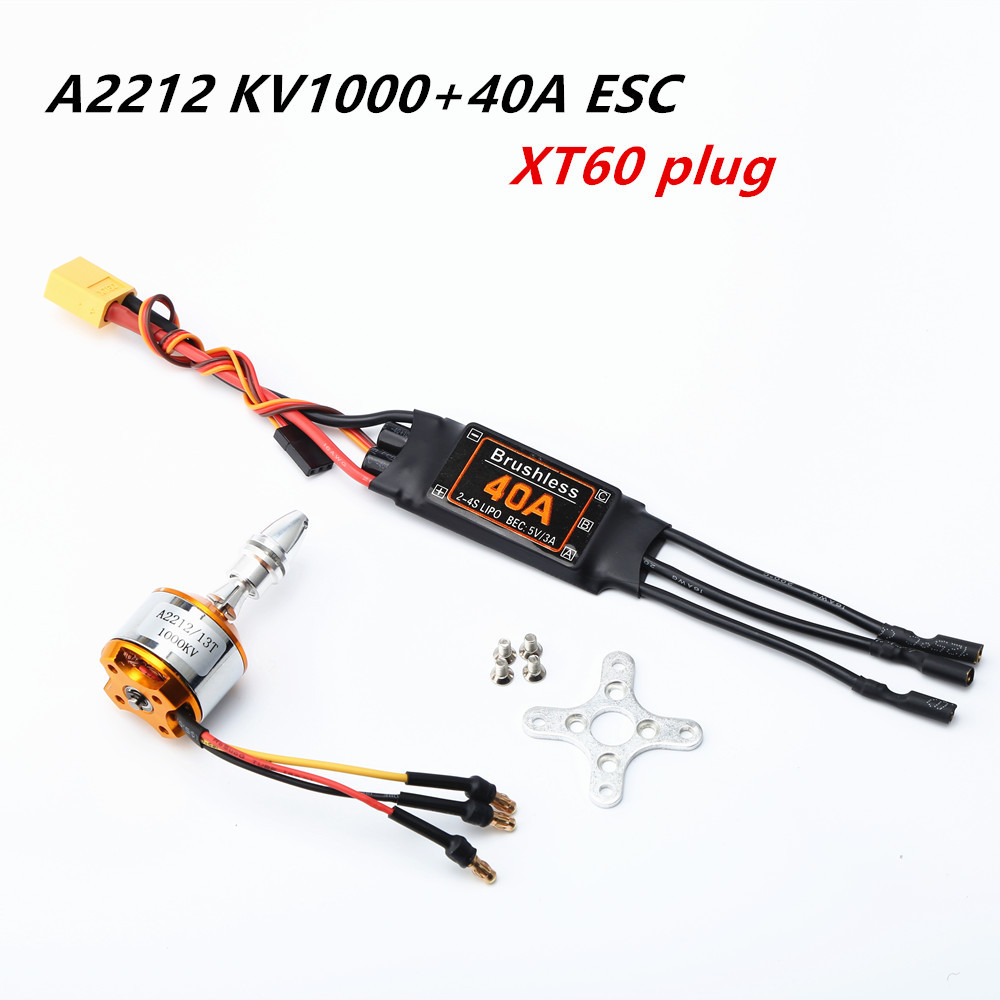

XXD A2212 1400KV brushless outrunner motor:
KV: 1400
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

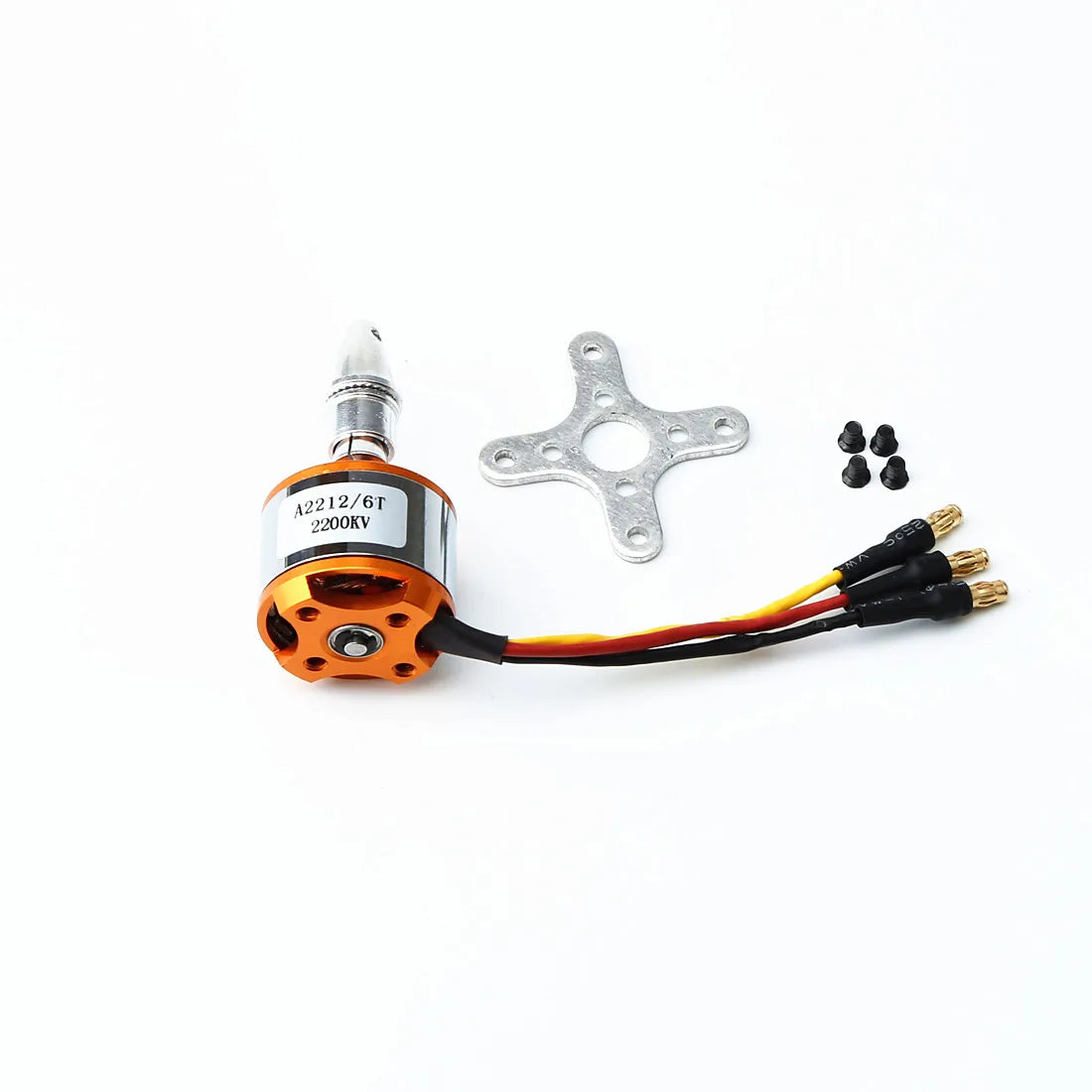

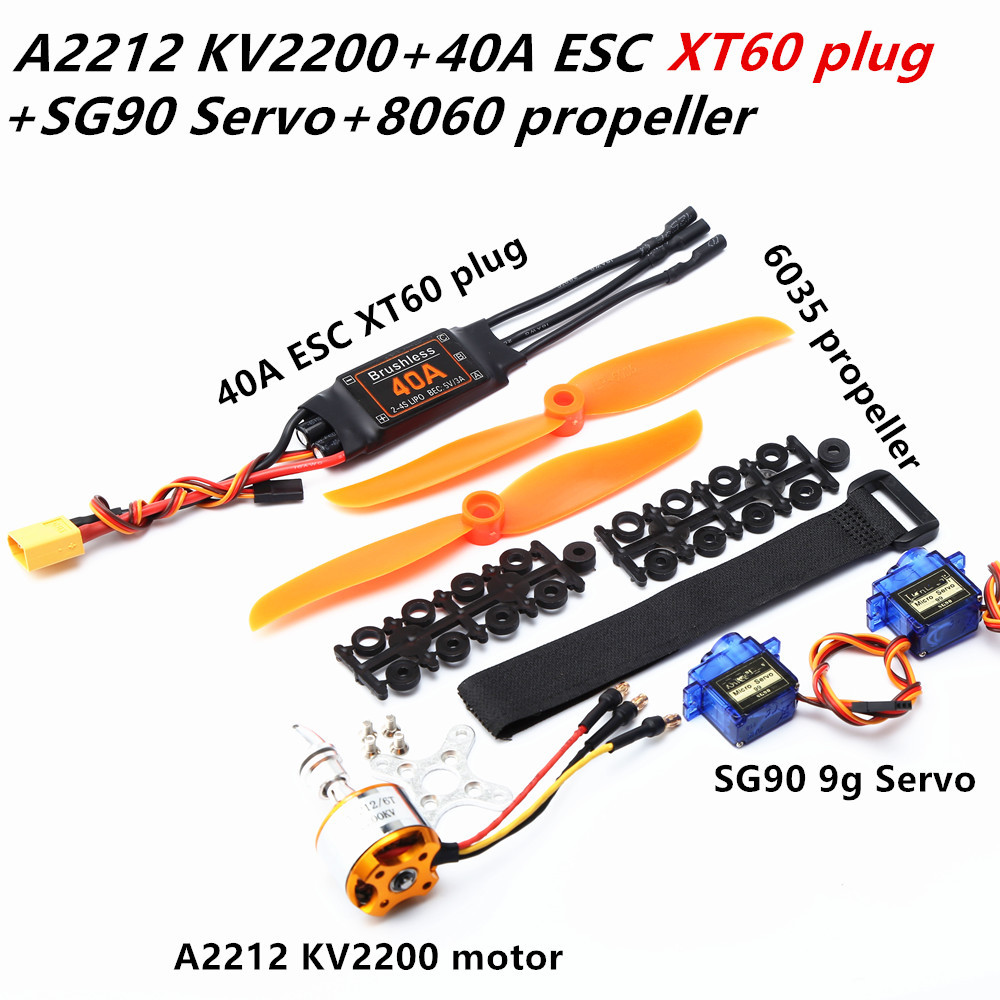

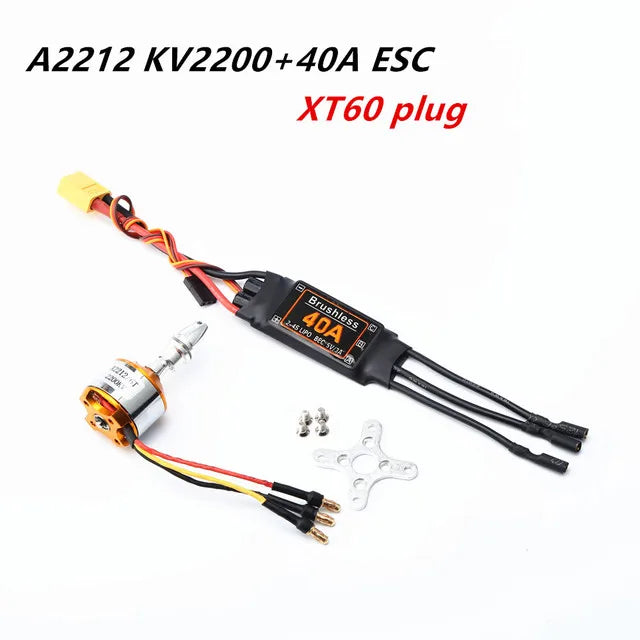

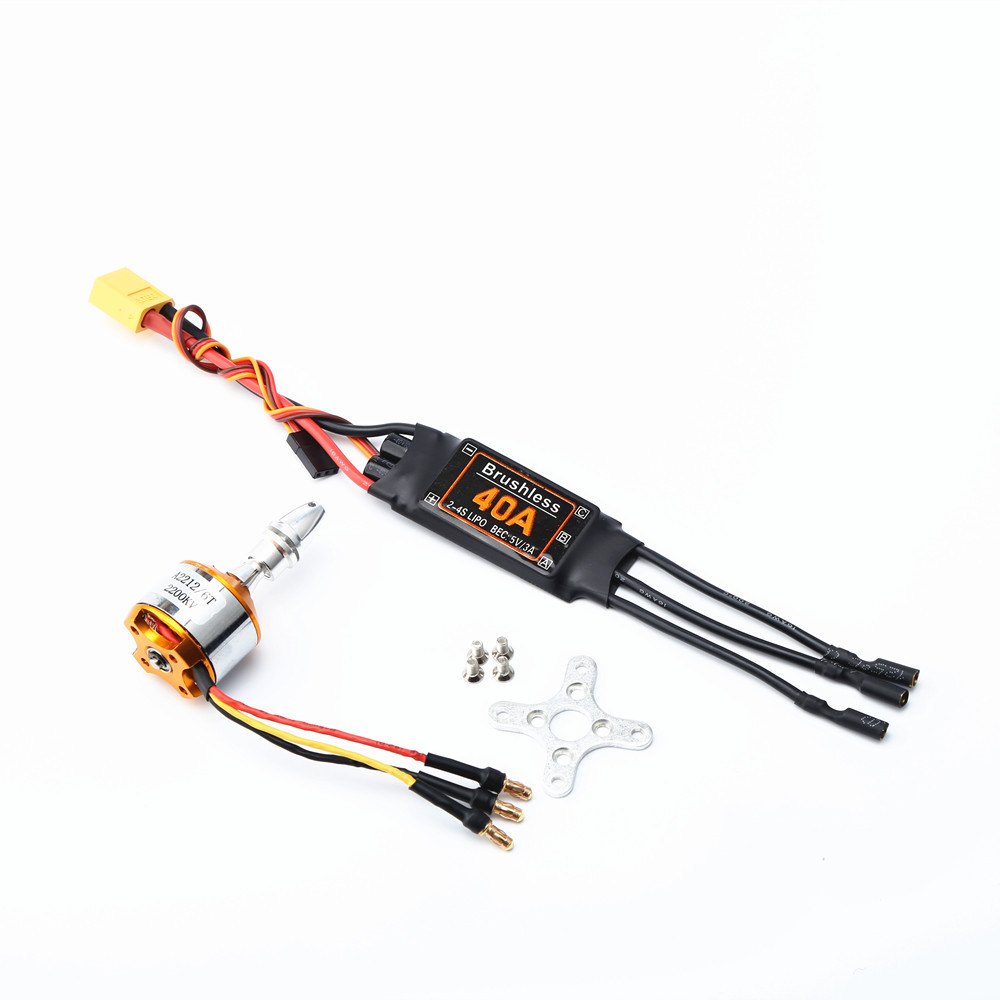

A2212 2200kv brushless Motor Specification:
KV: 2200
Ri(M Ω): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7×3/7×4
Motor Size: 27.5x38mm/1.08”x1.5”
Shaft Diameter: 3.17mm/0.12”

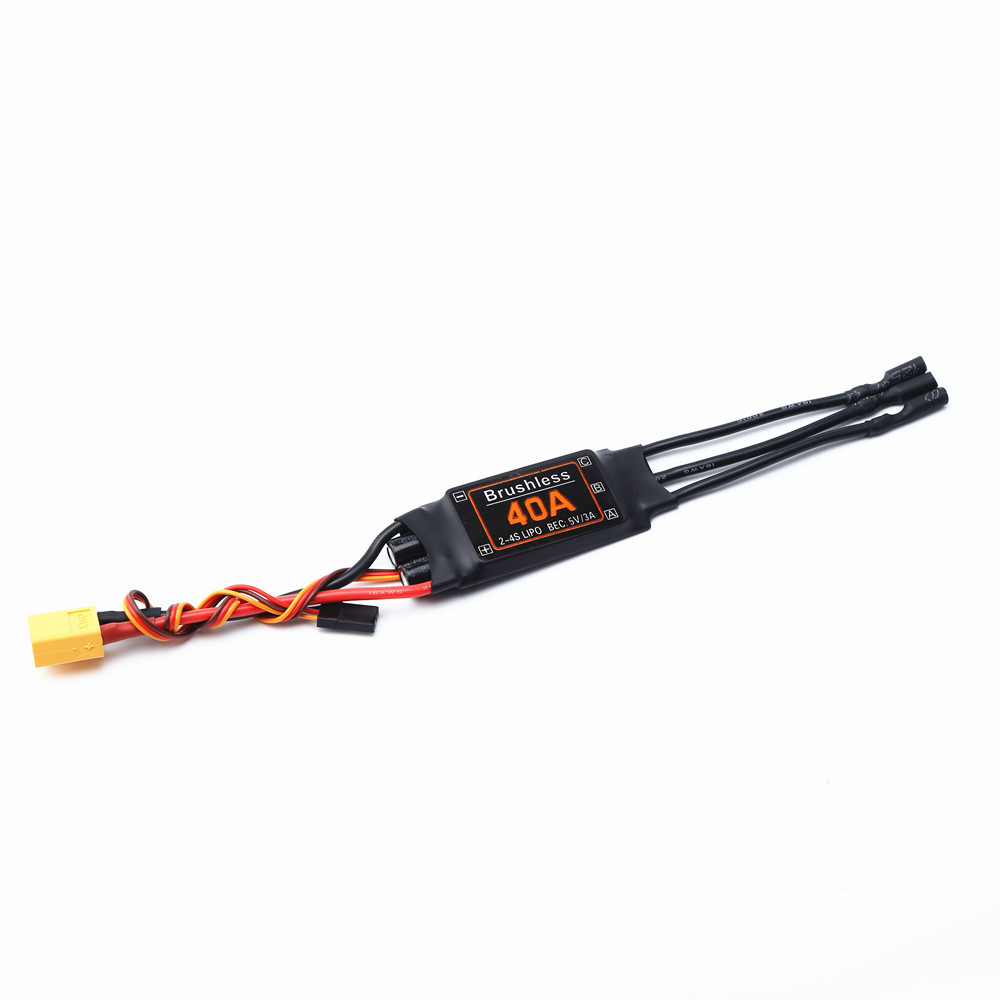

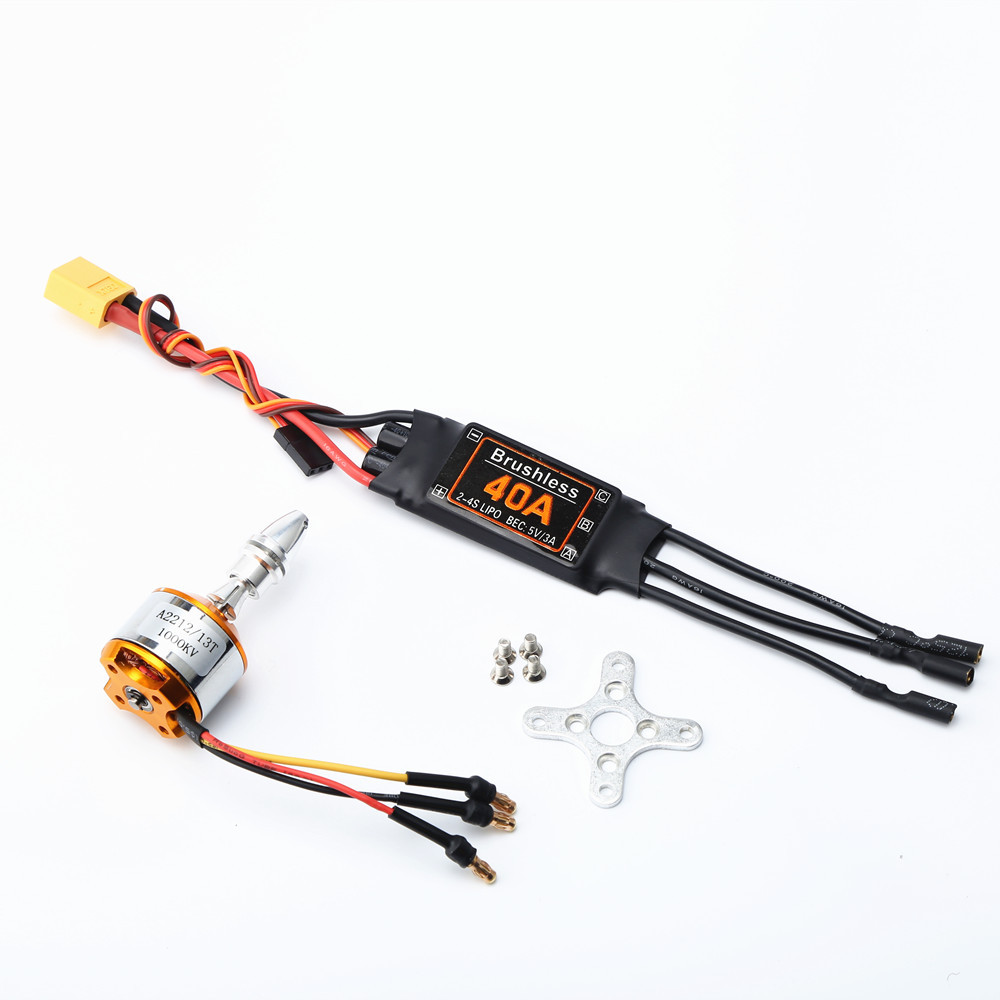

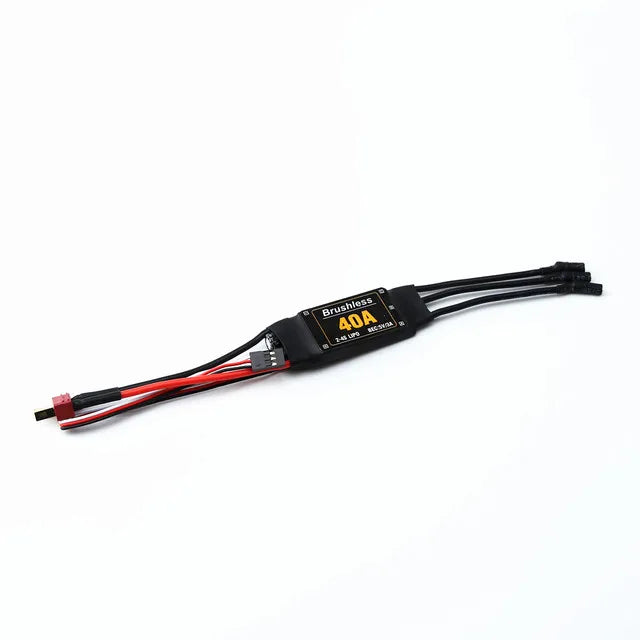

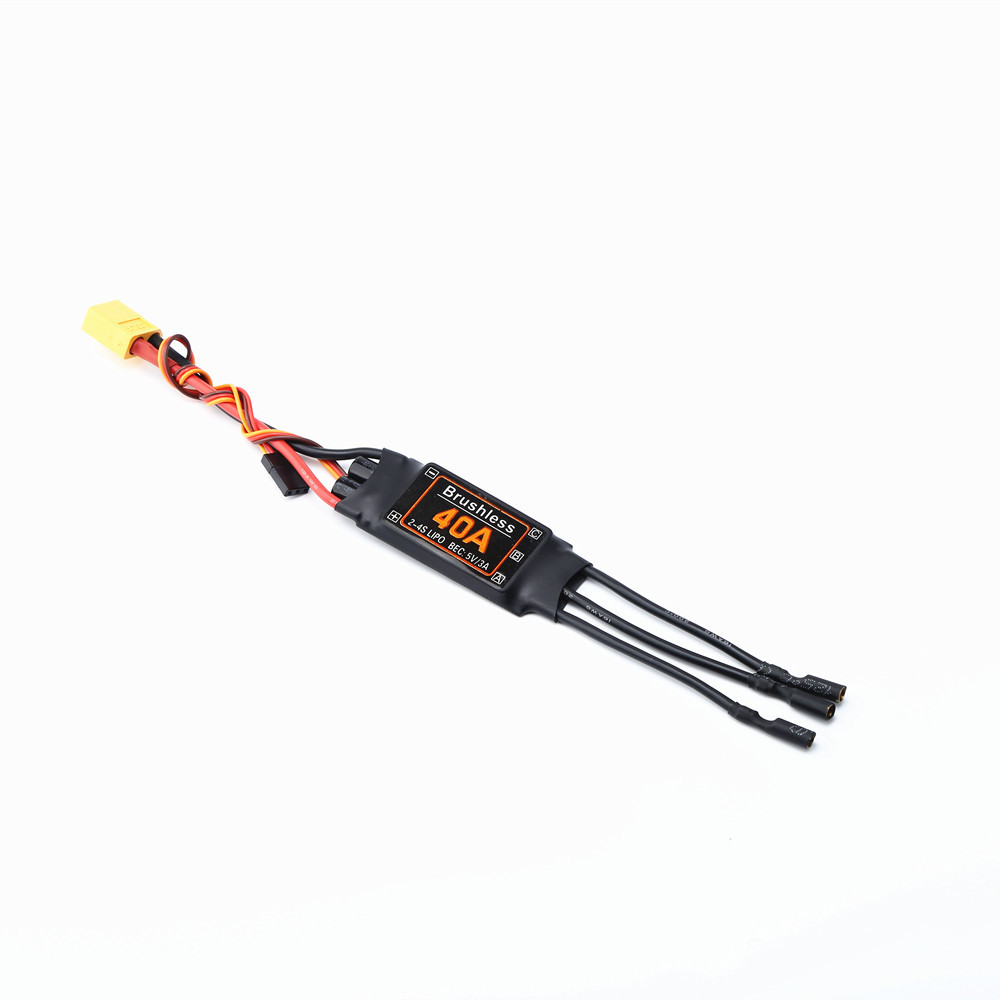

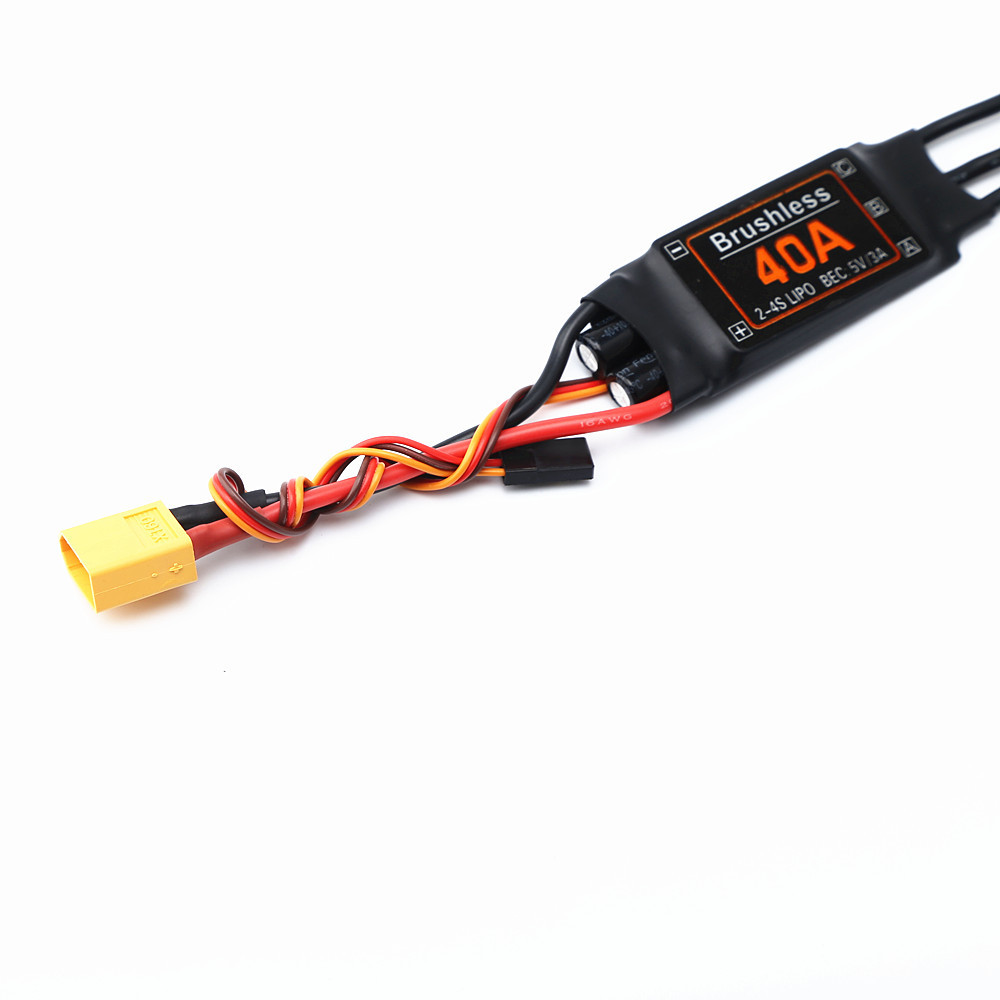

40A ESC Specification:
BEC : 5V/3A
Li-ion/Li0poly:2-4S
Size: about 6.8×2.4cm(ESC with Cable); about 7.2×2.4cm (ESC with banana connector)
Weight: about 33.2g(with cable); about 32g(with banana connector);
Note: This ESC is not able to flash the firmware.
