Multi Protocol Long Range Receiver Built-in Dual 12A BLHeli Brushless ESC with BEC for Flysky i6 i6X Wfly Microzone Radiomaster 4in1 Radio Transmitter

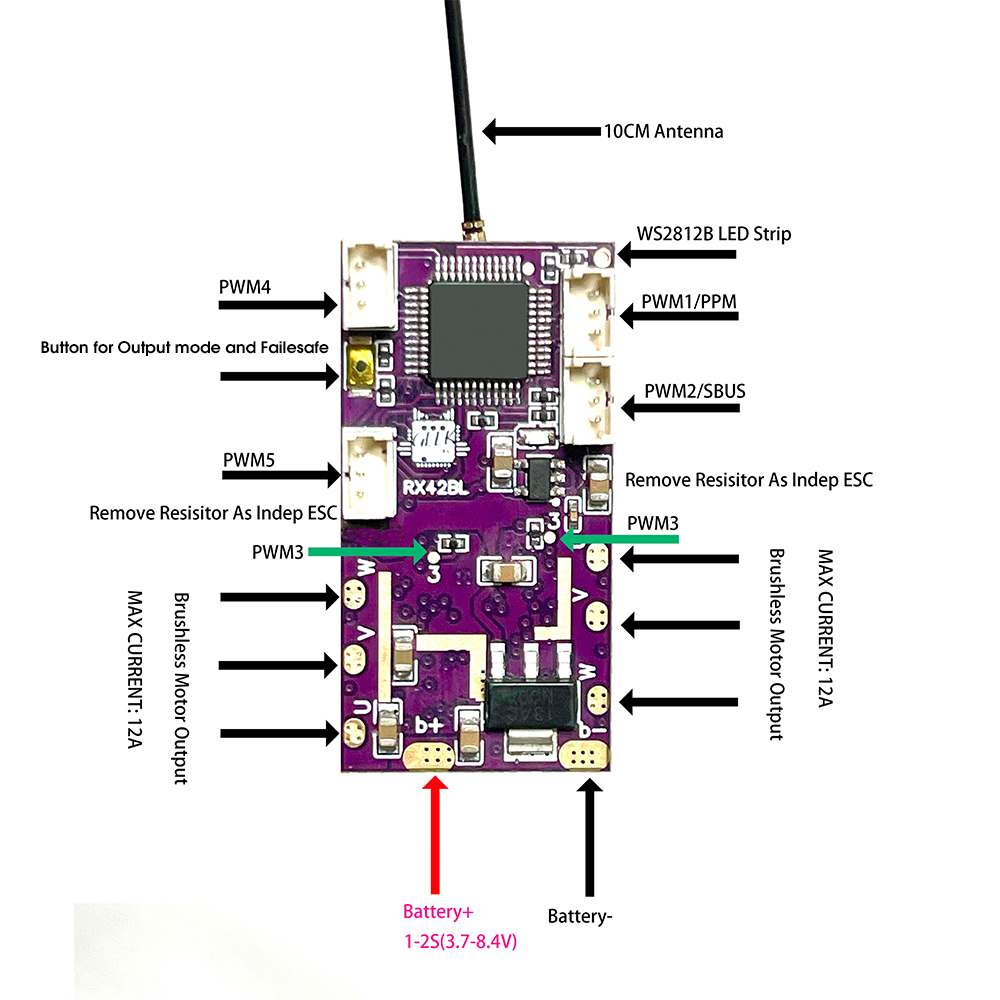

Specifications:
Working Voltage: 3.7-8.6V, 1-2s
Control Distance: Used mc6c remote control ,400m (ground), >800m (aerial)
ESC Output: 12A x2, BLHeli firmware
BEC Output: 1.5A, 5V
Weight: 3.7g with antenna, 2.8g without antenna
Dimensions: 18×35mm
Firmware: Blheli
Supported Motors: 1103, 1104, 1105, 1106, 1806, etc.
Antenna: 10cm copper tube, ipex1 interface, replaceable
3 Working Modes:
Mode 1: 5 channels + light
Mode 2: 5 channels + light, 3 and 4 differential
Mode 3: sbus + ppm

Features:
1.Ultra Light & Compact: Weighs only 3.7g with antenna, ensuring minimal impact on your model’s performance.
2.Versatile Compatibility: Ideal for remote control aircraft, cars, and boats, supporting a variety of motors.
3.Integrated BEC & Lighting Controller: Includes BEC output and lighting control for enhanced functionality.
4.Enhanced Range: Provides a control distance of up to 400m on the ground and over 800m in the air.
5.Multiple Work Modes: Offers 3 work modes, including 5-channel with lighting and differential settings.

Multi-Protocol Receiver manual, click here

Package Included:
1 X Multi-Protocol Receiver
