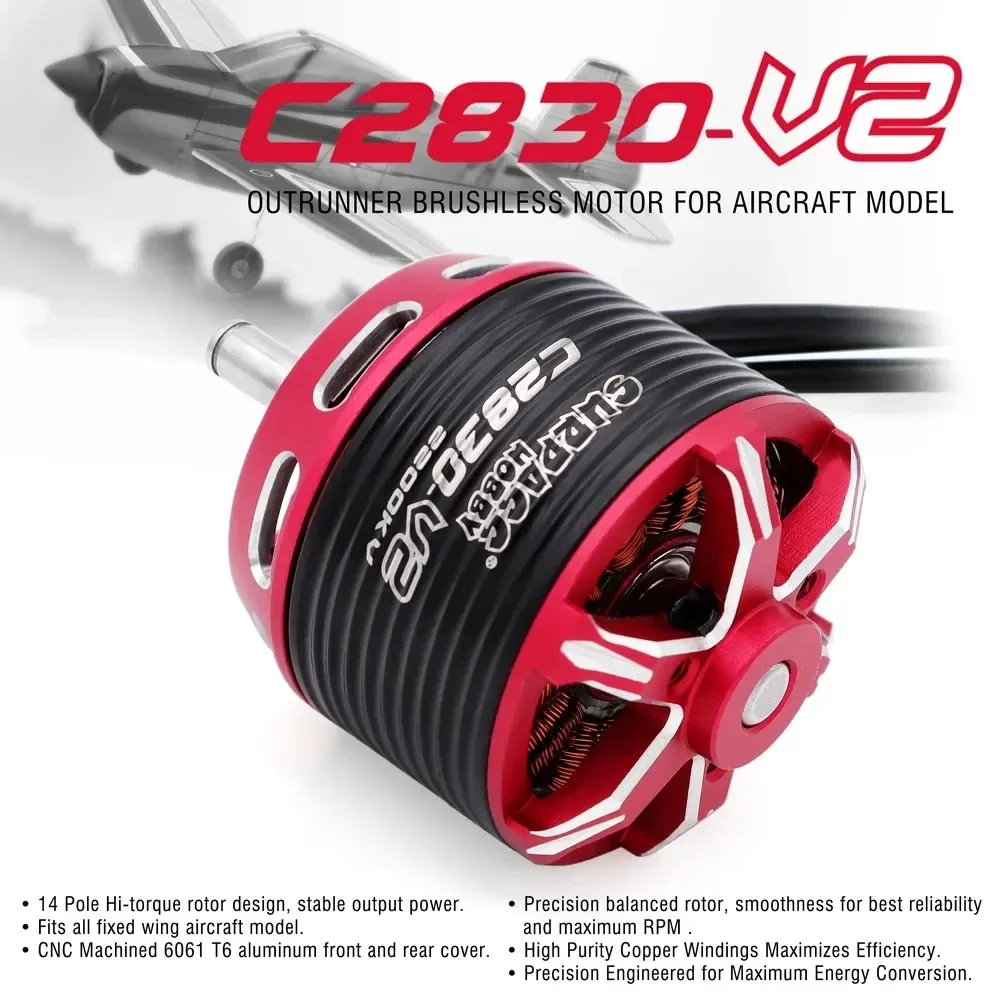

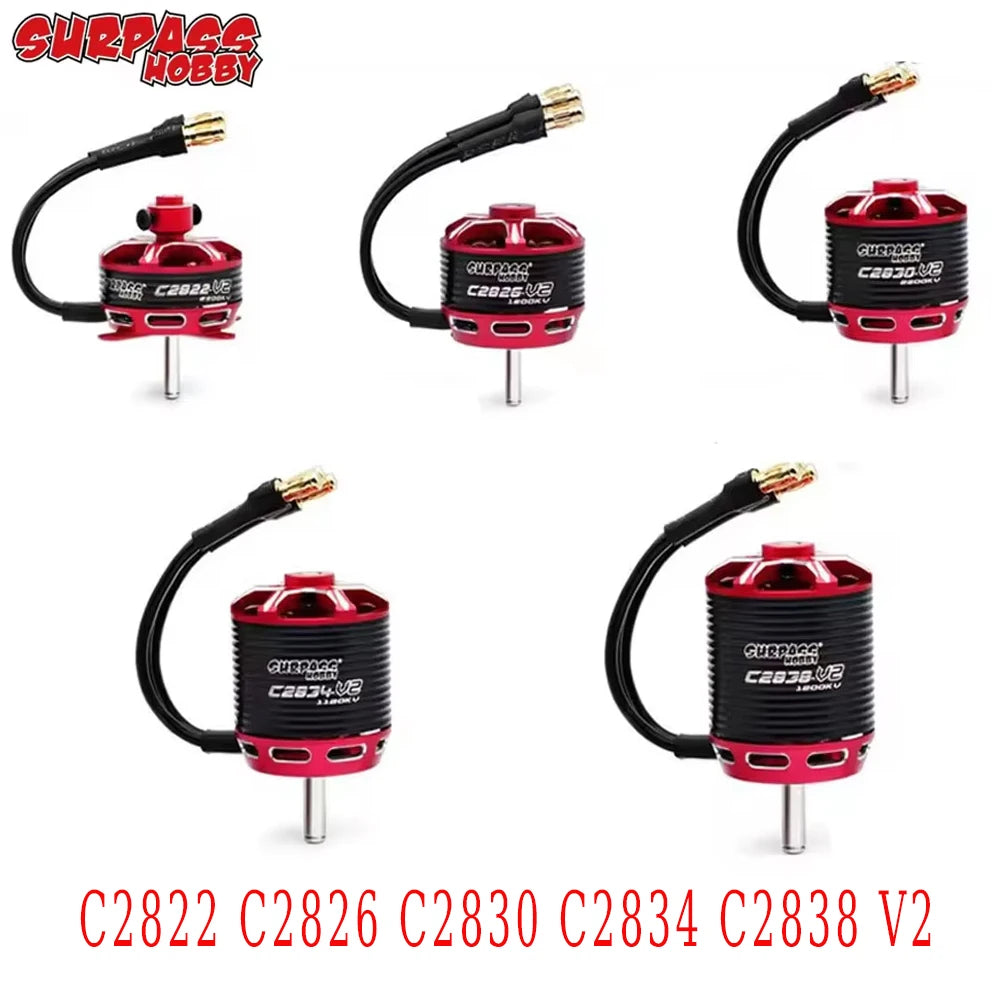

Futures:
(1)14 Pole Hi-torque rotor design, stable output power.
(2)Fits all fixed wing aircraft model.
(3)CNC Machined 6061 T6 aluminum front and rear cover.
(4)Precision balanced rotor smoothness for best reliability and maximum RPM.
(5)High Purity Copper Windings Maximizes Efficiency.
(6)Precision Engineered for Maximum Energy Conversion.

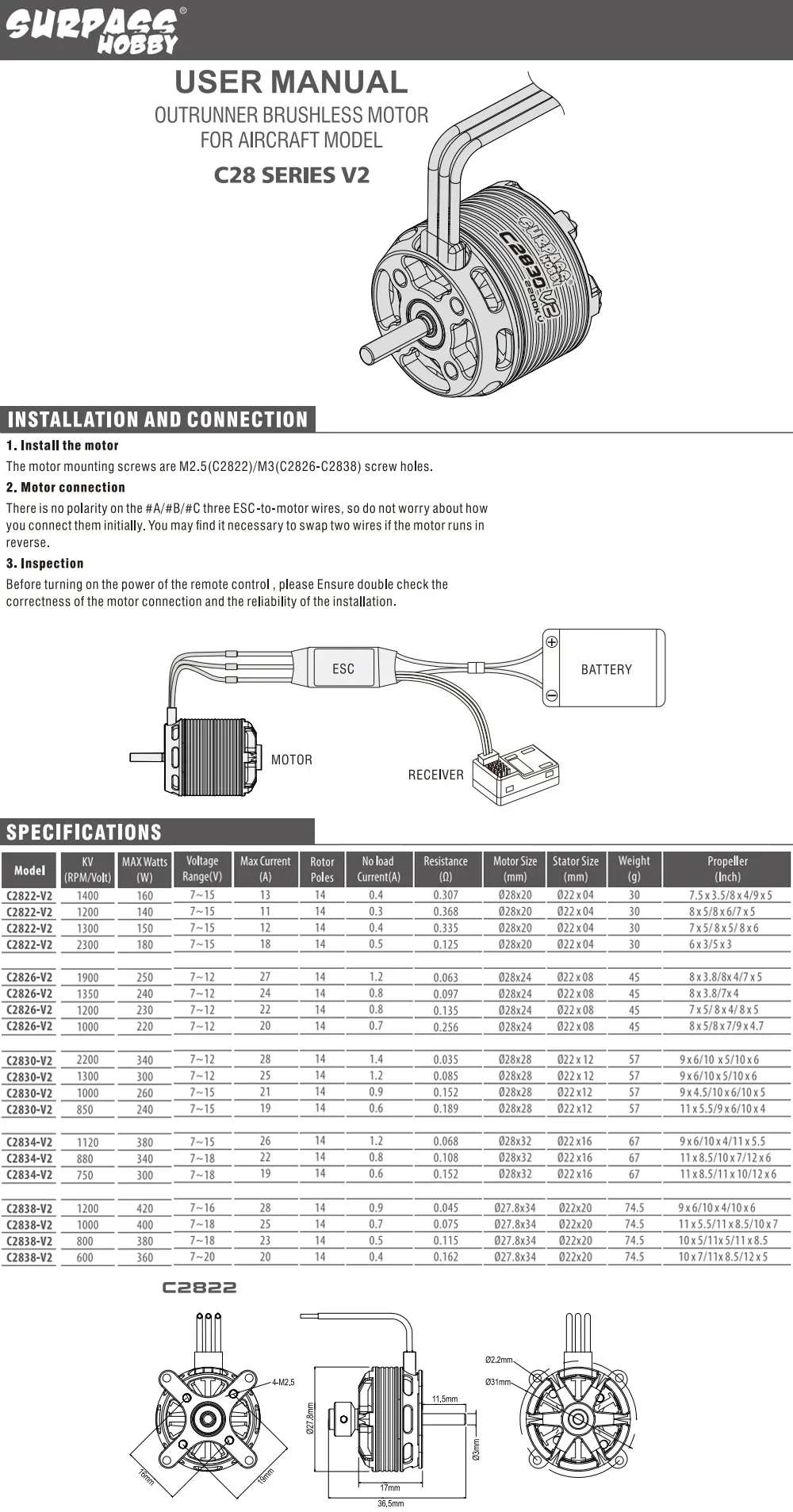

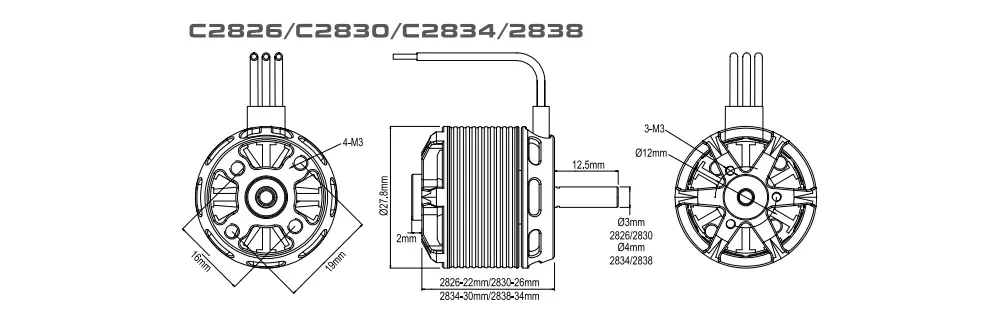

Specification:

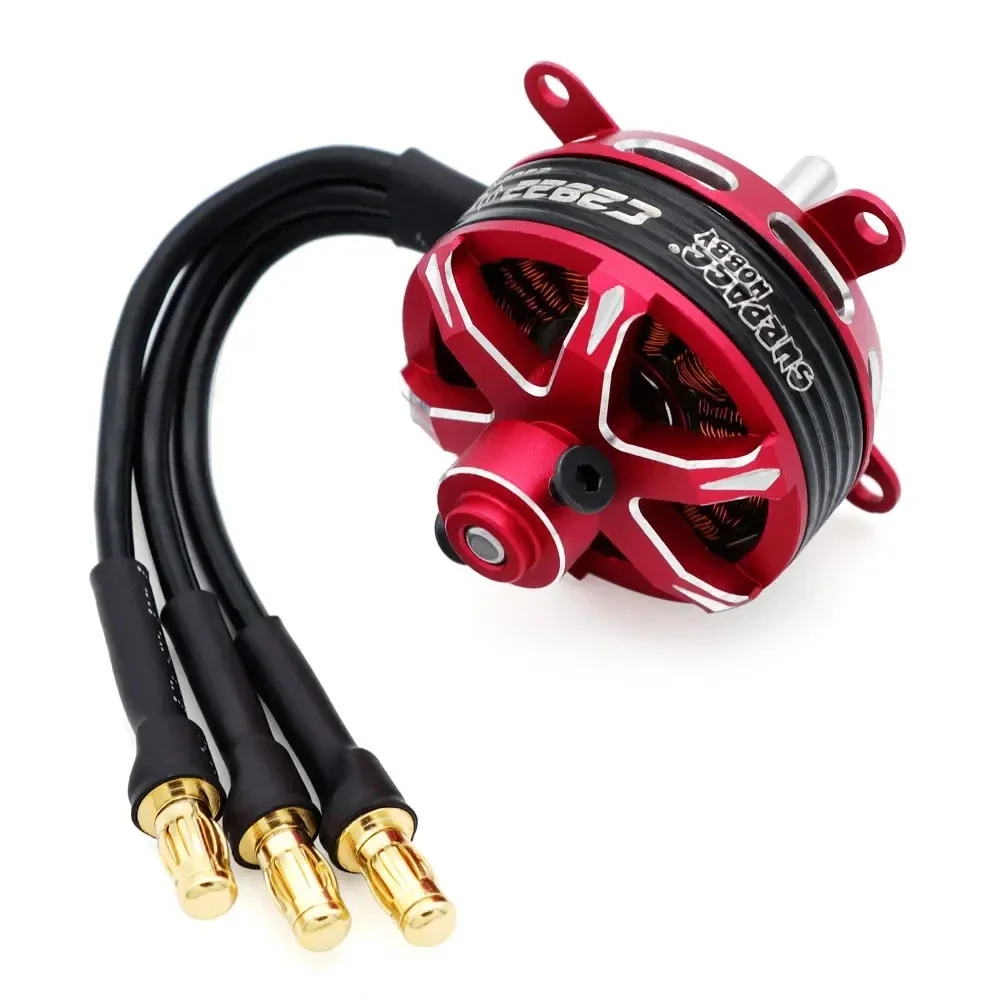

Output Connectors: 3.5mm Gold Connectors(Male)

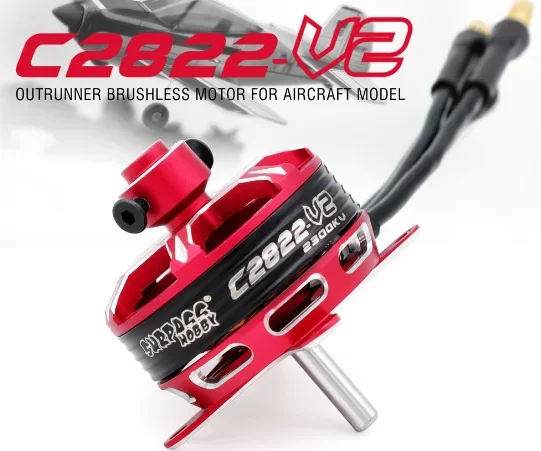

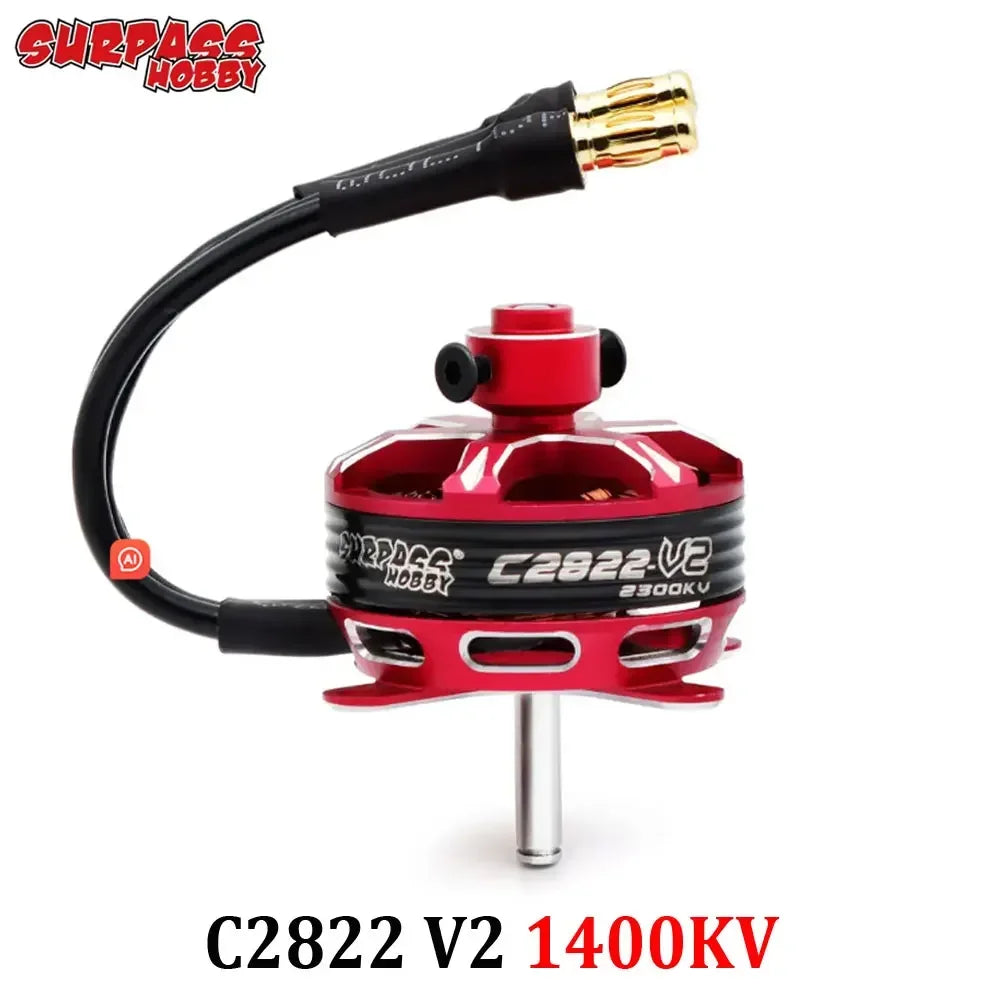

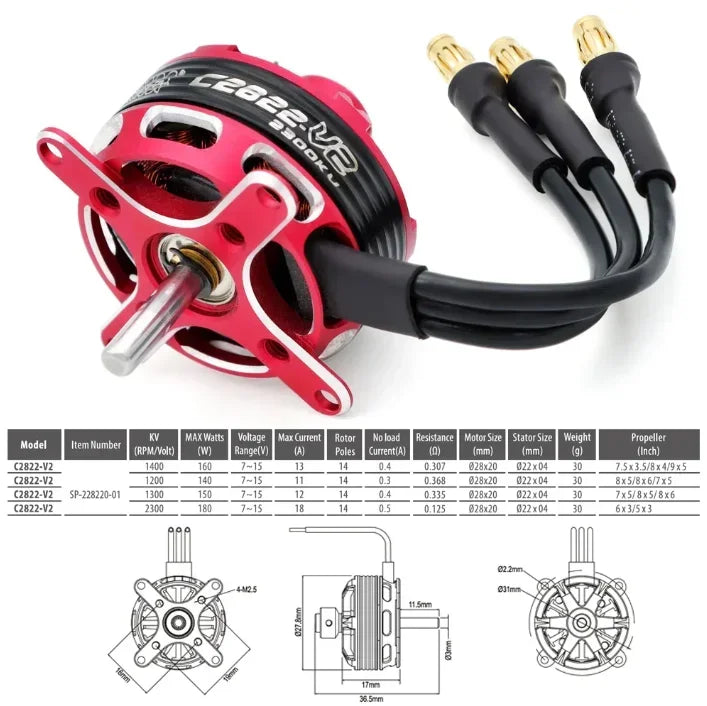

C2822-V2 KV1400 Brushless Motor:
KV(rpm/volt): 1400;
Max Watts(W): 160;
Voltage Range(V): 7-15;
Max Current(A): 13;
Rotor Poles: 14;
No load Current(A): 0.4;
Resistance(Ω): 0.307;
Motor Size(mm): φ28×20;
Stator Size(mm): φ22×04;
Weight(g): 30;
Propeller(inch): 7.5×3.5/8×4/9×5;

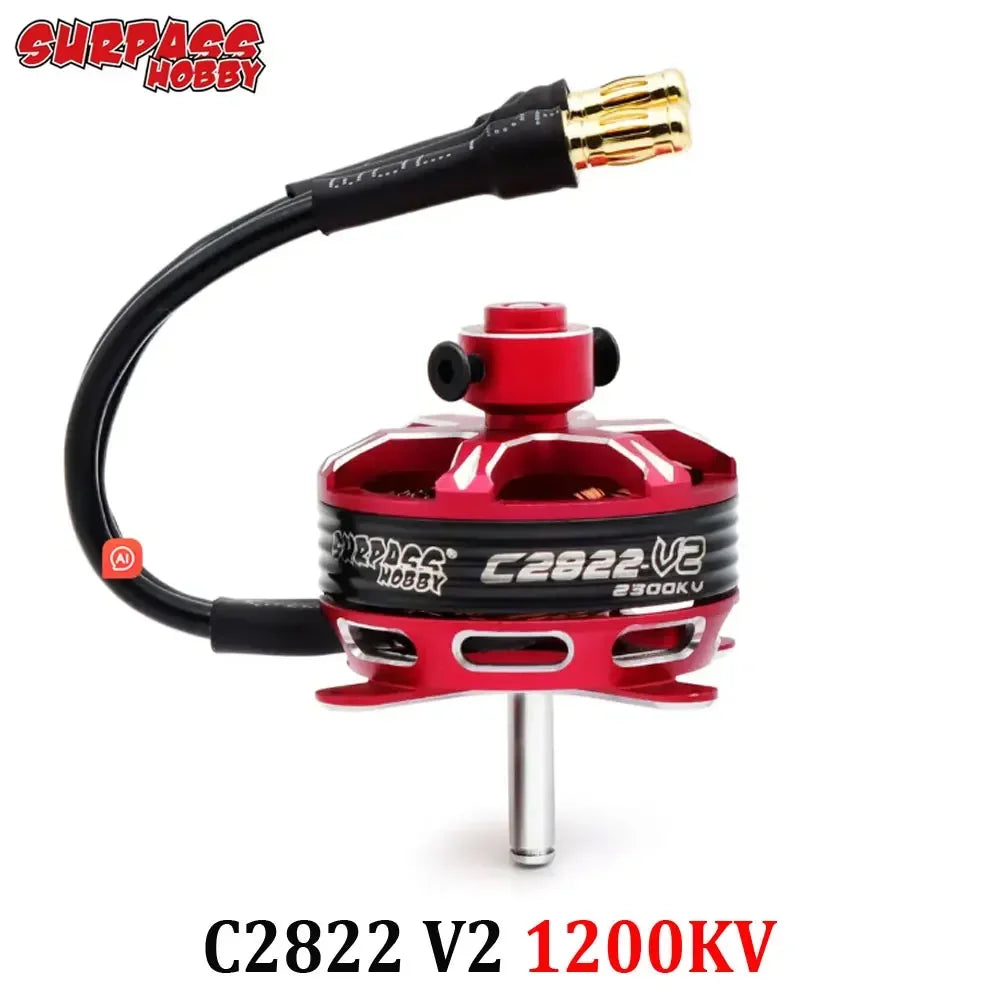

C2822-V2 KV1200 Brushless Motor:
KV(rpm/volt): 1200;
Max Watts(W): 140;
Voltage Range(V): 7-15;
Max Current(A): 11;
Rotor Poles: 14;
No load Current(A): 0.3;
Resistance(Ω): 0.368;
Motor Size(mm): φ28×20;
Stator Size(mm): φ22×04;
Weight(g): 30;
Propeller(inch): 8×5/8×6/7×5;

C2822-V2 KV1300 Brushless Motor:
KV(rpm/volt): 1300;
Max Watts(W): 150;
Voltage Range(V): 7-15;
Max Current(A): 12;
Rotor Poles: 14;
No load Current(A): 0.4;
Resistance(Ω): 0.335;
Motor Size(mm): φ28×20;
Stator Size(mm): φ22×04;
Weight(g): 30;
Propeller(inch): 7×5/8×5/8×6;

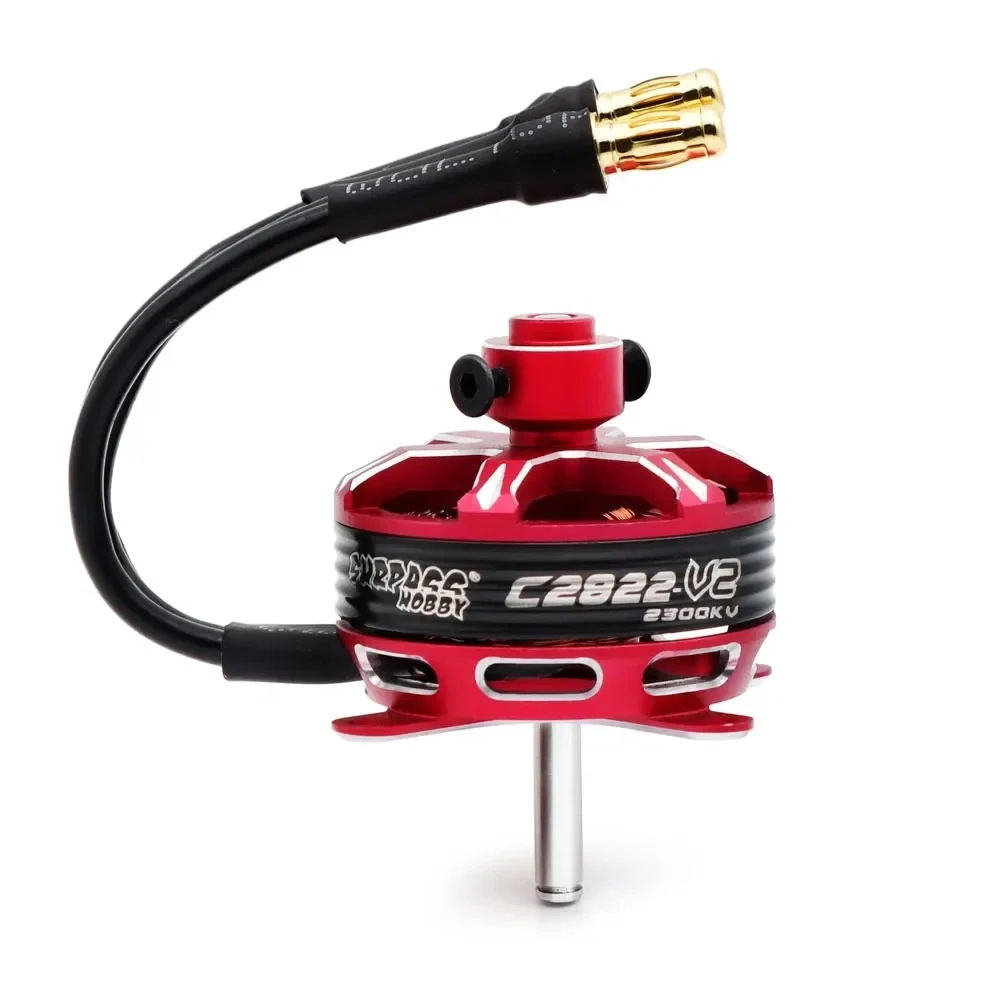

C2822-V2 KV2300 Brushless Motor:
KV(rpm/volt): 2300;
Max Watts(W): 180;
Voltage Range(V): 7-15;
Max Current(A): 18;
Rotor Poles: 14;
No load Current(A): 0.5;
Resistance(Ω): 0.125;
Motor Size(mm): φ28×20;
Stator Size(mm): φ22×04;
Weight(g): 30;
Propeller(inch): 7×5/8×5/8×6;

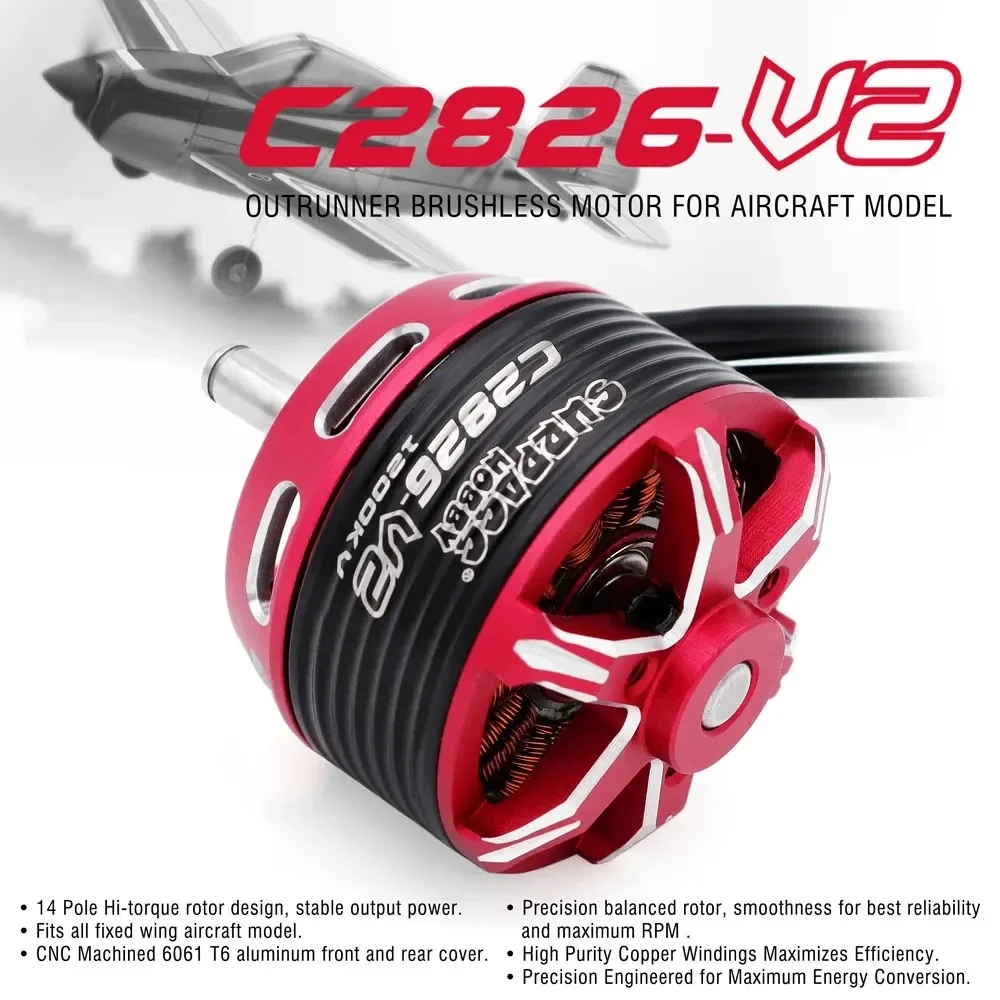

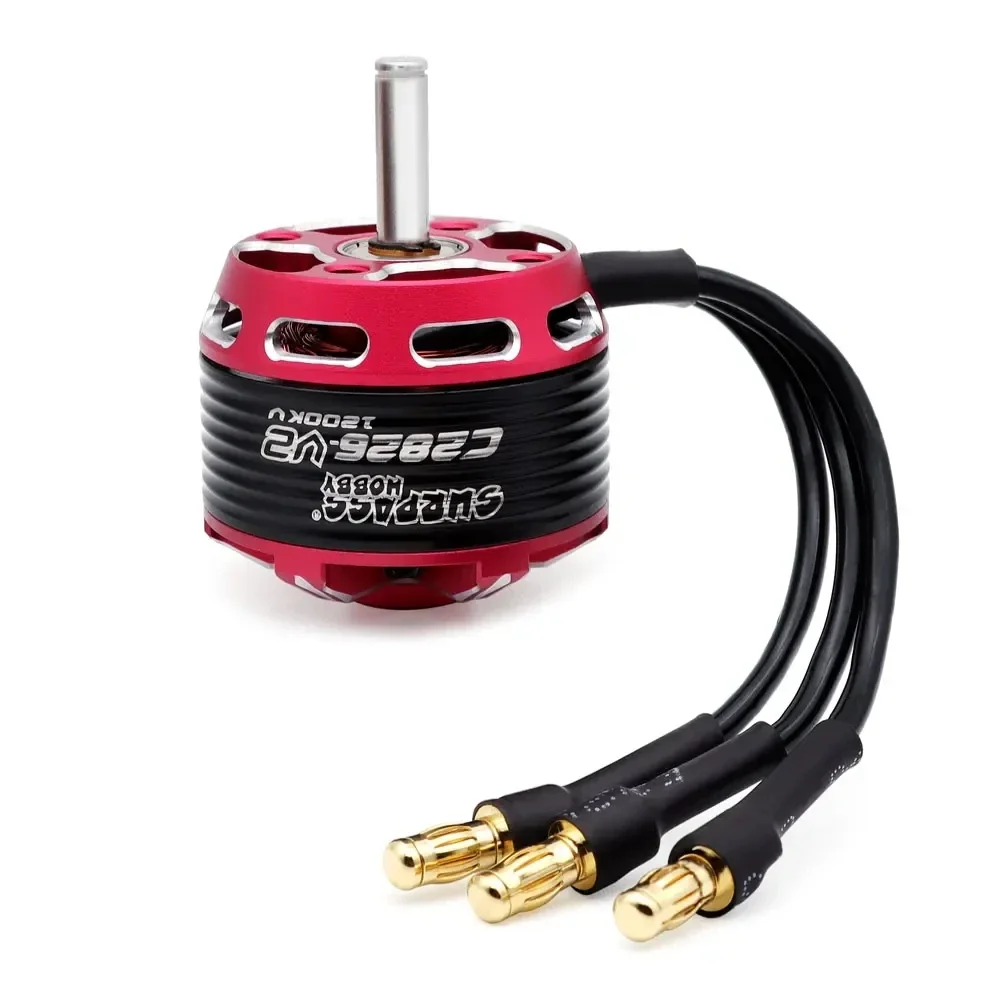

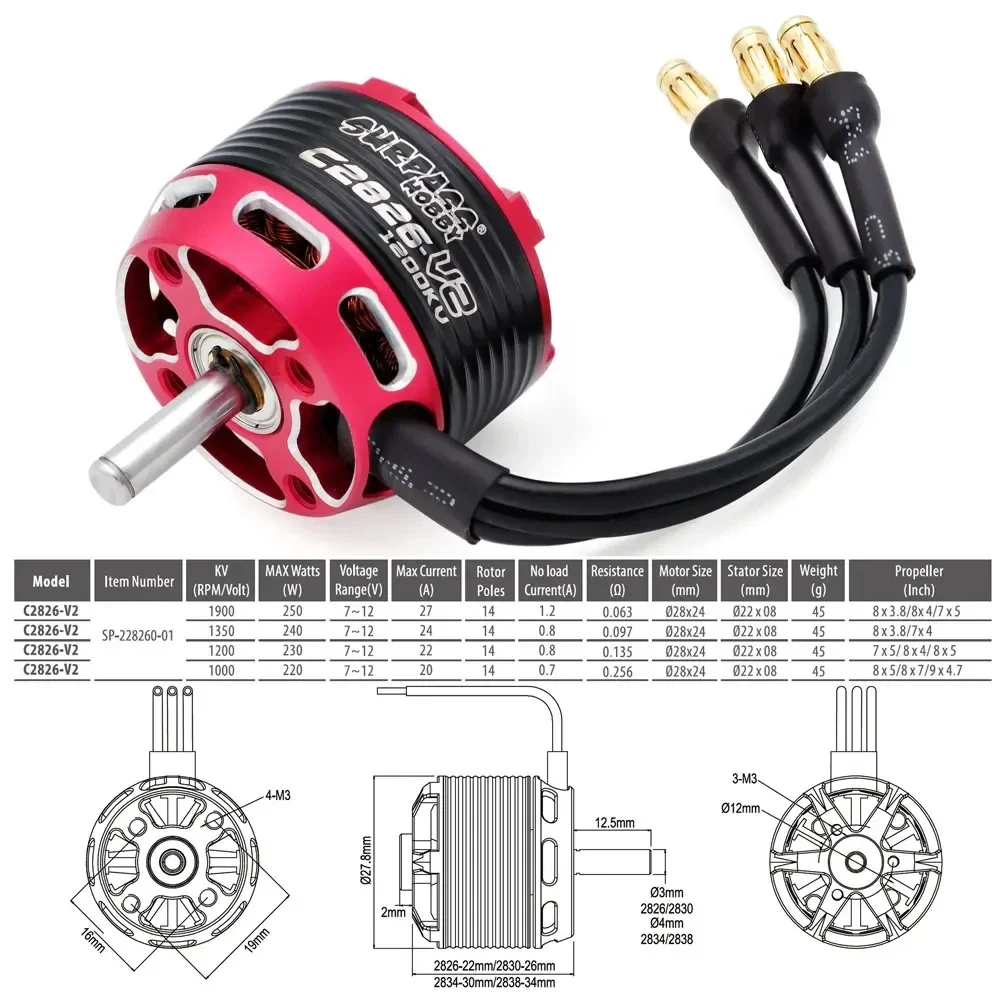

C2826-V2 KV1900 Brushless Motor:
KV(rpm/volt): 1900;
Max Watts(W): 250;
Voltage Range(V): 7-12;
Max Current(A): 27;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(Ω): 0.063;
Motor Size(mm): φ28×24;
Stator Size(mm): φ22×08;
Weight(g): 45;
Propeller(inch): 8×3.8/8×4/7×5;

C2826-V2 KV1350 Brushless Motor:
KV(rpm/volt): 1350;
Max Watts(W): 240;
Voltage Range(V): 7-12;
Max Current(A): 24;
Rotor Poles: 14;
No load Current(A): 0.8;
Resistance(Ω): 0.097;
Motor Size(mm): φ28×24;
Stator Size(mm): φ22×08;
Weight(g): 45;
Propeller(inch): 8×3.8/7×4;

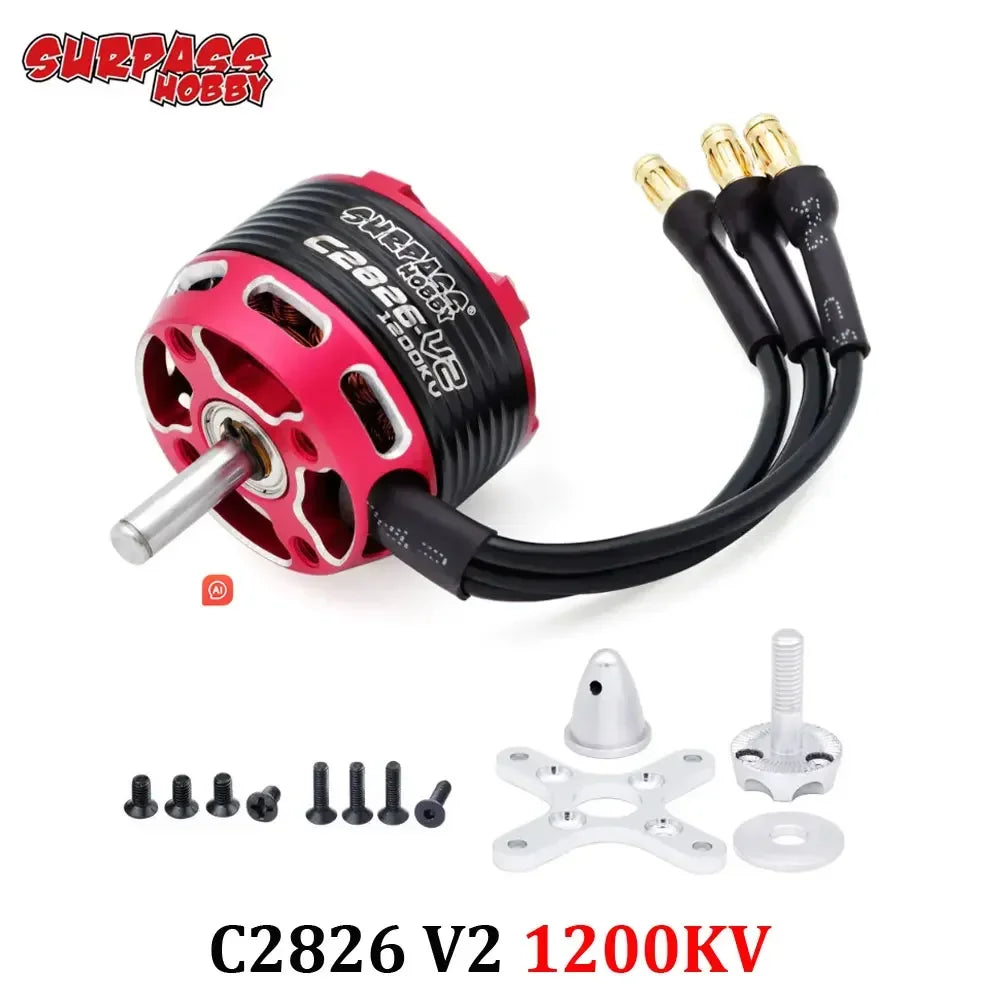

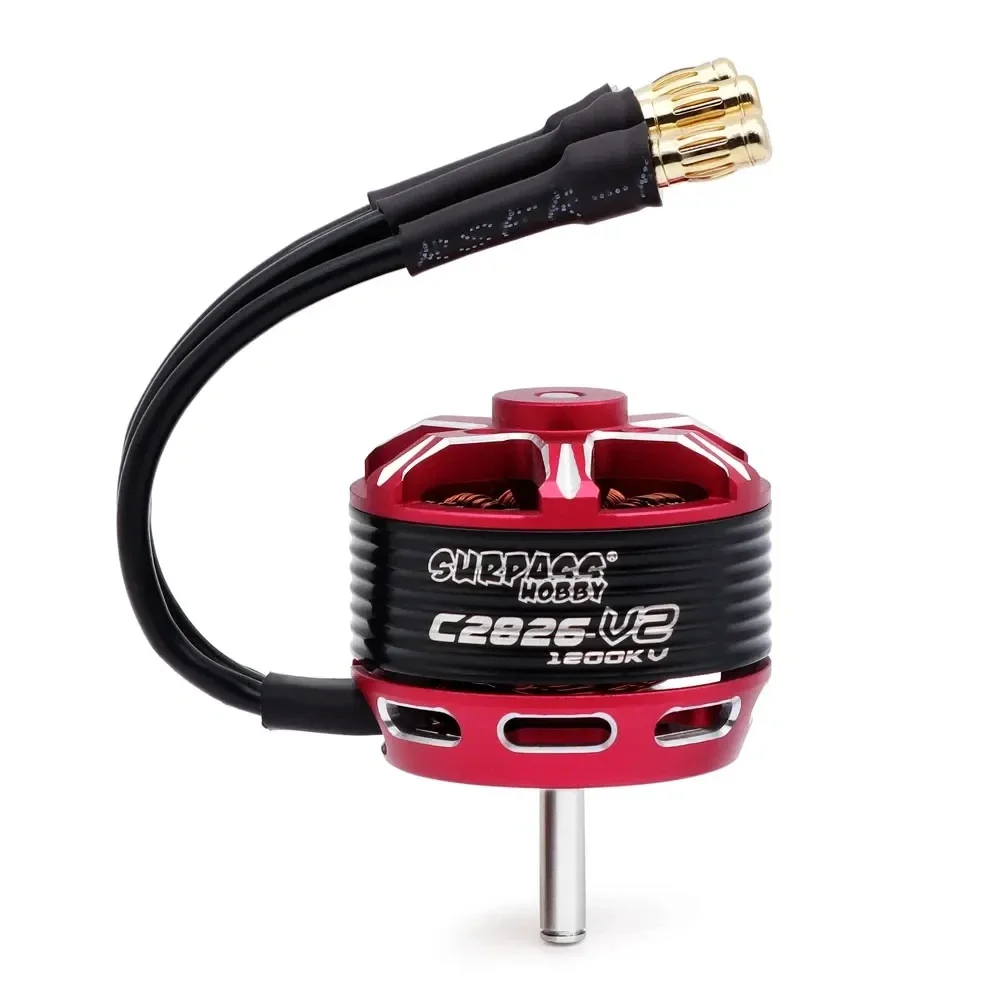

C2826-V2 KV1200 Brushless Motor:
KV(rpm/volt): 1200;
Max Watts(W): 230;
Voltage Range(V): 7-12;
Max Current(A): 22;
Rotor Poles: 14;
No load Current(A): 0.8;
Resistance(Ω): 0.135;
Motor Size(mm): φ28×24;
Stator Size(mm): φ22×08;
Weight(g): 45;
Propeller(inch): 7×5/8×4/8×5;

C2826-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 220;
Voltage Range(V): 7-12;
Max Current(A): 20;
Rotor Poles: 14;
No load Current(A): 0.7;
Resistance(Ω): 0.256;
Motor Size(mm): φ28×24;
Stator Size(mm): φ22×08;
Weight(g): 45;
Propeller(inch): 8×5/8×7/9×4.7;

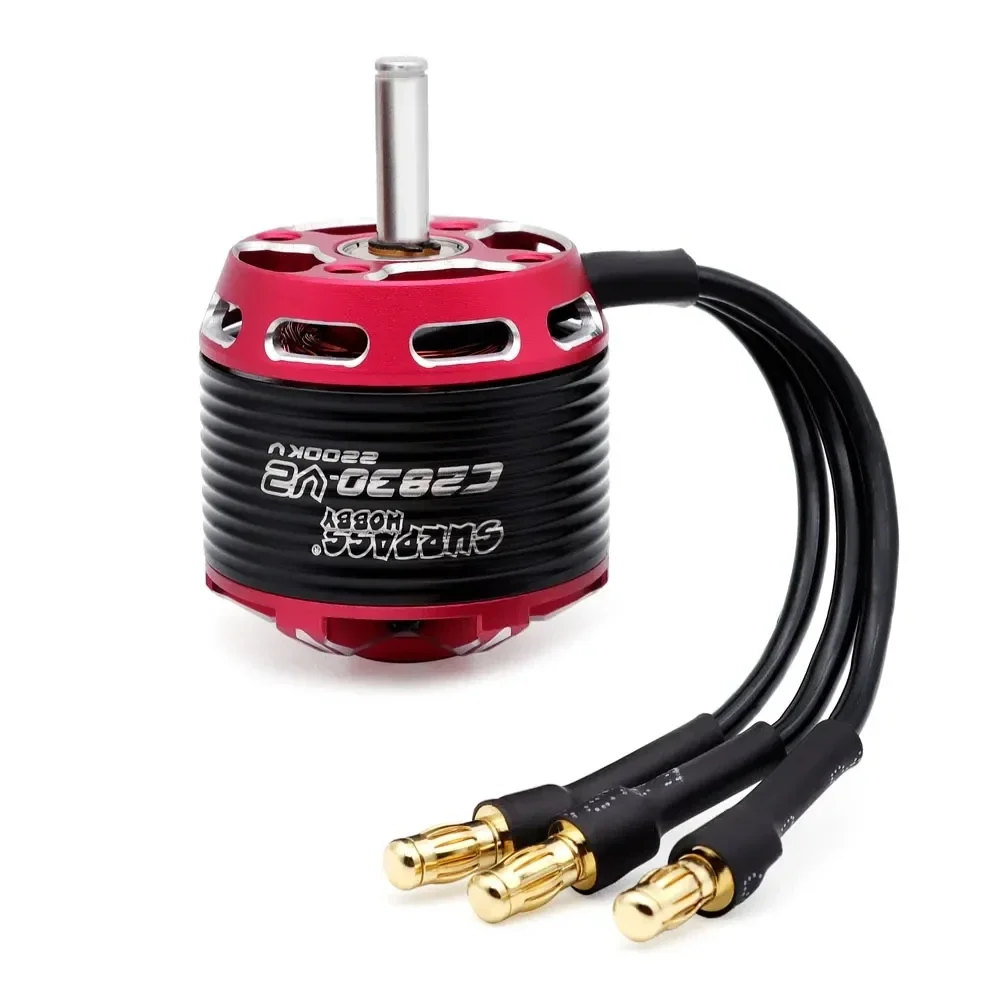

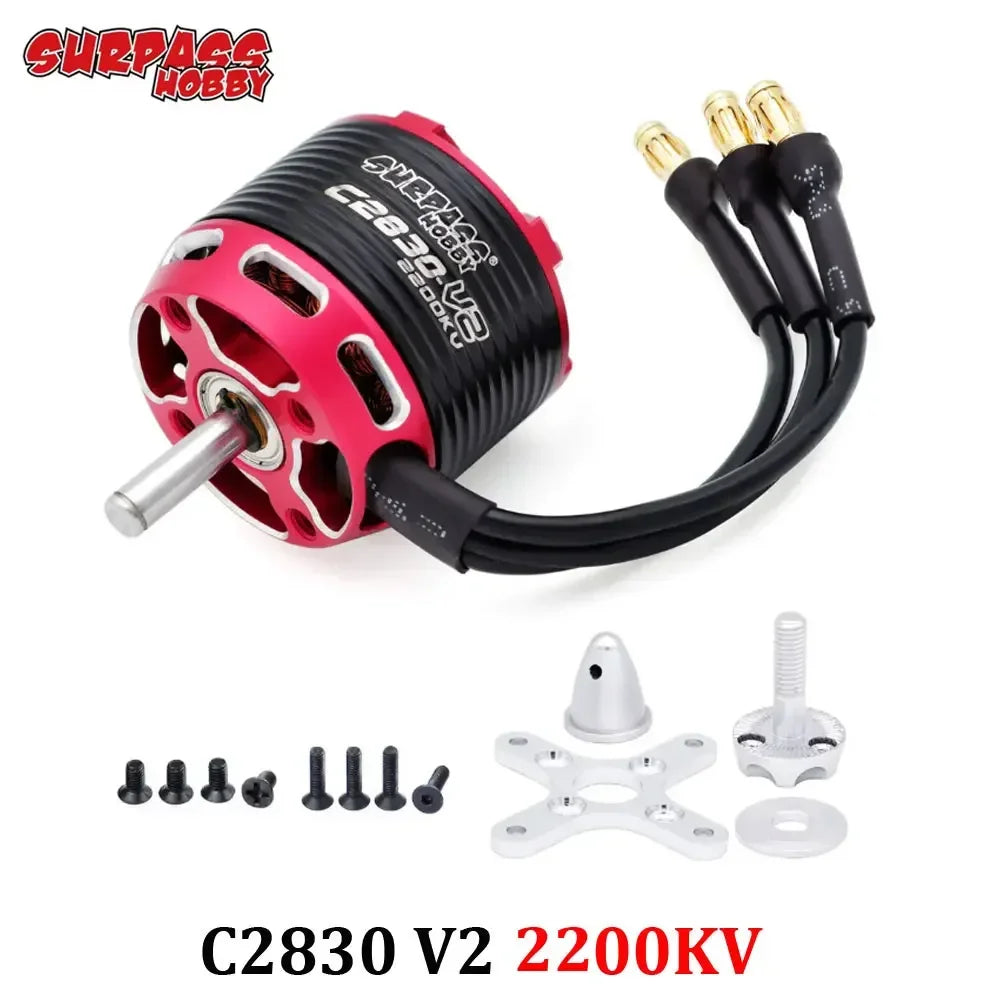

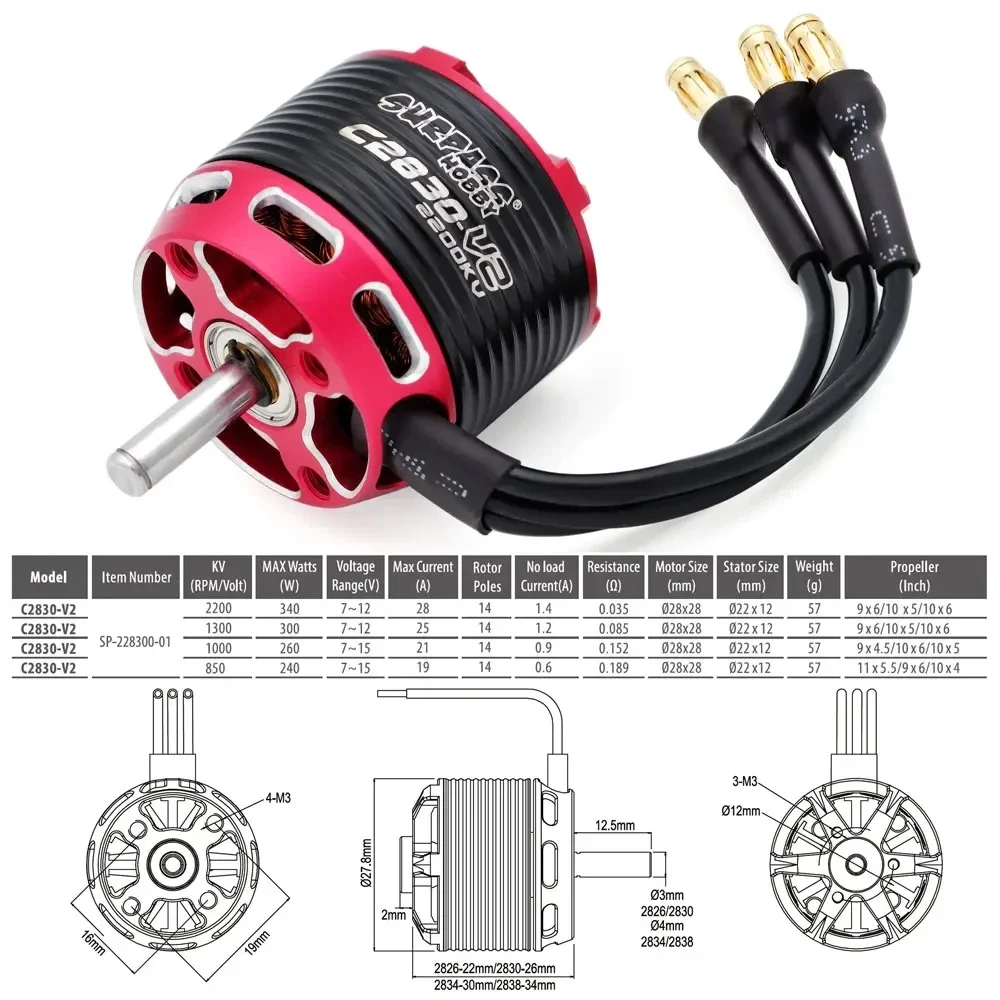

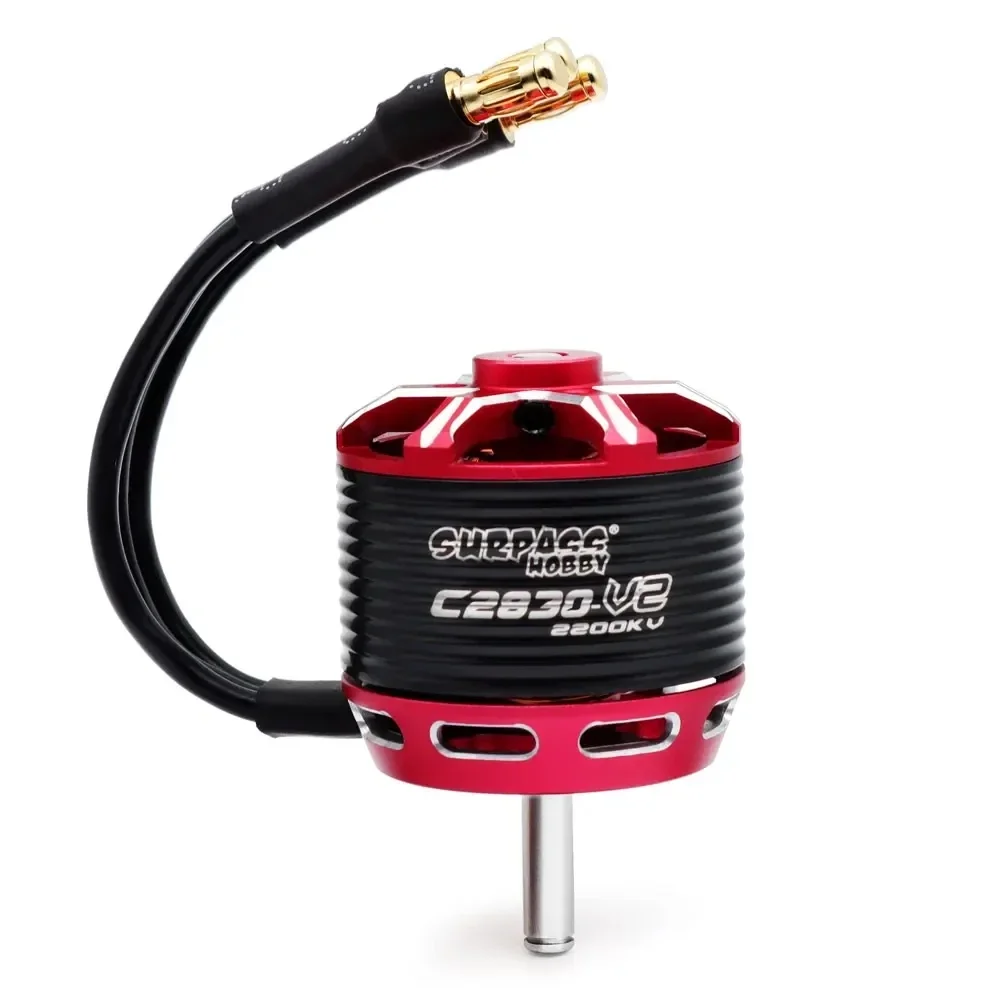

C2830-V2 KV2200 Brushless Motor:
KV(rpm/volt): 2200;
Max Watts(W): 340;
Voltage Range(V): 7-12;
Max Current(A): 28;
Rotor Poles: 14;
No load Current(A): 1.4;
Resistance(Ω): 0.035;
Motor Size(mm): φ28×28;
Stator Size(mm): φ22×12;
Weight(g): 57;
Propeller(inch): 9×6/10×5/10×6;

C2830-V2 KV1300 Brushless Motor:
KV(rpm/volt): 1300;
Max Watts(W): 300;
Voltage Range(V): 7-12;
Max Current(A): 25;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(Ω): 0.085;
Motor Size(mm): φ28×28;
Stator Size(mm): φ22×12;
Weight(g): 57;
Propeller(inch): 9×6/10×5/10×6;

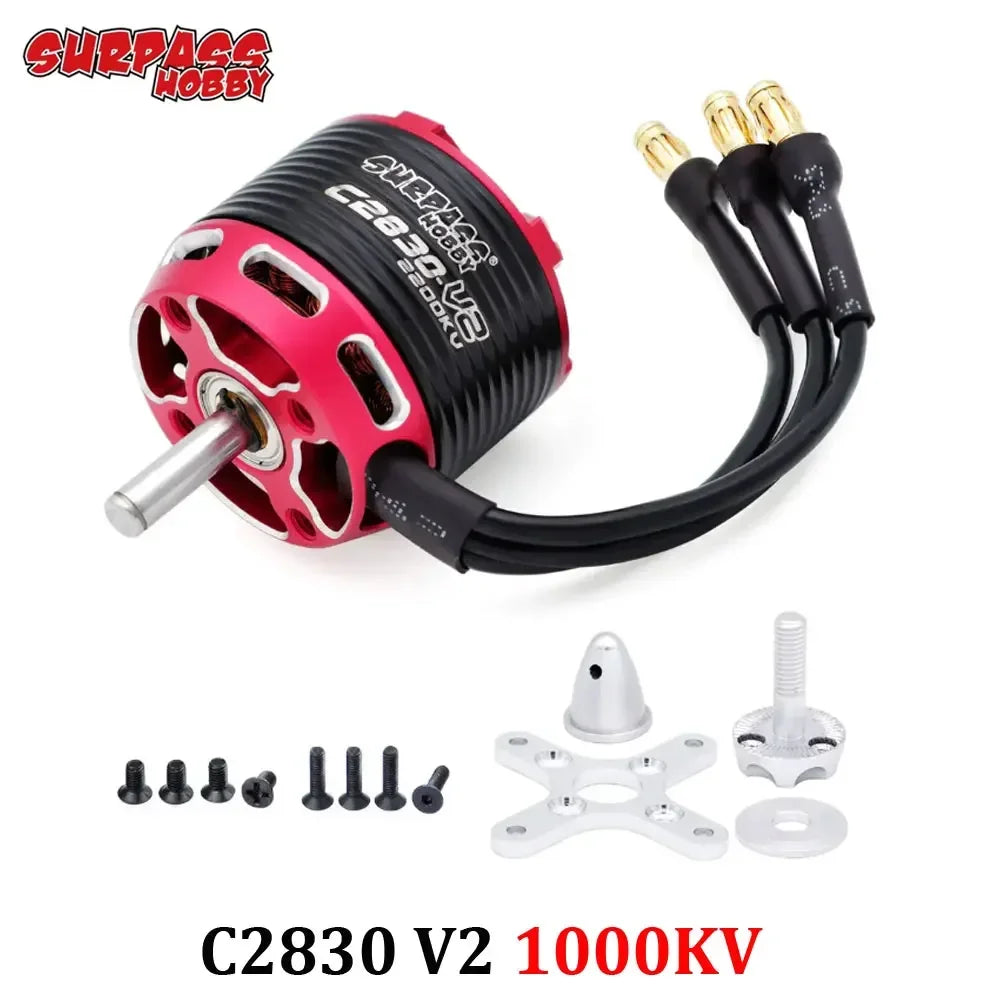

C2830-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 260;
Voltage Range(V): 7-15;
Max Current(A): 21;
Rotor Poles: 14;
No load Current(A): 0.9;
Resistance(Ω): 0.152;
Motor Size(mm): φ28×28;
Stator Size(mm): φ22×12;
Weight(g): 57;
Propeller(inch): 9×4.5/10×6/10×5;

C2830-V2 KV850 Brushless Motor:
KV(rpm/volt): 850;
Max Watts(W): 240;
Voltage Range(V): 7-15;
Max Current(A): 19;
Rotor Poles: 14;
No load Current(A): 0.6;
Resistance(Ω): 0.189;
Motor Size(mm): φ28×28;
Stator Size(mm): φ22×12;
Weight(g): 57;
Propeller(inch): 11×5.5/9×6/10×4;

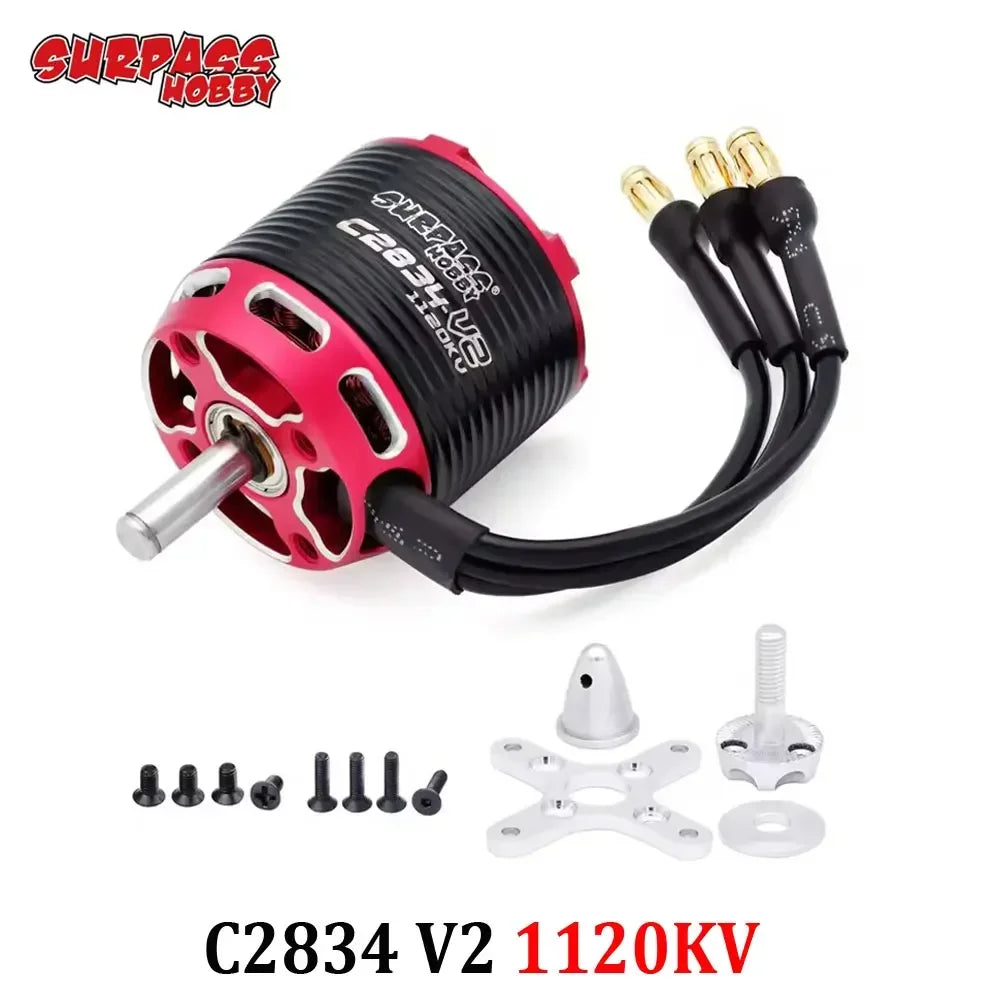

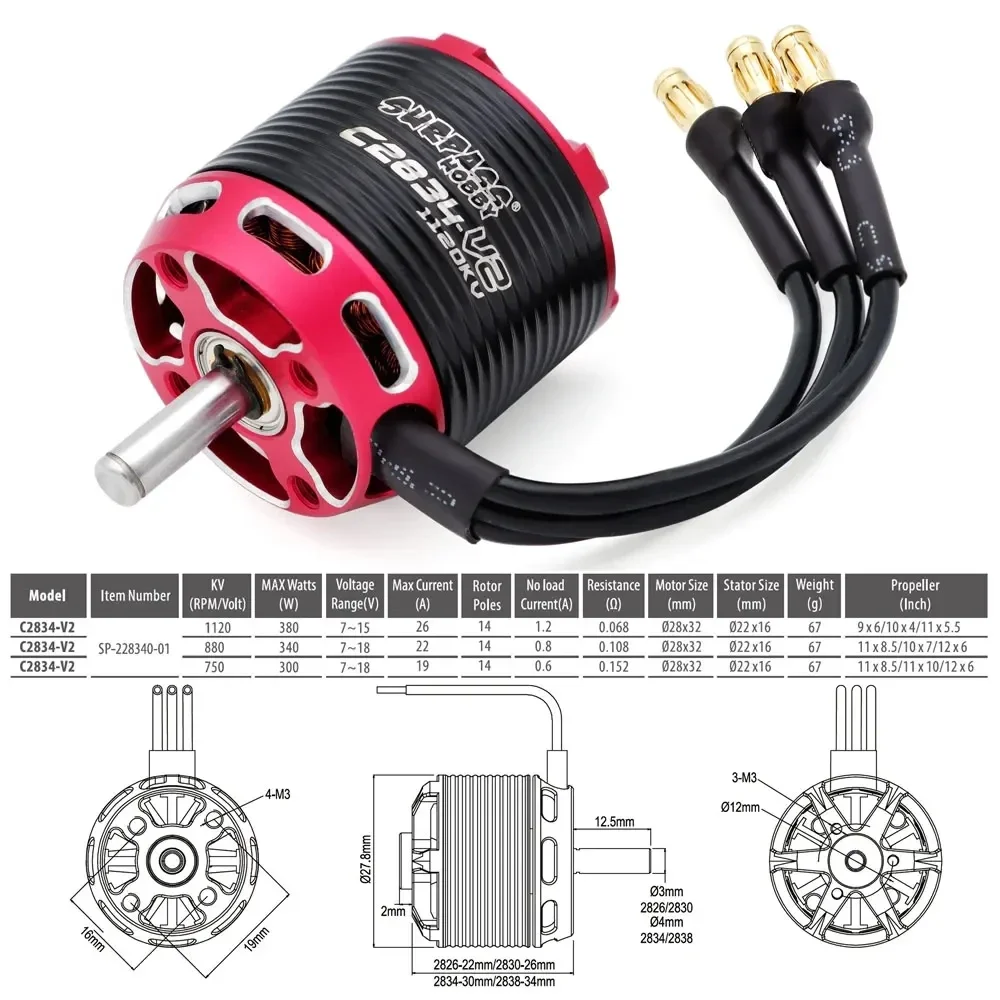

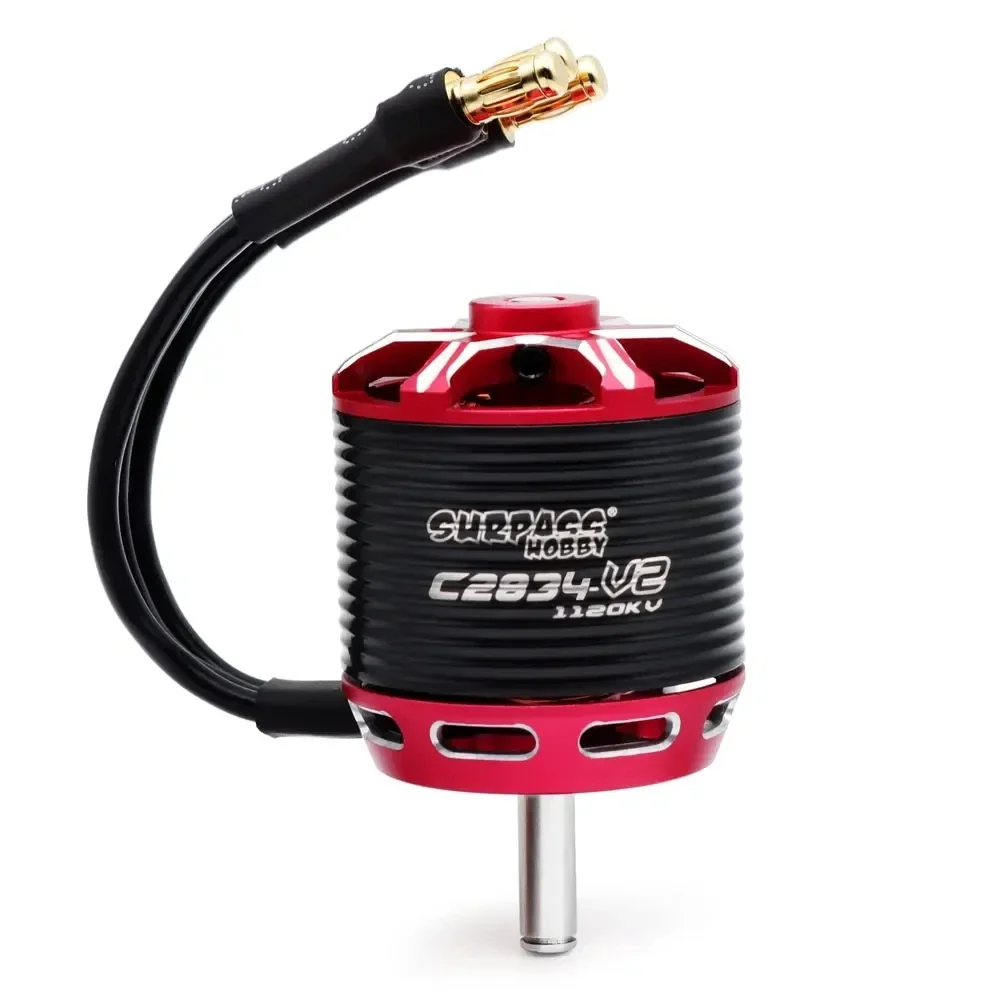

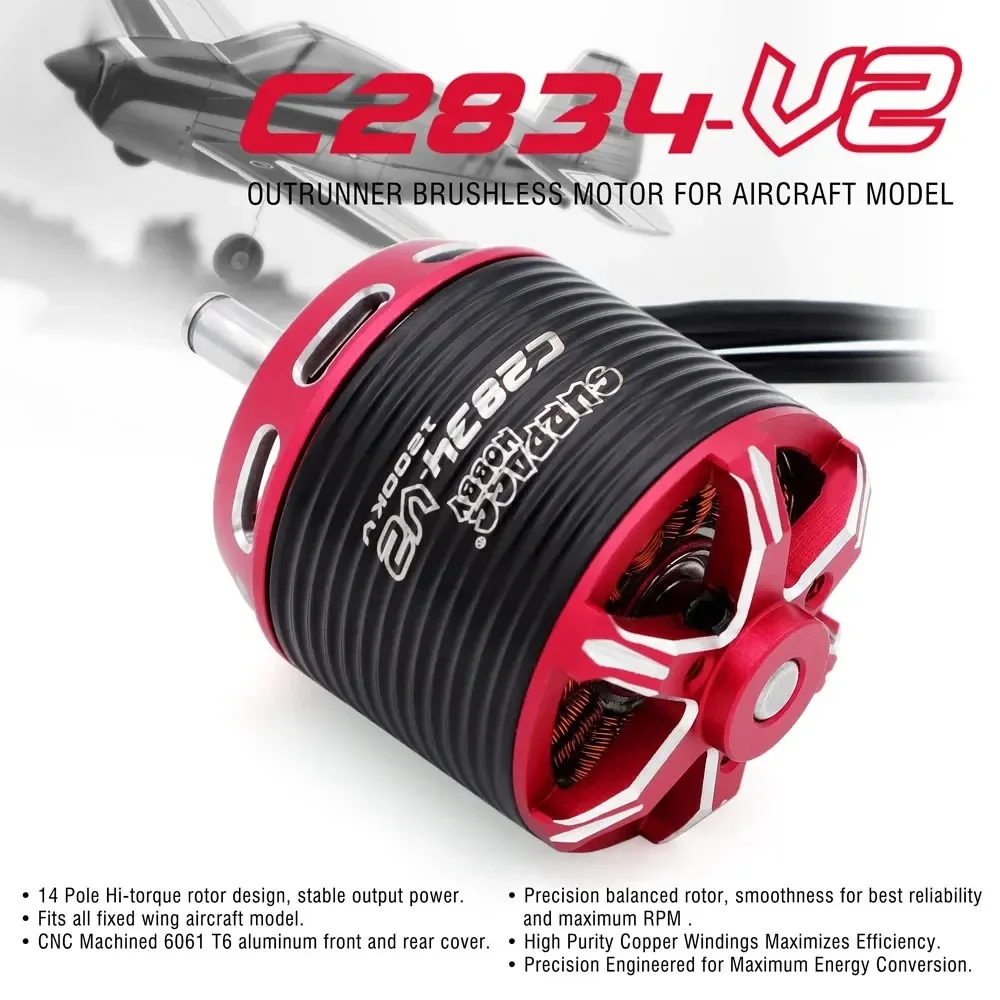

C2834-V2 KV1120 Brushless Motor:
KV(rpm/volt): 1120;
Max Watts(W): 380;
Voltage Range(V): 7-15;
Max Current(A): 26;
Rotor Poles: 14;
No load Current(A): 1.2;
Resistance(Ω): 0.068;
Motor Size(mm): φ28×32;
Stator Size(mm): φ22×16;
Weight(g): 67;
Propeller(inch): 9×6/10×4/11×5.5;

C2834-V2 KV880 Brushless Motor:
KV(rpm/volt): 880;
Max Watts(W): 340;
Voltage Range(V): 7-18;
Max Current(A): 22;
Rotor Poles: 14;
No load Current(A): 0.8;
Resistance(Ω): 0.108;
Motor Size(mm): φ28×32;
Stator Size(mm): φ22×16;
Weight(g): 67;
Propeller(inch): 11×8.5/10×7/12×6;

C2834-V2 KV750 Brushless Motor:
KV(rpm/volt): 750;
Max Watts(W): 300;
Voltage Range(V): 7-18;
Max Current(A): 19;
Rotor Poles: 14;
No load Current(A): 0.6;
Resistance(Ω): 0.152;
Motor Size(mm): φ28×32;
Stator Size(mm): φ22×16;
Weight(g): 67;
Propeller(inch): 11×8.5/11×10/12×6;

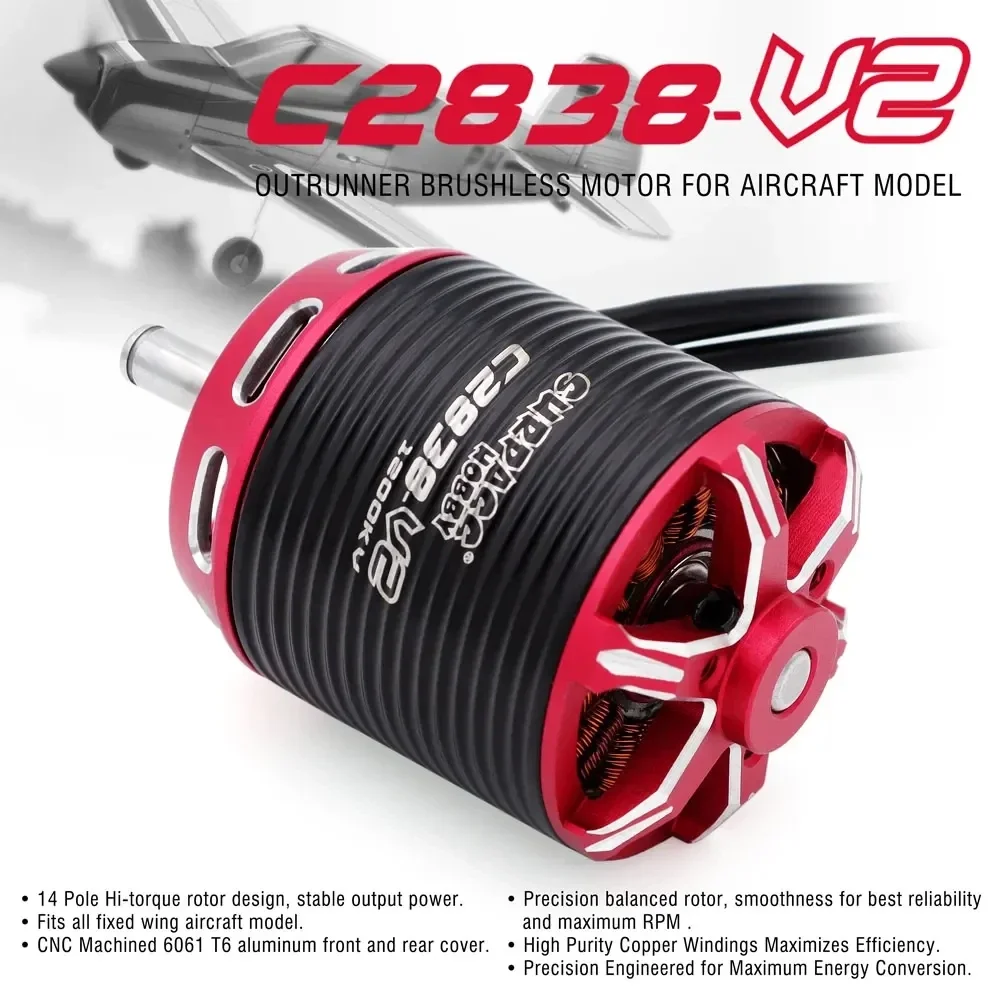

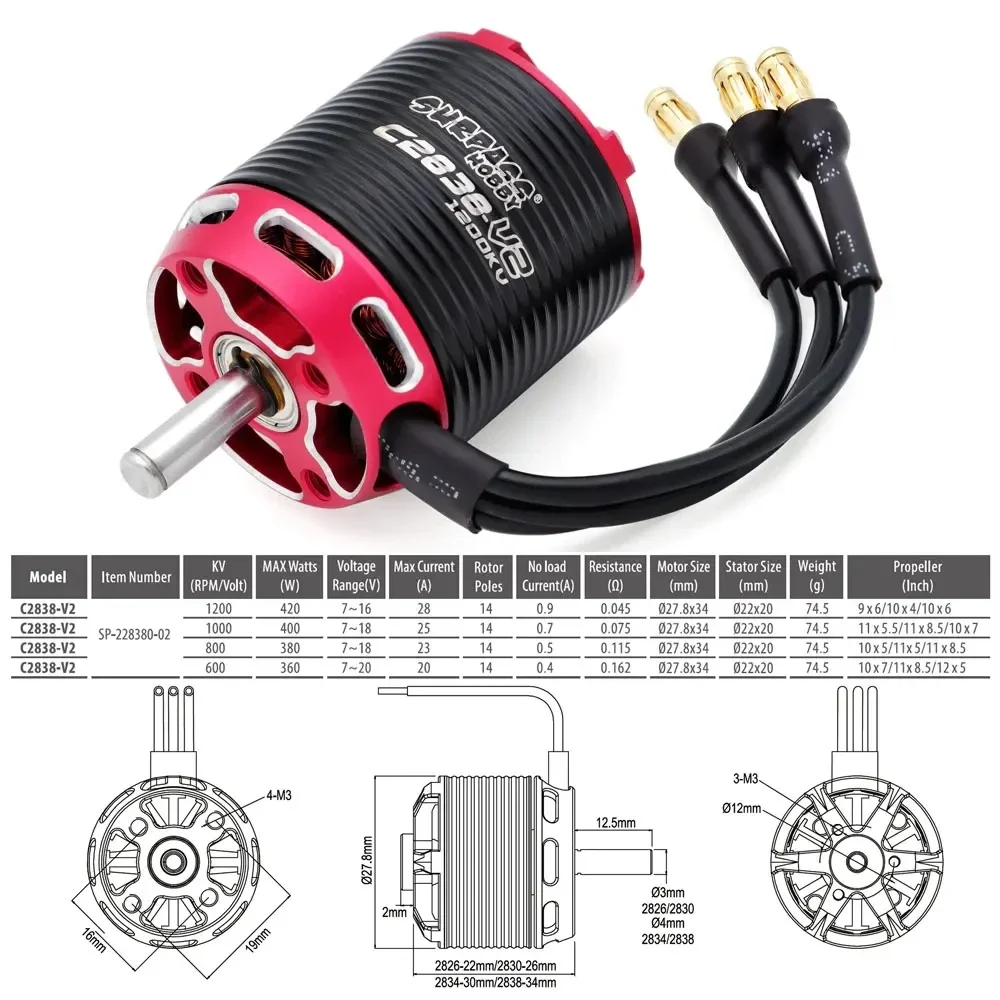

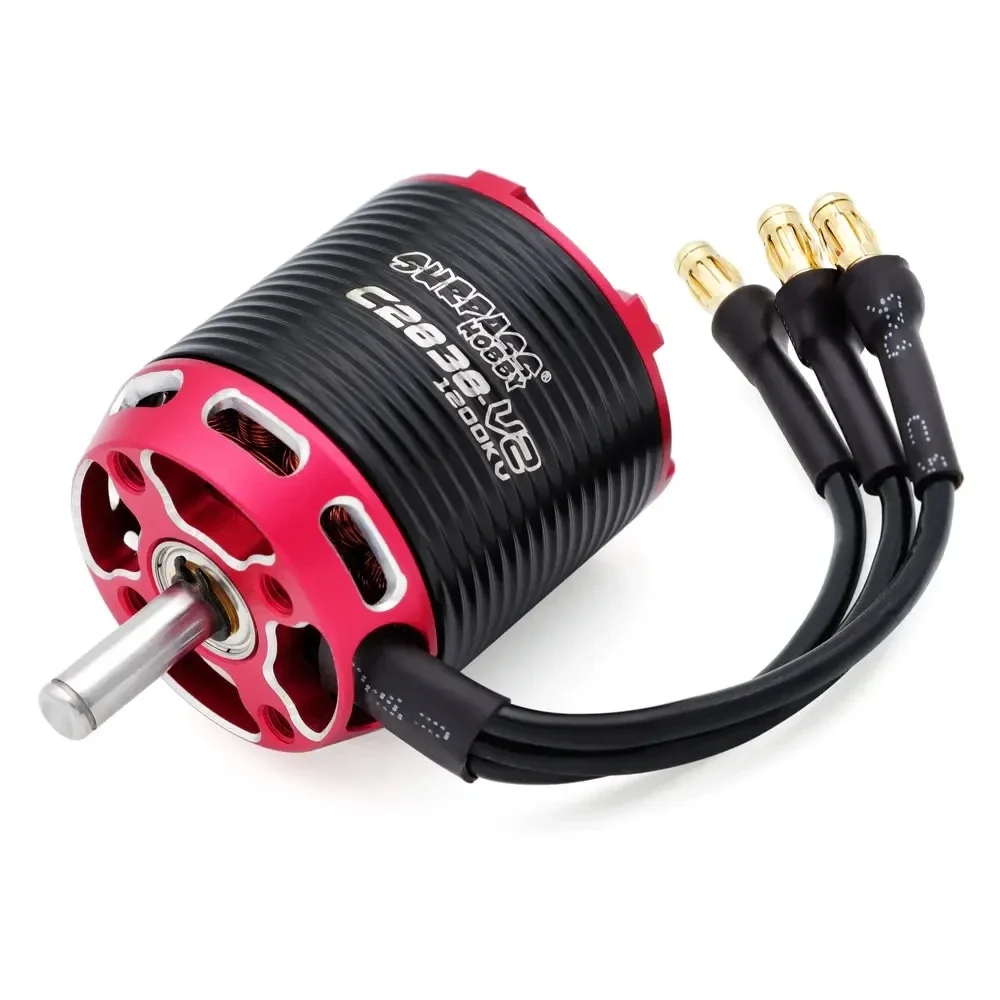

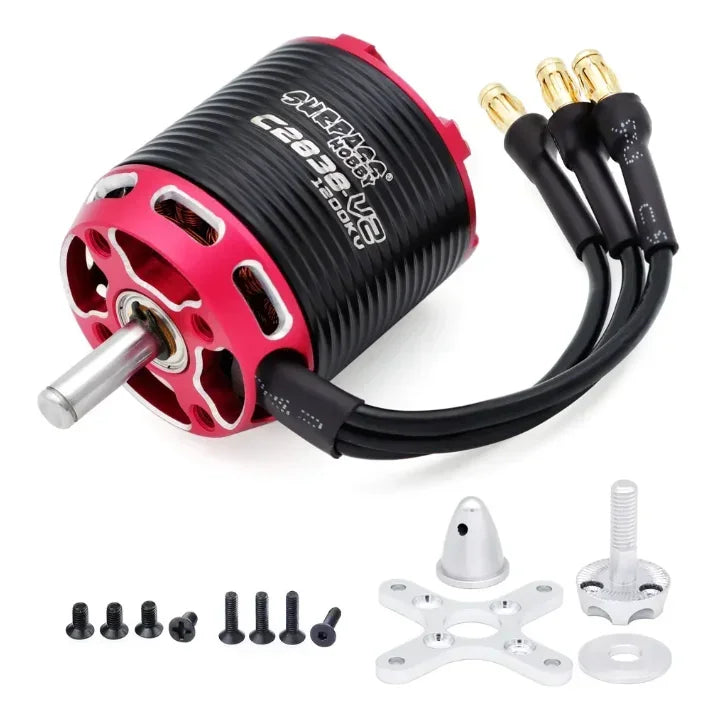

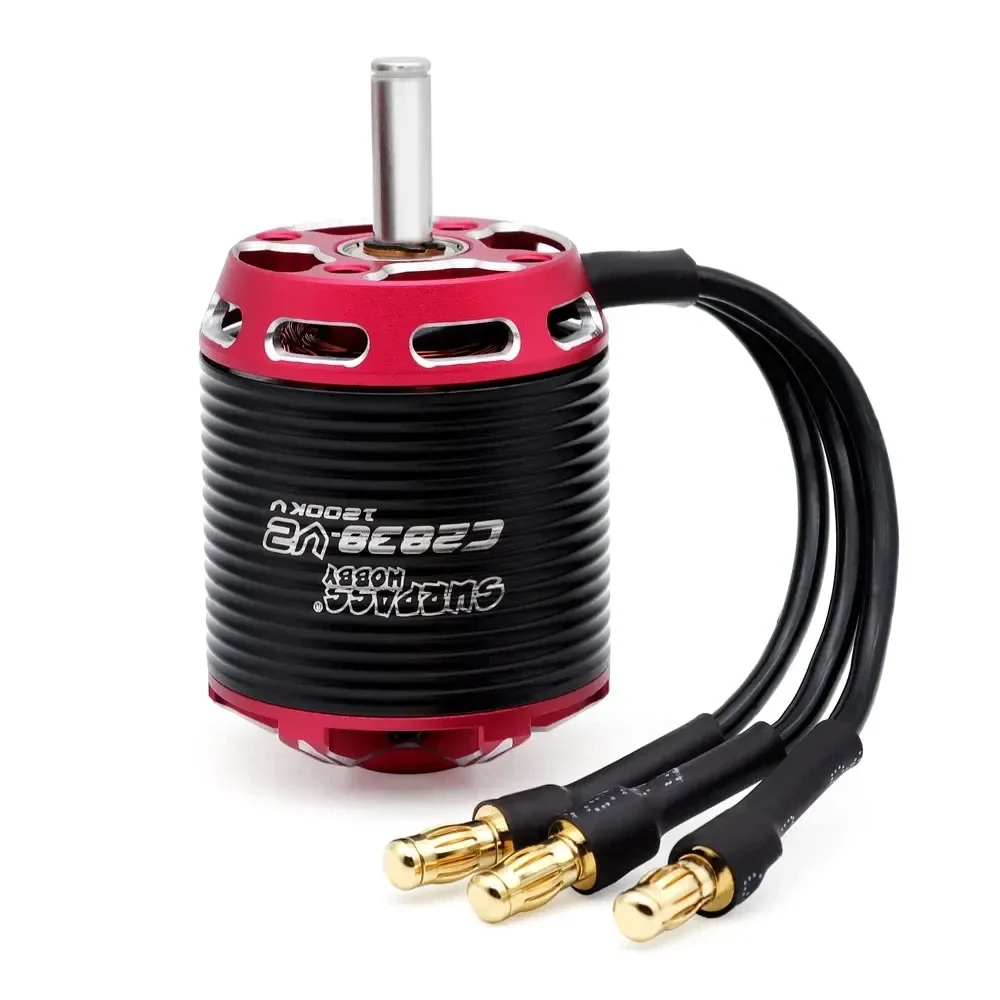

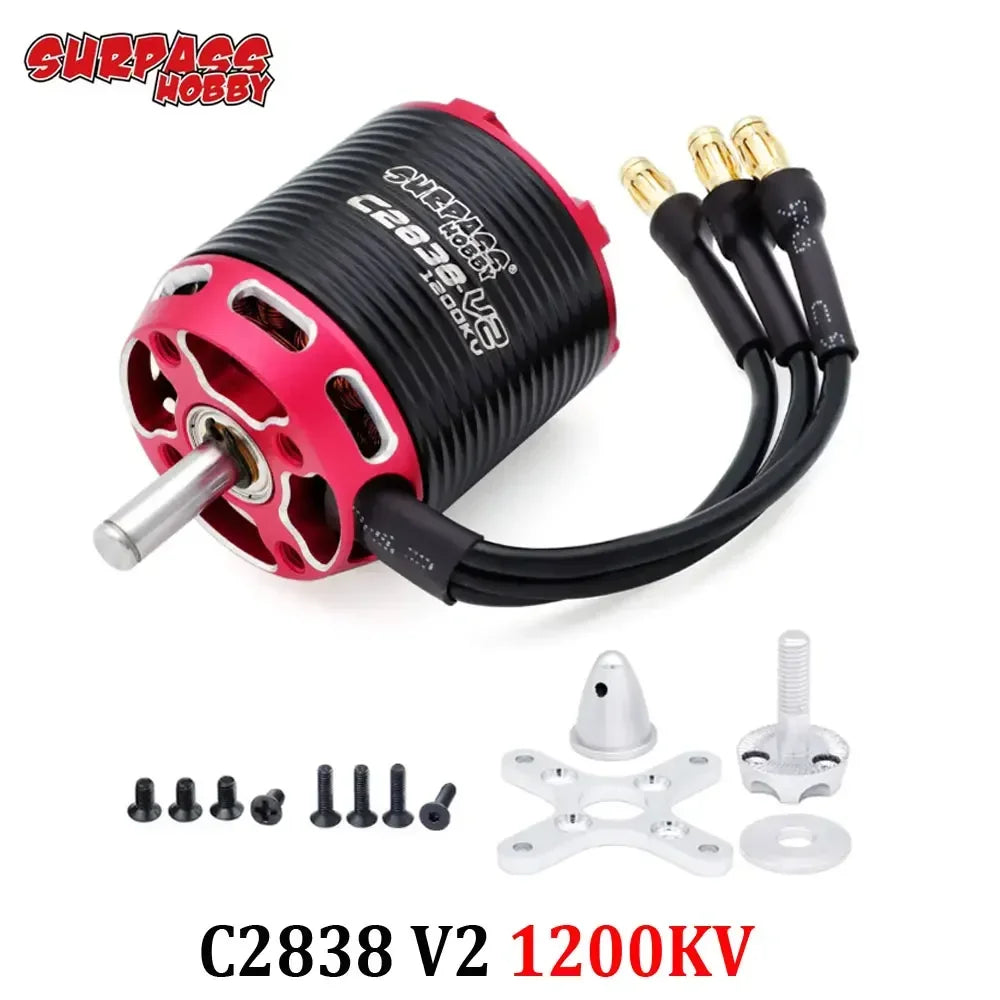

C2838-V2 KV1200 Brushless Motor:
KV(rpm/volt): 1200;
Max Watts(W): 420;
Voltage Range(V): 7-16;
Max Current(A): 28;
Rotor Poles: 14;
No load Current(A): 0.9;
Resistance(Ω): 0.045;
Motor Size(mm): φ27.8×34;
Stator Size(mm): φ22×20;
Weight(g): 74.5;
Propeller(inch): 9×6/10×4/10×6;

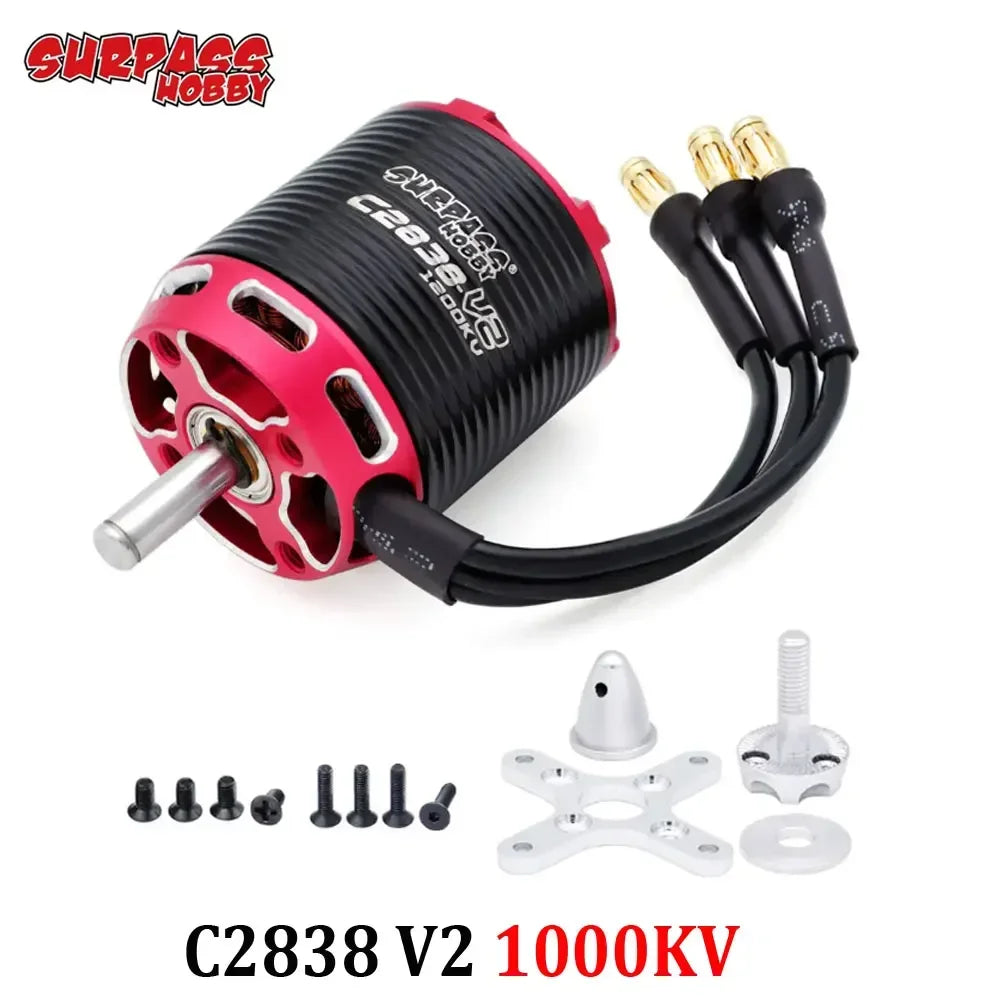

C2838-V2 KV1000 Brushless Motor:
KV(rpm/volt): 1000;
Max Watts(W): 400;
Voltage Range(V): 7-18;
Max Current(A): 25;
Rotor Poles: 14;
No load Current(A): 0.7;
Resistance(Ω): 0.075;
Motor Size(mm): φ27.8×34;
Stator Size(mm): φ22×20;
Weight(g): 74.5;
Propeller(inch): 11×5.5/11×8.5/10×7;

C2838-V2 KV800 Brushless Motor:
KV(rpm/volt): 800;
Max Watts(W): 380;
Voltage Range(V): 7-18;
Max Current(A): 23;
Rotor Poles: 14;
No load Current(A): 0.5;
Resistance(Ω): 0.115;
Motor Size(mm): φ27.8×34;
Stator Size(mm): φ22×20;
Weight(g): 74.5;
Propeller(inch): 10×5/11×5/11×8.5;

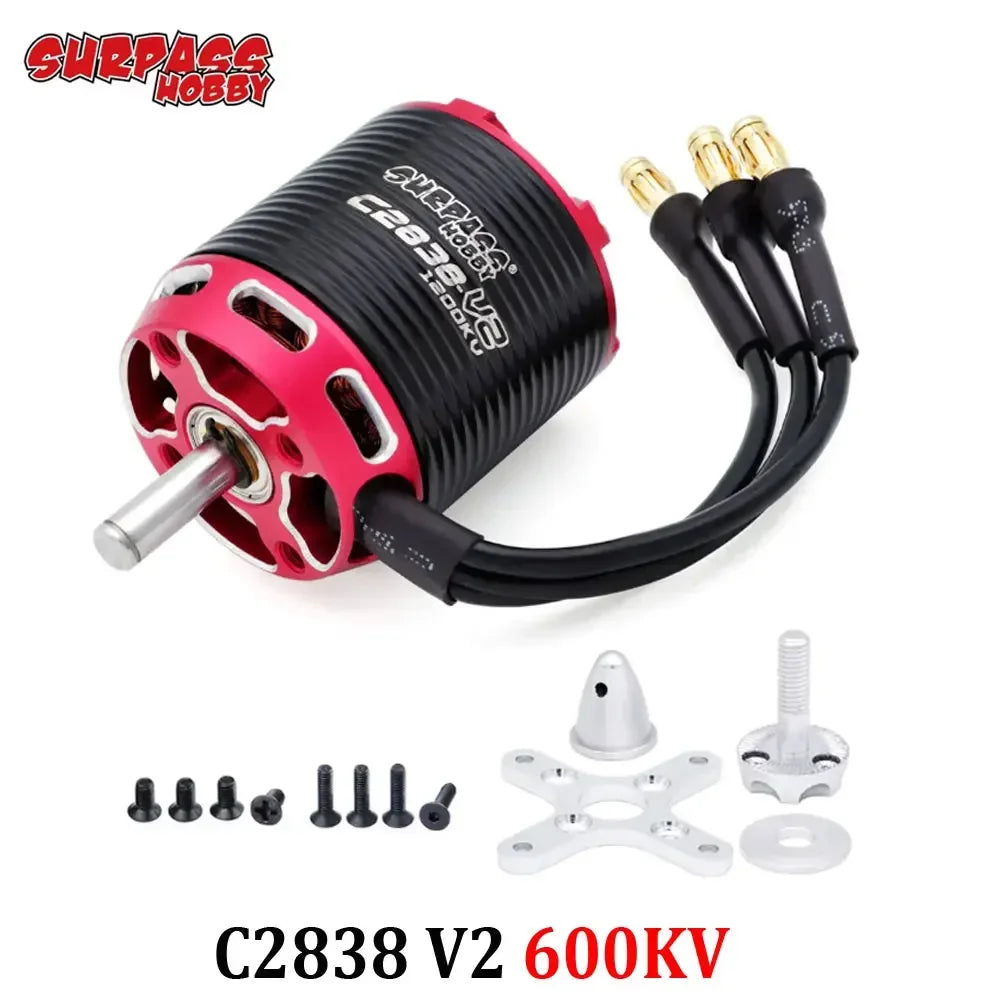

C2838-V2 KV600 Brushless Motor:
KV(rpm/volt): 600;
Max Watts(W): 360;
Voltage Range(V): 7-20;
Max Current(A): 20;
Rotor Poles: 14;
No load Current(A): 0.4;
Resistance(Ω): 0.162;
Motor Size(mm): φ27.8×34;
Stator Size(mm): φ22×20;
Weight(g): 74.5;
Propeller(inch): 10×7/11×8.5/12×5;
