SEQURE M10 Second-generation GPS Fast Positioning Betaflight INVA Ardupilot Fixed-wing Racing Drone FPV Return QMC5883 Compass
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Package included:
-
GPS×1
-
Cable×1
Product Description:

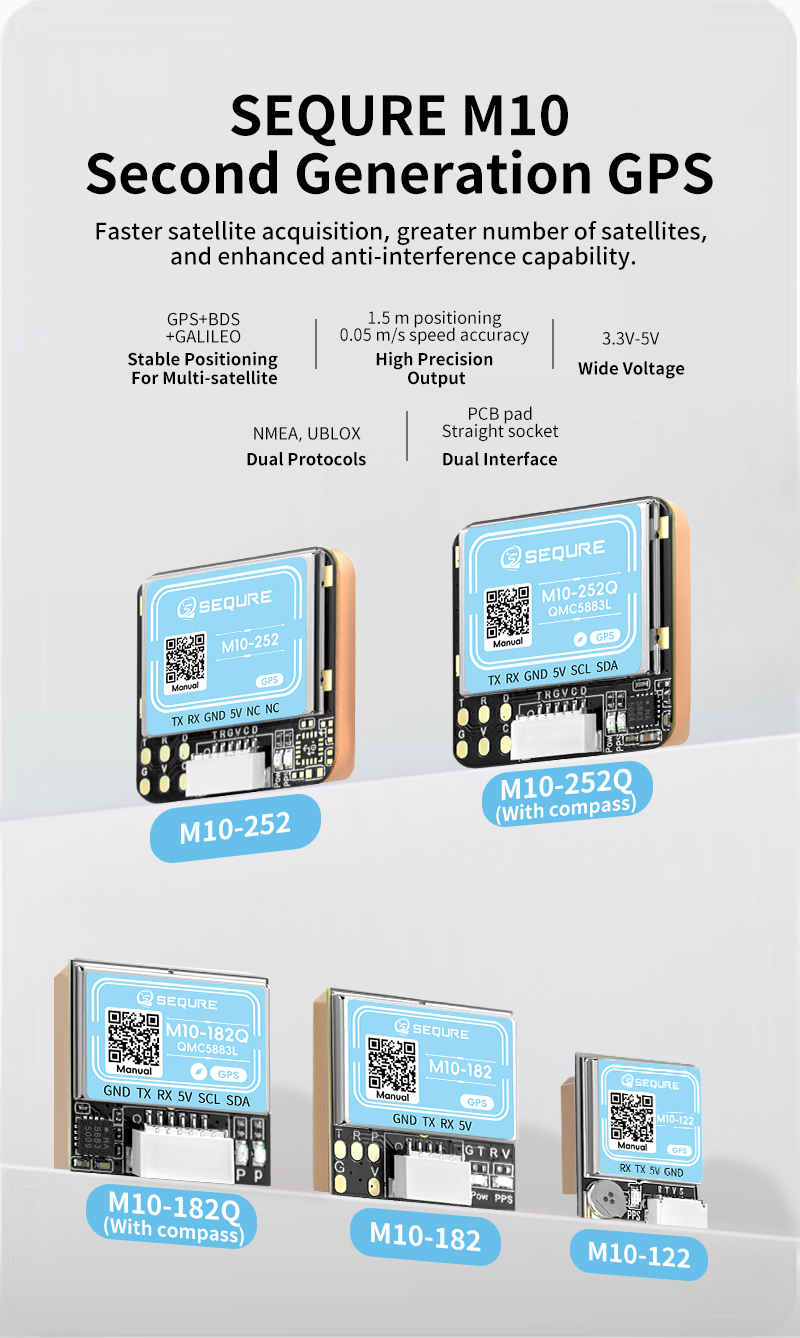

(1) SEQURE M10 second-generation GPS is designed with a 10th-generation chip optimization solution and GPS+BDS+GALILEO positioning system, supporting NMEA/UBLOX protocol. It has a faster positioning speed and stronger anti-interference.
(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.

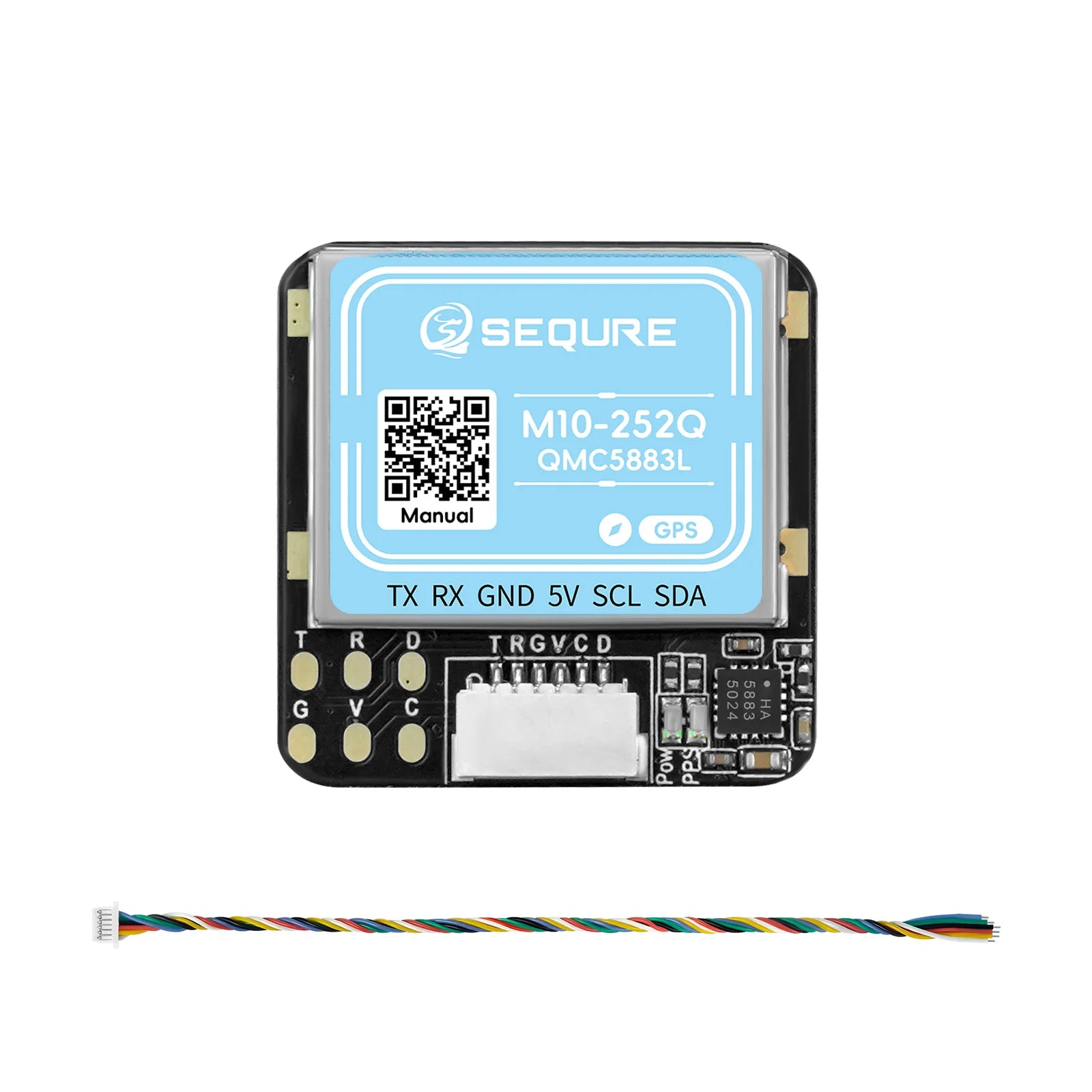

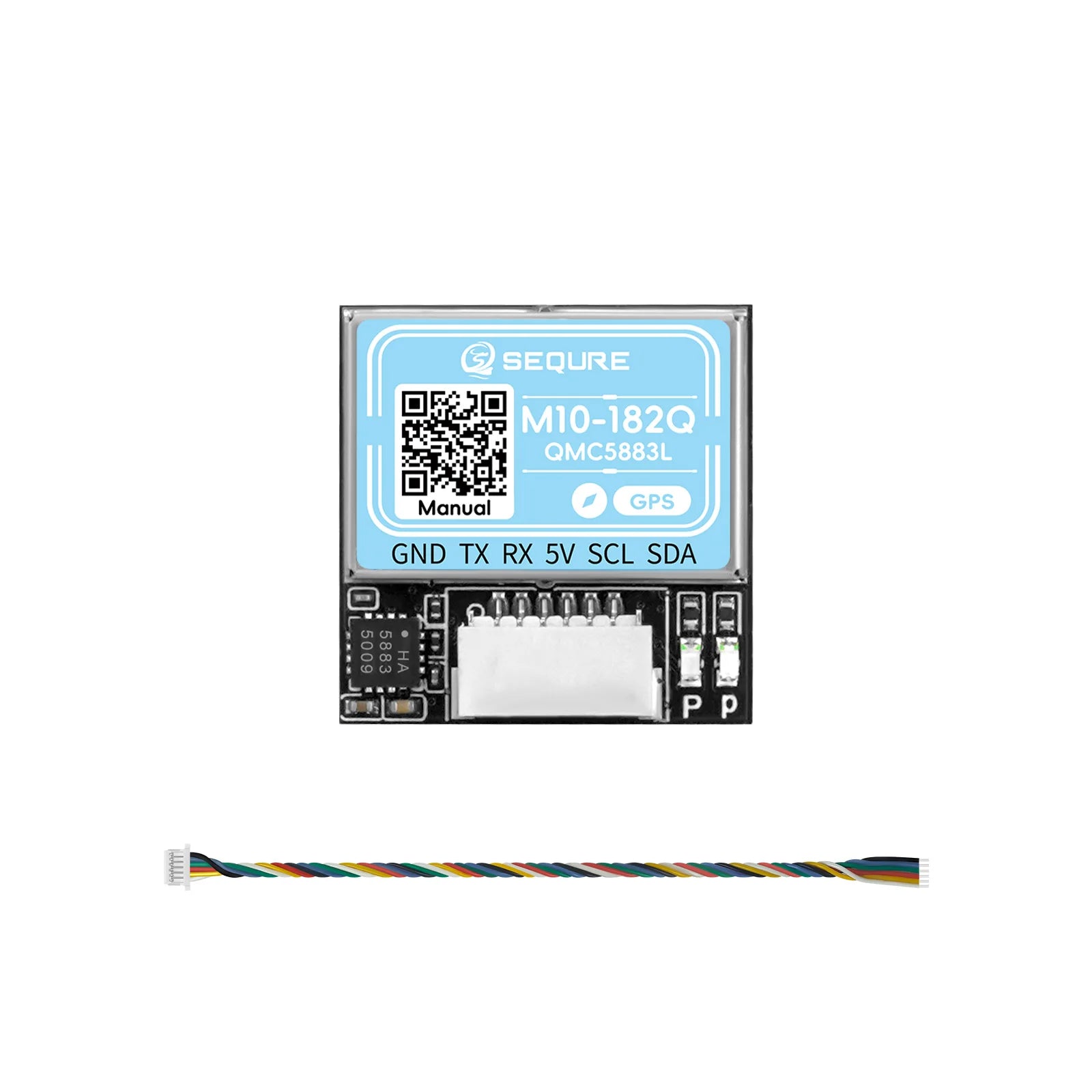

(3) M10-182Q, M10-252Q respectively integrate QMC5883 compass for a wider range of applications
(4) Miniaturization multi-specification design for easy installation, accommodating drones of various sizes available on the market.

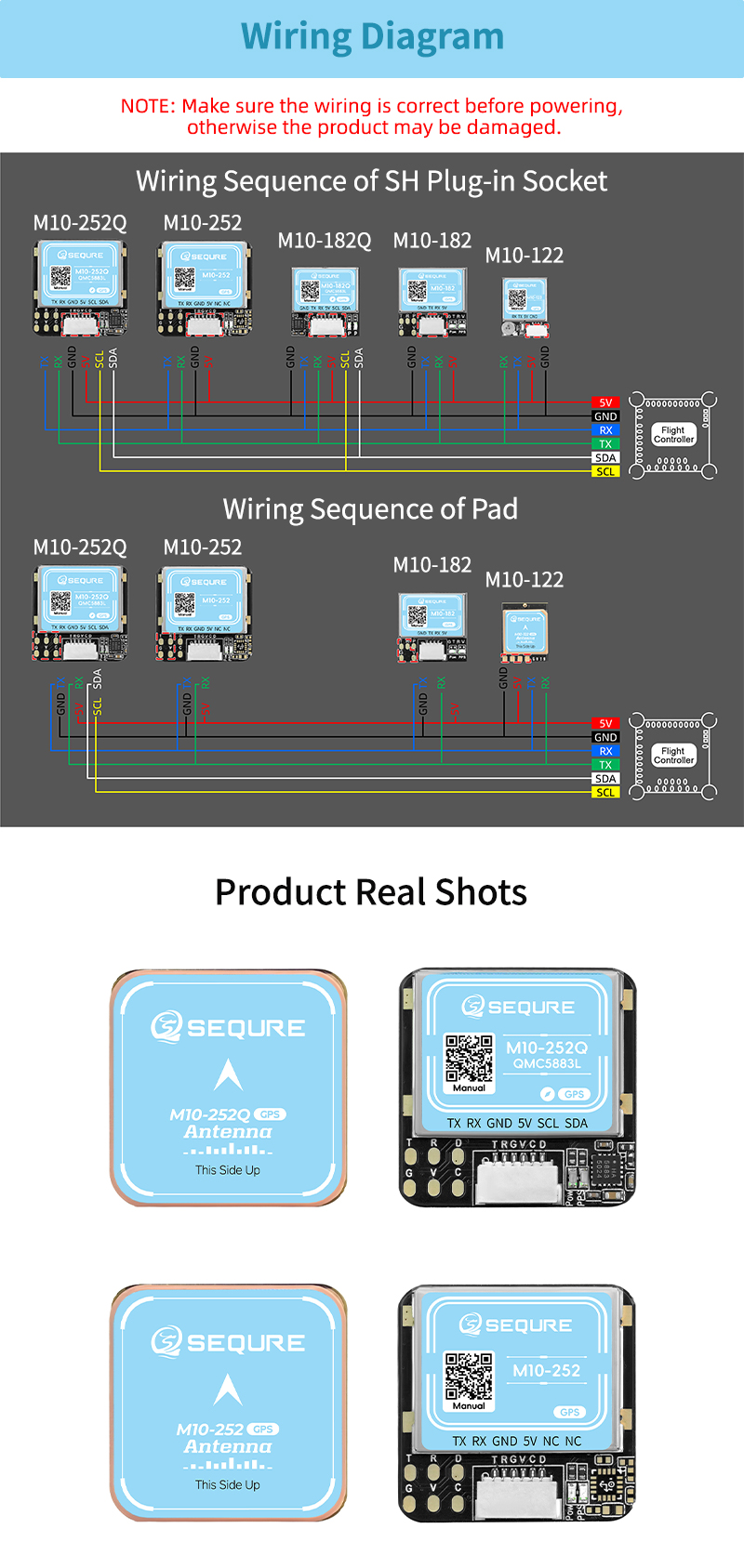

(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.
(6) The full range of GPS is compatible with a variety of mainstream FC firmware on the market: Betaflight, INVA, Ardupilot, etc.

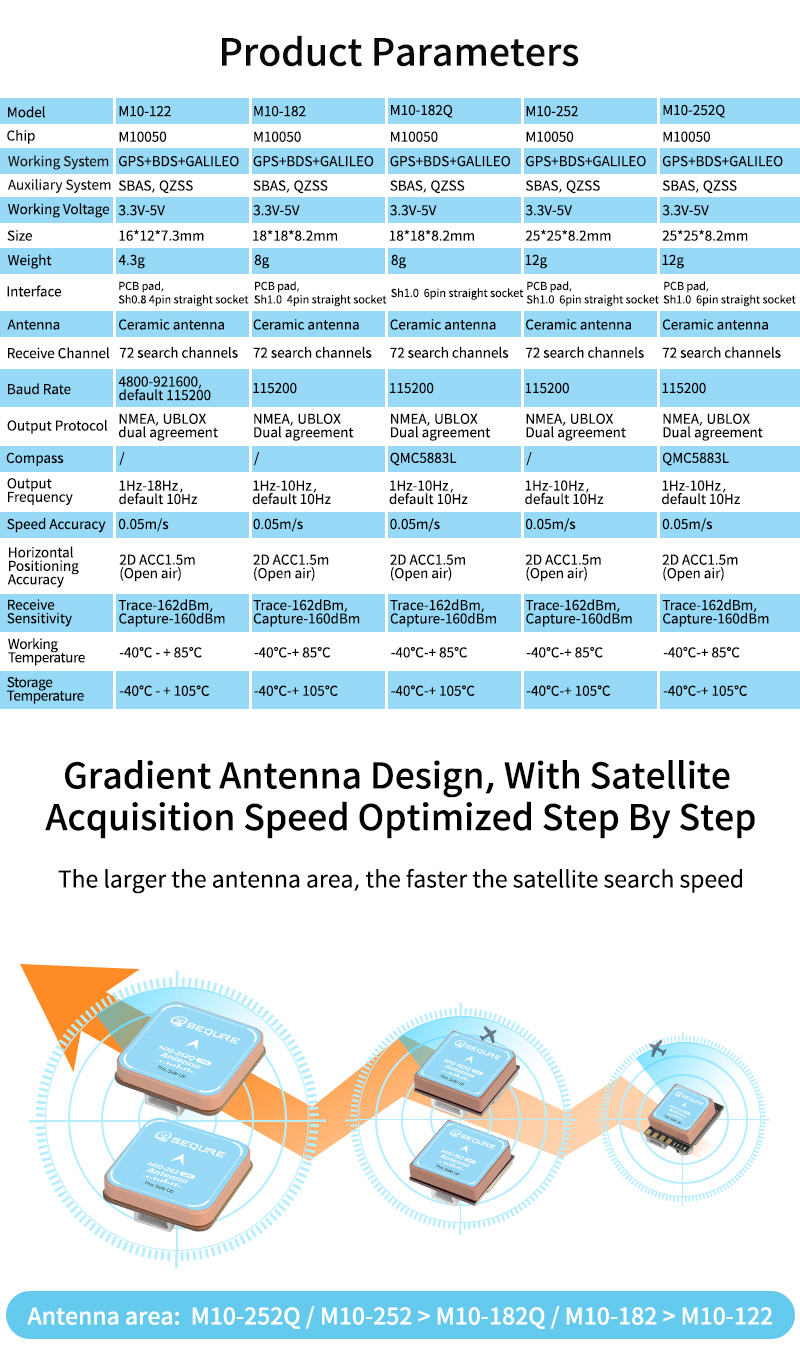

Parameters of Product
|

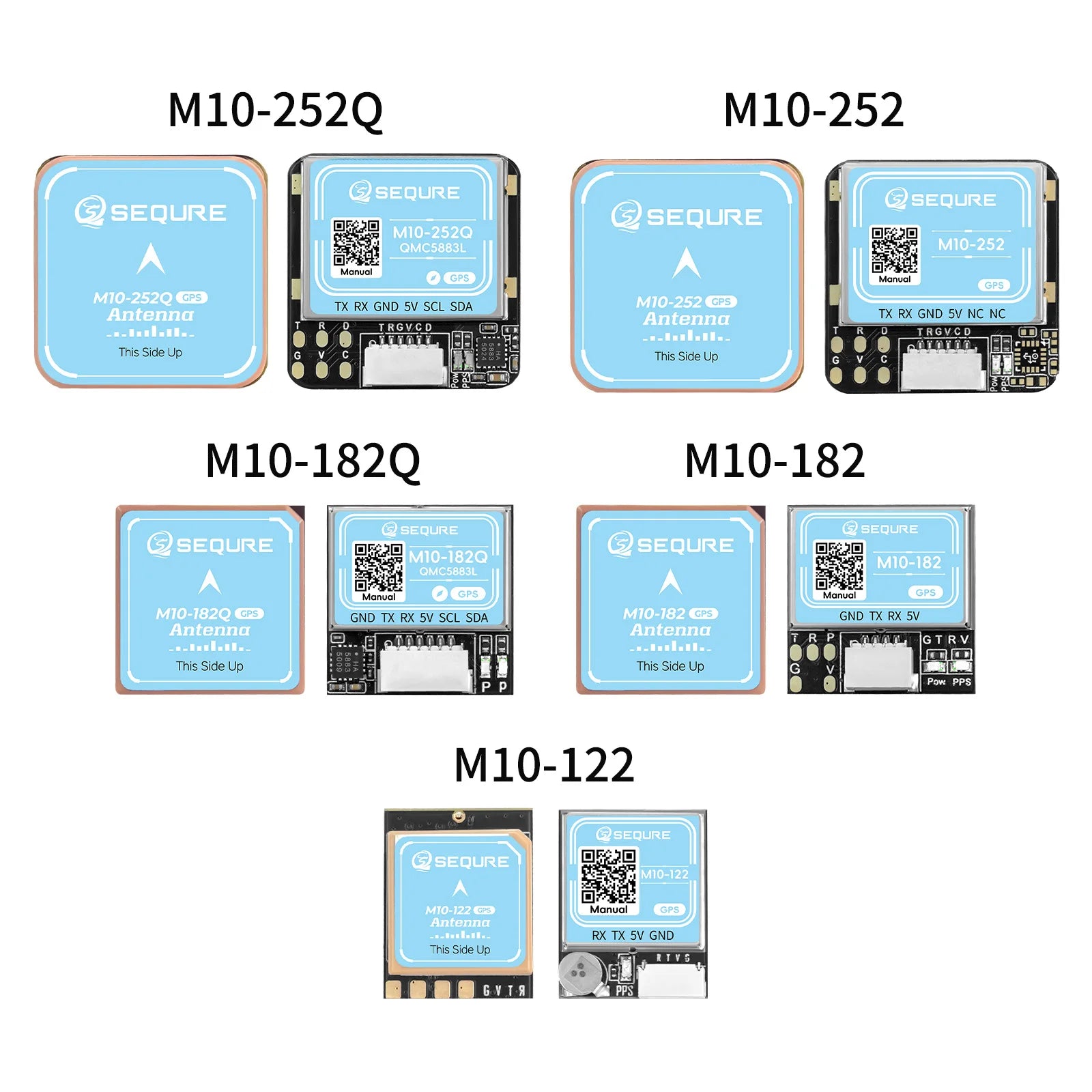

Model |
M10-252Q |

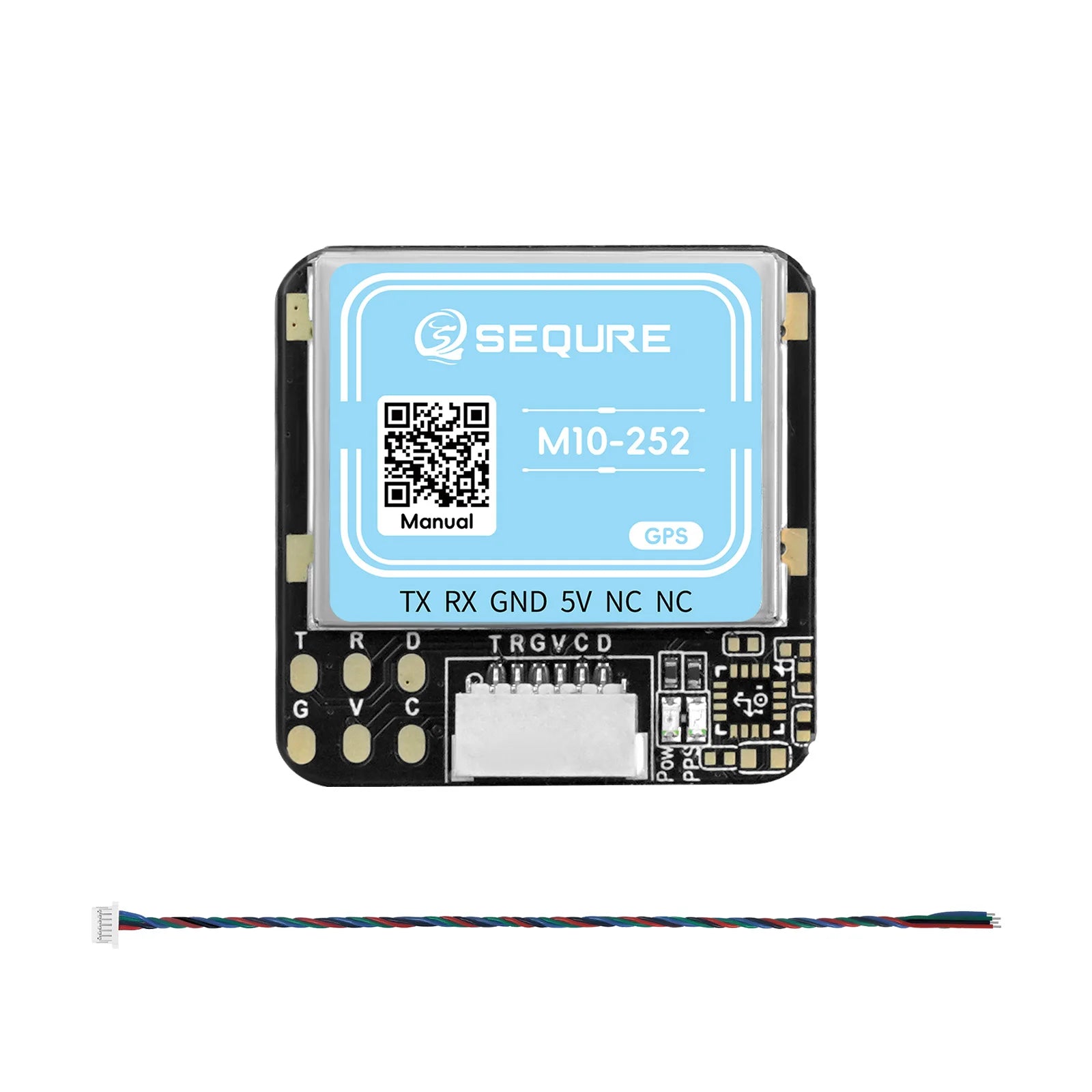

M10-252 |
M10-182Q |

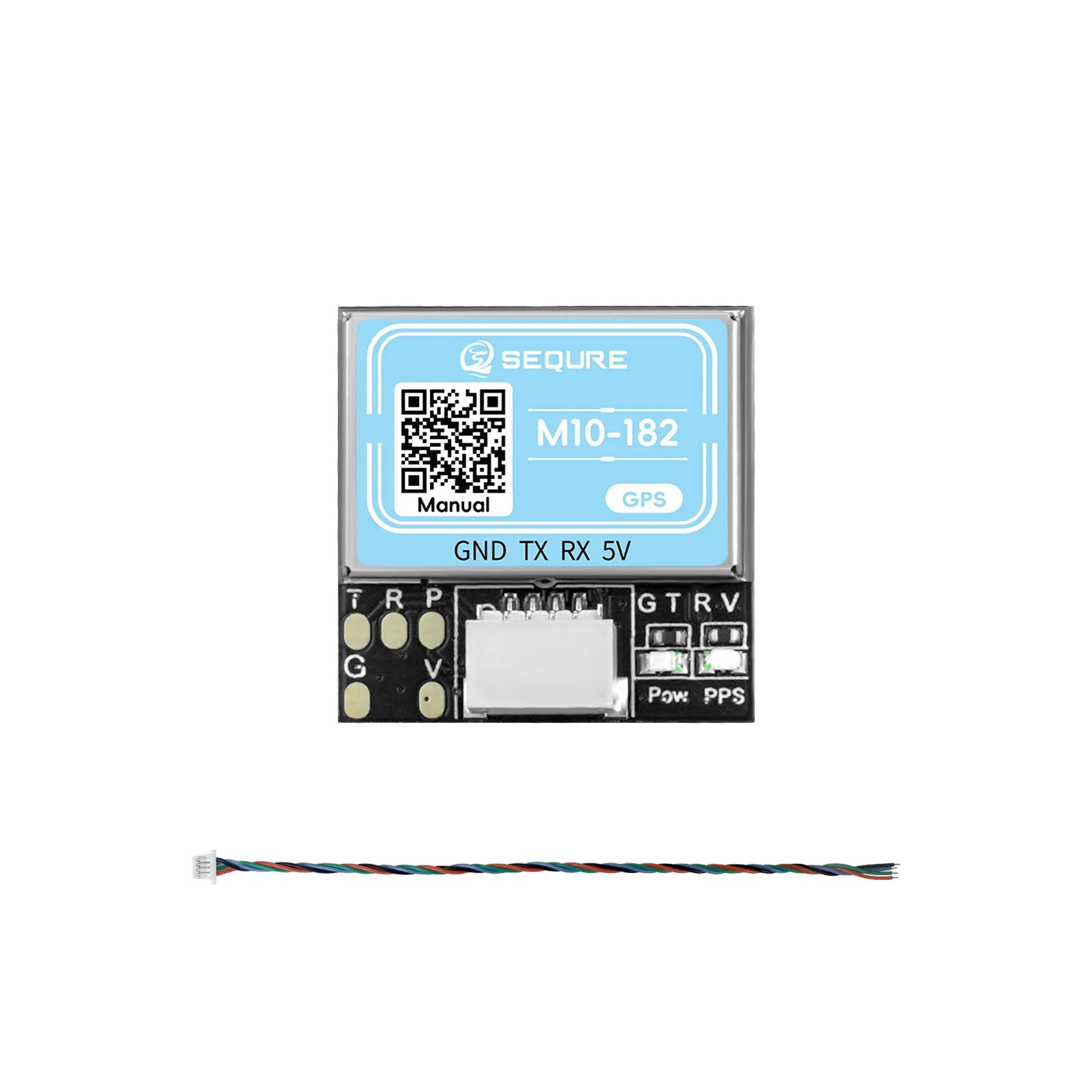

M10-182 |

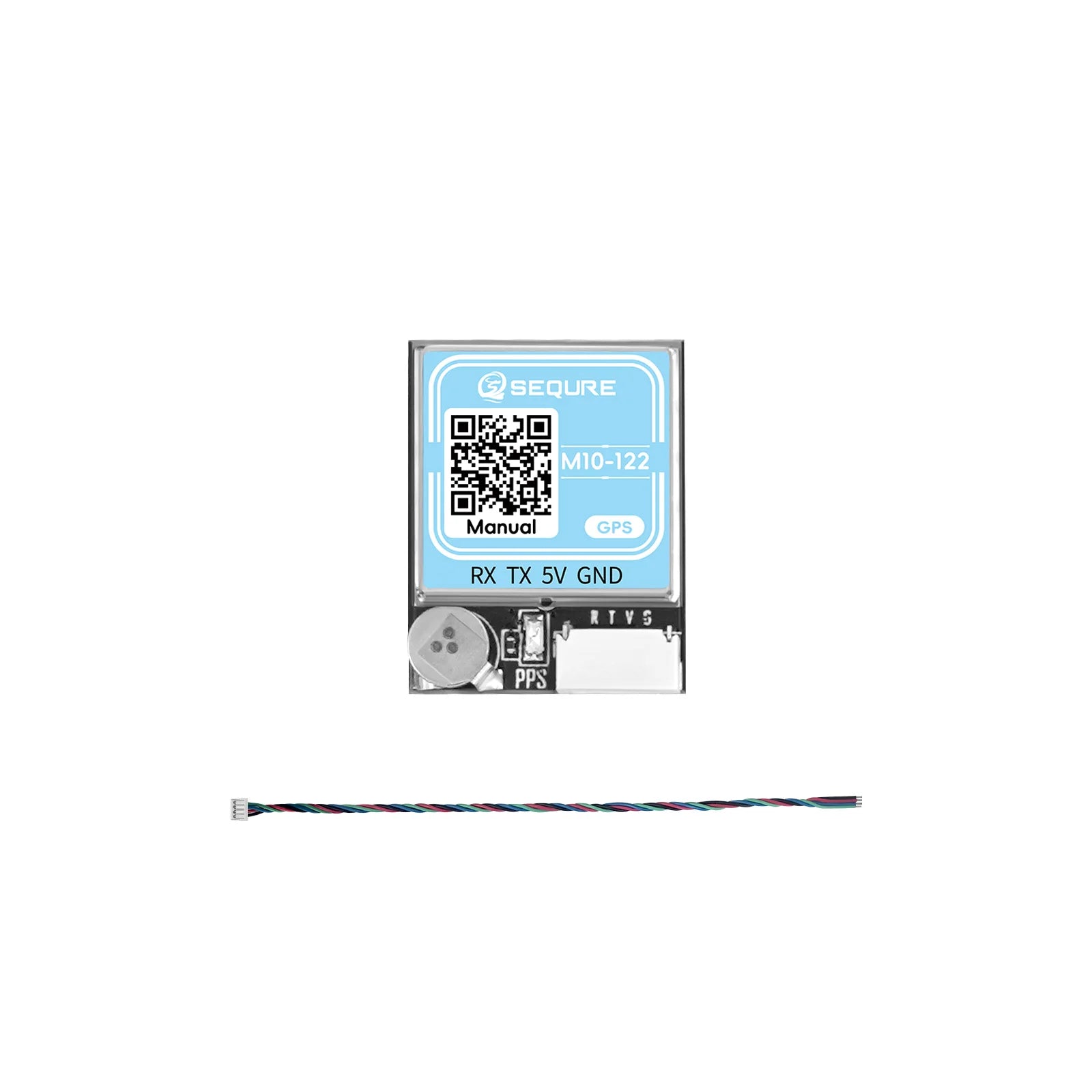

M10-122 |
|
Chip |
M10050 |
M10050 |
M10050 |
M10050 |
M10050 |
|
Working System |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
|
Auxiliary System |
SBAS, QZSS |
SBAS, QZSS |
SBAS, QZSS |
SBAS, QZSS |
SBAS, QZSS |
|
Working Voltage |
3.3V-5V |
3.3V-5V |
3.3V-5V |
3.3V-5V |
3.3V-5V |
|

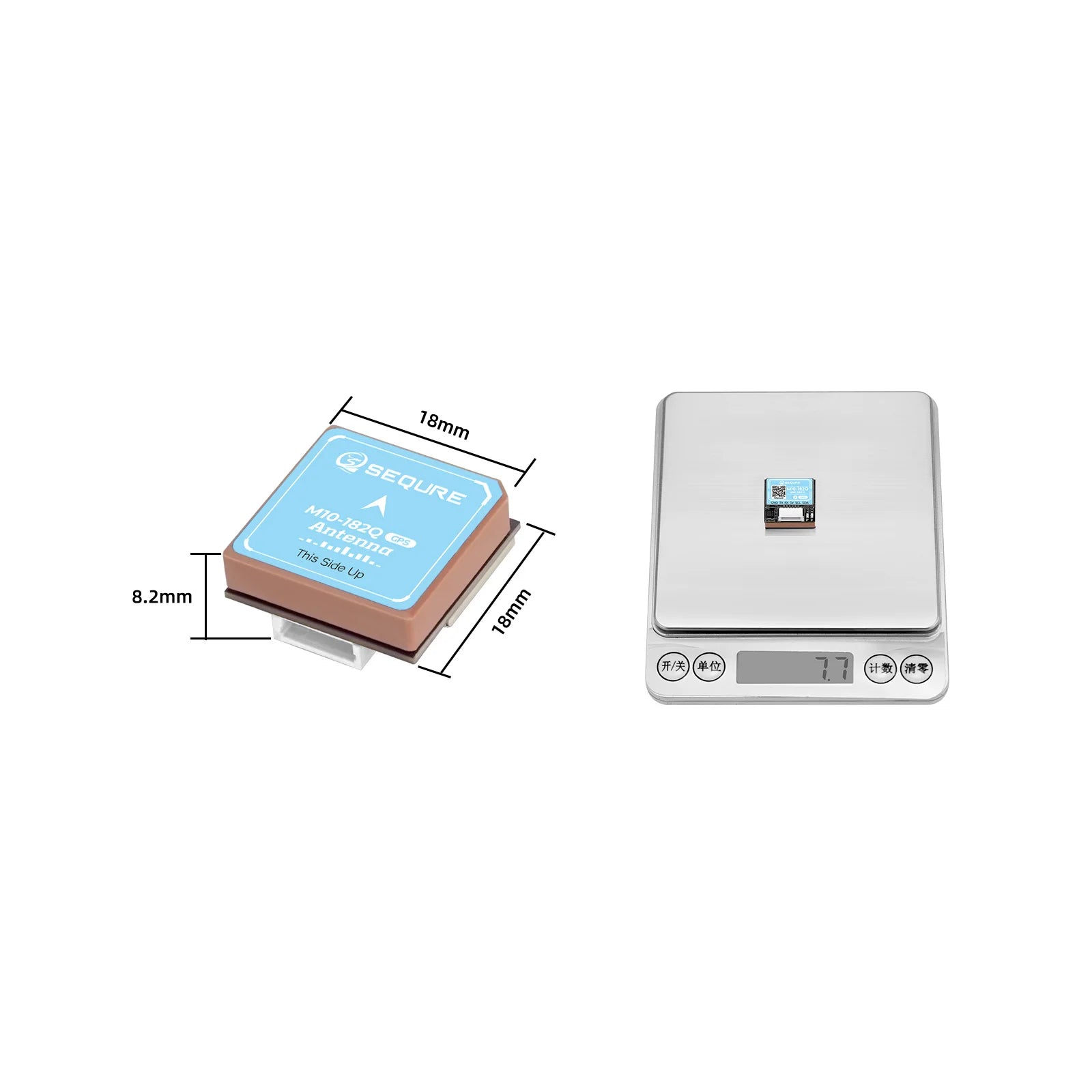

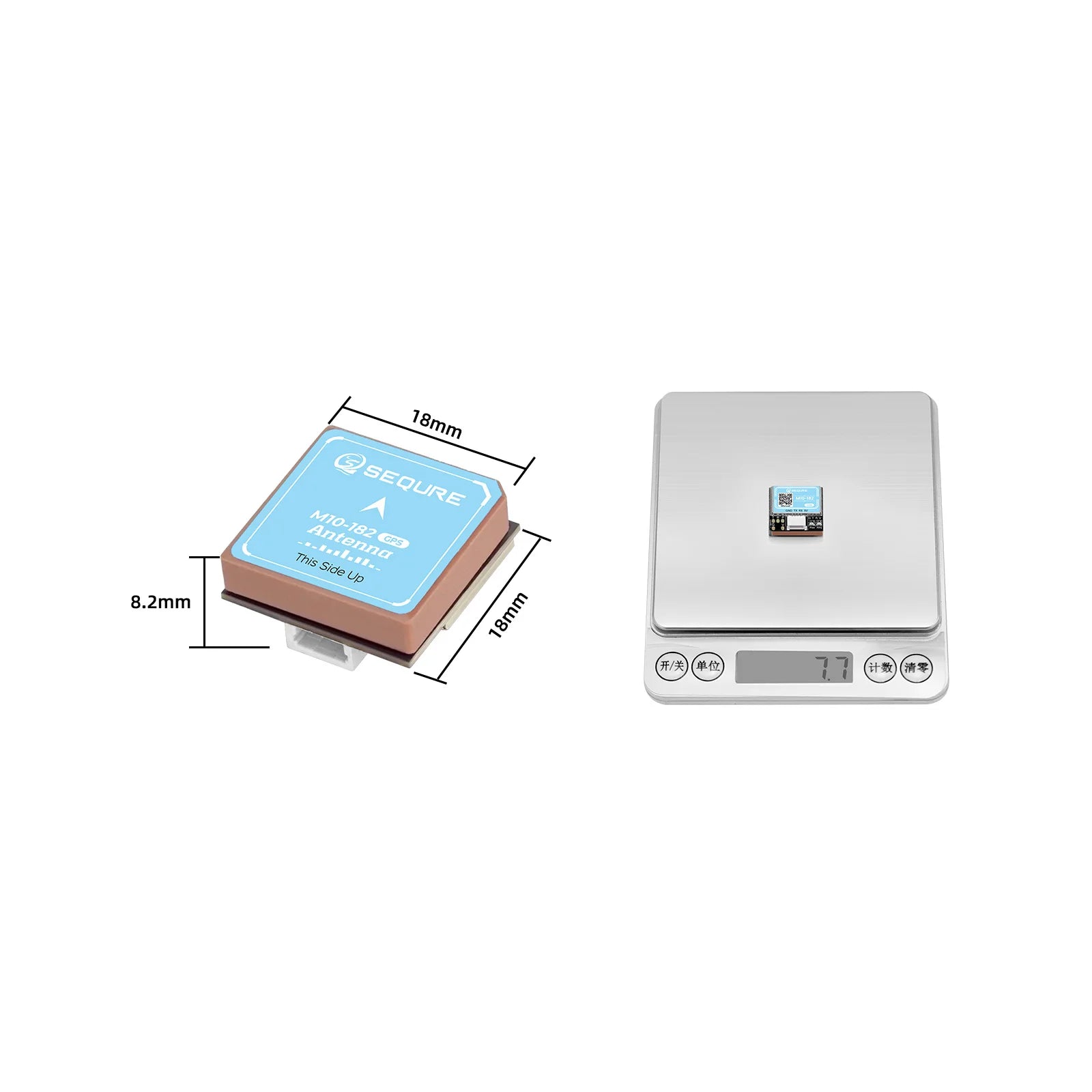

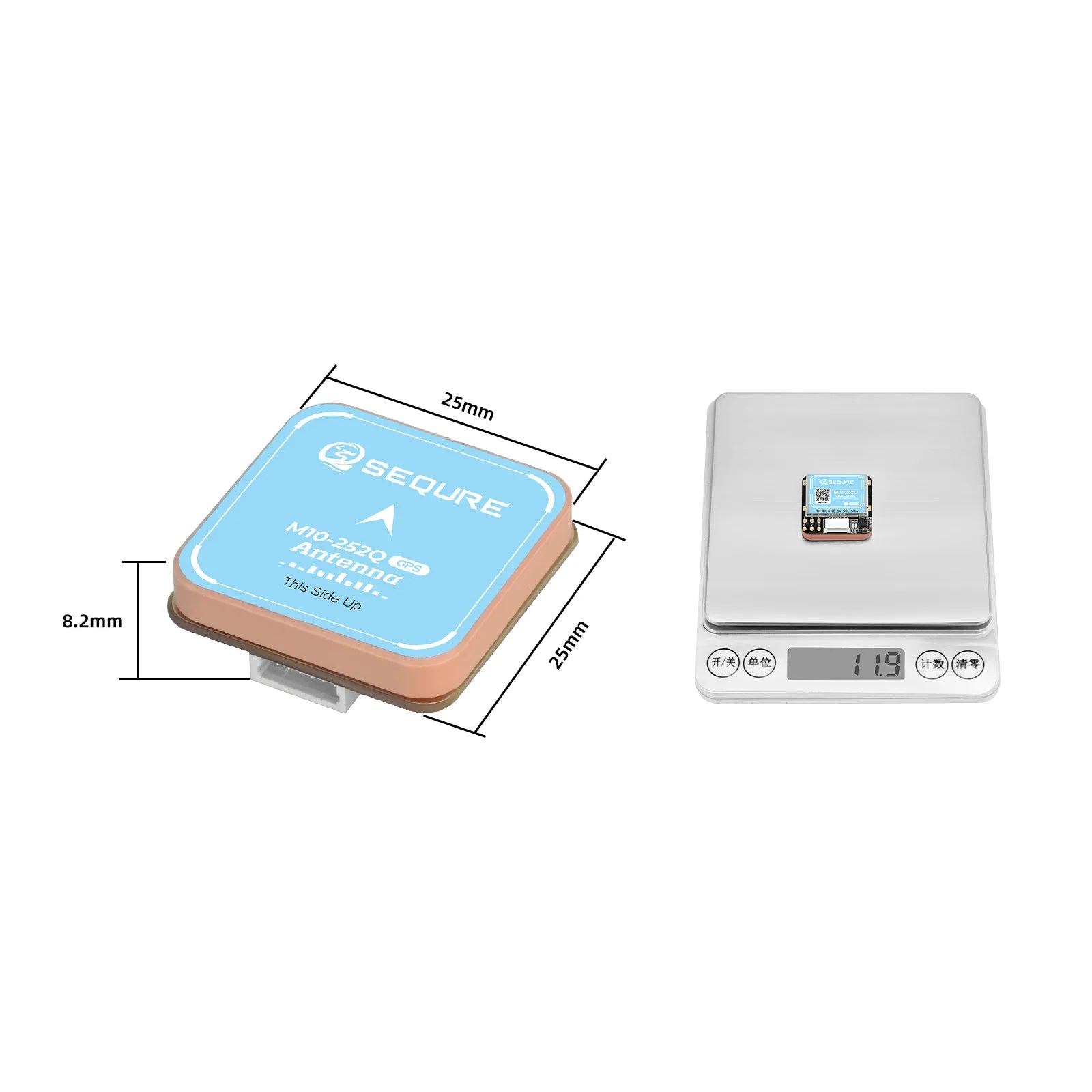

Size |

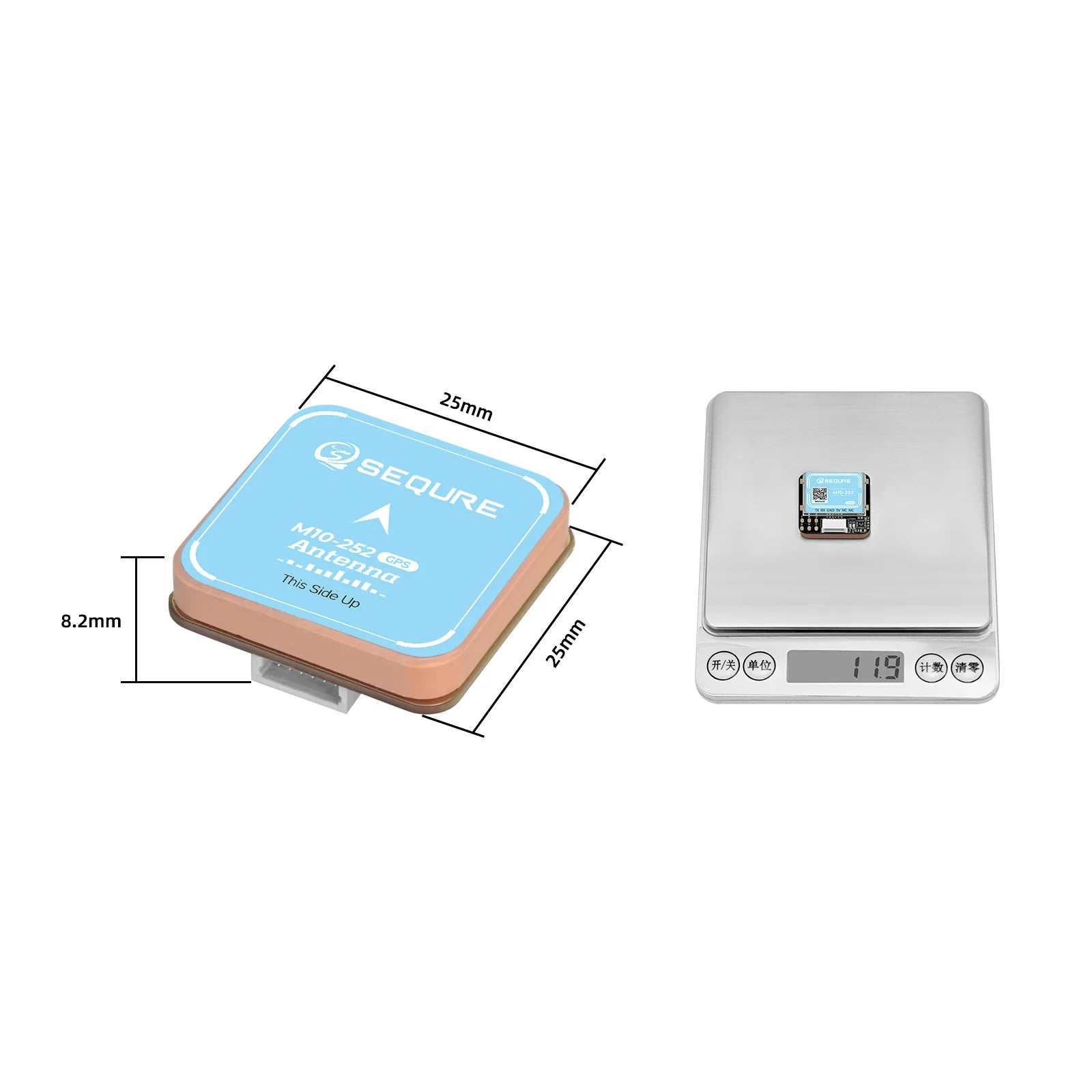

25*25*8.2mm |
25*25*8.2mm |
18*18*8.2mm |
18*18*8.2mm |

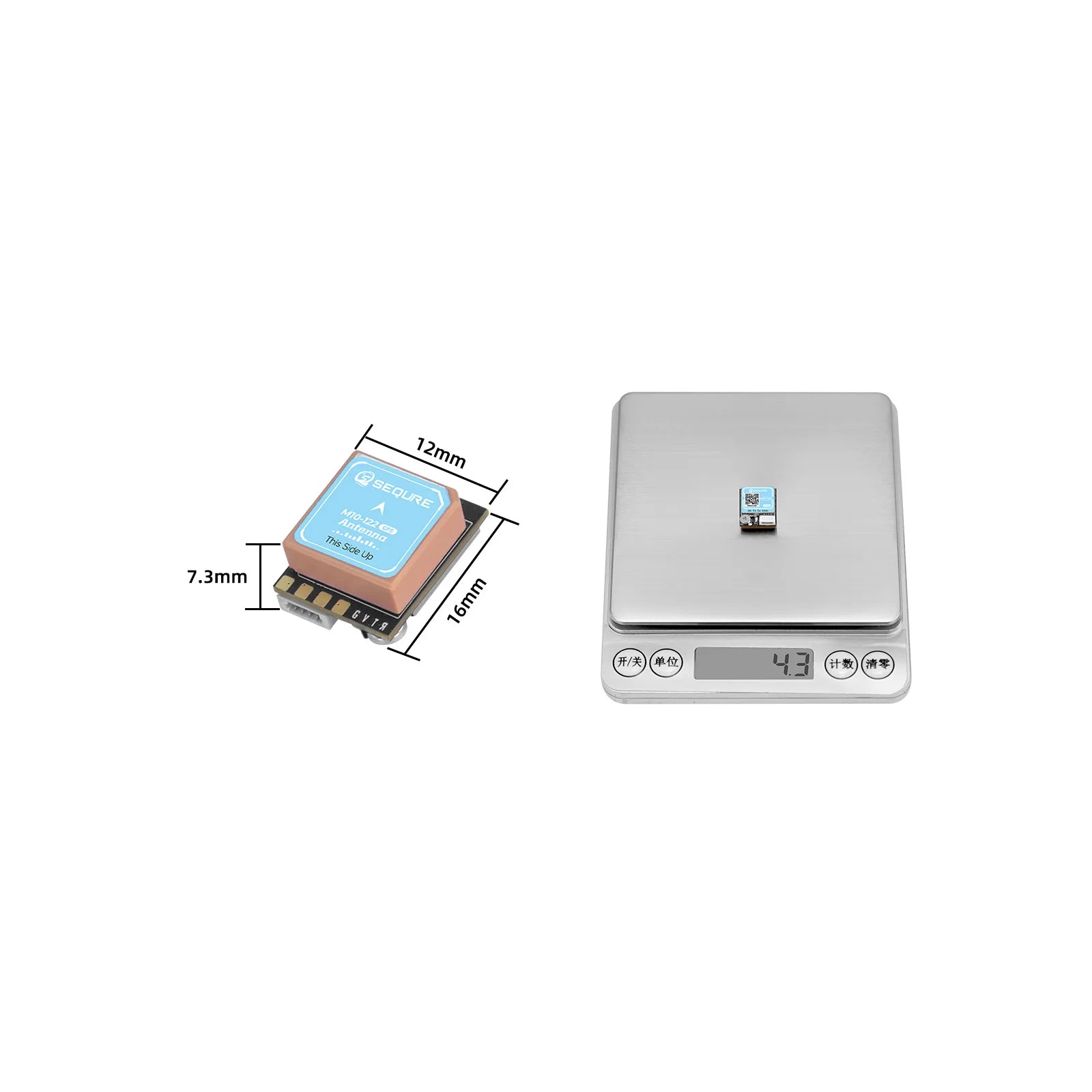

16*12*7.3mm |
|

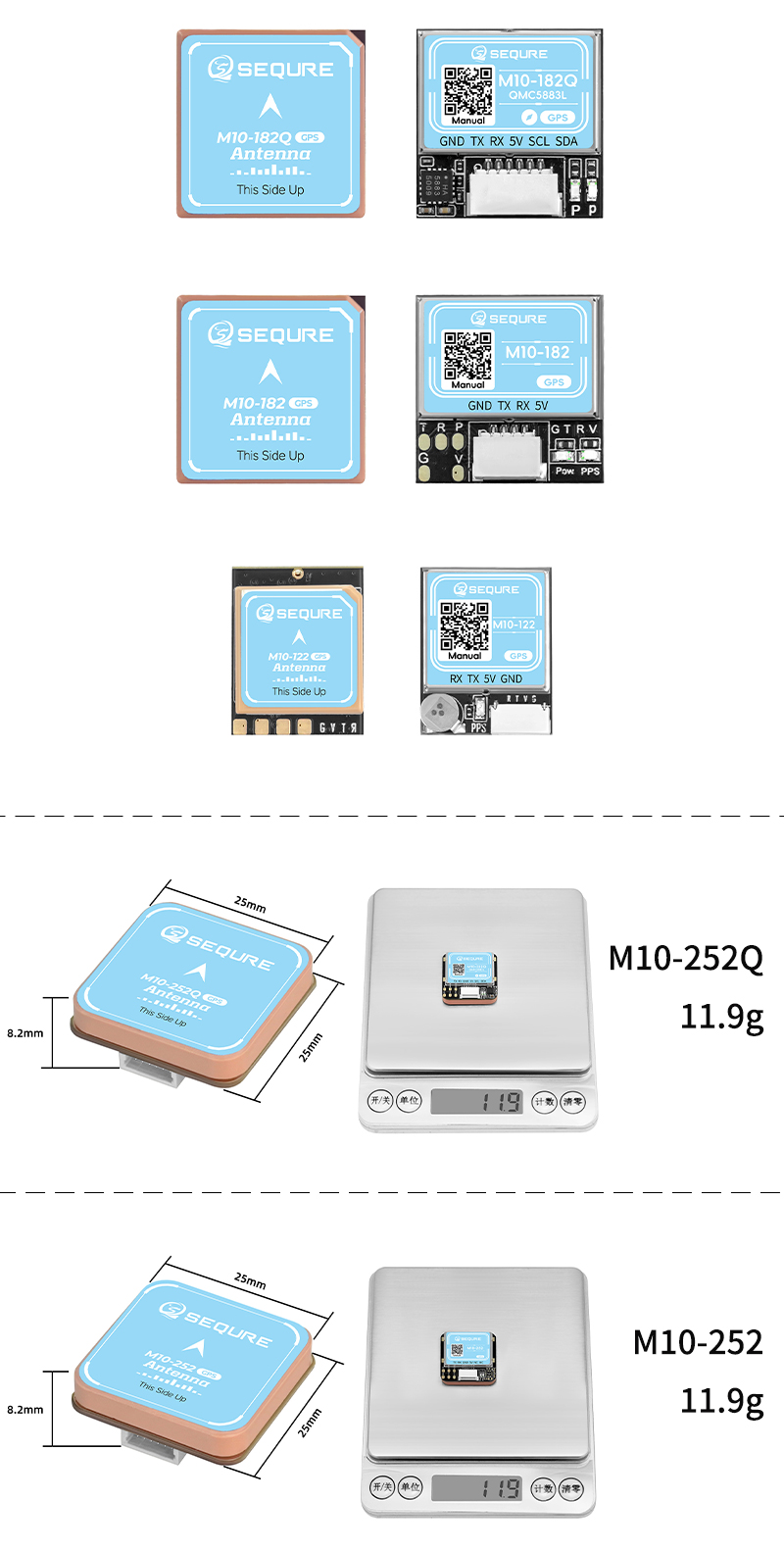

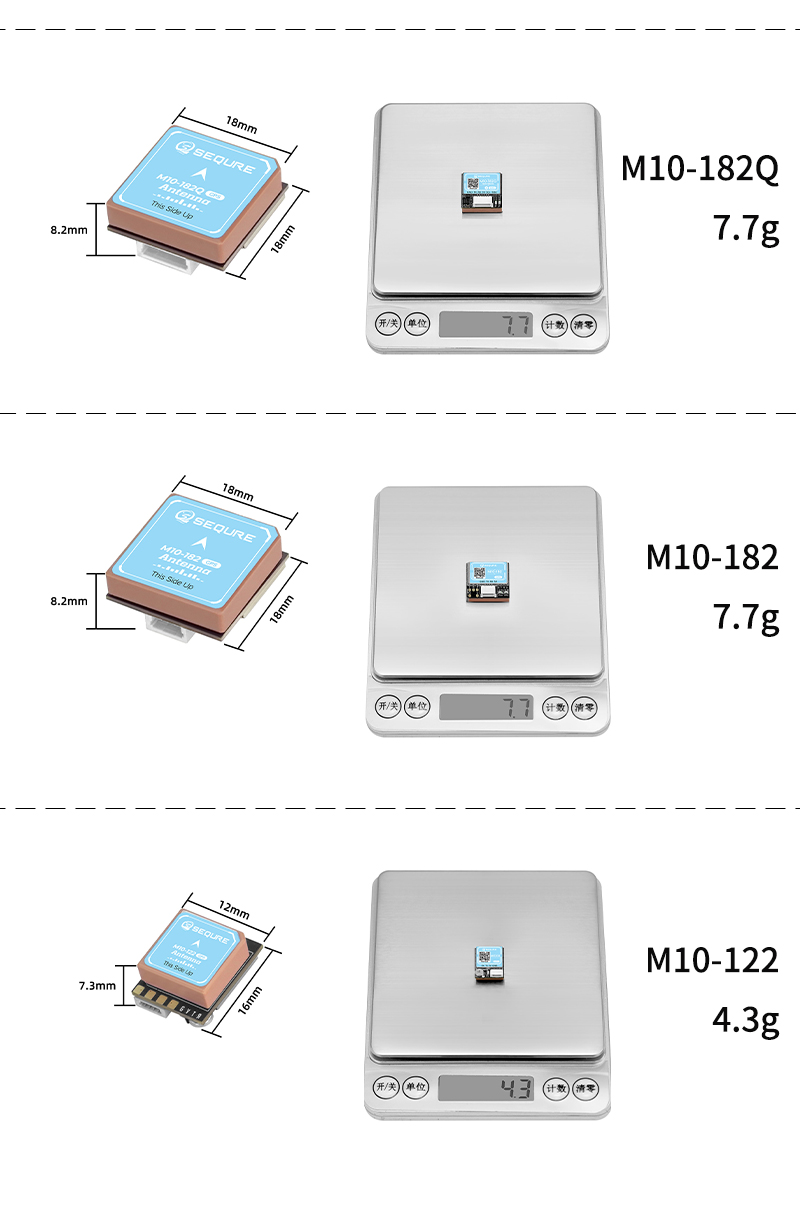

Weight |
12g |
12g |
8g |
8g |
4.3g |
|
Interface |
PCB pad、 |
PCB pad、 |
sh1.06pin straight socket |
PCB pad、 |
PCB pad、 |
|
Antenna |
Ceramic antenna |
Ceramic antenna |
Ceramic antenna |
Ceramic antenna |
Ceramic antenna |
|
Receive Channel |
72 search channels |
72 search channels |
72 search channels |
72 search channels |
72 search channels |
|
Baud Rate |
115200 |
115200 |
115200 |
115200 |
4800-921600， |
|
Output Protocol |
NMEA、UBLOX |
NMEA、UBLOX |
NMEA、UBLOX |
NMEA、UBLOX |
NMEA、 |
|
Compass |
QMC5883L |
/ |
QMC5883L |
/ |
/ |
|
Output Frequency |
1Hz-10Hz, default 10Hz |
1Hz-10Hz, default 10Hz |
1Hz-10Hz, default 10Hz |
1Hz-10Hz, default 10Hz |
1Hz-18Hz, default 10Hz |
|
Speed Accuracy |
0.05m/s |
0.05m/s |
0.05m/s |
0.05m/s |
0.05m/s |
|
Horizontal Positioning |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
|
Receive Sensitivity |
Trace-162dBm、 |
Trace-162dBm、 |
Trace-162dBm、 |
Trace-162dBm、 |
Trace-162dBm、 |
|
Working Temperature |
-40℃～+85℃ |
-40℃～+85℃ |
-40℃～+85℃ |
-40℃～+85℃ |
-40℃～+85℃ |
|
Storage Temperature |
-40℃～+105℃ |
-40℃～+105℃ |
-40℃～+105℃ |
-40℃～+105℃ |
-40℃～+105℃ |
