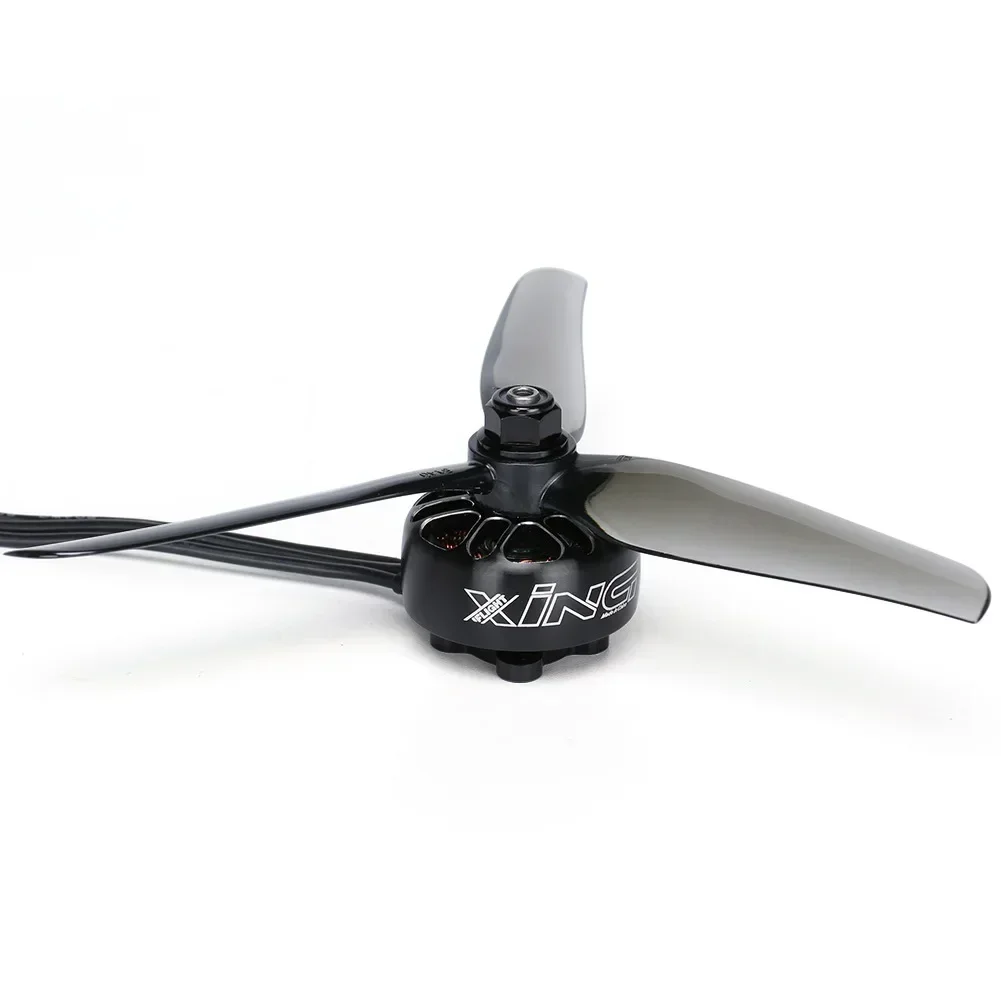

iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing
iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing - Image 2
iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing - Image 3
iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing - Image 4
iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing - Image 5
iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing - Image 6
FPV Gear

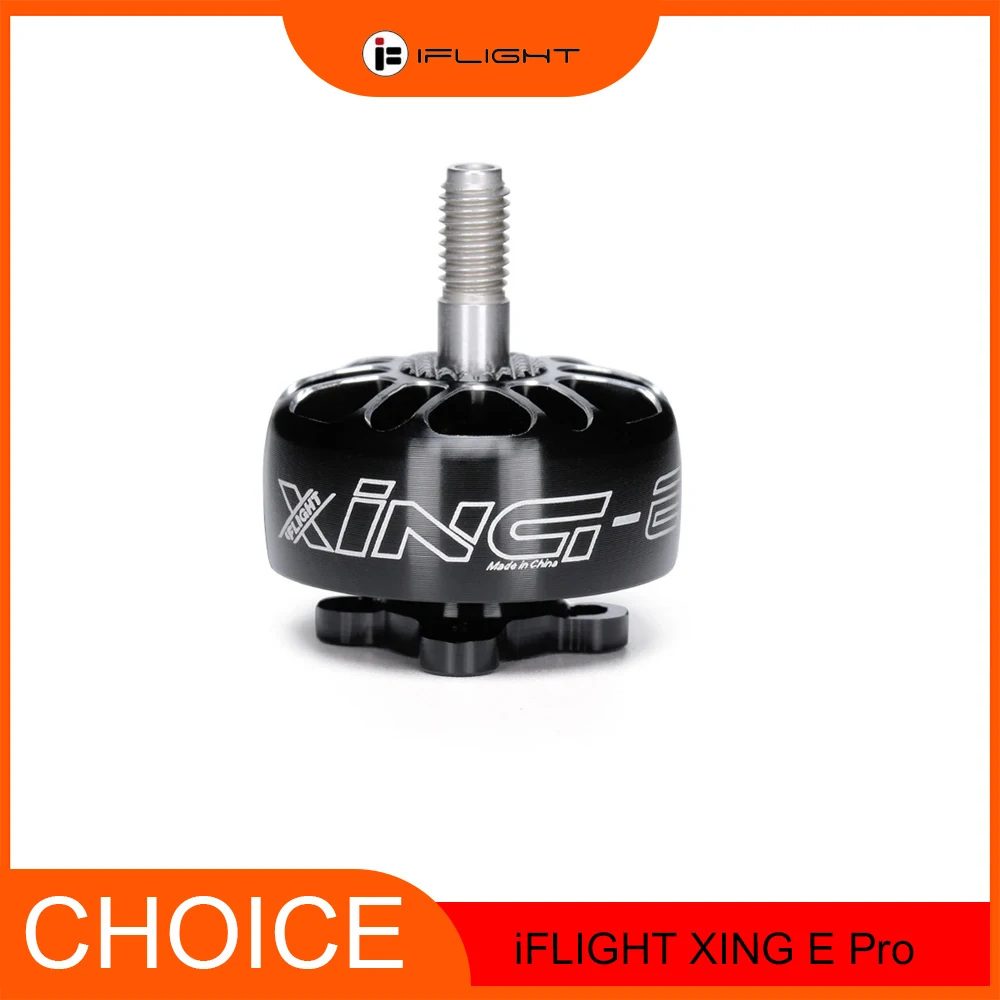

iFlight XING E Pro 2207 Brushless Motor – 6S/1800KV | 4S/2450/2750KV | 5in Prop Compatible for FPV Racing

Price range: $21.07 through $71.13

IFlight XING-E 2207 1800/2450/2750KV Unibell Brushless Motor 2-6S lipo Battery compatible 5 inch Propeller for FPV Racing Drone This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings. Features: High-strength 4mm Steel shaft N52H High-temperature magnets, NSK bearings 16x16mm hole pattern […]

All Prices Include Import Tax & VAT
Ships from supplier warehouse · Usually within 3 business days

Add $29.00 more for FREE shipping!

SKU: 9GDQZKQT2SFR
Category: , , ,
Free shipping over $29ZoneFPV-style store promise for FPV buyers.
Secure checkoutCart and payment remain handled by WooCommerce.
FPV-focused catalogDrones, parts, power and radio gear grouped for builders.

Buying Notes

Product FAQ

Product Details

Description

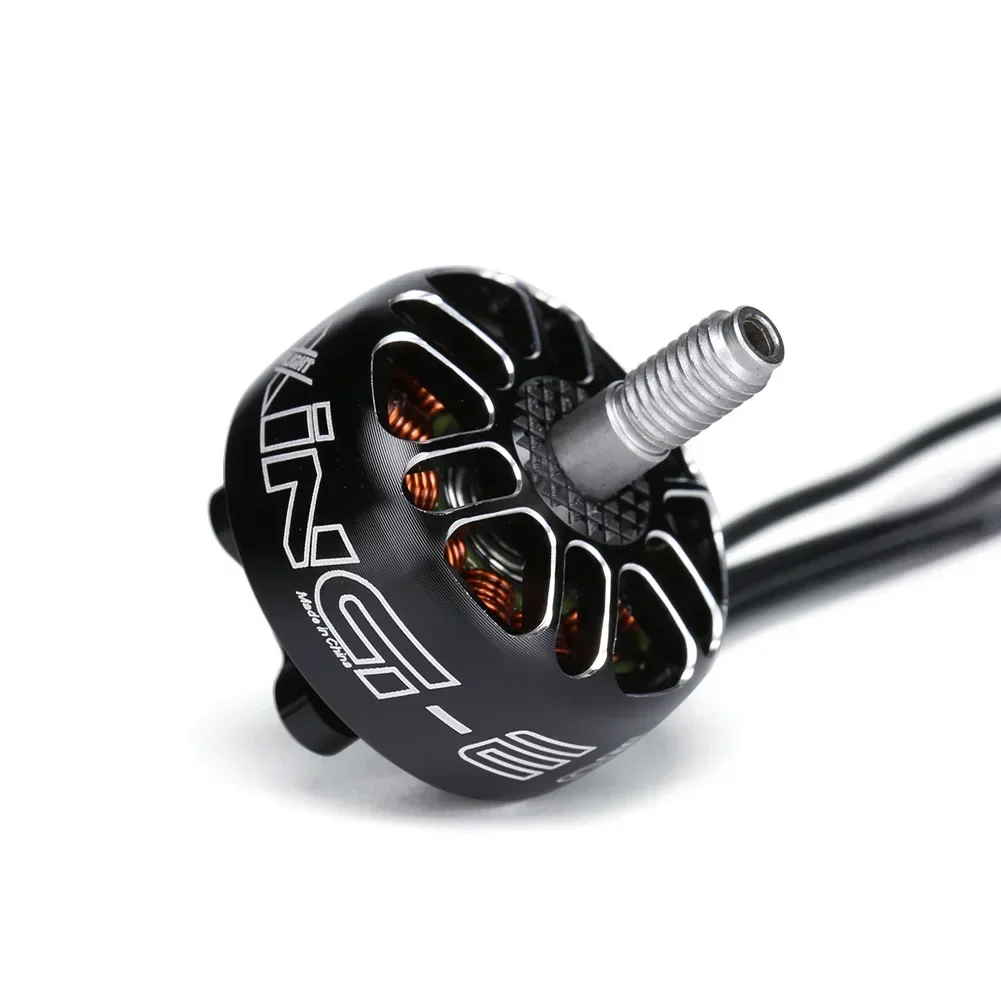

IFlight XING-E 2207 1800/2450/2750KV Unibell Brushless Motor 2-6S lipo Battery compatible 5 inch Propeller for FPV Racing Drone

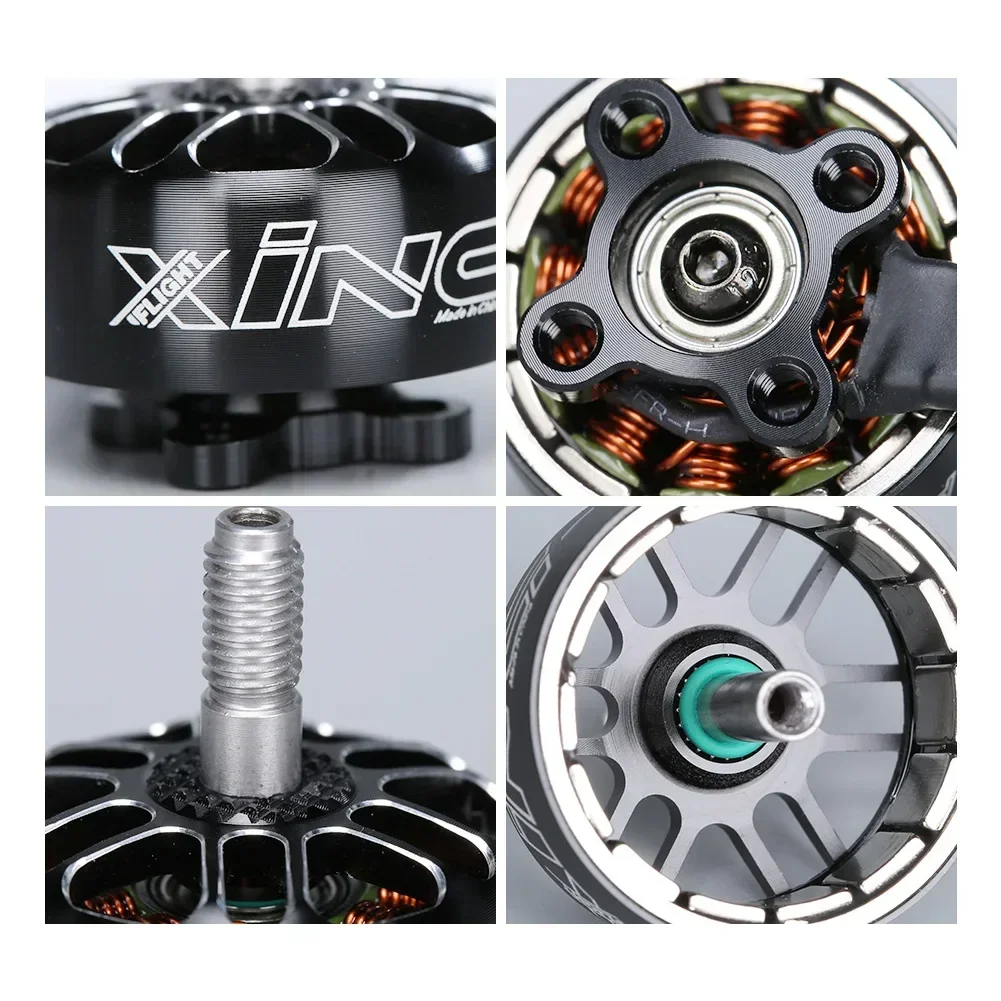

This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features:
High-strength 4mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw

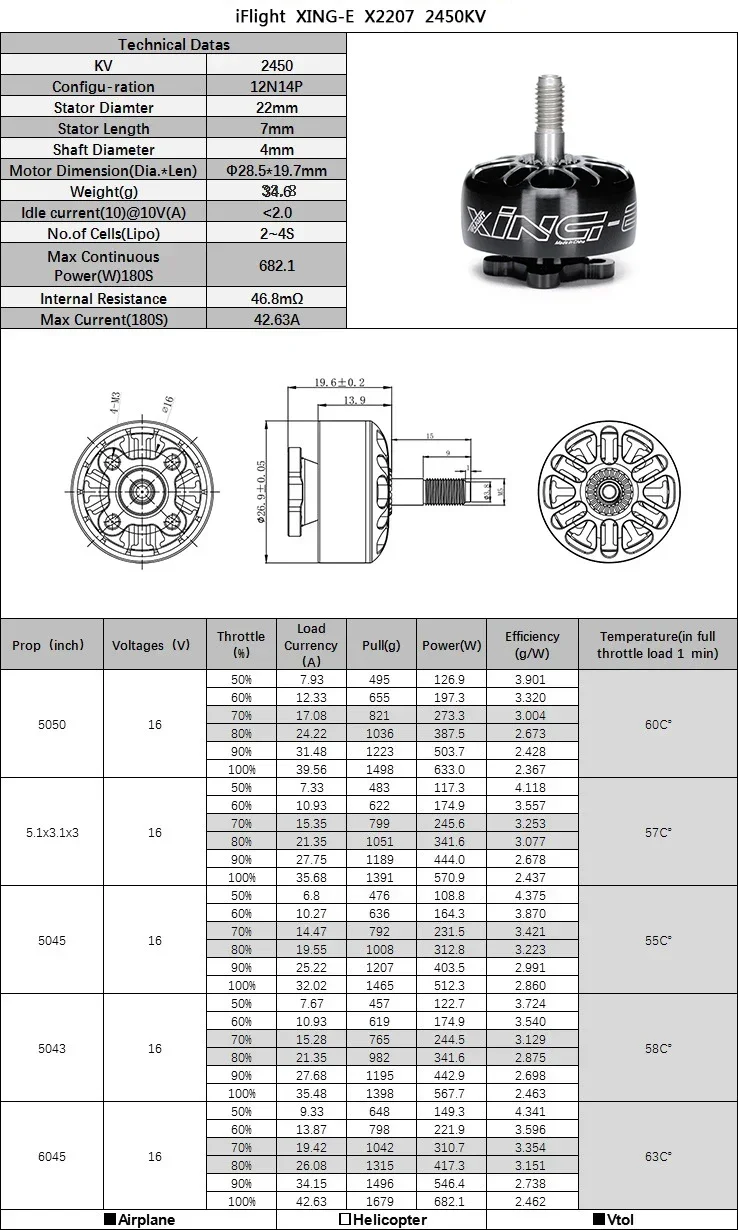

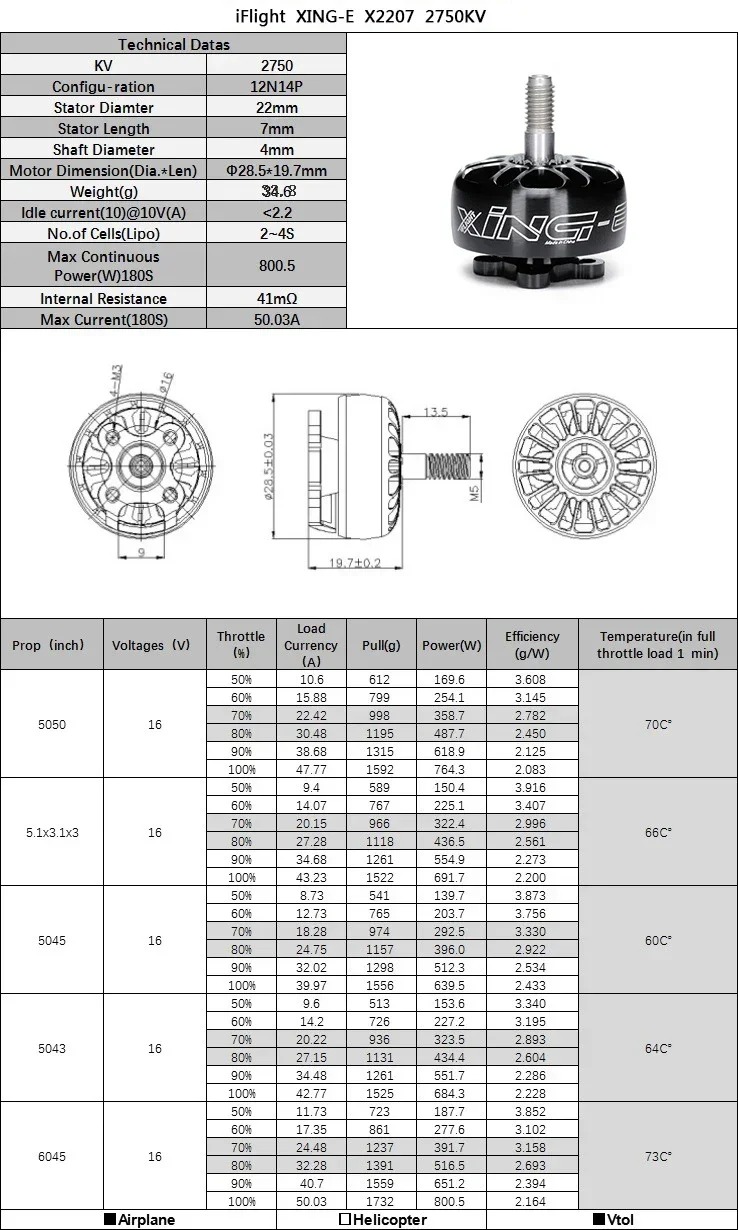

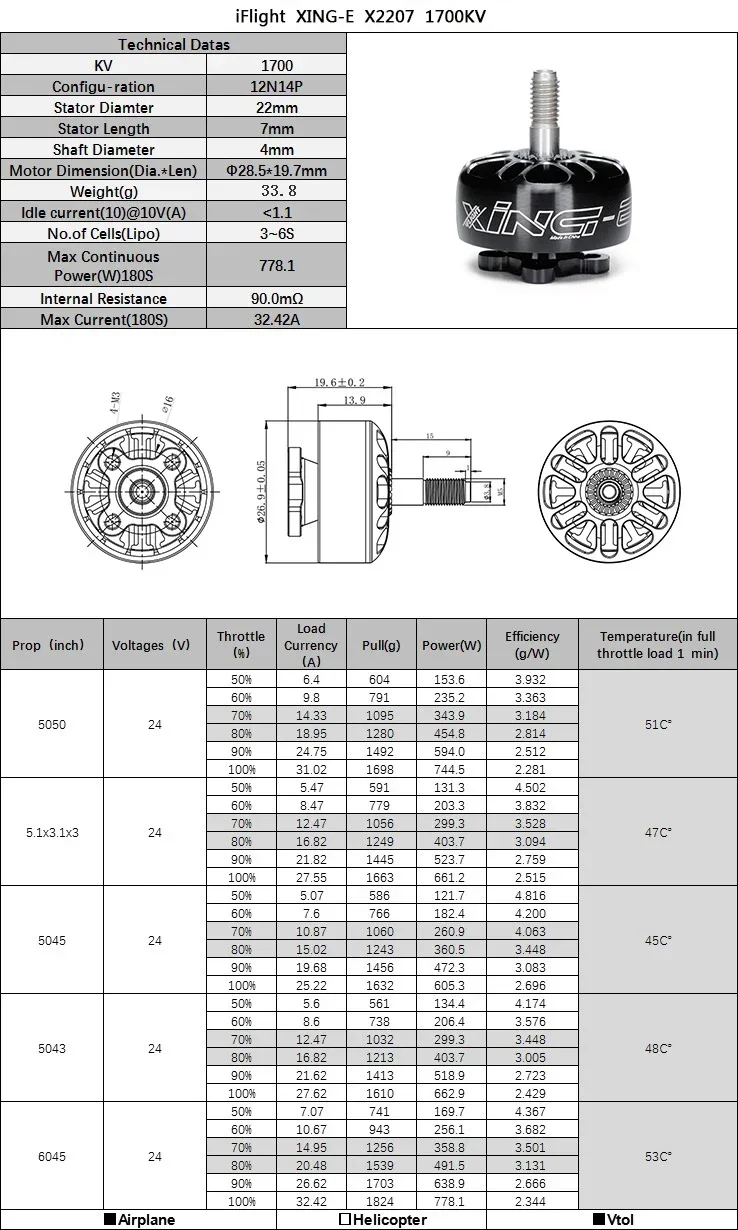

Specifications
Configuration: 12N14P
Stator Diameter: 24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel

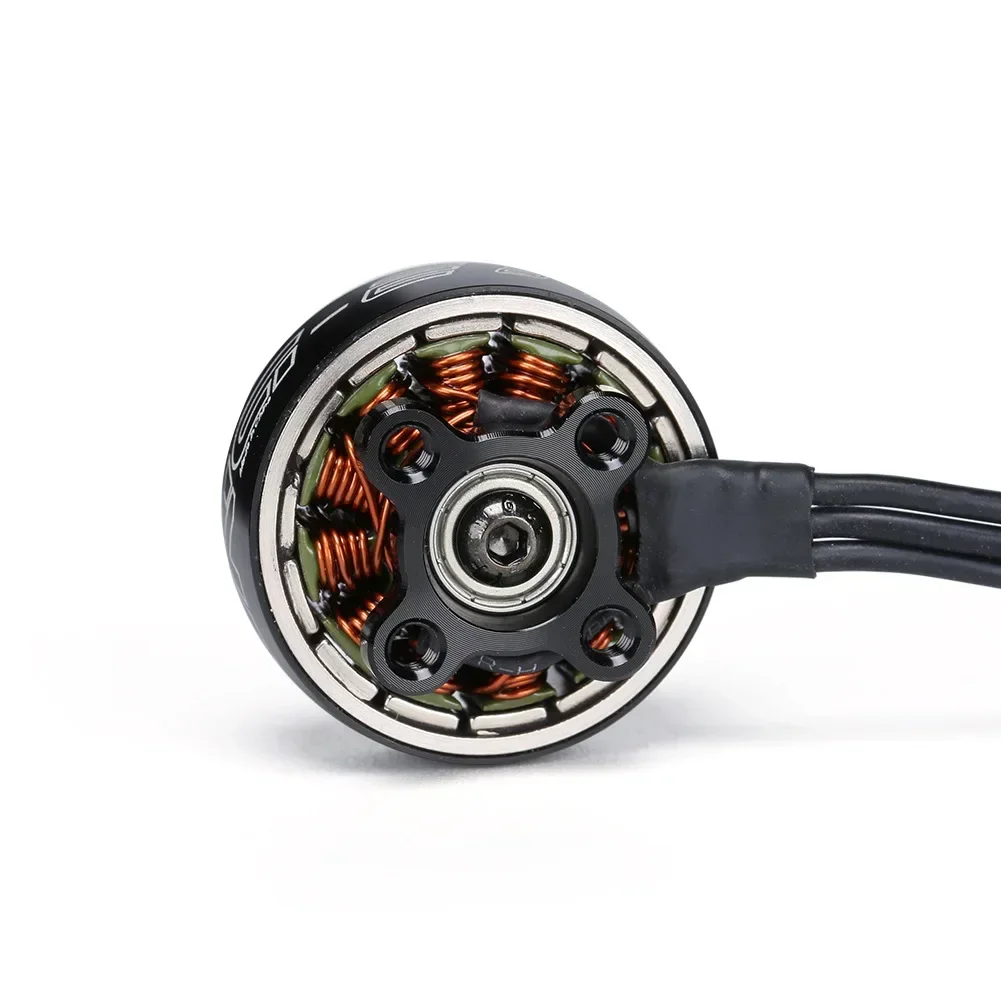

Base Mounting Pattern: 16x16mm M3 Thread

Motor Dimension: 28.5×19.7mm

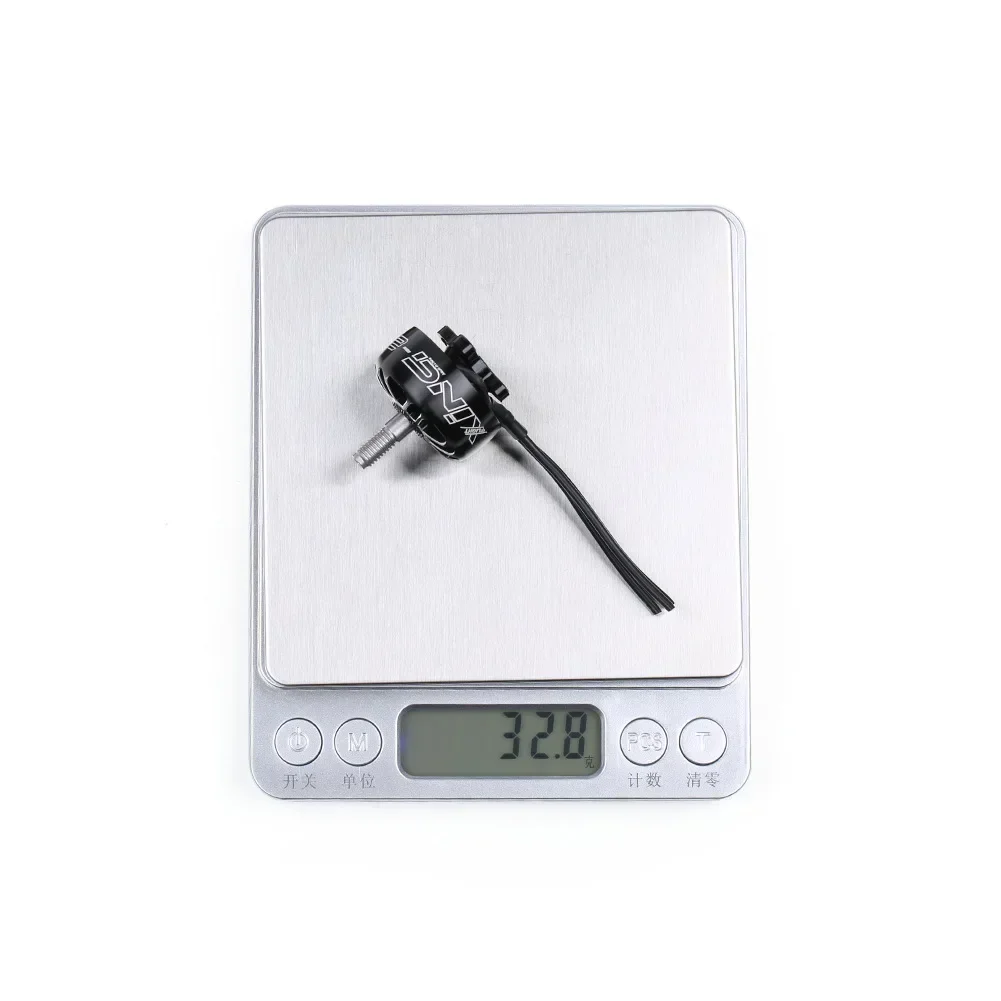

Weight: 33.8g (150mm wires)
Idle Current @12.6v (Io): 1.2 A
Cells (LiPo): 2-6S
Max Burst Current <10s: 35.22A
Max Power (W) 60s: 845W
Internal Resistance (Rm): 81.5mΩ

Motor Wire Length: 150mm / 20AWG

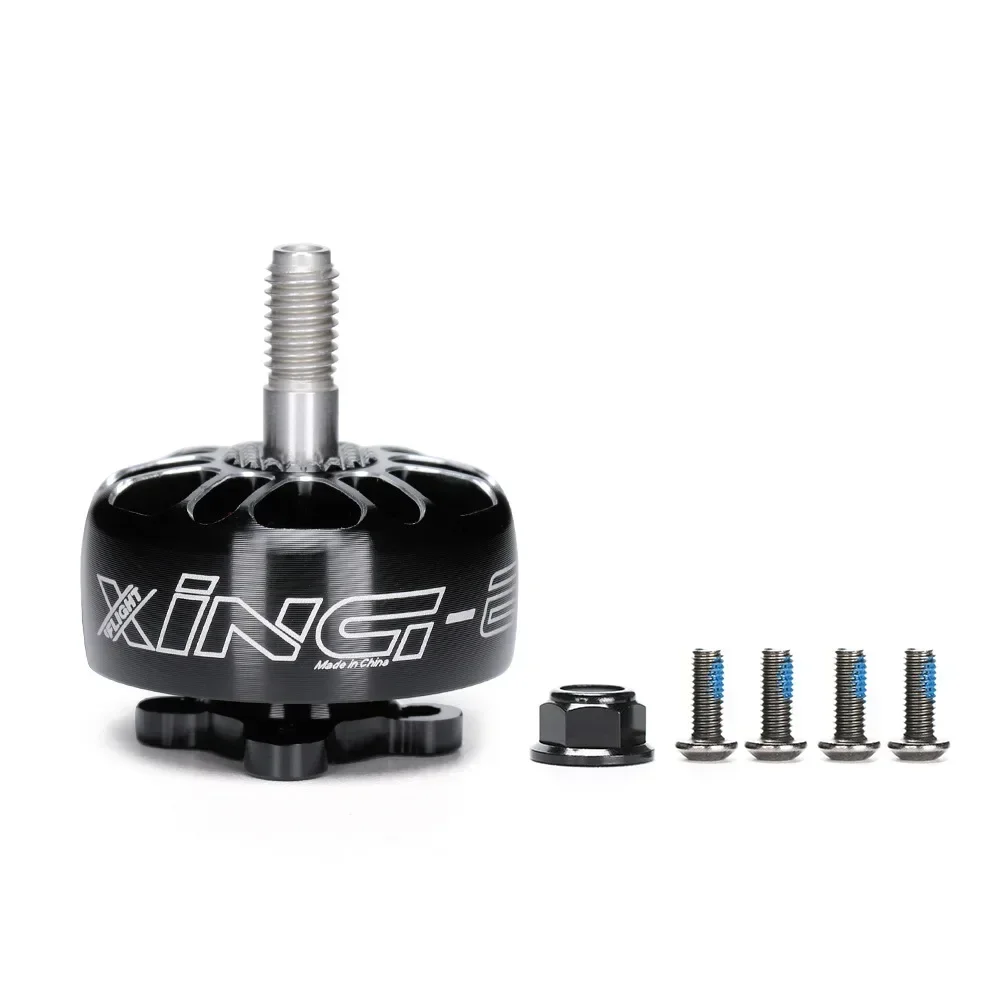

Package included:
1pcs XING-E 2207 motor

Additional information

Weight 0.15 kg
Dimensions 8 × 7 × 5 cm
Is Electric

No Battery
Quantity

1 pcs
Wheelbase

Bottom Plate
Is it battery/power supply

N
Is it charger/adapter

N
Is Batteries Included

No
Size

28.5×19.7mm
Technical parameters

KV1100
Model Number

iFlight XING E Pro 2207 Motor
For Vehicle Type

Airplanes
Tool Supplies

Motor
Four-wheel Drive Attributes

Motors
Remote Control Peripherals/Devices

Motor
Upgrade Parts/Accessories

2207 Brushless Motor
RC Parts & Accs

Motors
Material

Metal
Recommend Age

14+y
Use

Vehicles & Remote Control Toys
Color

1Pcs 2207 KV1800, 1Pcs 2207 KV2450, 1Pcs 2207 KV2750, 4Pcs 2207 KV1800, 4Pcs 2207 KV2450, 4Pcs 2207 KV2750
