iFlight SH CineFlow 5 6S WTFPV Drone BNF for FPV Freestyle Parts without VTX / Camera

Description

Compatibility
This product does not include a camera and video transmission (VTX) system. Customers must install these components separately.
Compatible with:
DJI O4 Air Unit Pro HD system
DJI O3 Air Unit HD system
BLITZ 1.6W VTX
BLITZ Whoop 1.6W VTX
BLITZ Mini Force 600mW VTX

Description

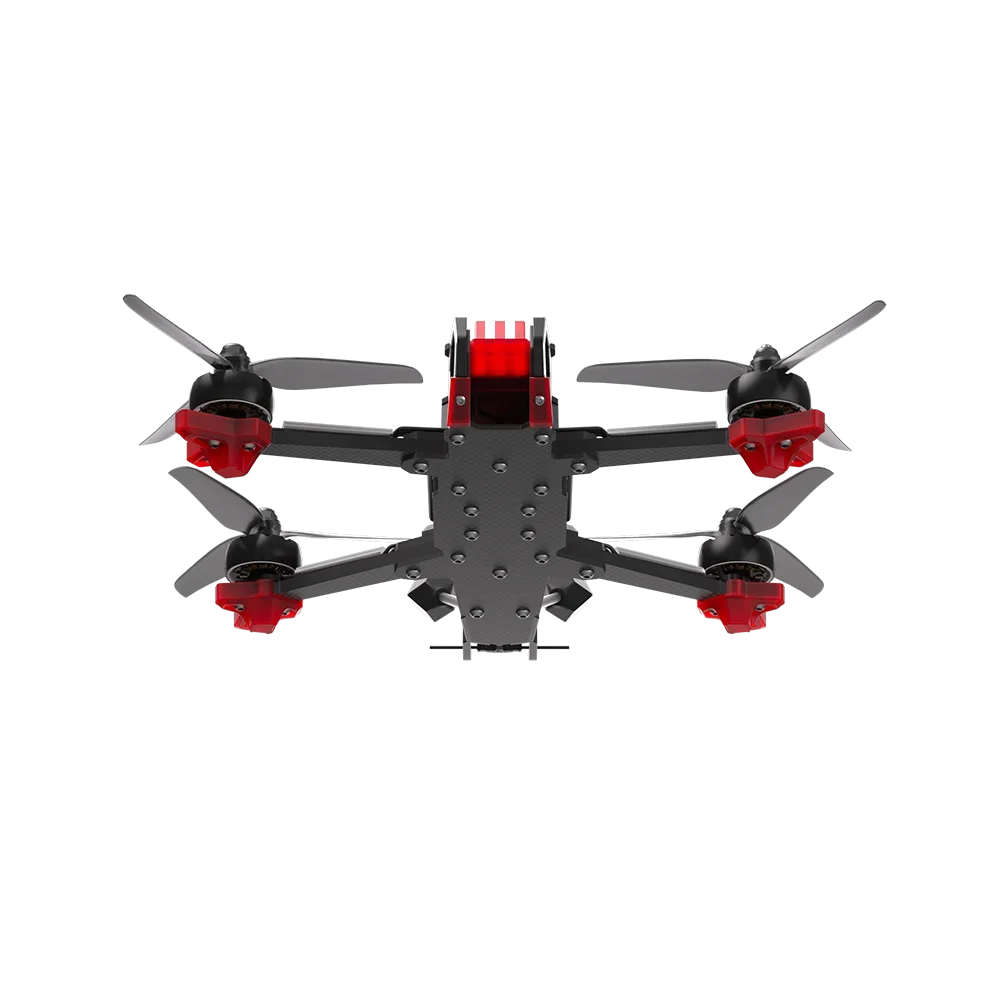

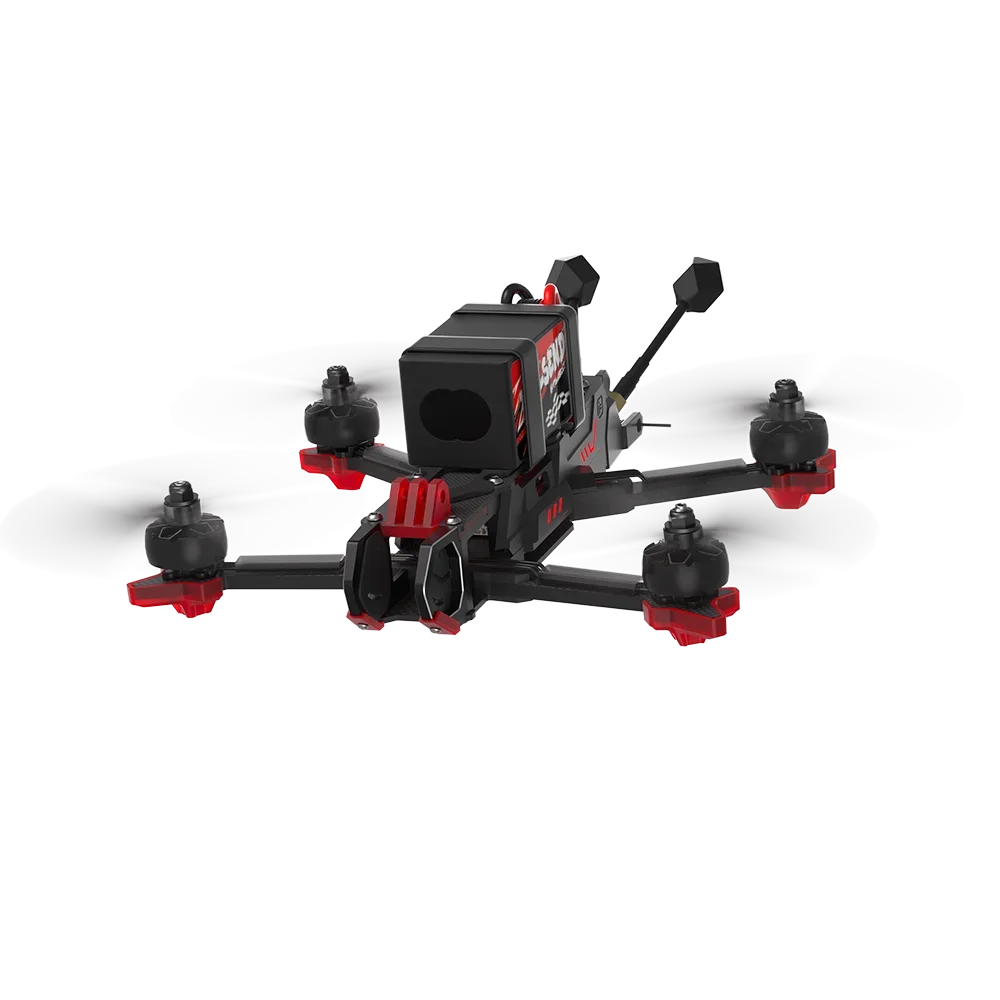

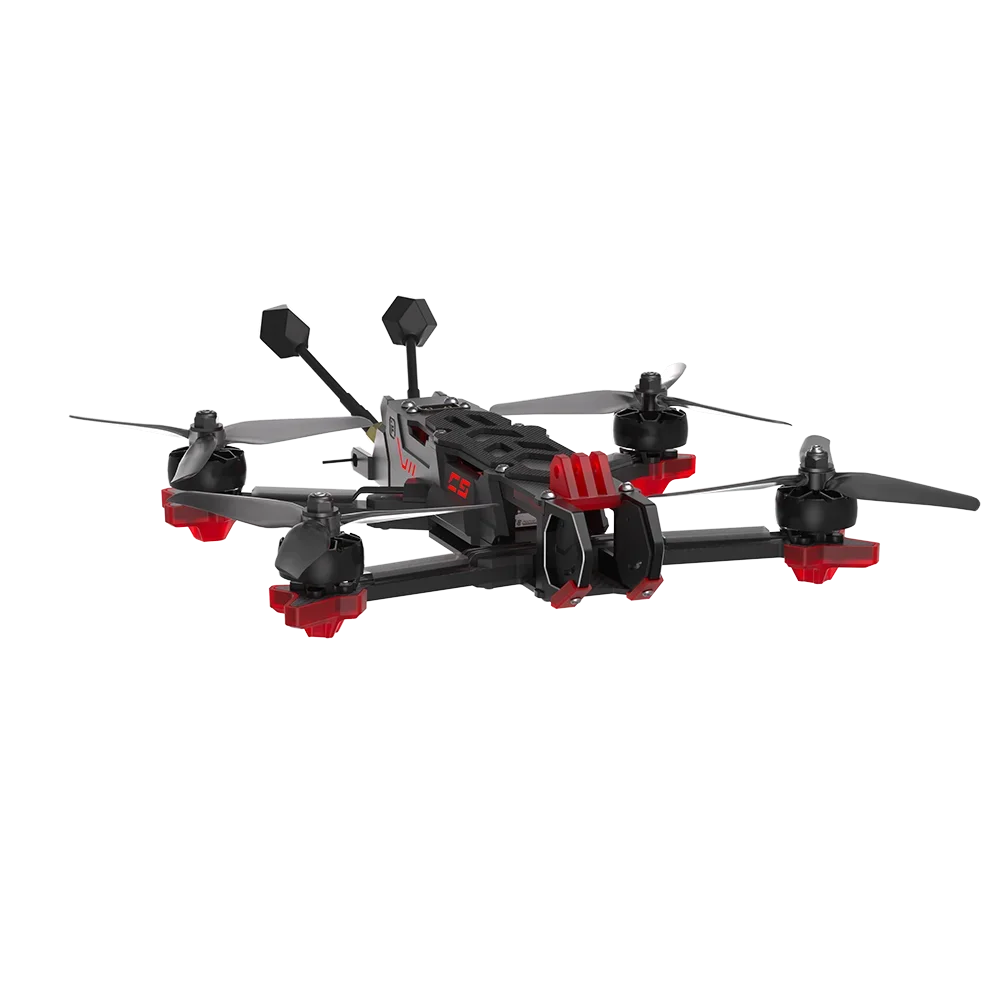

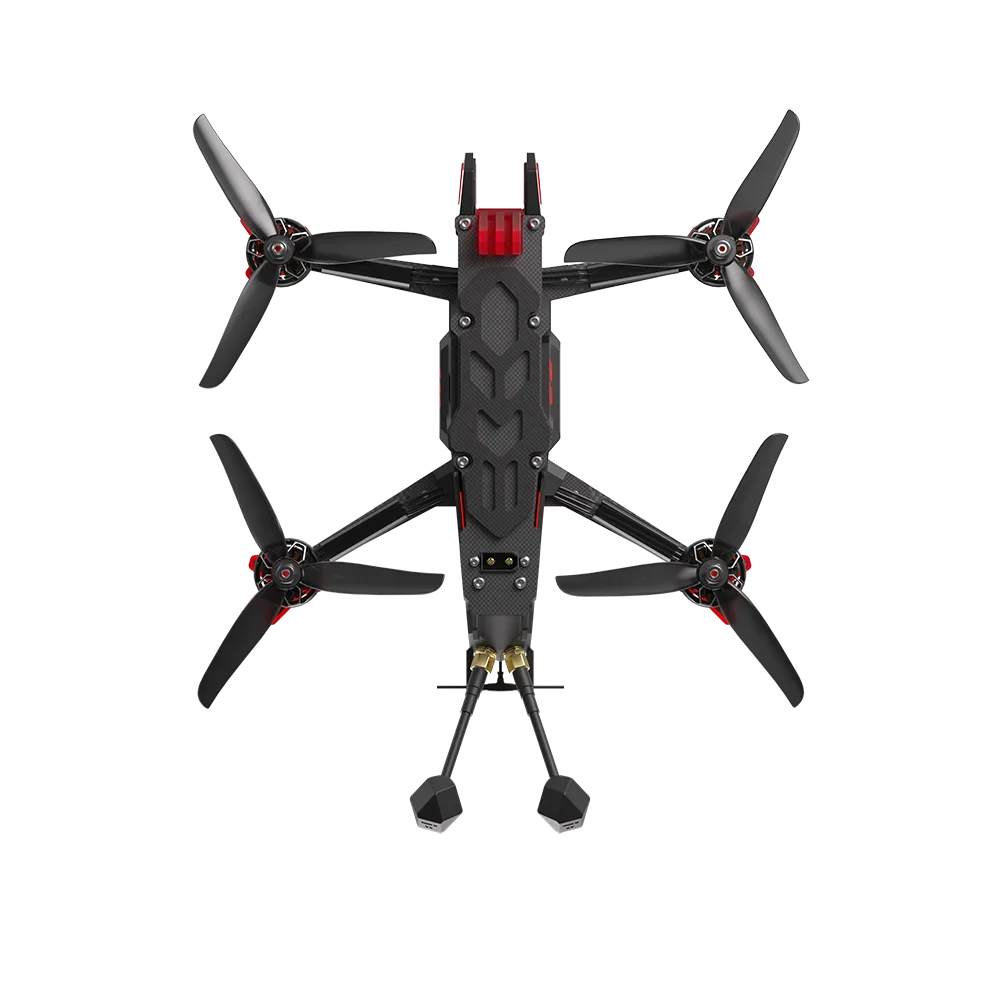

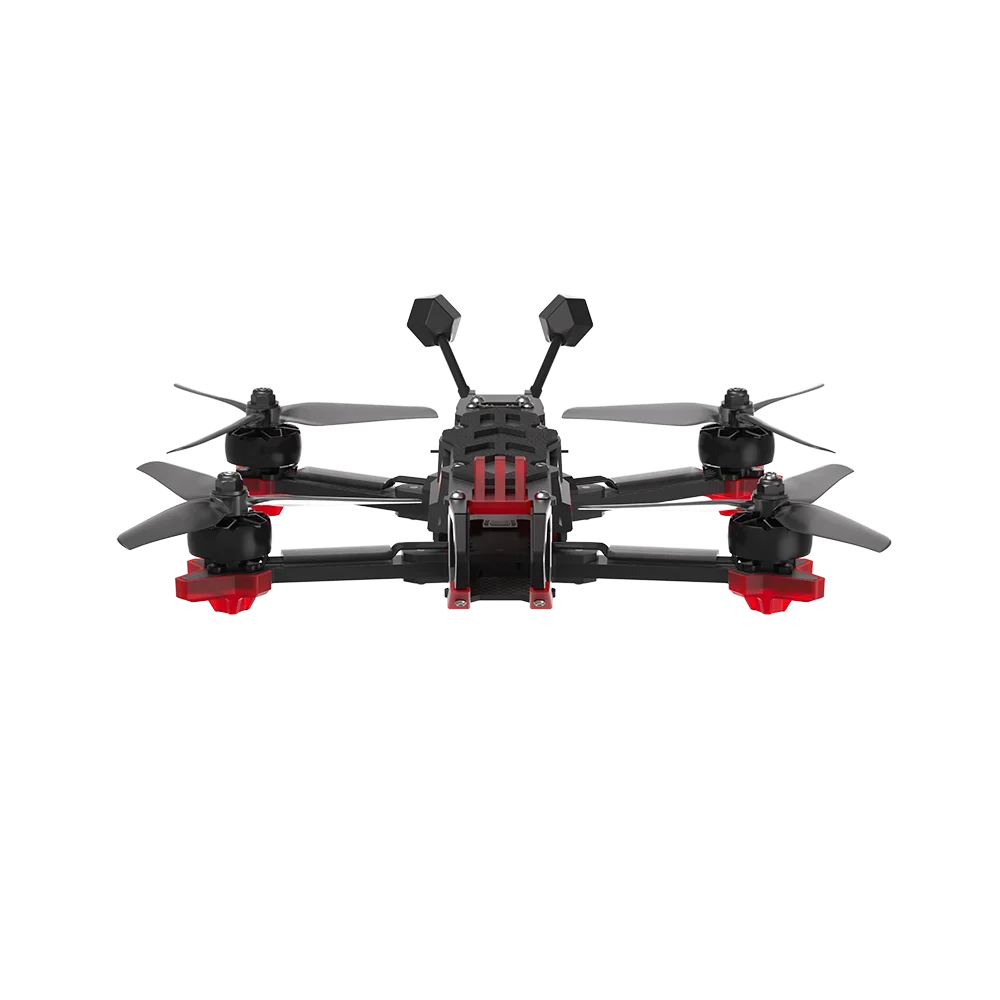

niFlight’s latest FPV drone, the 5-inch CineFlow 5, blends a sleek design with easy maintenance and a high-performance electronics system. The WTFPV version is compatible with various video systems, offering you a range of options. Whether you’re tackling freestyle tricks, high-speed pursuits, or long-range filming, CineFlow 5 is engineered to meet diverse flying needs with precision and reliability.

Features
Innovative Frame Design, No Props in View
SH Series adopted an innovative frame design with no props in view while allowing flexibility for freestyle tricks. With balanced motor output, provides enhanced overall flight performance.
Quick-release Side Panels
Quick-release side panels provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
Down to 17% Hover Throttle
With powerful flight performance, CineFlow 5 can achieve a minimum takeoff throttle of 17%, and enhanced maneuverability for extreme high-speed chasing or acrobatic flights.
High-performance Core Electronics System
Equipped with racing-grade BLITZ Mini F7 FC and BLITZ E55R 4-IN-1 ESC for high-intensity flight maneuvers. It features a larger MOS, and offers a 65A max burst current, which enhances stability and improves heat dissipation.
Built-in high-precision GPS Module
The integrated high-precision GPS module with TPU cover prevents signal loss from external damage, reducing flyaway risks and enhancing device safety.
More Details
Rear-mounted battery plug with anti-spark filter optimizes weight distribution while increasing flight stability. Prevents circuit damage and enhances safety.
Front-mounted Air Unit enhances cooling efficiency and minimizes overheating risks, ensuring the air unit’s stability and performance while extending its lifespan, no need to replace coaxial cable.
Integrated action camera base mount, sleek and integrated design, redefines aesthetics.
Strengthened the connection between the arm base and the drone to improve durability.

Specificaitons
Product Name: CineFlow 5 WTFPV
Geometry: H-shaped
FC: BLITZ Mini F7 Flight Controller
ESC: BLITZ Mini E55R 4-IN-1 ESC
Video Transmission and Camera: None
Frame wheelbase: 222mm

Motor: XING2 2207 2050KV motors
Prop: Nazgul F5 propellers
Dimensions (L×W×H): 182*133*42mm
Weight: 459±5g
Takeoff Weight: Approx. 704±5g (With 6S 1400mAh Battery)
Max Speed: 190 km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 12 min (With 6S 1400mAh Battery)
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7

Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Packing List
1 x SH CineFlow 5 WTFPV
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
1 x Cable Set
1 x Screws bag
