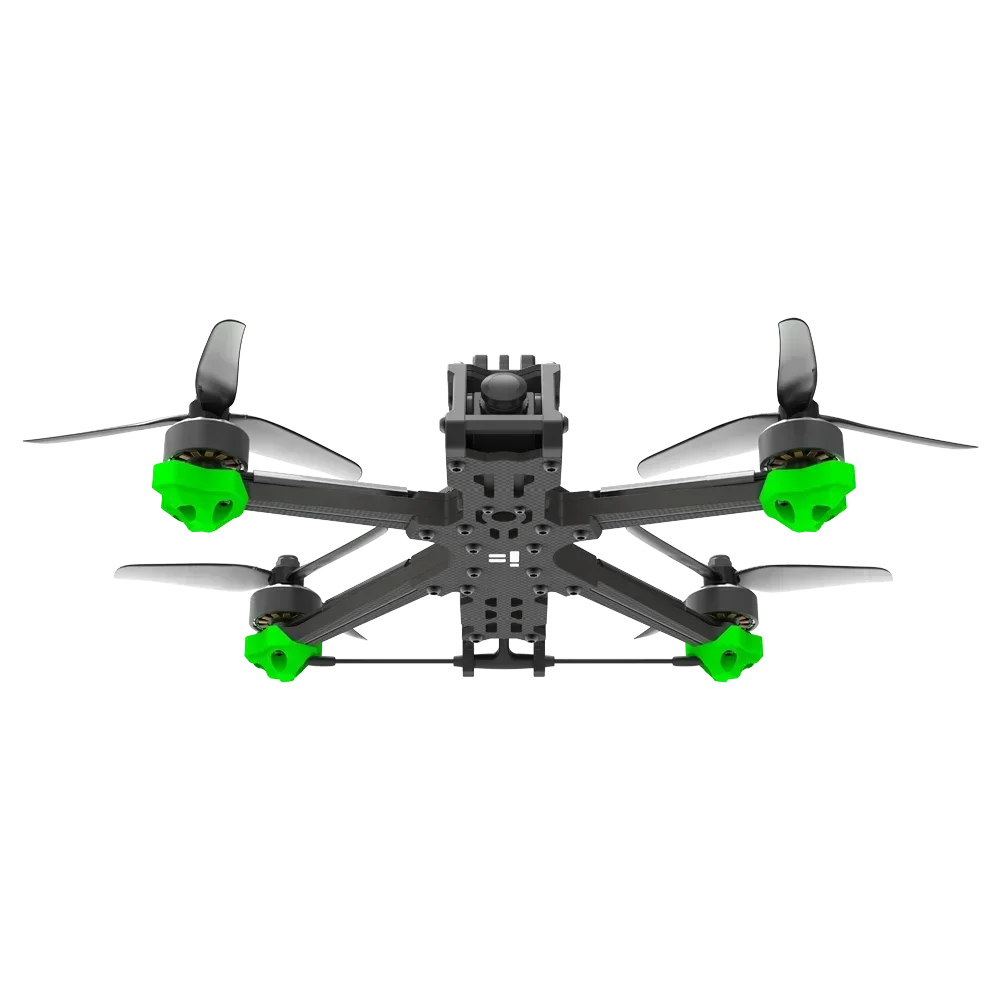

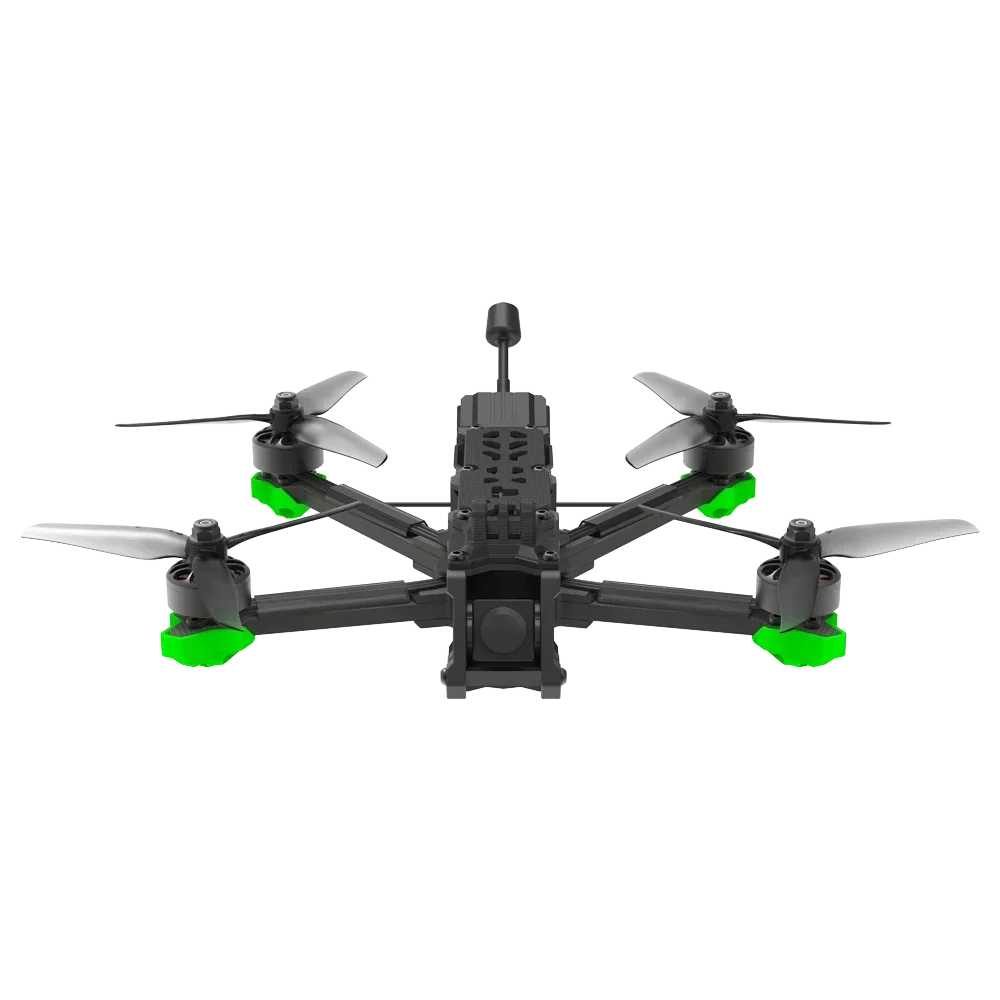

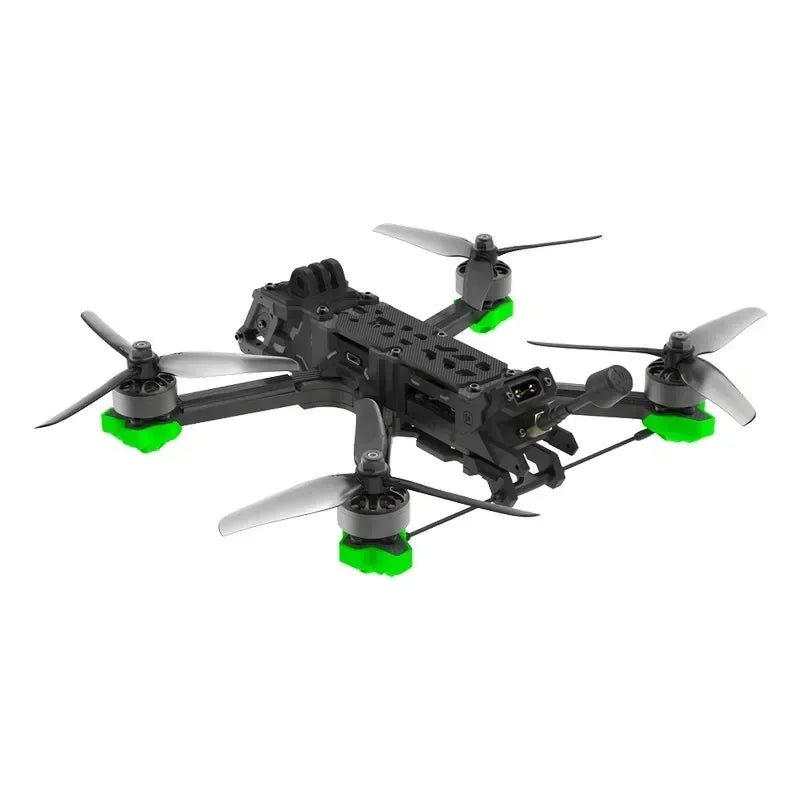

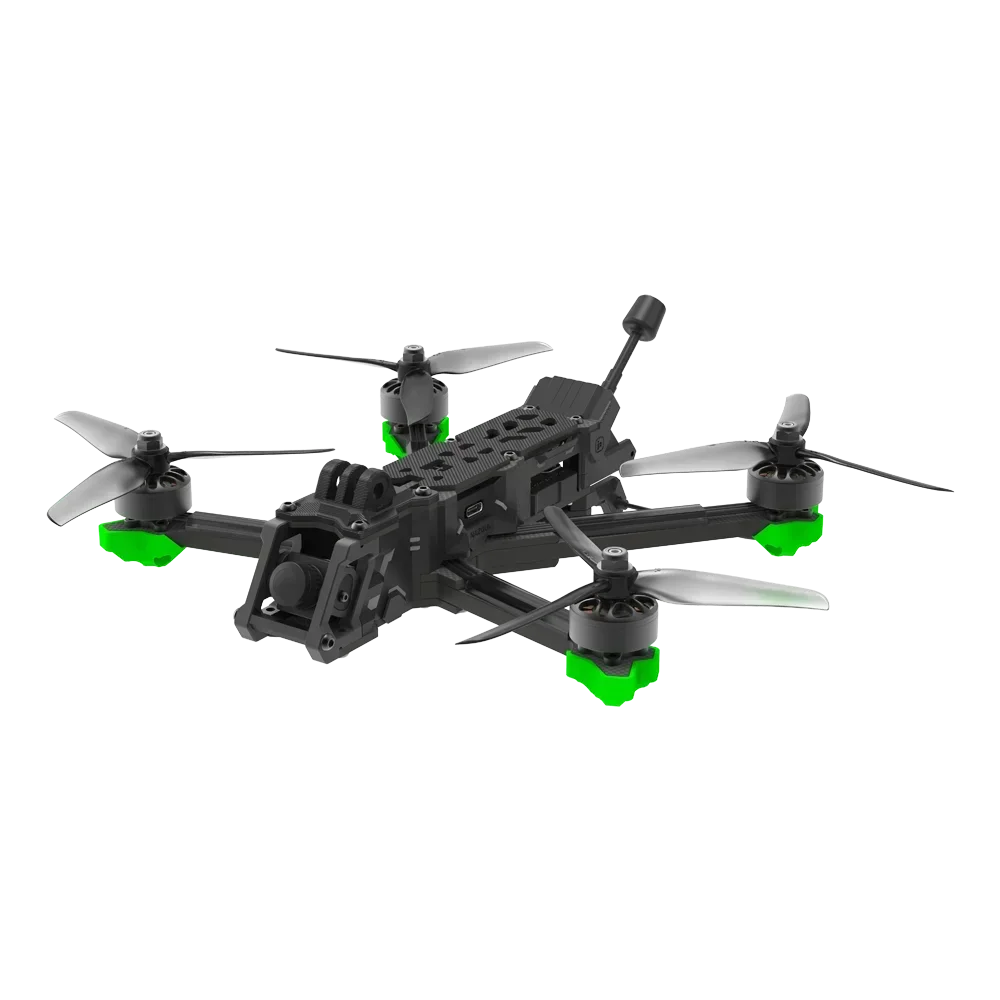

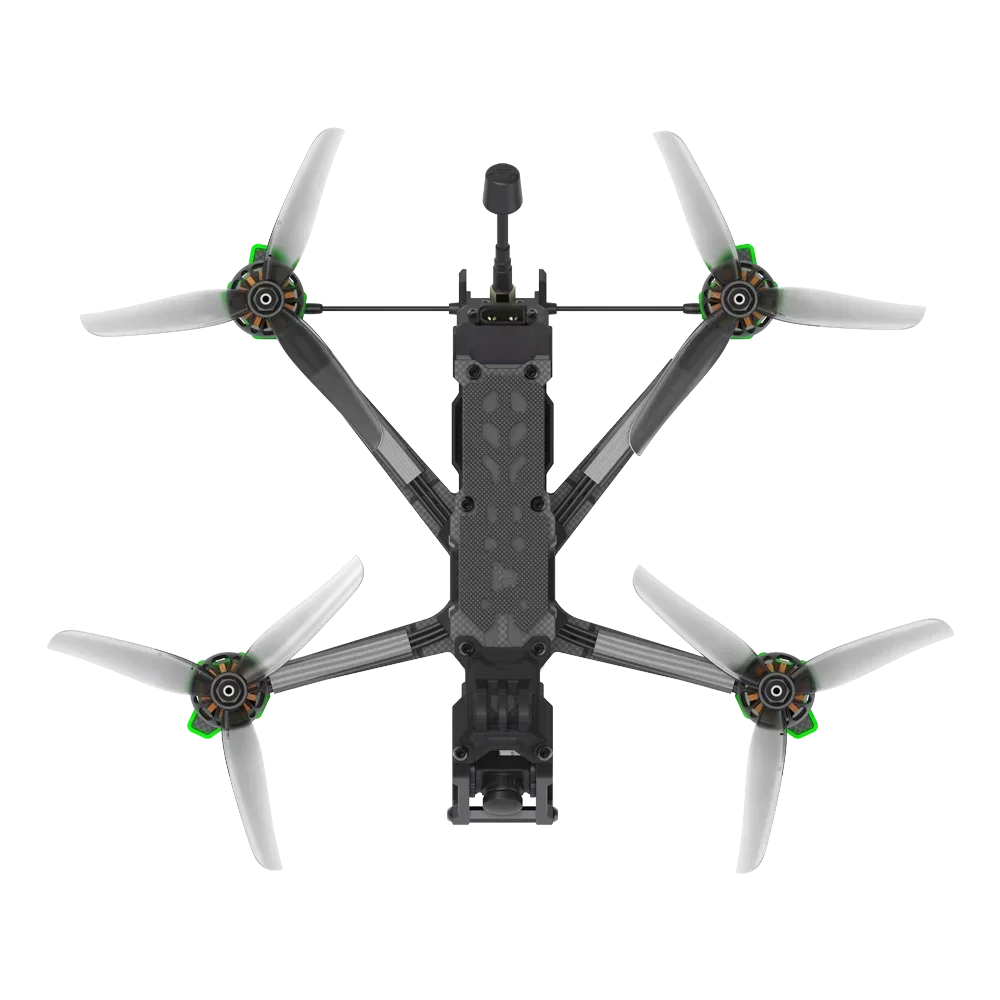

IFlight Nazgul Evoque F5 V2 6S – 5inch Freestyle Quadcopter FPV Drone Mini F722 55A 1.6W VTX XING-E Pro 2207
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Please note: There are two versions of the Frame type F5D-DeadCat (DC) and F5X-Squashed X.
GPS module not included in all versions
Highlights
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
October 20, 2023: Flight control Blackbox flash capacity changed from 16MB to 8MB.
May 8, 2024: The Albatross antenna is available in two versions, and will be shipped randomly.
Product Name: Evoque F5 V2 Analog
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
Motor: XING-E Pro 2207 motors
Prop: Nazgul F5 propellers
Weight: 419g
Takeoff Weight: Approx. 693 g/695g (With 6S1400mAh Battery)
Dimensions (L×W×H): 172×145×36±2mm (Squashed X) / 190×136×36±2mm (DeadCat)
Diagonal Distance: 225 mm
Max Speed: 190 km/h (Manual Mode)
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas
GNSS:GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5×30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
1 x Evoque F5 6S Analog BNF
1 x Antennas
2 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
