Brand:Dsservo

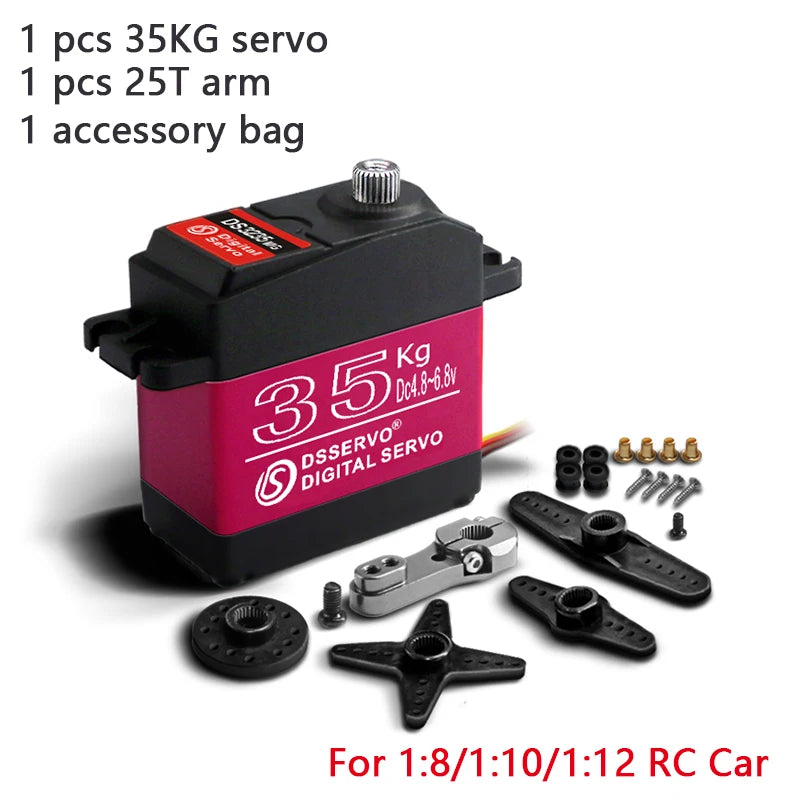

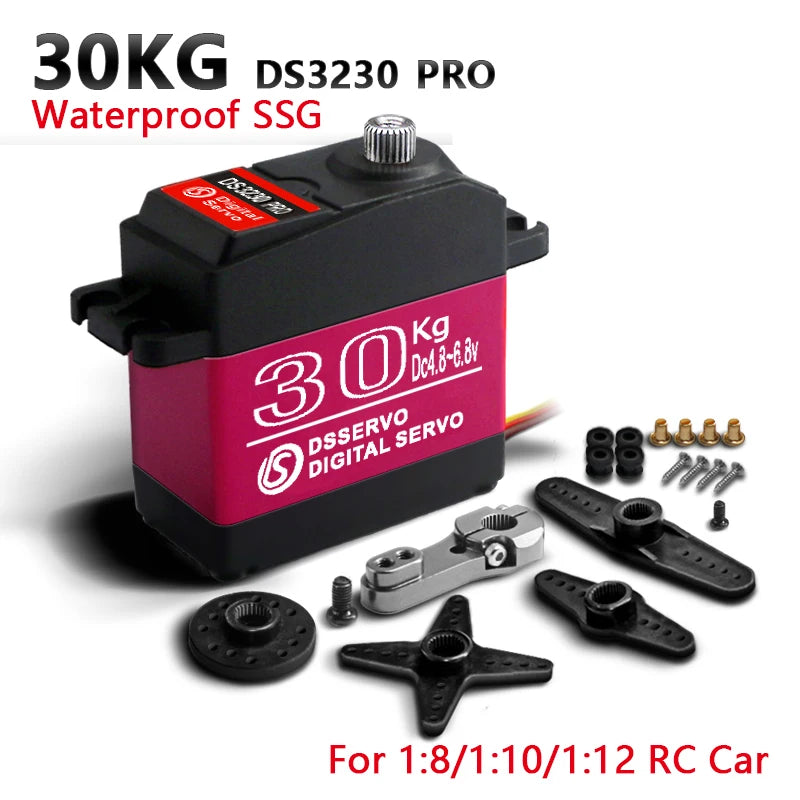

Packing List:

1x digital servo

1x 25T adjustable metal servo arm

1x accessory bag

Apply Environmental Conditon:

1.Storage Temperature Range:-30°C~80°C

2.Operating Temperature Range:-25°C~70°C

Mechanical Specification:

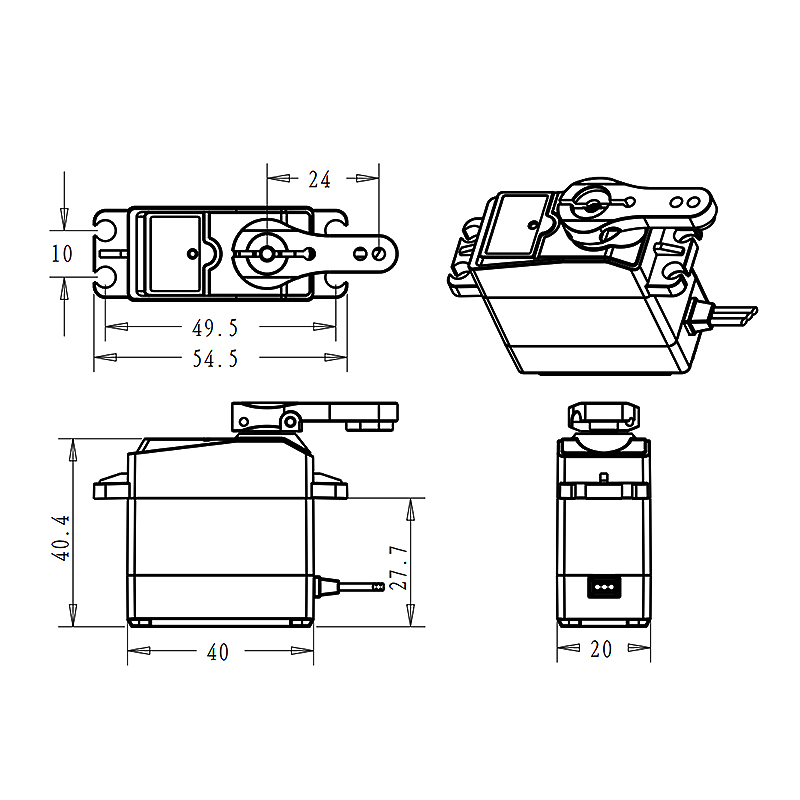

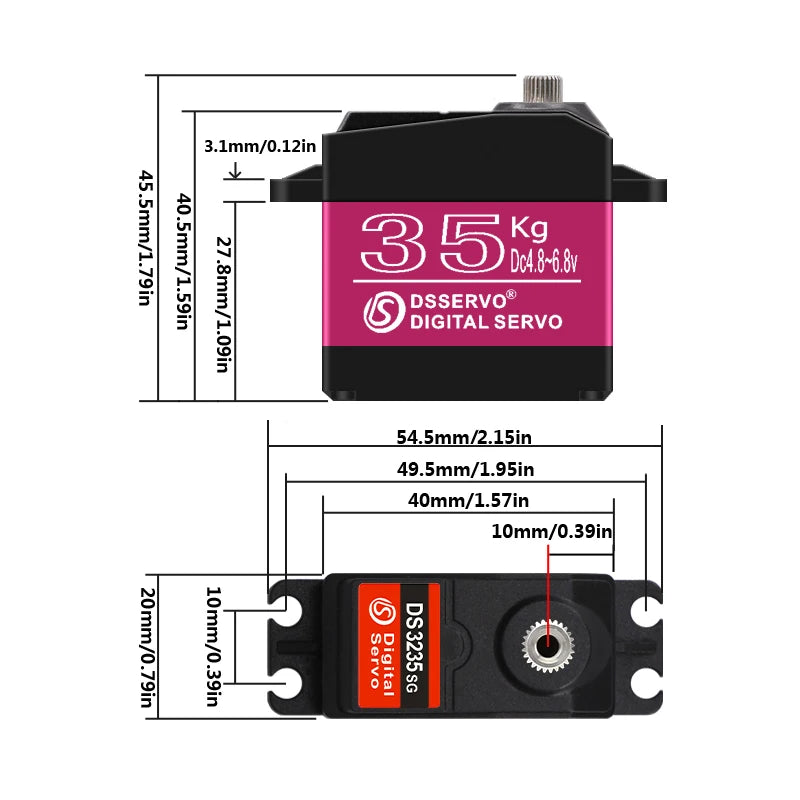

1. Size: 40.0*20.5*40.5mm

2. Weight: 58g±2g

3. Limit angle: 360°

4.Bearing: 2BB

5.Horn gear spline: 25T Diameter:5.9mm

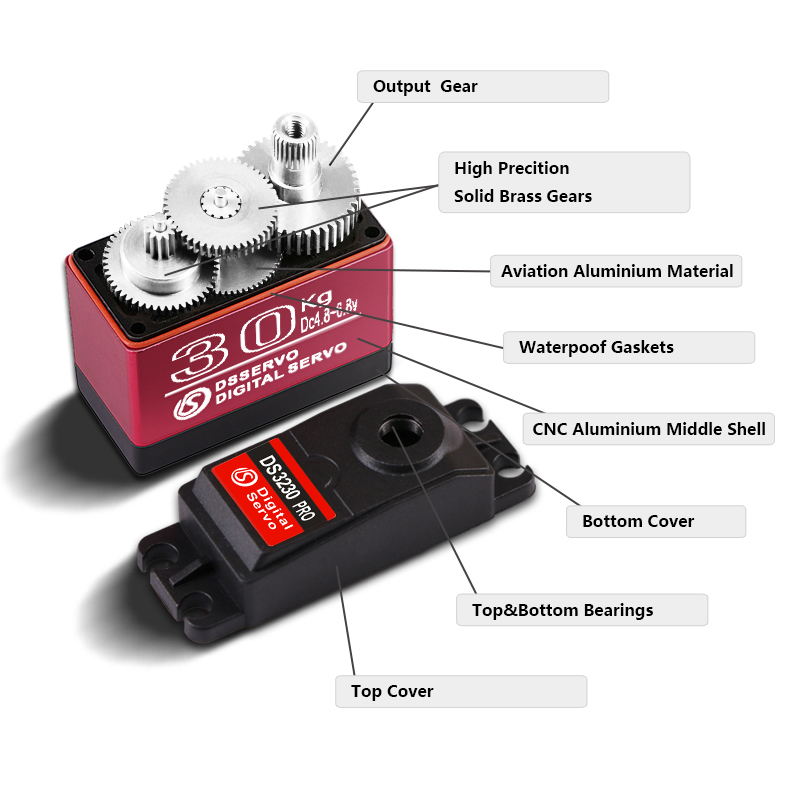

6.Case : Engineering plastics+Aluminum alloy

7.Connector wire: 320mm±5mm

8.Motor: Carbon brush motor

Electrical Specification:

1.Working voltage range: 4.8 – 6.8V

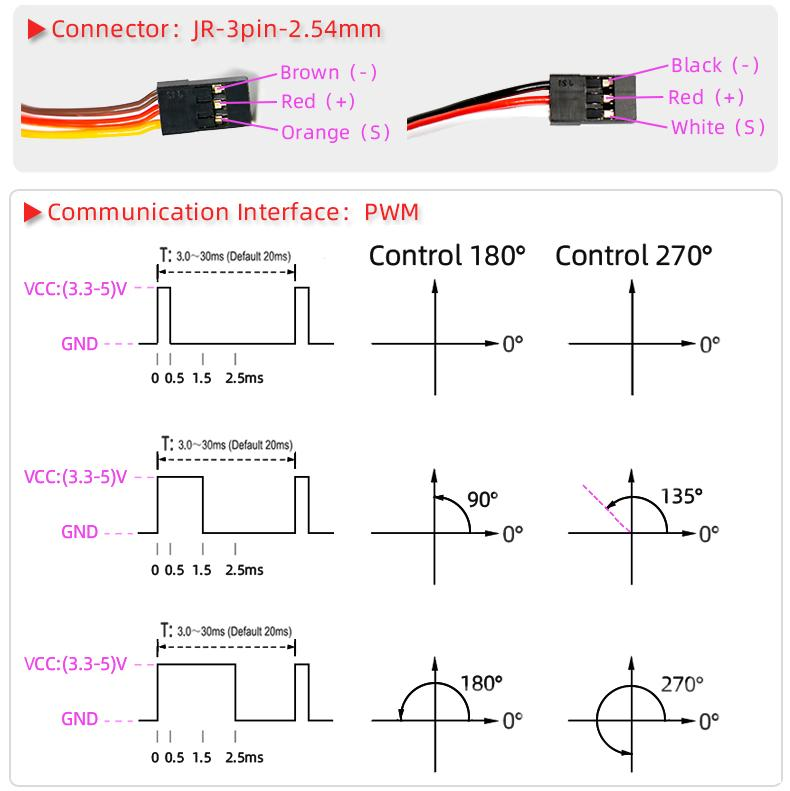

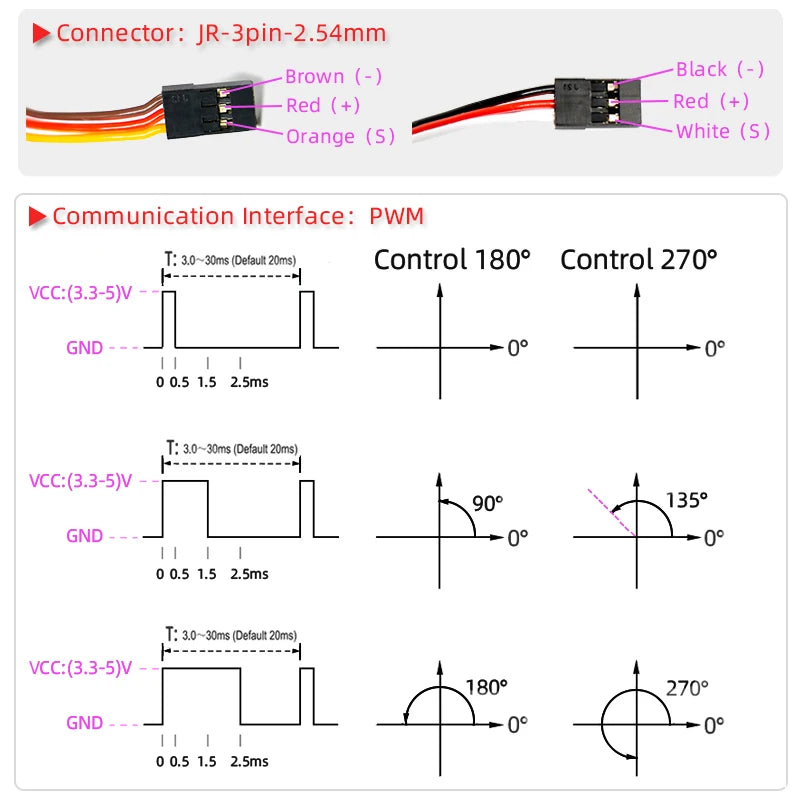

2.Command signal: Pulse width modification

3.Amplifier type: Digital controller

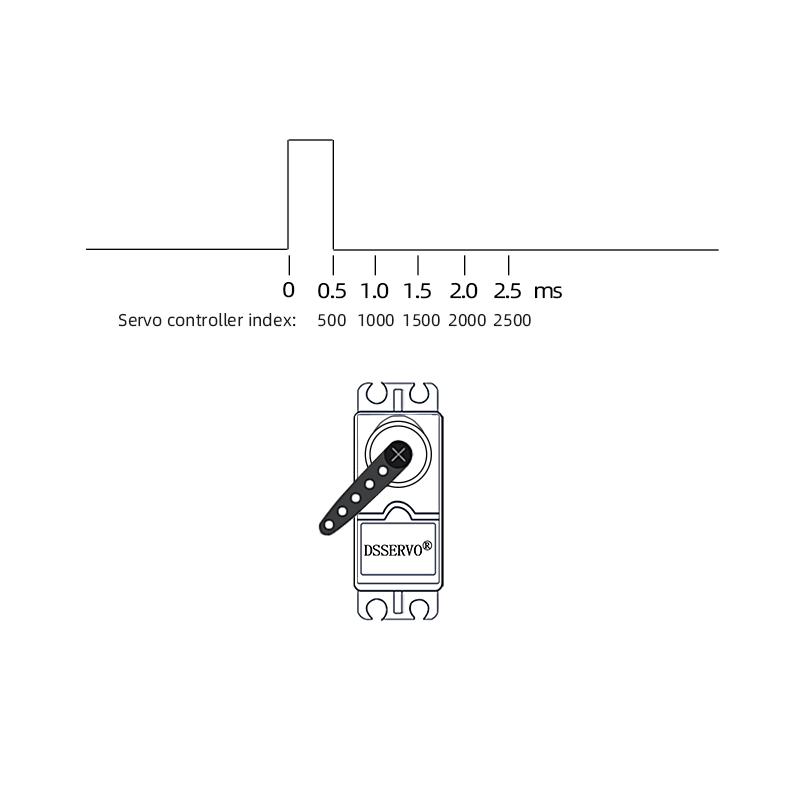

4.Pulse width range: 500~2500usec

5.Neutral position: 1500usec

6.Running degree: 180±3°(PWM 500~2500usec)

or 270±3°(PWM500~2500usec)

7.Dead band width: 3 usec

8.Rotating direction Counterclockwise: (when 1000~2000usec)
