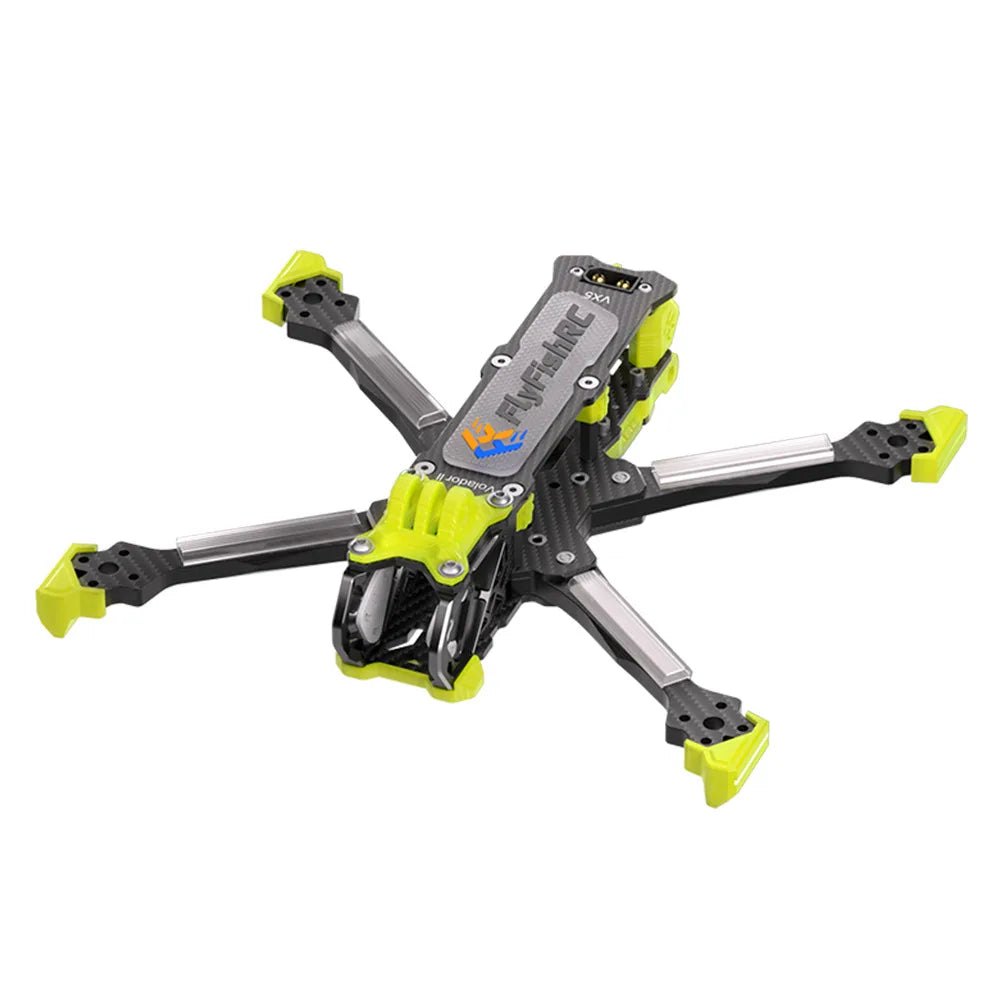

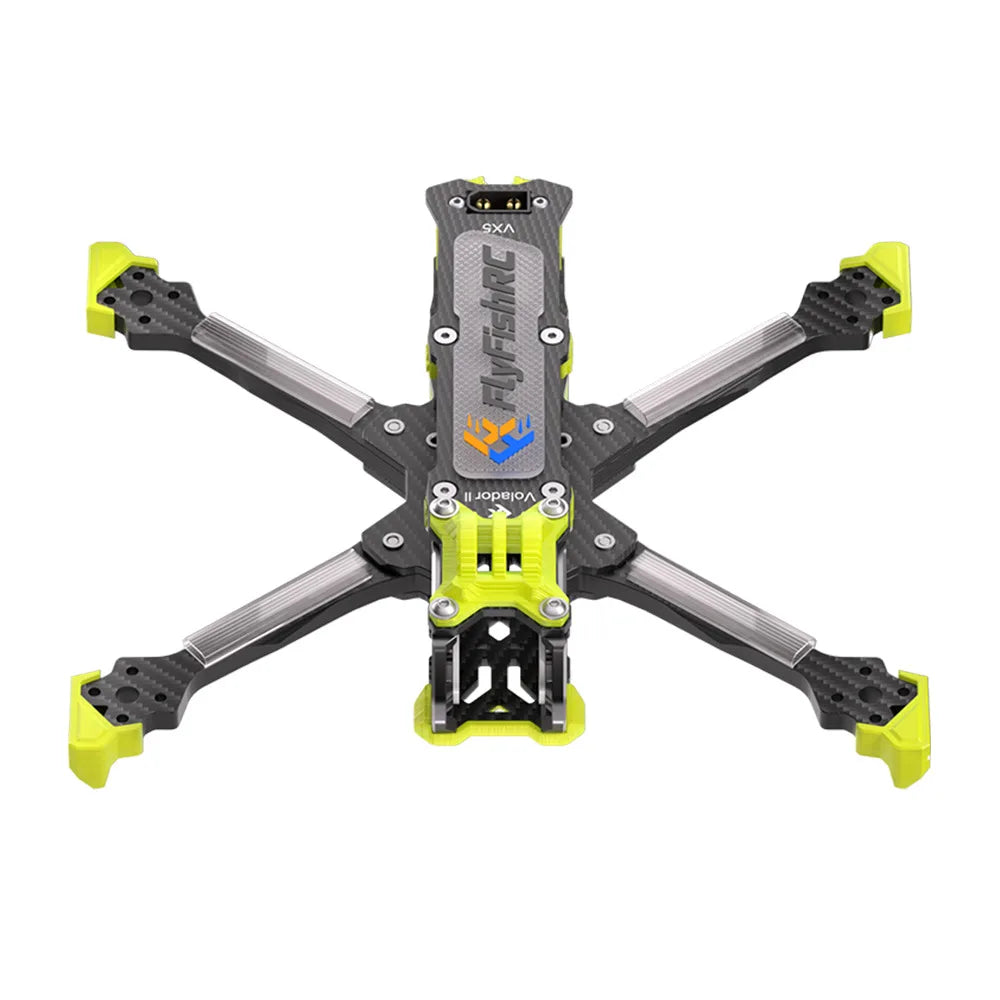

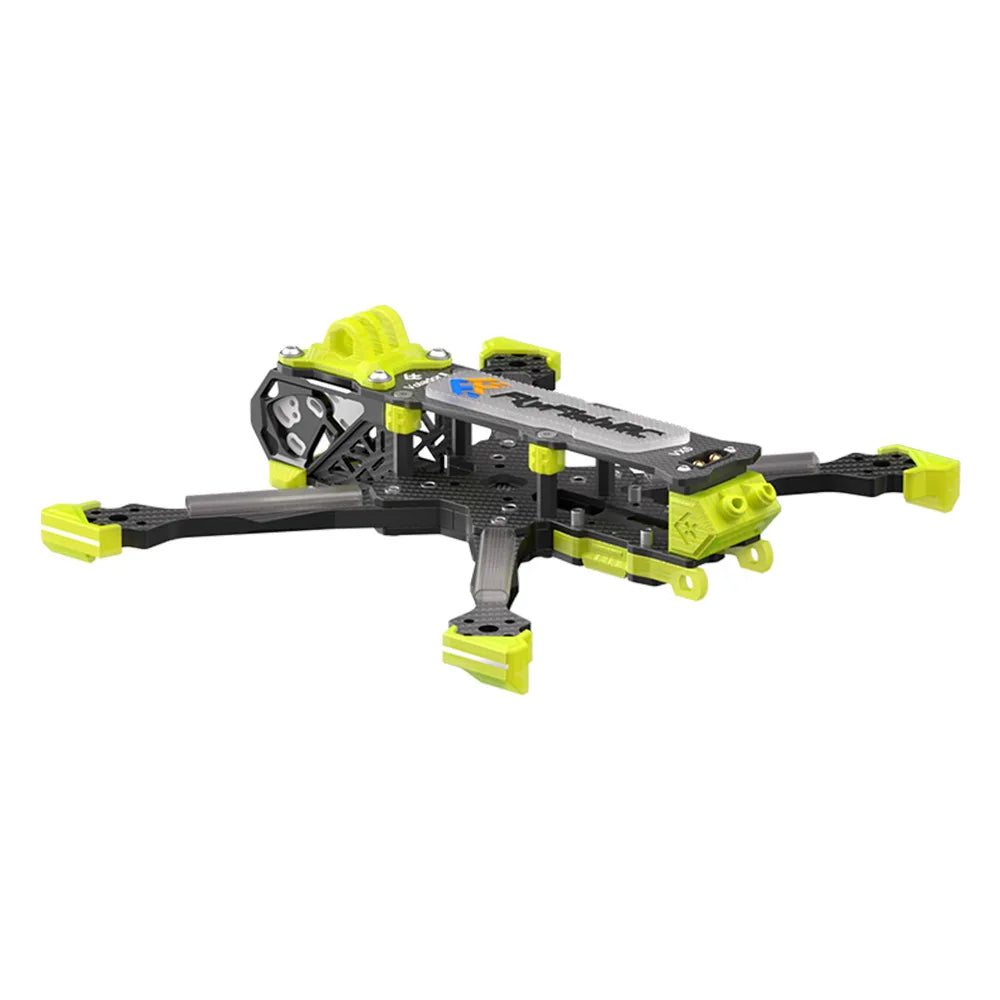

Volador II Description:
We are pleased to announce our second version of the 5-inch framework, the Volador II. Thanks to the extensive suggestions and feedback from V1 users and testers (especially paying tribute to Ryan Harell and Kai Lin), we have made many optimizations in the V2 version to better meet the needs of pilots.

The Volador II framework maintains a high compatibility and simple architectural design, equipped with the necessary accessories for easy, convenient, and organized assembly.

The Volador II VX frame uses a squeeze X configuration for maximum control, while the Volador II VD frame uses a popular dead card style configuration with no props in the view. It is compatible with various analog and high-definition systems on the market, with independent detachable arms and a tightly fitting structural design that minimizes frame resonance. High quality TPU components are typically designed for more integrated and tight installation. We guarantee that any degree of obsessive compulsive disorder pilot will be very satisfactory, as Volador II is the only framework on the market that allows users to have the cleanest appearance of buildings.

We have also designed a silicone shock absorber camera specifically for DJI O4 PRO  Air Unit camera installation, which can eliminate any possible jelly in DVR, and is also compatible with 19mm/20mm format cameras.
The frame is made of high-strength CNC aluminum alloy parts and the highest quality T700 carbon fiber board, with an ultra smooth surface and uniform chamfered edges. Do not damage the cables and battery straps. And, um, it looks interesting, doesn’t it?

Redesigned battery panels with added grids now have better skid resistance and use stronger adhesives. The integrated XT60 connector at the end of the frame eliminates the possibility of power leads being damaged by props in a collision, while allowing one hand insertion of the battery.

The framework is equipped with all the accessories required for simulation and high-definition builds, as well as hardware with a local thread locking agent to achieve additional reliability. The compact structural design fully minimizes responsiveness.

TPU components perform a significant amount of work. “They perfectly adapted the frame, improving its overall durability and looking very smooth. Oh, my god, the tropical mix set is beyond this world!”! This is something we are proud of!

Volador II Compilation Guide:

V2 function:
High end T700 carbon fiber
Compact structural design for maximum responsiveness
New CNC aluminum camera board effectively protects cameras
Silicone shock absorber for O4 AU disinfectant jelly
Integrated XT60 connector for safety and reliability
High quality TPU parts
Innovative anti-skid battery panel
New type motor wire protection tube
Compatible with 19/20mm cameras
Equipped with all accessories required for simulation and HD construction
Strong hardware level 12.9 with local thread lock pre application
High electronic compatibility

Significant difference between V1 and V2:
The frame is now very light.
The new CNC side panel is lighter and very suitable for DJI O4 AU cameras.
The new battery skid pad is more “sticky” and has better adhesion.
Add a keyboard to further reduce arm vibration.
Add bottom screw gasket.
Add motor wire protection tube.
The four middle screws on the top panel now correspond to the countertop and sit in a flush position to eliminate possible battery damage during a collision.
The new TPU arm guards are now lighter and easier to remove.
All models now have two types of TPU antenna installation (with or without GPS installation).
The thickness of the bottom and middle plates is adjusted to 2.5 mm.
The connecting structure between the arm and the splint is slightly adjusted to better distribute pressure.
The XT60 plug-in cutouts on the top panel are now symmetrical, allowing installation of the XT60 in both directions.

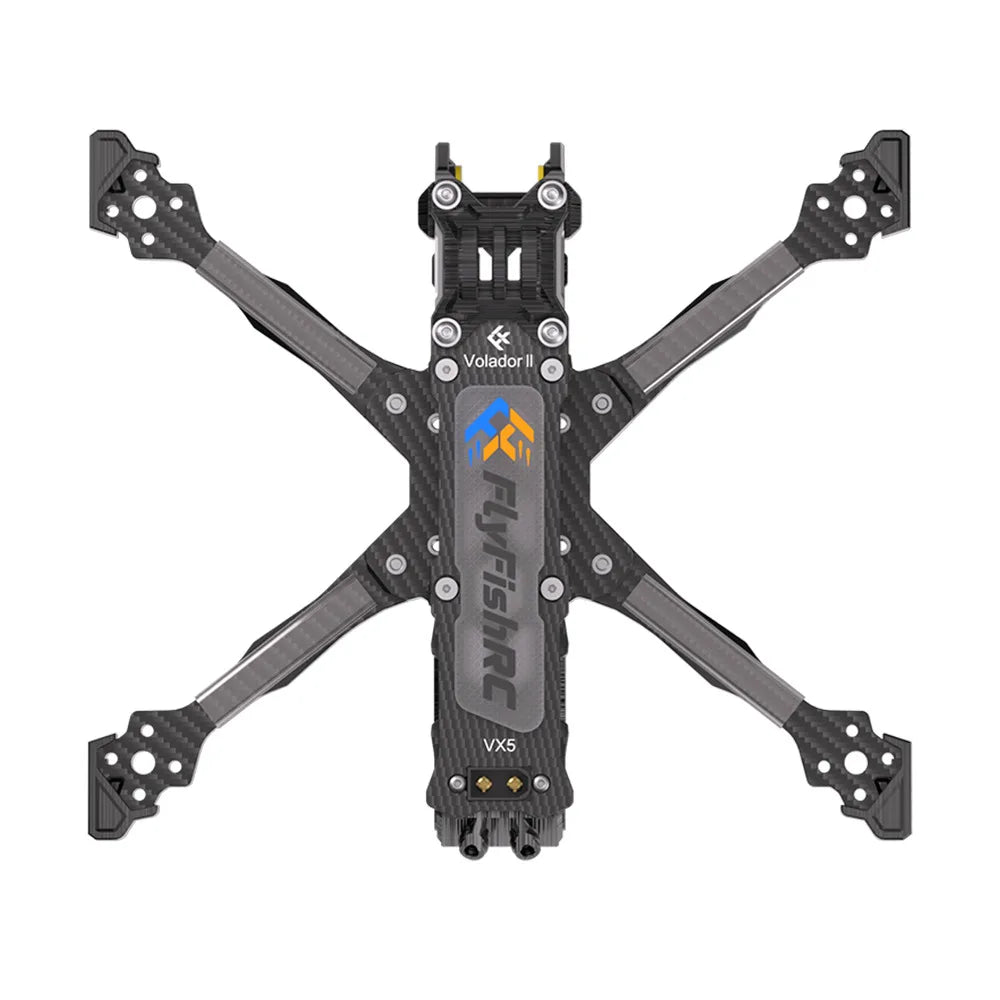

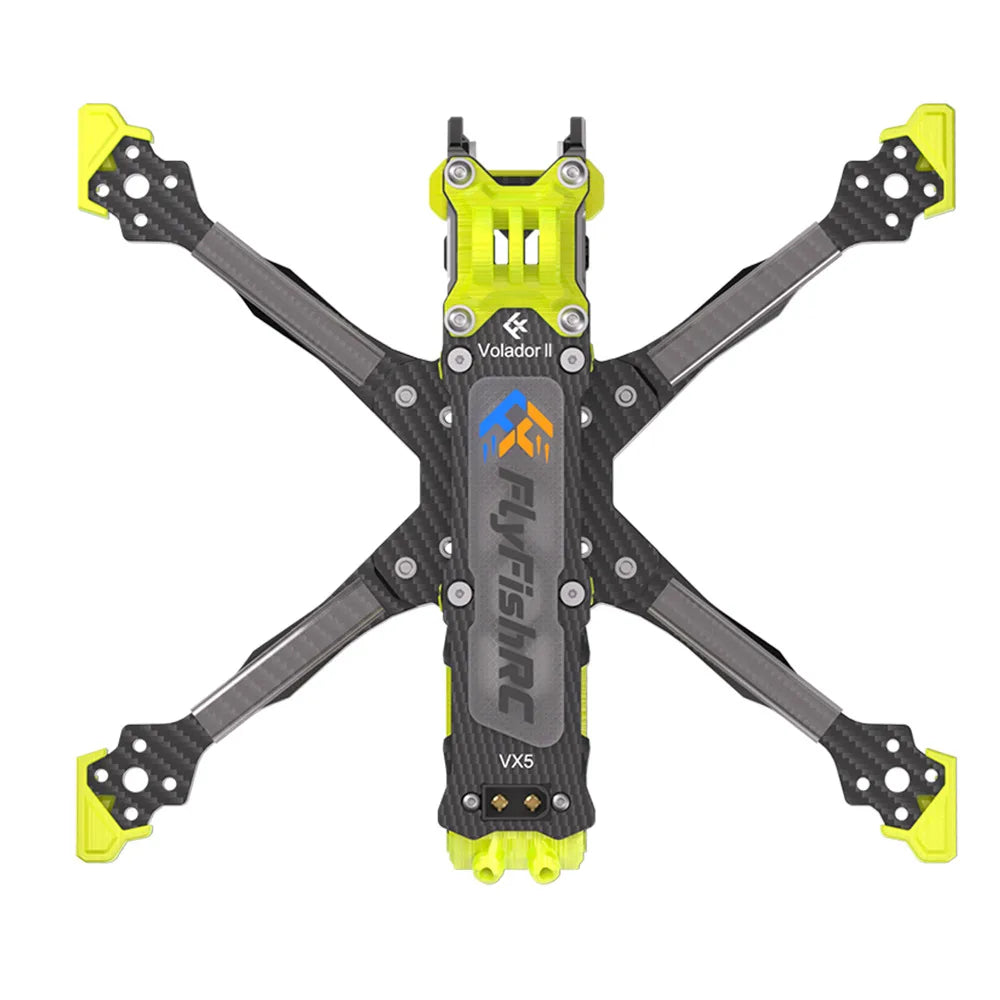

VX5 specifications:
Arm thickness: 6mm
Roof thickness: 2.5mm
Medium plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Keystone thickness: 5mm
Side plate thickness: 2mm
CNC side plate thickness: 5mm
Propeller size: 5 to 5.1 inches
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
Weight: 177.4 g (with TPU parts)

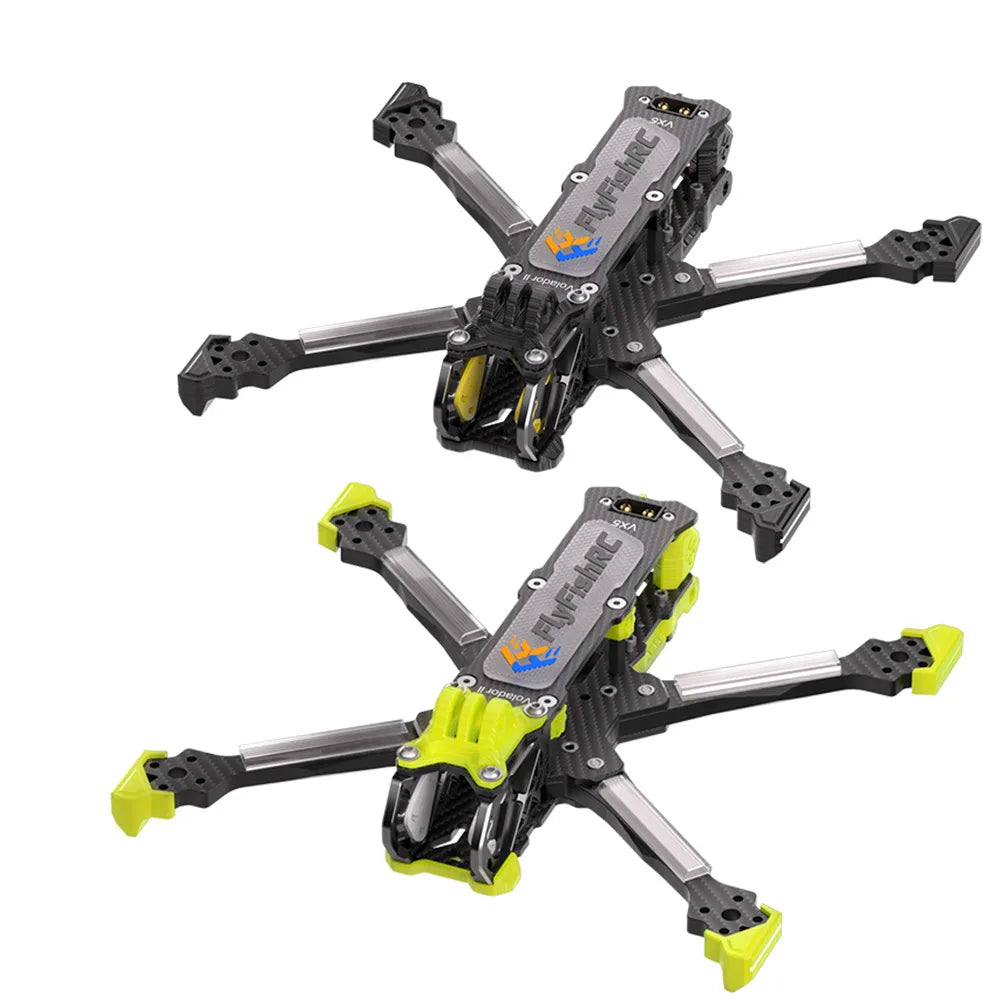

Color: Black/Tropical Blend (optional)
Overall size: 177mm * 165mm Wheelbase: 225mm
Stacking installation hole: 20mm * 20mm/30.5mm * 30.5mm (M3)
VTX mounting hole: 20mm * 20mm/25.5mm * 25.5mm (M2)

Package includes:

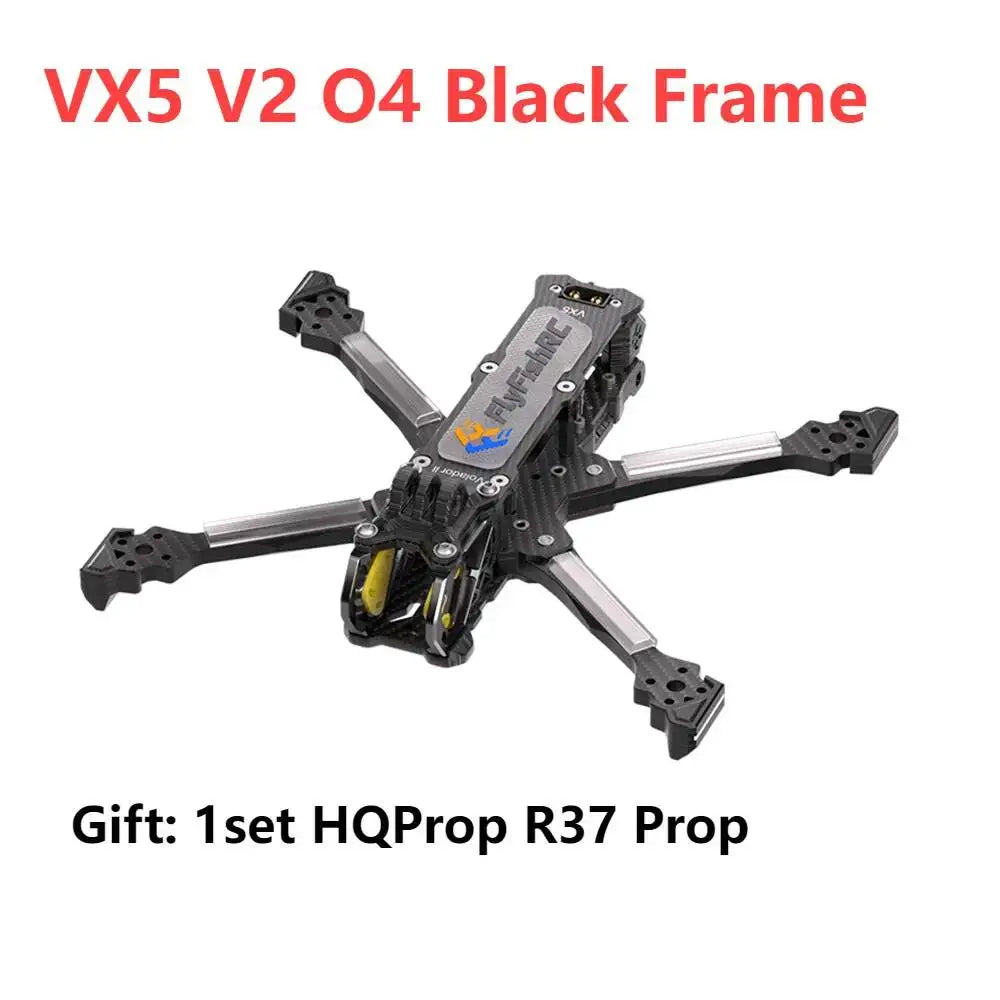

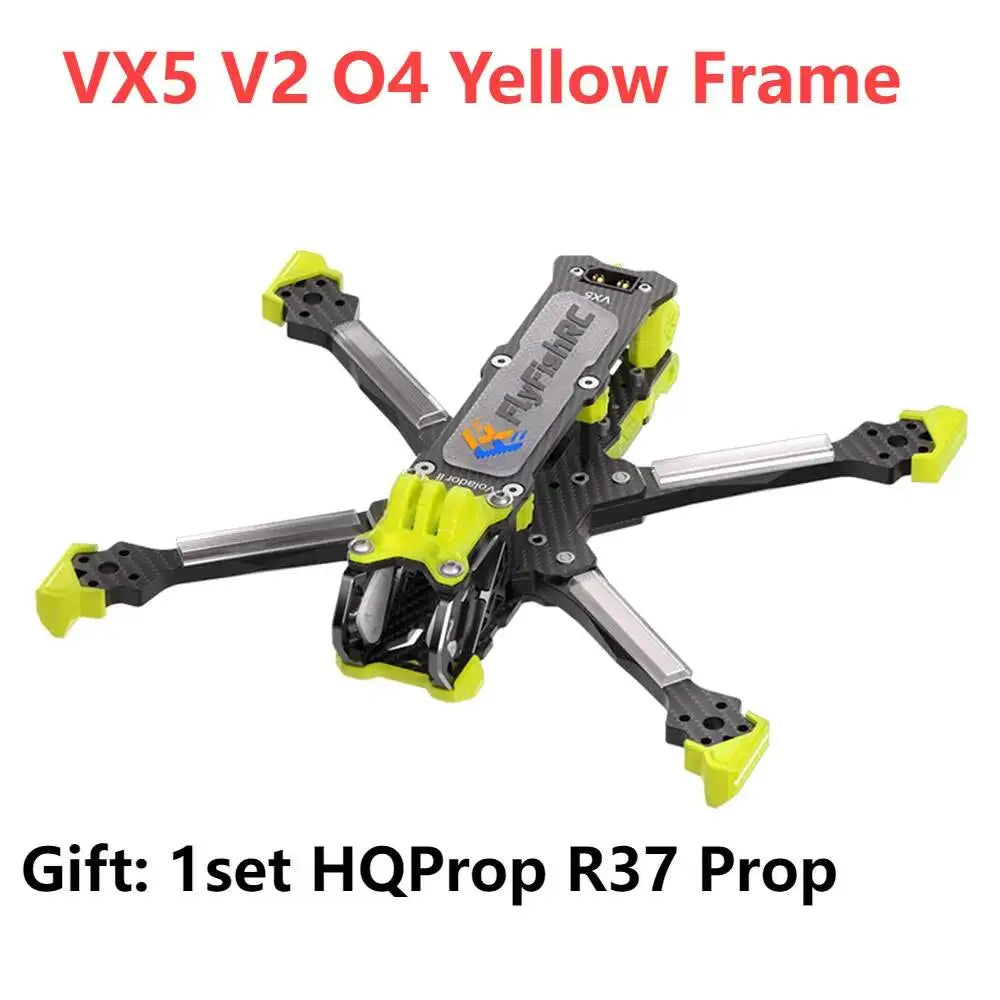

1x Volador VX5 V2 Frame Kit

2x CW+CCW =1set  HQProp Ethix R37 5 inch FPV Props
