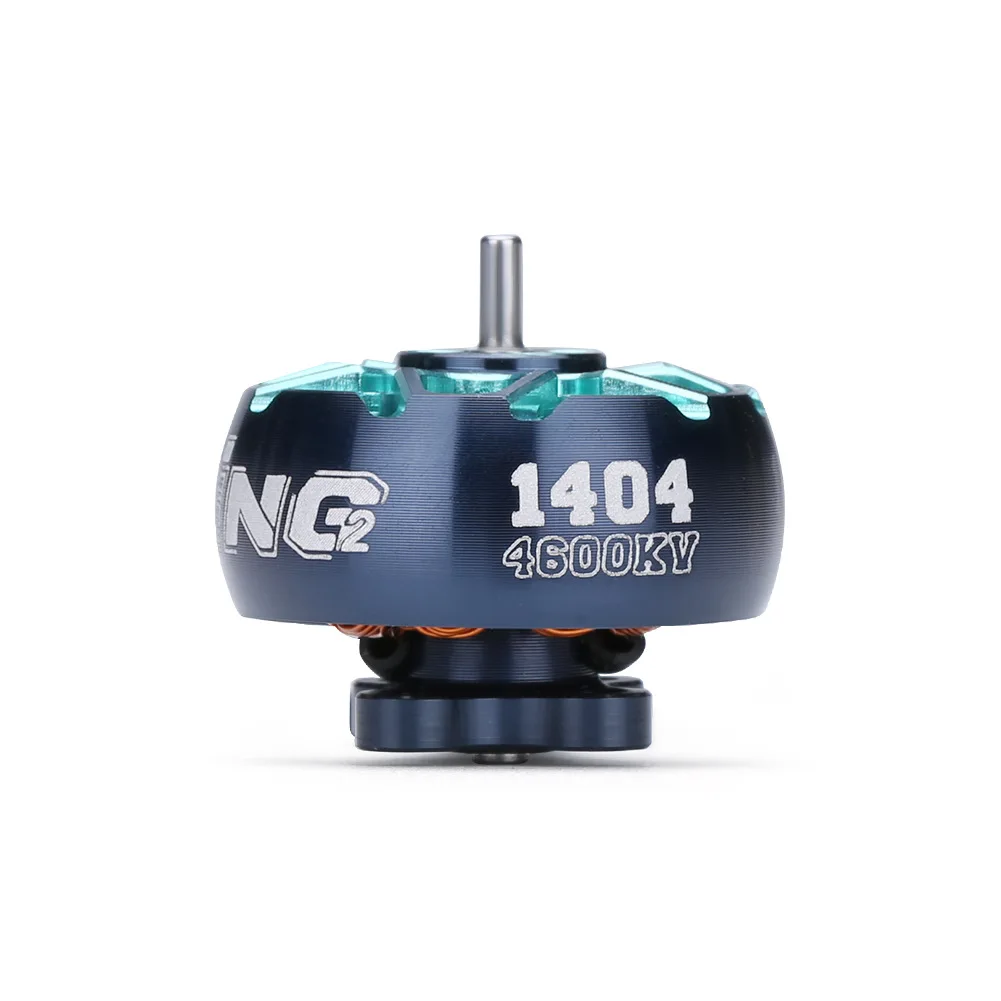

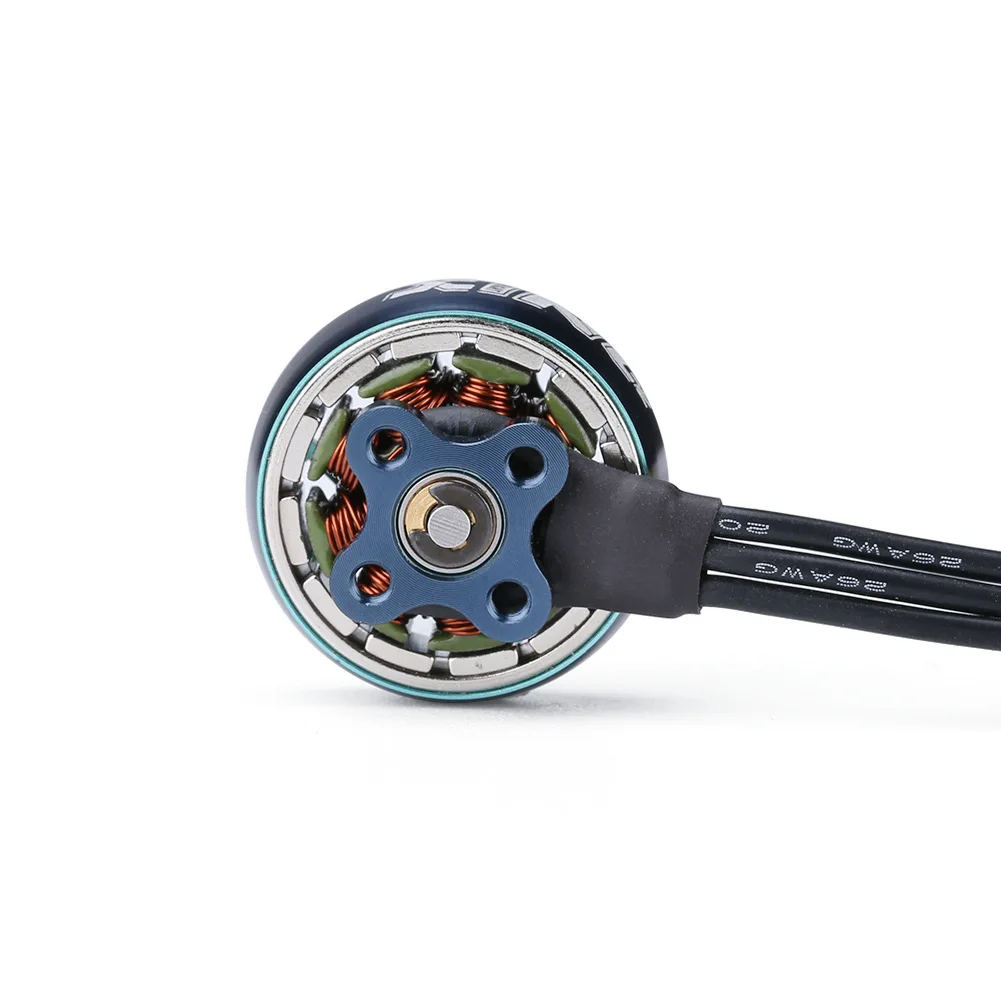

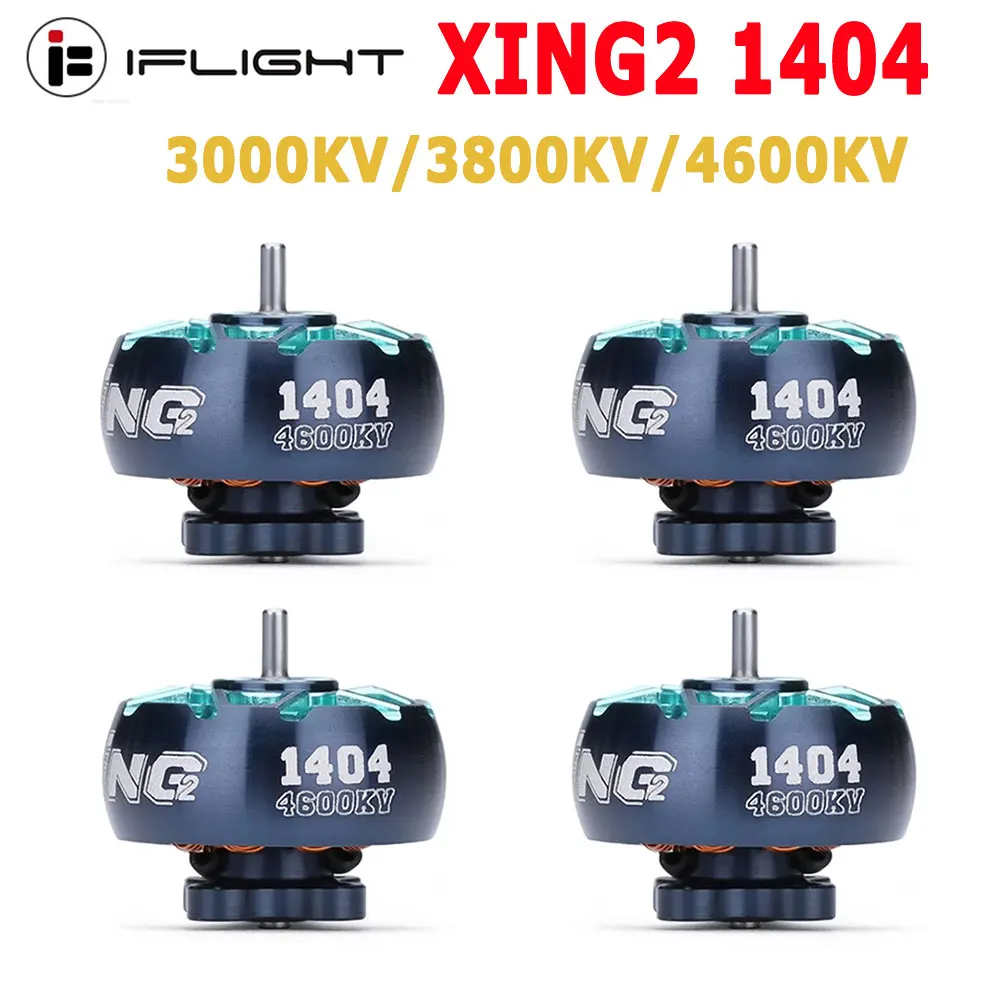

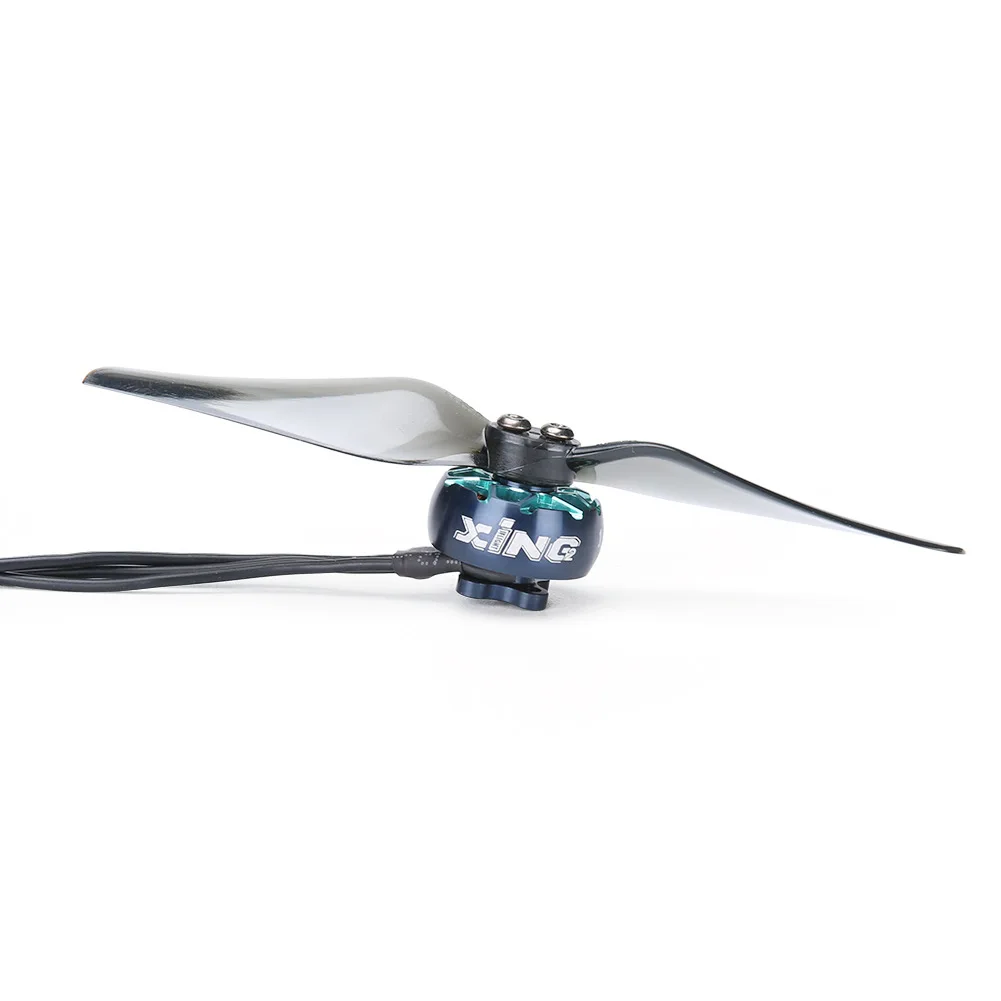

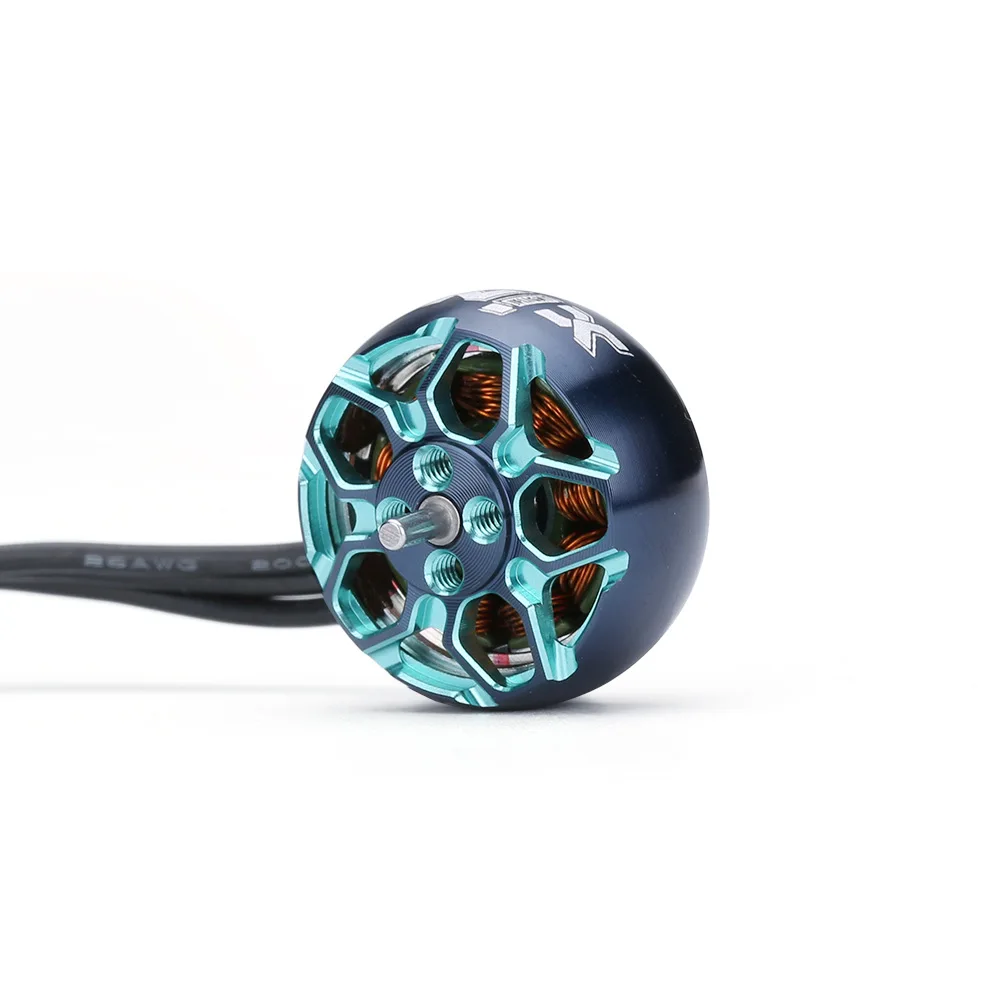

IFlight XING2 1404 3000KV/3800KV/4600KV 2-4S Toothpick Ultralight Build unibell motor compatible 3-4inch propeller for FPV Drone

IFlight XING2 1404 3000KV/3800KV/4600KV 2-4S Toothpick Ultralight Build unibell motor compatible 3-4inch propeller for FPV Drone
Description:
Our XING series NextGen engines have become popular after the initial launch in 2018 and have become the new standard in the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings mated with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again. We are finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were improved and we have achieved an even higher standard in our factory, as well as better performance than ever before. New center slotted N52H curved arc nets were introduced to reduce engine response time. Perhaps the biggest bottleneck of our FPV flight controller is the motor due to the delay of the braking and acceleration translation. XING2 motors offer faster response to translate your PID loop faster and get that locked-in feel you’ve always been looking for.
Due to the high quality materials used and the durable bell and shaft seal, we have been able to minimize the magnetic air gap and lamination of the stator. The smaller the air gap, the lower the reticence and the greater the magnetic flux (which is the magnetic analog of current) which will cause higher efficiency and higher power.
In early 2018 we started putting O-rings on top of our bearings between the motor bell and the stator. This works as an absorber if your bell or shaft has crashed and keeps the bearing gap tight to reduce all those high rpms induced vibrations. It can also reduce the axial impact force enough to keep the bearings smooth and quiet. All of our experience, high quality 7075 bells, round ring bearing protection and all the other features you have seen on your original XING series are still built into a new shape and design!
The new ones for XIN2 X1404 MOTOR designed for ultralight stick construction, which micro drone change FPV at present. Super light 3 “is built like so much nicer as we have SucceX whoop style all in one (AIO) with the new mondadiflight style frame that the ultralight microdrone can build.
The specifications:
Voltage: 2S-4S
KV option: 3000KV / 3800KV / 4600KV
Configuration: 9N12P
Stator diameter: 14mm
Stator length: 4mm
Shaft diameter: 1.5mm
No. of cells (Lipo): 2-4S
Maximum continuous current (A): 11.8a
Maximum continuous power (W): 174.6 W
Internal resistance: 0.28Ω

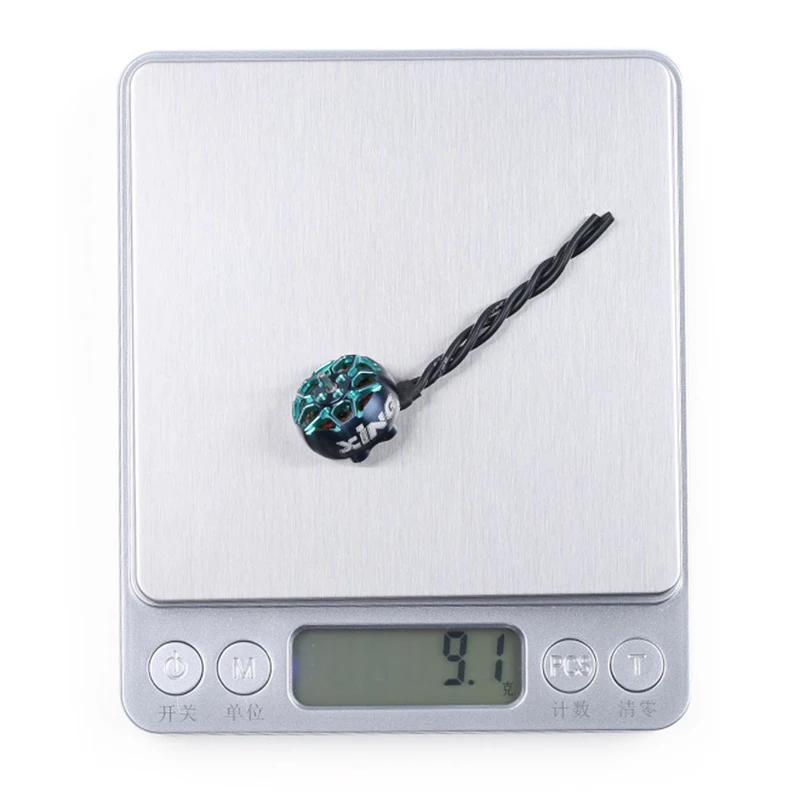

Weight: 8.5g (without cable)
Mounting pattern: 9 * 9-Ω 2mm
Bearing: 5 * 2 * 2.5mm
Cable: 120mm / 26AWG
Package Included:
1/4 x XING2 1404 Unibell Motor (option: 3000KV / 3800kV / 4600KV)
4/16XMounting Screws M2x7
