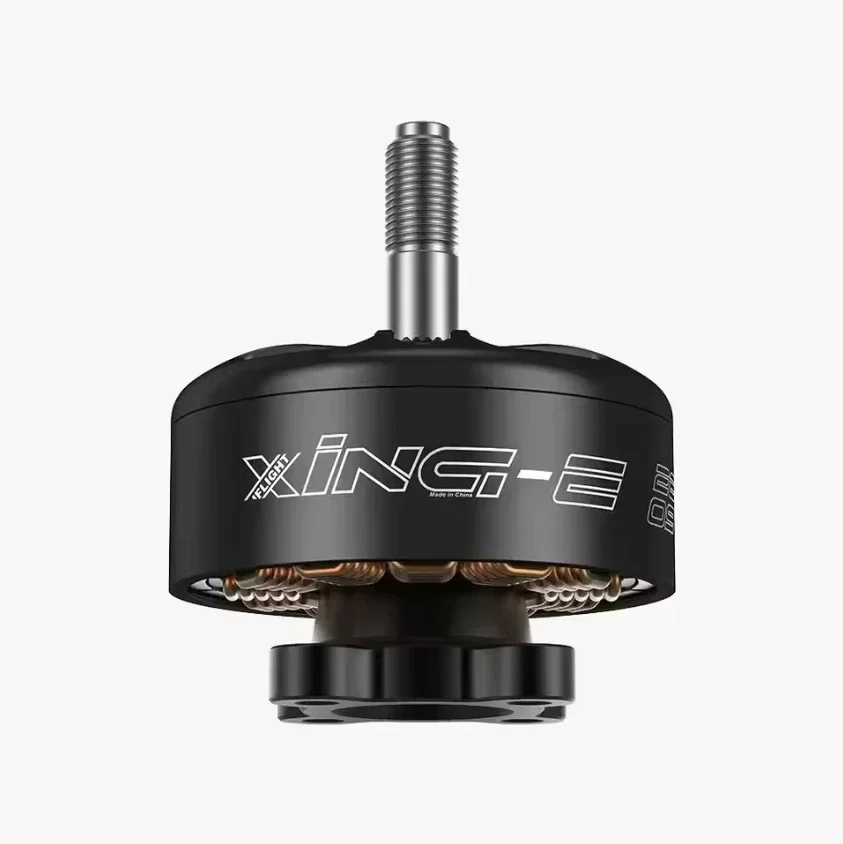

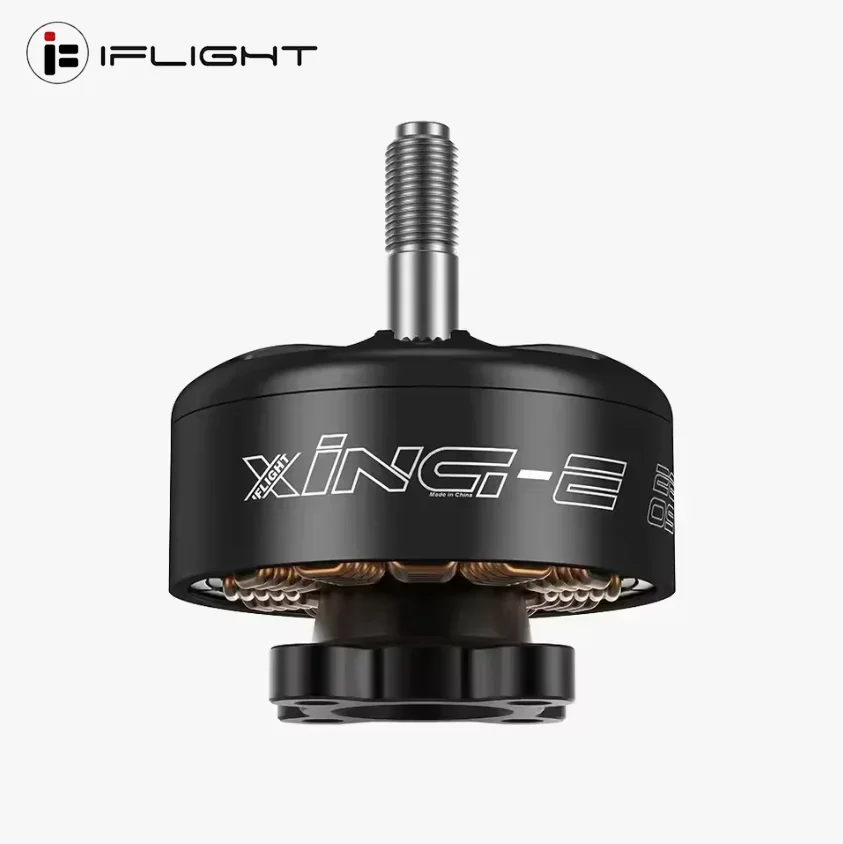

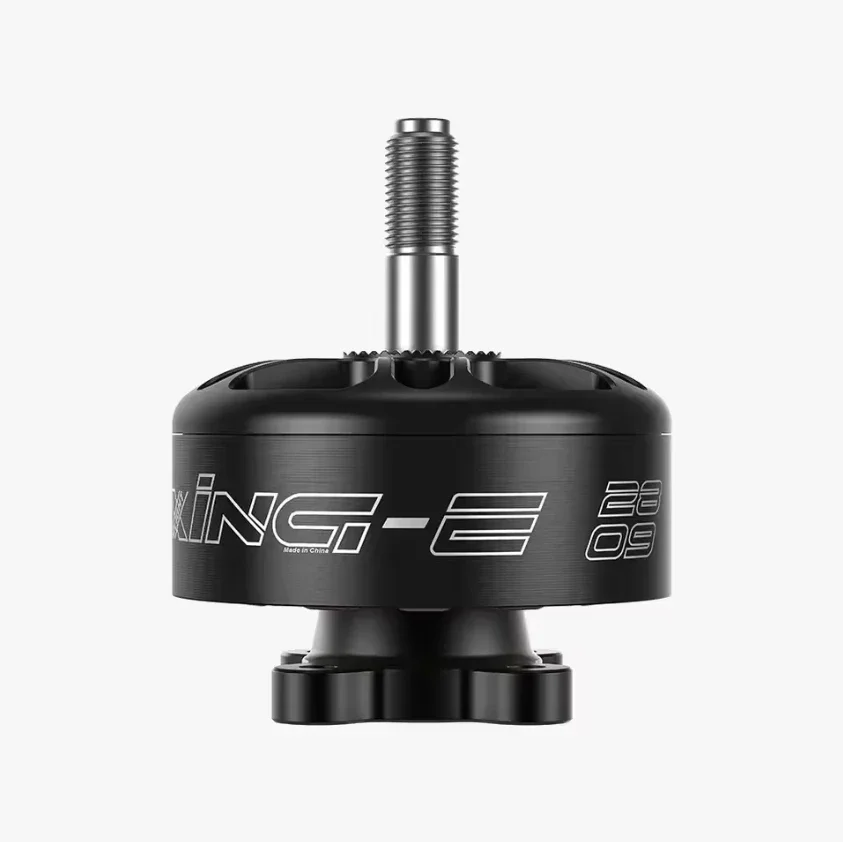

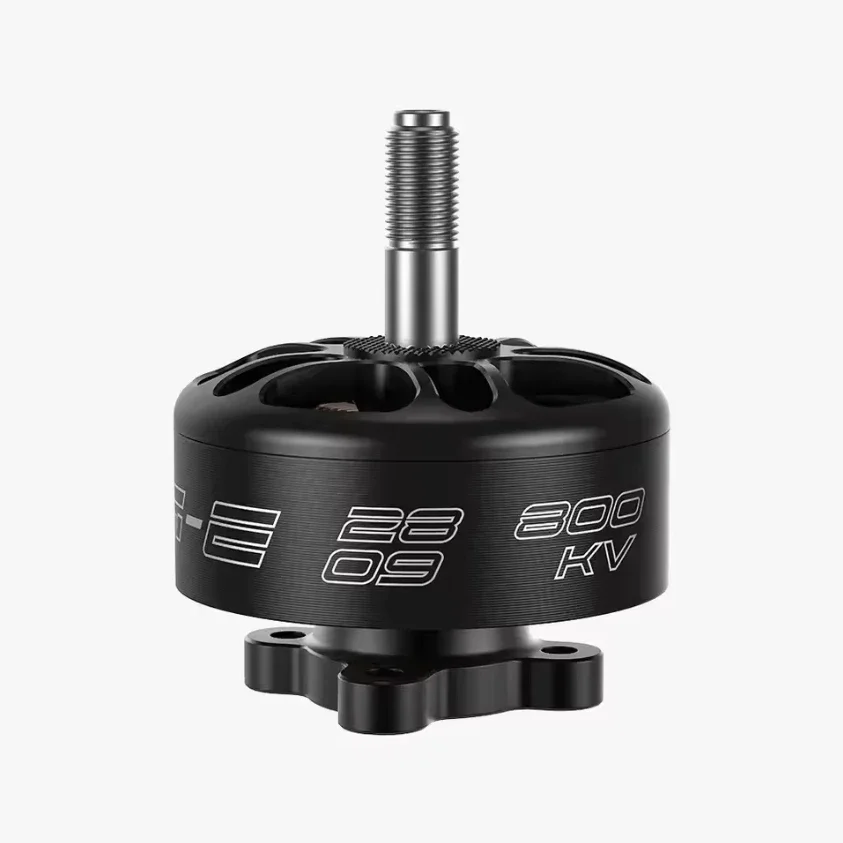

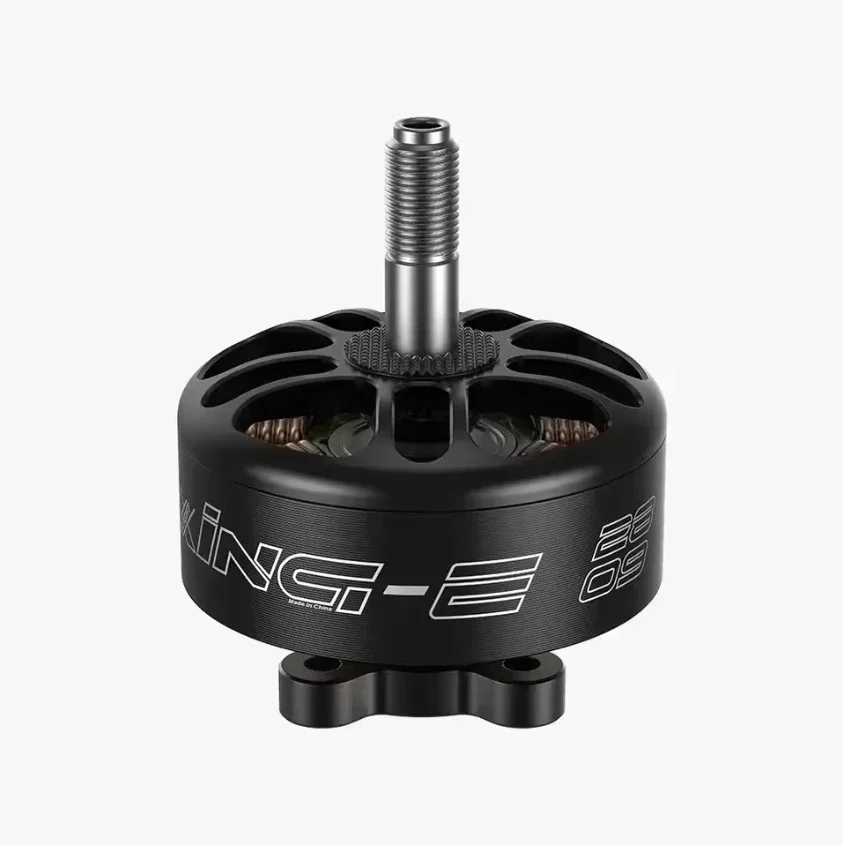

iFlight XING-E 2809 1250KV/800KV 4-6S FPV Cinelifter Motor, 5mm Steel Shaft for Long Range FPV Drone
$35.51
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Features:
High-strength 5mm Steel shaft
N52H High-temperature magnets
19x19mm hole pattern
Single strand copper winding
Hex bolt shaft set screw

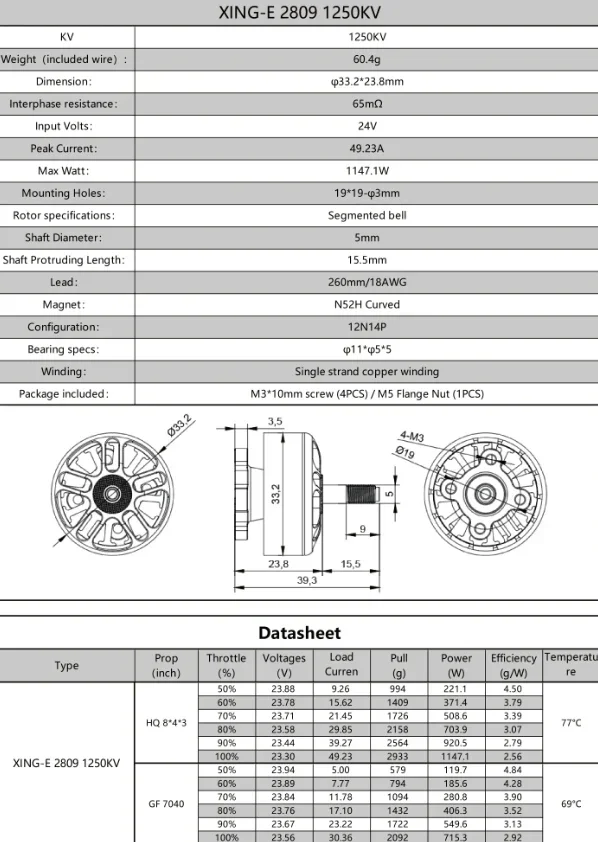

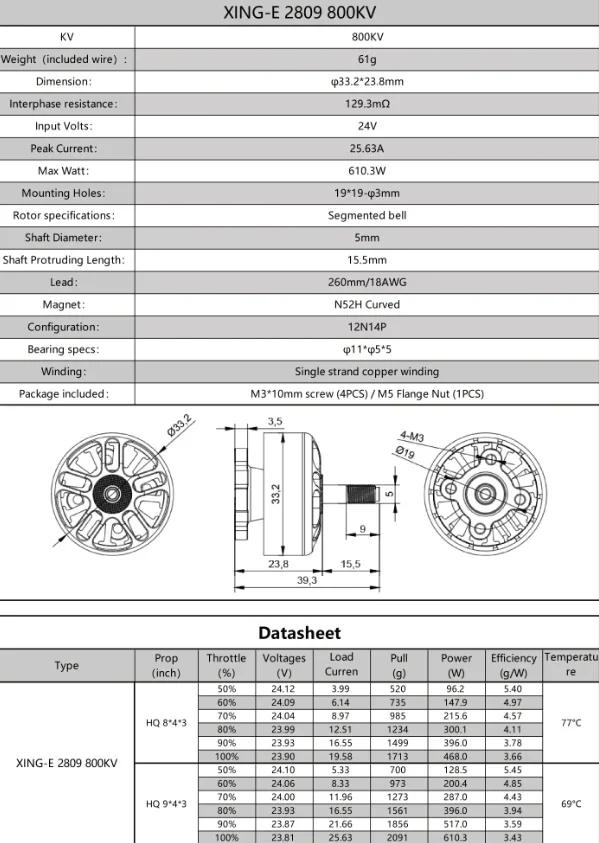

Specification
Model: XING-E 2809 Motor
KV: 800KV/1250KV
Weight(included wire): 61g/60.4g

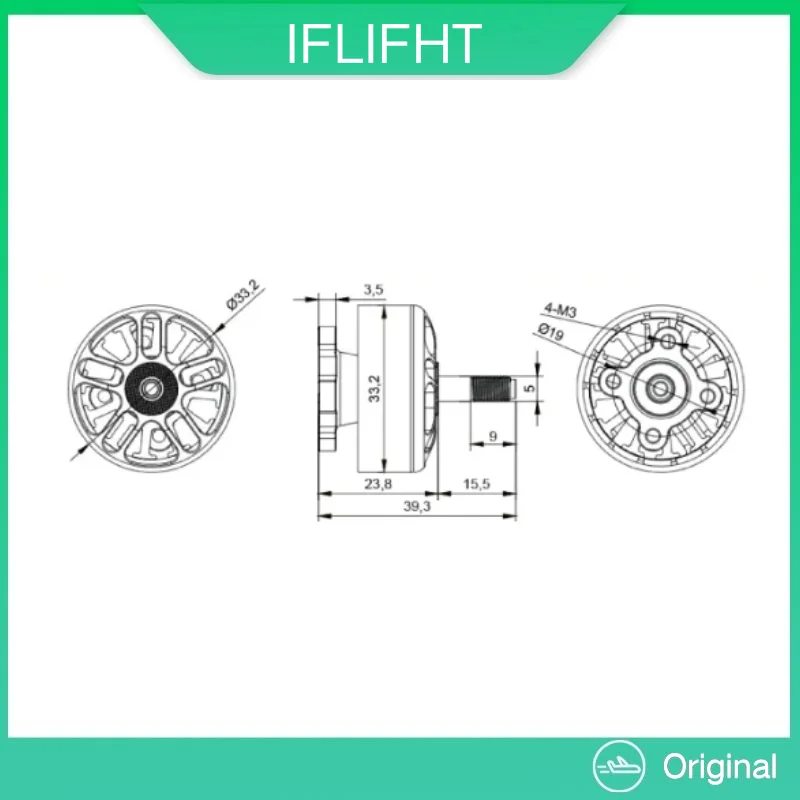

Dimension: φ33.2*23.8mm
Interphase Resistance: 129.3mΩ/65mΩ
Input Volts: 24V
Peak Current: 25.63A/42.23A
Max Watt: 610.3W/1147.1W
Mounting Holes: 19*19 φ3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 15.5mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Package includes:
1x XING-E 2809 Brushless Motor
4x M3x8 screws
1x M5 Flange Nut
