Features
Quick-release side panels
Provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
Integrated Action Camera Base Mount
Sleek and integrated design, redefine aesthetics.
Rear-mounted Power Connecto
Optimized weight distribution for improved flight stability and precision.
Reinforced Arm Base
Strengthened the connection between the arm base and the drone to improve durability.
Specificaitons

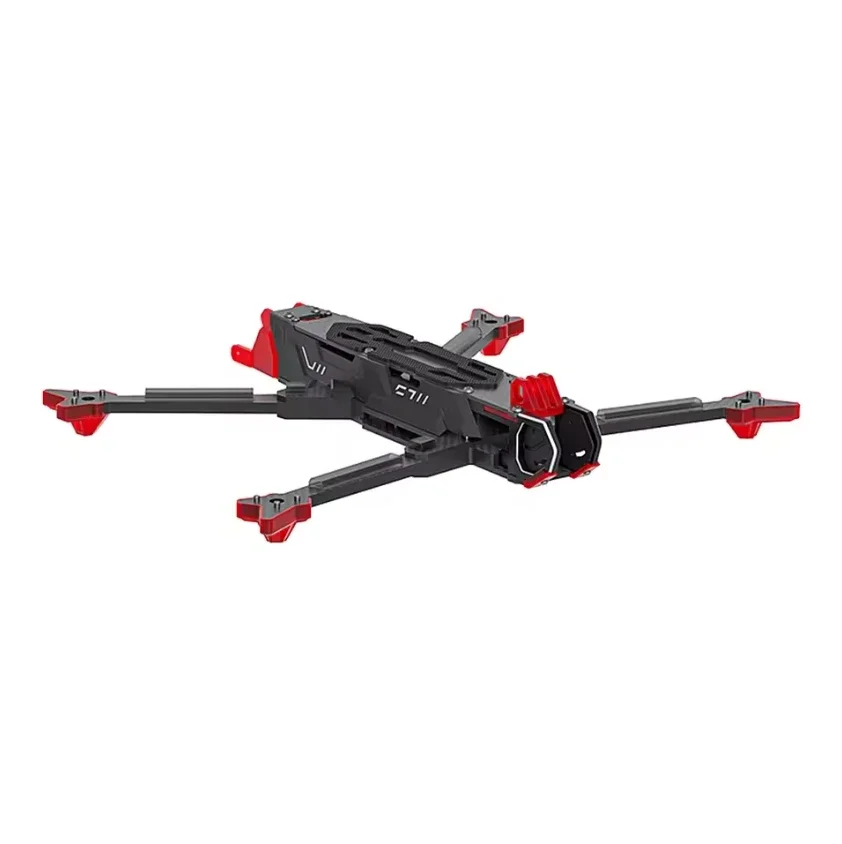

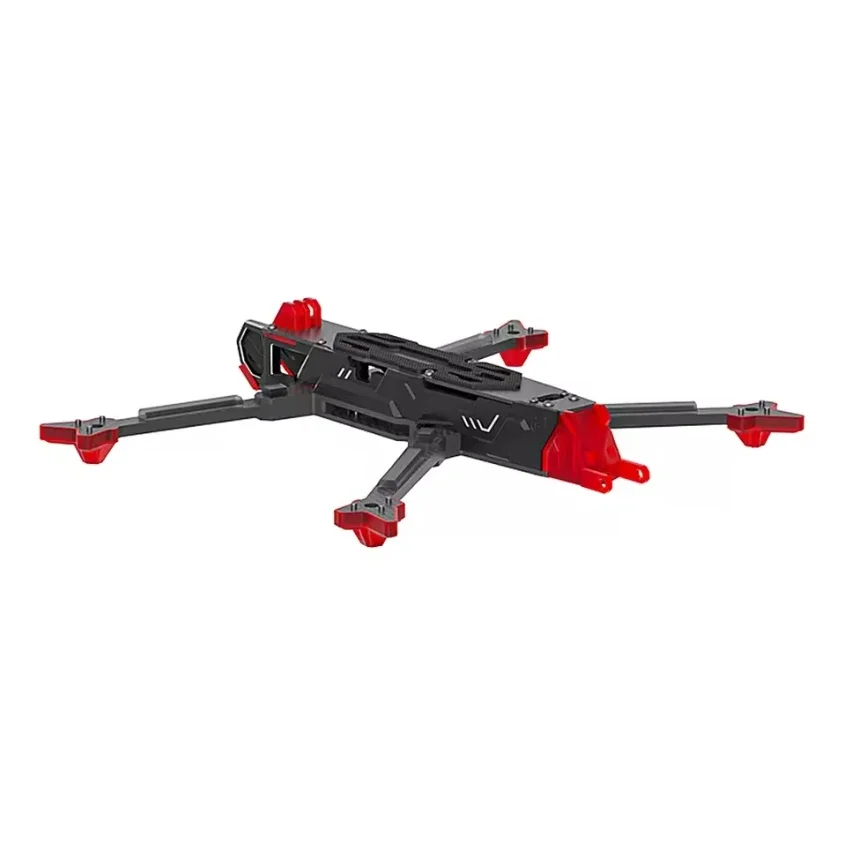

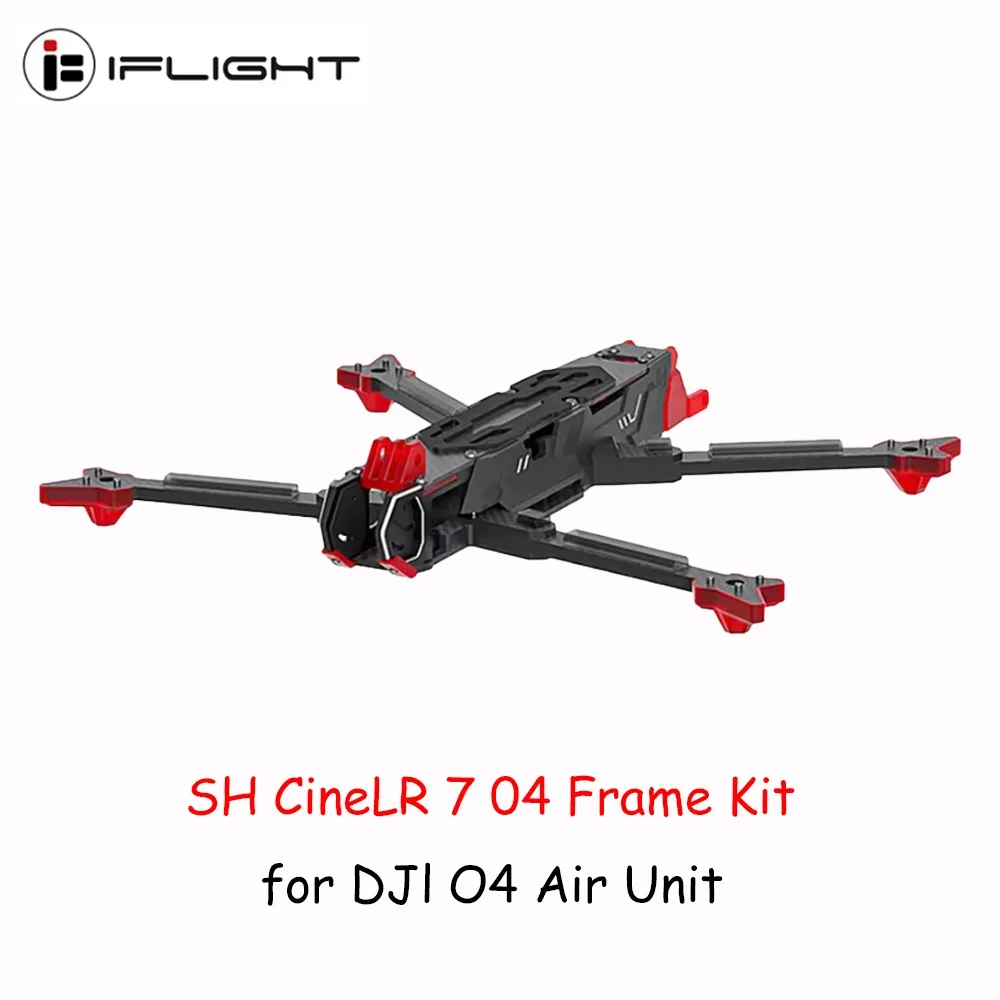

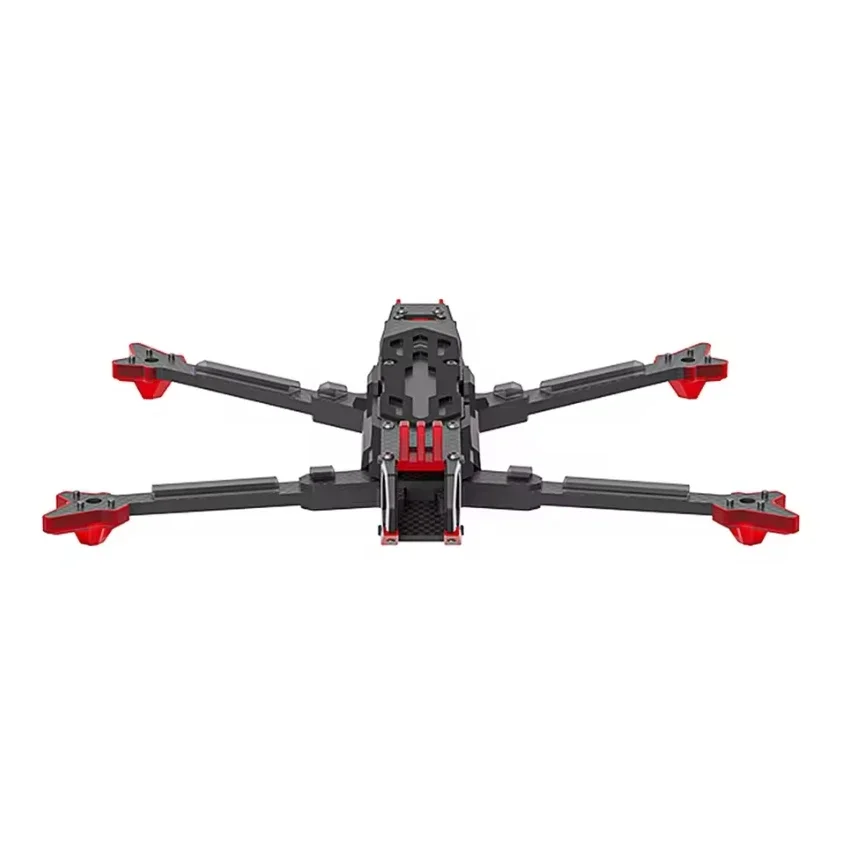

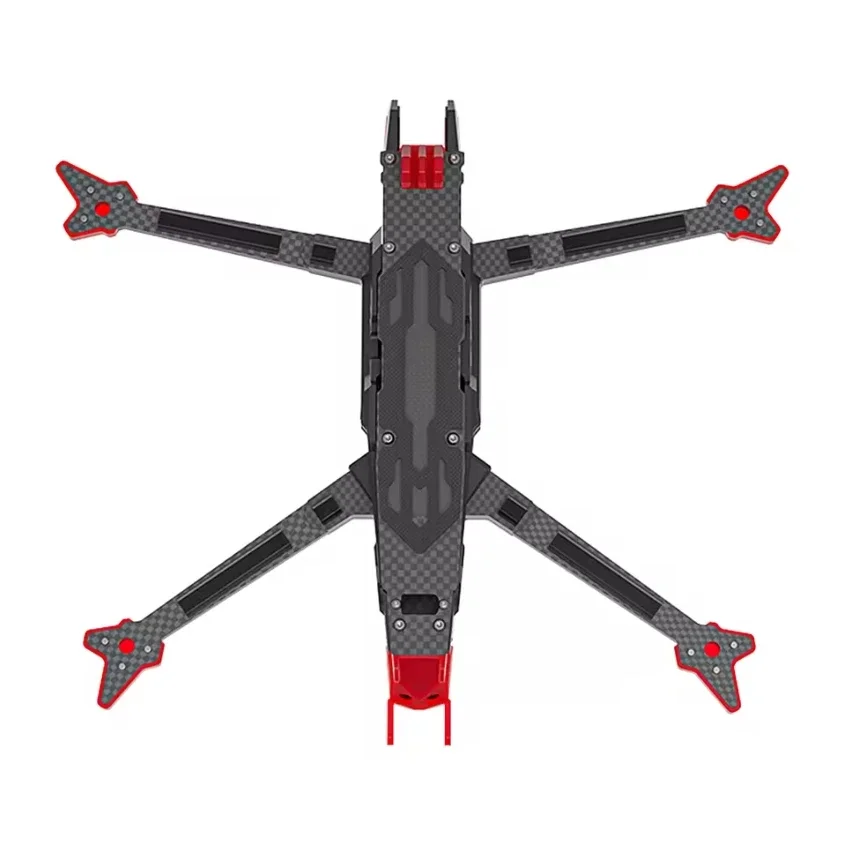

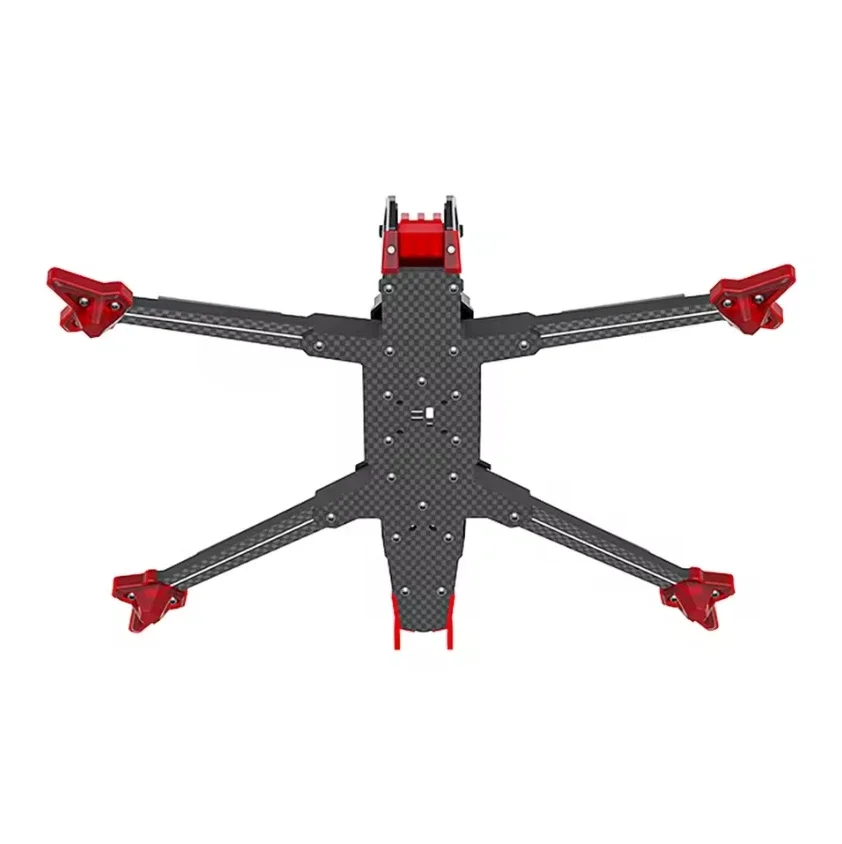

Product Name:SH CineLR 7 O4 Frame Kit
Wheelbase: 334mm
Frame Dimension: L285*W196*H45mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Mid-Lower Plate Thickness: 6mm
Max Flight Stack Height: 20mm
Max VTX Height: 22mm
Flight Stack Mounting: 20*20/Φ3mm 30*30/Φ3mm
Motor Mounting: 19*19/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Weight: 336g±5g
Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Packing List
1 x SH CineLR 7 Frame Kit
2x UFL to RP-SMA Antenna Pigtails
1 x TPU Set
1 x GoPro TPU Base Mount
1 x Screw Bag
2 x Anti-slip Battery Pad
2 x Battery Strap
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
