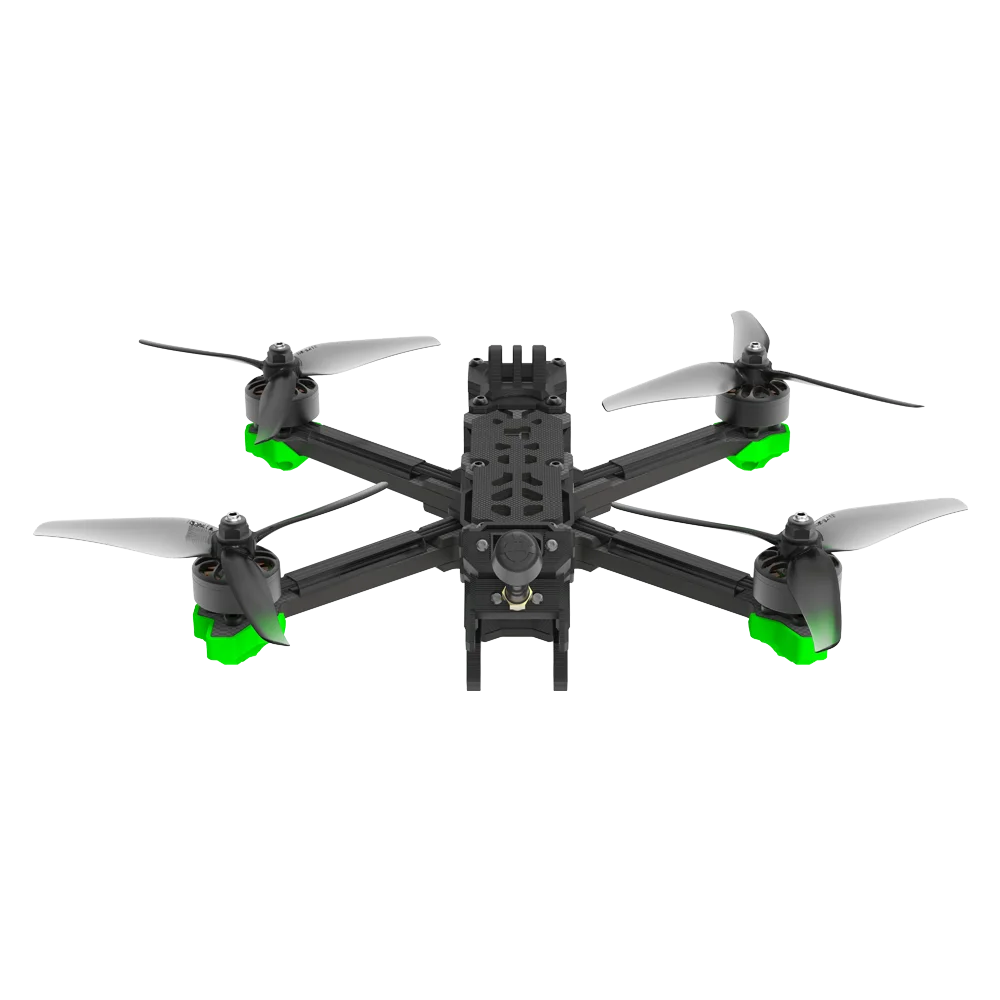

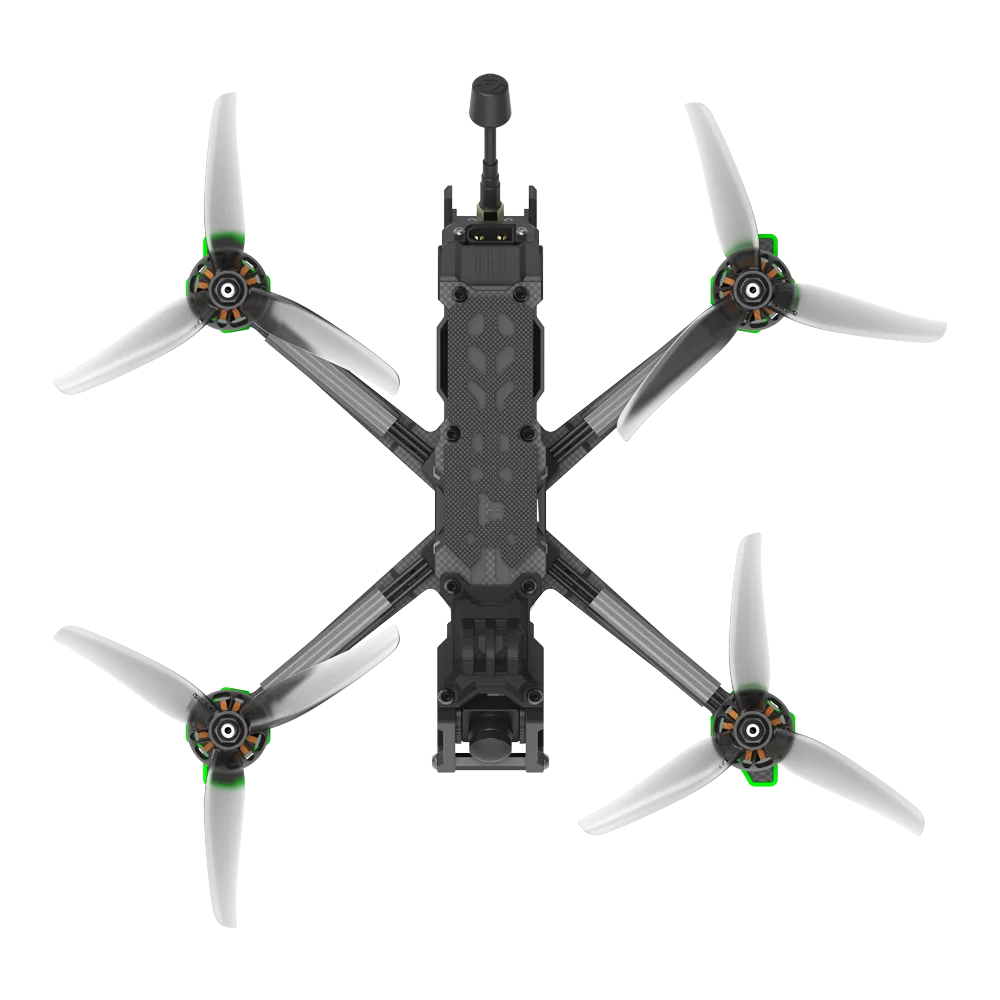

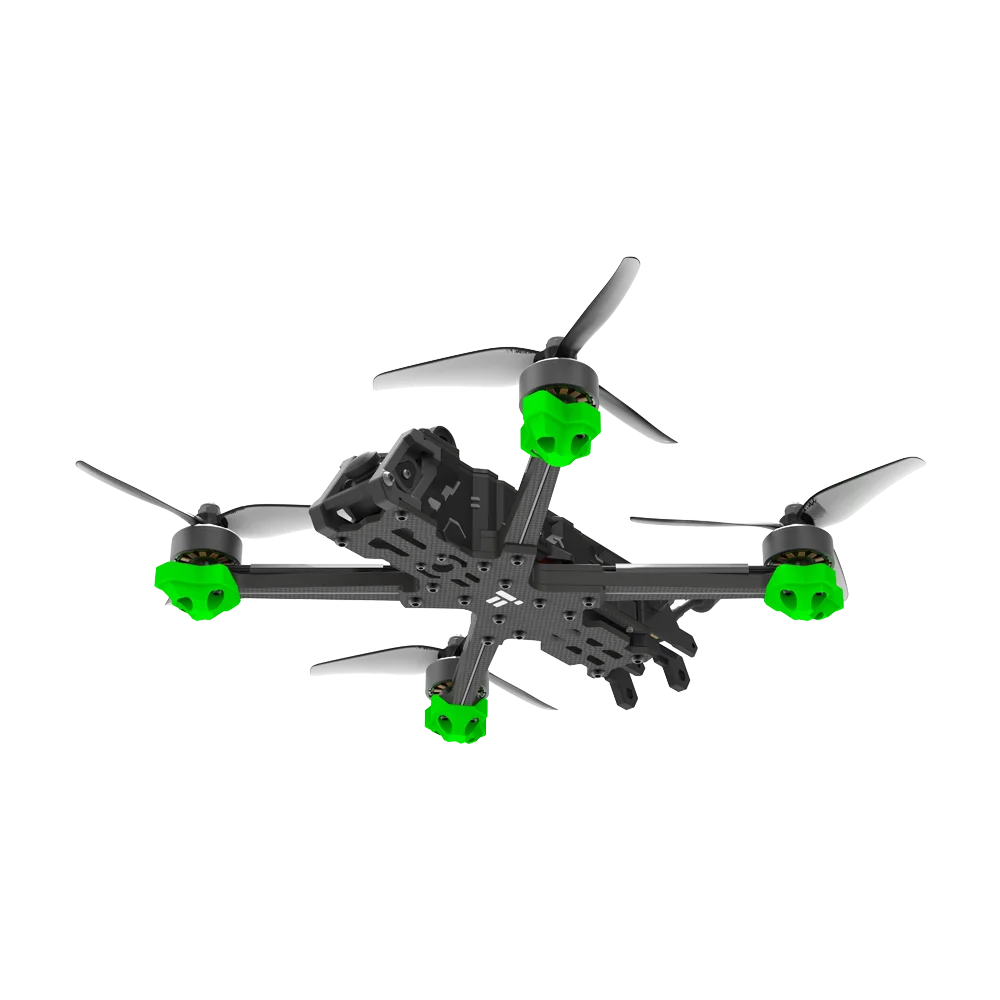

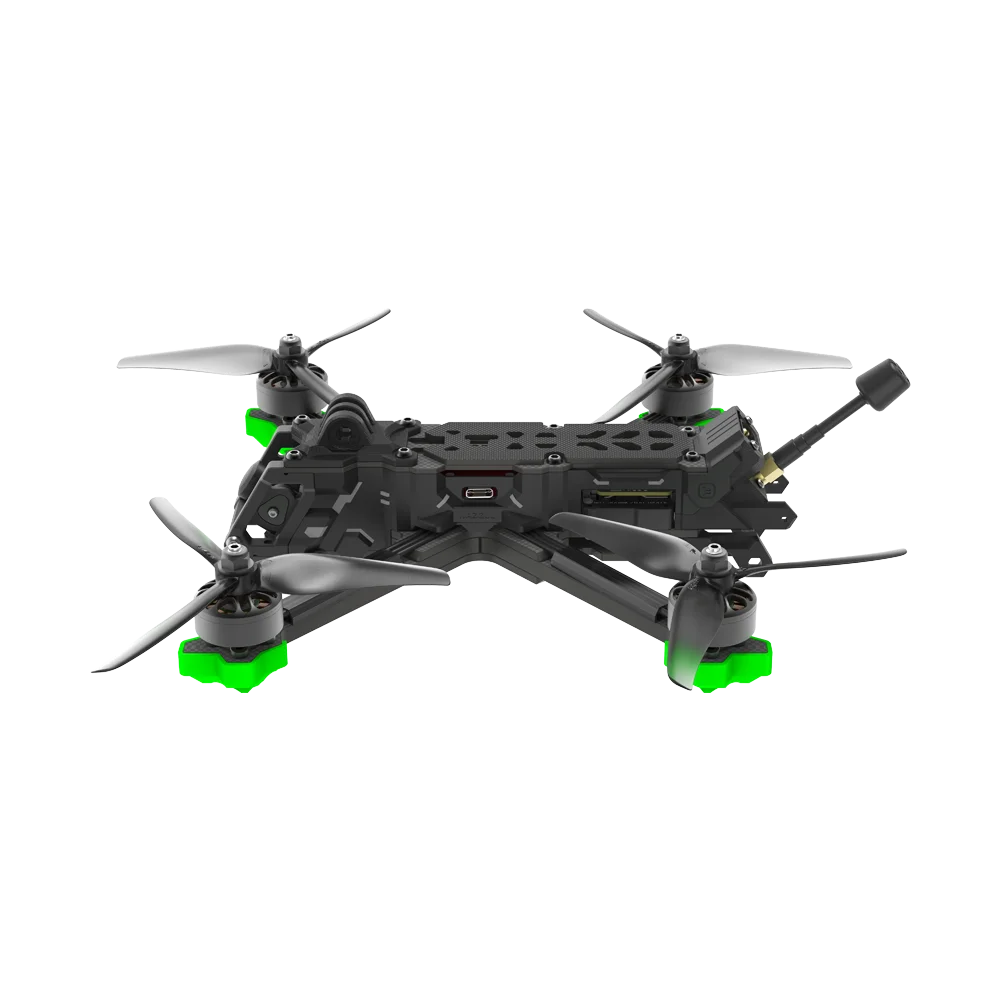

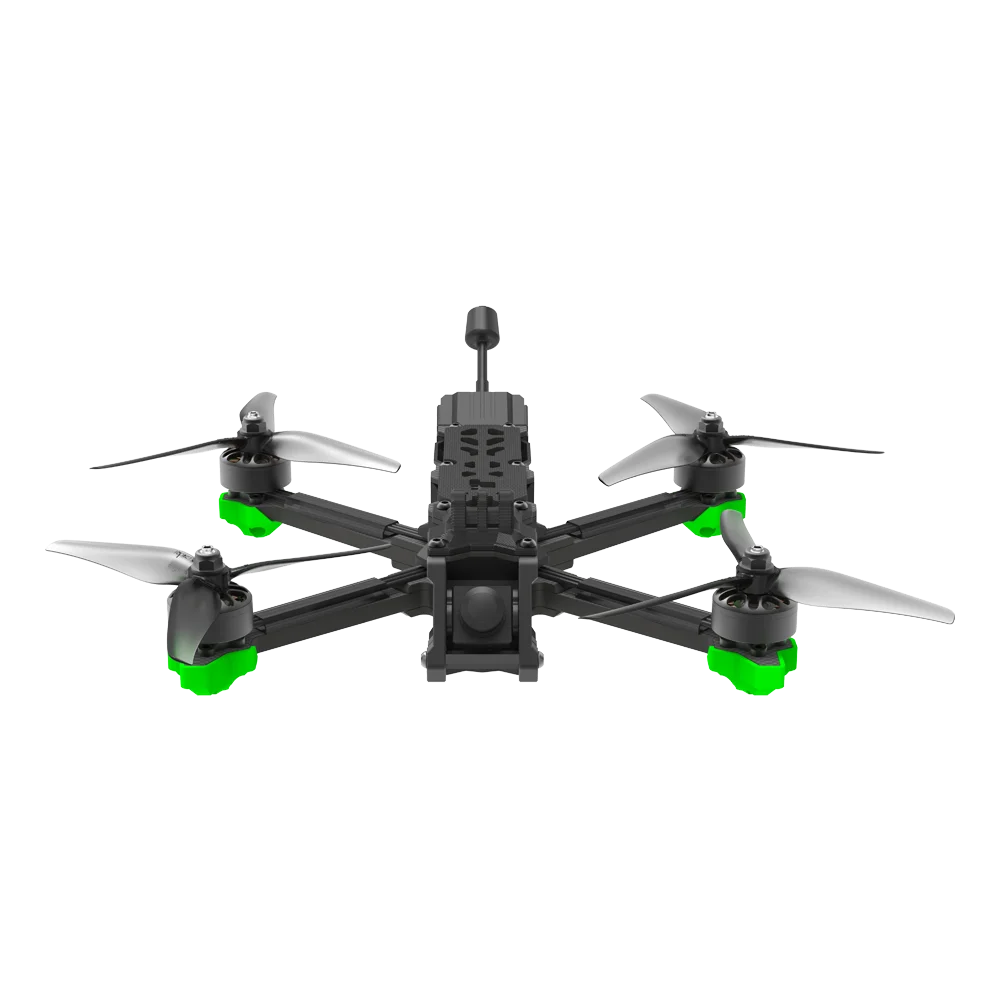

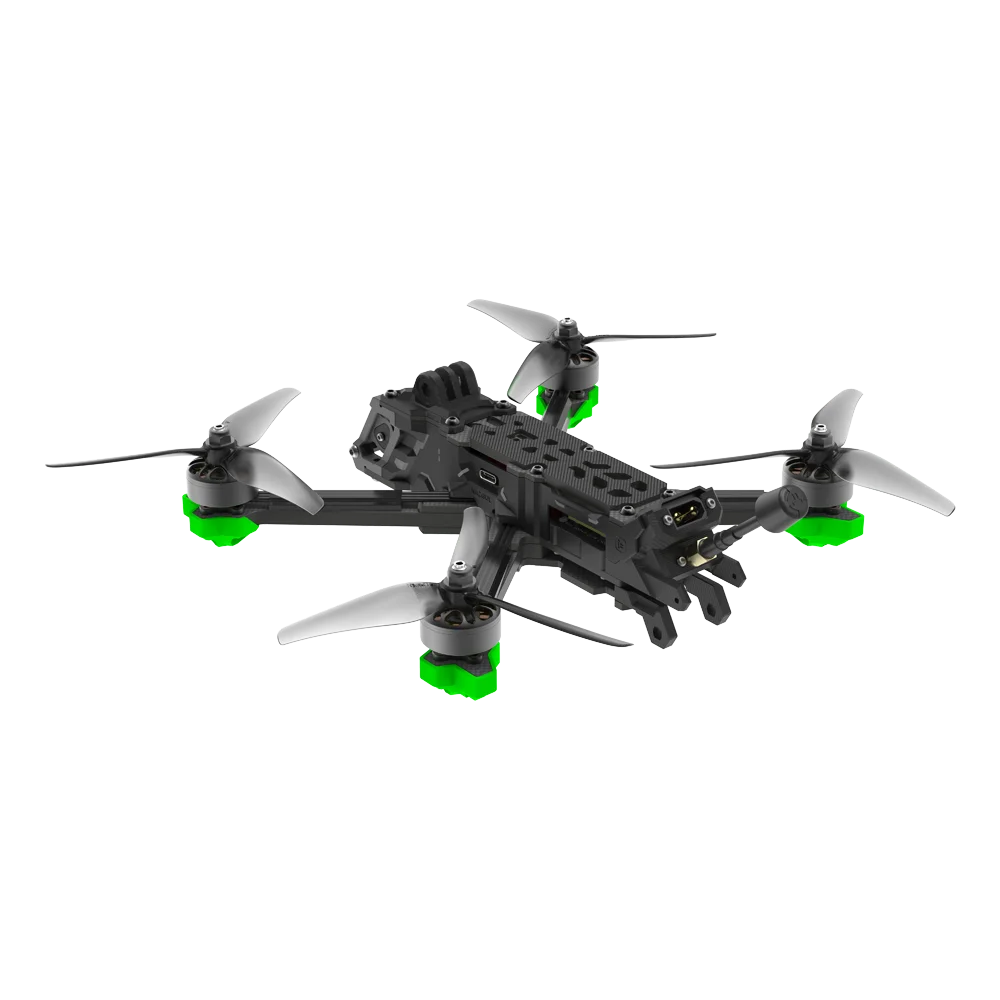

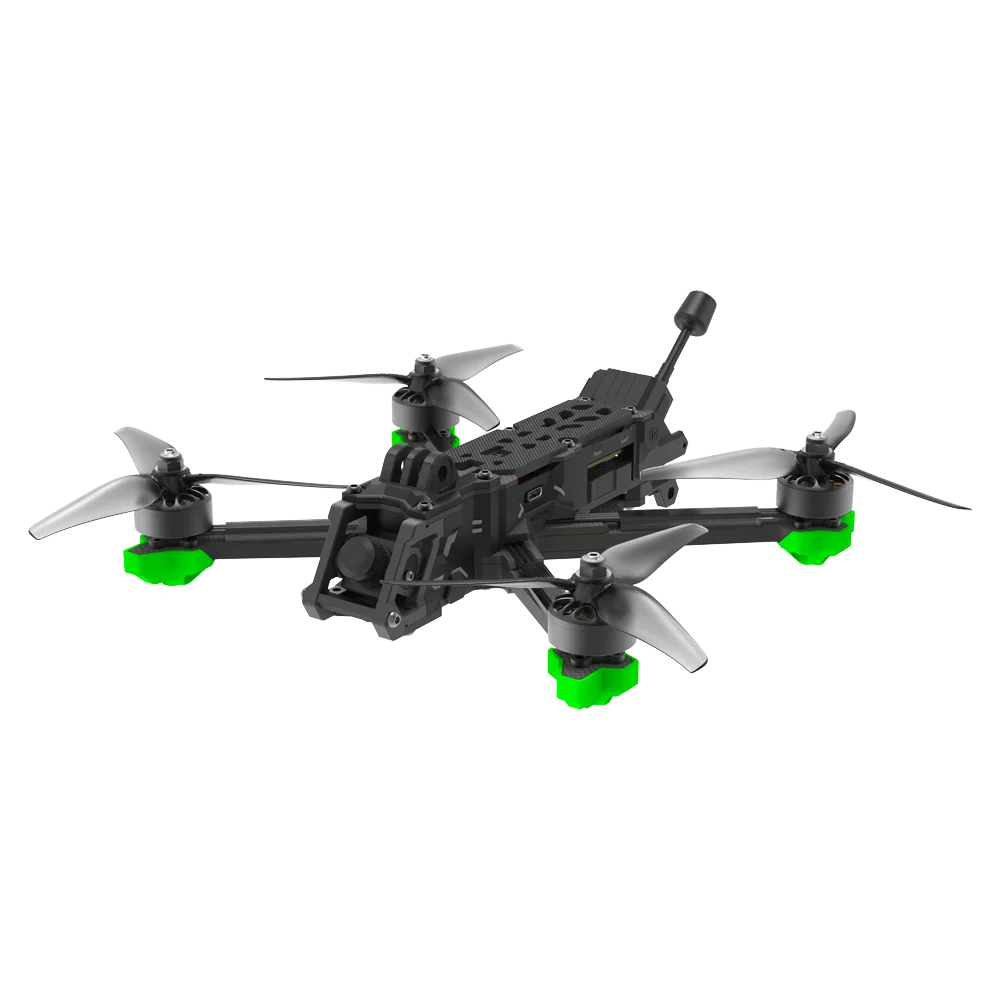

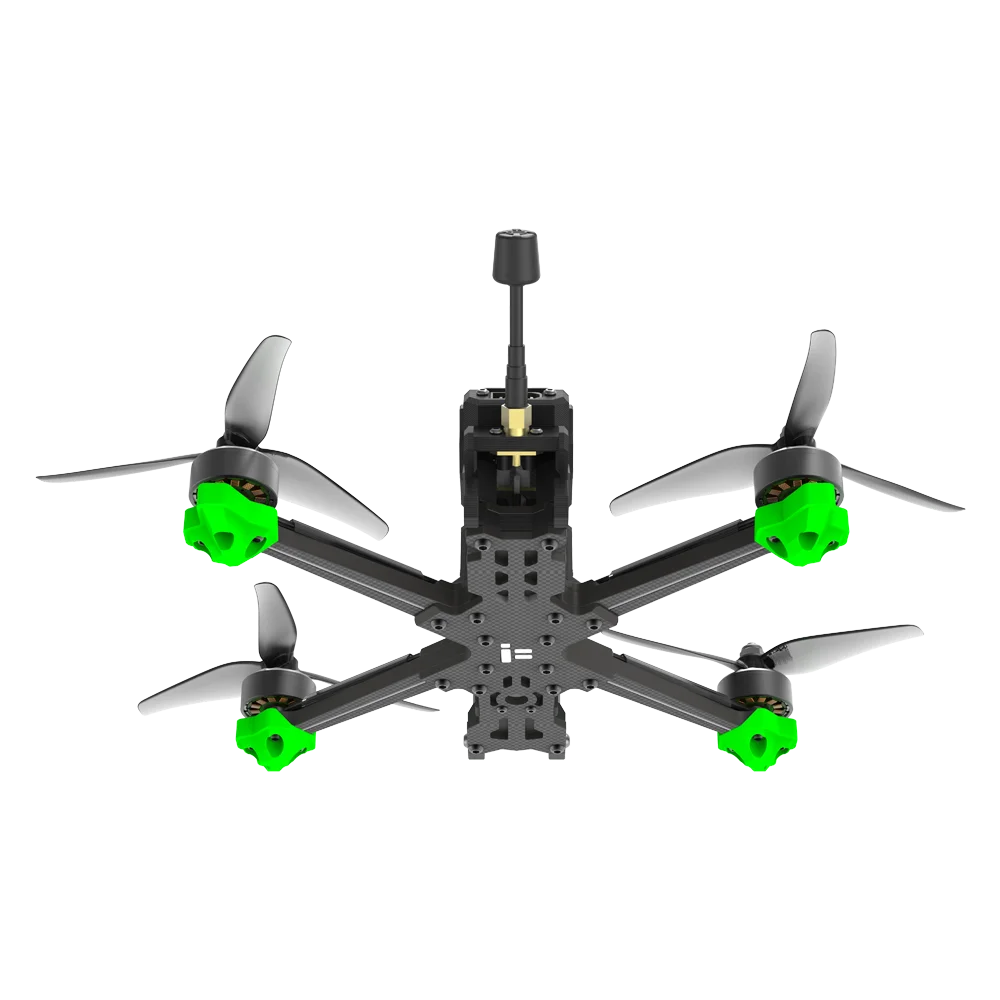

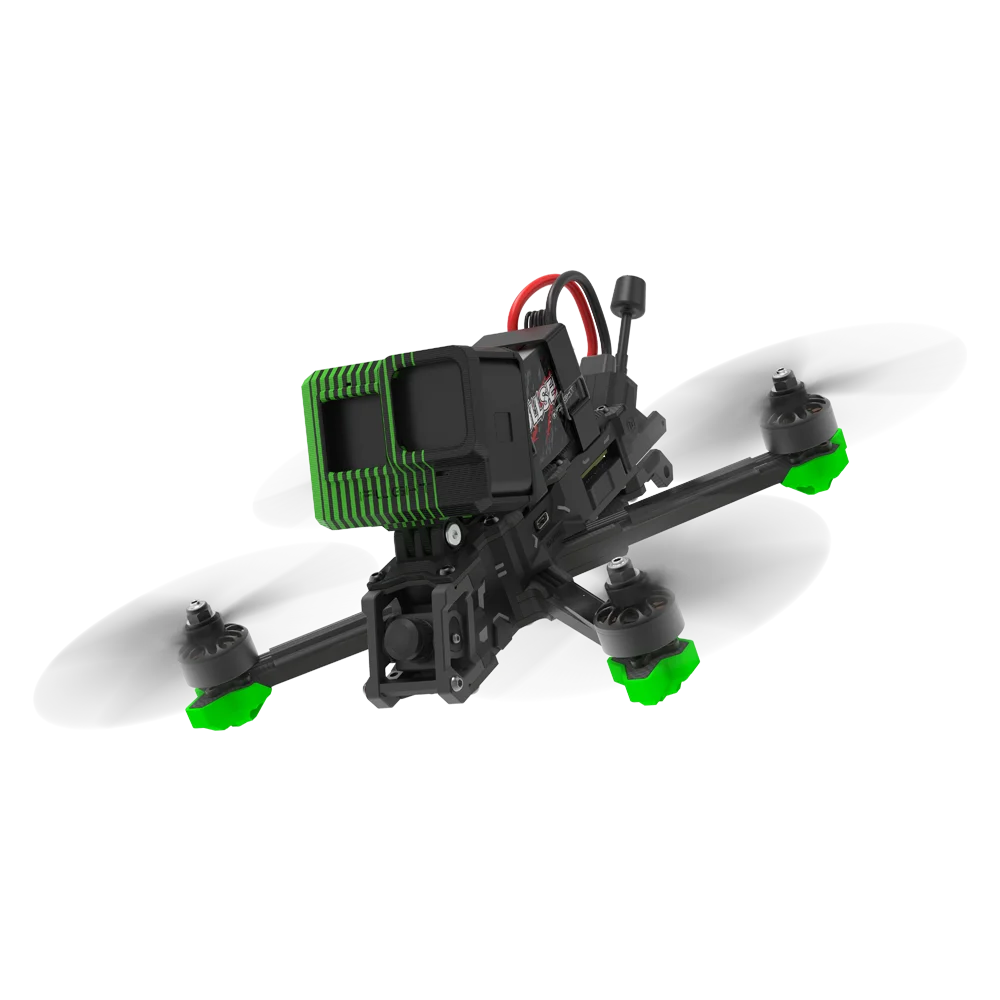

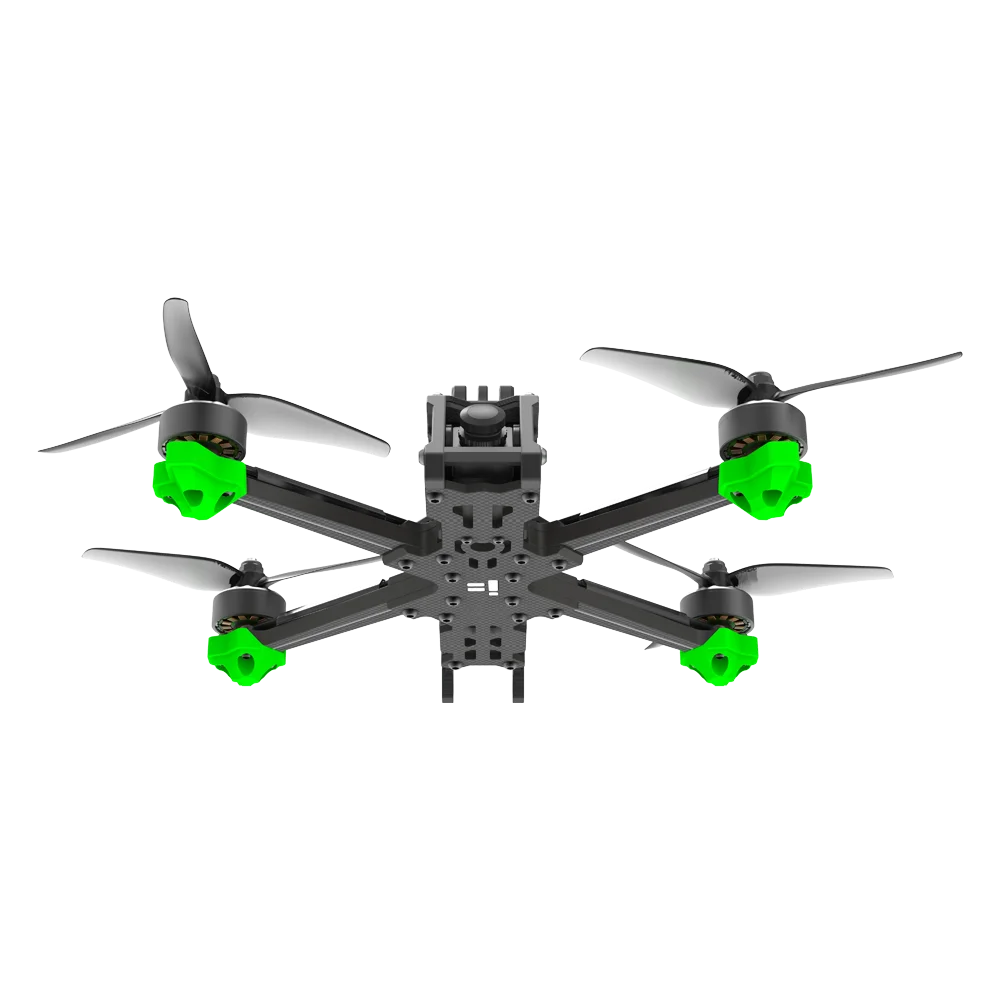

iFlight Nazgul Evoque F5X V2 Analog 6S 5inch Squashed X Drone BNF with BLITZ MINI F7 E55 1.6W Stack For Freestyle FPV Quadcopter

iFlight Nazgul Evoque F5X V2 Analog 6S 5inch Squashed X Drone BNF with BLITZ MINI F7 E55 1.6W Stack For Freestyle FPV Quadcopter
Description：
Our best pre-built drone just got better! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!
Highlights
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specifications:
Product Name: Evoque F5 V2 Analog
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 419g
Takeoff Weight: Approx. 644 g (With 6S1400mAh Battery)
Dimensions (L×W×H): 172×145×36±2mm (Squashed X) / 190×136×36±2mm (DeadCat)
Diagonal Distance: 225 mm
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas
GNSS：GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Video Transmission
Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5×30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Packing List
1 x Evoque F5 6S BNF
1 x Antennas
2 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
Important
All iFlight BNFs are tested before shipment to guarantee highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
