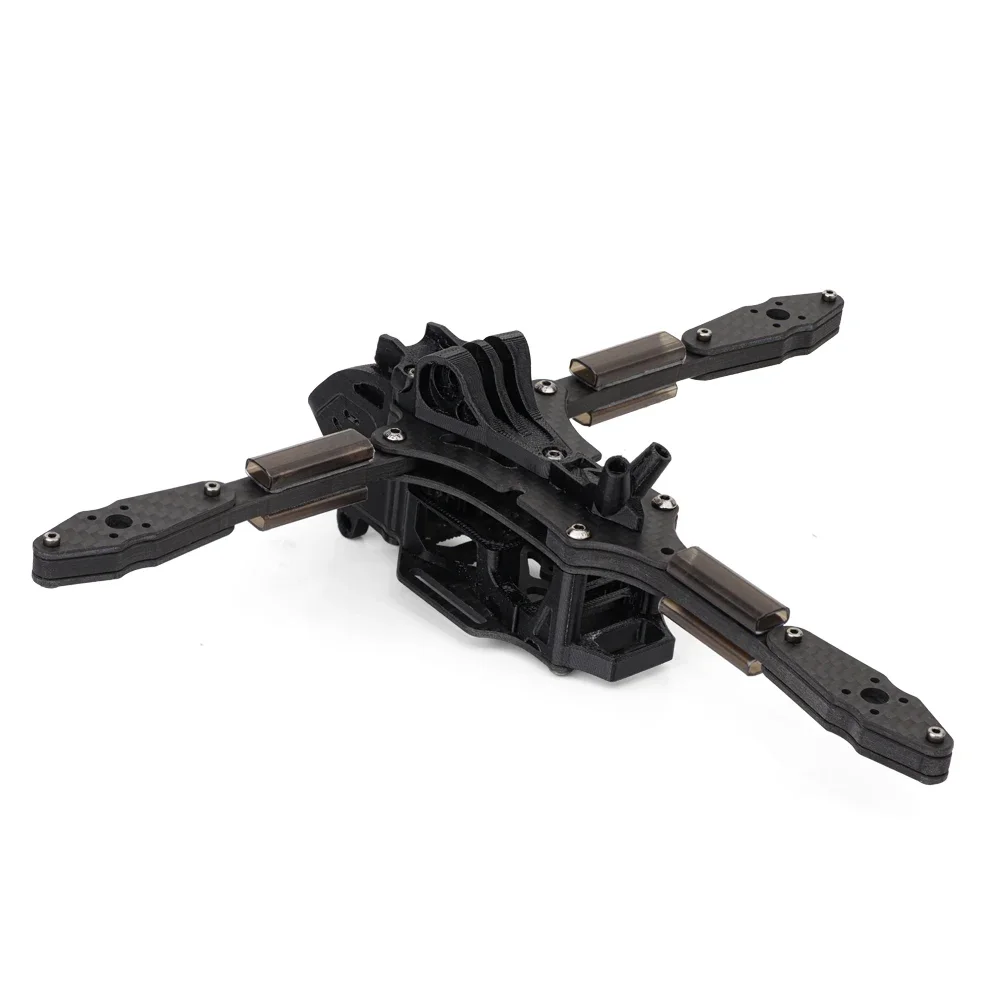

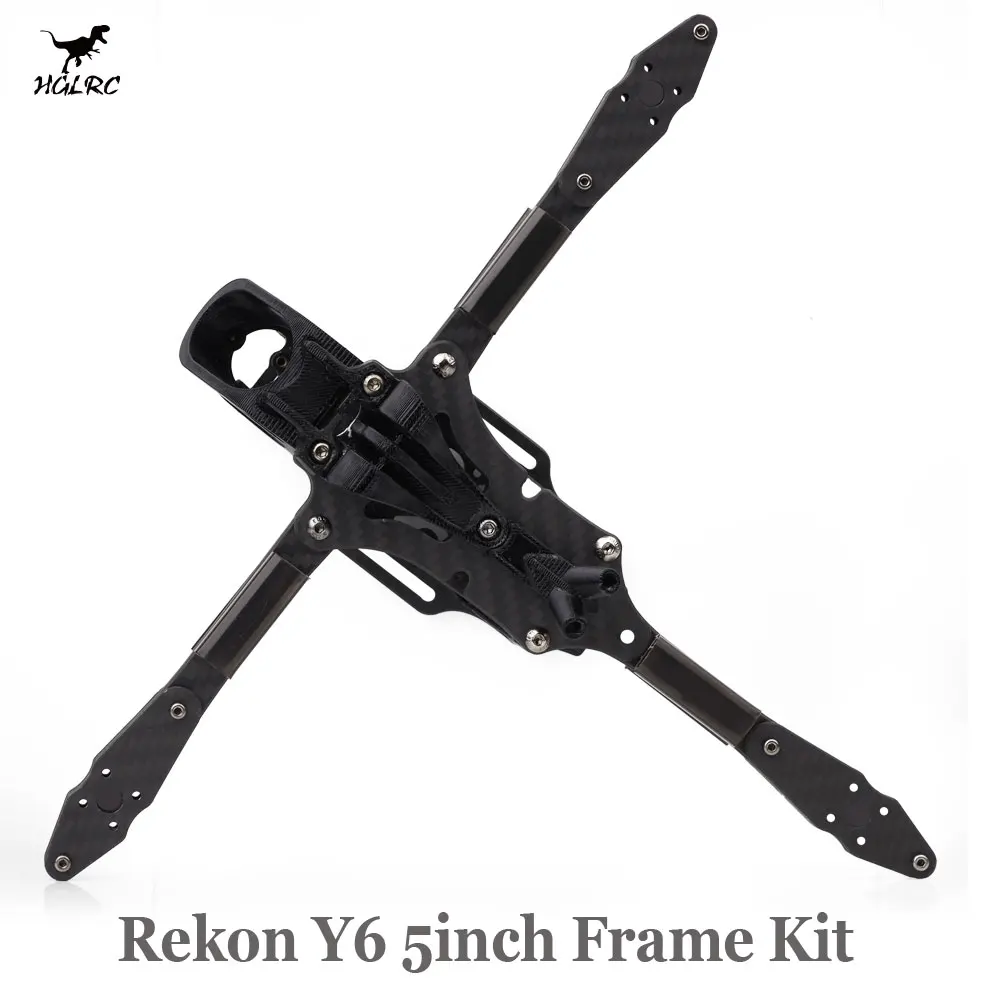

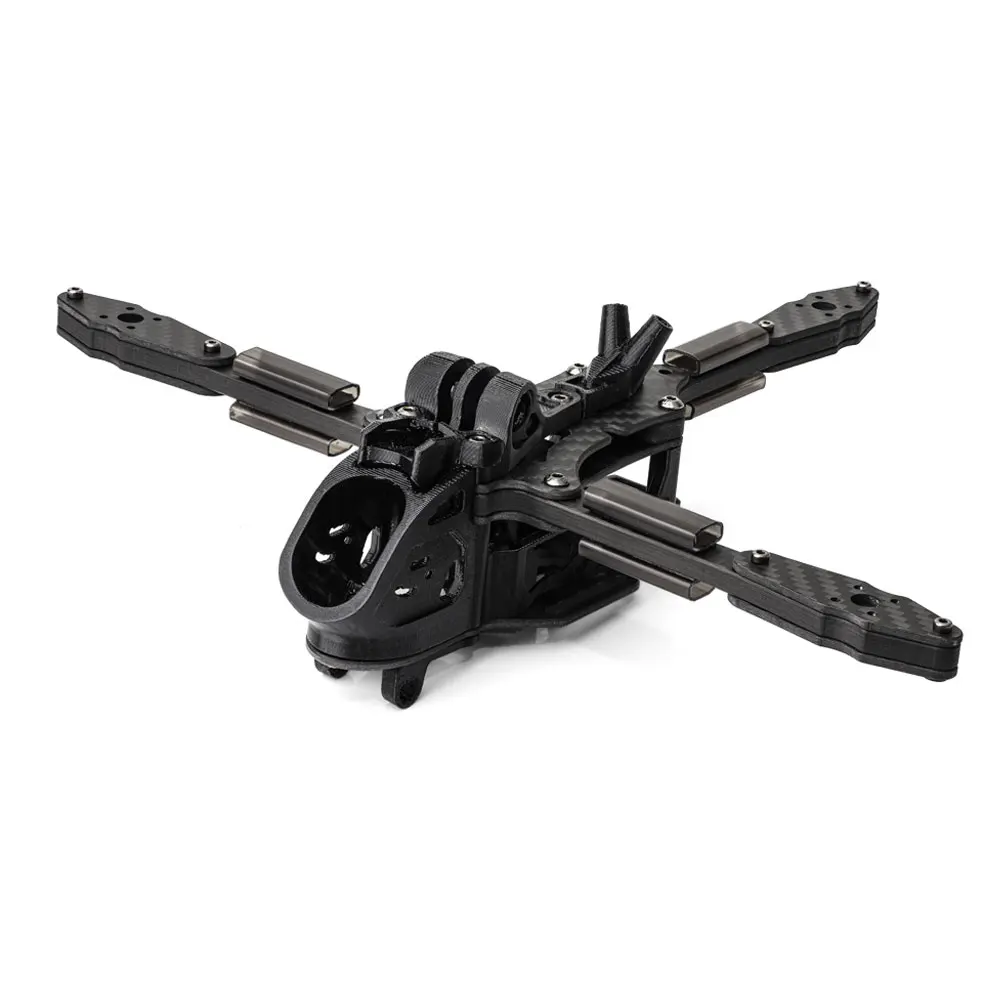

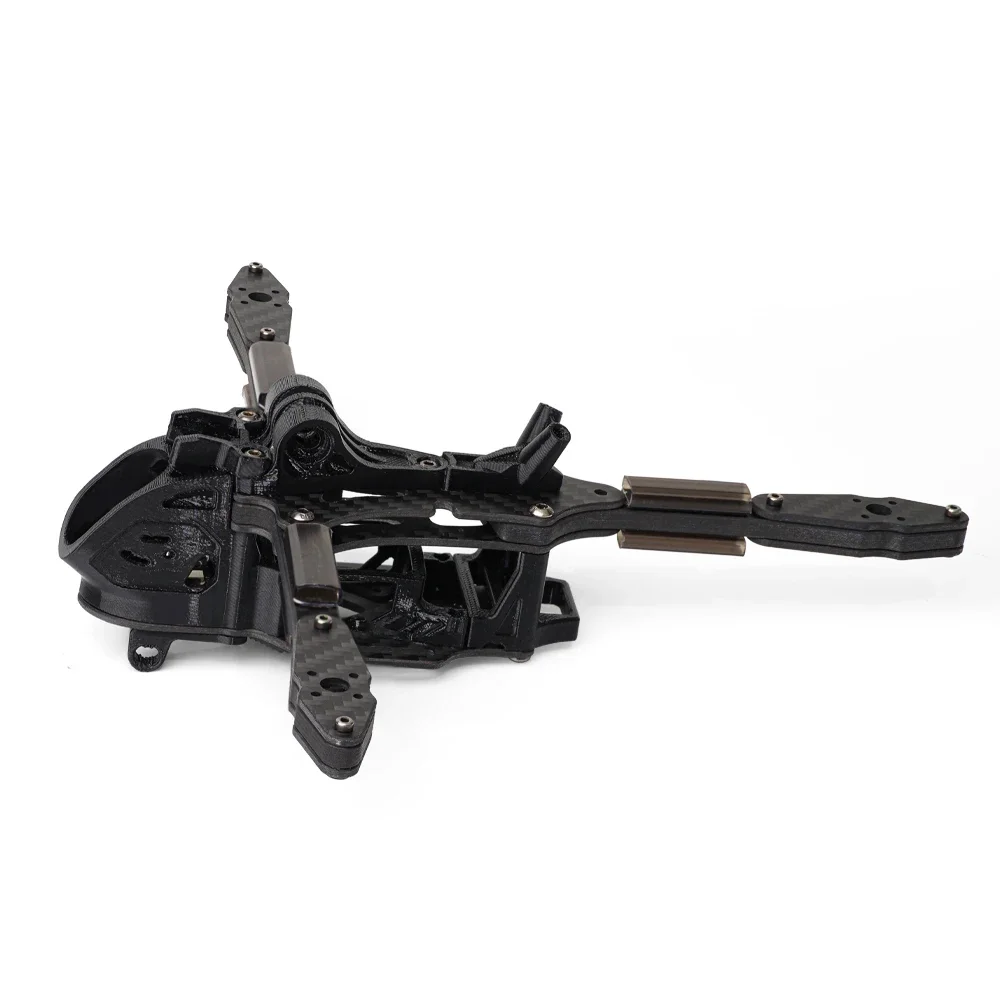

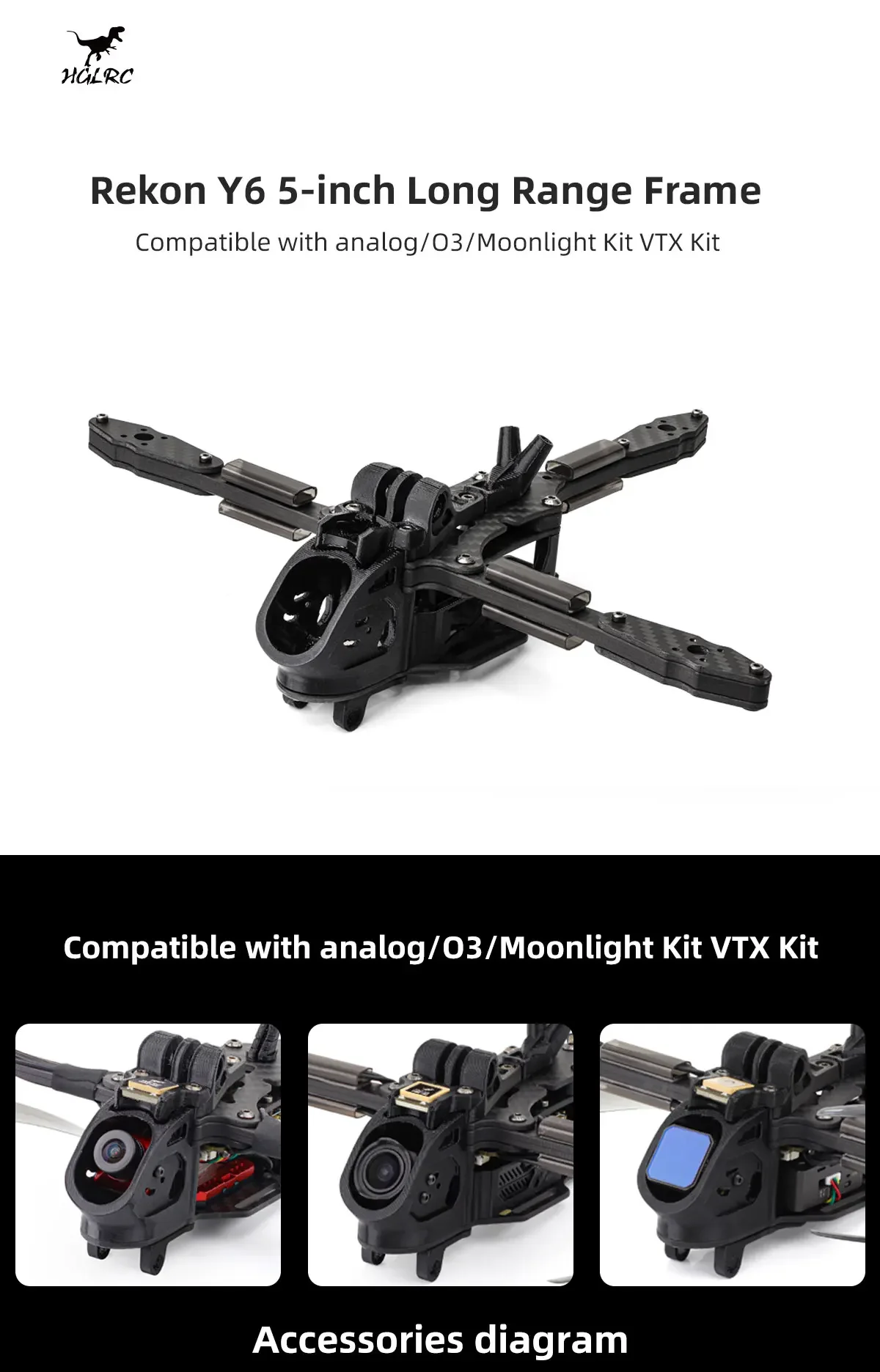

HGLRC Rekon Y6 5-inch Frame Kit Y-Type Long Endurance 3K Carbon Fiber Compatible Analog/O3/Moonlight Kit VTX

Selling Point:
* Offers a 50% increase in propeller area compared to a standard 5” quadcopter to carry full-sized action camera, while maintaining a compact design.
* Fixed power connector: avoids instability caused by shaking of the connector during flight, making the flight more stable
* Reserve the side antenna Mount: you can change the antenna installation position by yourself, or install a dual-antenna receiver to effectively solve the signal dead zone
*Unobstructed Camera Views: Propellers are designed to stay out of the action camera’s view, enabling clear, unimpeded video capture
*Equipped with M100mini GPS holder: It can be equipped with M100mini GPS, which is compact and exquisite and has stable flight.

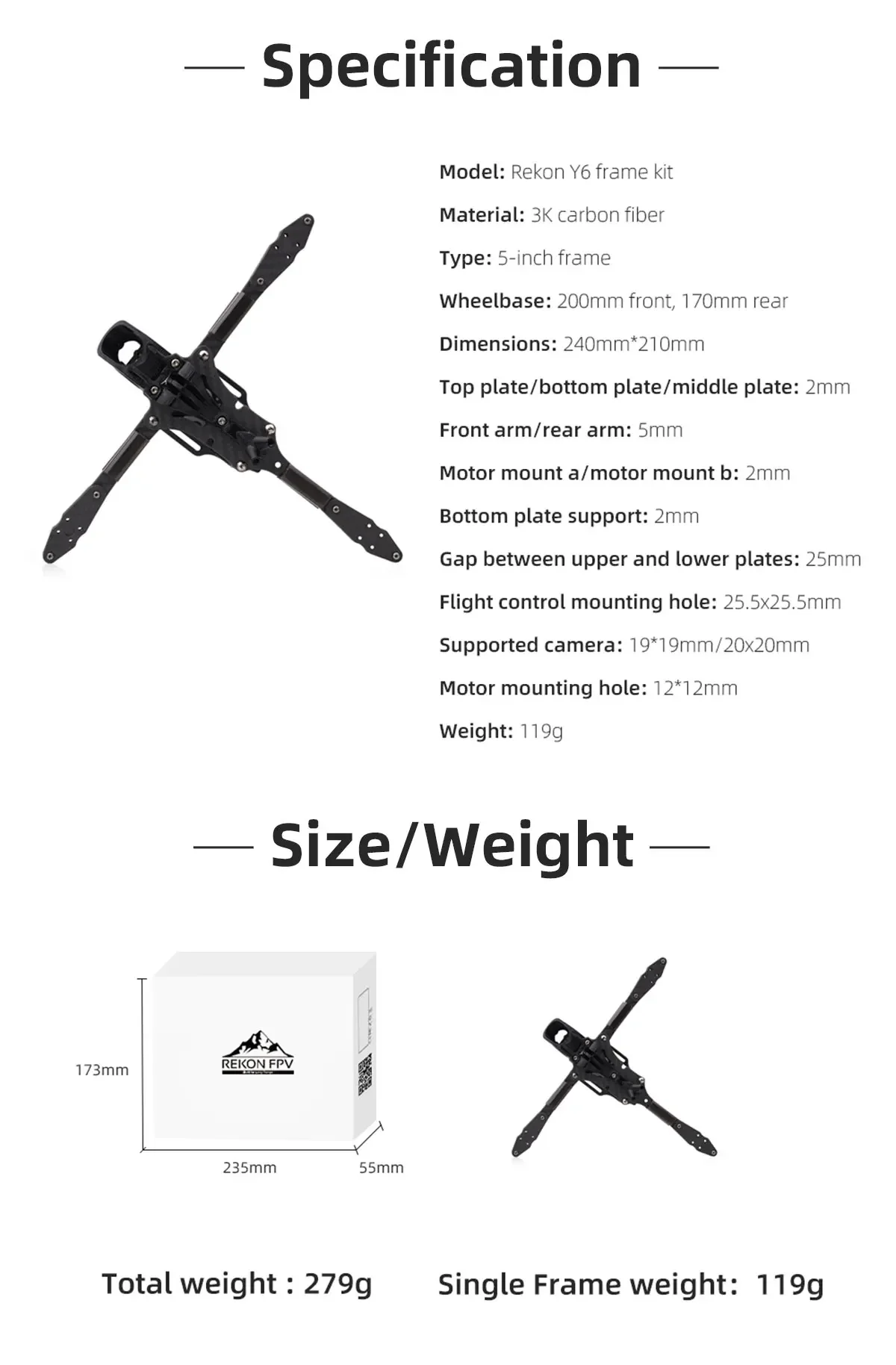

Product Name:Rekon
Model:Rekon Y6 Frame kit
Material:3K Carbon fiber
Type:5 inch
Wheelbase:front200mm，after170mm
Size:
Top plate thickness:2mm
Bottom plate thickness:2mm
Middle plate thickness:2mm
Front arm:5mm
Rear arm:5mm
Motor fixing seat a:2mm
Motor fixing seat b:2mm
Bottom plate support：2mm
Top and middle plate space:25mm
Flight controller mounting hole:25.5×25.5mm
Camera mount:19*19mm/20x20mm
Motor mounting hole:12*12mm

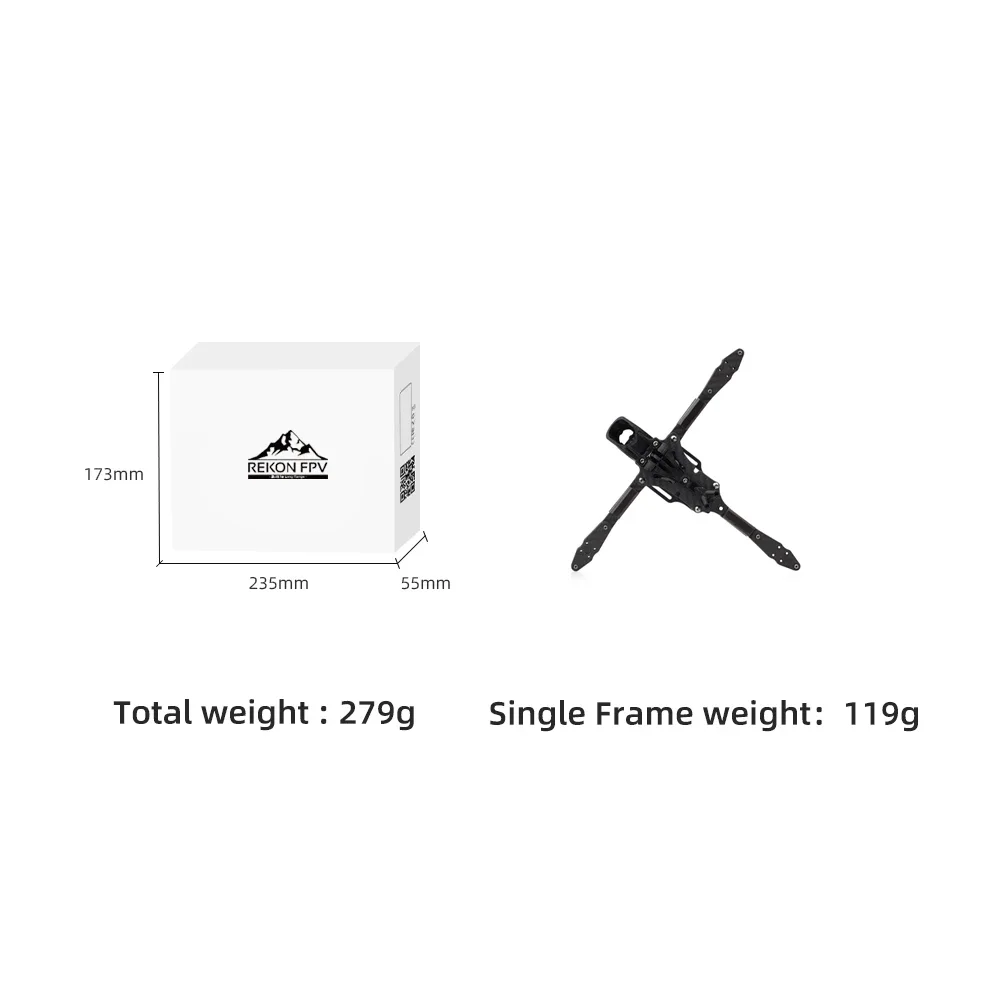

Weight:119g

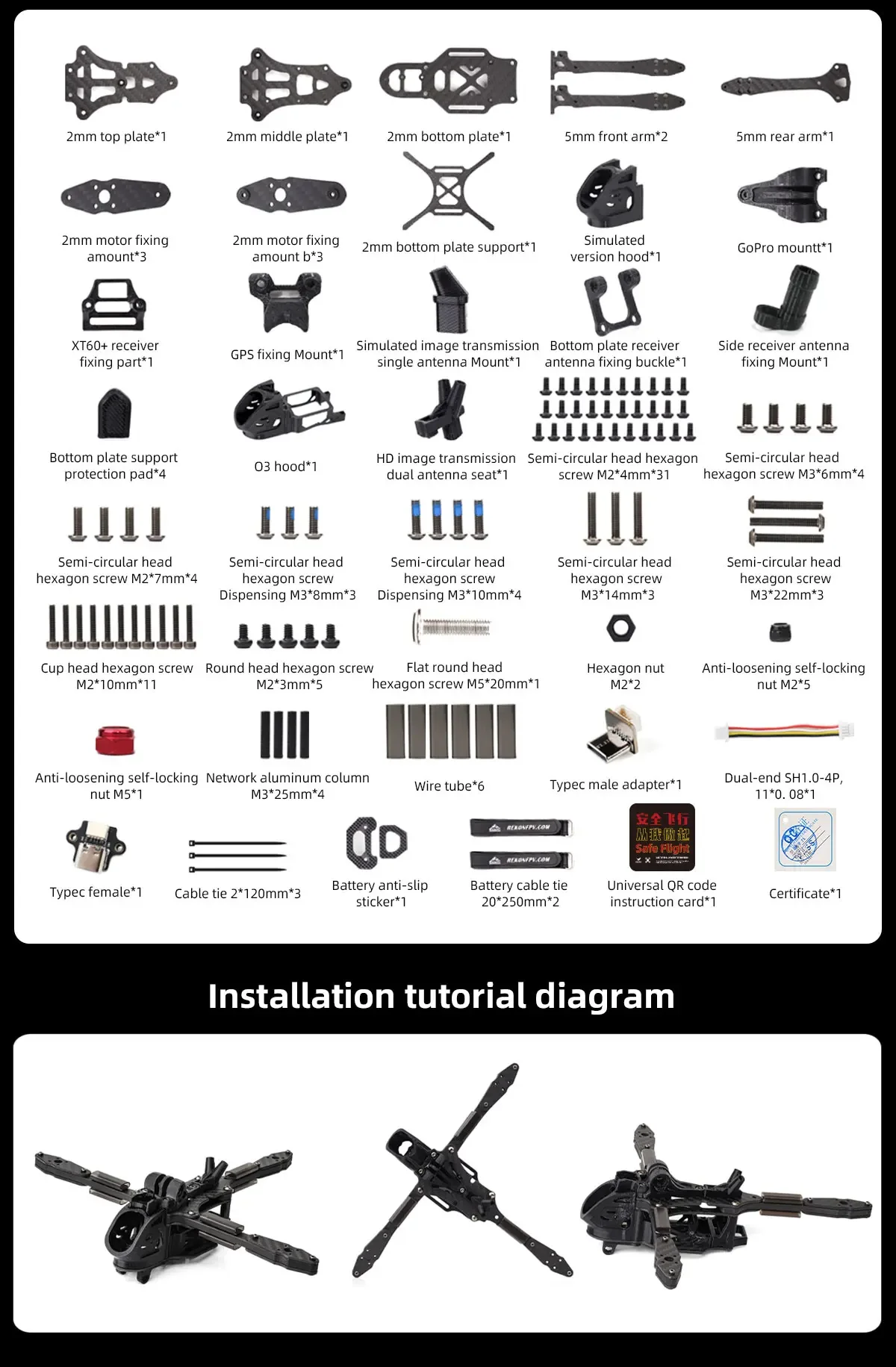

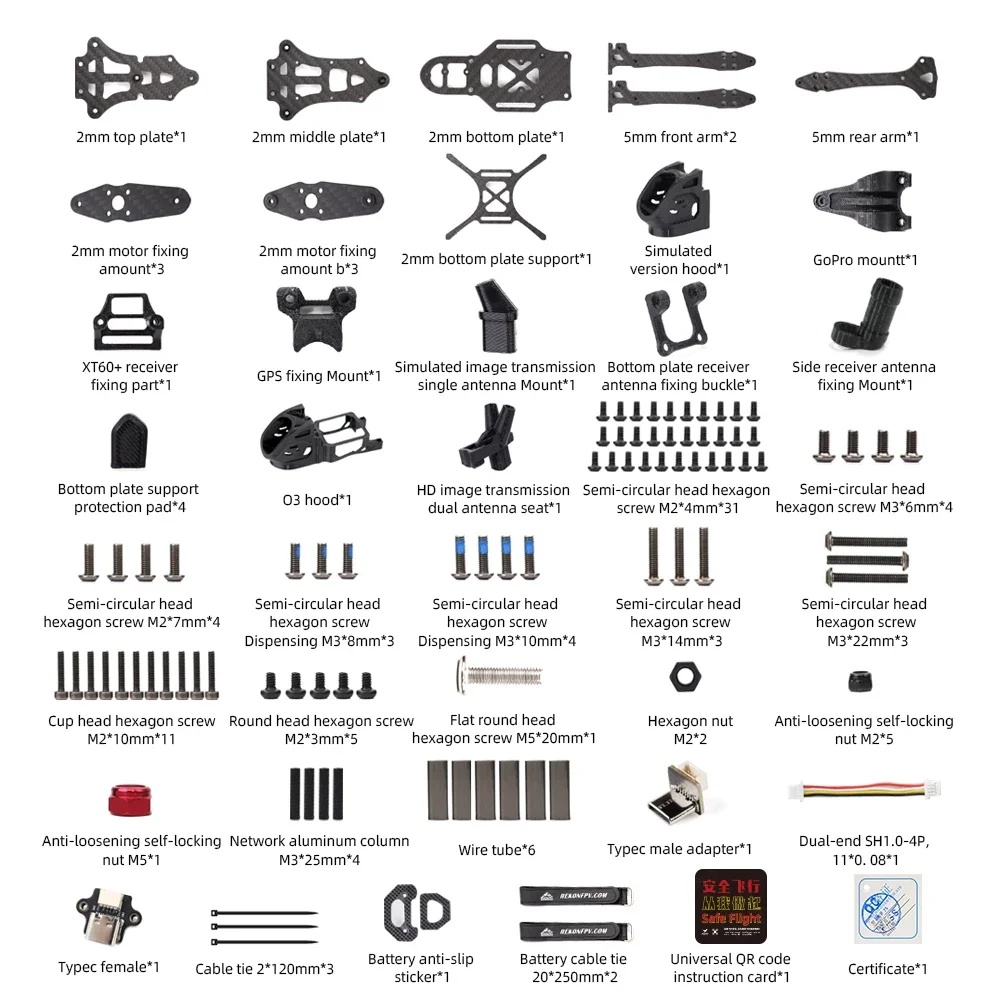

Shipping list:
1x 2mm top plate
1x 2mm base plate
1x 2mm mid plate
2x 6mm front arm
1x 6mm rear arm
3x 2mm Motor fixing amount a
3x 2mm Motor fixing amount b
1x 2mm Bottom plate support

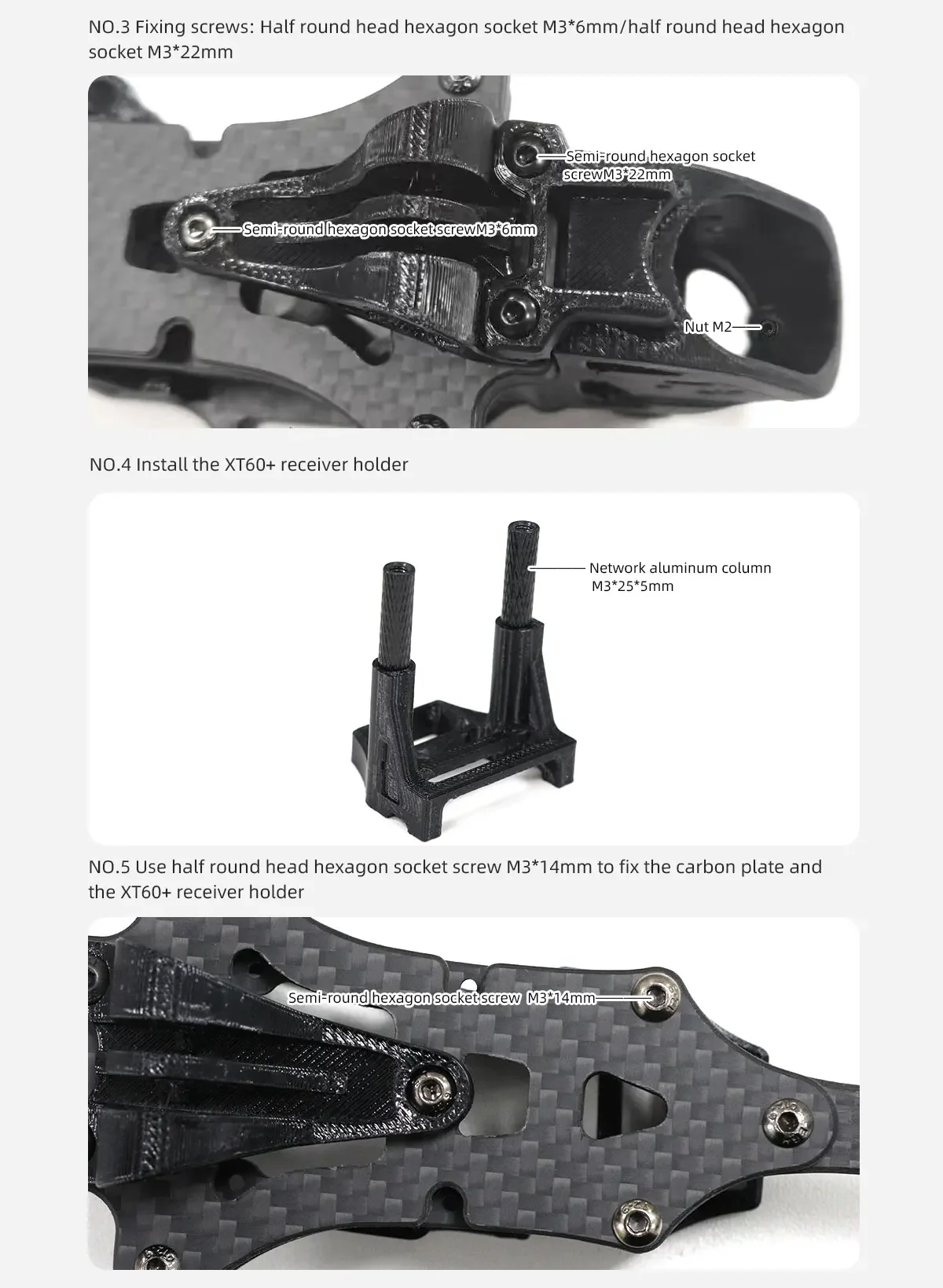

4x M3*25mm black Reticulate pattern aluminum post
4x M3*10 Screws
3xM3*22 Screws
3x M3*14 Screws
3x M3*8 Screws
4x M3*6 Screws
11x M2*10 Screws
4x M2*7 Screws
31x M2*4 Screws
3xM2*3 Screws
3x M5*20 Screws
1x M5 self-locking nuts(red)
5x M2 self-locking nuts
2xM2Stainless steel nut
2x Rekon battery straps 20x250mm
1x Battery Anti-slip pad
1x Typec Male adapter

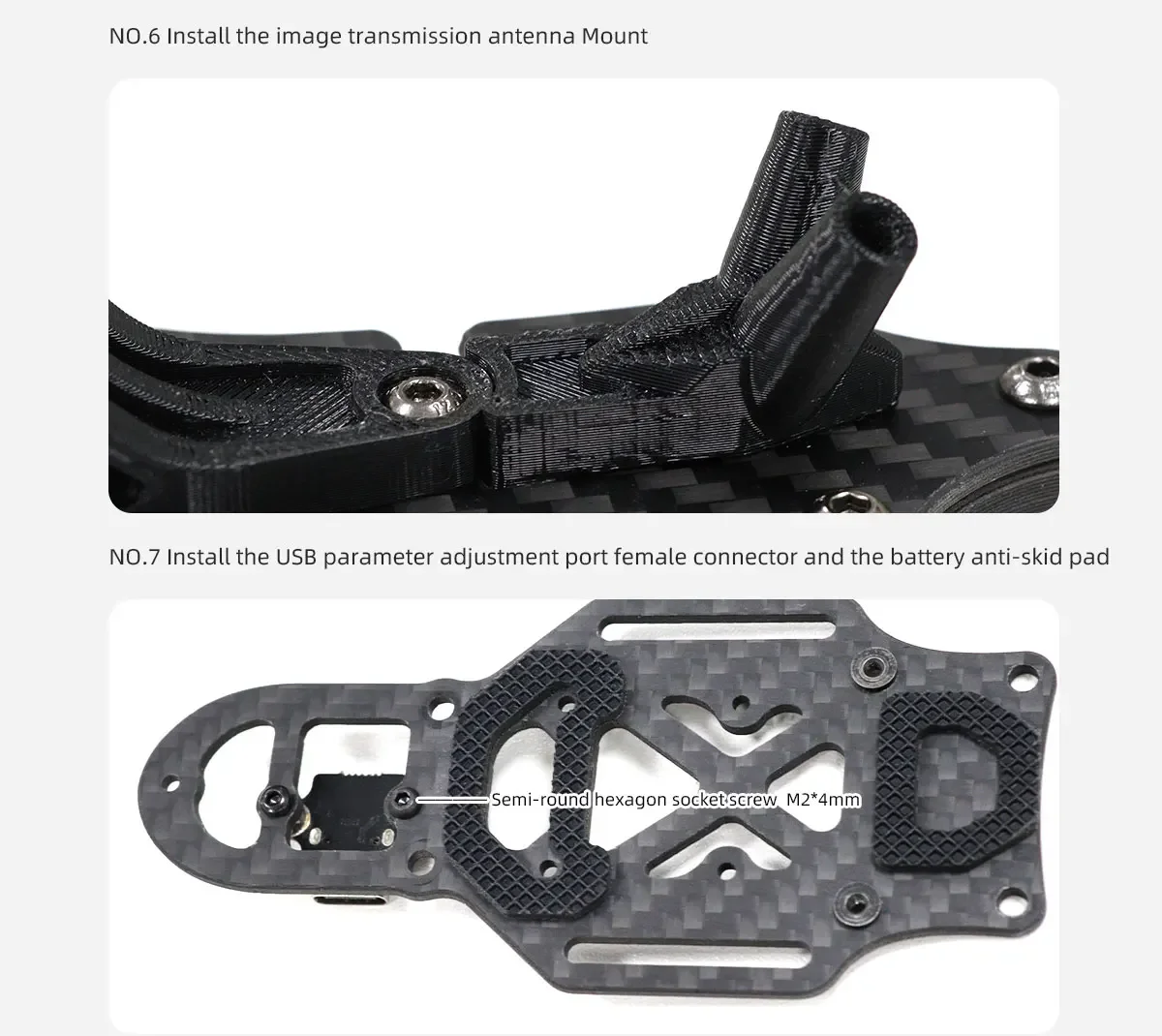

1x Y6 frame adjustment port Typec female connector
1x Connection line for parameter adjustment port
1x TPU black GoPro holder mount
1x TPU black GPS Fixed seat
1x TPU black XT60+Receiver fixing parts
1x TPU black Simulated version hood
1x TPU black Simulated image flyer antenna base
1x TPU black Bottom receiver antenna fixing buckle
1x TPU black Side receiver antenna fixing base
1x TPU black Bottom plate support protective pad
1x TPU black O3 hood
1x TPU black HD image transmission dual antenna base
Recommended parts:(not included)
Flight control: SPECTER F722 40A 4S-6S 6 in 1 AIO
Motor:2004
Camera:19X19mm/20x20mm
Propeller:5 inches
battery:18650 6S 1P 3000mAh
