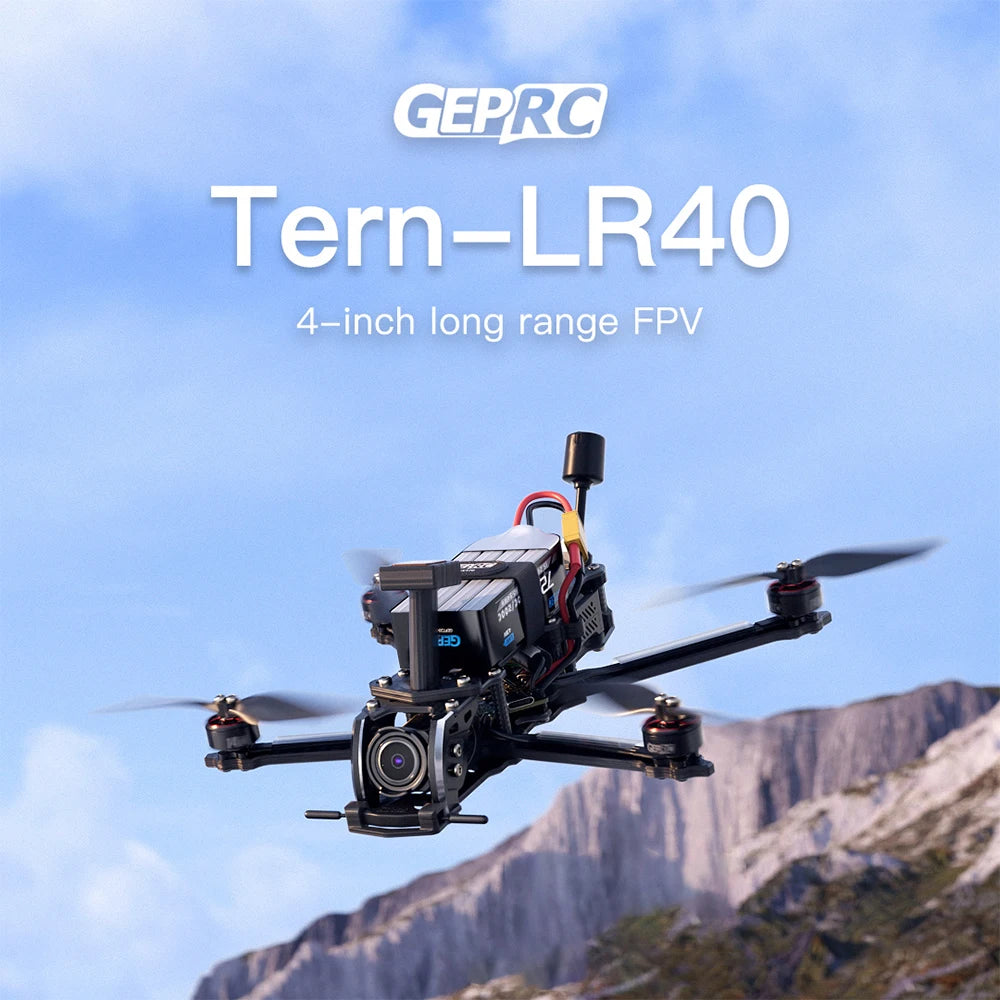

GEPRC Tern-LR40 Analog FPV Drone 4 Inch with GPS D-C-Type Structure/Caddx Ratel2 Camera/Compatible GP Mount/Taker G4 45A AIO
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Changelog
July 31, 2024: Tern -LR40 The original TAKER G4 45A BL32 AIO was replaced by the TAKER G4 45A 8Bit AIO .
Summary
In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.
Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jello from O3 camera.
The Tern-LR40 is like a bird with spread wings, flying freely through the blue sky without being restrained. Choosing it is not only a high-quality flight, but also an artistic journey.
Feature
1.New lightweight design, weight under 249g.
2.Expand interference GPS fixation method and stay away from interference sources
3.DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
4.Install BB ring to set the battery low voltage alarm
5.Using GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.
6.Compatible gopro mount installation, expandable shooting creation.
Specifications
Model: Tern-LR40
Top plate: 1.5mm
Middle plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 45A 8Bit ESC
VTX: RAD mini 1W
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP UFL
Connector：XT30
Motors: GEP-SPEEDX2 1404 3000KV
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern -LR40 Analog ELRS24 version weight: 159g±5g
Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah
Time: 10-25 Min
Includes
1 x Tern-LR40
2 x HQProp T4X2.5Grey (2CW+2CCW)
2 x battery anti-slip mat
1 x screw pack
4 x Battery strap M15*170mm
1 x L-shaped screwdriver 1.5mm
1 x GP camera mount holder
1 x T-type Antenna mount
1 x RC Printed
