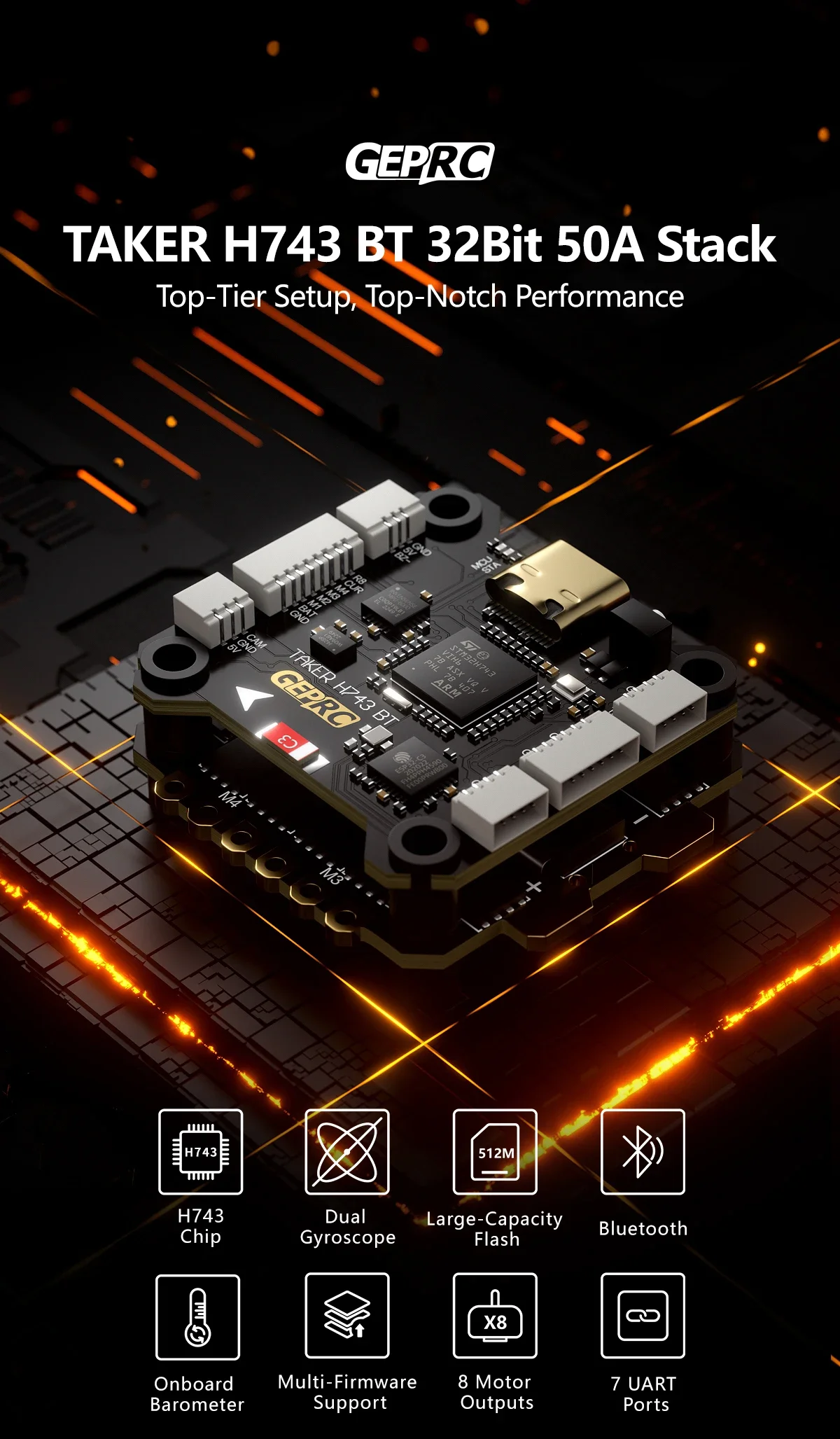

GEPRC TAKER H743 BT 32Bit 50A Stack

+ Free Shipping

Availability: 100 in stock

Contact Us on WhatsApp

Summary

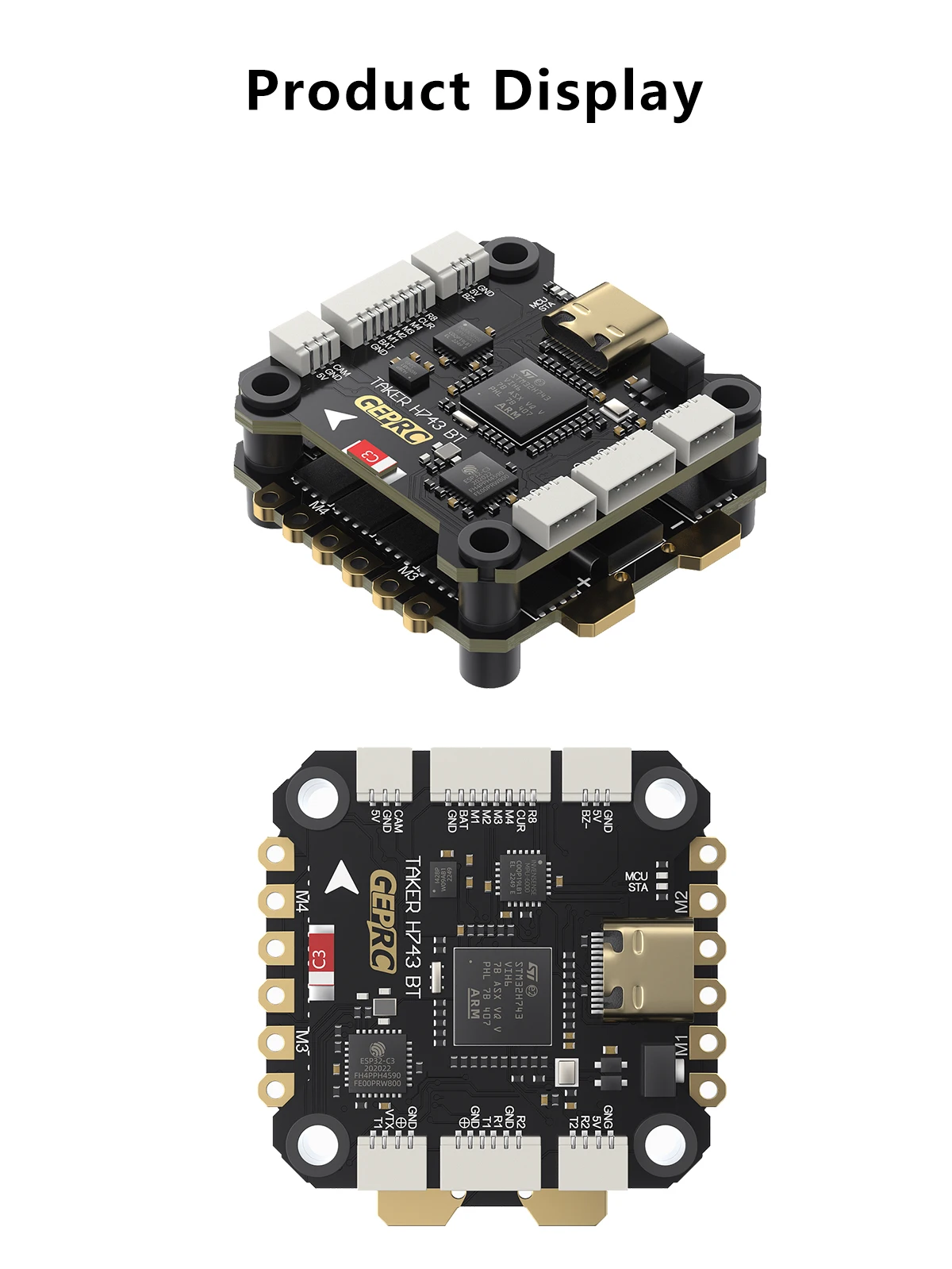

The TAKER H743 BT 32Bit 50A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the GEP-BL32 50A 96K 4IN1 32Bit ESC, it delivers an exceptionally smooth flight experience.
Feature

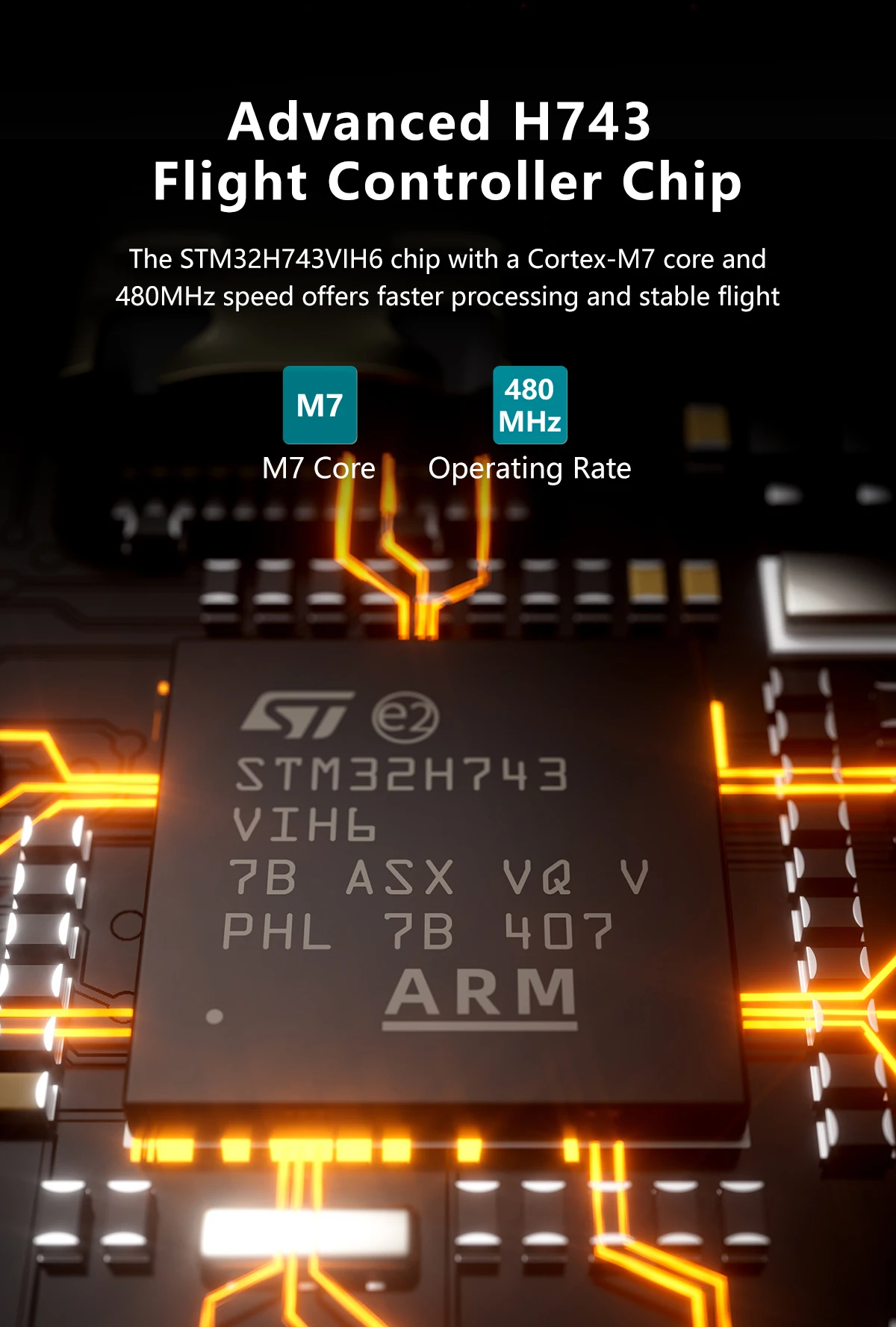

1. Adopts the high-performance STM32H743 as the main controller

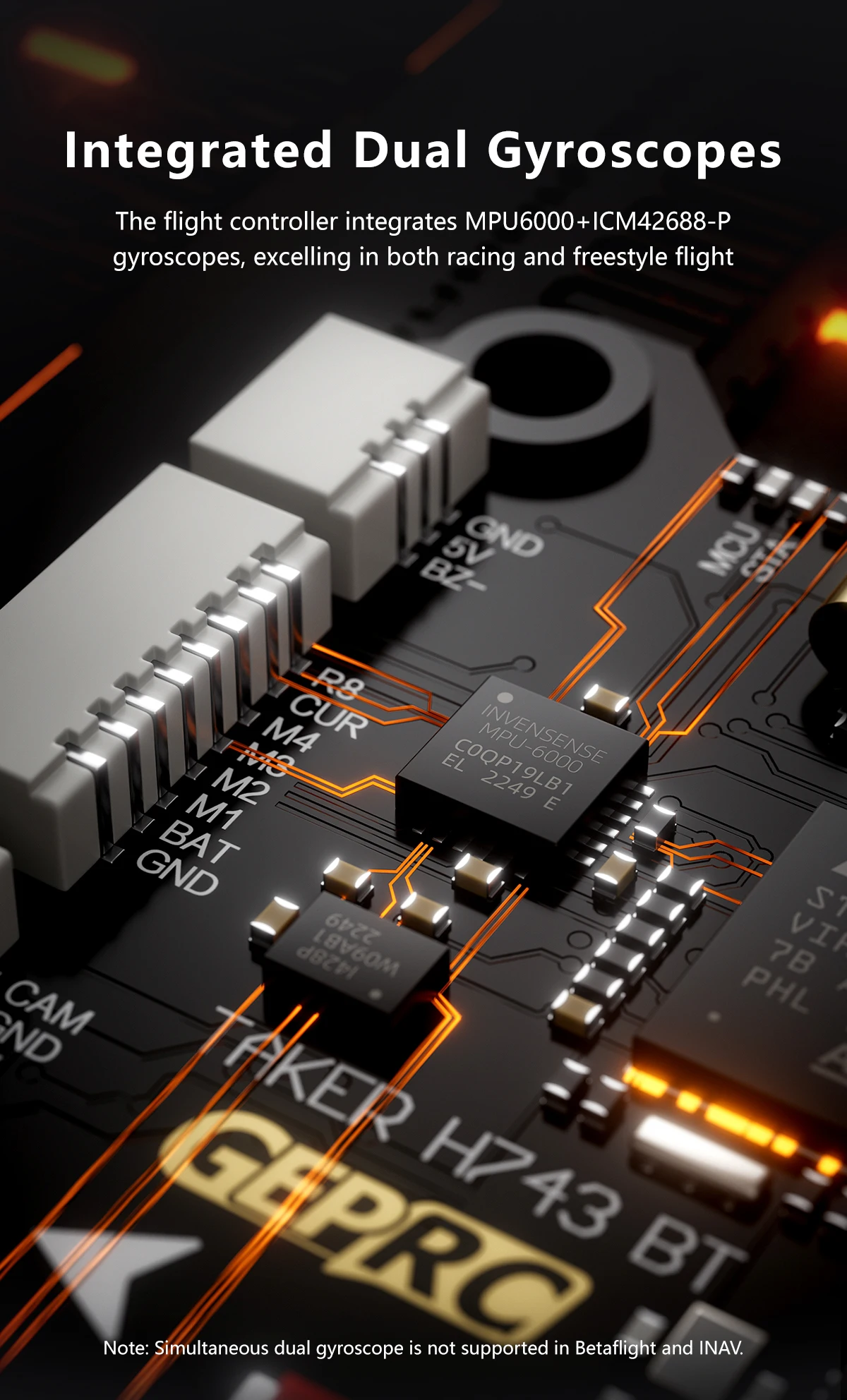

2. Equipped with MPU6000 and 42688-P dual gyroscopes
3. 512MB high-capacity black box storage

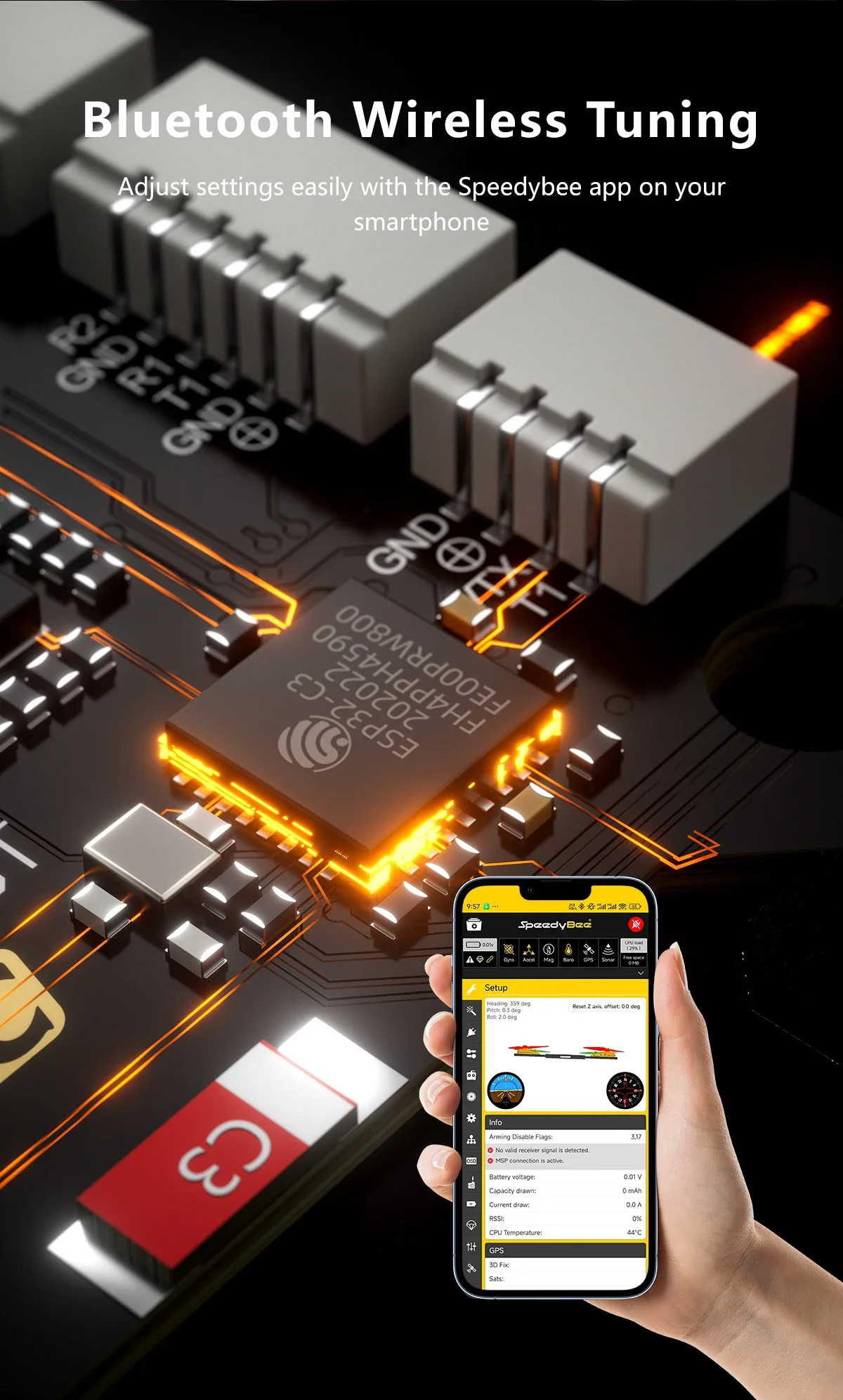

4. Bluetooth parameter tuning
5. Upgraded Type-C USB interface

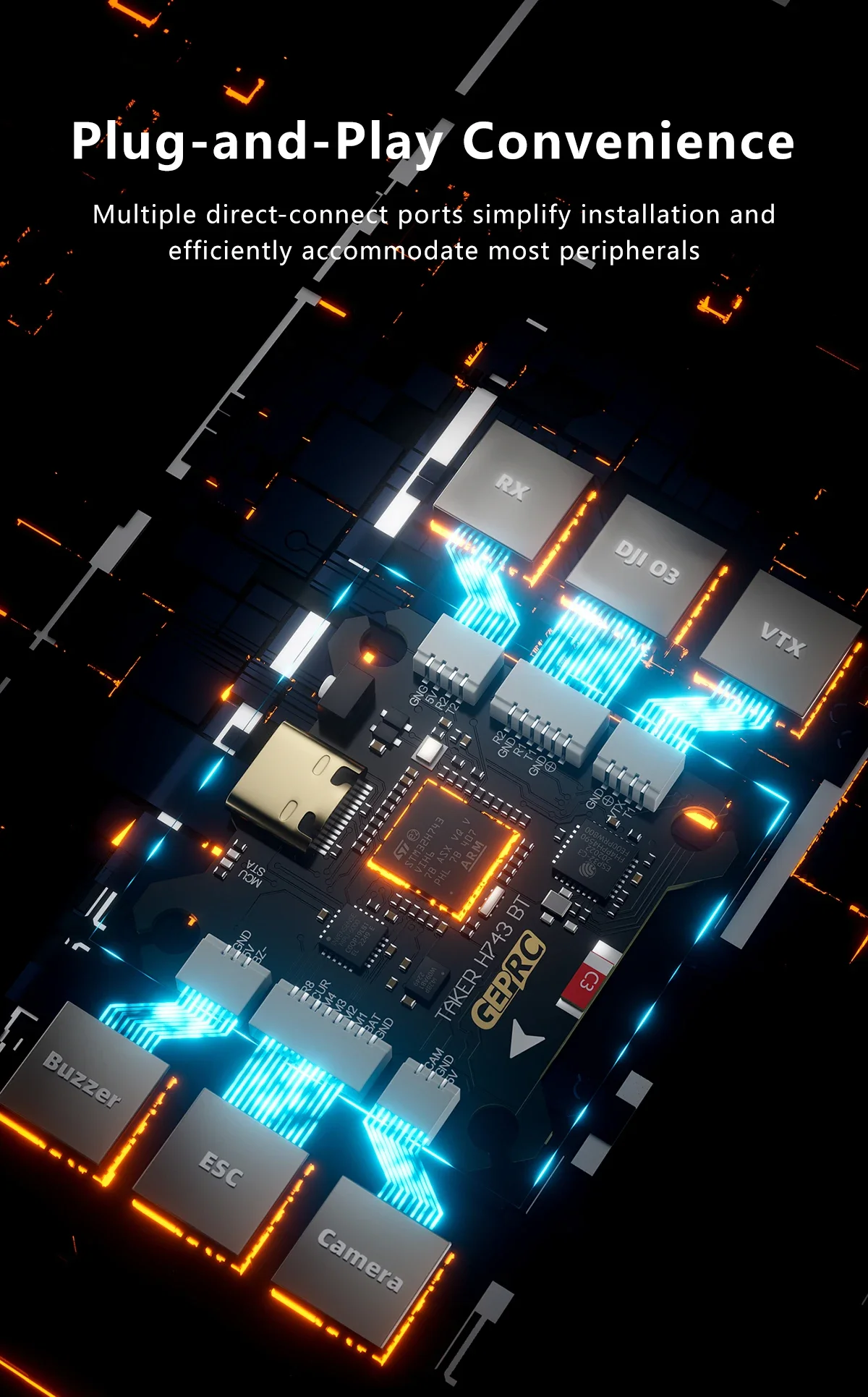

6. Plug-and-play, no soldering required
7. Integrated barometer
8. Features 7 UART ports

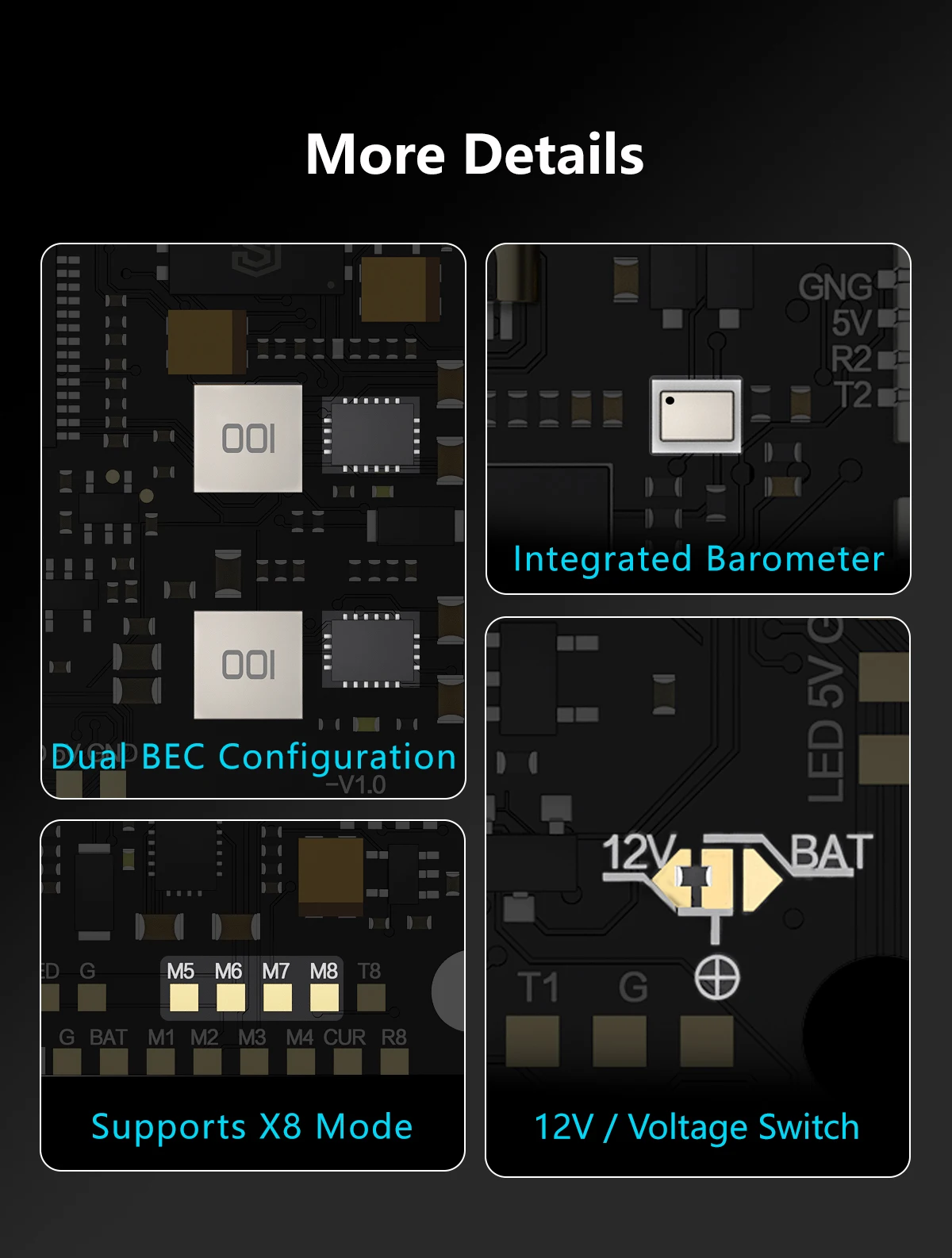

9. Independent BEC with 12V@2.5A and 5V@3A outputs
10. Equipped with the GEP-BL32 50A 96K 4IN1 32Bit ESC for a smooth flight experience
Note: pre-installed with BL32 test firmware, extensively tested for safety and reliability
(AM32 also supported; customer flashing required)

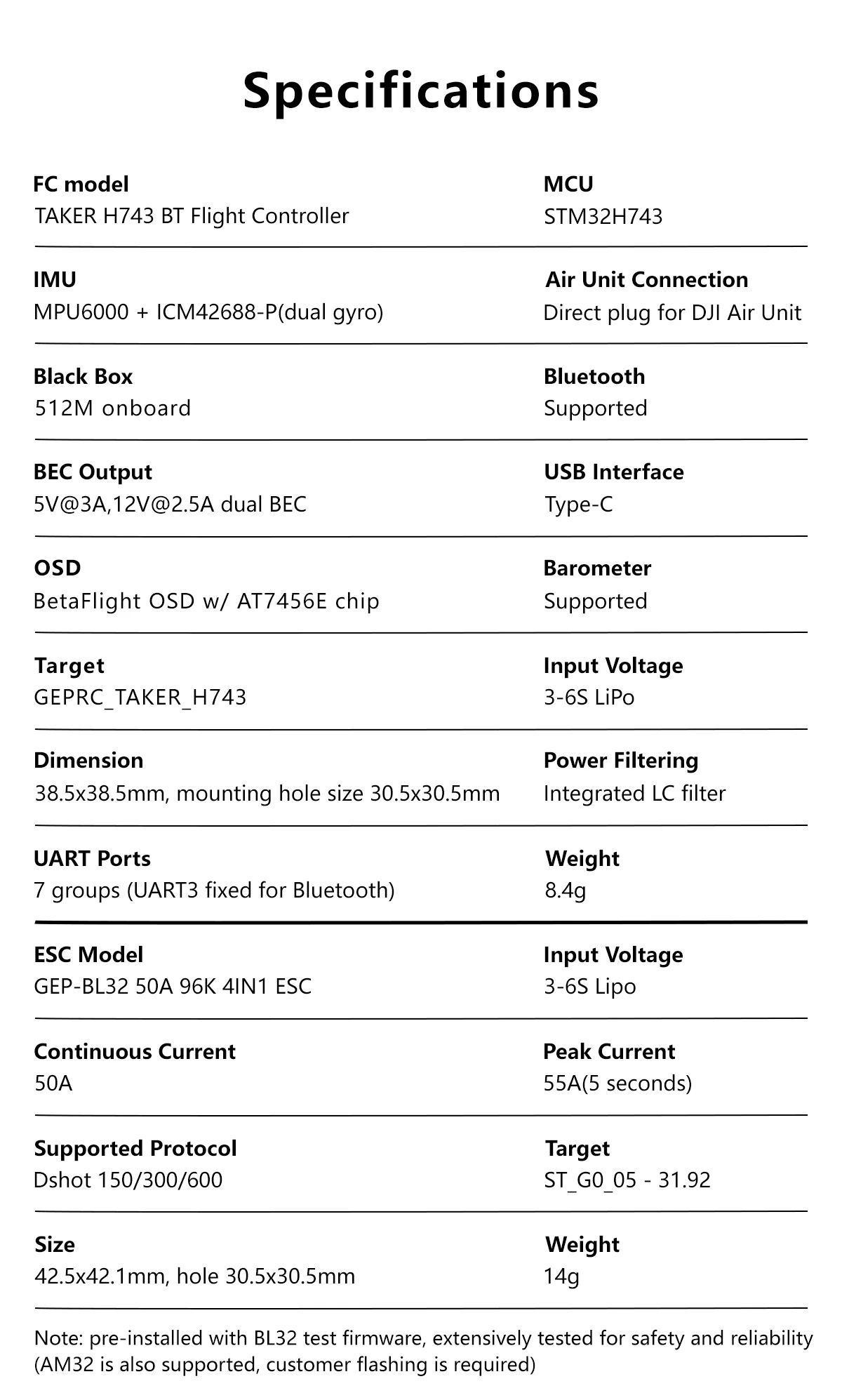

Specifications

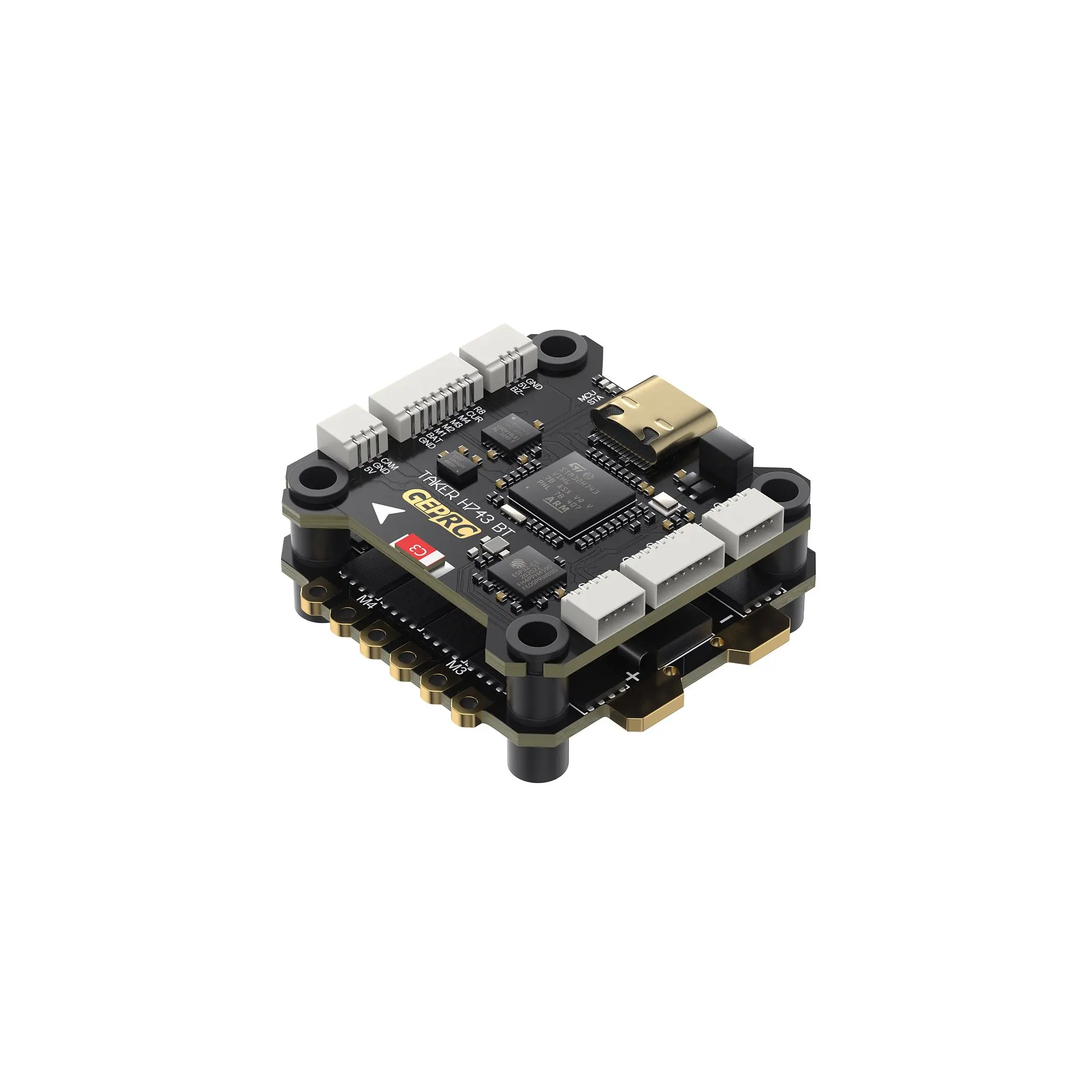

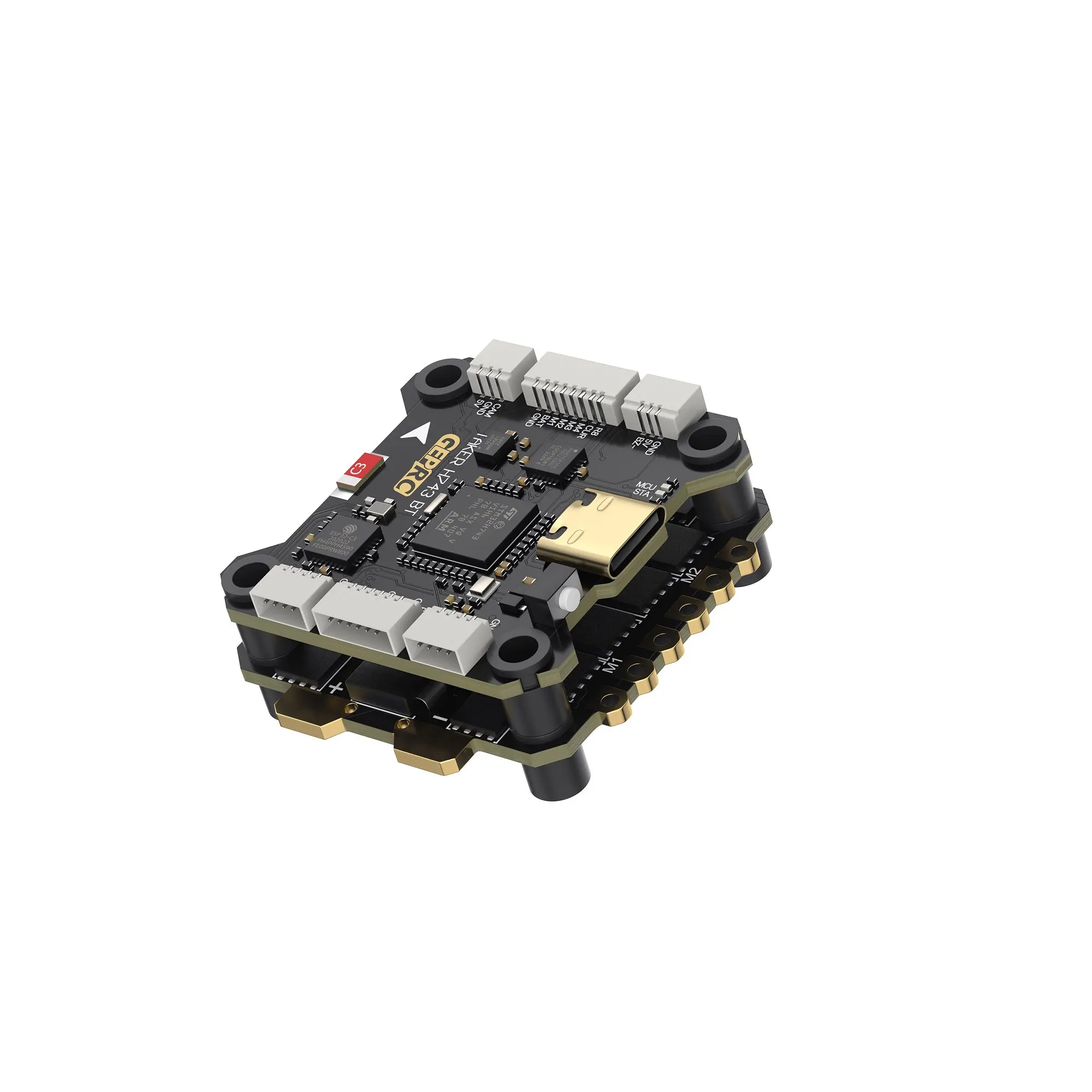

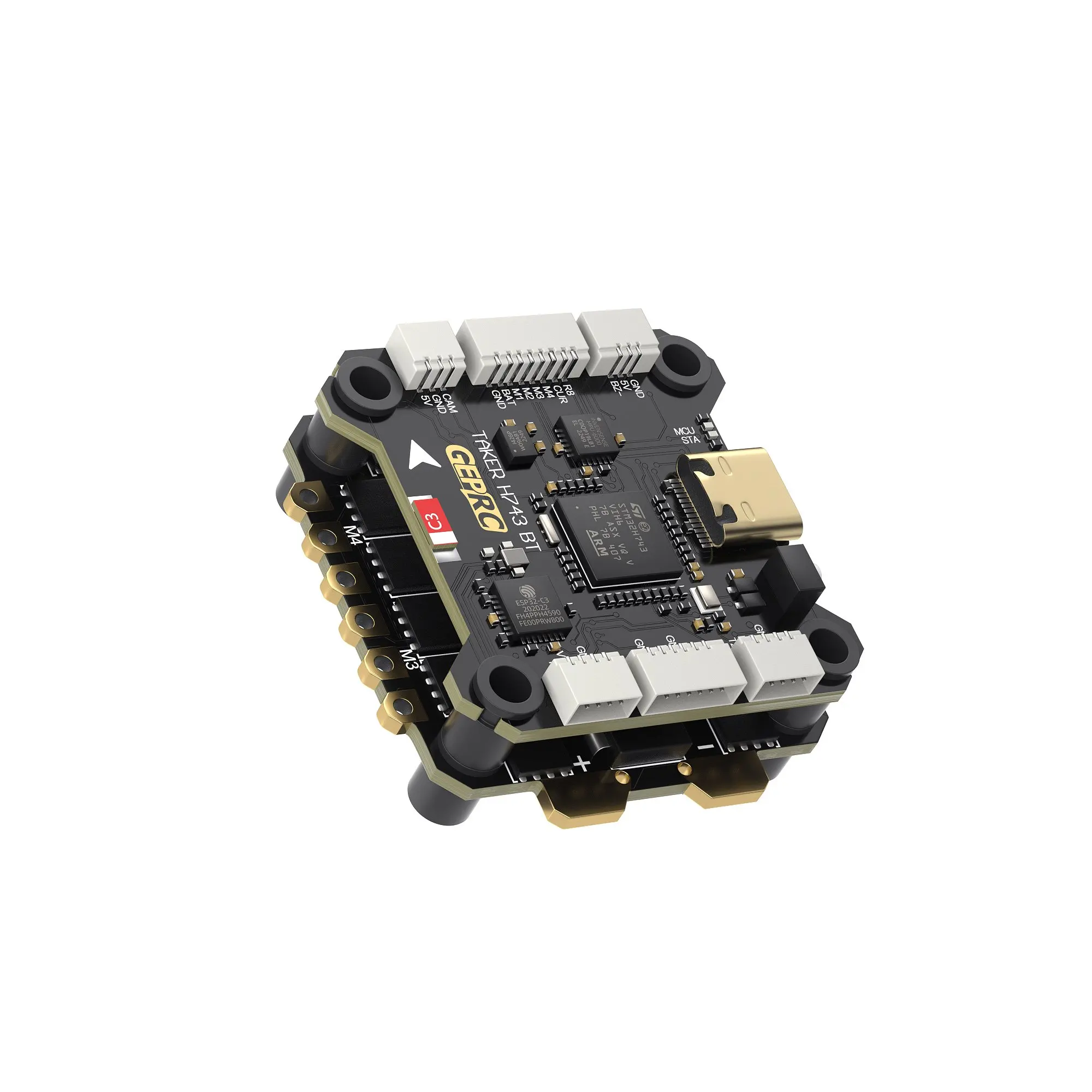

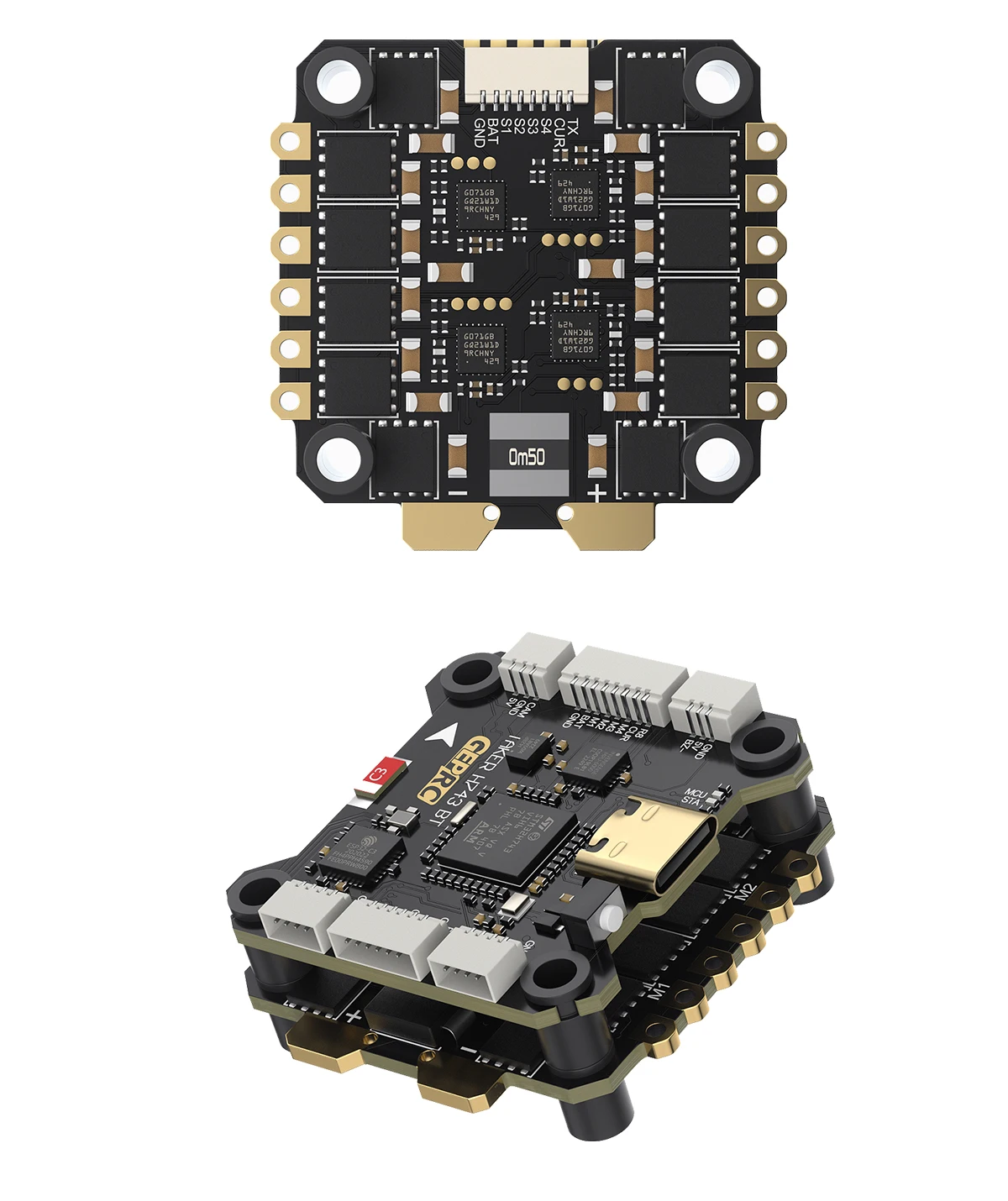

TAKER H743 BT 32Bit 50A Stack
FC model:

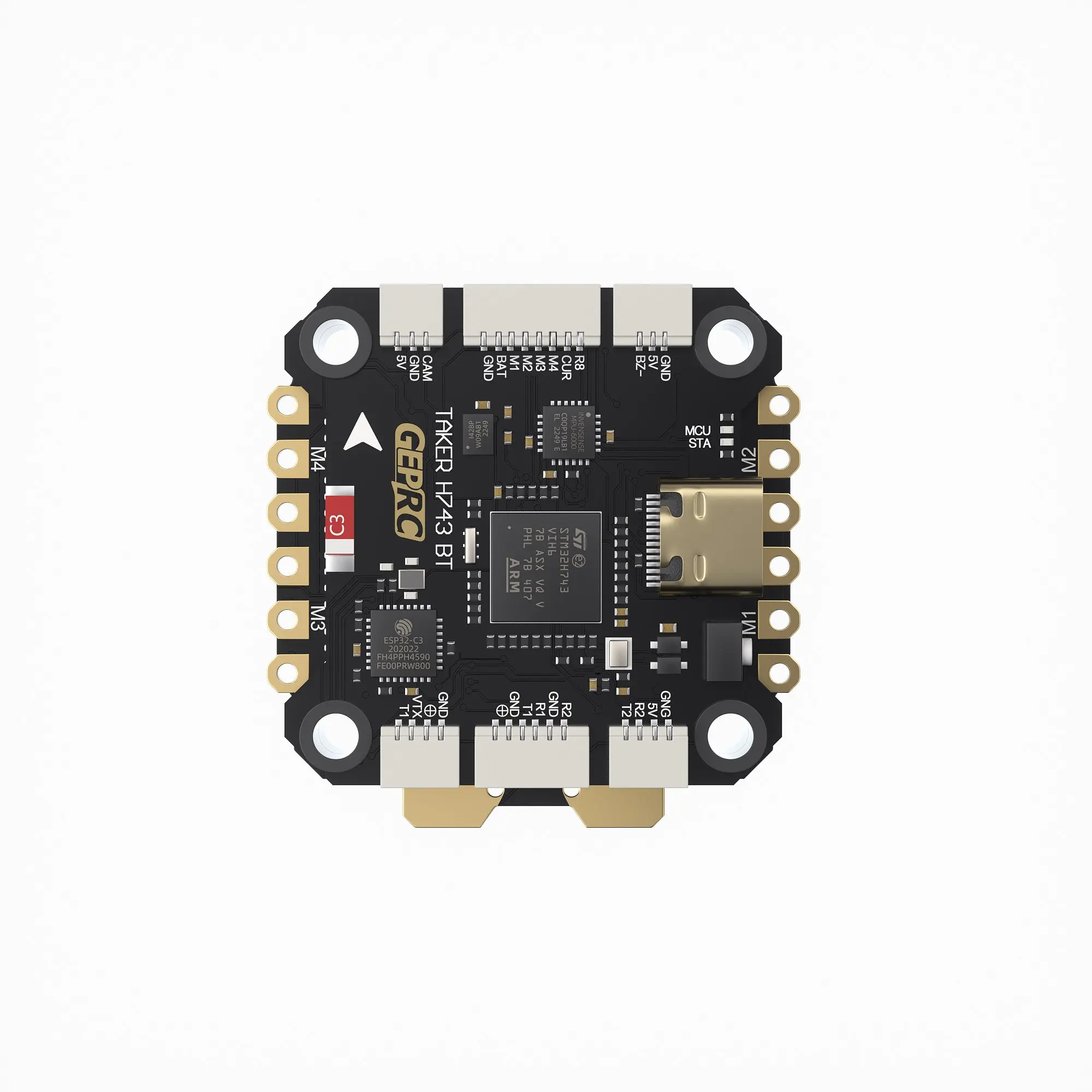

TAKER H743 BT Flight Controller
MCU: STM32H743
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit

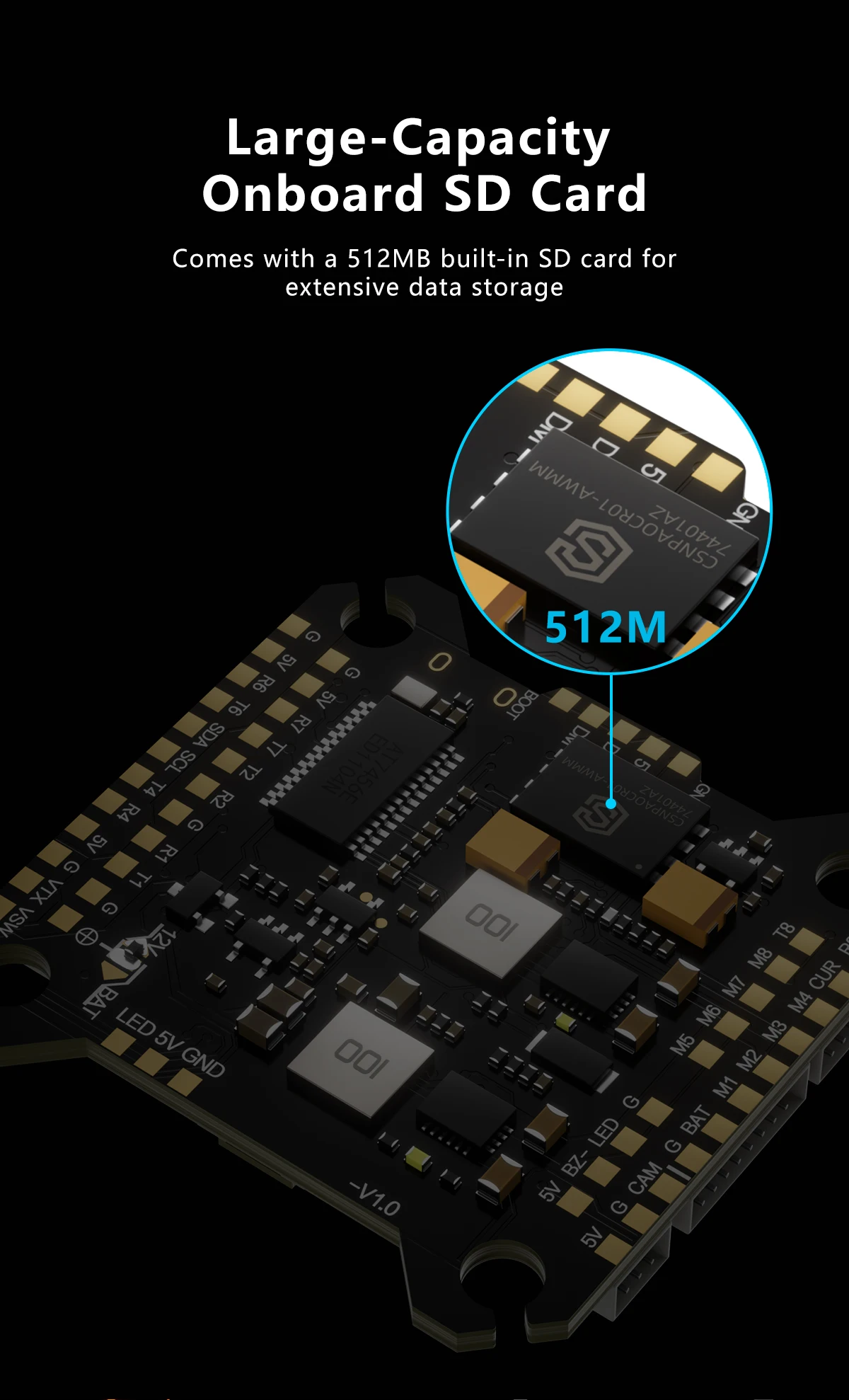

Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A
dual BEC
Target: GEPRC_TAKER_H743
Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

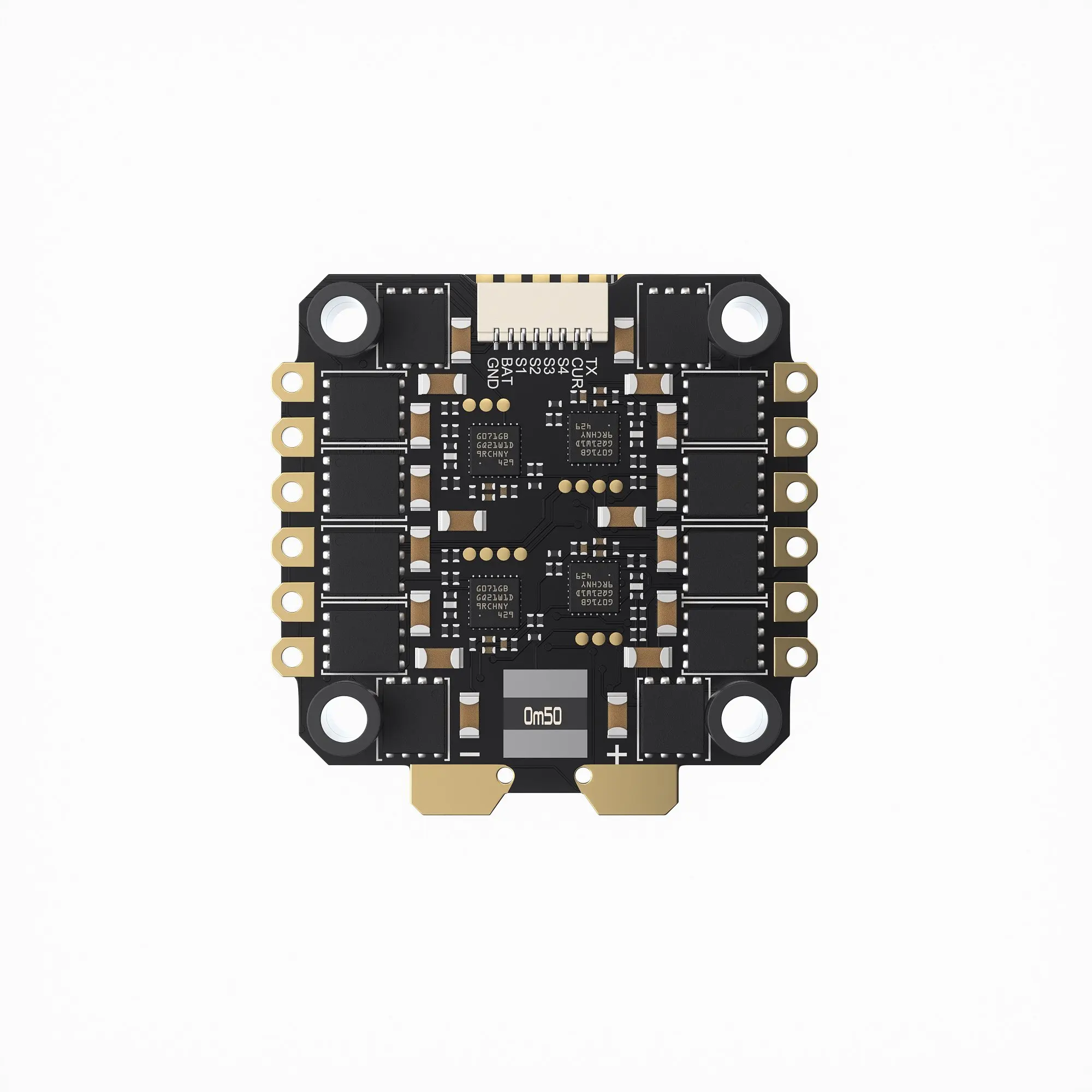

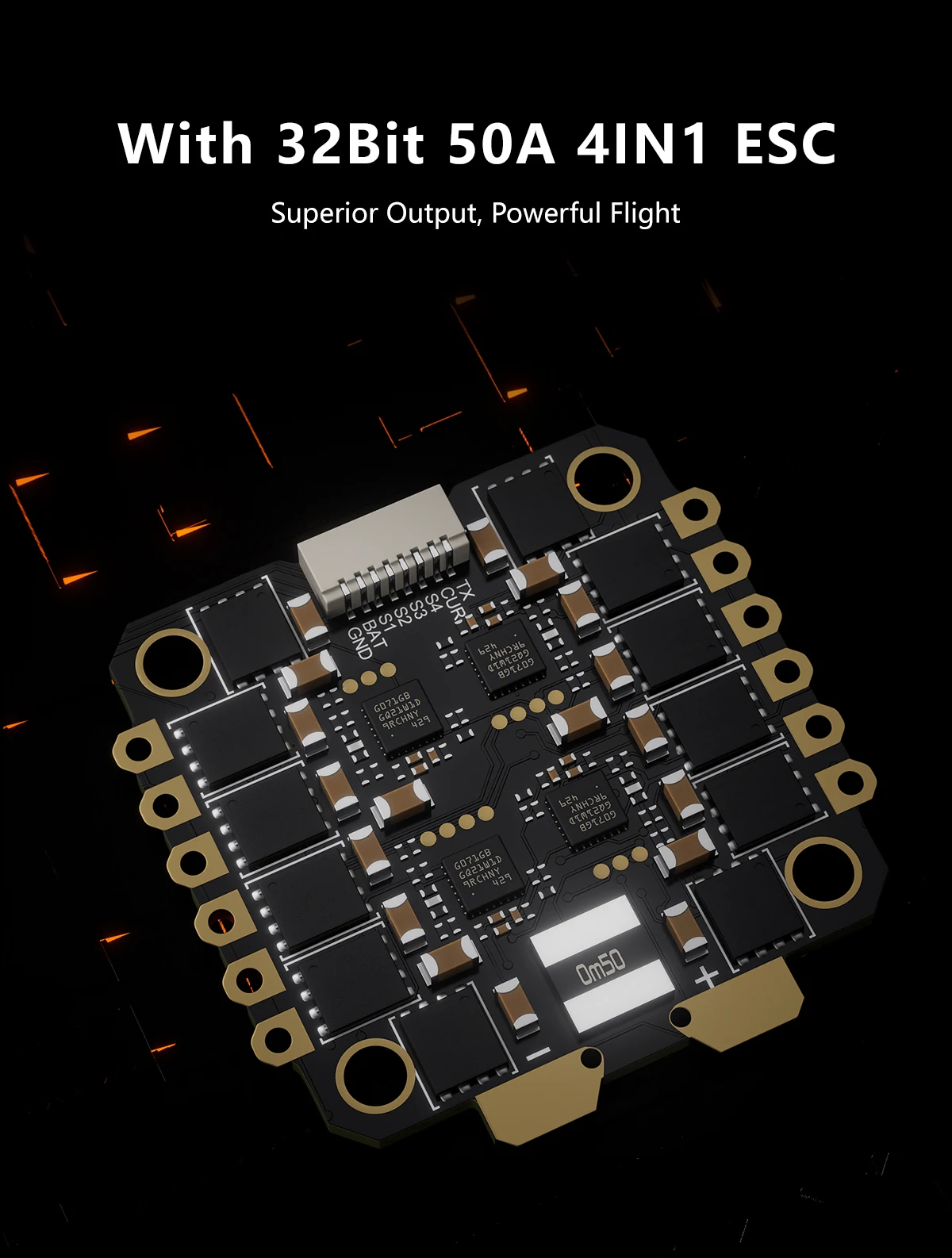

ESC Model: GEP-BL32 50A 96K 4IN1 ESC
Input Voltage: 3-6S Lipo
Continuous Current: 50A
Peak Current: 55A(5 seconds)
Supported Protocol: Dshot 150/300/600
Size: 42.5×42.1mm, hole 30.5×30.5mm
Weight: 14g
Target: ST_G0_05 – 31.92
Note: pre-installed with BL32 test firmware, extensively tested for safety and reliability (AM32 is also supported, customer flashing is required)

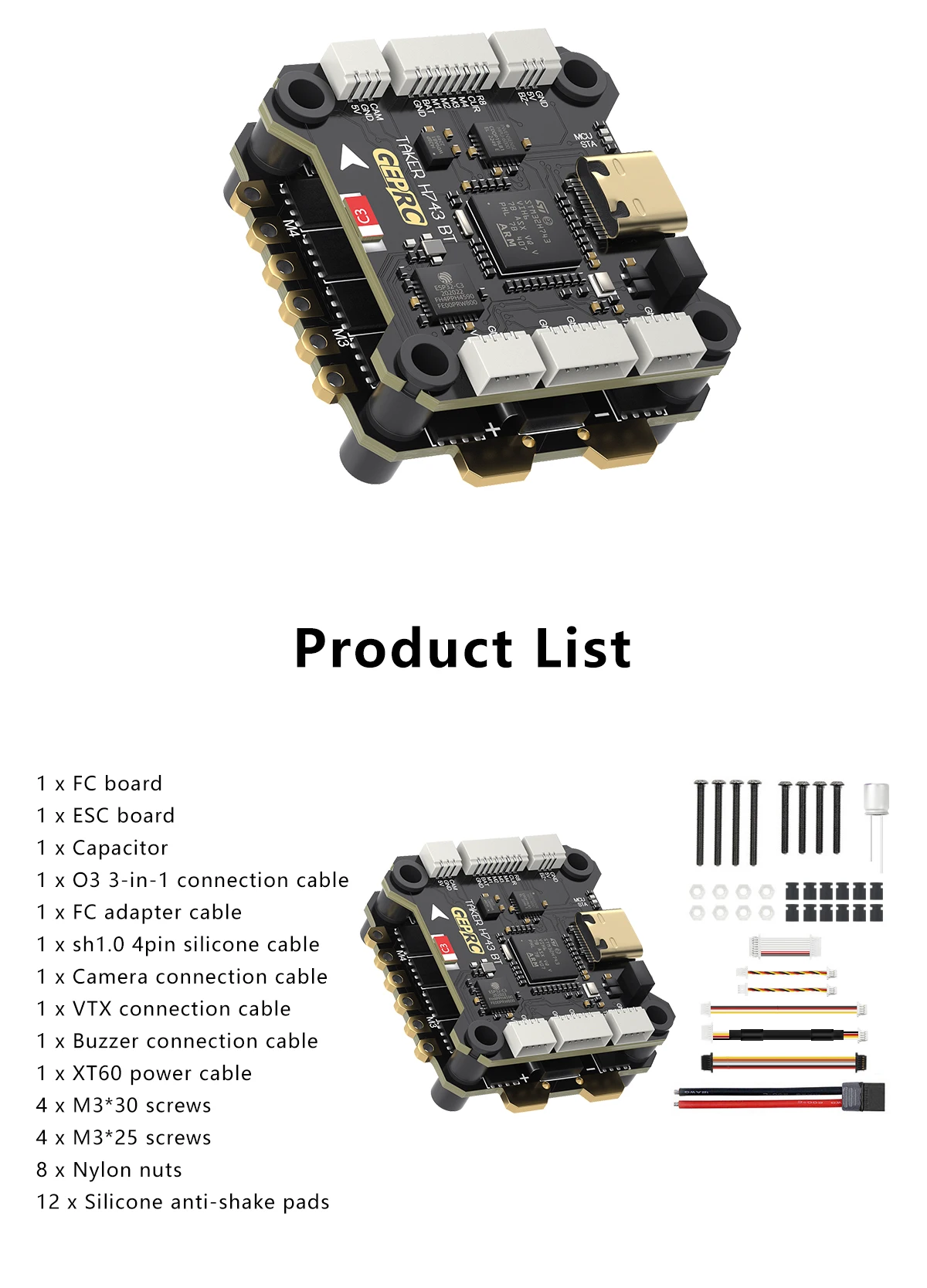

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads

Weight 0.1 kg
Dimensions 5 × 5 × 5 cm
Hign-concerned Chemical

None

Is Electric

No Battery

Is it battery/power supply

N

Is it charger/adapter

N

Is Batteries Included

No

For Vehicle Type

Helicopters

Material

Composite Material

Brand Name

HGLRC

Origin

Mainland China

Recommend Age

14+y

Use

Vehicles & Remote Control Toys
