Sale!

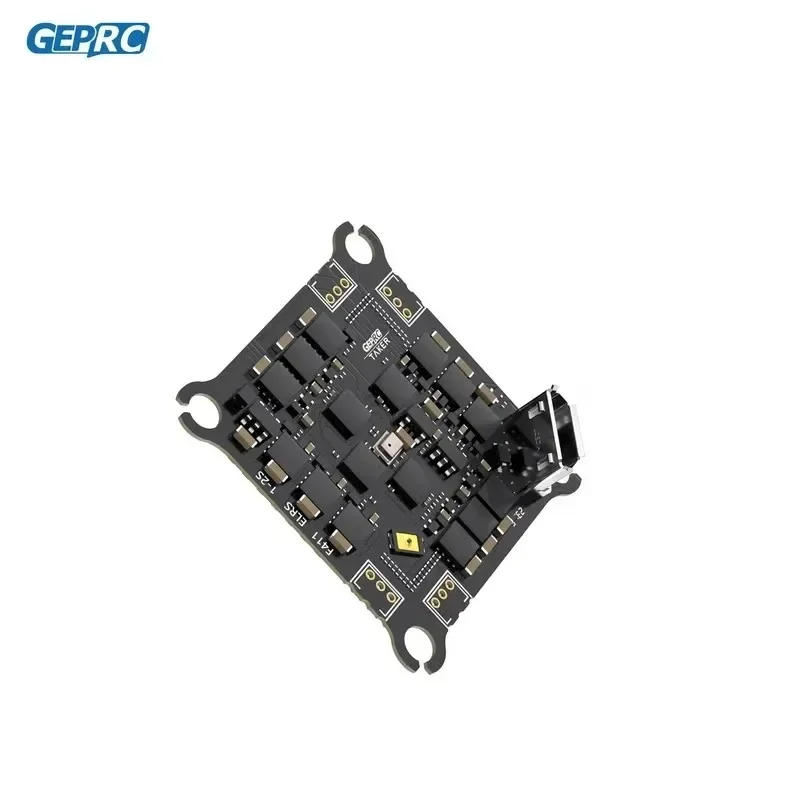

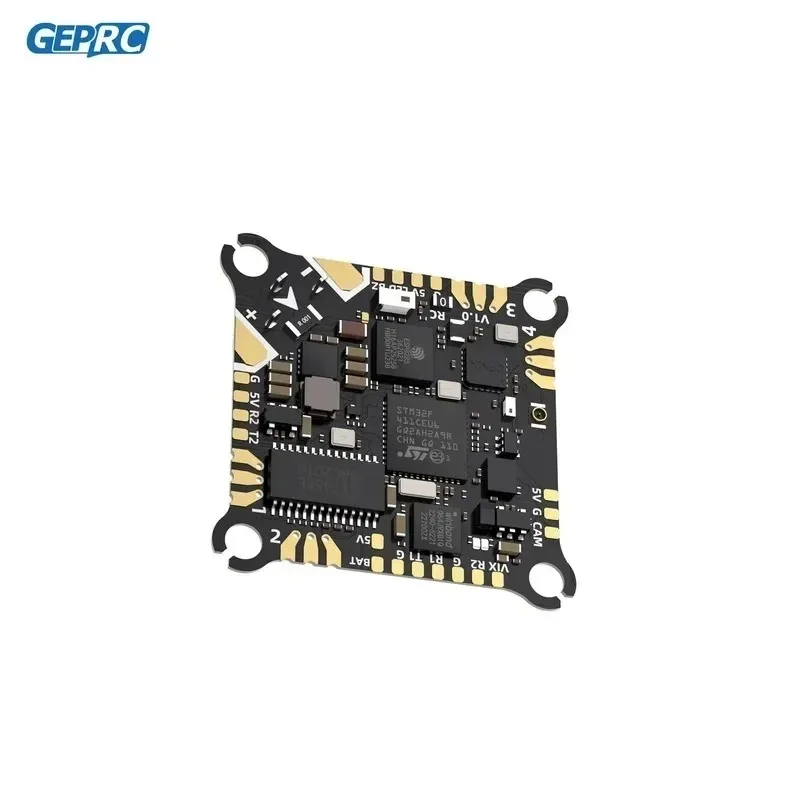

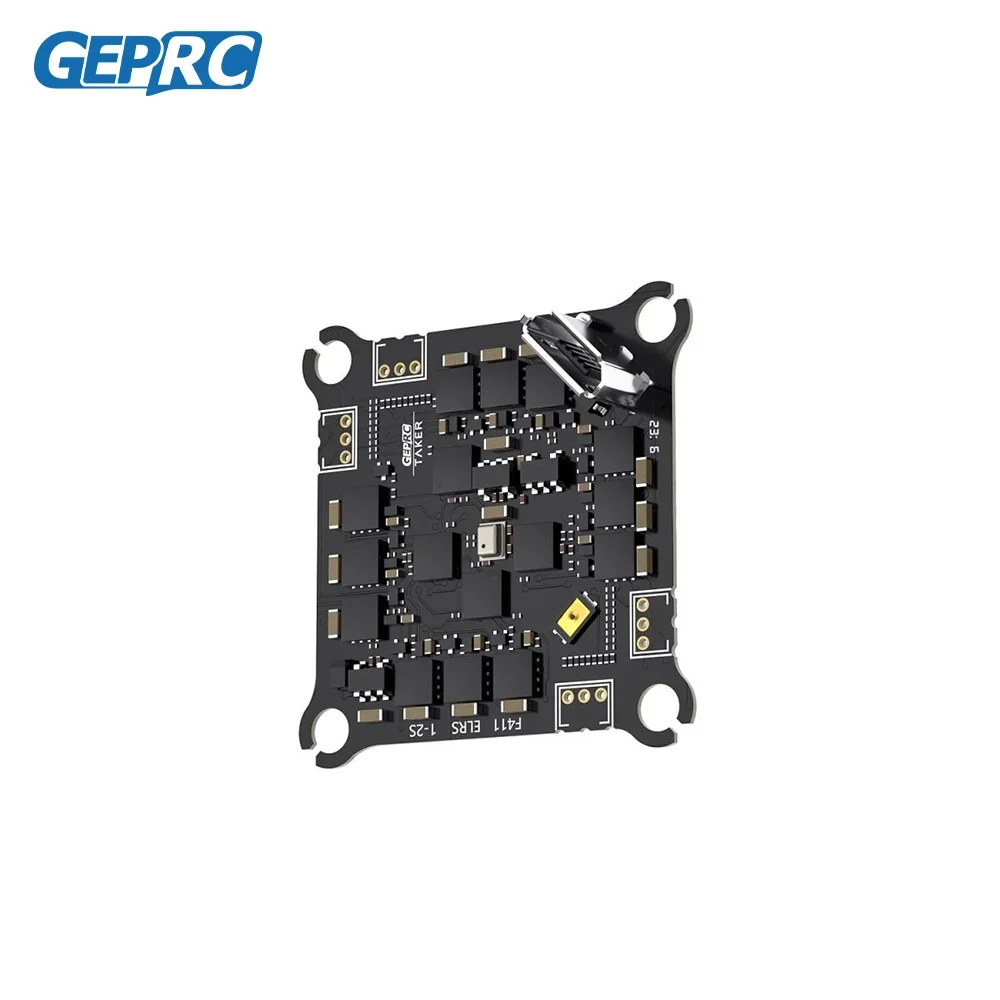

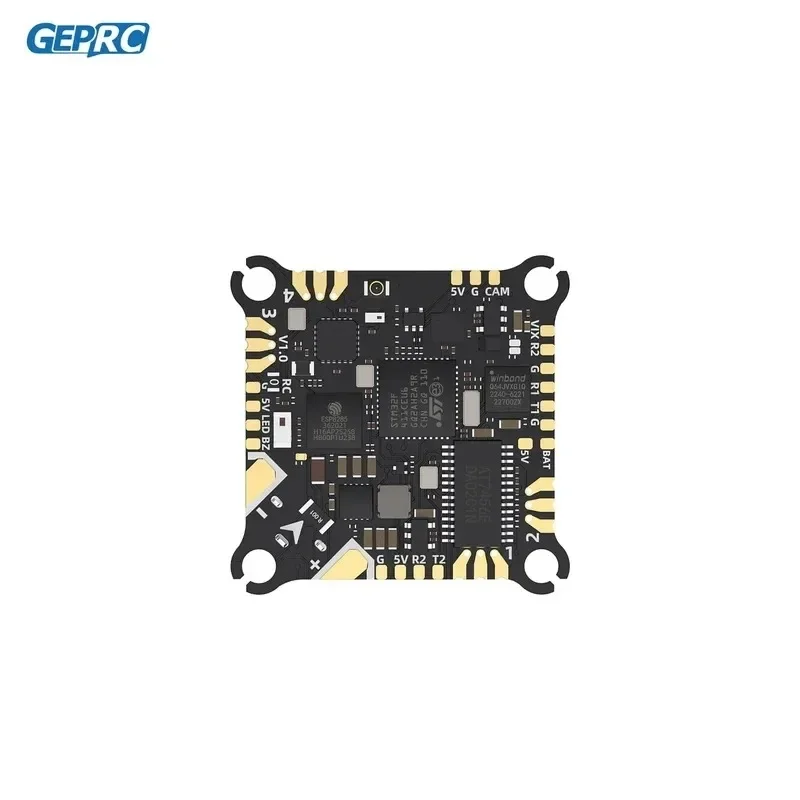

GEPRC TAKER F411 AIO Flight Controller 4in1 12A ESC with BMI270 Gyro ELRS 3.0 for 1-2S Cinewhoop Drone, 25.5×25.5mm FPV Racing

+ Free Shipping

Availability: 100 in stock

Contact Us on WhatsApp

Summary
TAKER F411-12A-E 1~2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2-inch Whoop models or 3-inch toothpick models.
The 12A ESC overcurrent capability has sufficient redundancy on a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The F411 main control is equipped with a BMI270 gyroscope, making the flight feel silky and stable.
Feature
Highly integrated and lightweight flight system
Supports 1-2S power supply and has higher battery compatibility
STM32F411 main control and BMI270 gyroscope solution, the flight feels silky and stable
The motor wiring is reserved for welding or SH1
Integrated ELRS2
Specifications

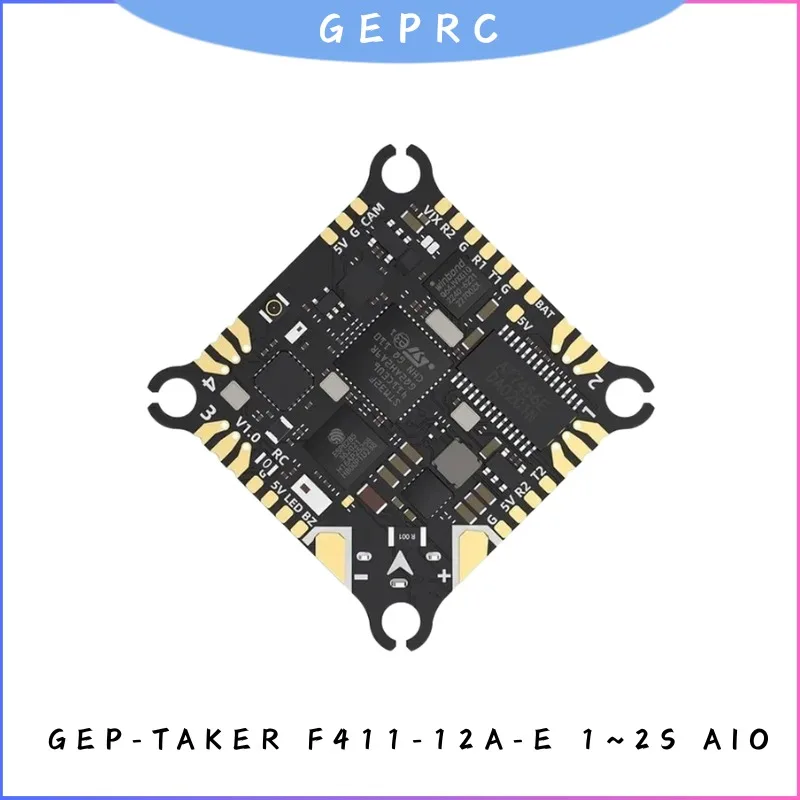

Model: TAKER F411-12A-E 1~2S AIO
MCU: STM32F411
IMU: BMI270
Firmware Target: TAKERF411
OSD: Betaflight OSD w/ AT7456Ev
UART: T1 R1 / T2 R2
SBUS: R2
Receiver: ELRS2.4G 3.0
Buzzer: Support
LED: Support
USB: Micro USB
ESC MCU: EFM8BB21F16G
Continuous Current: 12A
Burst Current: 13A
Input Voltage: LiPo/LiHv 1S-2S
Support Protocol: Dshot300/600,Oneshot,Multishot
Blackbox: 8MB
Galvanometer: Support
Firmware Target: C-X-30

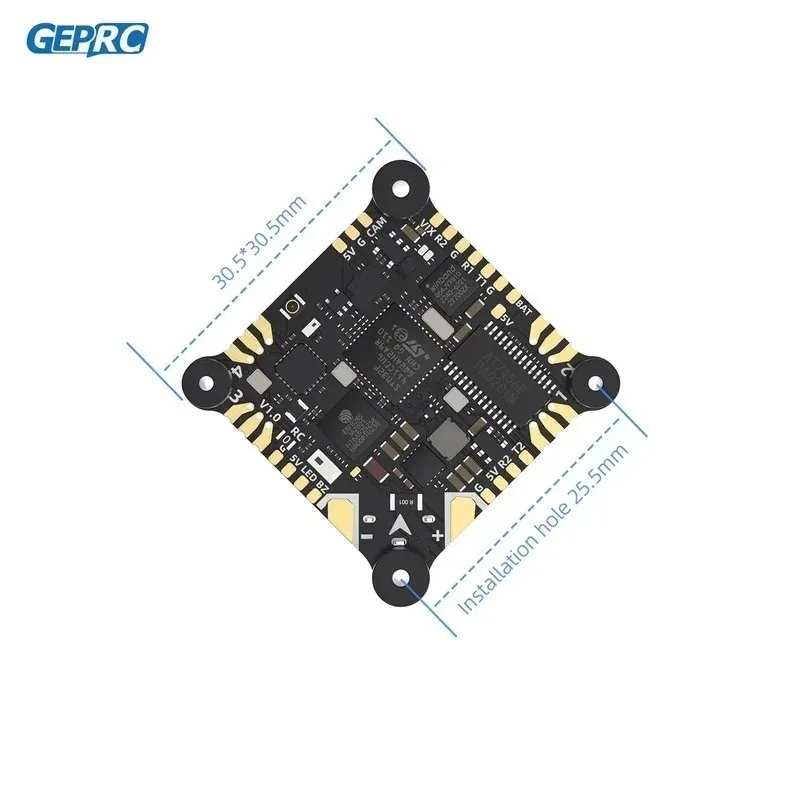

Size: 30.5mm*30.5mm
Fixing hole size:25.5mm*25.5mm(M2)
Weight: 4.2g
Includes
1 x TAKER F411-12A-E 1~2S AIO
1 x Cable Set

Weight 0.06 kg
Dimensions 10 × 10 × 2 cm
Hign-concerned Chemical

None

Is Electric

No Battery

Quantity

1 pcs

Wheelbase

Screws

Is it battery/power supply

N

Is it charger/adapter

N

Is Batteries Included

No

Size

AN

Technical parameters

KV1100

Model Number

GEPRC

For Vehicle Type

Airplanes

Tool Supplies

Assembly Category

Four-wheel Drive Attributes

Assemblage

Remote Control Peripherals/Devices

Remote Controller

Upgrade Parts/Accessories

STACK

RC Parts & Accs

STACK

Material

Composite Material

Origin

Mainland China

Recommend Age

14+y

Use

Vehicles & Remote Control Toys
