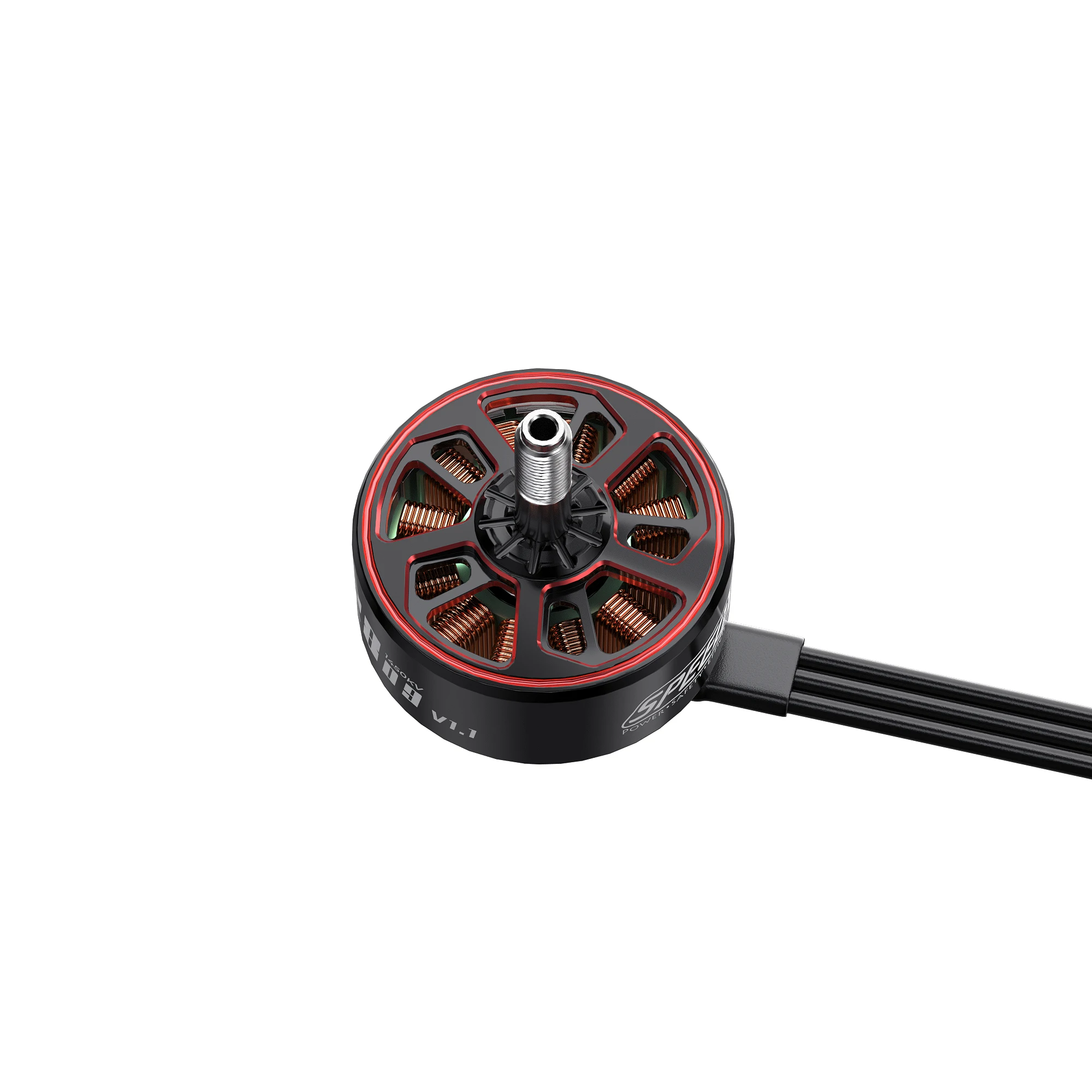

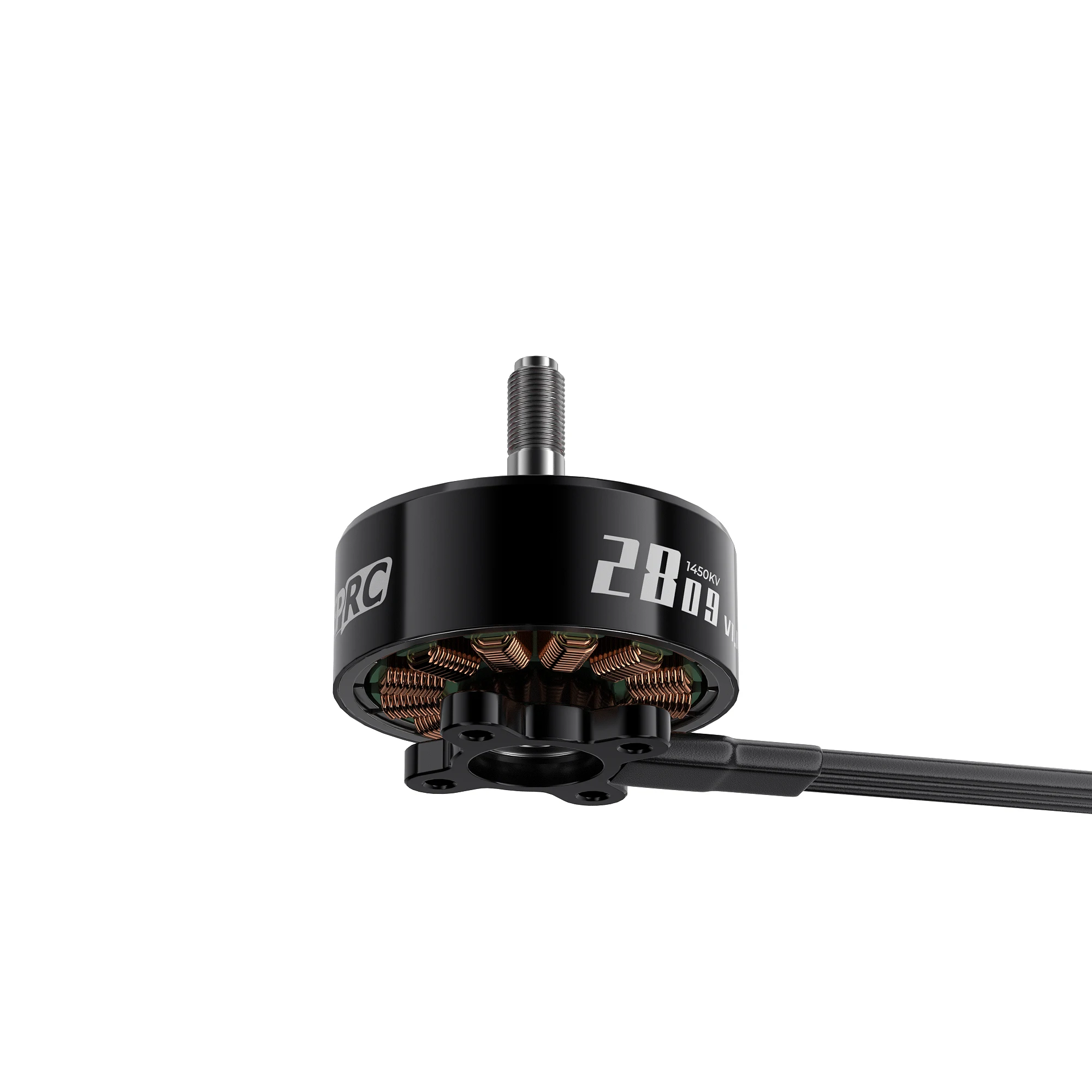

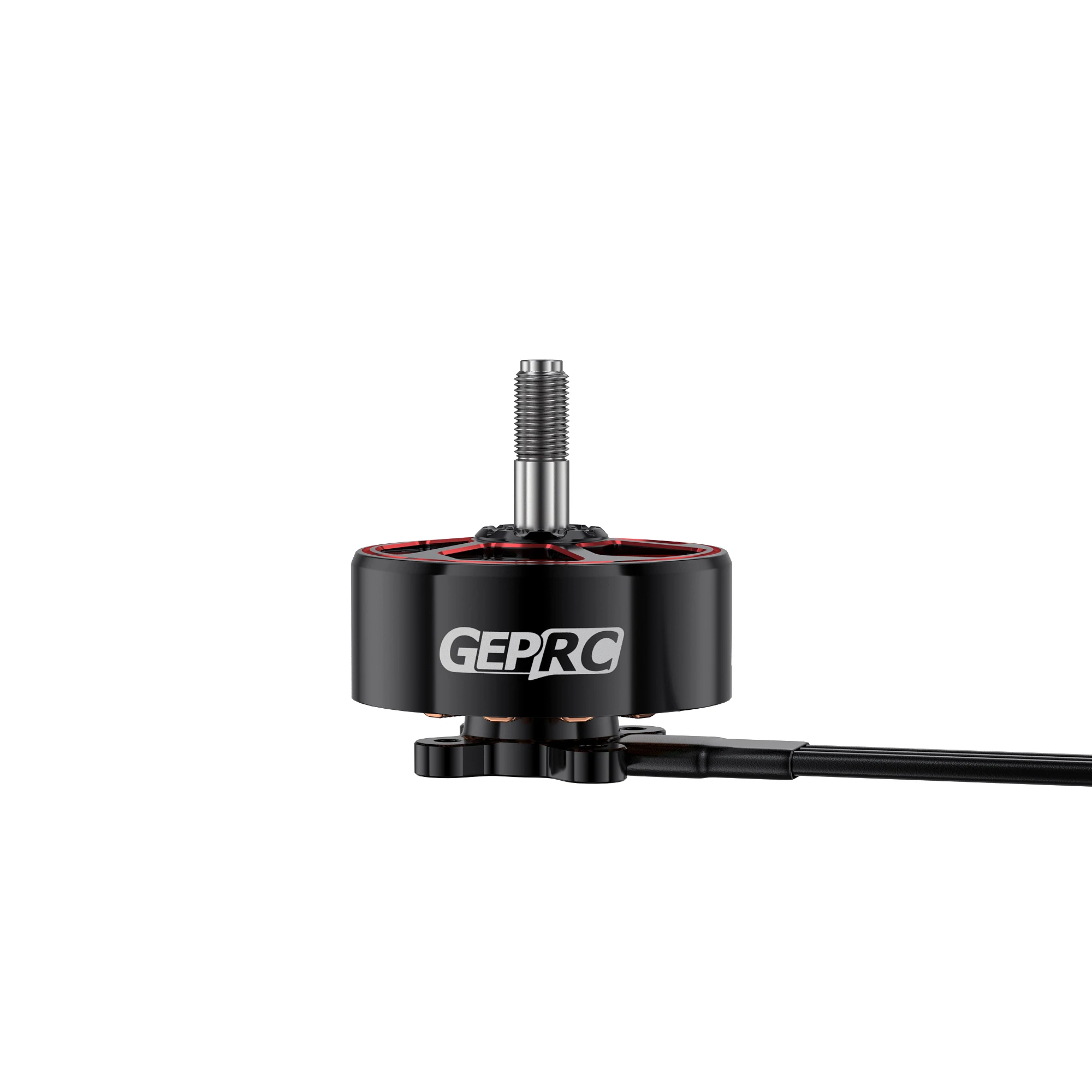

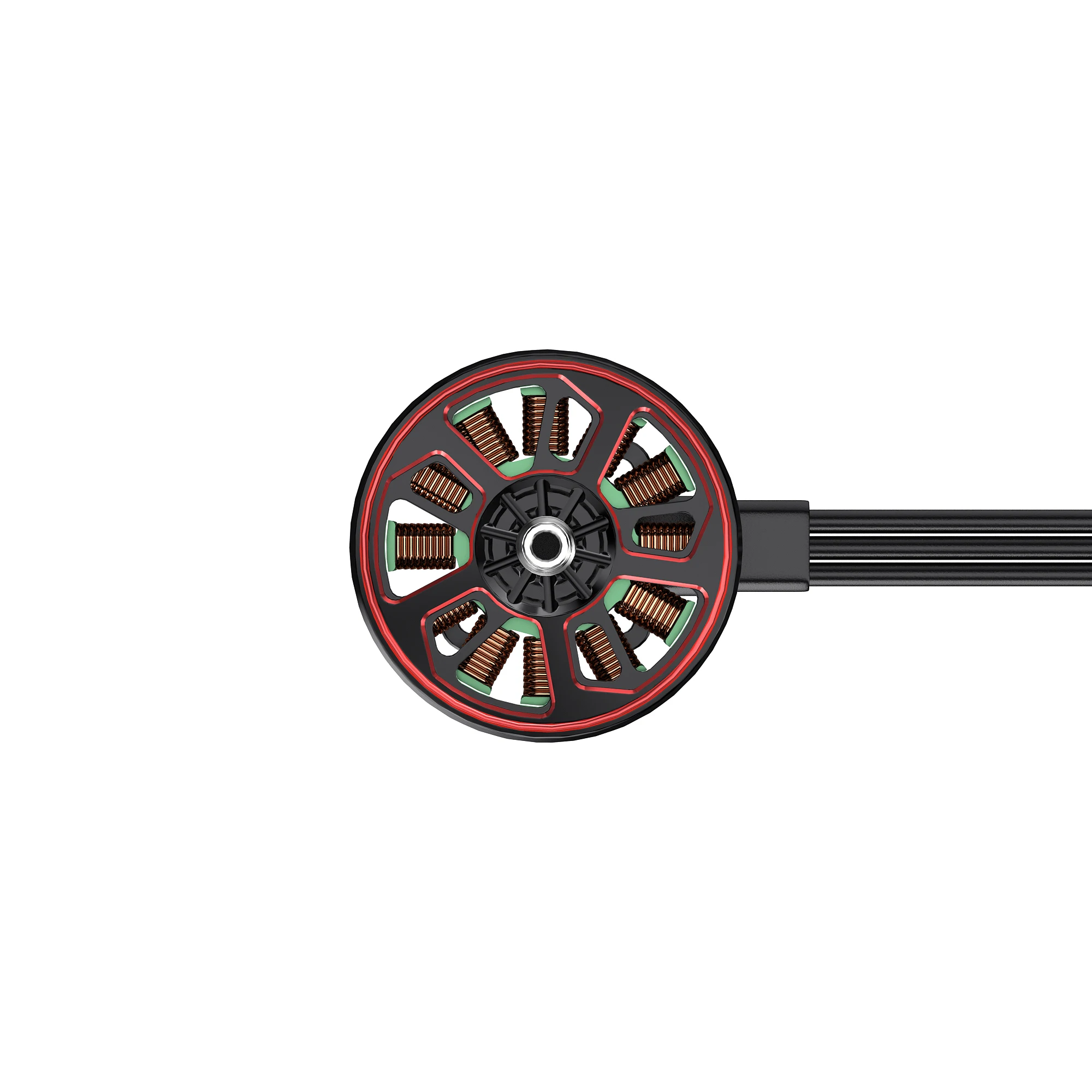

GEPRC SPEEDX2 2809 V1.1 Motor for 7–8 inch long-range FPV Drone Brushless Motor Assembling High-Performance Accessories

Summary
The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.
Feature

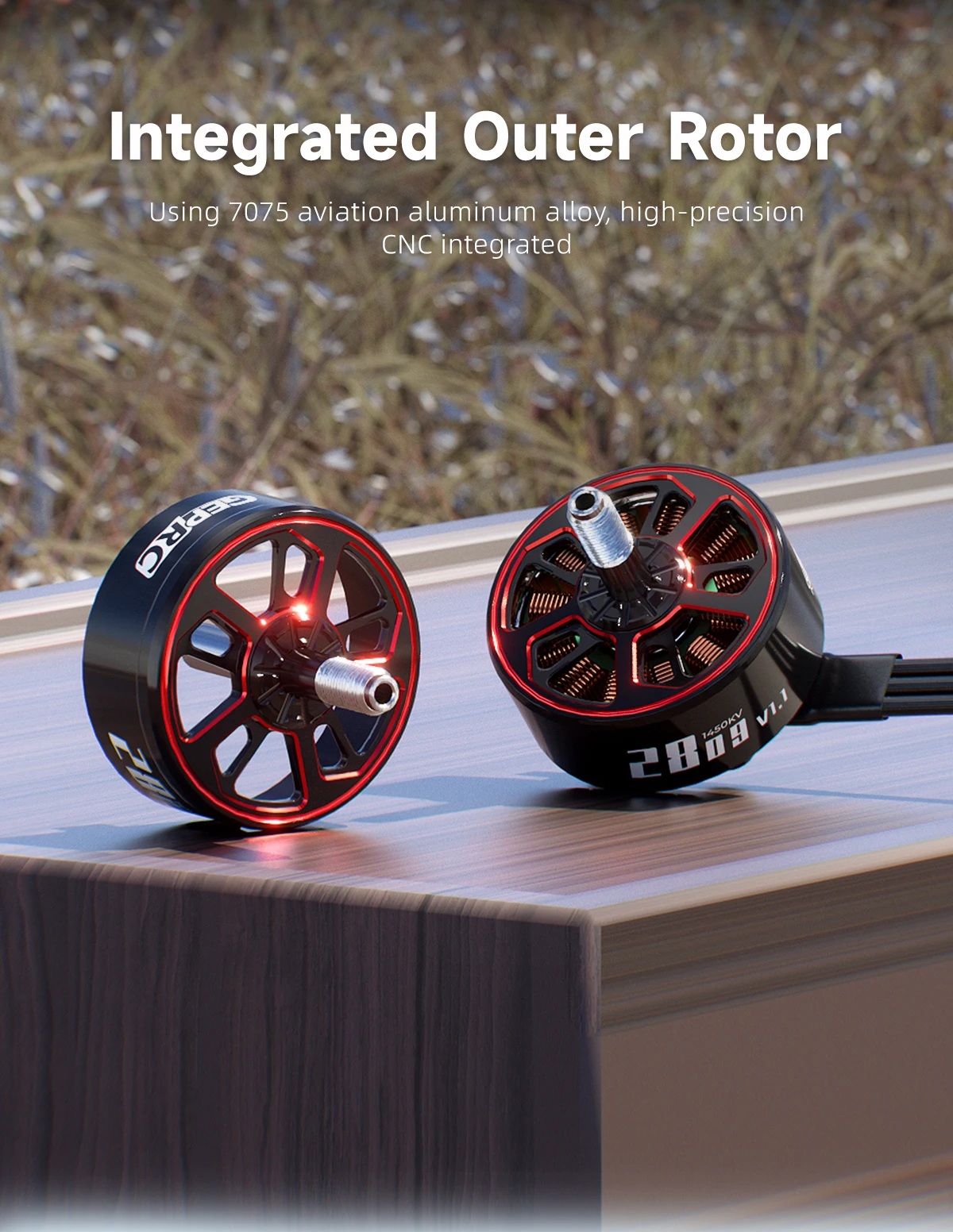

CNC-machined from 7075 aerospace aluminum.

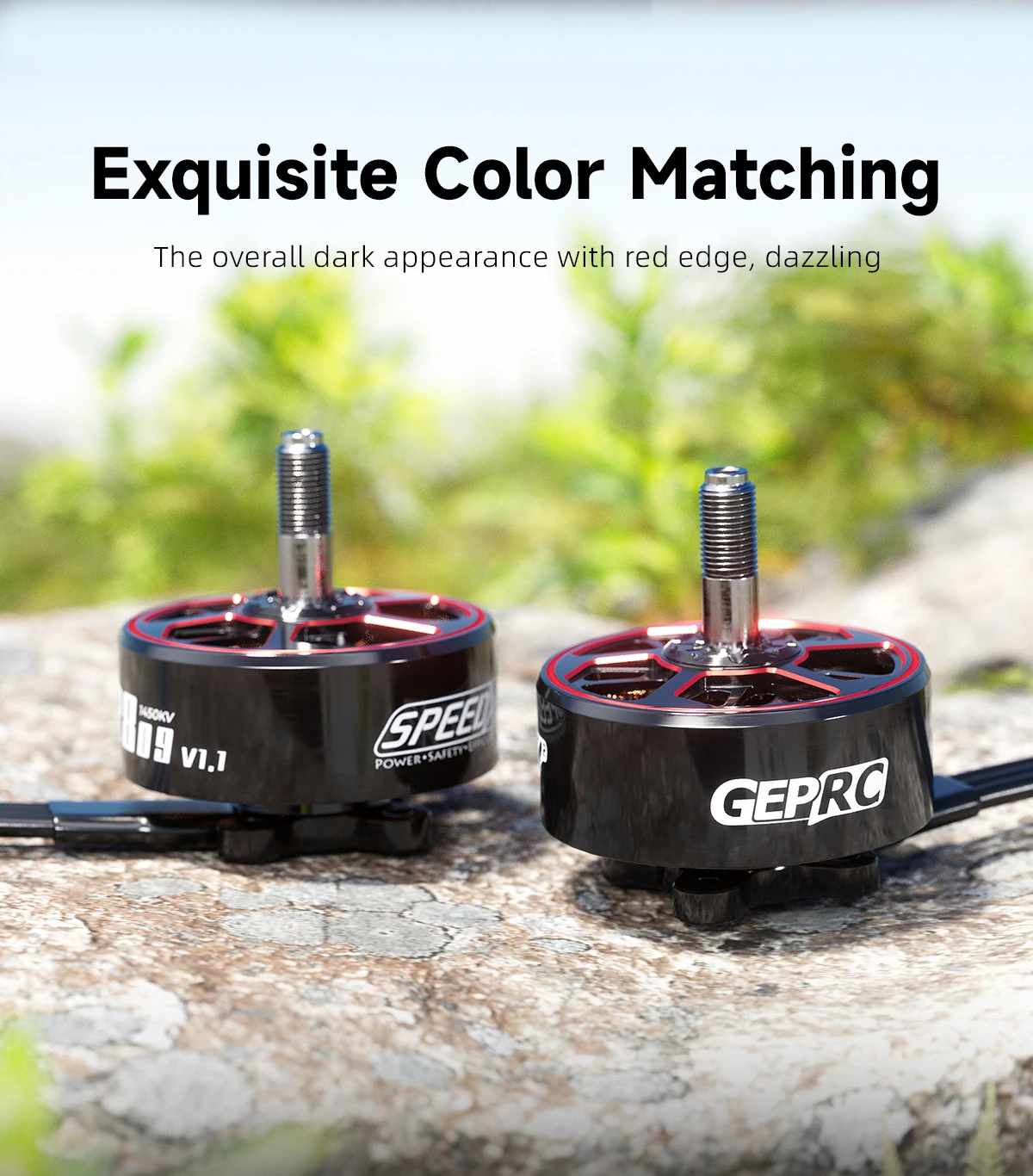

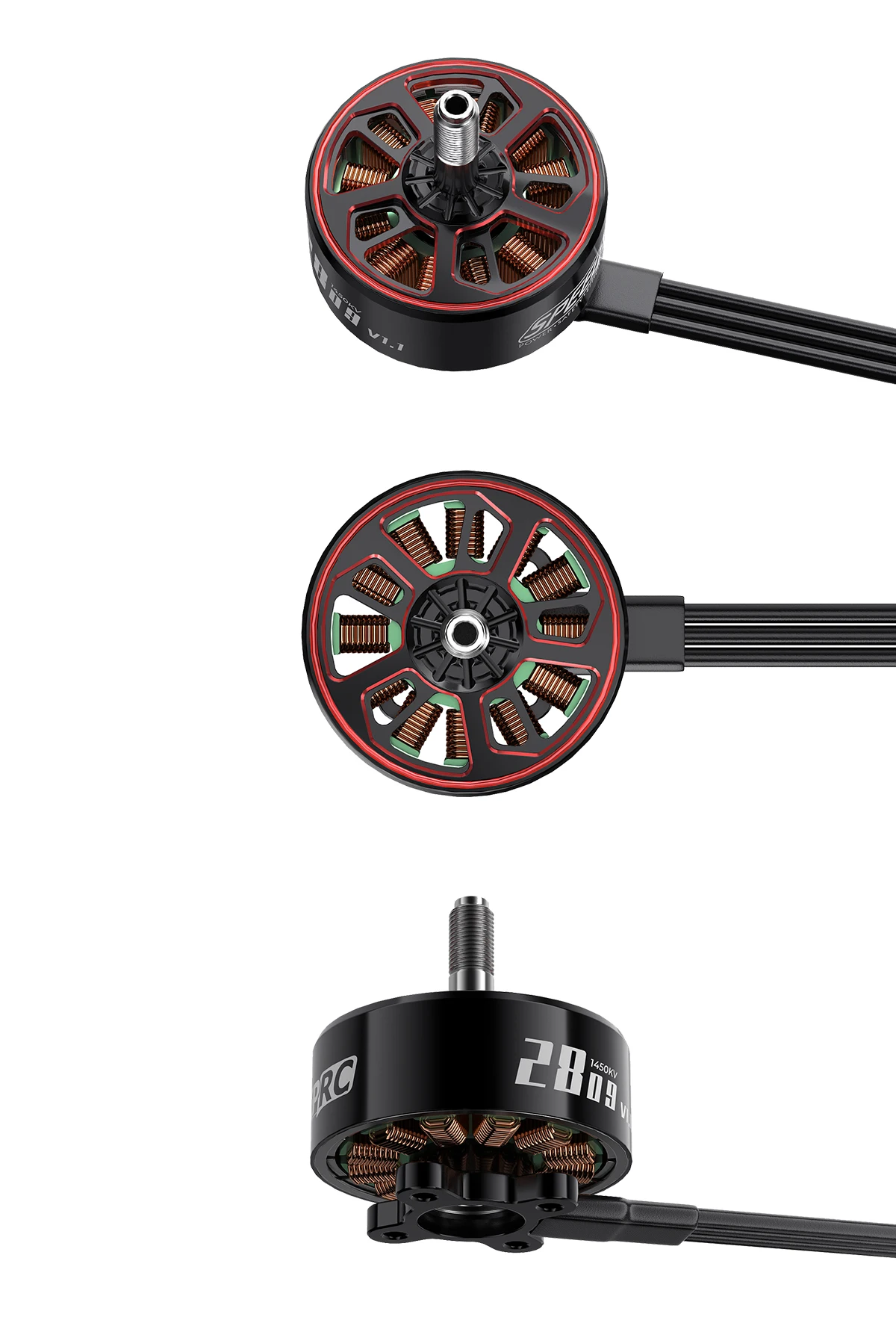

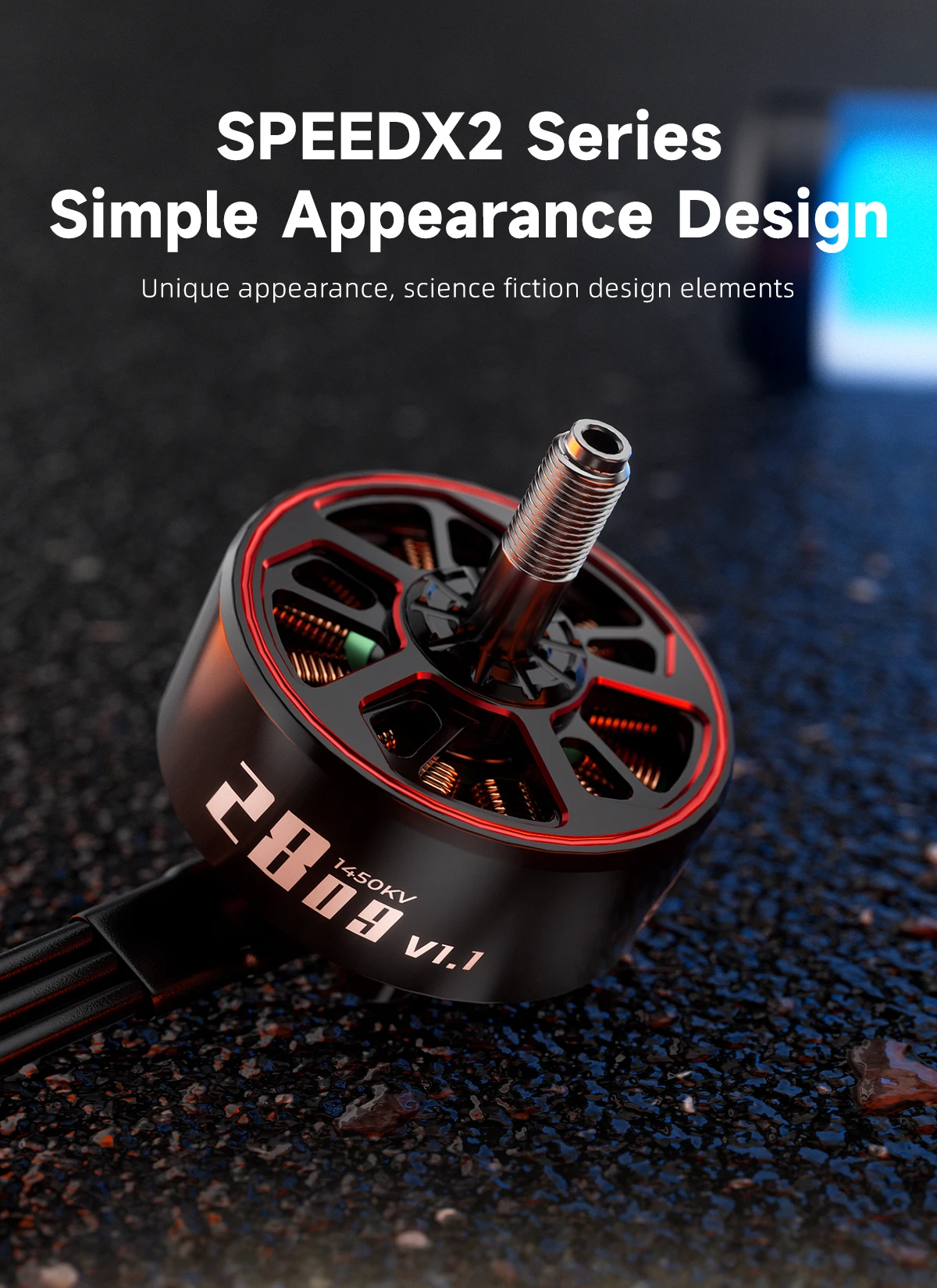

Clean black finish with red trim.

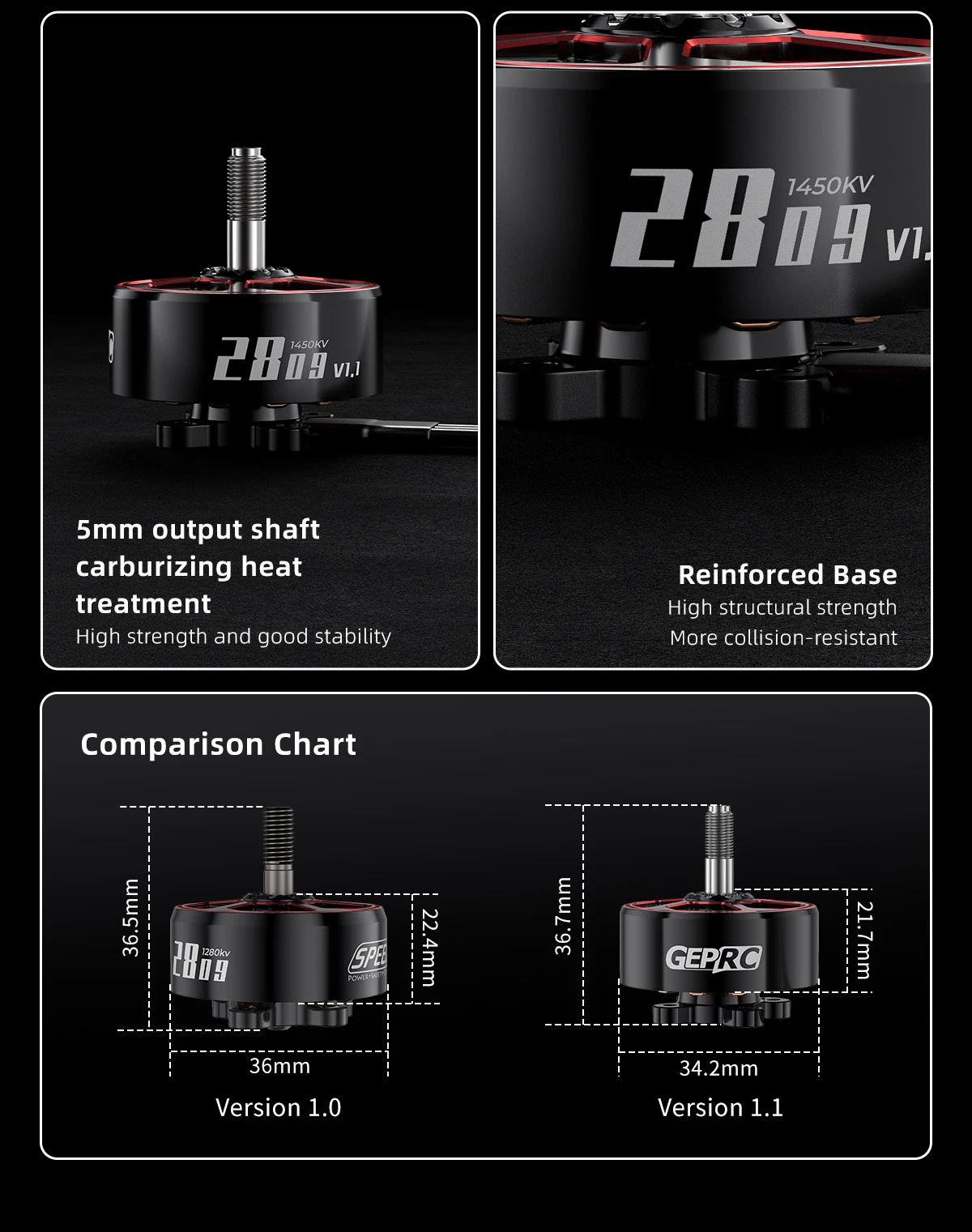

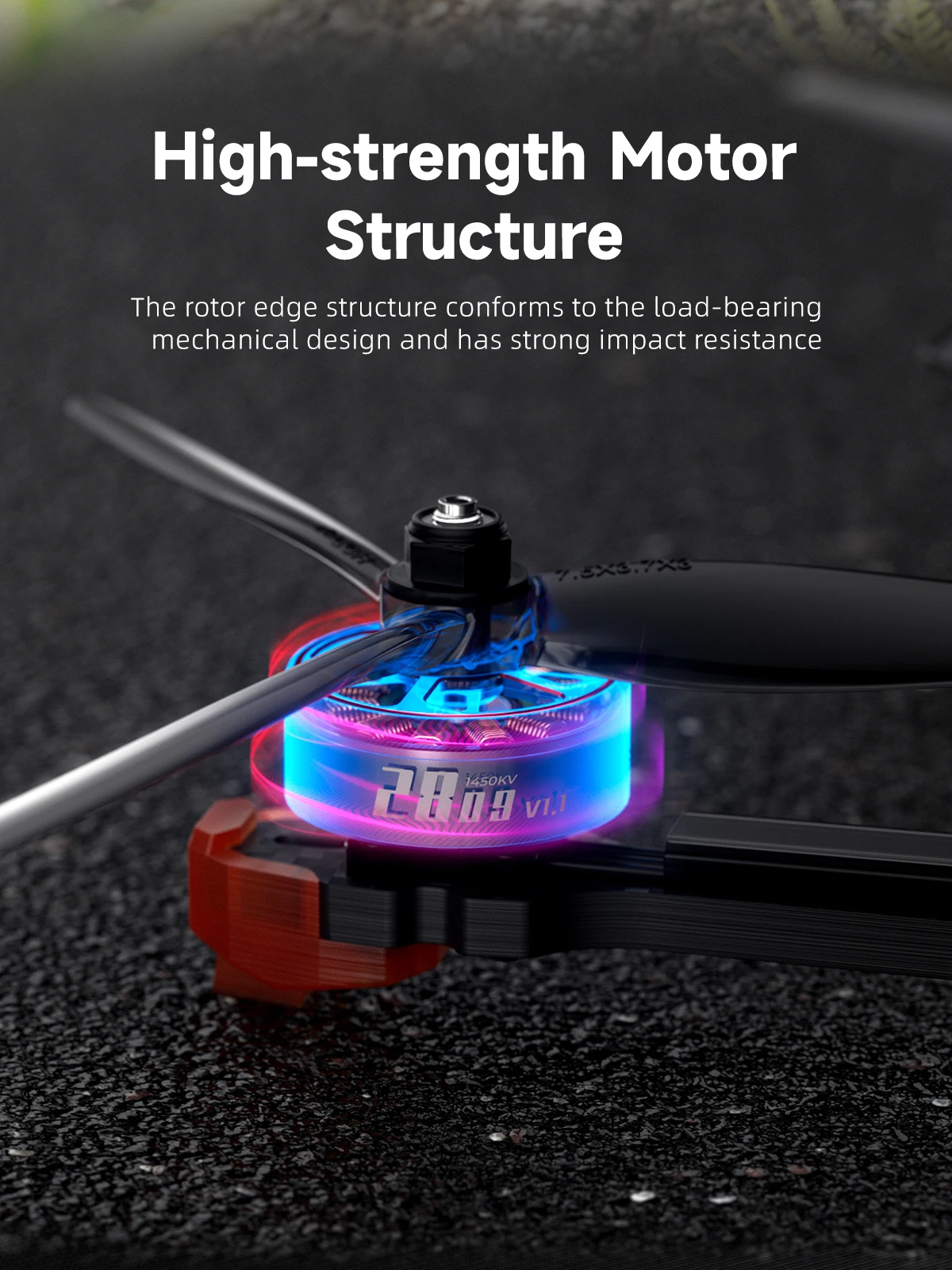

Reinforced rotor edges for better impact resistance.

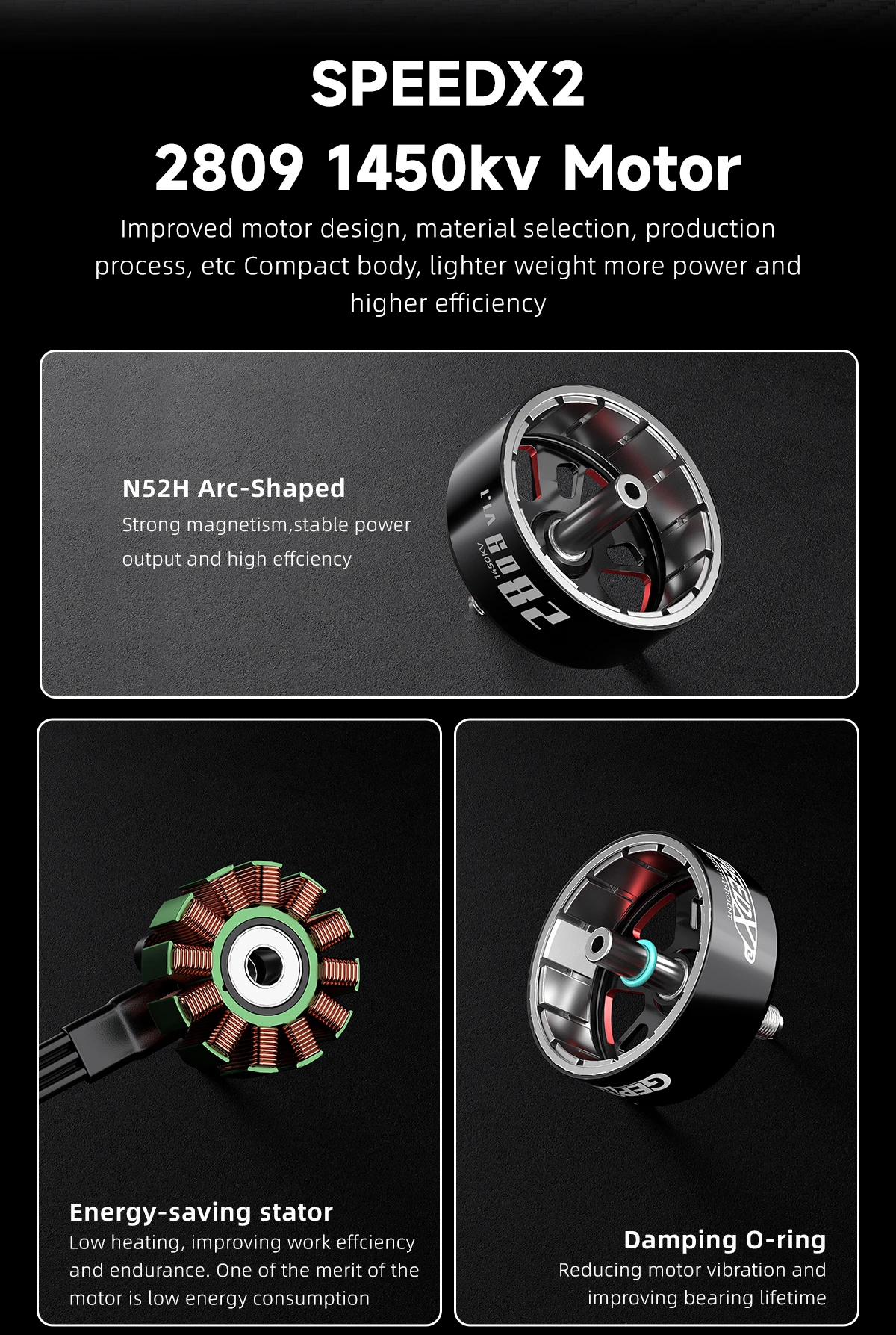

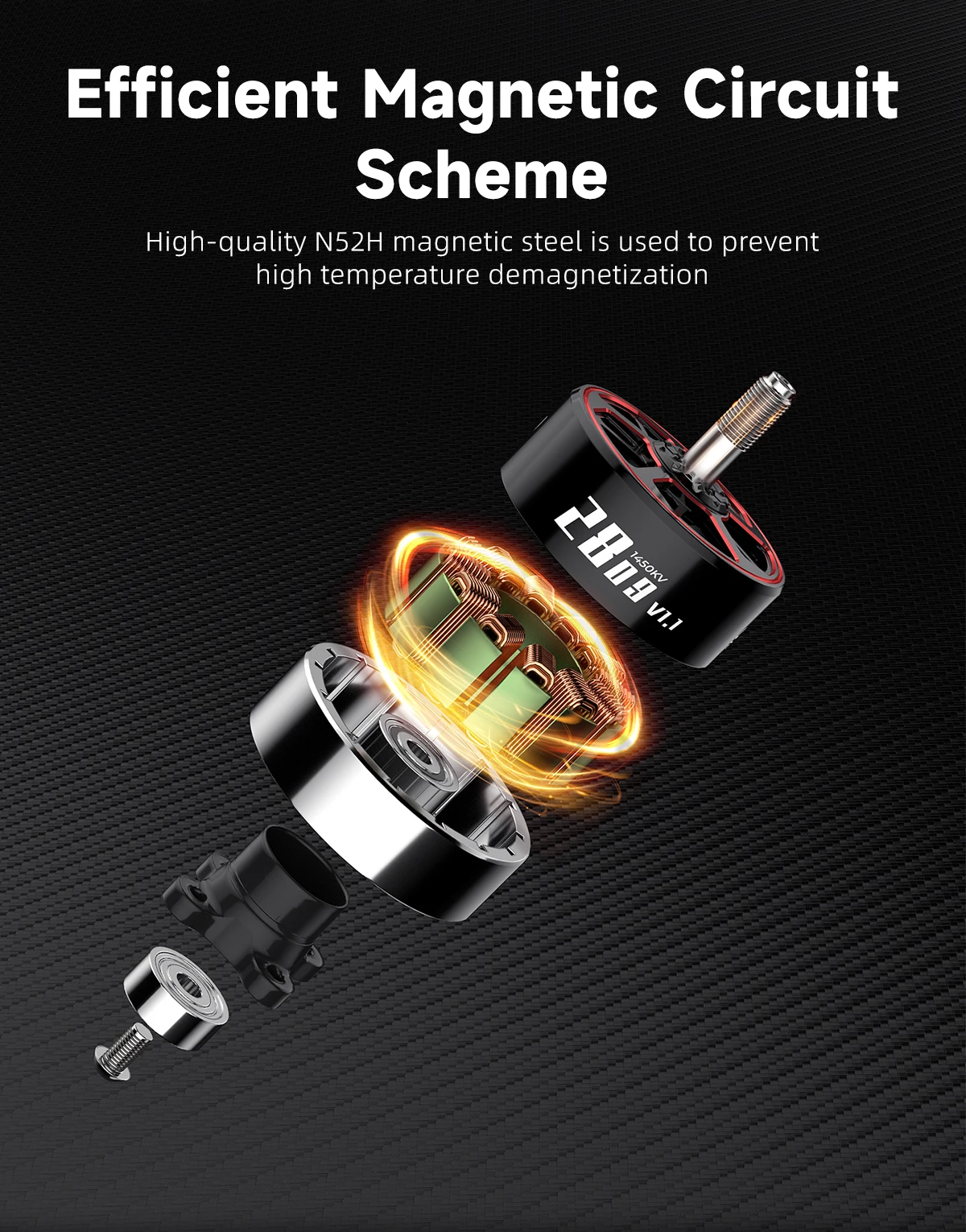

N52H magnets reduce the risk of heat-related demagnetization.
Specifications

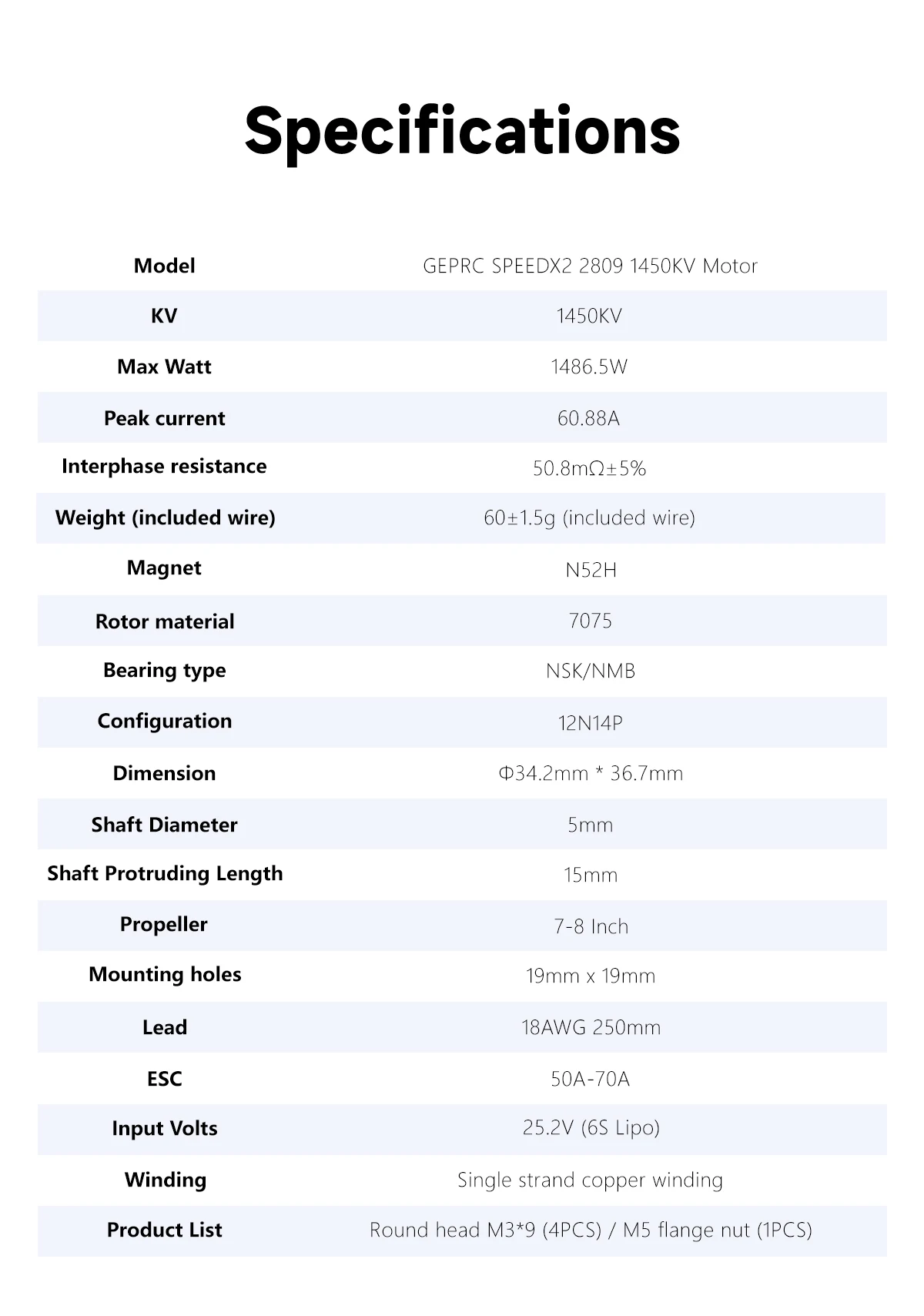

SPEEDX2 2809 1450KV
Model: GEPRC SPEEDX2 2809 1450KV Motor
KV: 1450KV
Magnets: N52H
Rotor Material: 7075-T6 aerospace-grade aluminum
Stator Diameter: 28mm
Stator Height: 9mm
Shaft Diameter: Φ5mm

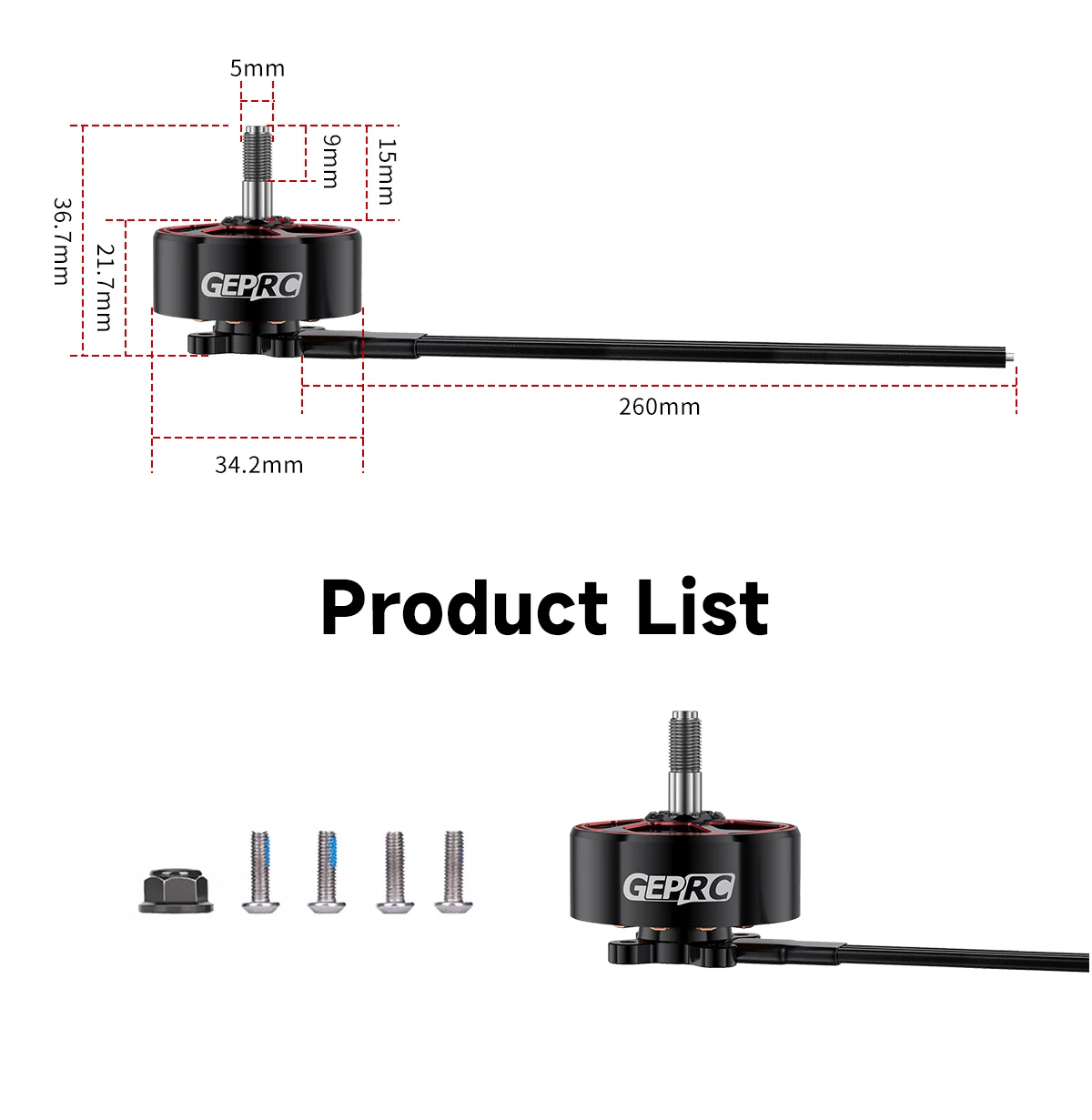

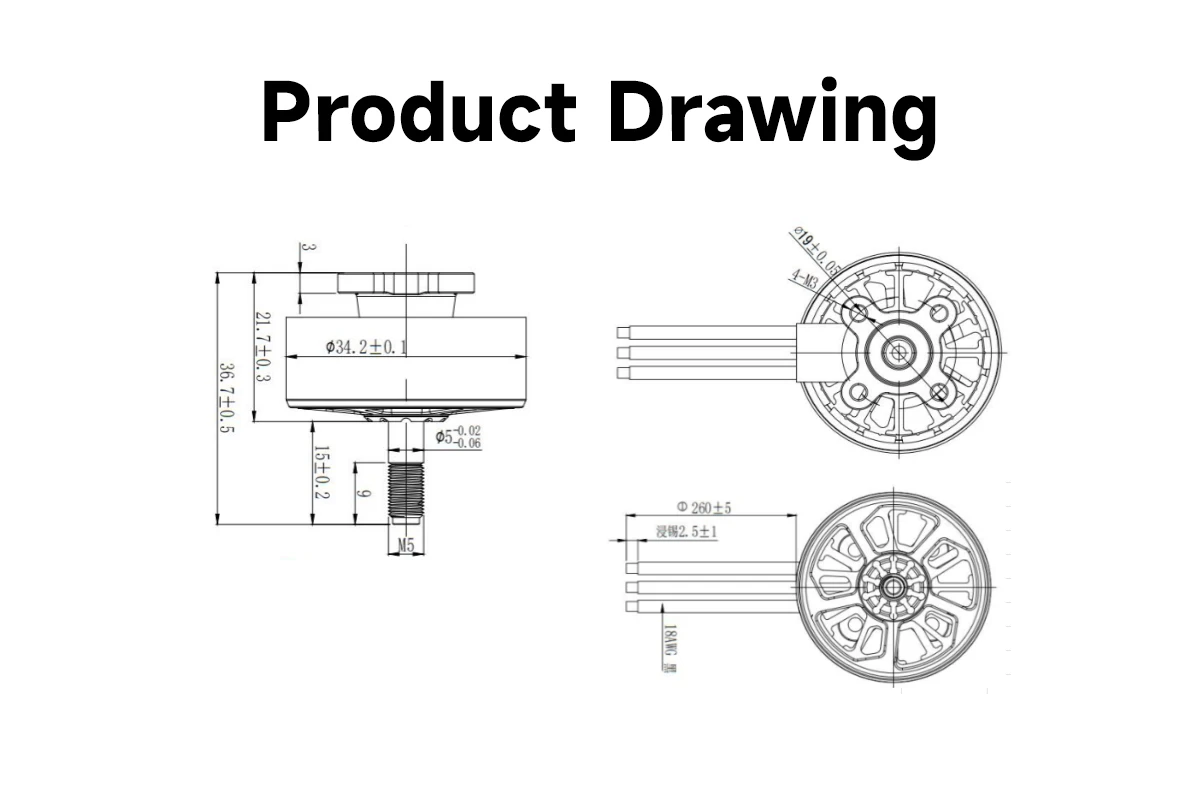

Dimensions: Φ34.2mm × 36.7mm

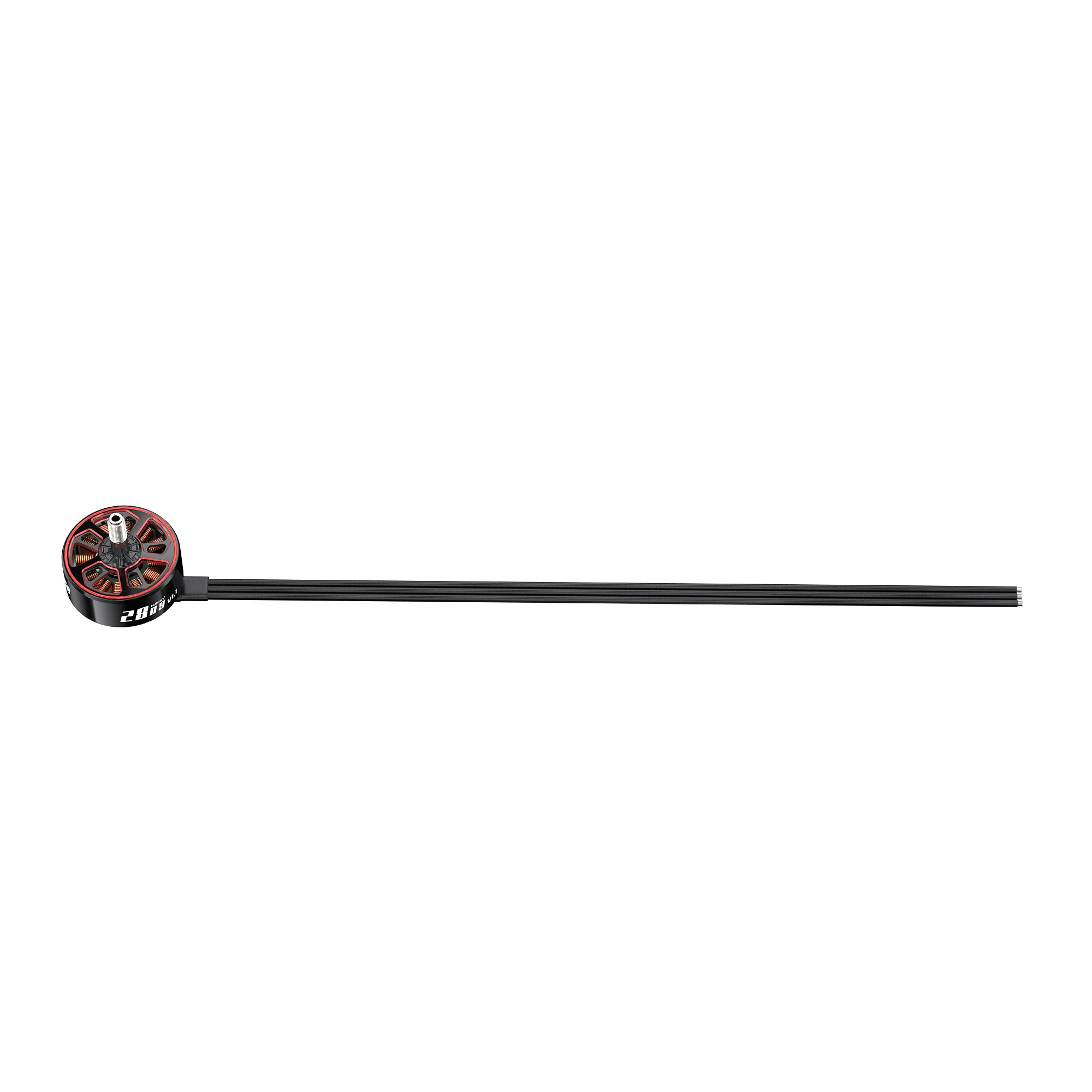

Wire: 18AWG, 250mm
Input Voltage: 25.2V 6S (Lipo)

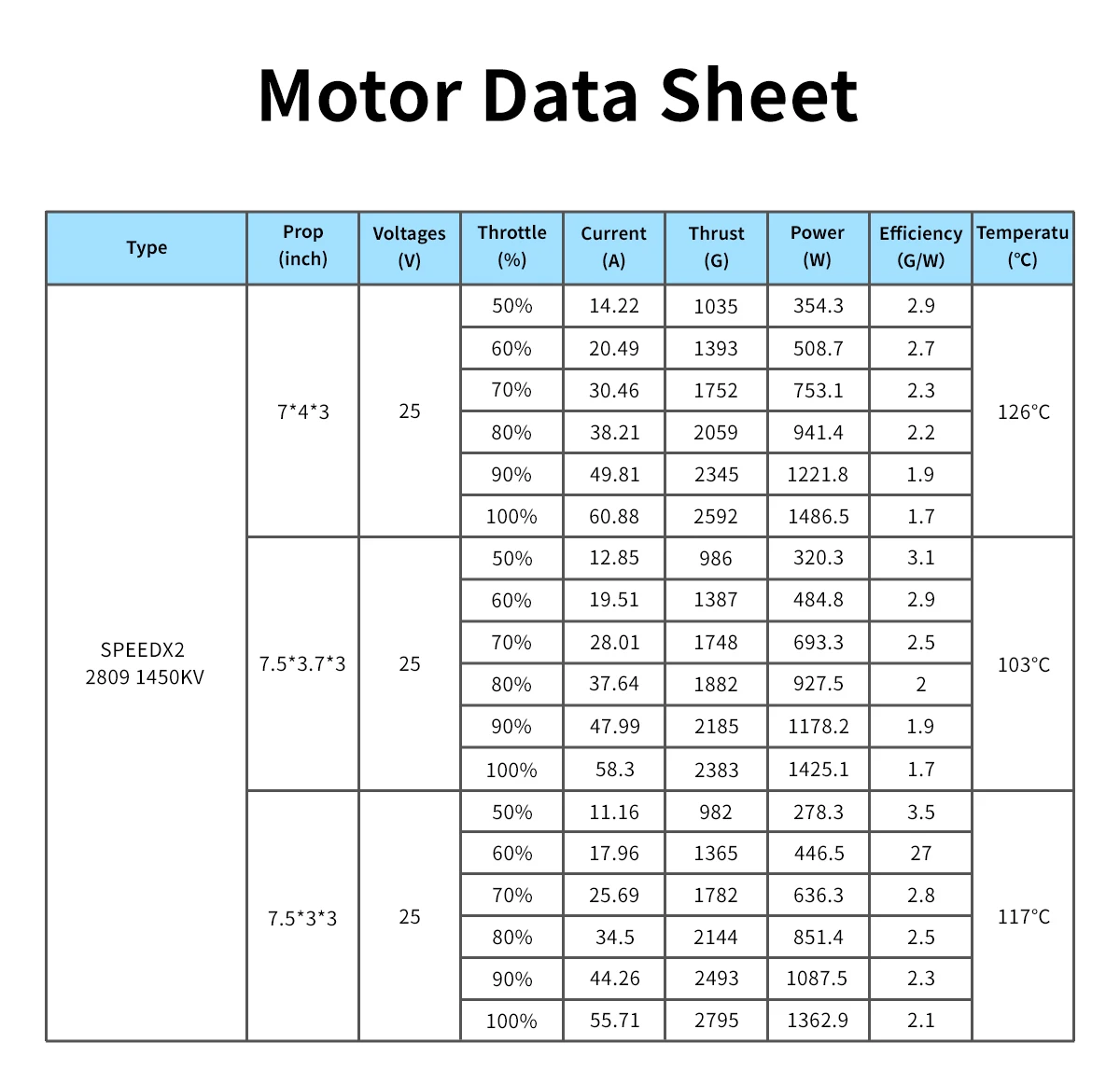

Max Power (W): ≤1455.2W
Max Current (A):60.88A
Mounting Pattern: 19×19mm (M3)
Color: reddish black
Weight: 60.1g (with wire)
Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds

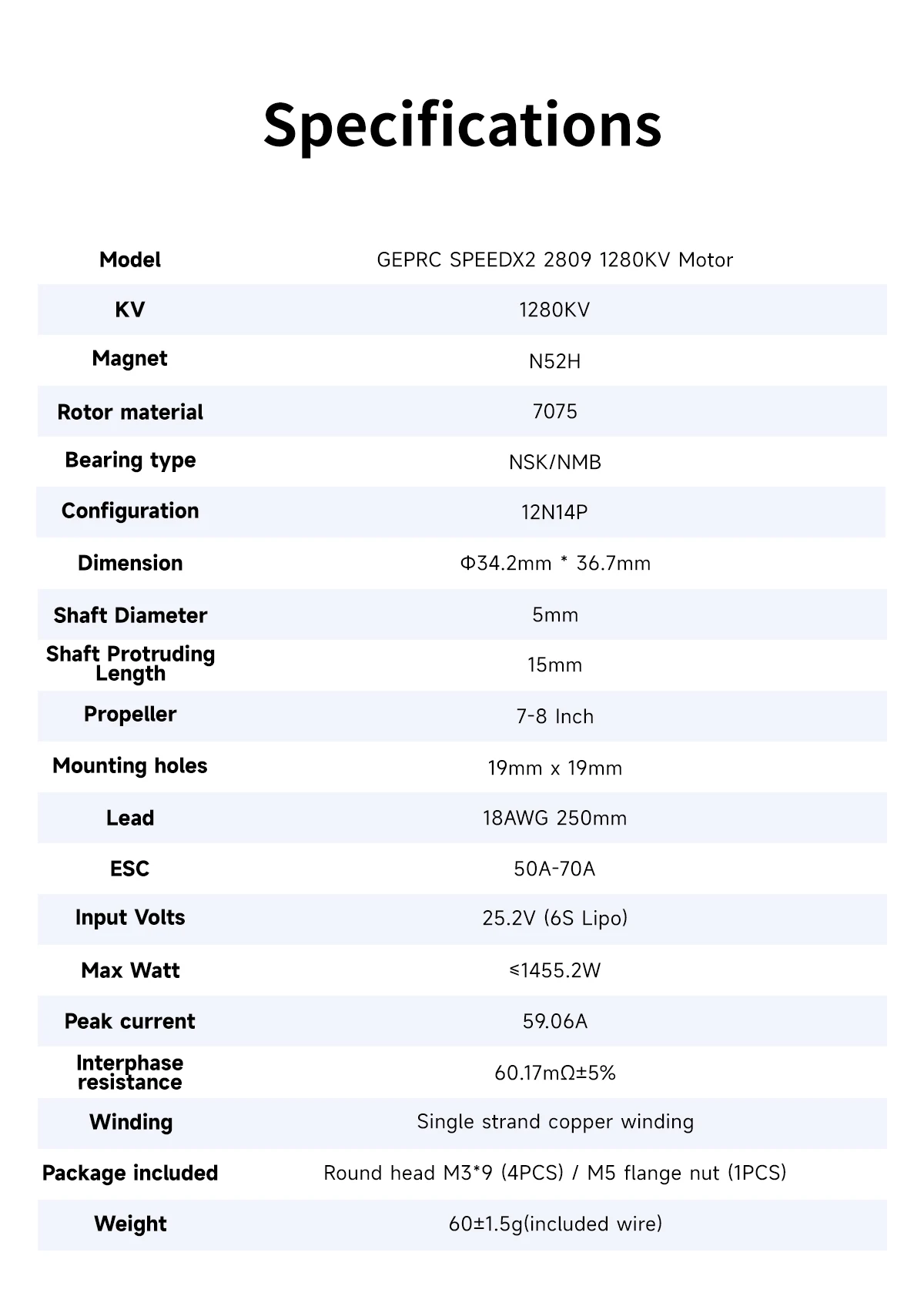

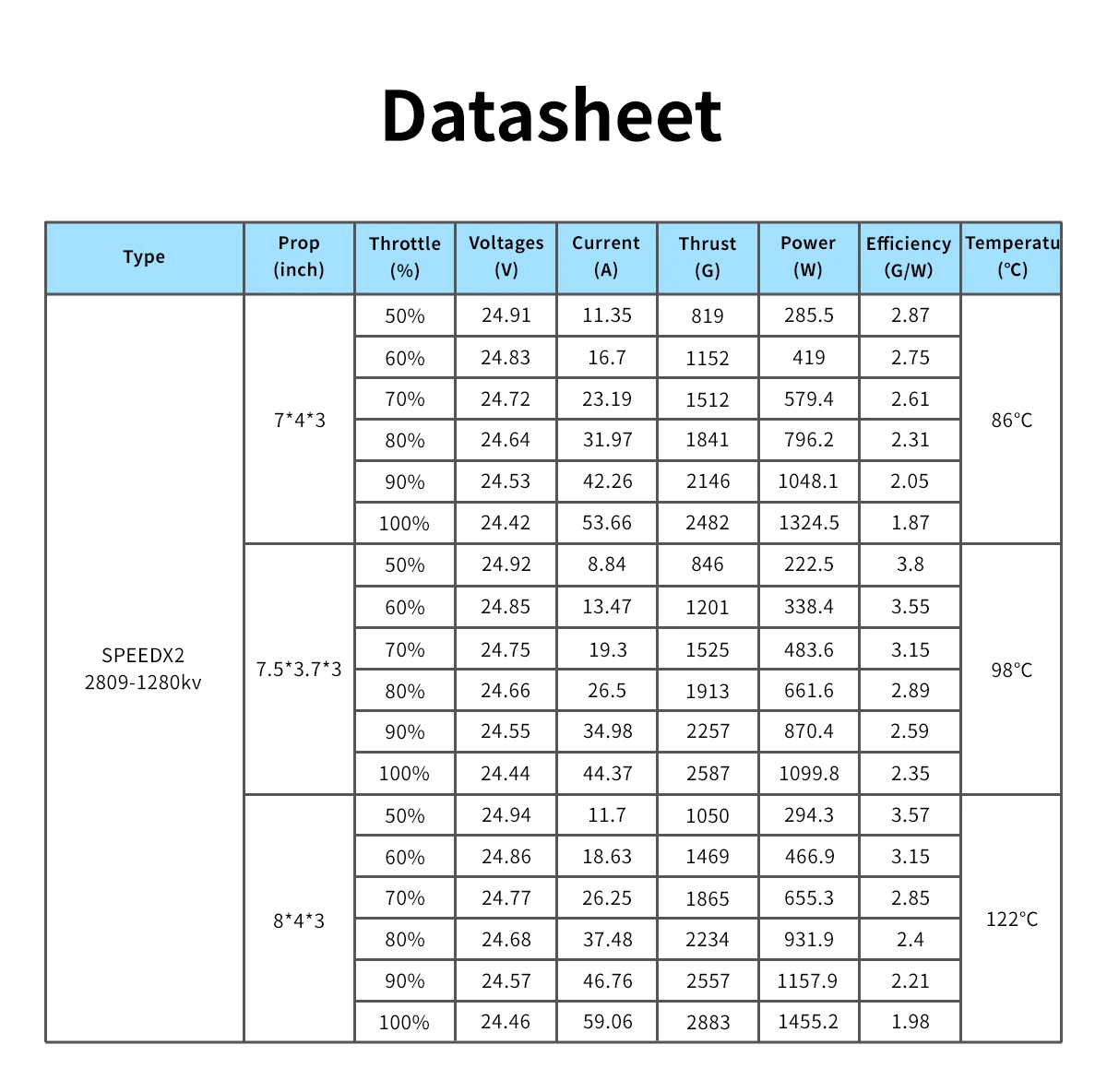

SPEEDX2 2809 1280KV
Model: GEPRC SPEEDX2 2809 1280KV Motor
KV: 1280KV
Magnets: N52H
Rotor Material: 7075-T6 aerospace-grade aluminum
Stator Diameter: 28mm
Stator Height: 9mm
Shaft Diameter: Φ5mm
Dimensions: Φ34.2mm * 36.7mm
Wire: 18AWG, 250mm
Input Voltage: 25.2V 6S (Lipo)
Max Power (W): ≤1486.5W
Max Current (A): 59.06A
Mounting Pattern: 19×19mm (M3)
Color: Reddish black
Weight: 60.1g (with wire)
Compatible Models: 7–8 inch long-range FPV drones / 7–8 inch X8 builds
Includes
1 x GEPRC SPEEDX2 2809 1280KV/1450KV motor
4 x M3*9 half-round head screws
1 x M5 anti-slip mut
