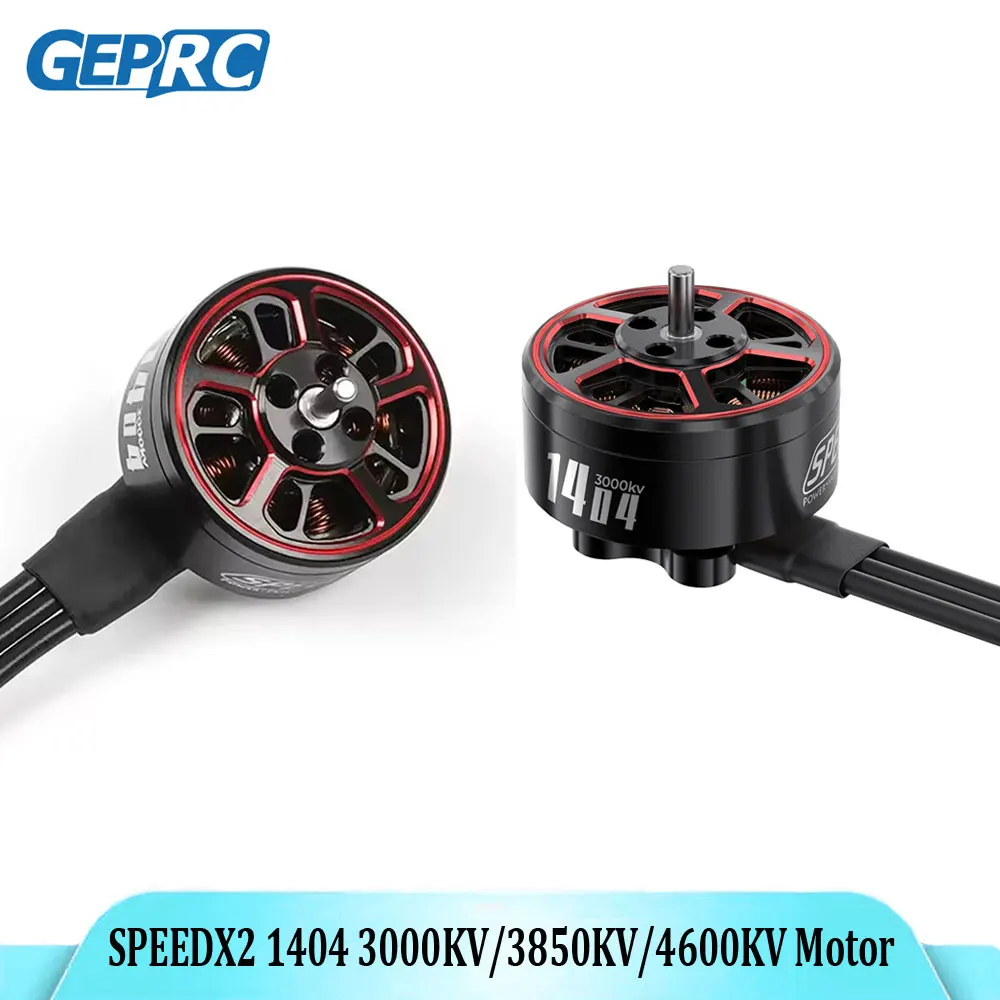

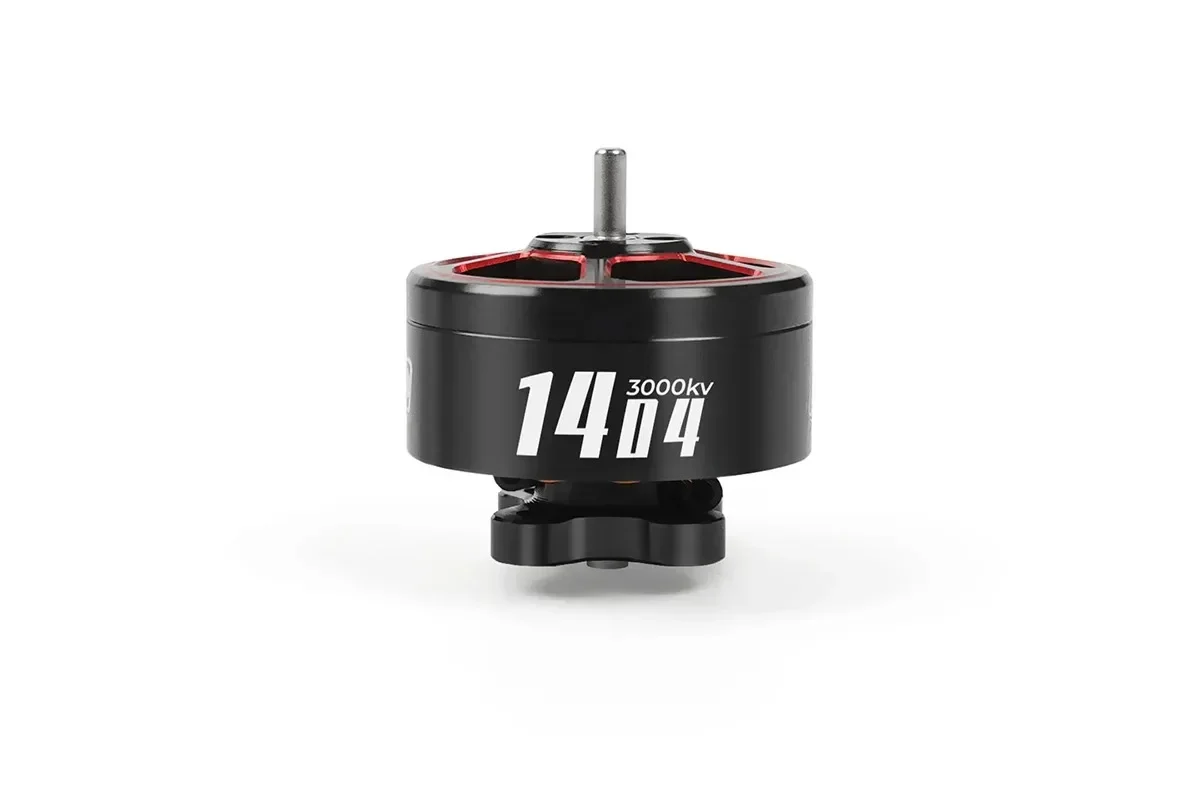

GEPRC SPEEDX2 1404 3850KV/3000KV/4600KV Motor for Cinelog30 V3/V2 Tern-LR40 FPV Drone Brushless Motor Accessories

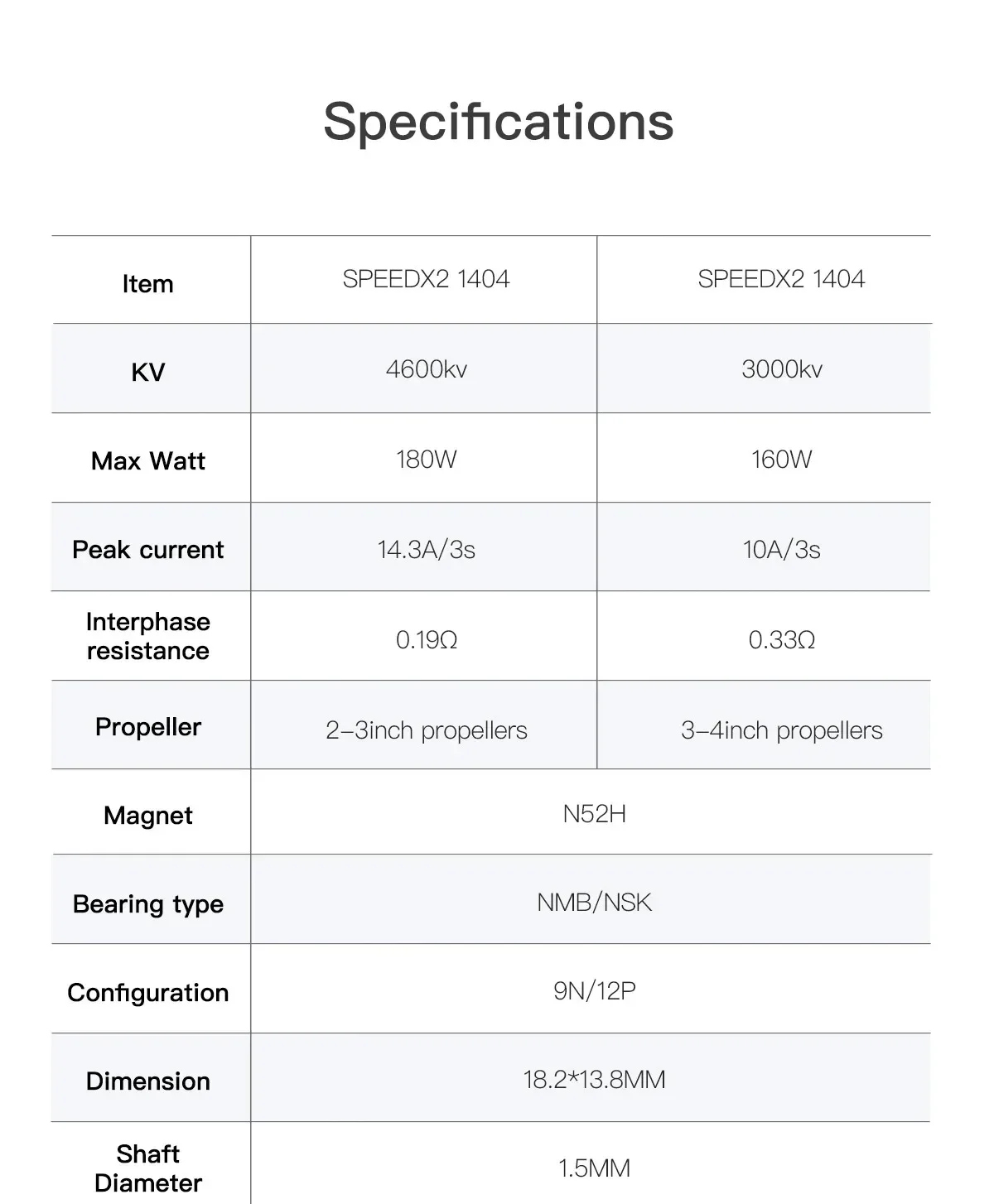

Specifications:
Model: SPEEDX2 1404 3000KV Motor
Max Watt: 160W
Peak current: 10A/3″
Interphase resistance: 0.33Ω
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P

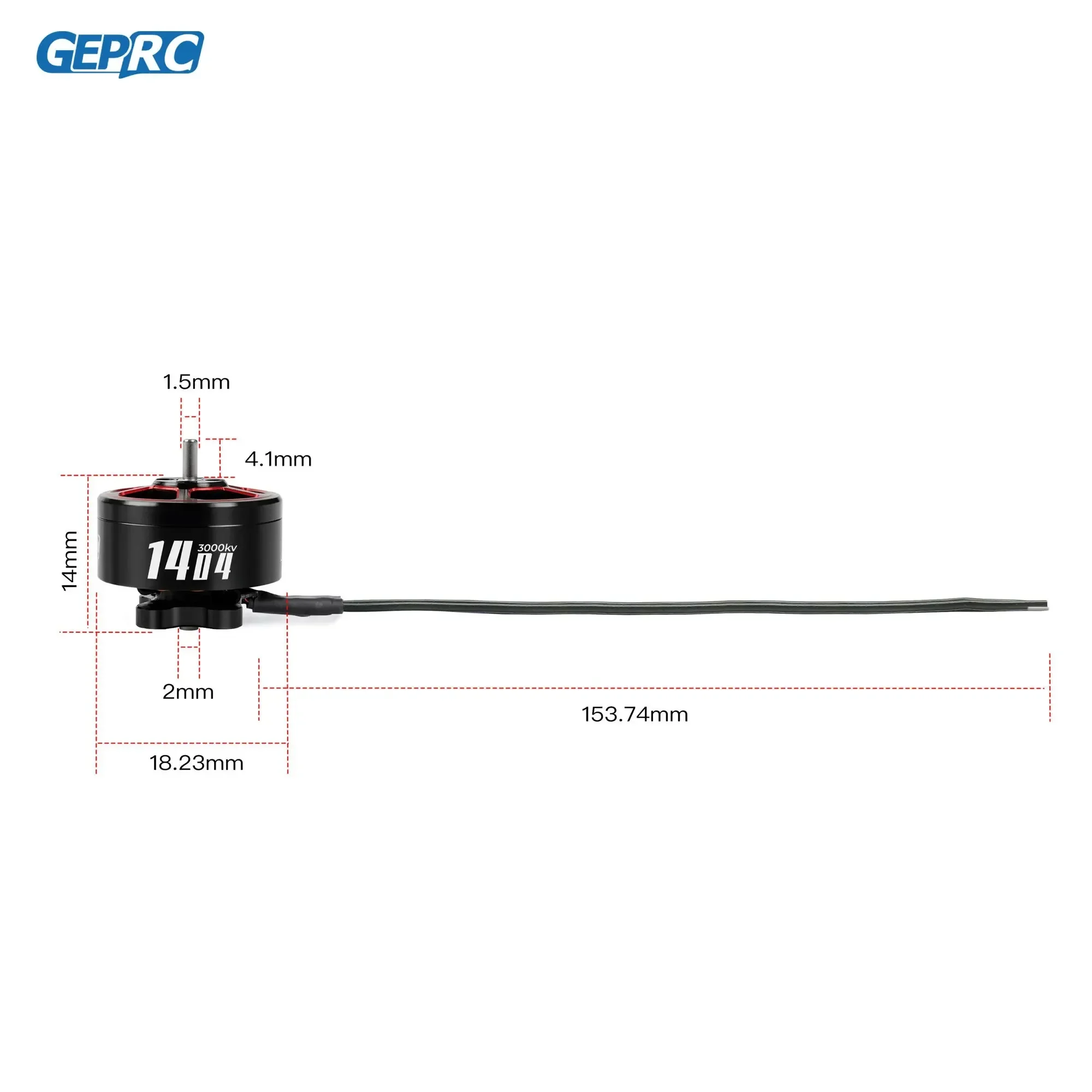

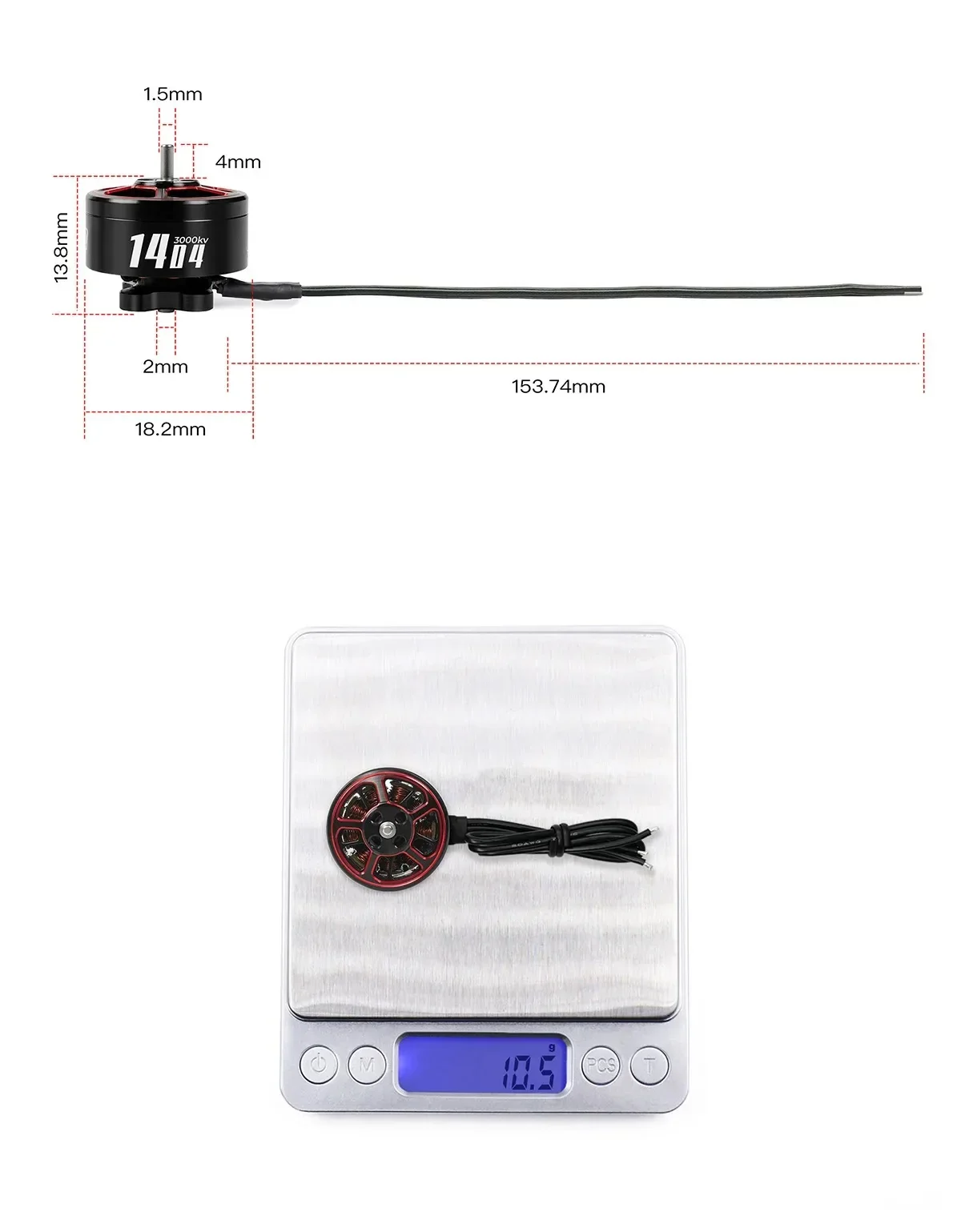

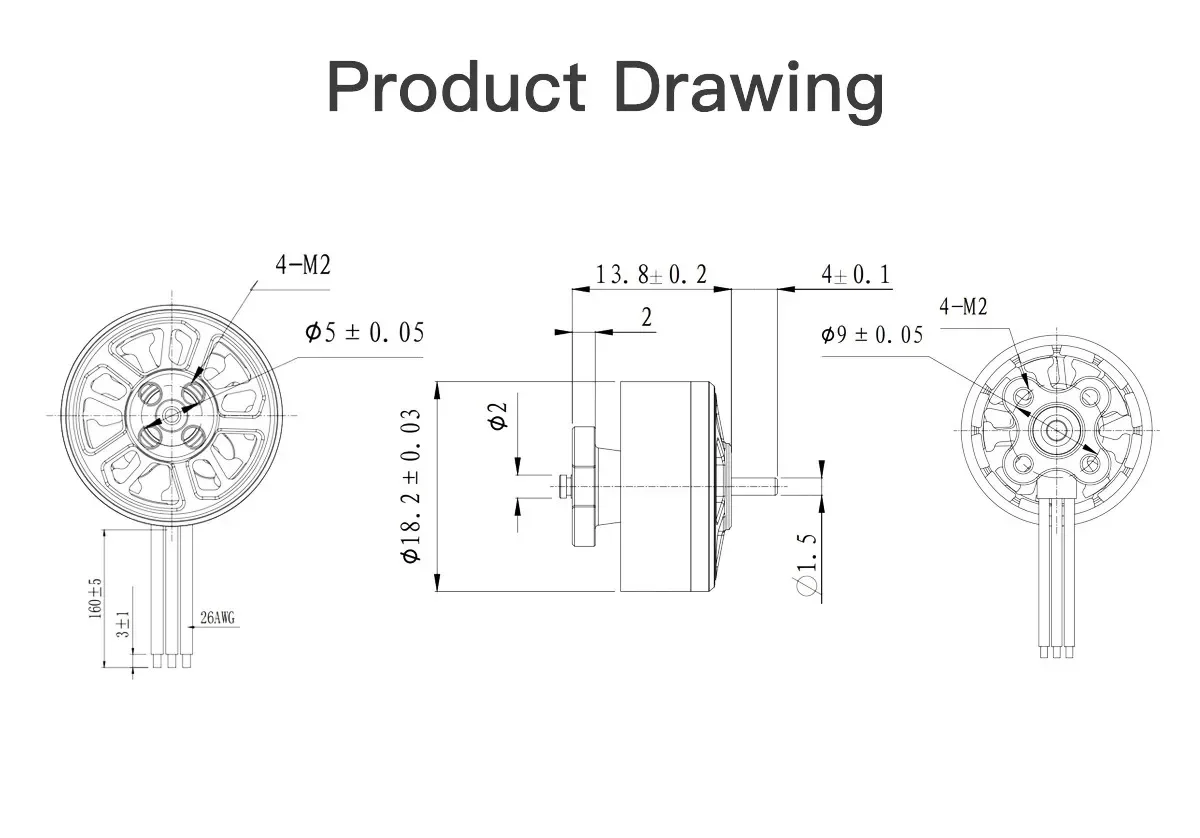

Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm

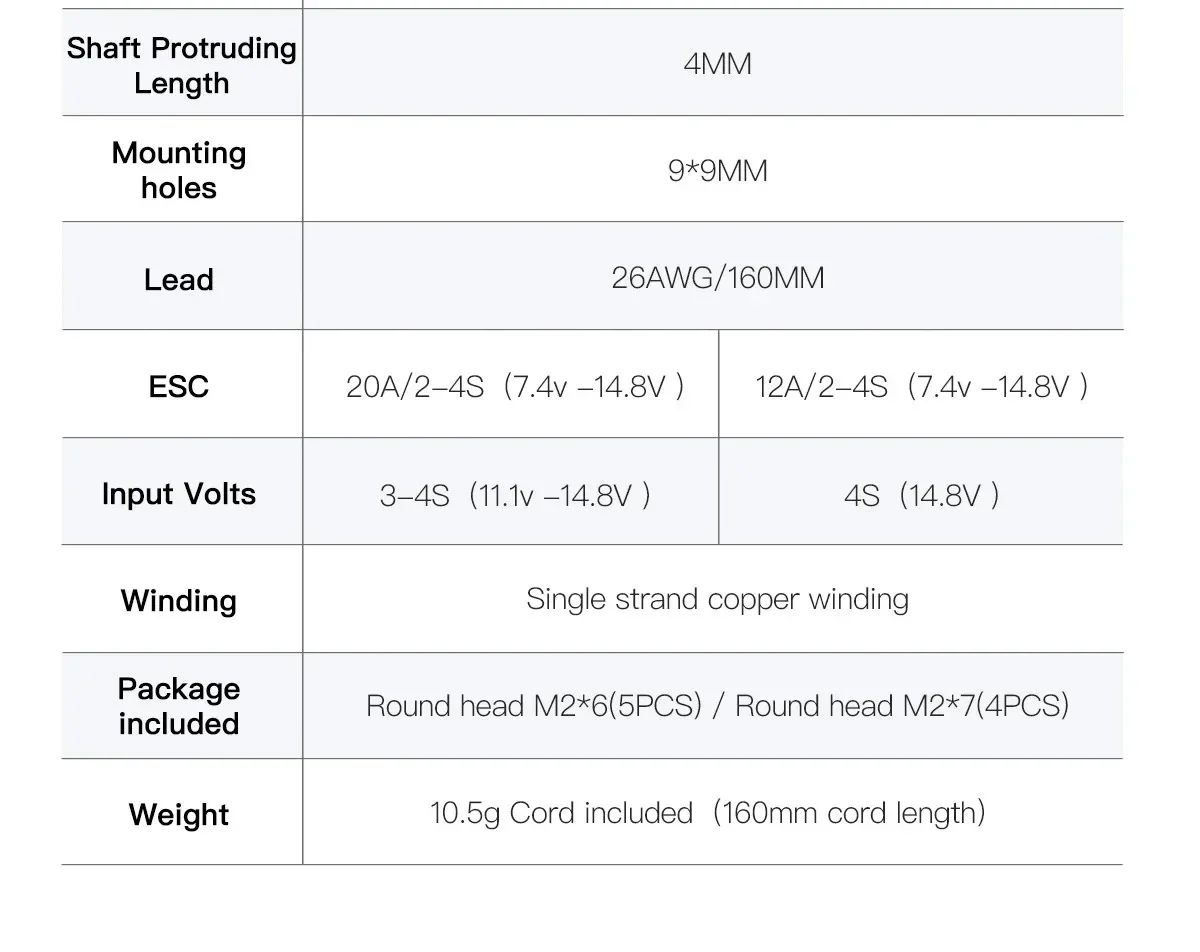

Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm（M2）
Lead: 160mm/26AWG
ESC: 12A/2-4S（7.4V-14.8V）
Input Volts: 14.8V（4S LiPo)
Winding: Single strand copper winding

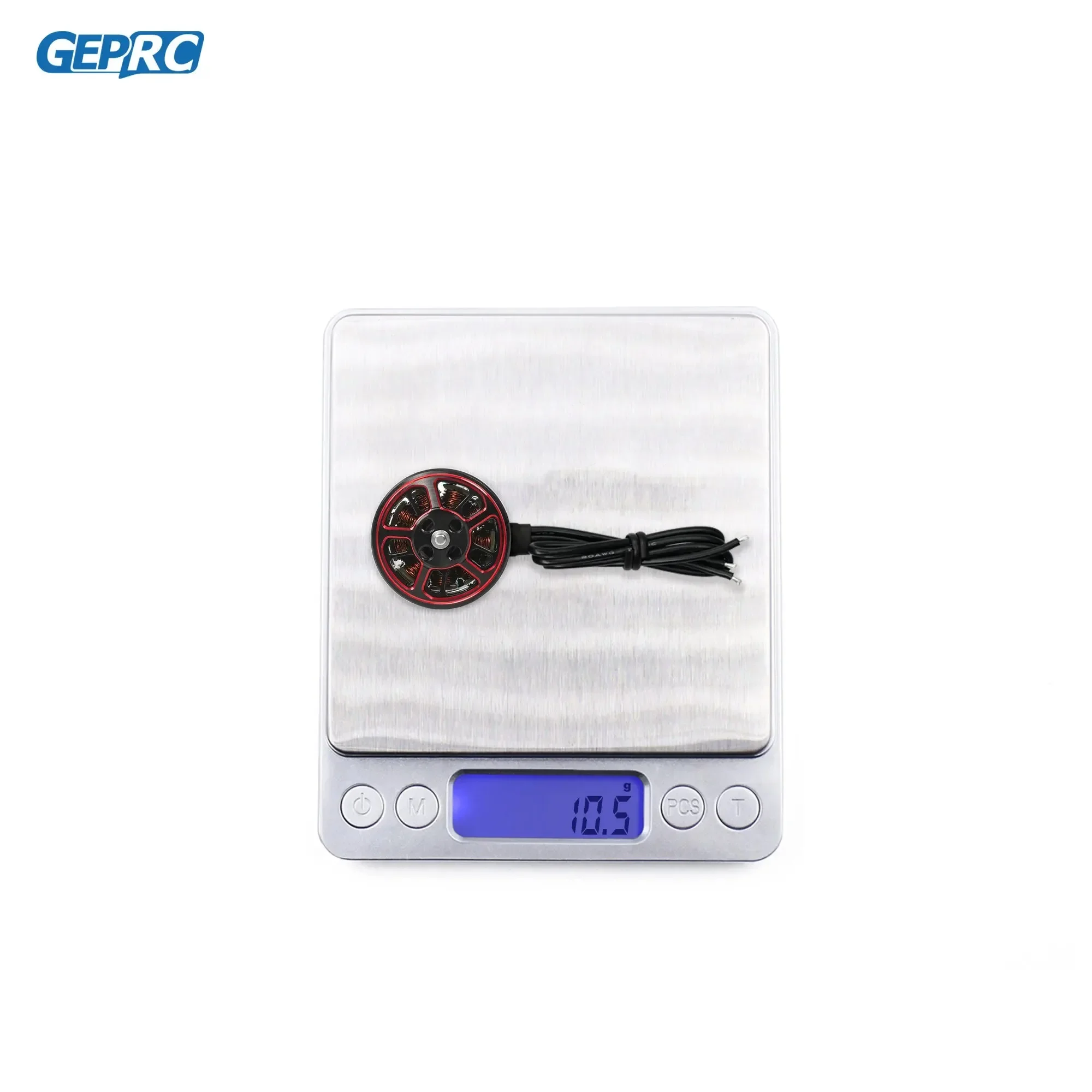

Weight: 10.5g (included wire)
Suitable for: 3 inch – 4 inch lightweight models
Model: SPEEDX2 1404 4600KV Motor
Max Watt: 180W
Peak current: 14.3A/3″
Interphase resistance: 0.19Ω
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 9N12P
Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm（M2）
Lead: 160mm/26AWG
ESC: 20A/2-4S（7.4V-14.8V）
Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
Winding: Single strand copper winding
Weight: 10.5g (included wire)
Suitable for: 2 inch – 3 inch lightweight models
Feature
1. Red with black color is obviously high-end.
2. Use bearings with excellent performance and strong anti-wear ability.
3. Lightweight silhouette, strong power.
4. Suitable for 2-inch-4-inch lightweight chassis.
