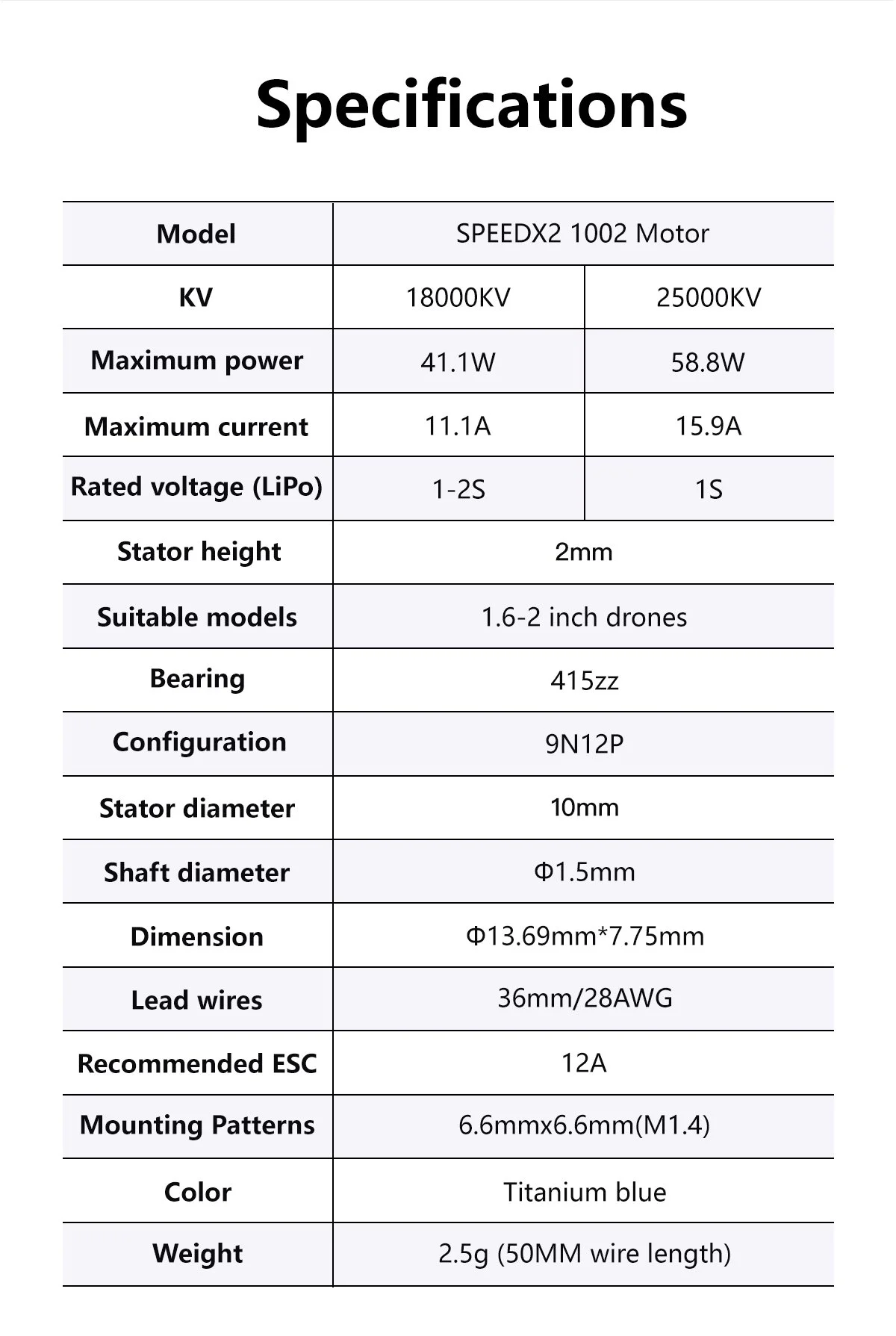

Specifications

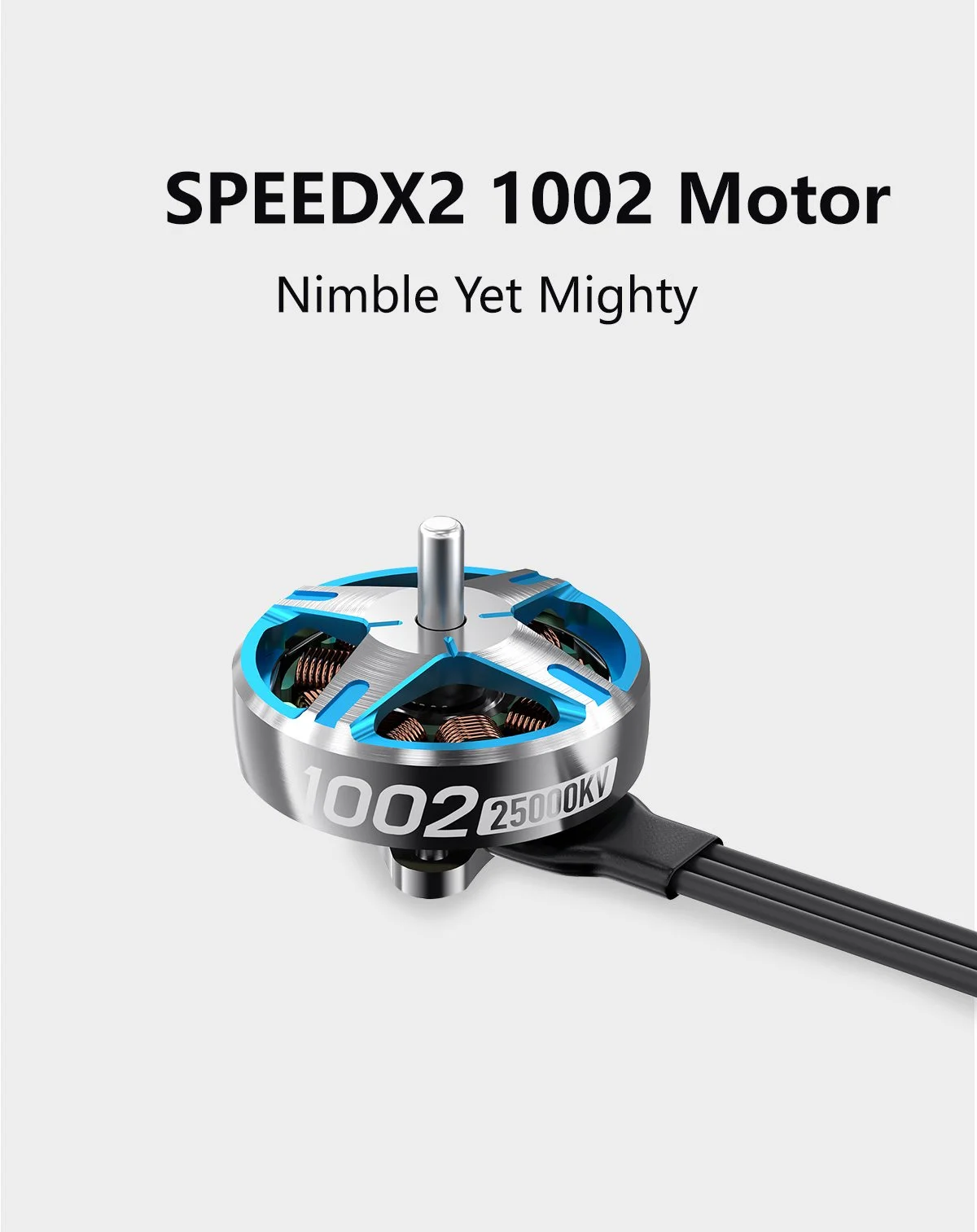

SPEEDX2 1002 25000KV Motor
Model: SPEEDX2 1002-25000KV
Configuration:9N12P
Bearing: 415zz
Stator Diameter: 10mm
Stator Height: 2mm
Shaft Diameter: Φ1.5mm

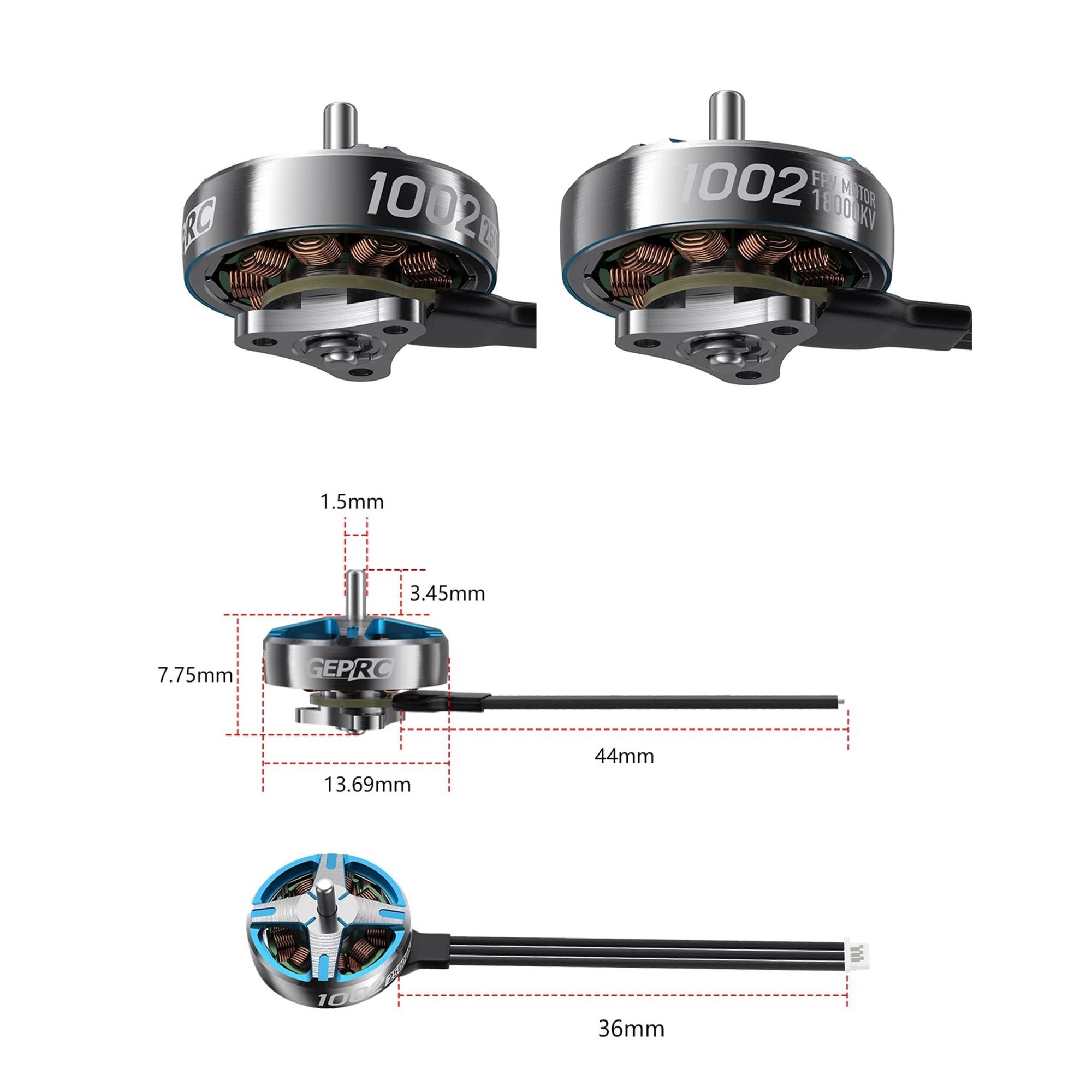

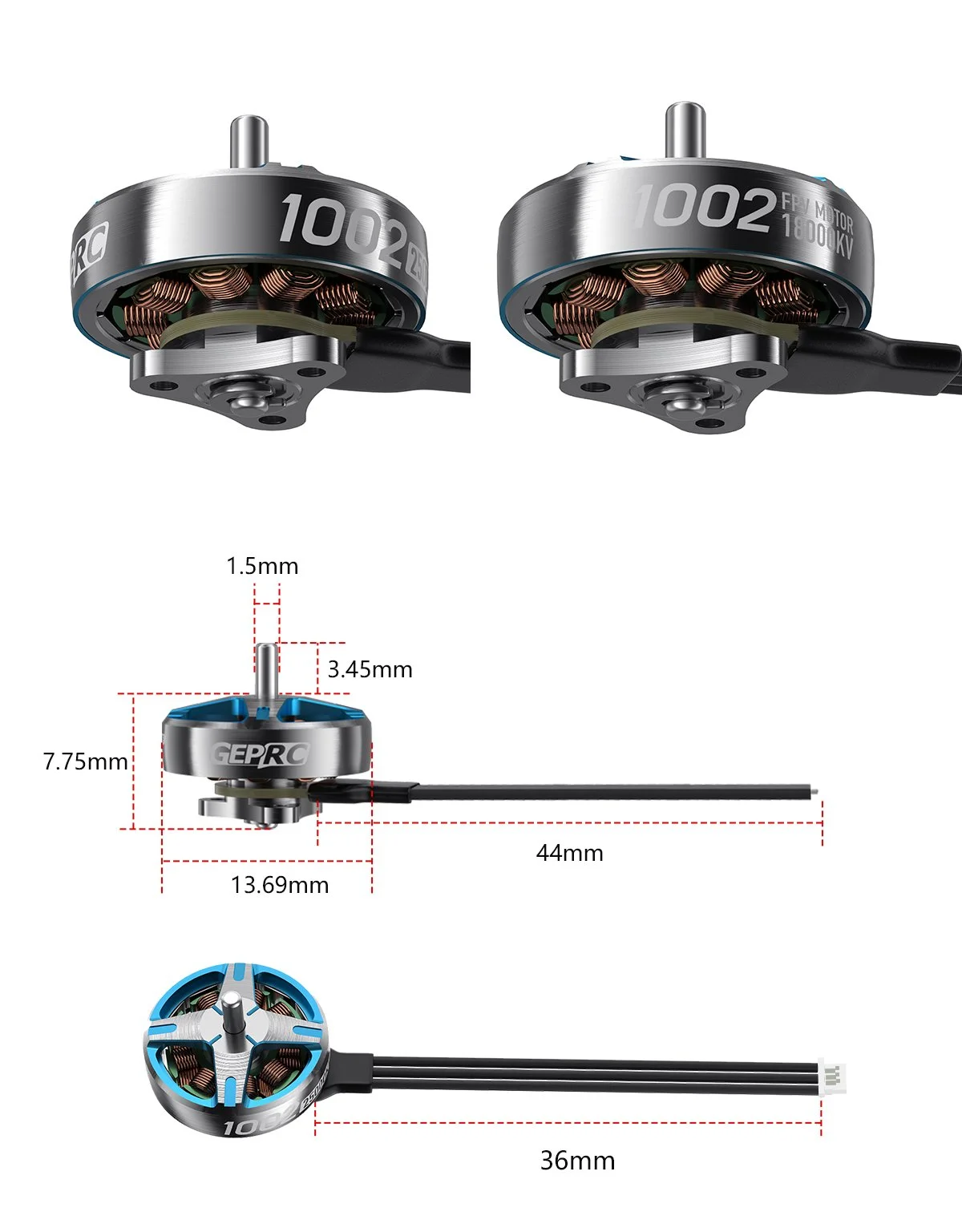

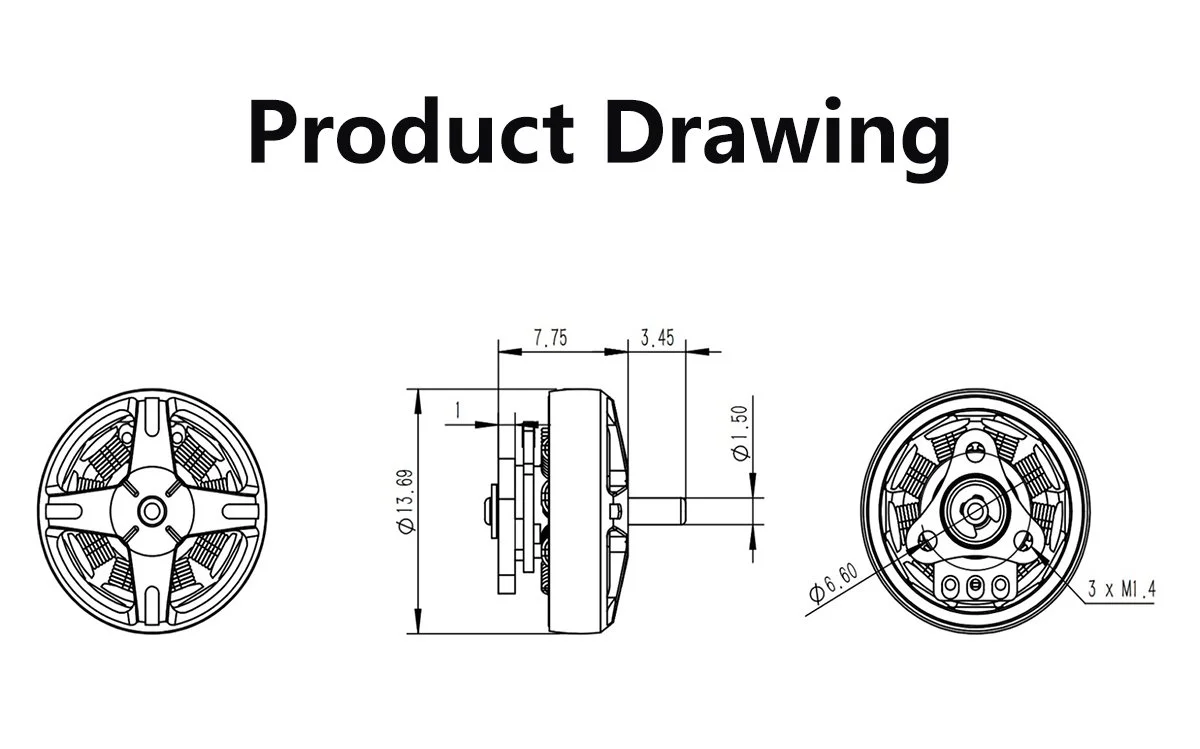

Dimension: Φ13.69mm*7.75mm
Lead Wires: 28#AWG 36mm
Rated Voltage (LiPo): 1S

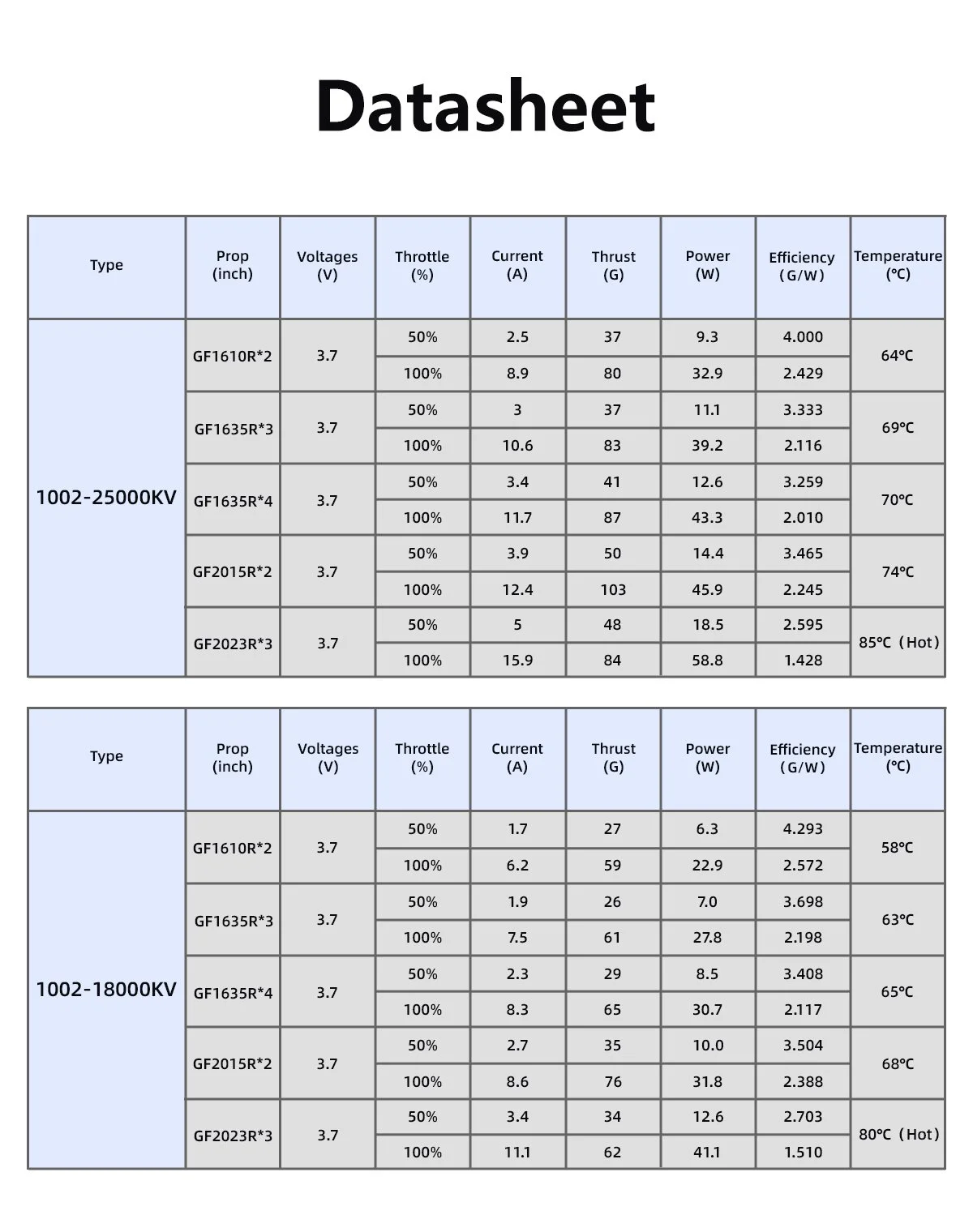

Maximum Power: 58.8W
Maximum Current: 15.9A
Recommended ESC: 12A
Mounting Patterns: 6.6mmx6.6mm(M1.4)
Color: Titanium Blue
Weight: 2.5g (50MM wire length)
Compatible Models: 1.6-2 inch drones
SPEEDX2 1002 18000KV Motor
Model: SPEEDX2 1002-18000KV
Configuration:9N12P
Bearing: 415zz
Stator Diameter: 10mm
Stator Height: 2mm
Shaft Diameter: Φ1.5mm
Dimension: Φ13.69mm*7.75mm
Lead Wires: 28#AWG 36mm
Rated Voltage (LiPo):1-2S
Maximum Power: 41.1W
Maximum Current:11.1A
Recommended ESC: 12A
Mounting Patterns: 6.6mmx6.6mm(M1.4)
Color: Titanium Blue
Weight: 2.5g (50MM wire length)
Compatible Models: 1.6-2 inch drones
Inlcudes
1 x SPEEDX2 1002 motor
6 x M1.4*3mm screws
Sale!
GEPRC SPEEDX2 1002 25000KV/18000KV Brushless Motor for 1.6-2 inch FPV Drone Replacement Accessories Engine
$16.94
+ Free ShippingWeight | 0.2 kg |
---|---|
Dimensions | 10 × 10 × 5 cm |
Hign-concerned Chemical | None |
Is Electric | No Battery |
Quantity | 1 pcs |
Wheelbase | Screws |
Is it battery/power supply | N |
Is it charger/adapter | N |
Is Batteries Included | No |
Size | 1002 |
Model Number | GEPRC SPEEDX2 1002 25000KV/18000KV Motor |
For Vehicle Type | Helicopters |
Tool Supplies | Assembly Category |
Four-wheel Drive Attributes | Motors |
Remote Control Peripherals/Devices | Motor |
Upgrade Parts/Accessories | Frame |
RC Parts & Accs | Motors |
Material | Metal |
Brand Name | Auloda |
Origin | Mainland China |
Recommend Age | 14+y |
Use | Vehicles & Remote Control Toys |
Certification | CE |
