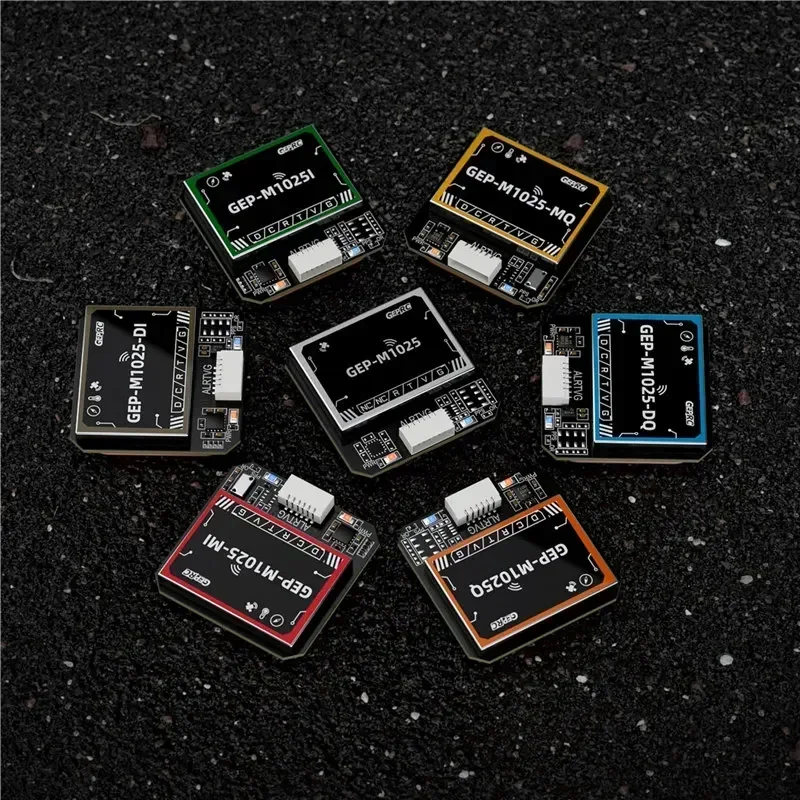

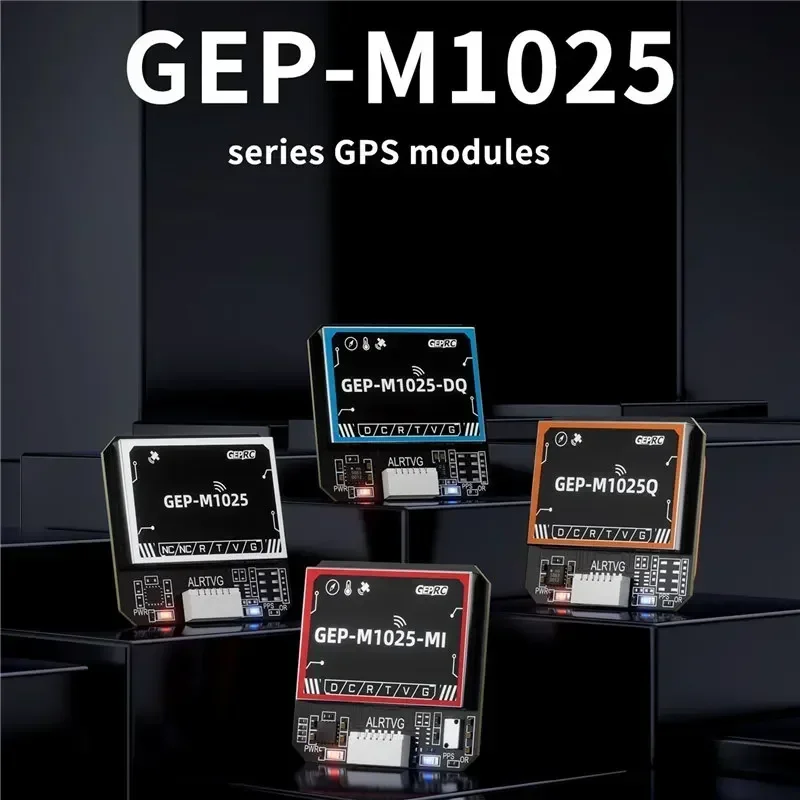

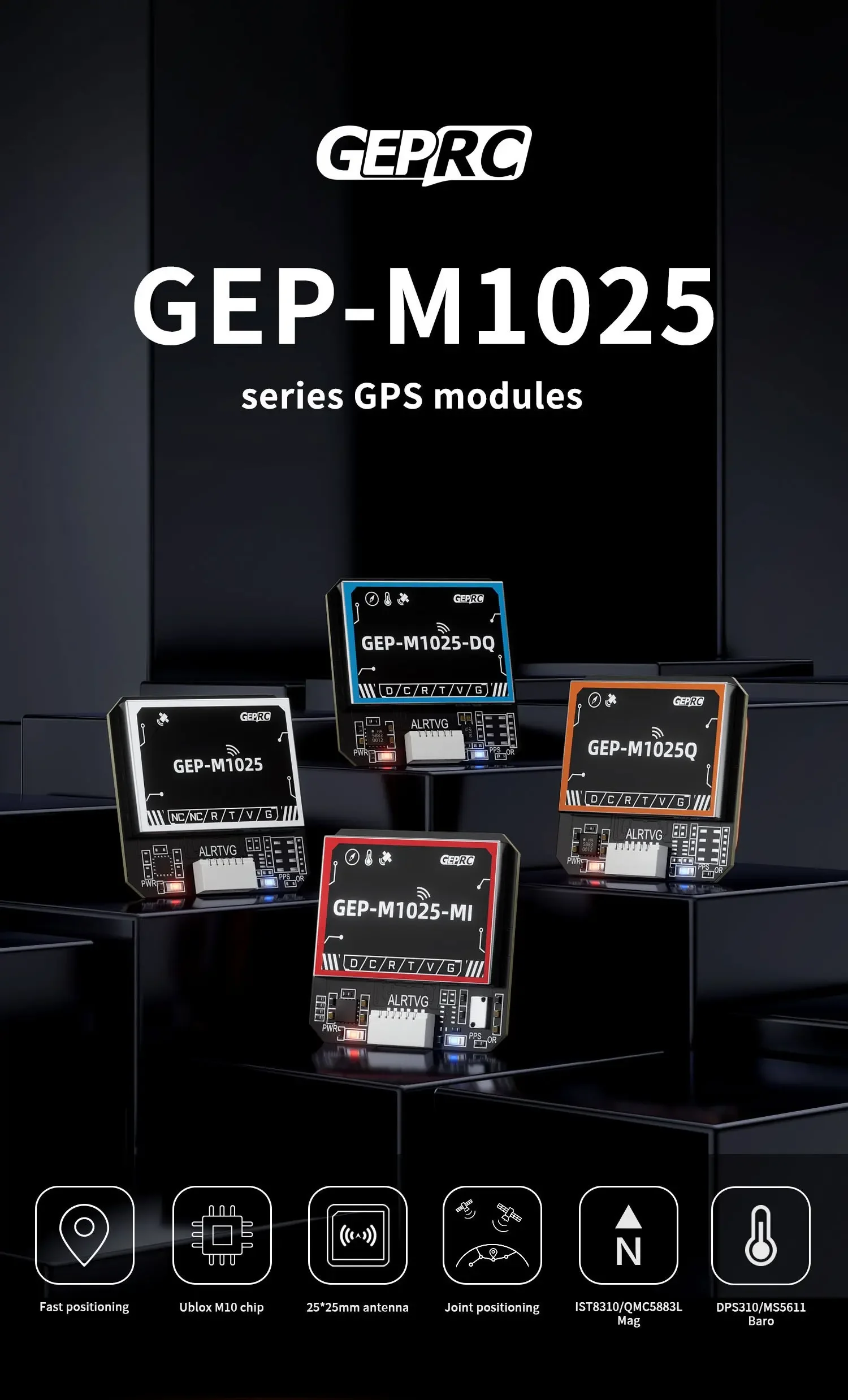

GEPRC GEP-M1025 Series GPS Module GEP-M1025 / GEP-M1025Q / GEP-M1025-DQ / GEP-M1025-MQ /GEP-M1025I /GEP-M1025-DI /GEP-M1025-MI

Summary
The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on ubx M10050 chip and using 25*25mm antenna are now launched.

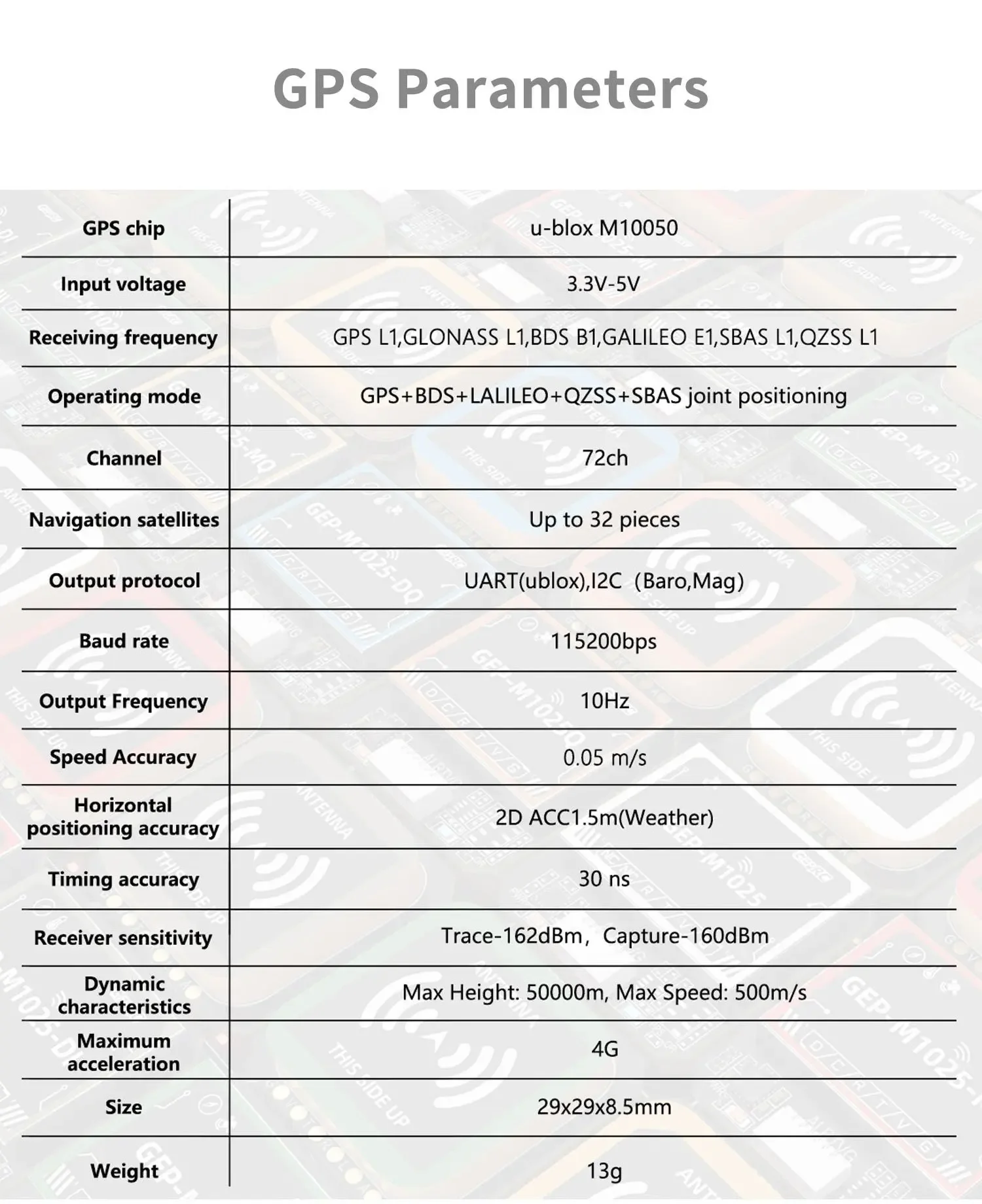

The GEP-M1025 series GPS positioning module uses ubx’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

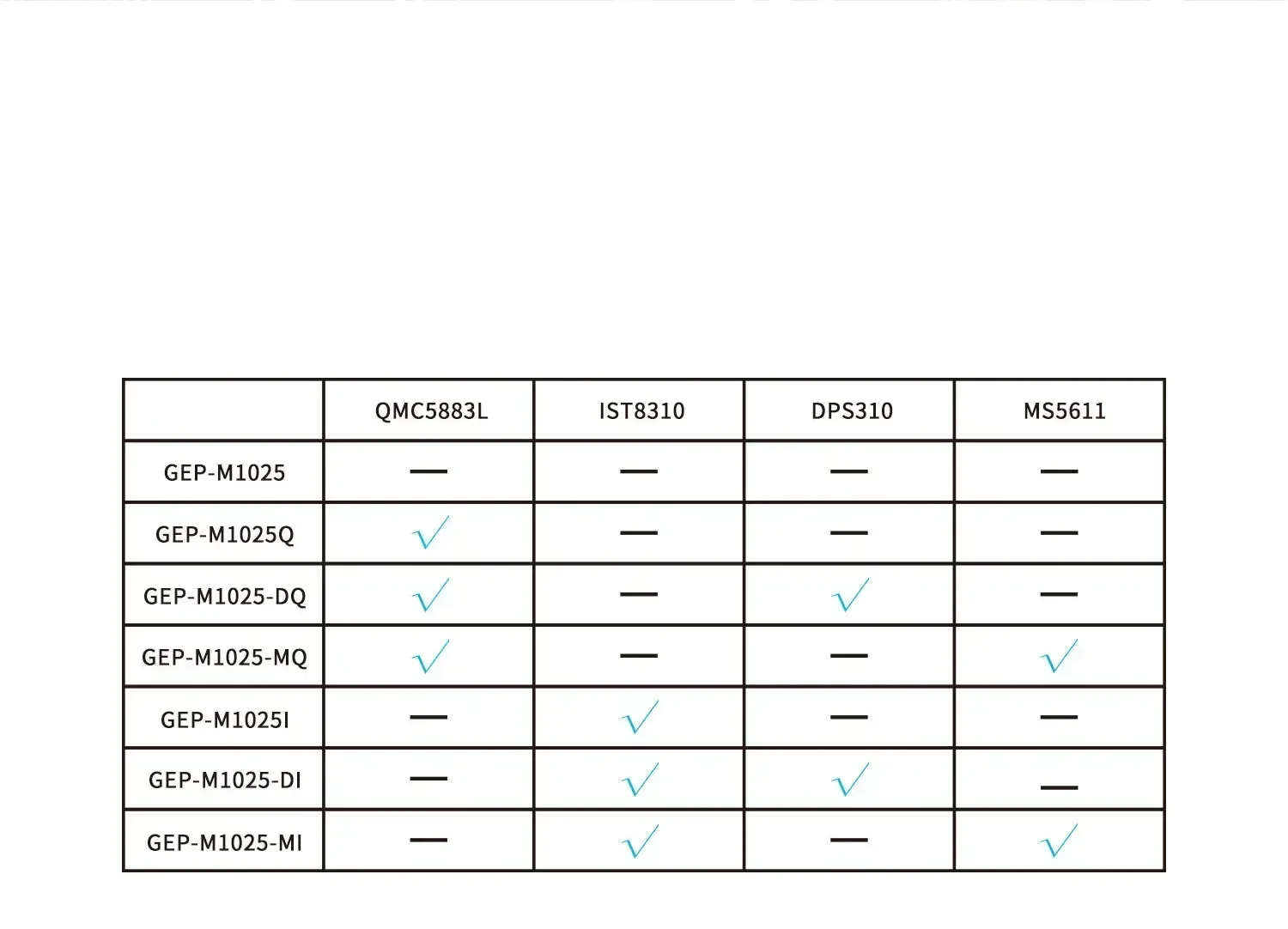

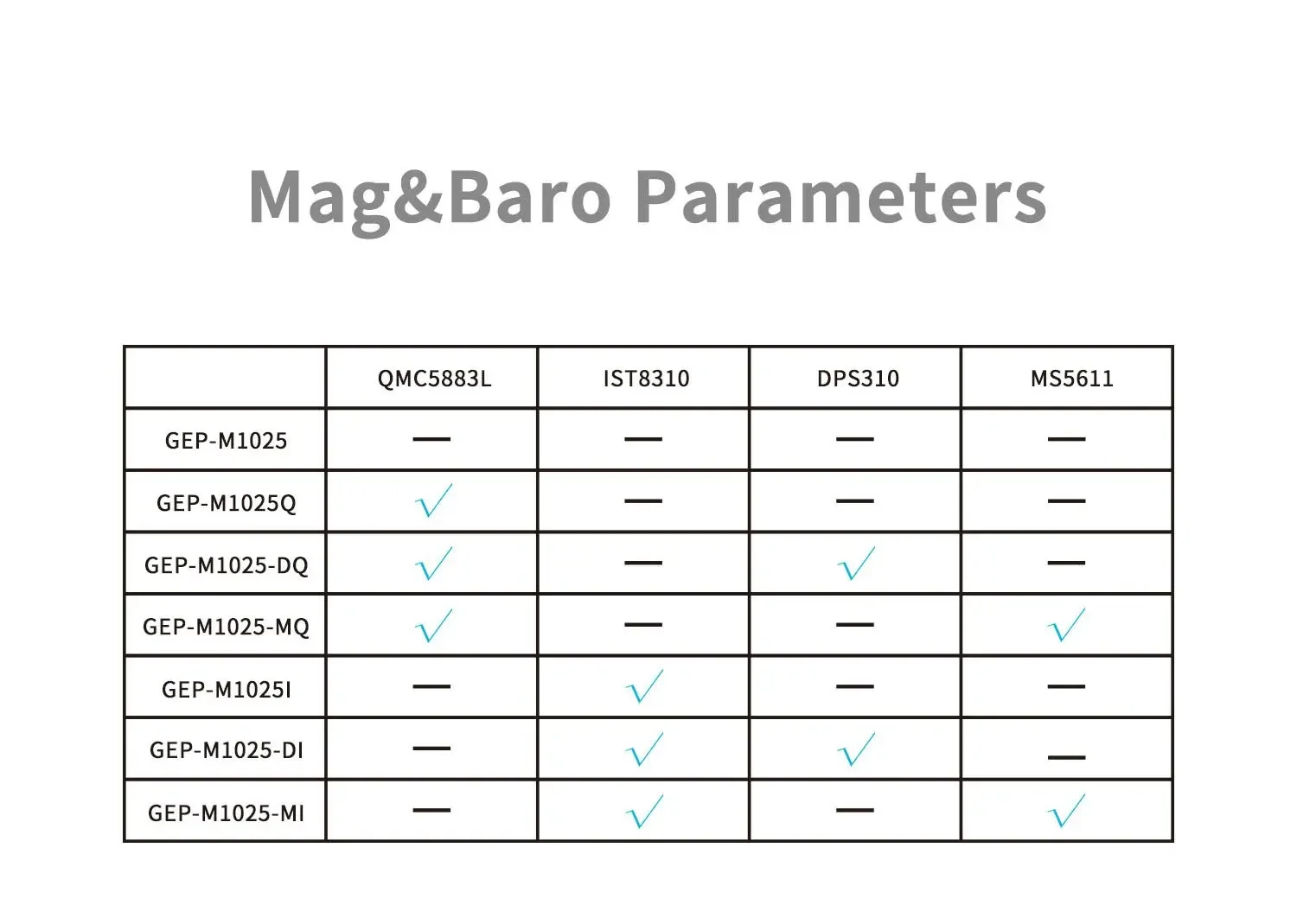

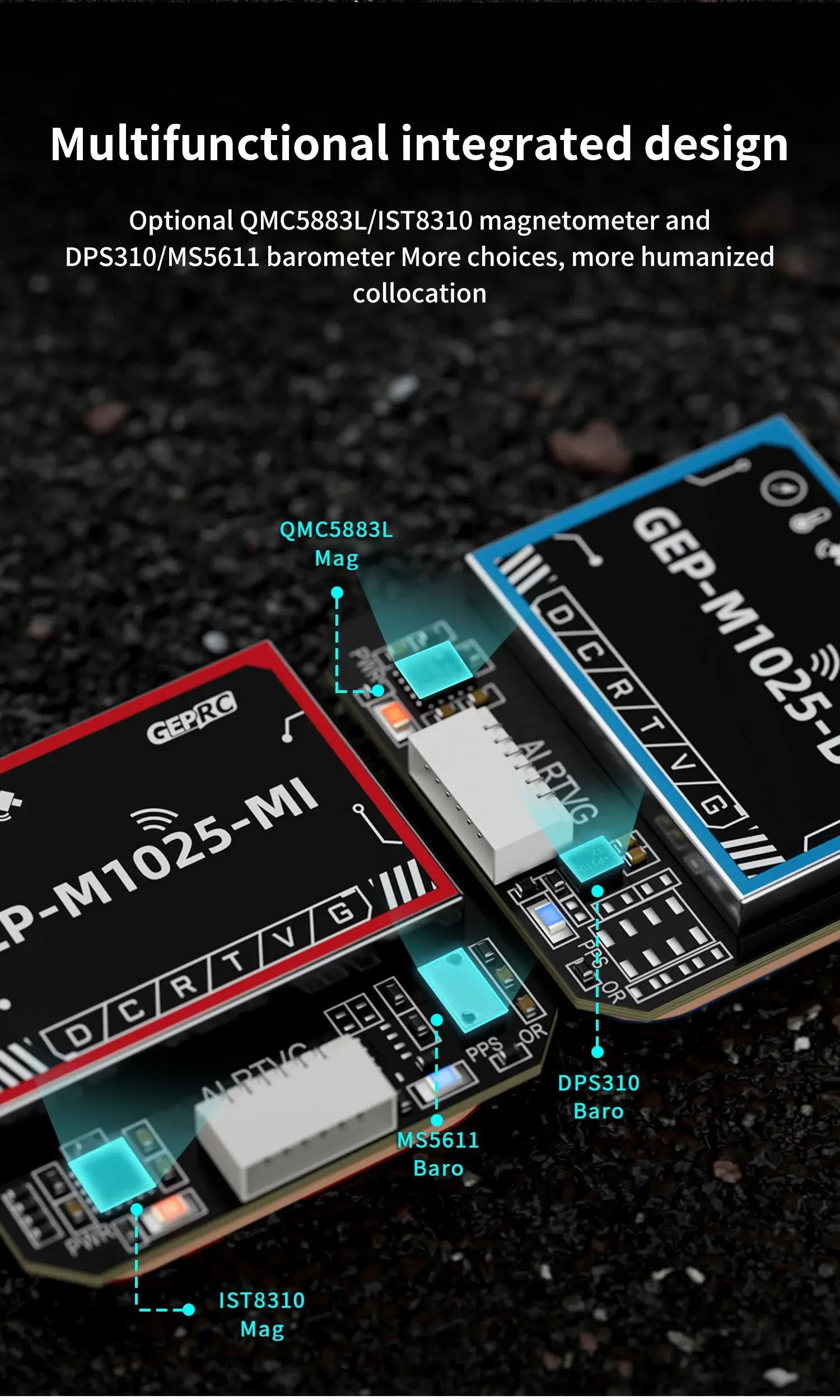

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.
Feature
ubx M10 series chip
GPS+BDS+Galileo+QZSS+SBAS joint positioning
Fast positioning speed,Up to 32 satellites
Stable connection quality

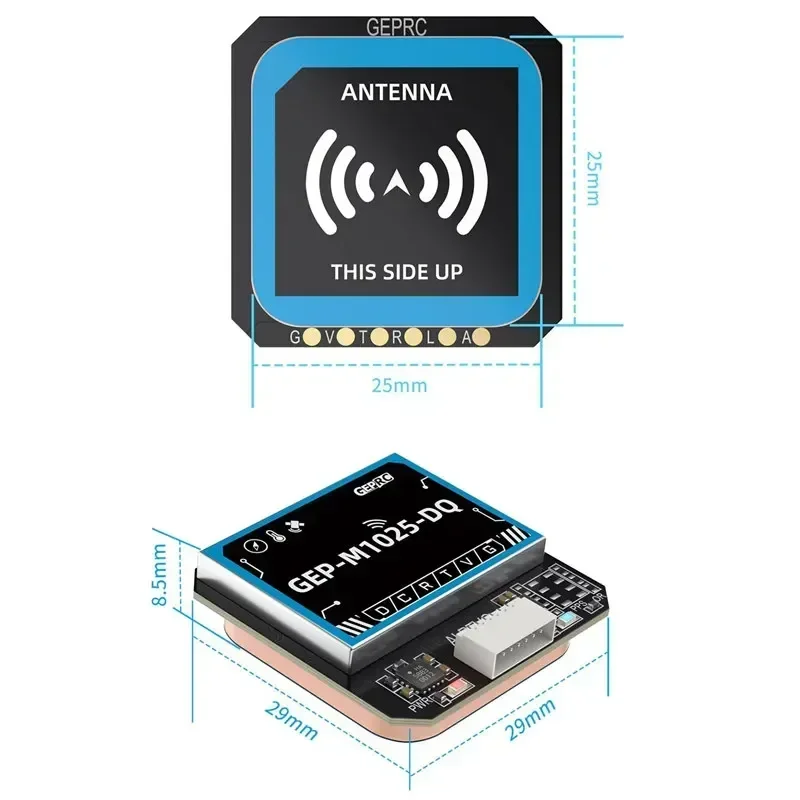

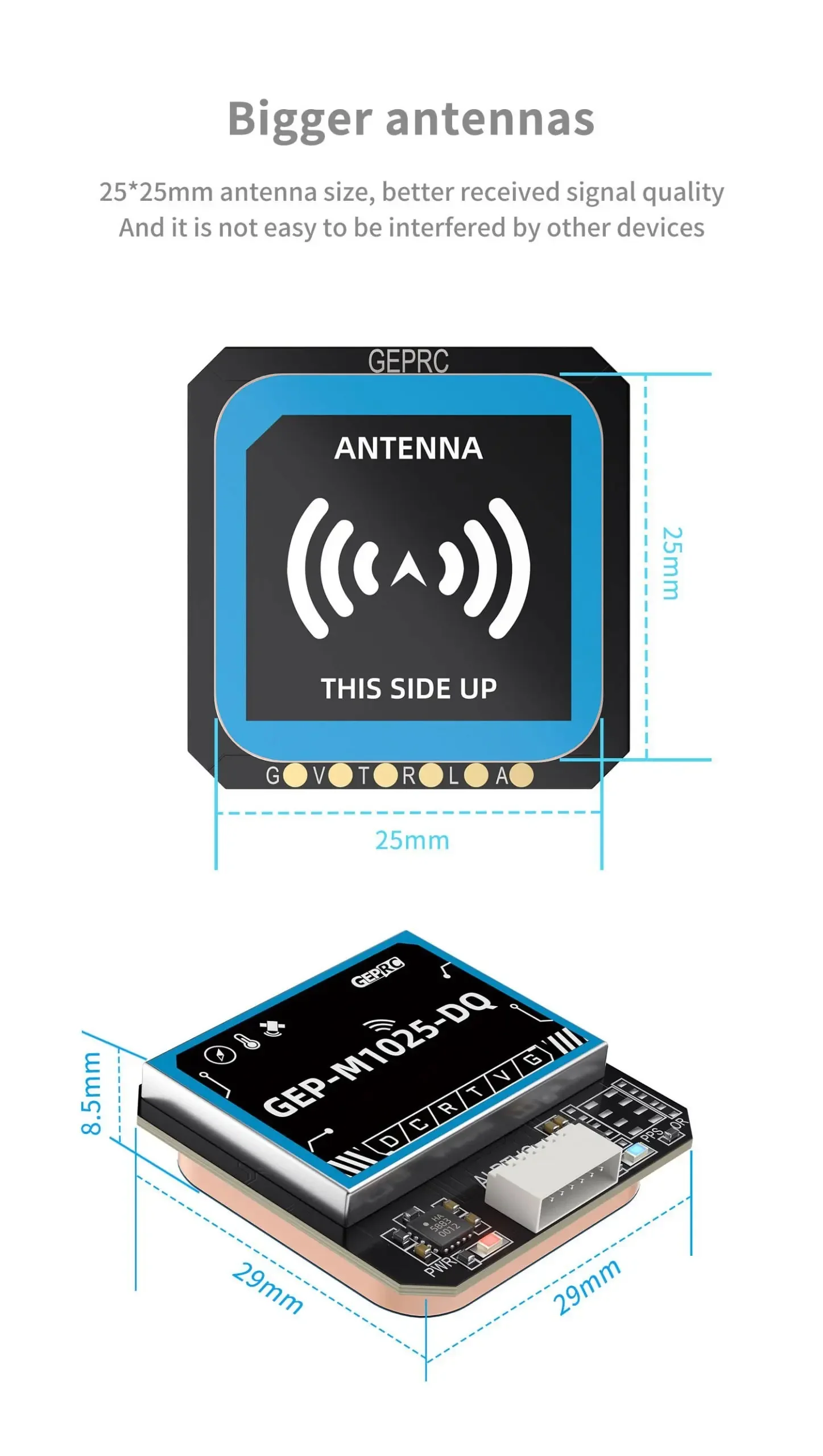

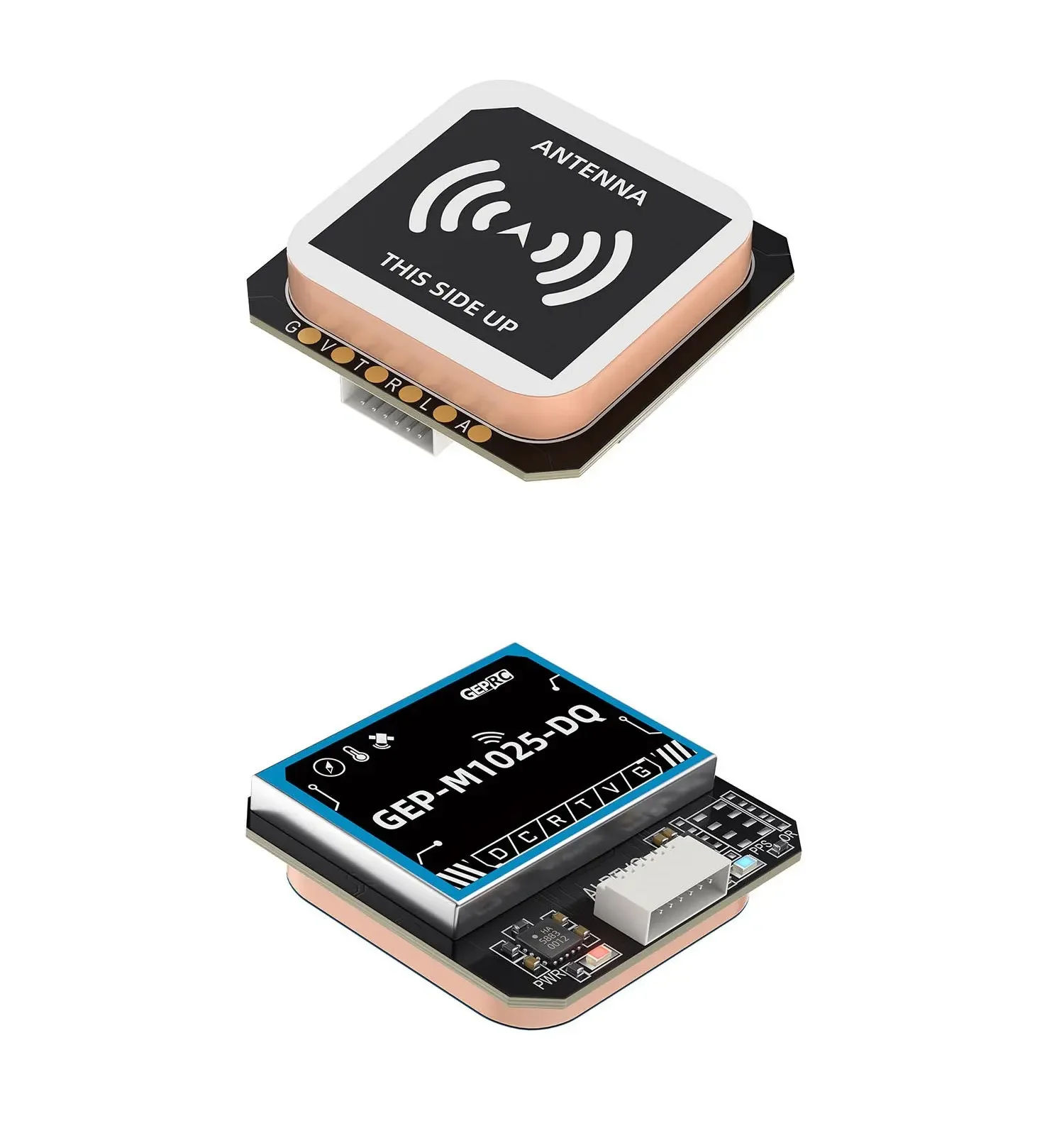

25*25mm antenna size, better signal receiving performance
Built-in Flash chip and Farad capacitor

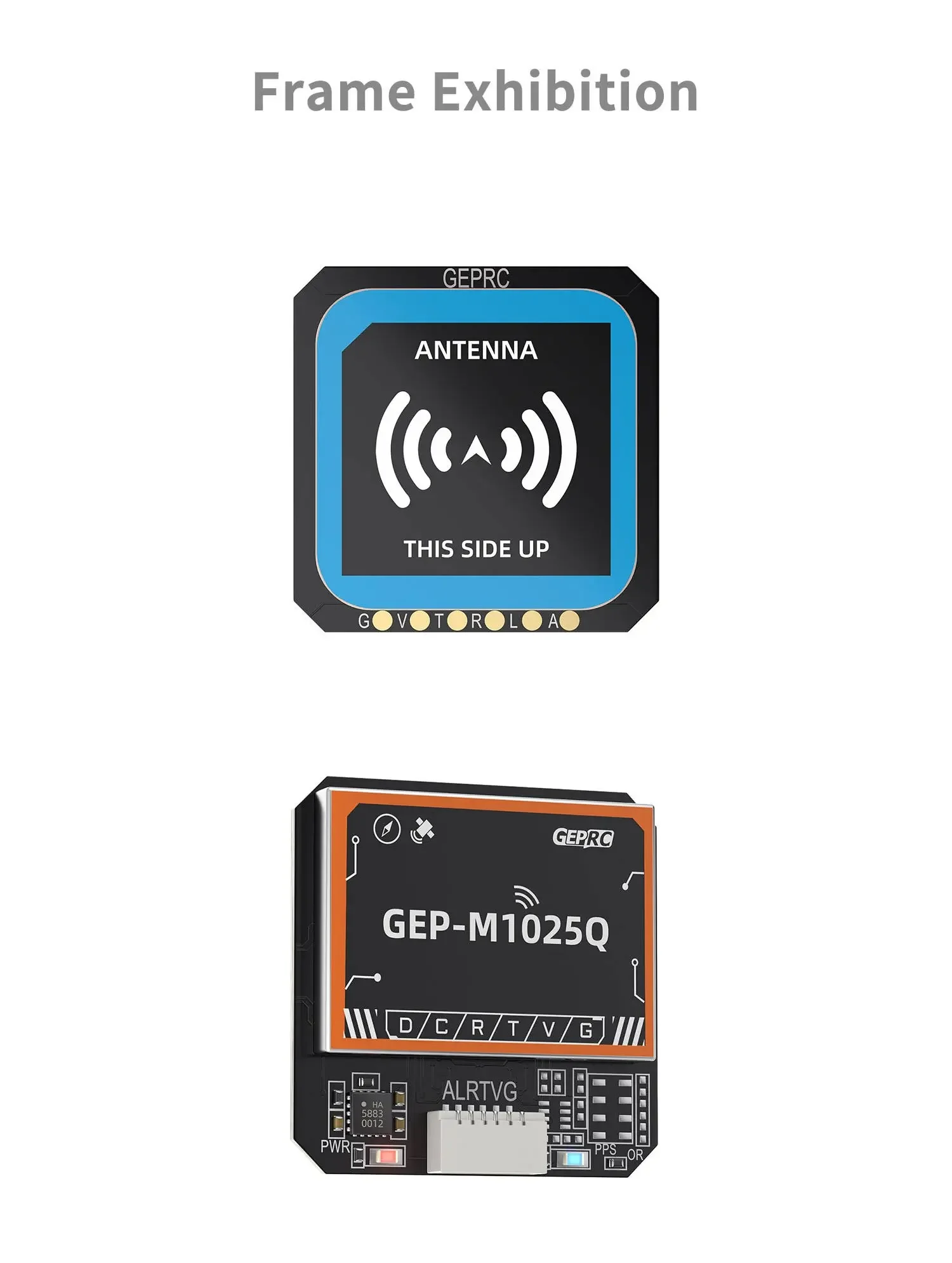

Onboard indicator light, easy to use

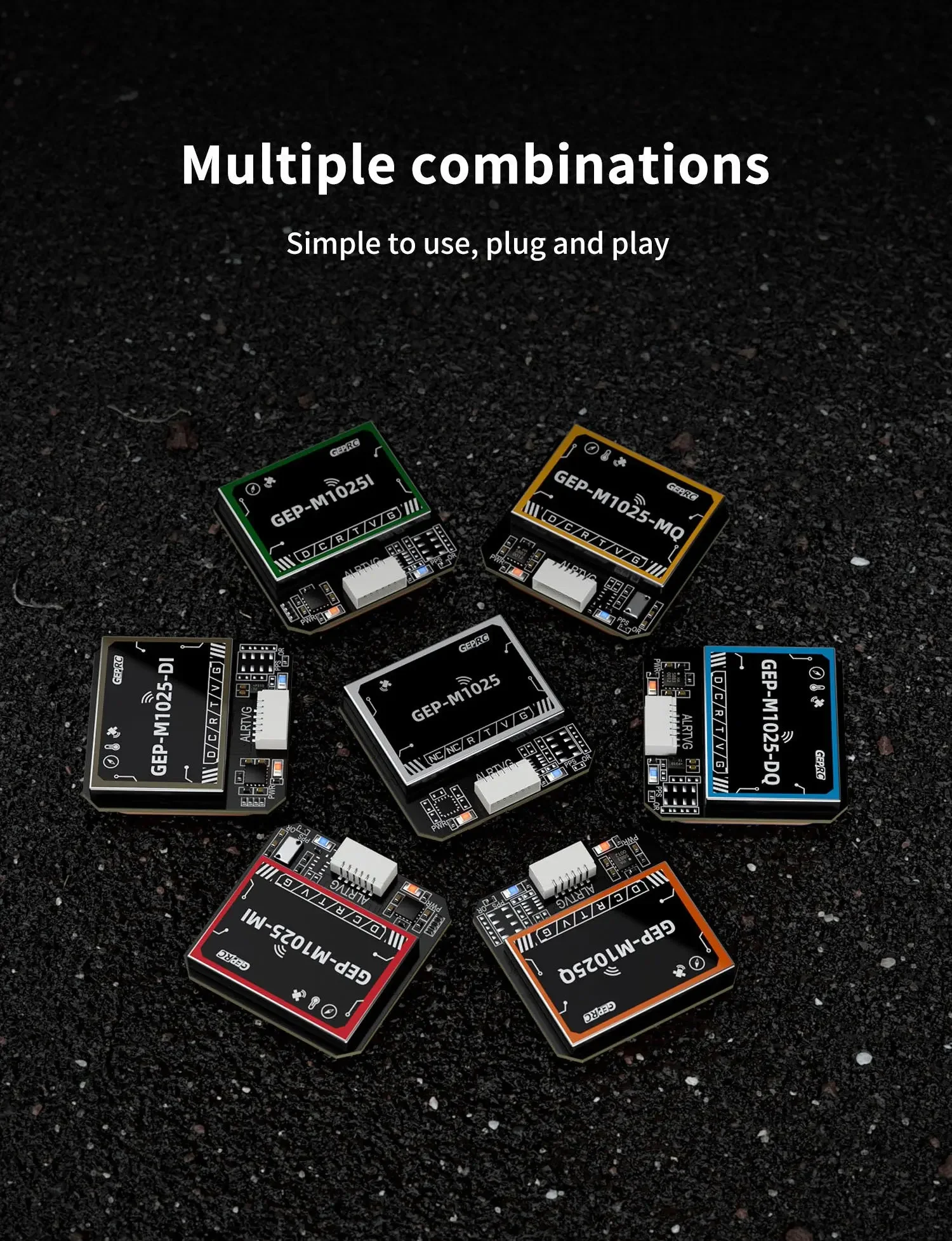

Optional integrated magnetometer+barometer, more collocation scheme
Includes
1 x GPS module
1 x terminal wire
1 x GPS module instruction manual
1 x GEPRC sticker
1 x heat shrink tubing
