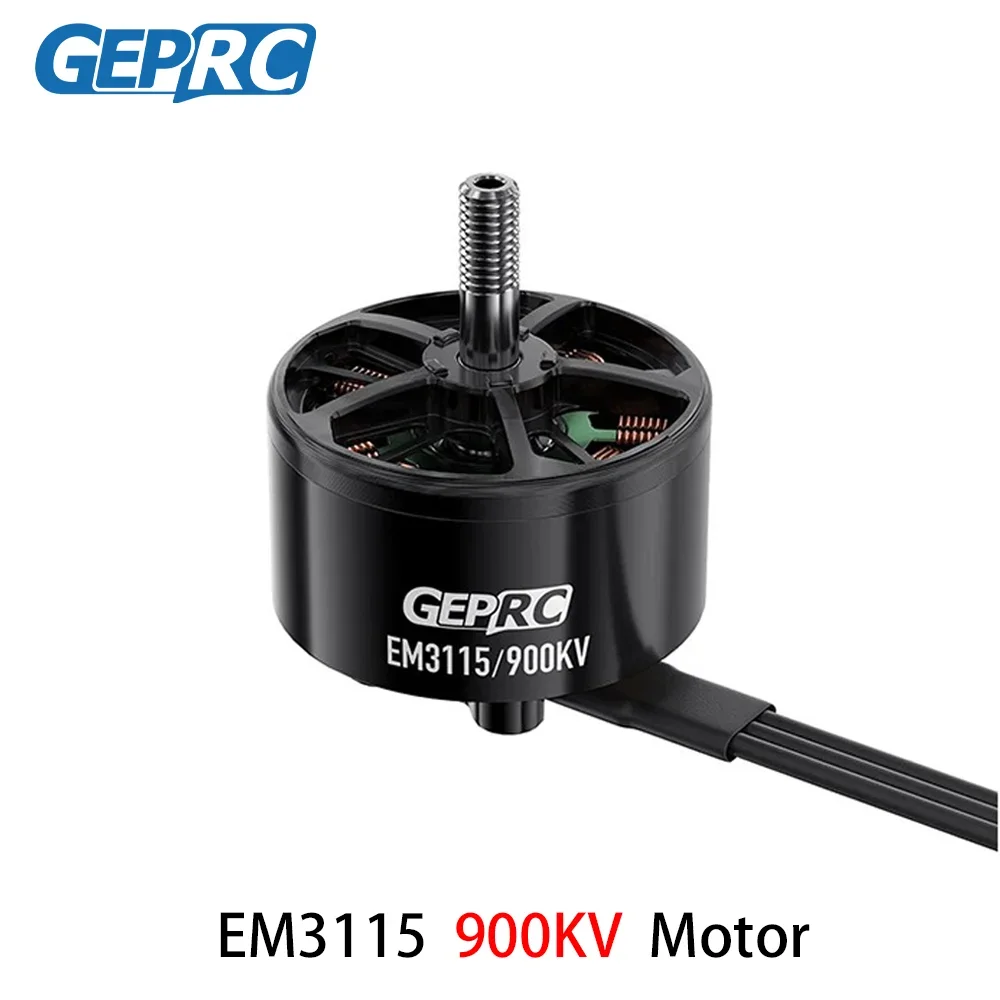

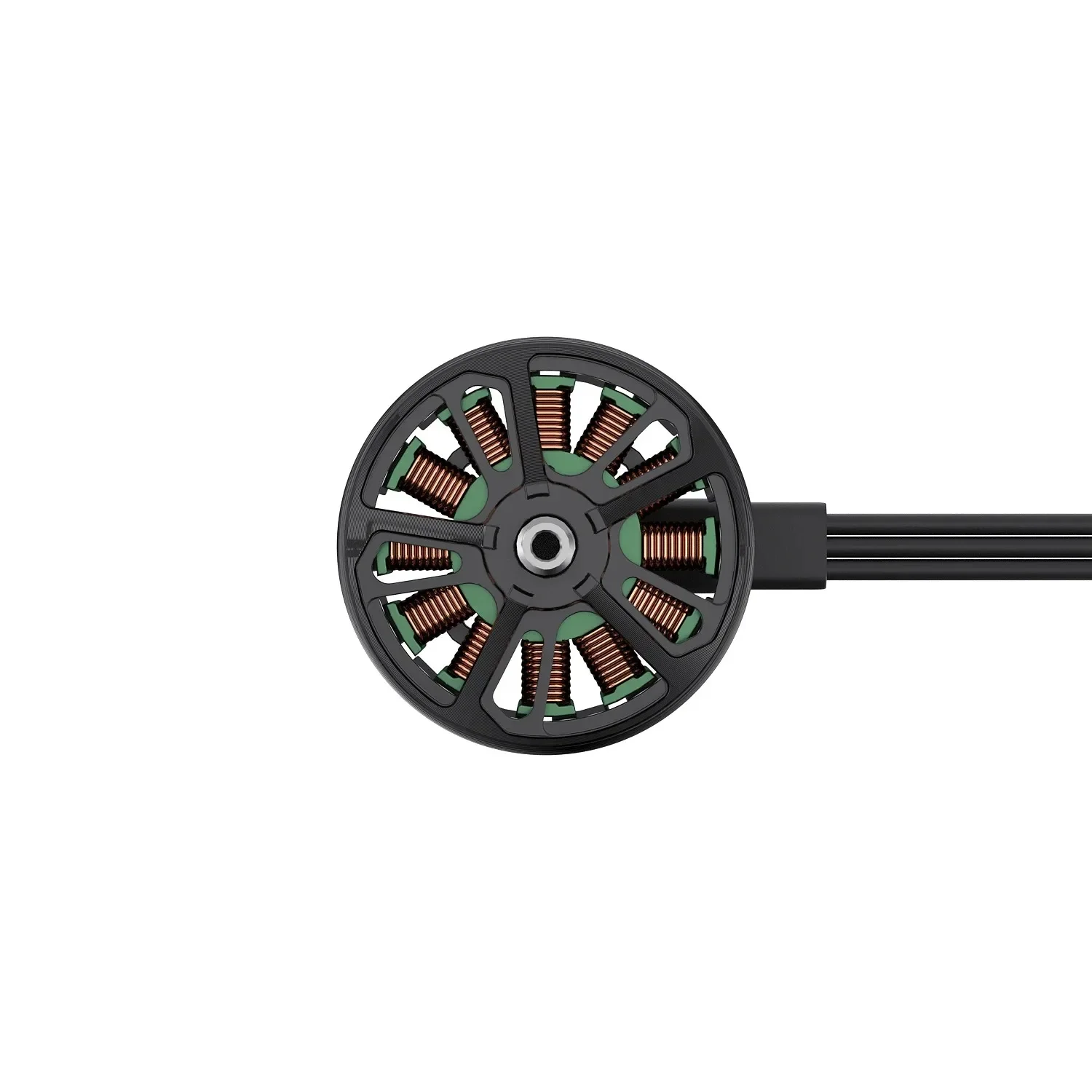

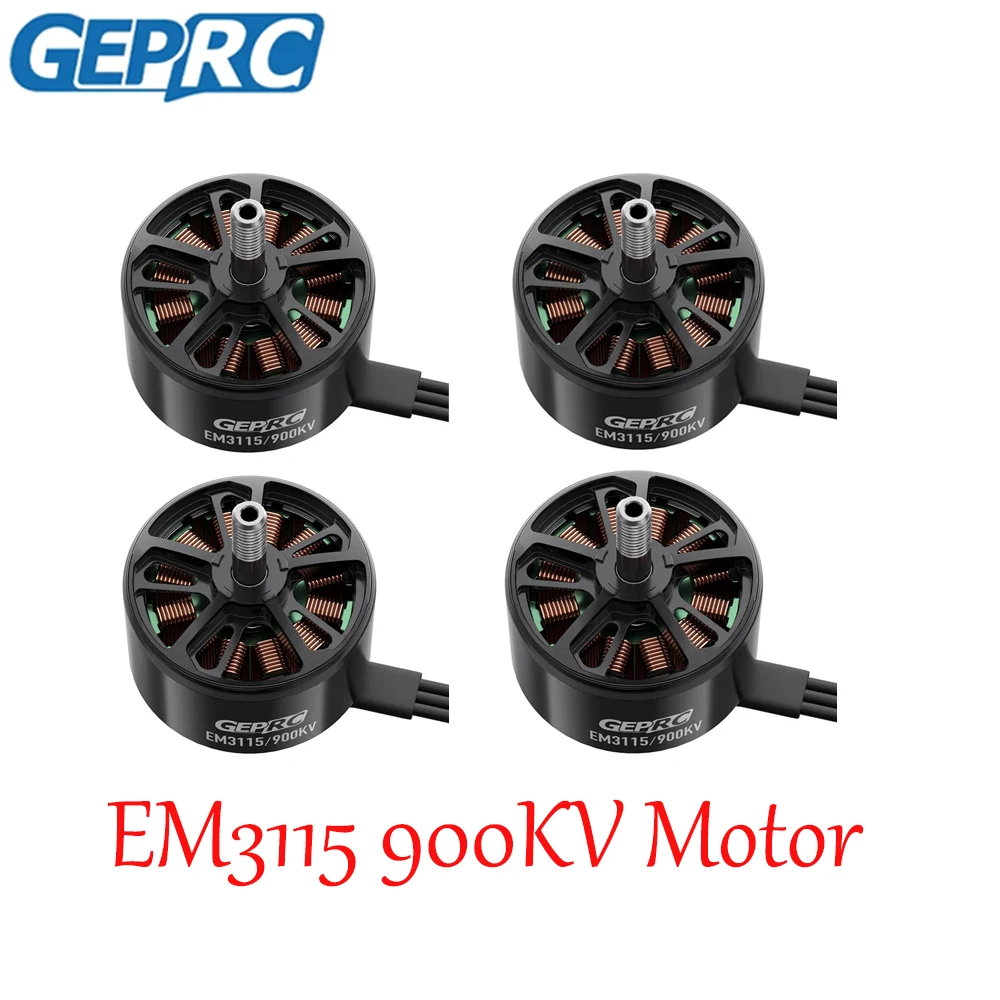

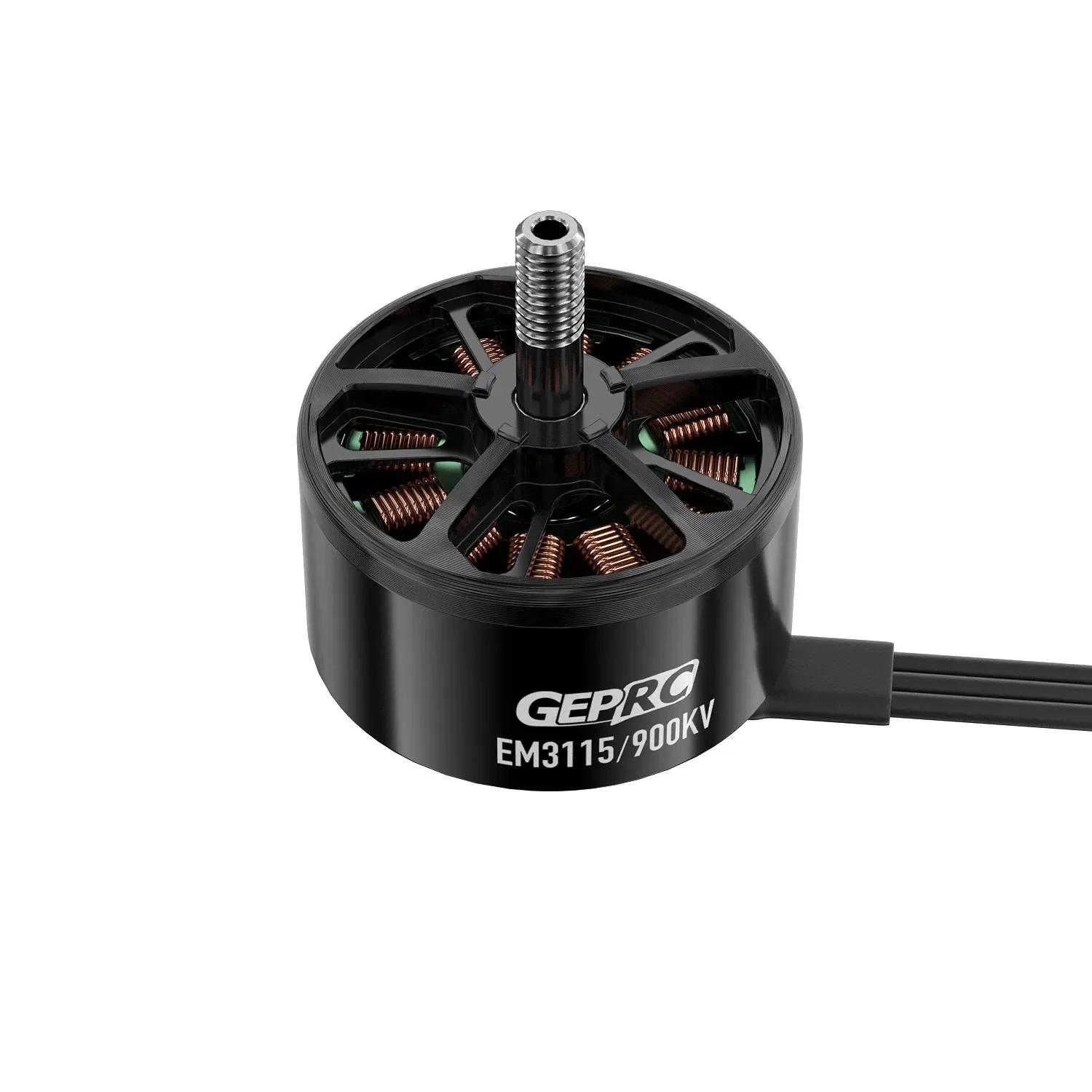

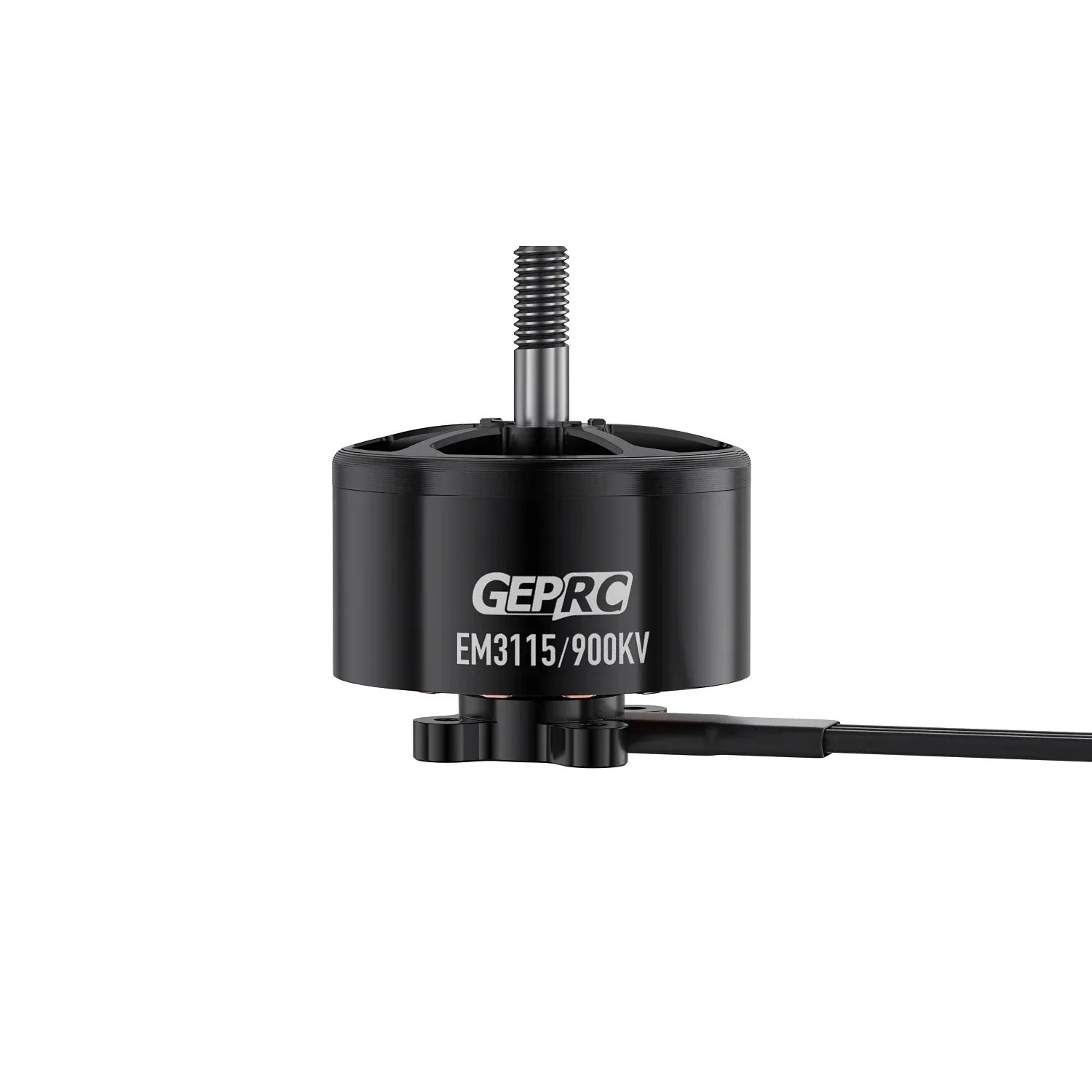

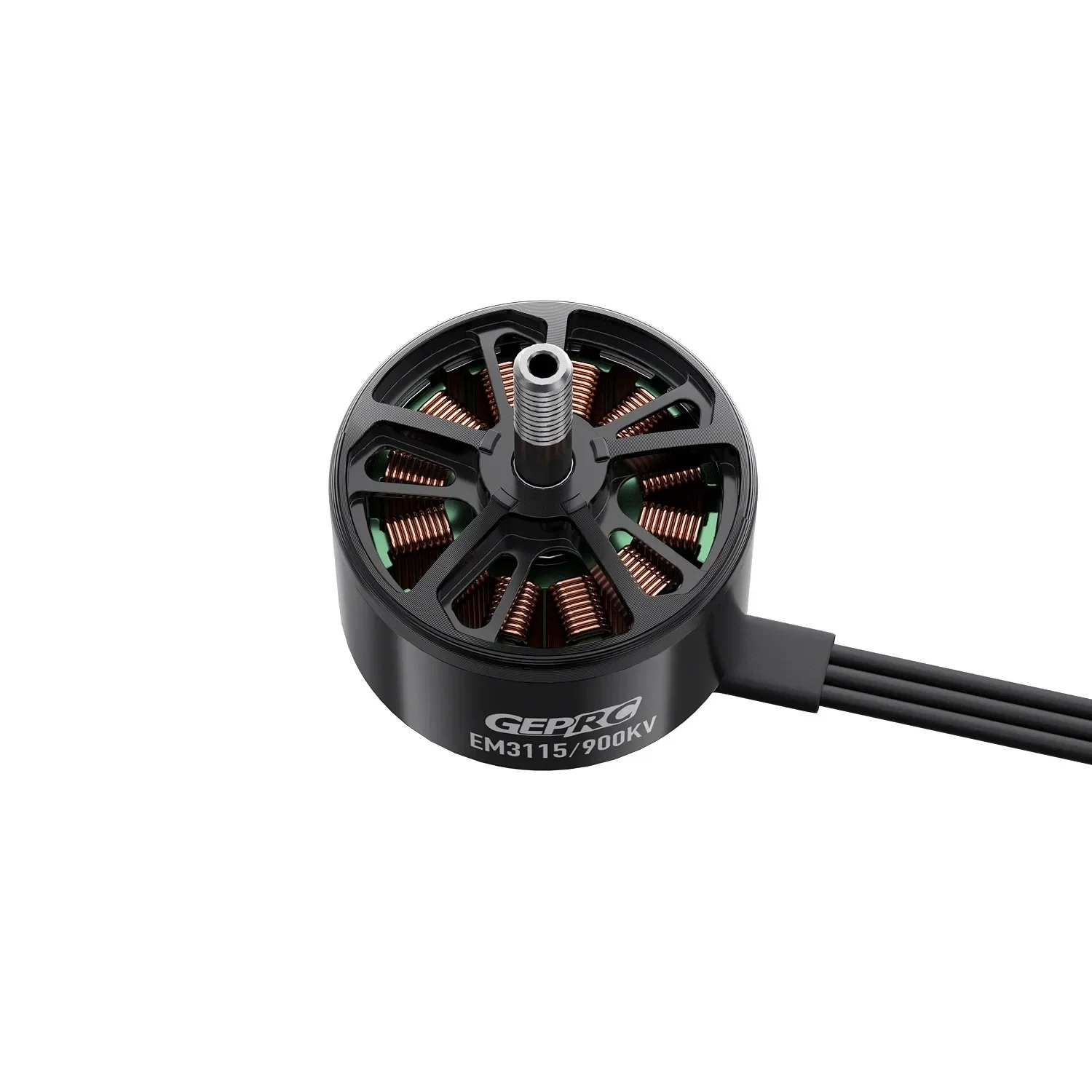

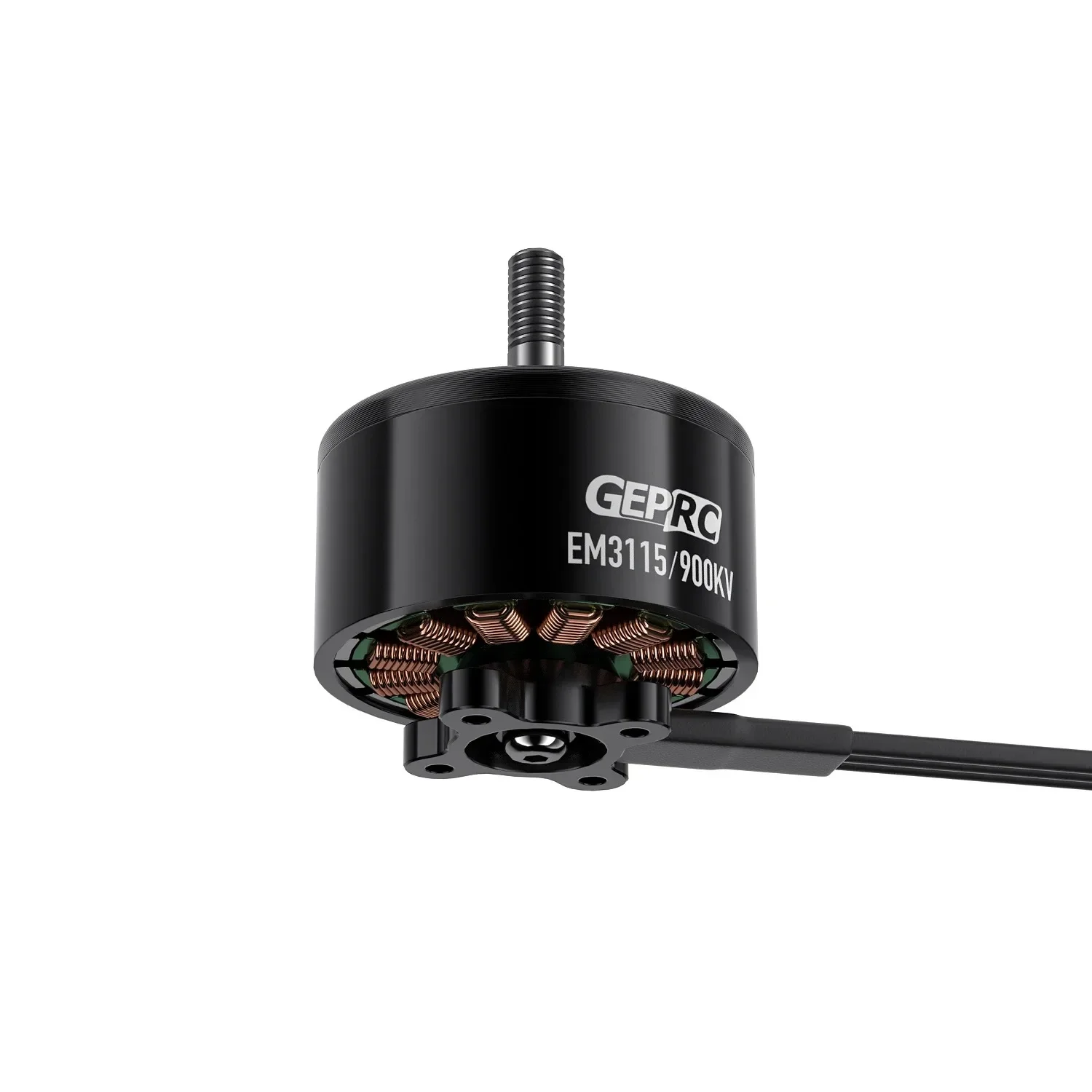

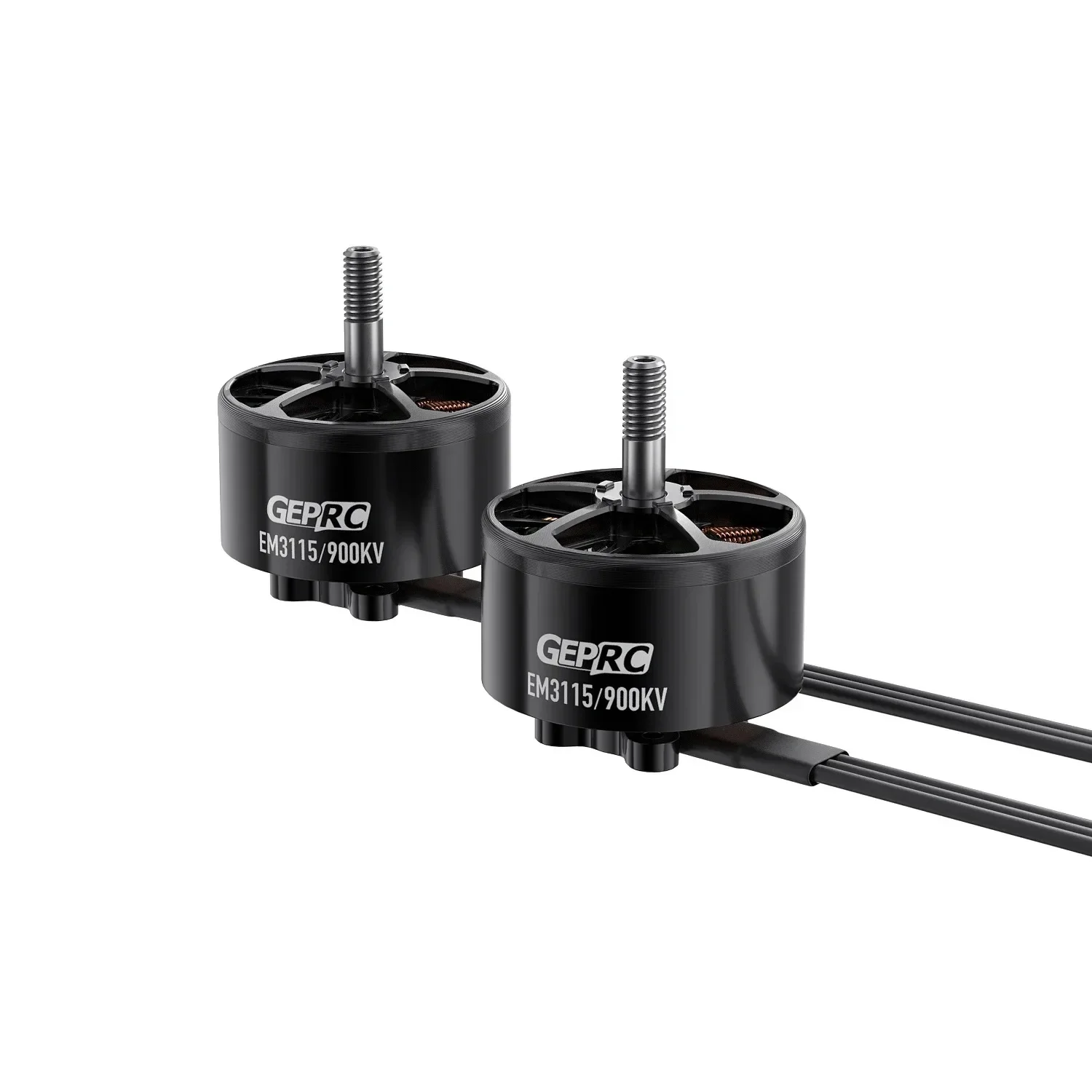

GEPRC EM3115 3115 Motor 900KV 6S LiPo Suitable for FPV Freestyle 8-10inch Long Range Drones DIY Mark4 LR10 Parts
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Feature
New EM series motors,mainly designed for large-size FPV.
High-strength M5 steel shaft
High torque magnetic circuit design
19mmx19mm base

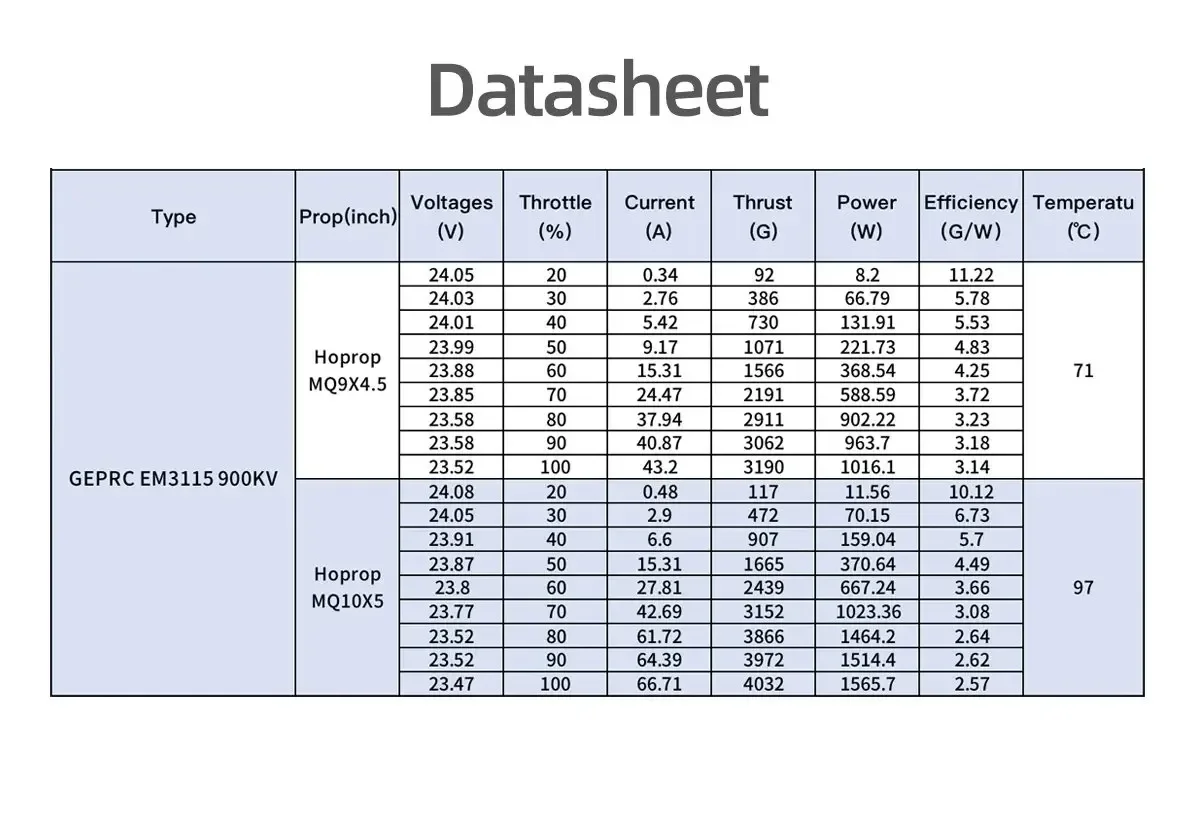

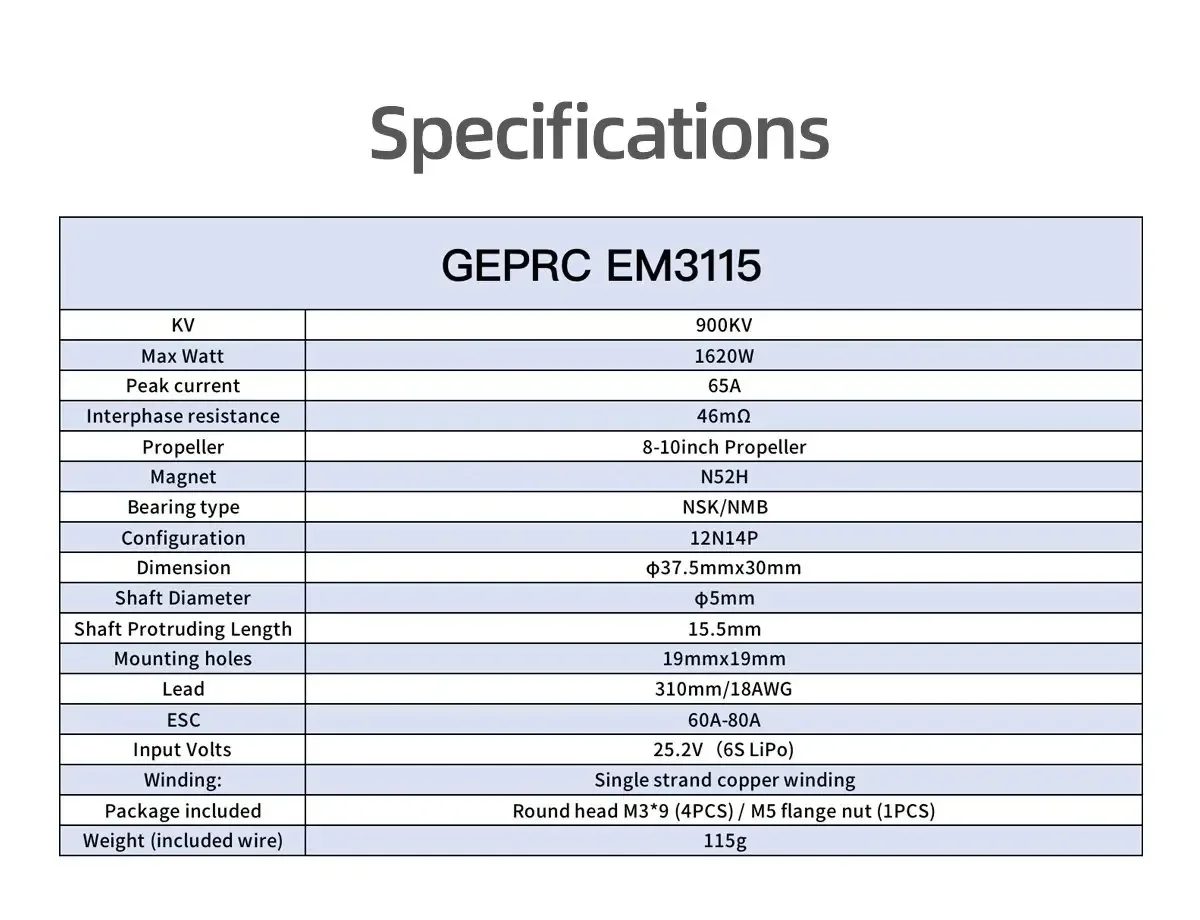

Specifications
Model: EM3115 900KV Motor
Max Watt: 1620W
Peak current: 65A
Interphase resistance: 46mΩ
Propeller: 8-10inch Propeller
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 12N14P

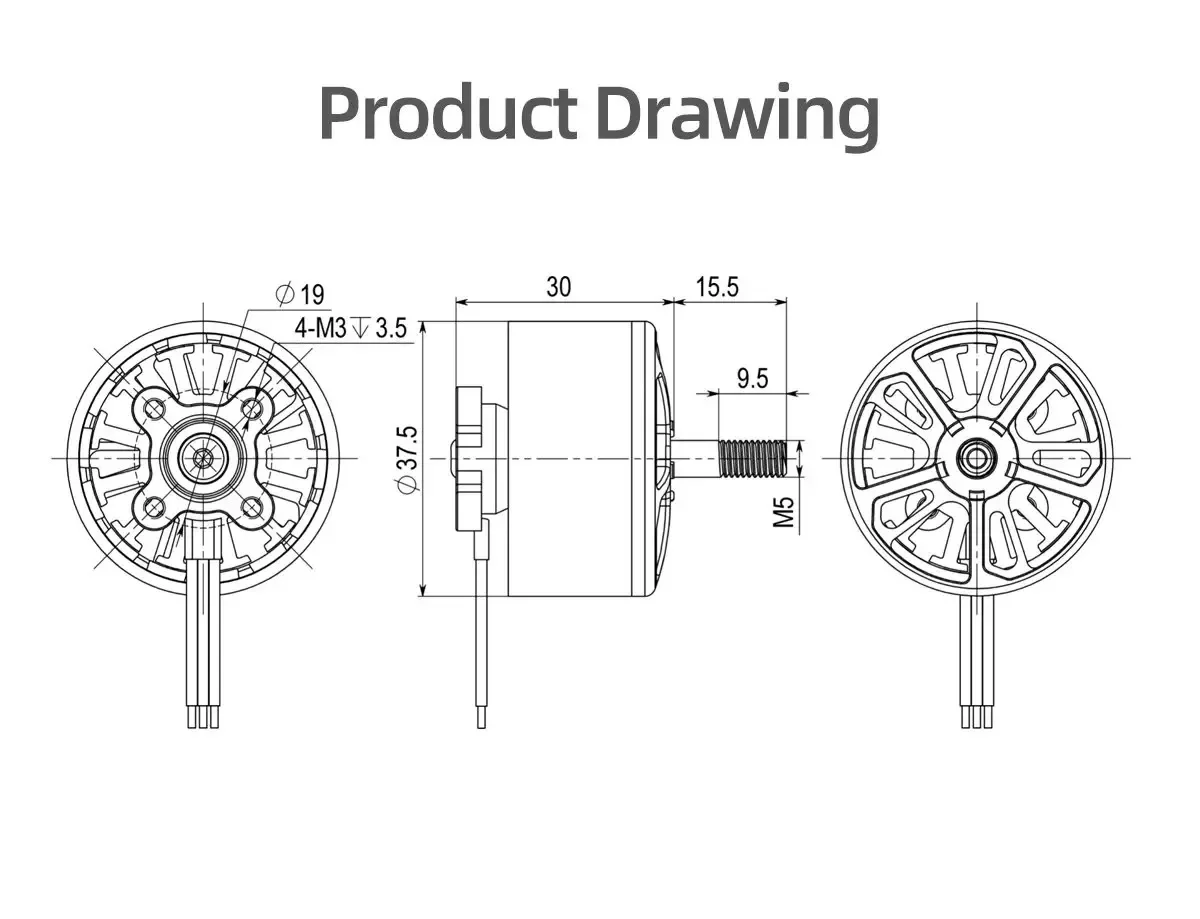

Dimension: φ37.5mmx30mm
Shaft Diameter: φ5mm
Shaft Protruding Length: 16mm
Mounting holes: 19mmx19mm

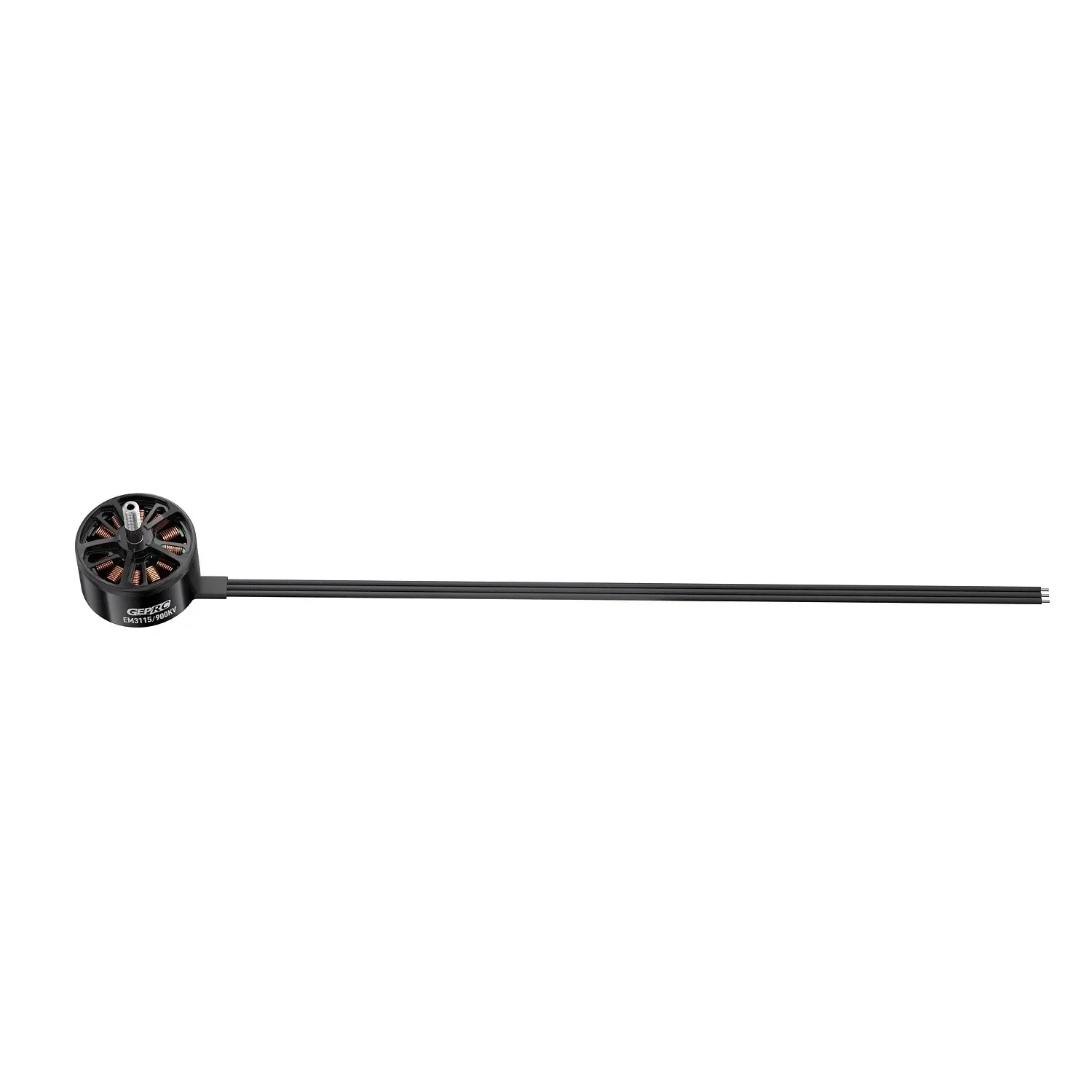

Lead: 310mm/18AWG
ESC: 60A-80A
Input Volts: 25.2V(6S LiPo)
Winding: Single strand copper winding
Weight: 115g(included wire)
Applicable models: suitable for 8-10 inch long-distance traversing aircraft
Includes
1 x EM3115 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
