Feature
New EM series motors,mainly designed for large-size FPV.
High-strength M5 steel shaft
High torque magnetic circuit design
19mmx19mm base

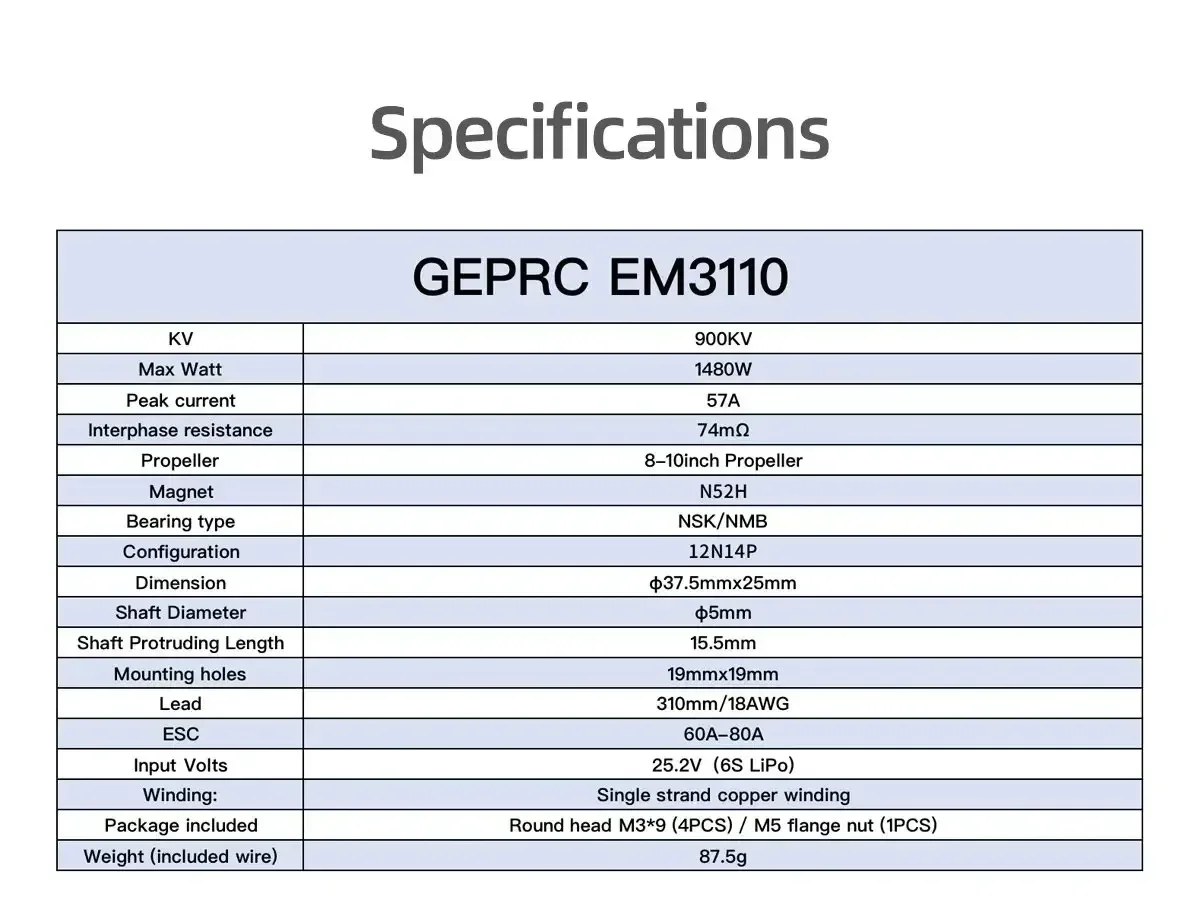

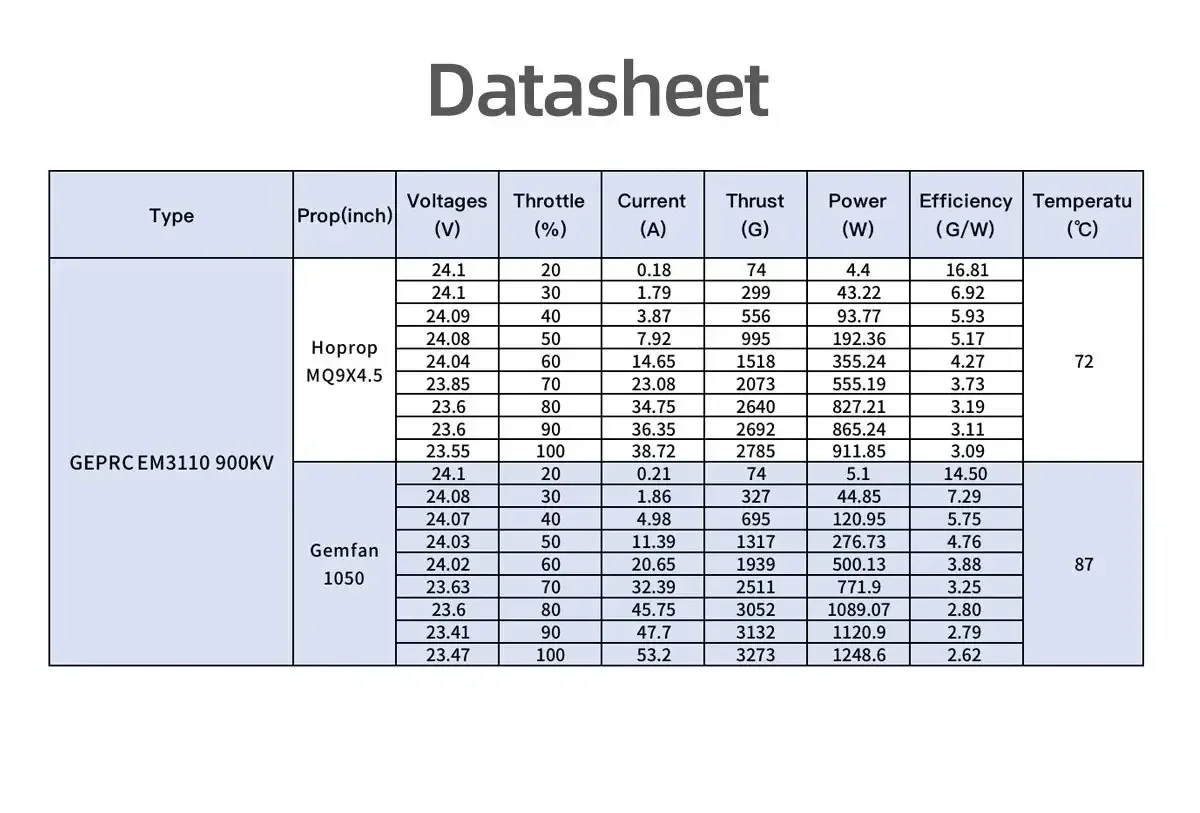

Specifications

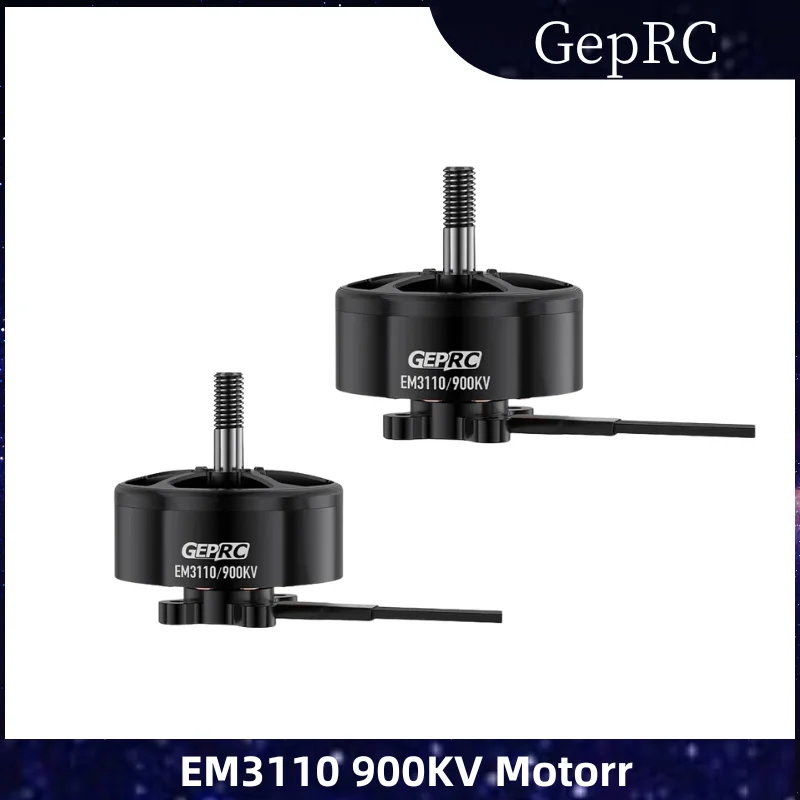

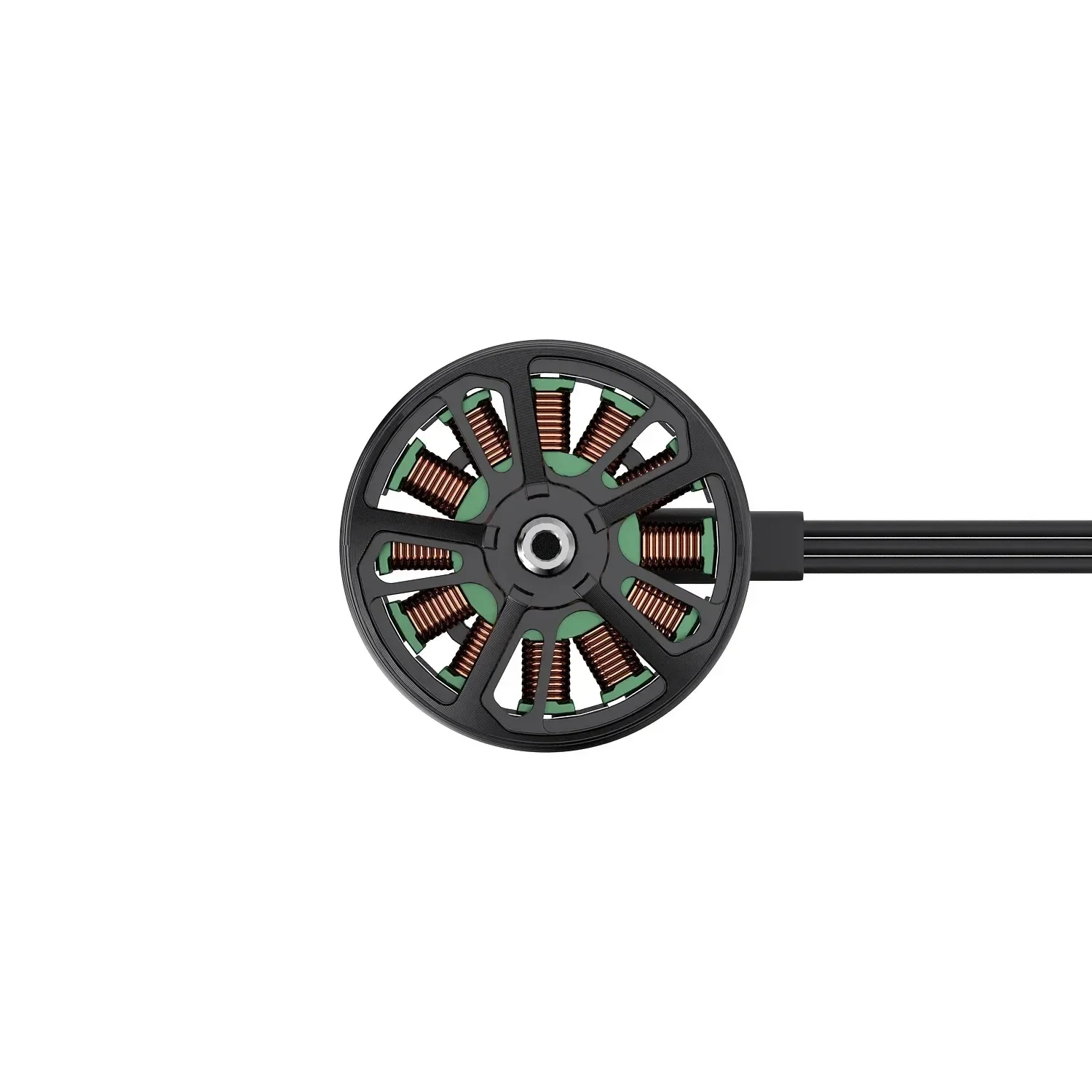

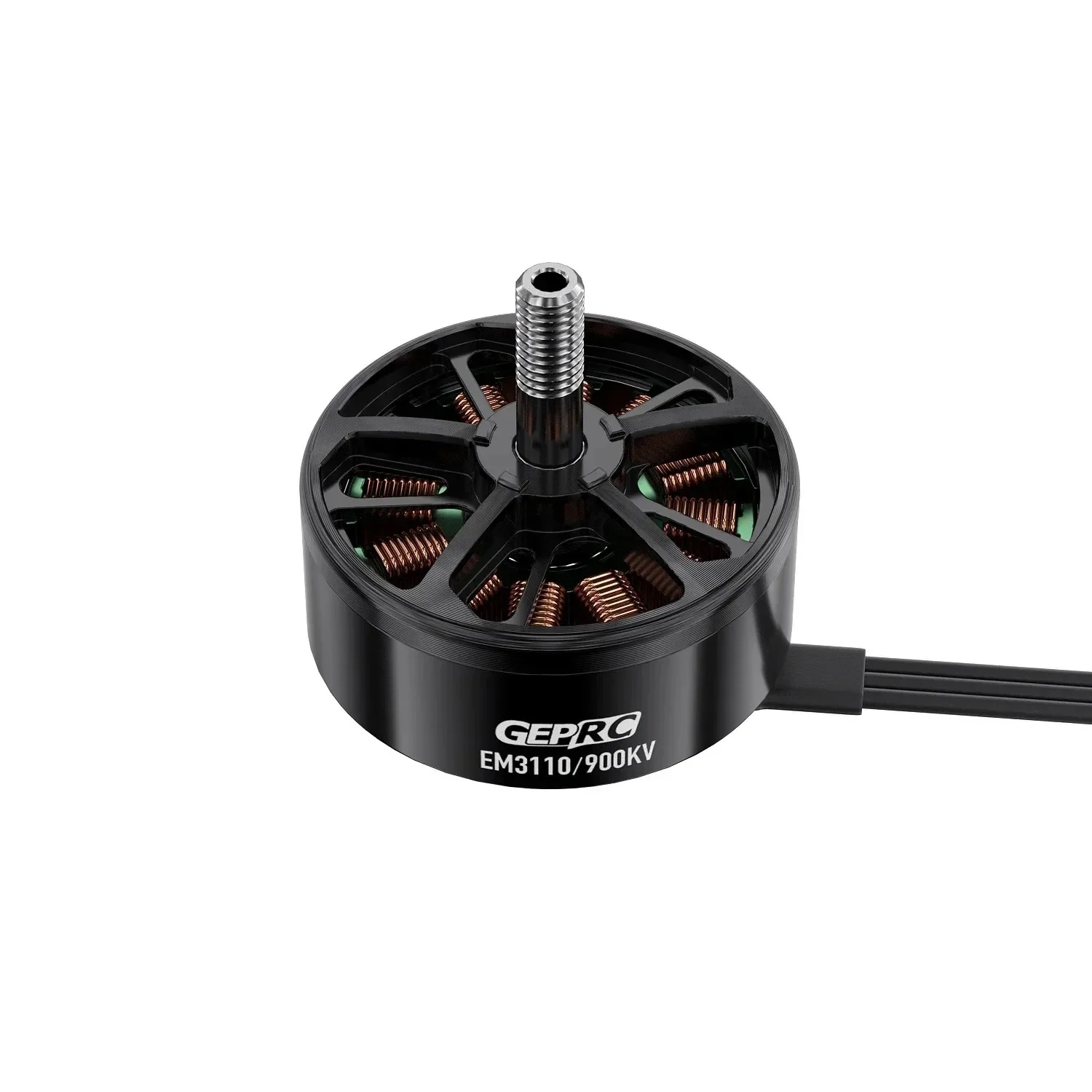

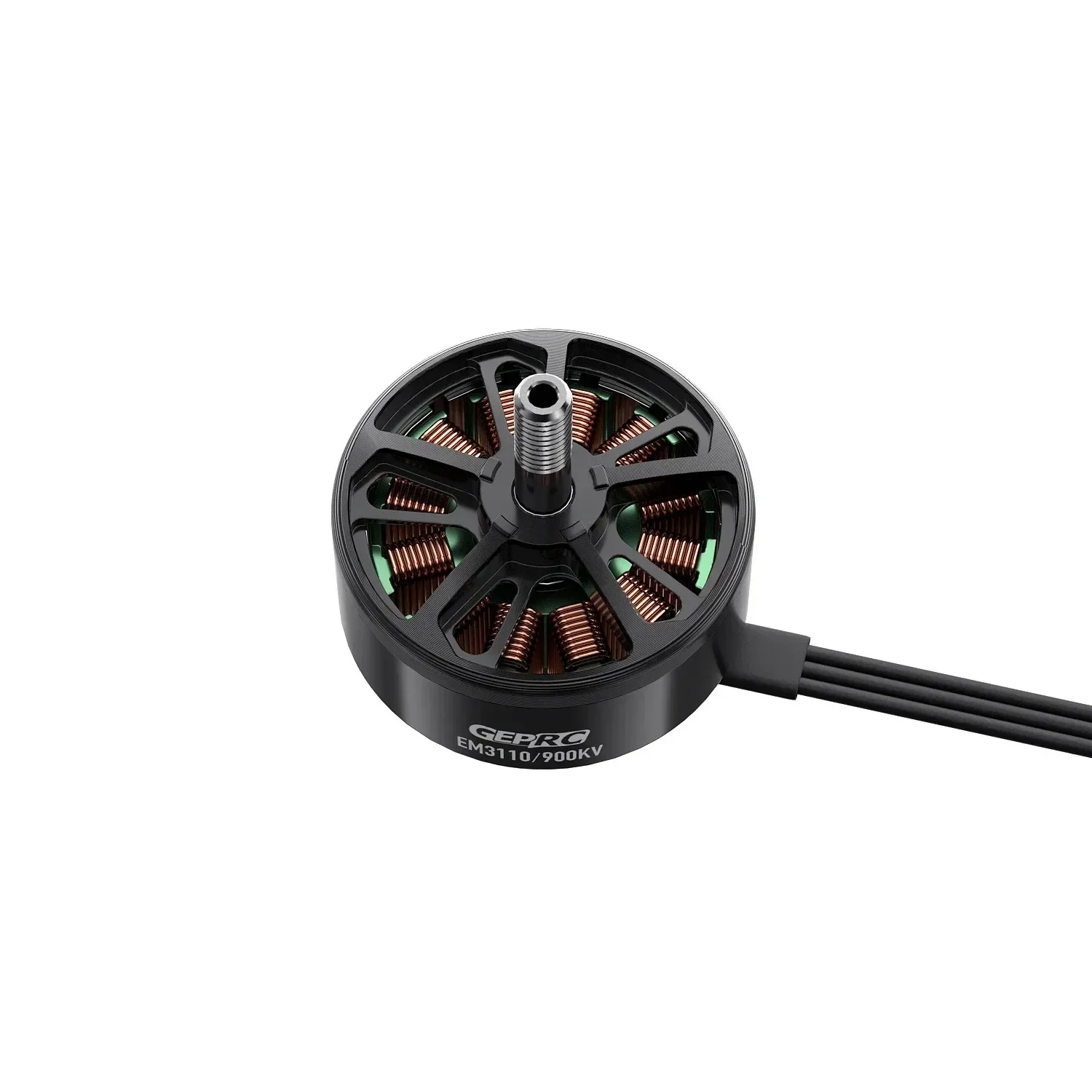

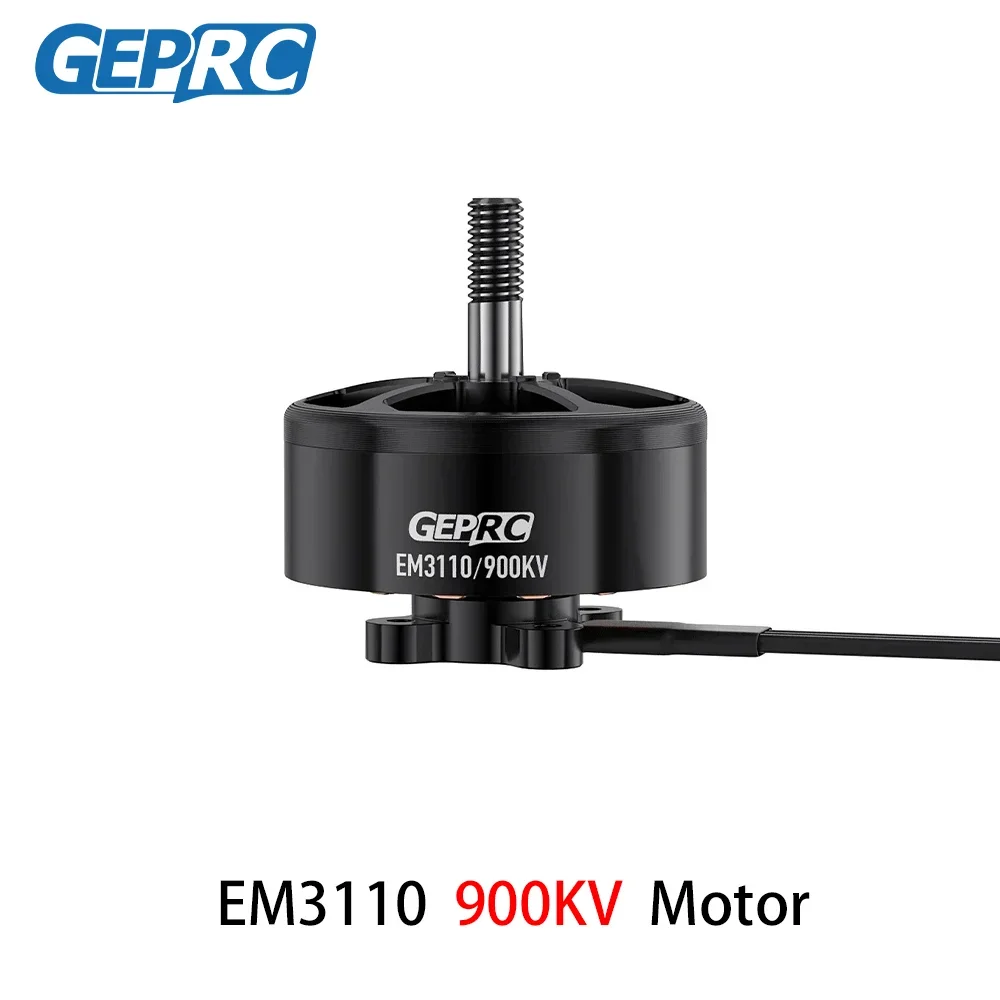

Model: EM3110 900KV Motor
Max Watt: 1480W
Peak current: 57A
Interphase resistance: 74mΩ
Propeller: 8-10inch Propeller
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 12N14P

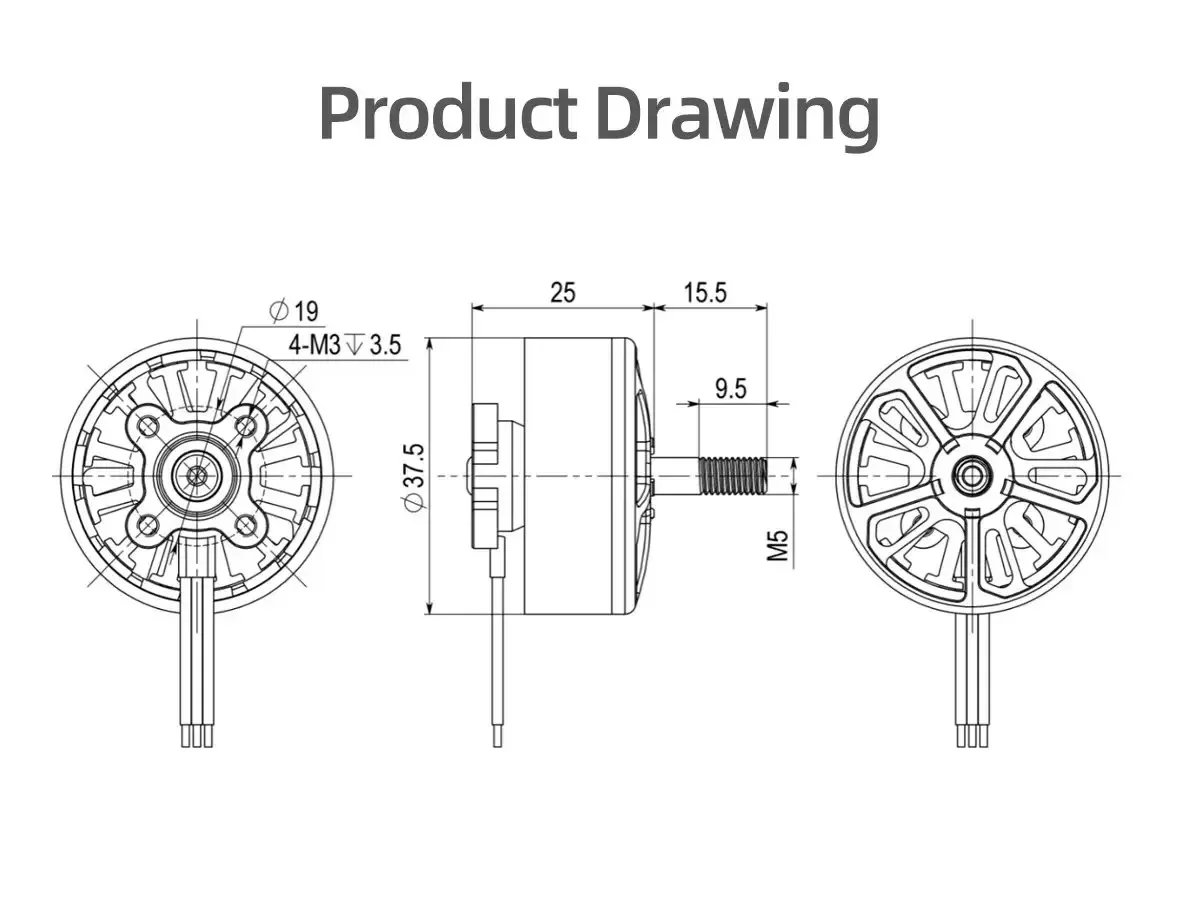

Dimension: φ33mmx26.1mm
Shaft Diameter: φ5mm
Shaft Protruding Length: 16mm
Mounting holes: 19mmx19mm

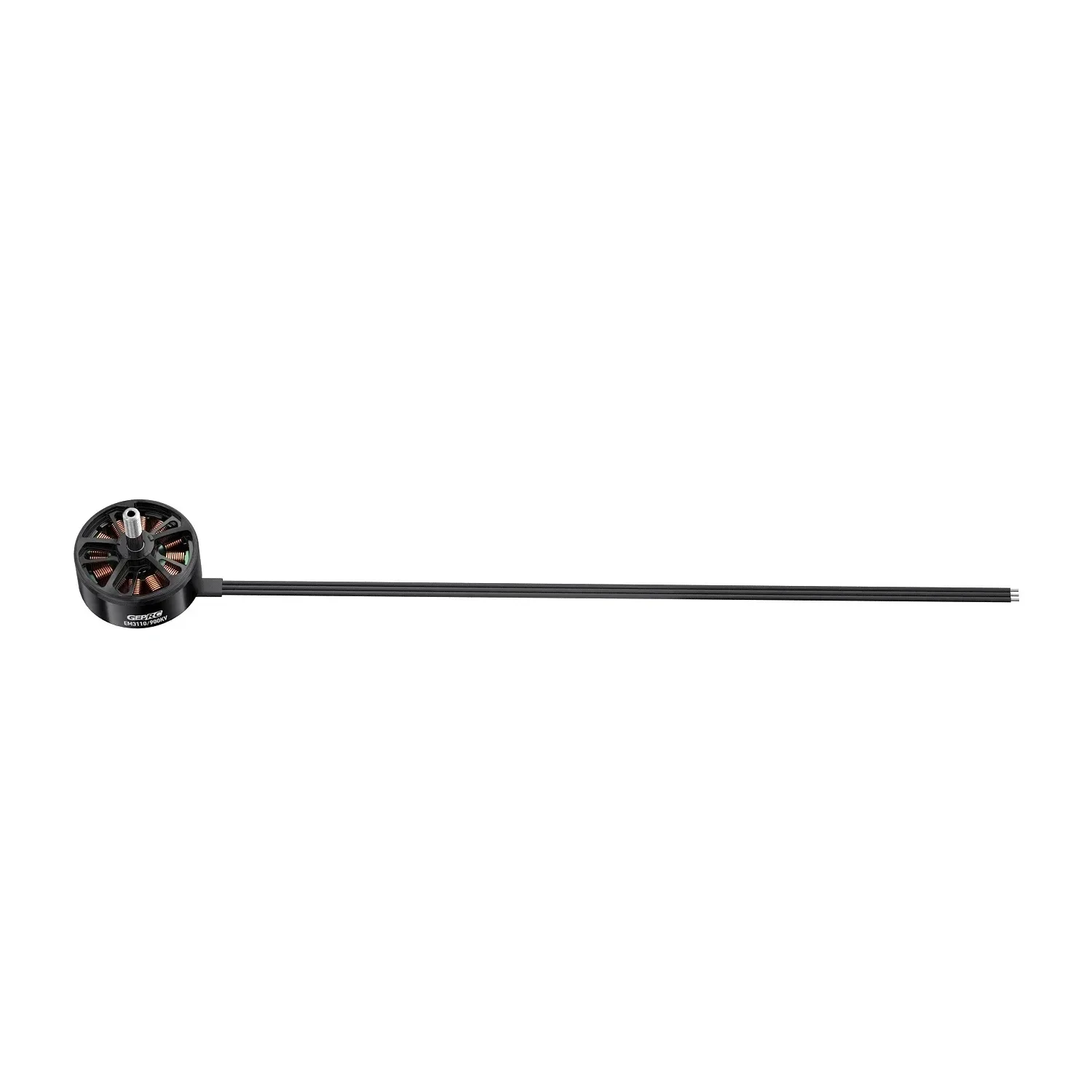

Lead: 310mm/18AWG
ESC: 60A-80A
Input Volts: 25.2V(6S LiPo)
Winding: Single strand copper winding
Weight: 87.5g(included wire)
Applicable models: suitable for 8-10 inch long-distance traversing aircraft
Includes
1 x EM3110 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
Sale!

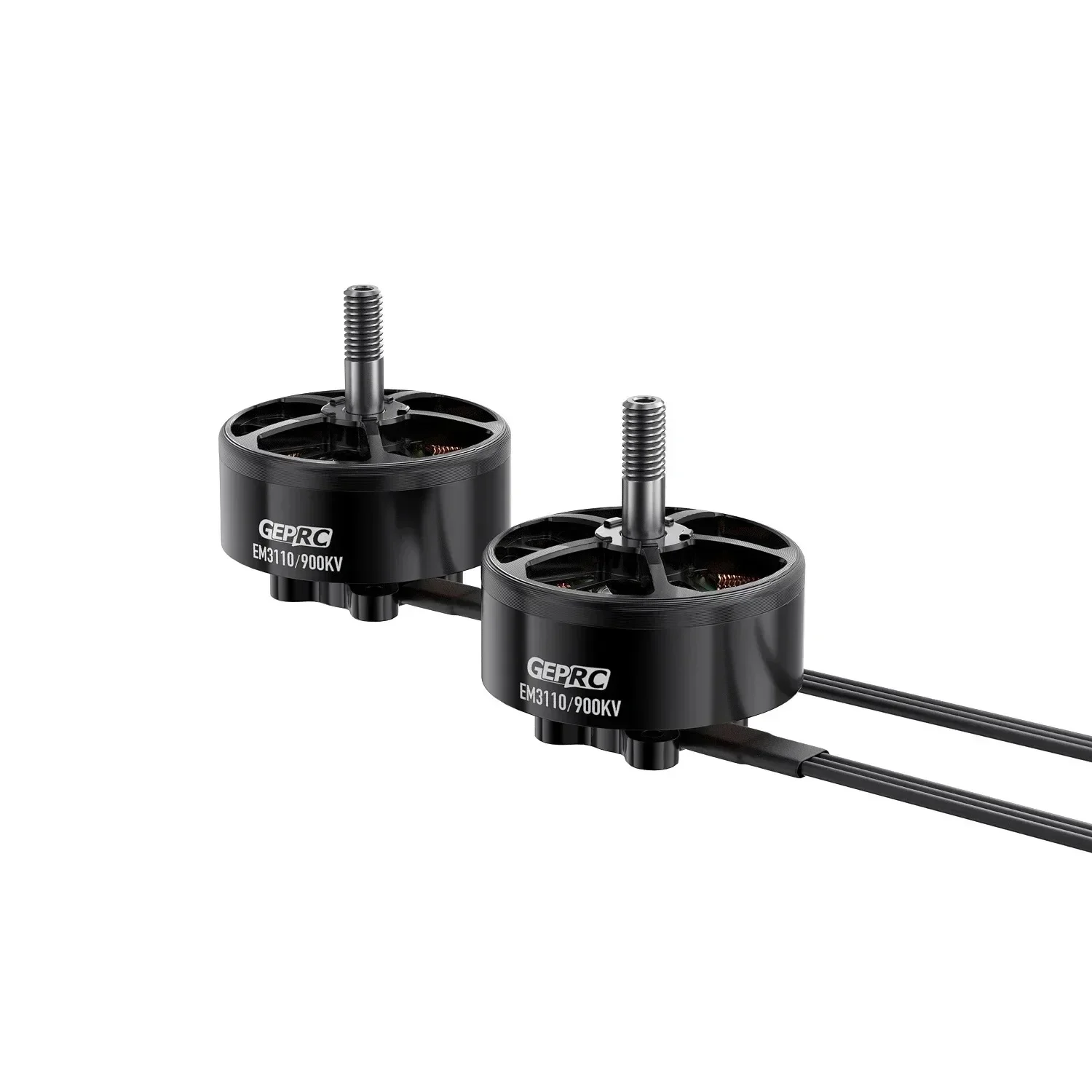

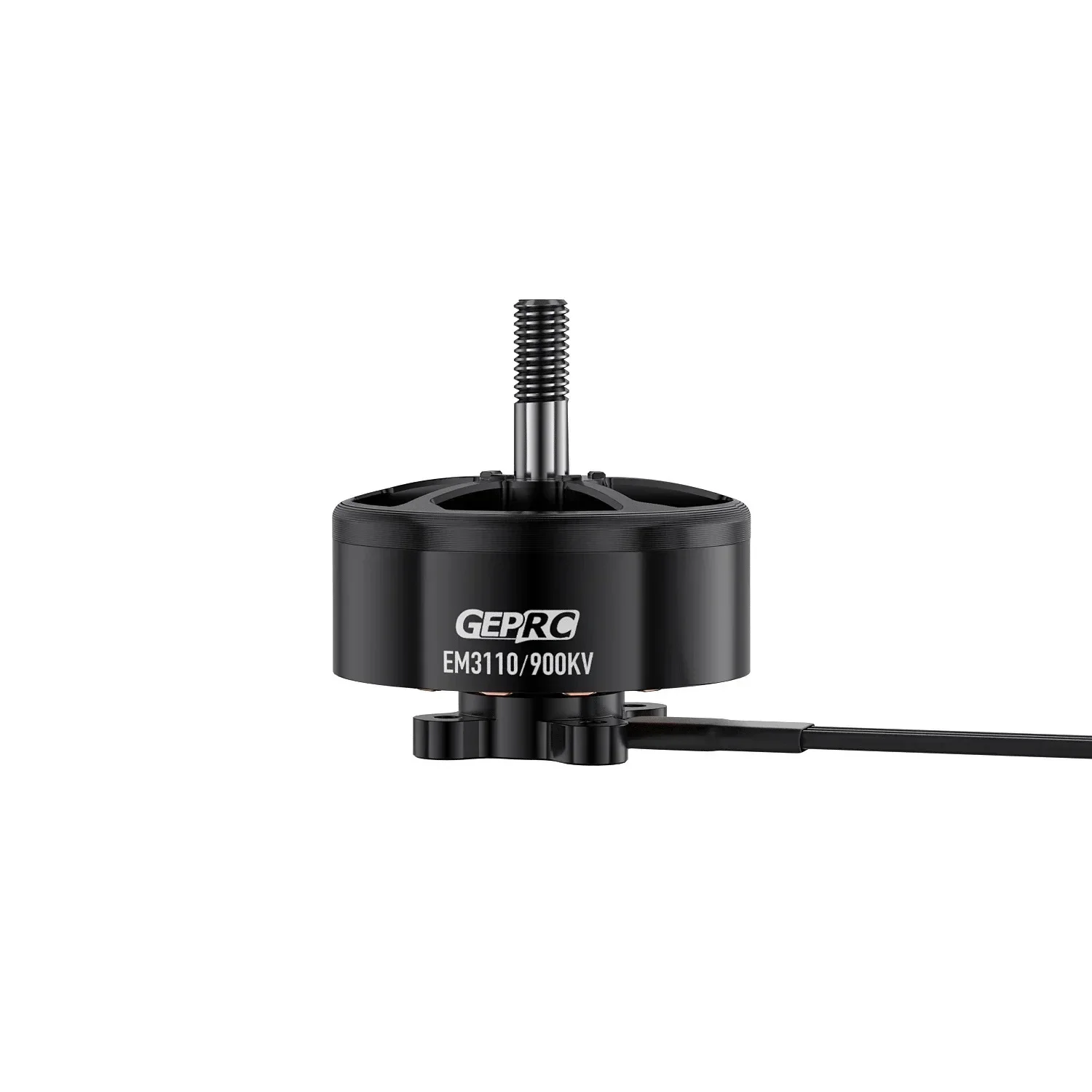

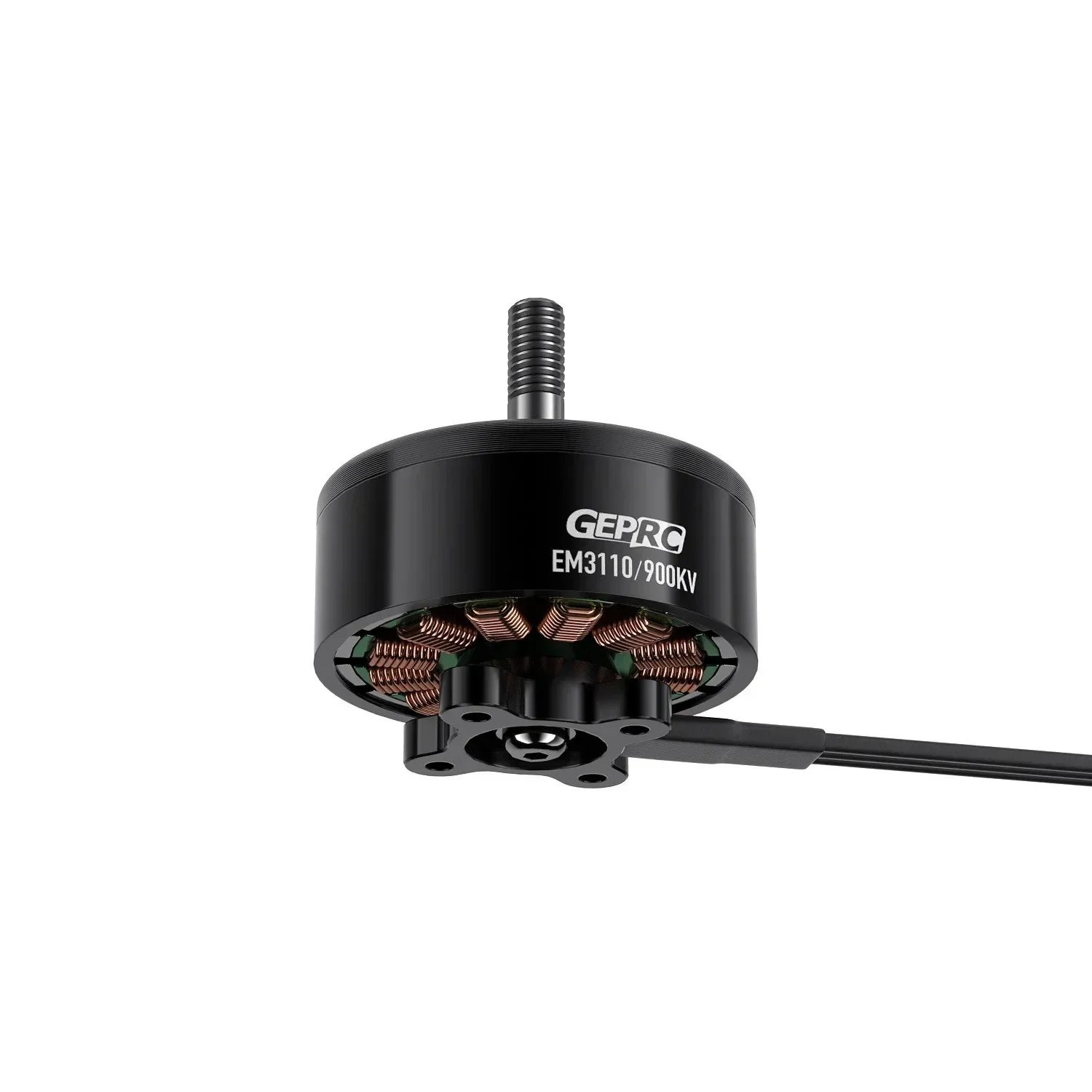

GEPRC EM3110 900KV 6S Brushless Motor for 8-10
$28.52
+ Free ShippingAvailability: 100 in stock
Weight | 0.13 kg |
---|---|
Dimensions | 12 × 10 × 2 cm |
Hign-concerned Chemical | None |
Is Electric | No Battery |
Quantity | 1 pcs |
Wheelbase | Screws |
Is it battery/power supply | N |
Is it charger/adapter | N |
Is Batteries Included | No |
Size | NA |
Technical parameters | value 2 |
Model Number | GEP-EM3110 900KV Motor |
For Vehicle Type | Airplanes |
Tool Supplies | Assembled class |
Four-wheel Drive Attributes | Assemblage |
Remote Control Peripherals/Devices | Remote Controller |
Upgrade Parts/Accessories | Motor |
RC Parts & Accs | Motors |
Material | Composite Material |
Origin | Mainland China |
Recommend Age | 14+y |
Use | Vehicles & Remote Control Toys |
Certification | CE |
