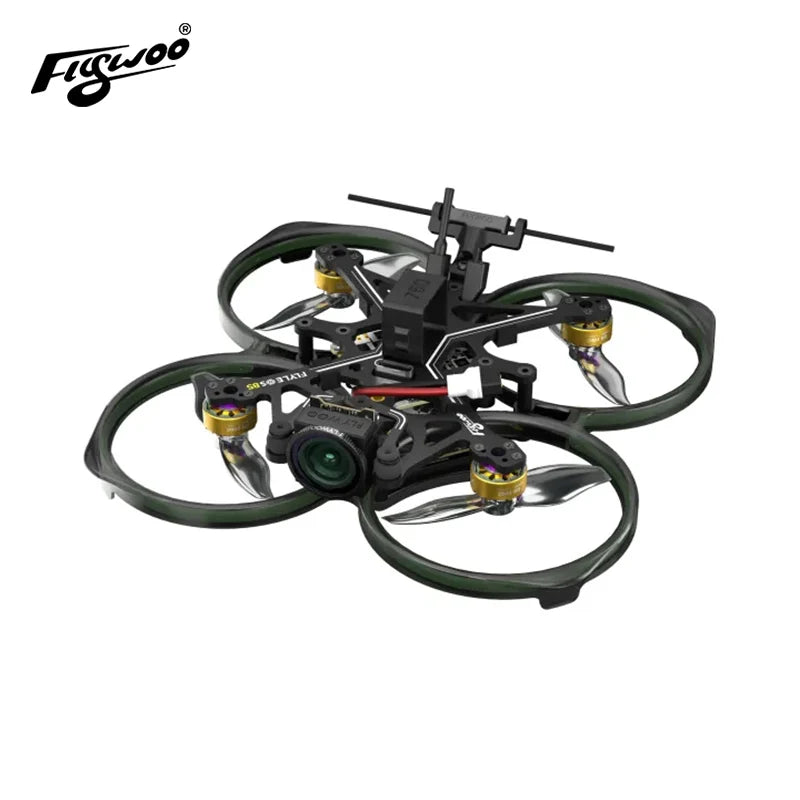

Flywoo Flylens 85 HD O4 PRO 2S LED Whoop FPV Drone V1.3 Mini Quadcopter Racing Drone Streaming

Prices include VAT and any applicable duties

usually dispatched in 2-3 business days.

Product Information

Description

Need be ordered separately and is not part of the drone accessory package.
Flywoo O4 Wide Angle Lens ( Plug & Play Version)

High Performance F405 BGA Flight Controller

The GOKU F405 12A AIO is a highly integrated flight controller with advanced features. It features an F405 BGA chip for enhanced processing power and a 12A 4-in-1 ESC for smooth operation. With 5 UART ports, I2C compass input, and a built-in 2.4G receiver, it offers easy connectivity and upgrades. The lightweight design and 8MB black box storage make it suitable for various applications.

Unique Three-Point Shock Absorption Structure for Stable High-Quality Video Recording

Flylens 85 features a unique three-point shock absorption structure design, ensuring stable high-quality video recording in various environments. Even during daytime flights in bright sunlight, you can capture clear and steady footage, enhancing your flying experience.

This three-point shock absorption structure design effectively eliminates high-frequency vibrations and jelly-like effects, providing excellent anti-shock performance to ensure your video footage remains stable at all times.

(The product model is O3 air unit , for reference only)

Quick-release Battery Compartment
The Flylens75 features a quick-release battery compartment, allowing users to choose from various battery capacities and enabling swift battery replacement.

(The product model is O3 air unit , for reference only)

Flywoo XT30UP

The FLYWOO customized XT30UP connector cable effectively resolves the issue of plug-in breakage. We have meticulously designed a compatible Amass genuine XT30 sheath that not only prevents cable detachment during use but also ensures a more comfortable and easier plugging and unplugging experience.

Specifications

FLYLENS 85 brushless whoop is an innovative small drone carefully crafted by the FLYWOO team that meets international regulations.

It adopts the latest O4 digital transmission system and is available in an optional O4 version, making it the lightest O4 2-inch drone on the market.

The carbon fiber frame has undergone a special carbon black treatment process. The reverse push propeller structure increases power, reduces noise, and easily adjusts the battery’s center of gravity position.

Small size, lightweight, less than 100g, lightweight 2-inch drone.
O4 digital transmission system, long-distance, 4K high-definition, low latency
High-strength PC injection-molded protective ring enhances the strength and safety of the drone.
Unique CNC damping platform for camera, no jelly effect, records high-quality video
Quick-detachable frame for easy separation of parts.
Reverse push propeller power for stable flight and longer endurance.
Equipped with wireless control neon light strip and can carry external devices.

Model	Flylens 85 HD O4 2S Whoop FPV Drone
Frame	Flylens 85 O3lite / O4 Frame kit
Electronic	GOKU F405 HD 1-2S ELRS AIO V2 （42688）
Transmission	DJI O4 Air Unit
Camera	DJI O4 Air unit
Propeller	2015 2-Blade Propeller
Motor	ROBO 1003 14800KV
Antenna	Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL
LED	Flywoo Flexible LED + 3.3V Bec 2.7mm
Weight	68.8g
750mah Battery	( 24% Take off thrust / 7m30s / 75km/h )
1000mah Battery	( 27% Take off thrust / 9m / 75km/h )

Model	Flylens 85 HD O4 Wide 2S Whoop FPV Drone
Frame	Flylens 85 O4 Pro Frame kit
Electronic	GOKU F405 HD 1-2S ELRS AIO V2 （42688）
Transmission	DJI O4 Air Unit
Camera	Flywoo O4 Wide Camera
Propeller	2015 2-Blade Propeller
Motor	ROBO 1003 14800KV
Antenna	Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL
LED	Flywoo Flexible LED + 3.3V Bec 2.7mm
Weight	75.3g
750mah Battery	( 26% Take off thrust / 6m30s / 70km/h )
1000mah Battery	( 29% Take off thrust / 8m / 70km/h )

In the box :

1* Flylens 85 HD O4 2S Whoop FPV Drone

1* USB Data Cable For 04 Air Unit 90° Type C

1* 2S 550mah battery tpu mount

1* 2S 750mah battery tpu mount

1* 2S 1000mah battery tpu mount

1* O4 UV Filter （Only the O4 version includes filters）

8* 2015-2 Props

1* Screwdriver

1* hardware set

1* Flylens 85 HD O4 Wide 2S Whoop FPV Drone

1* USB Data Cable For 04 Air Unit 90° Type C

1* 2S 550mah battery tpu mount

1* 2S 750mah battery tpu mount

1* 2S 1000mah battery tpu mount

1* O4 Wide ND Filter （Only the O4 Wide version includes filters）

8* 2015-2 Props

1* Screwdriver

1* hardware set

FAQ

Q: What is “FLY” Series ？

A： The FLY series is a 2S Done series. Members contain Flylens 75 / Flylens 85 / Flytimes 85 / Flybee 16 / Flybee 20.

The “FLY” series of Flywoo is like a magical flight cube. Each turn and recombination shows a new look. The series has a consistent powerful power unit (AIO / motor and most same Component ), like a stable heart. It offers new flight experiences with every form. You’re a creator here. Easy hands-on practice unlocks diverse gameplay.

Q：Can the Flylens 85 Drone kit install my FLYWOO O3 Lite air unit?

A: Of course. We reserved the same 18mm camera size. Compatible with O3 lite and O4

Q: How do I get CLI and STL files?

A: Please go to the FLYWOO Support Center.

Q: How do I upgrade my Flywoo O3 lite drone to O4 version?

A: Please order theFLYWOO O4 Shell Case and you will easily install the O4 Air unit
