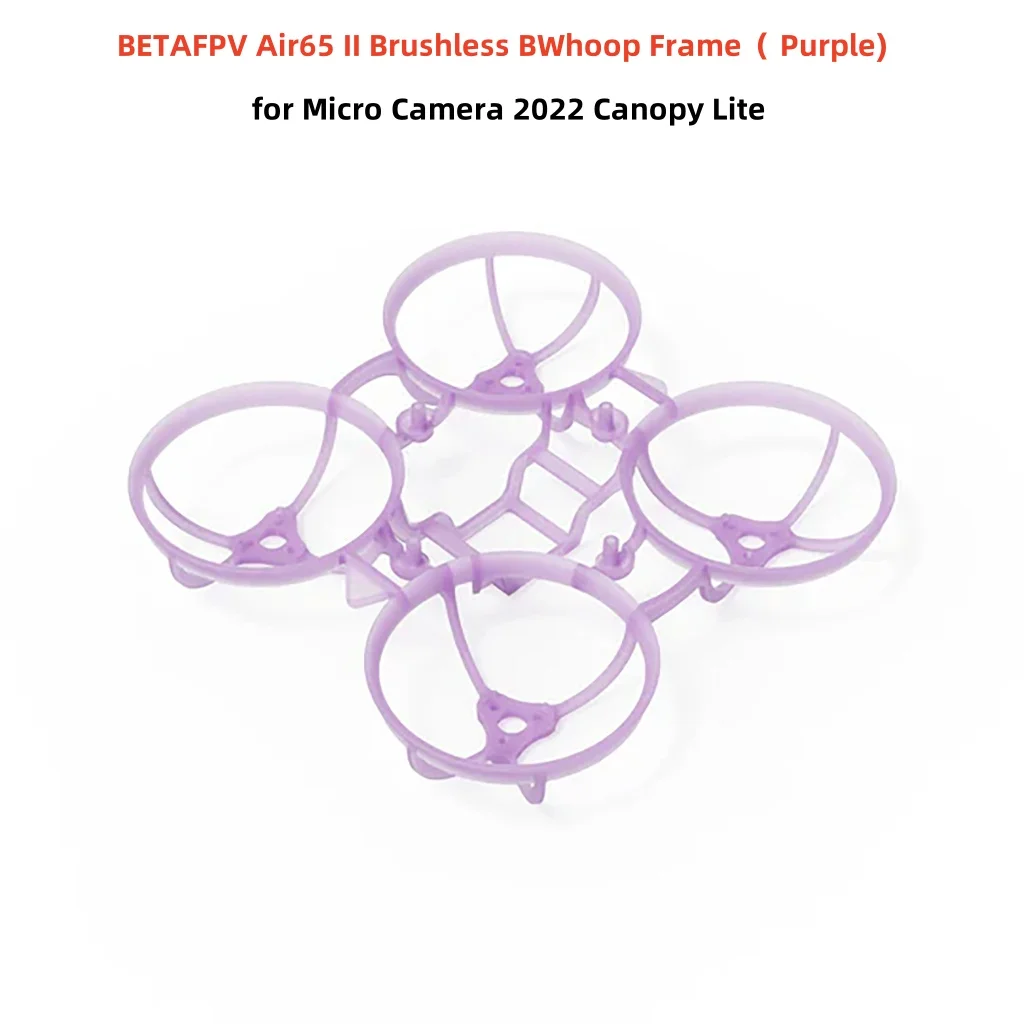

BETAFPV Air65 II Brushless BWhoop Frame/Air75 II Brushless BWhoop Frame for Micro Camera 2022, Micro Canopy Lite for O4 Air Unit

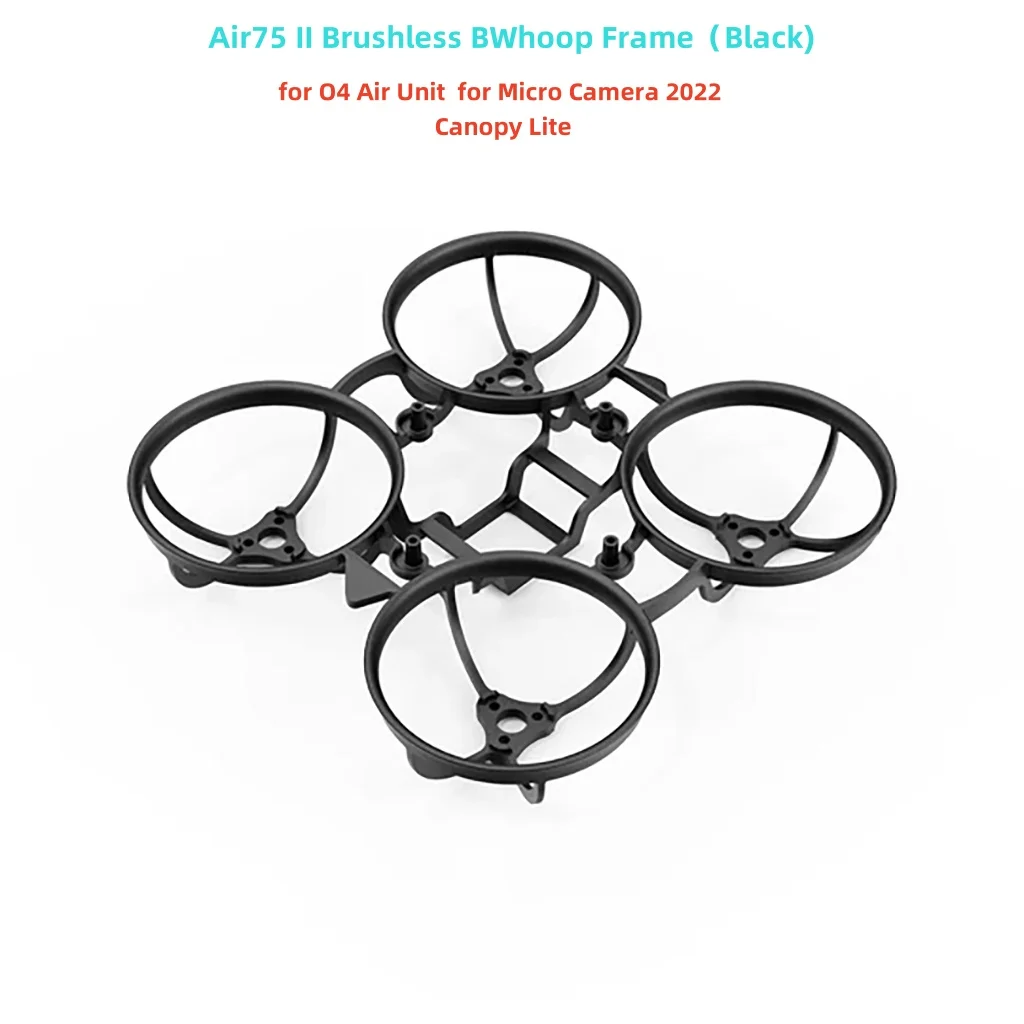

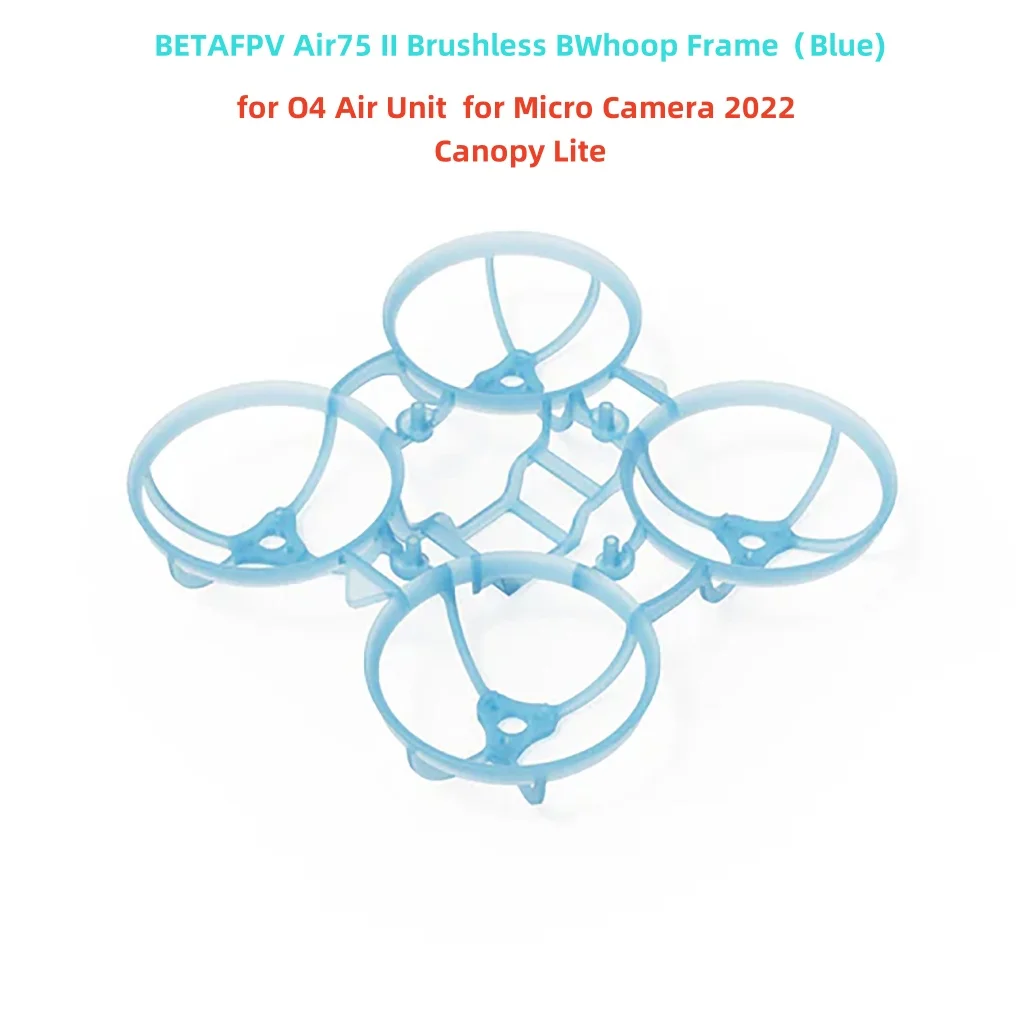

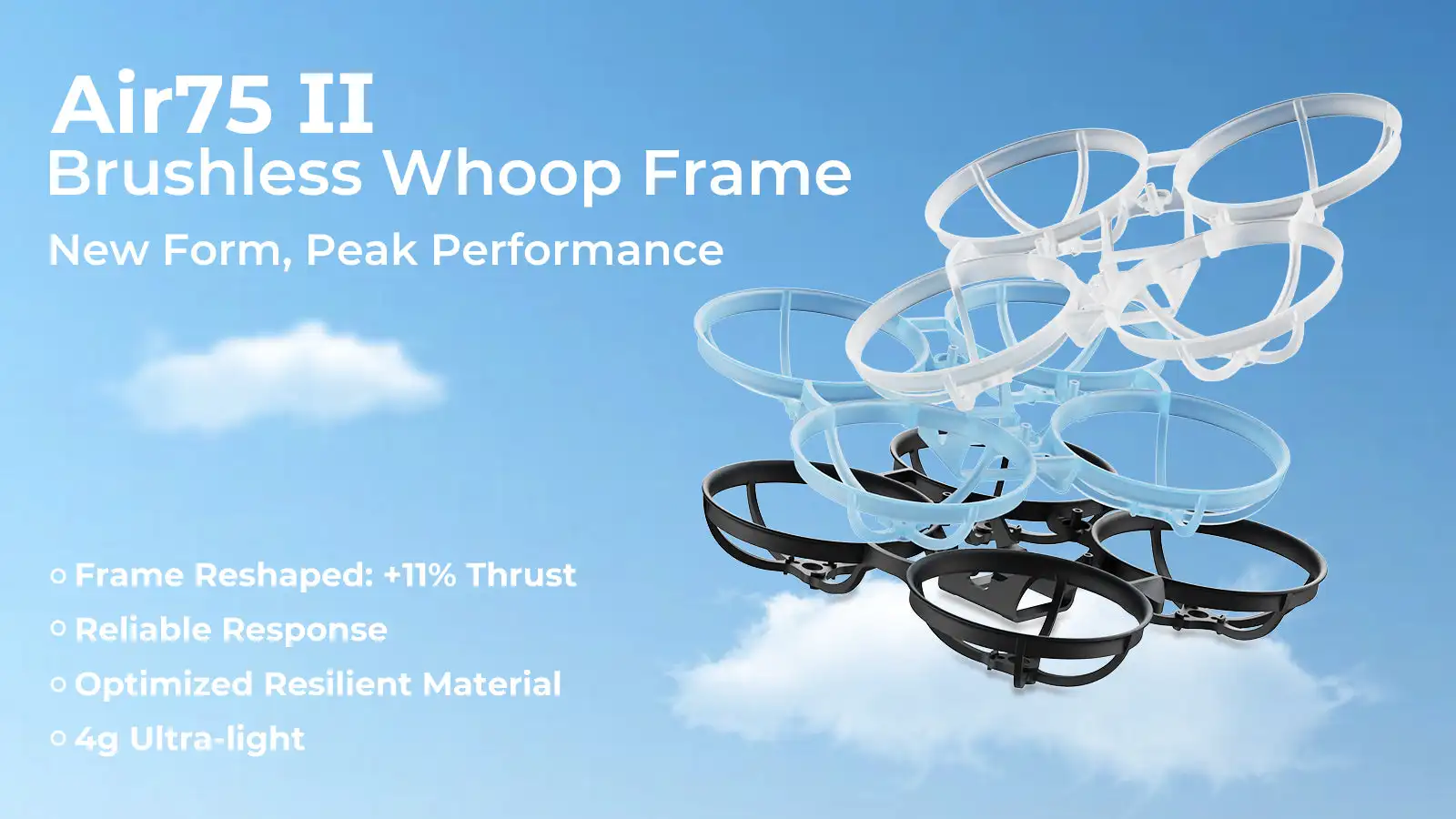

Notice：BETAFPV Air75 II Brushless BWhoop Frame for Micro Camera 2022, Micro Canopy Lite for O4 Air Unit GF 40mm 2-Blade Propellers, GF 1611 3-Blade Propellers 0702 II Brushless Motors, 0802SE Brushless Motors, 1102 Brushless Motors
Notice：
BETAFPV Air65 II Brushless BWhoop Framefor Air Canopy Micro Camera 2022, Micro Canopy Lite GF 1219S 3-Blade Propellers, HQ 31mm Ultralight 3-Blade Propellers 0702 II Brushless Motors, 0802SE Brushless Motors

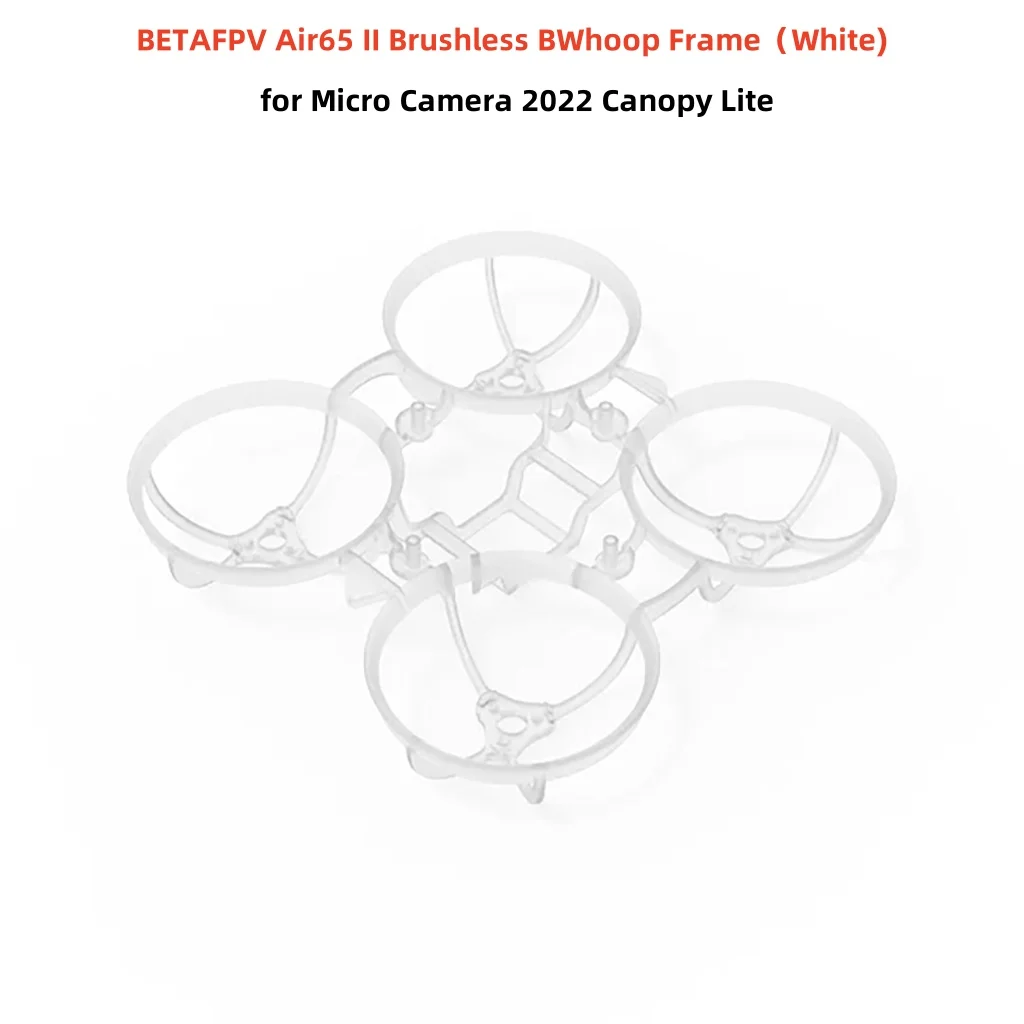

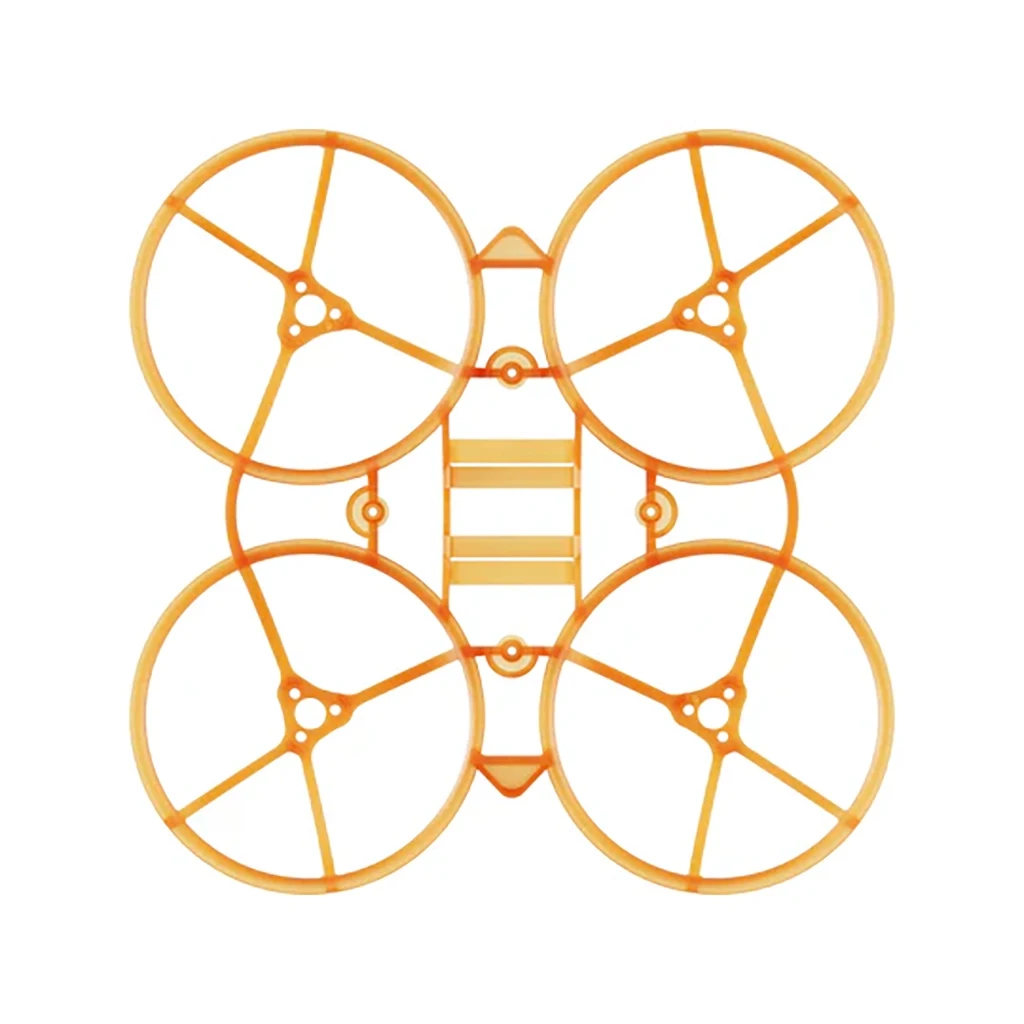

BETAFPV Air65 II Brushless BWhoop Frame

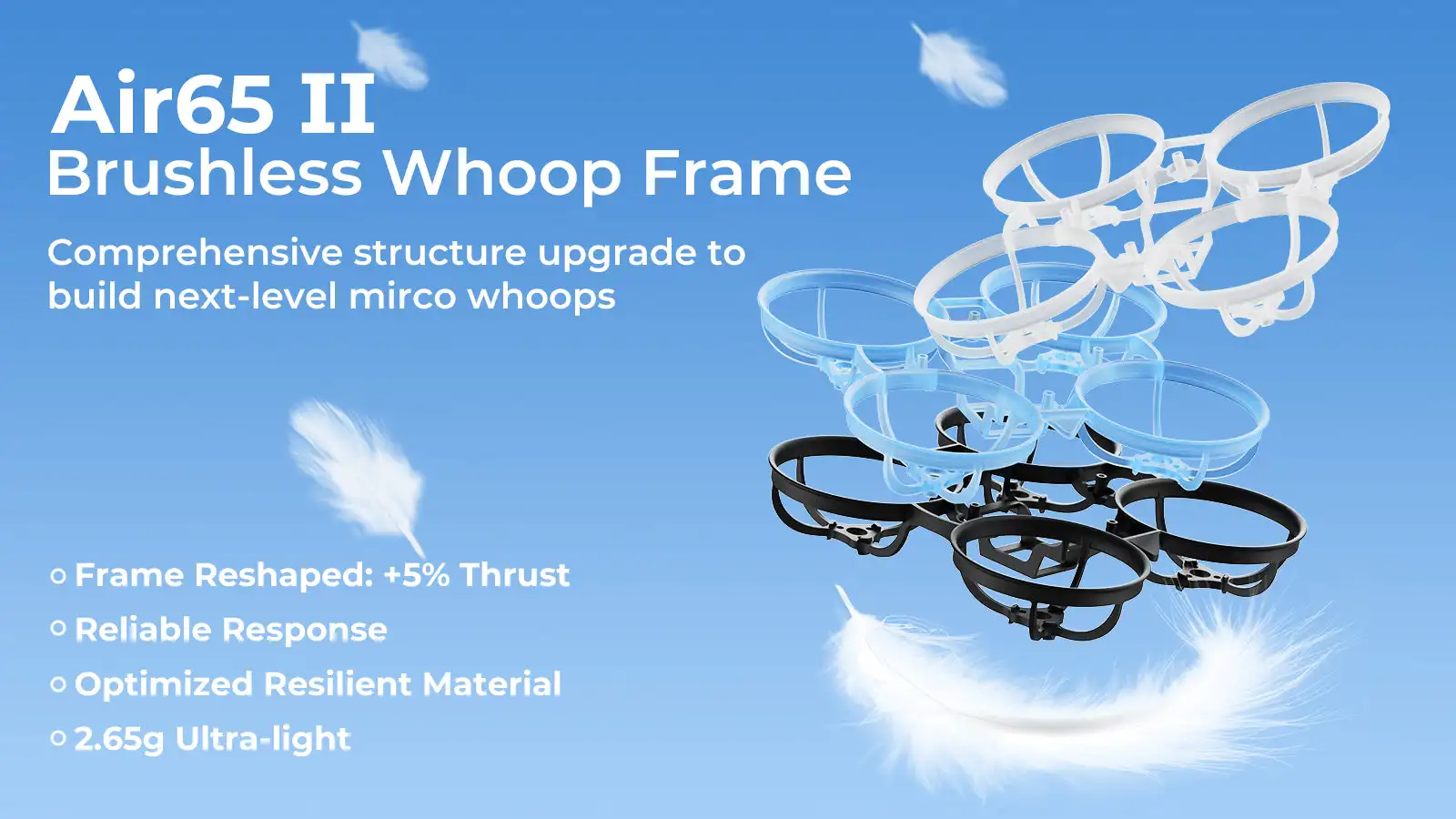

For nearly two years, theAir65 Framedefined lightweight agility. Now, forged alongside our global pilot community, the 2.65g Air65 II Frame reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result? A radical yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 5% thrust and delivering near-perfect PID response. Beneath the form lies resilience. An optimized PP matrix absorbs brutal impacts from crashes. Refined details – screw protection structure, enlarged FC holes, and a lowered duct profile – ensure dominance. All engineered for relentless, worry-free flying.
Bullet Points

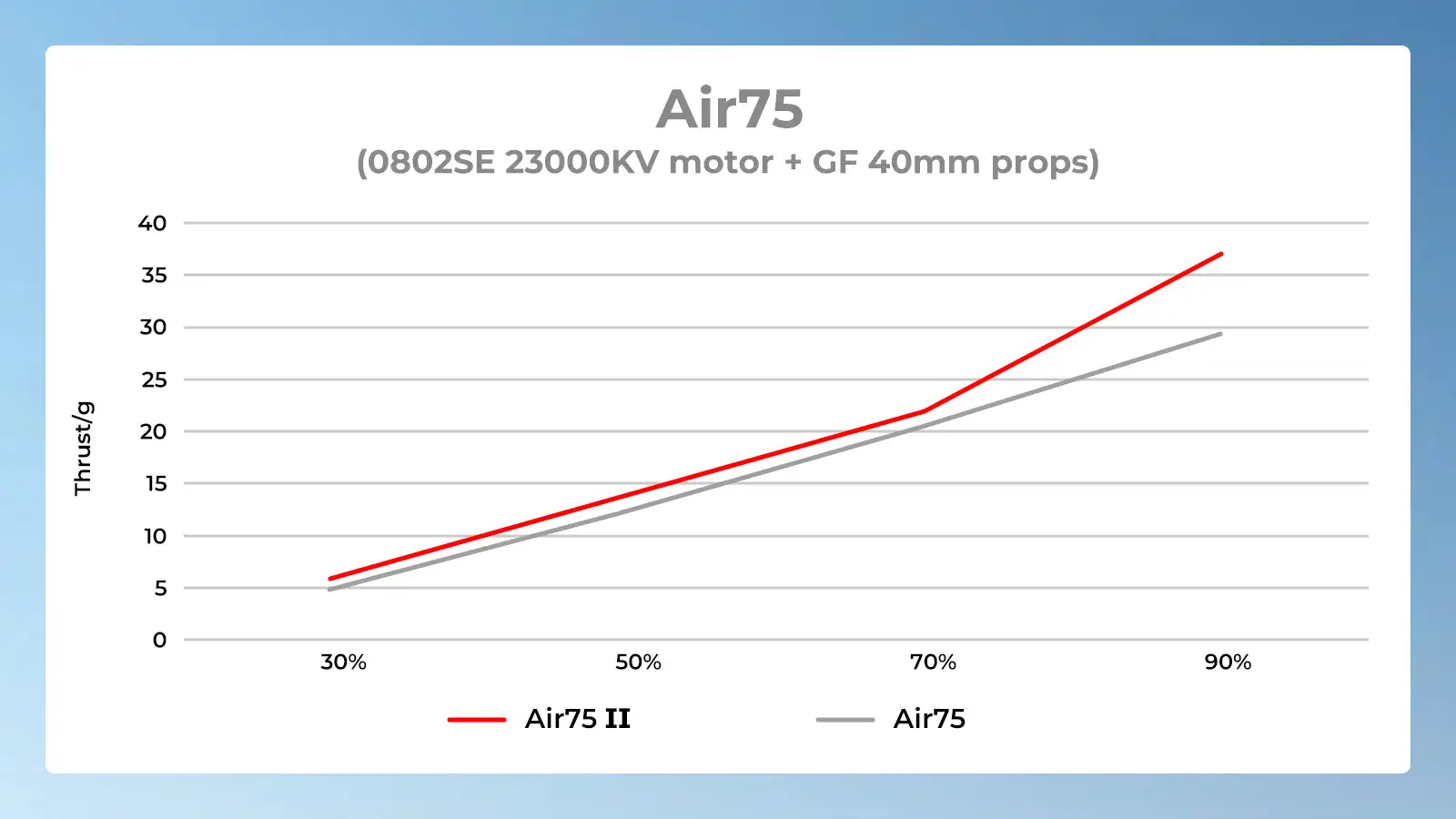

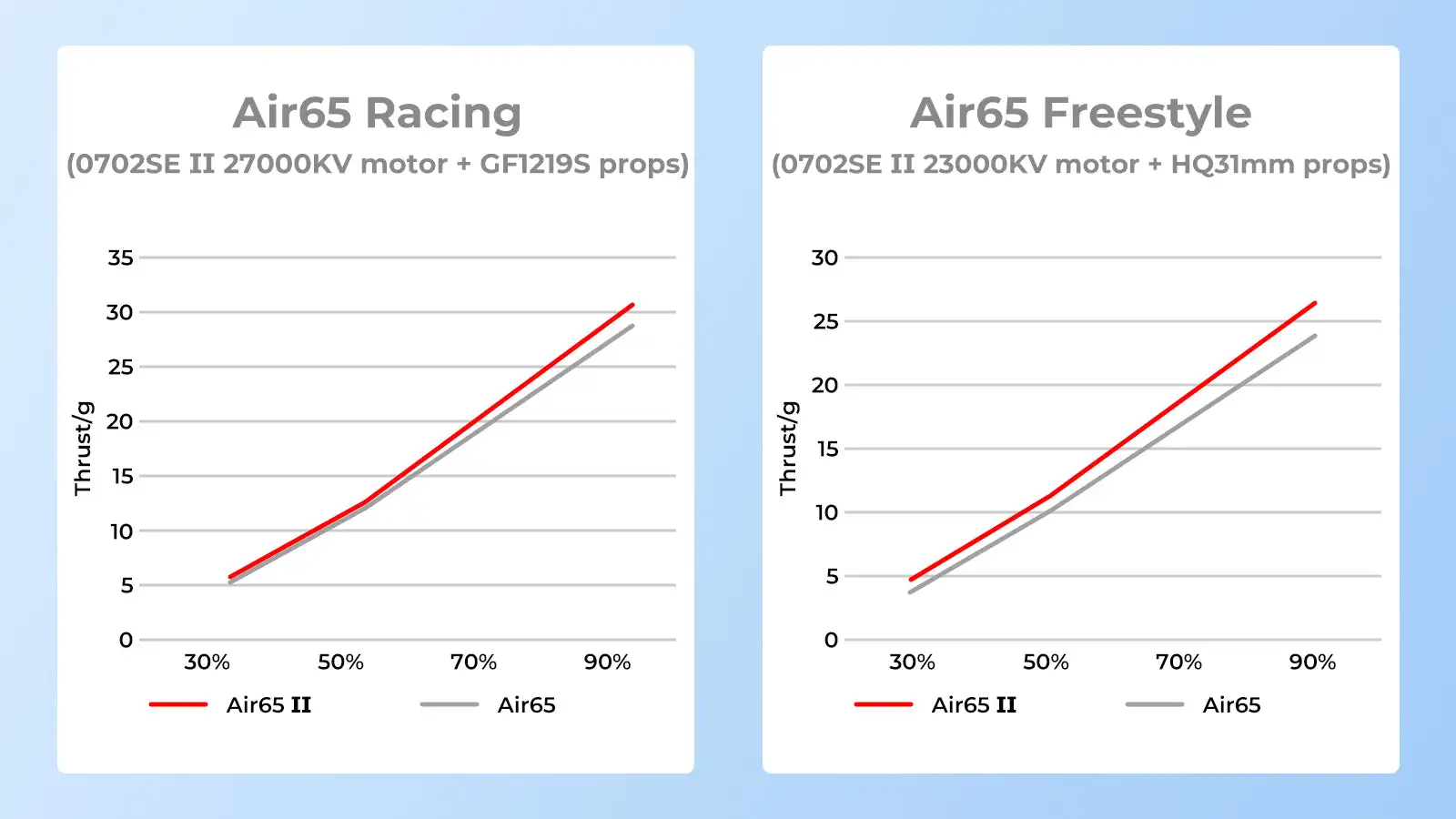

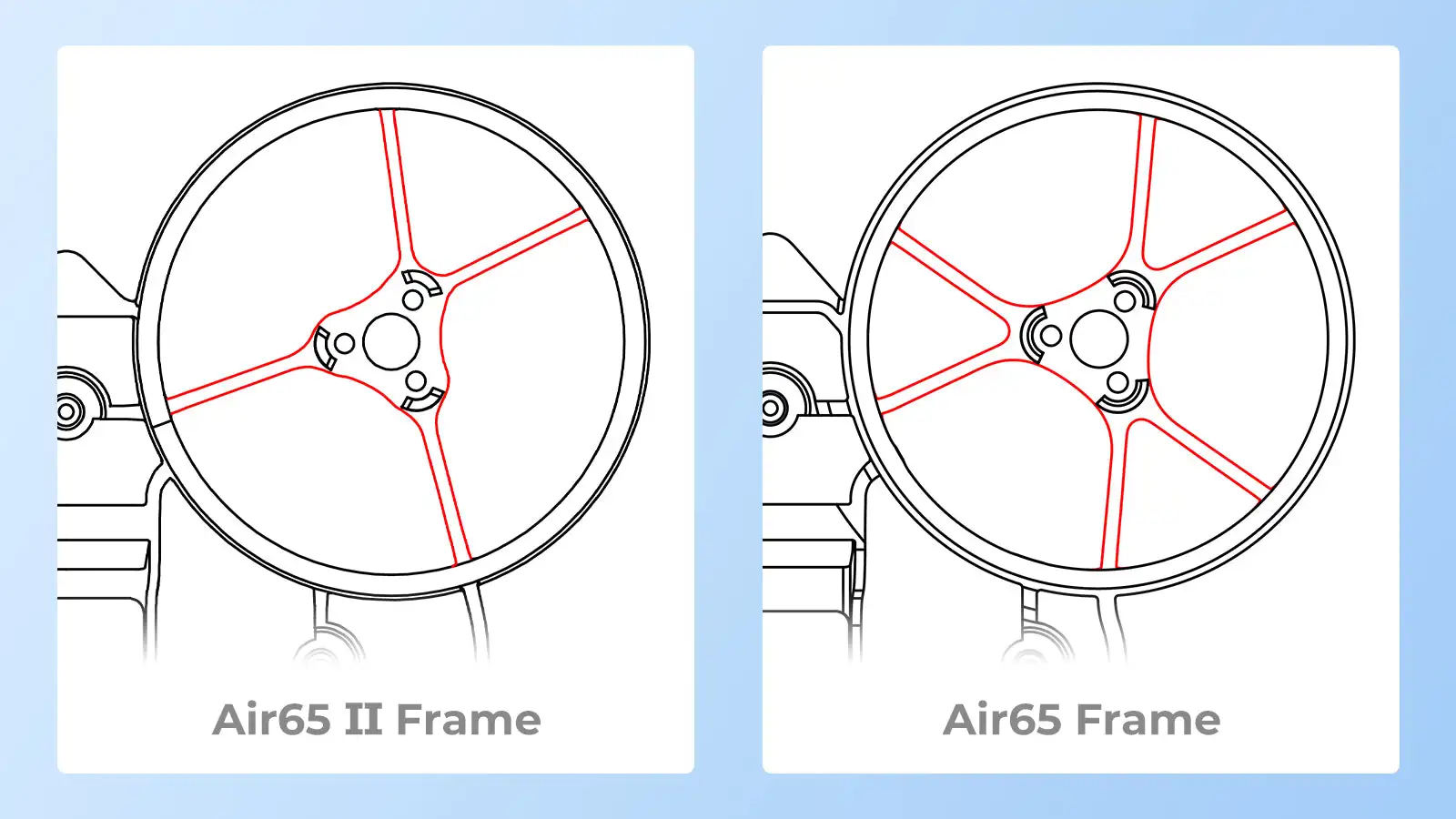

Arm braces reduced from 6 to 4 + optimized duct geometry increase 5% thrust—while maintaining uncompromising durability.

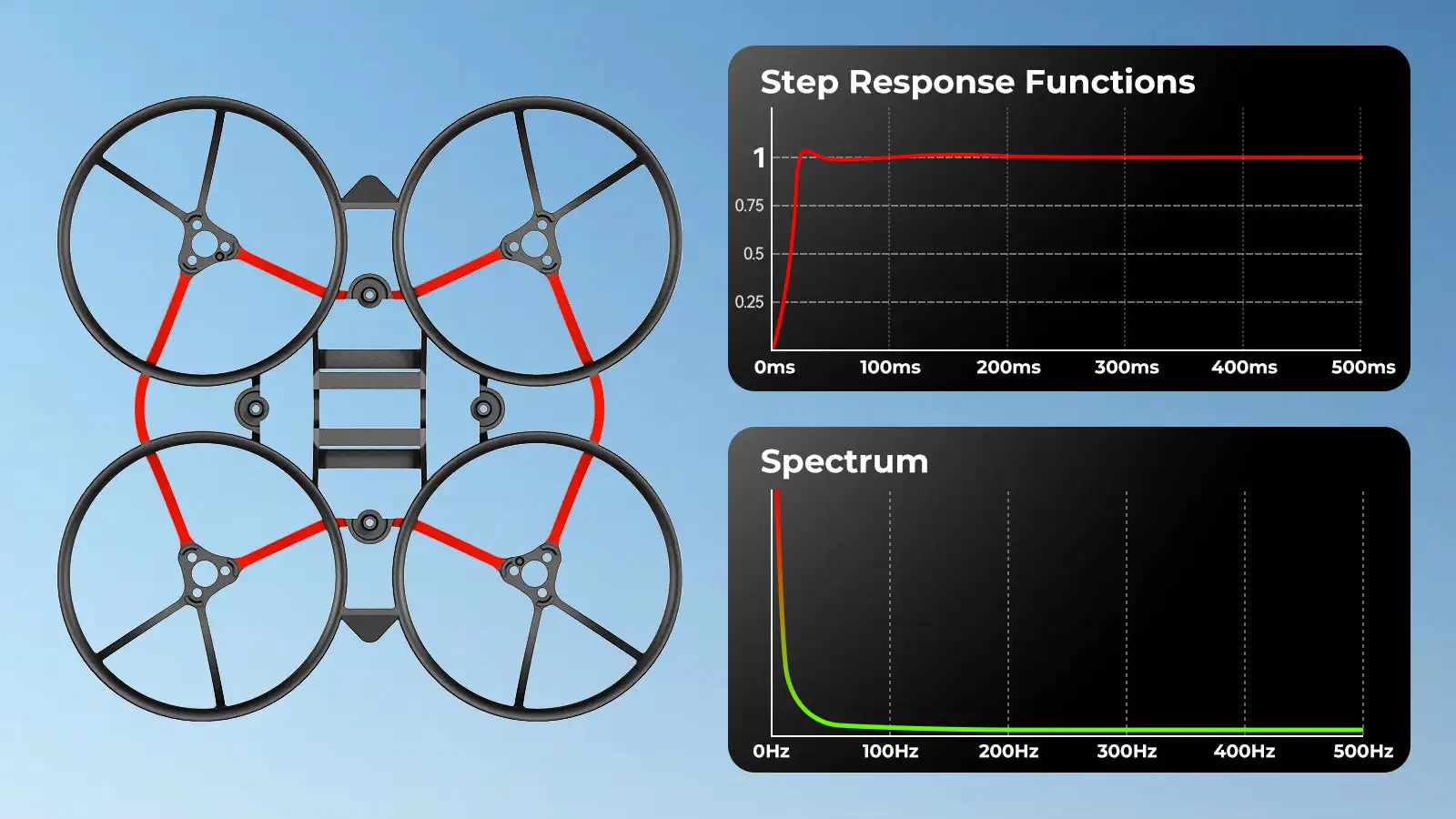

Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.

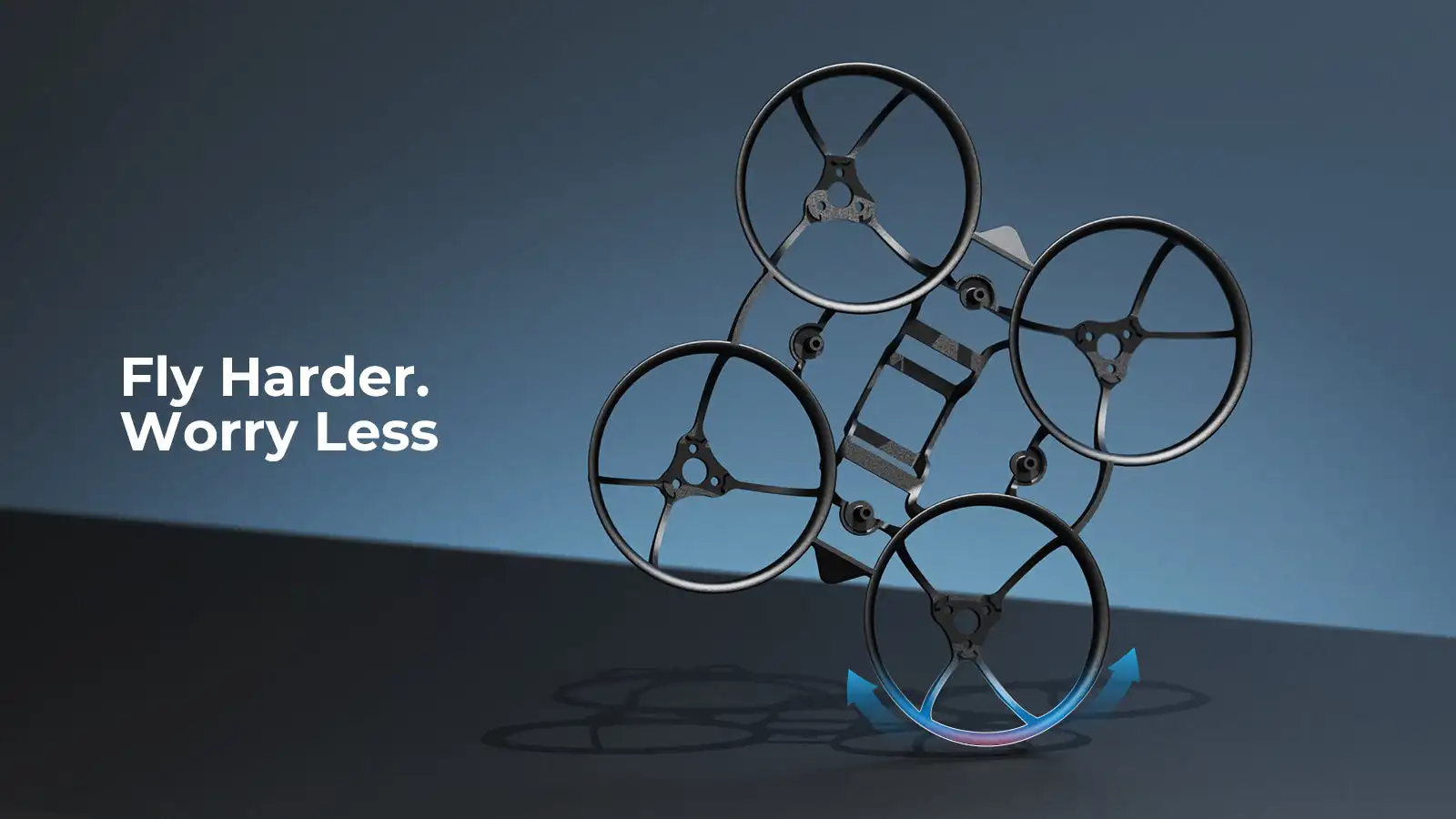

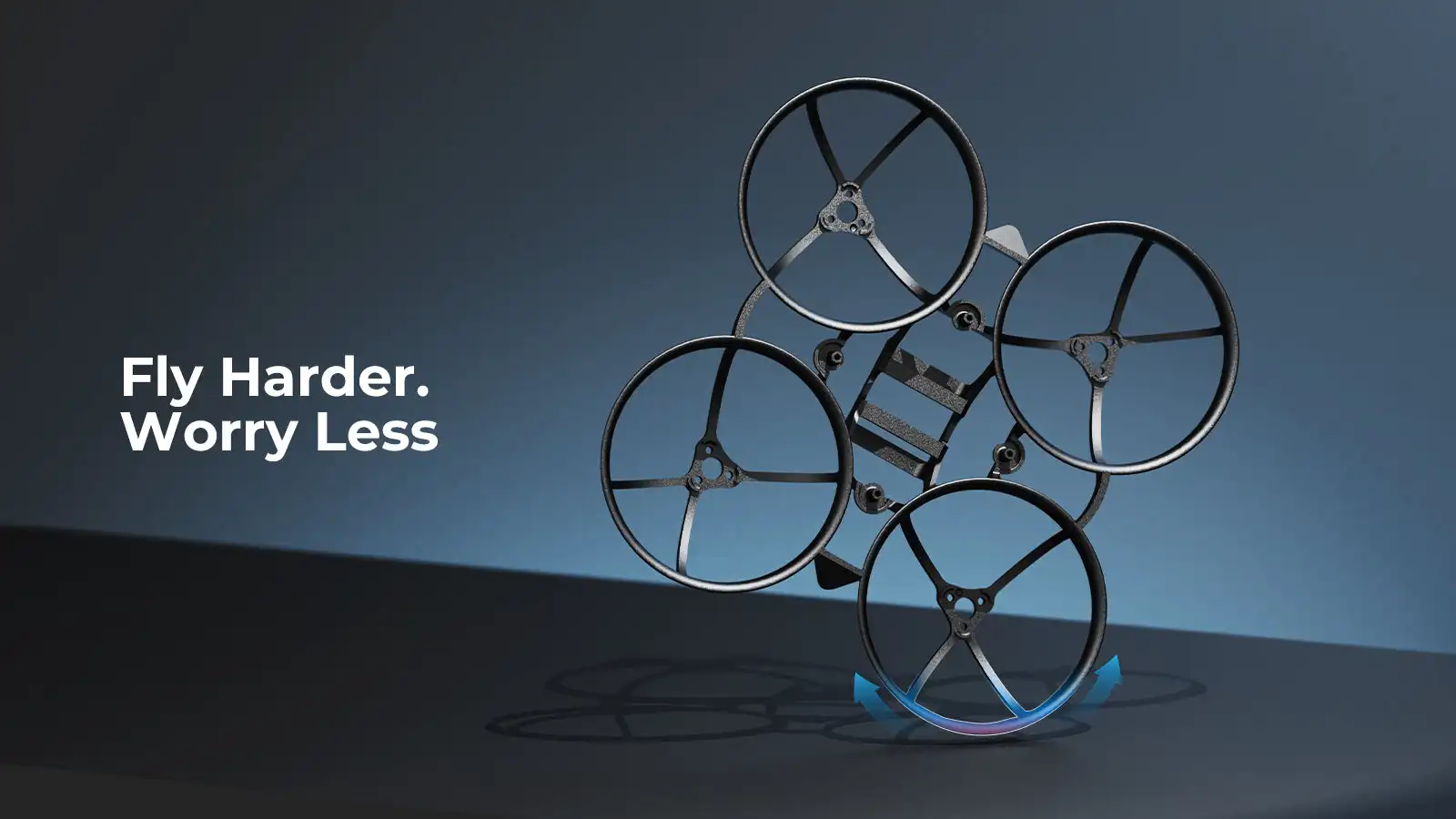

Optimized PP blend makes it crash ready.

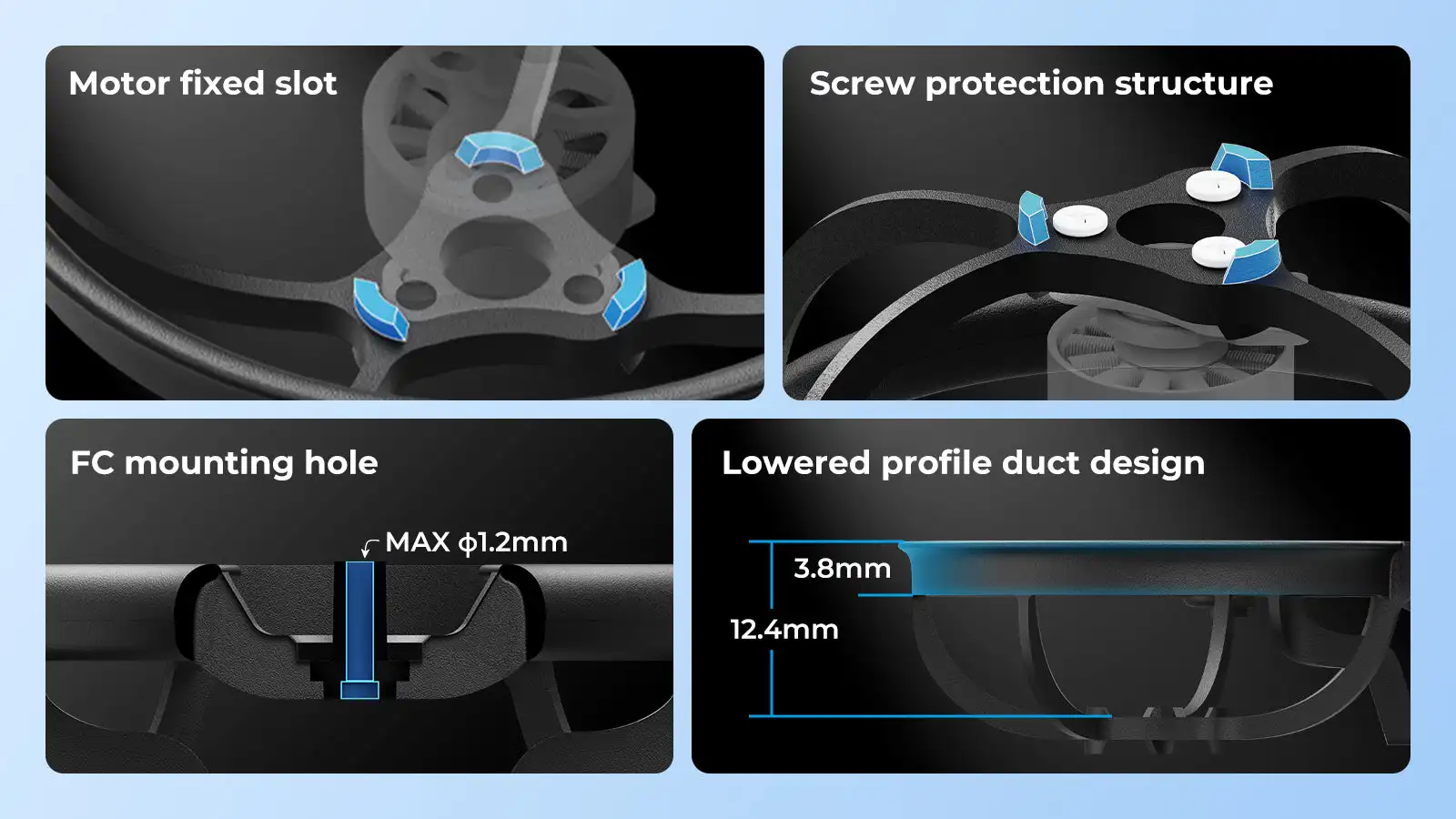

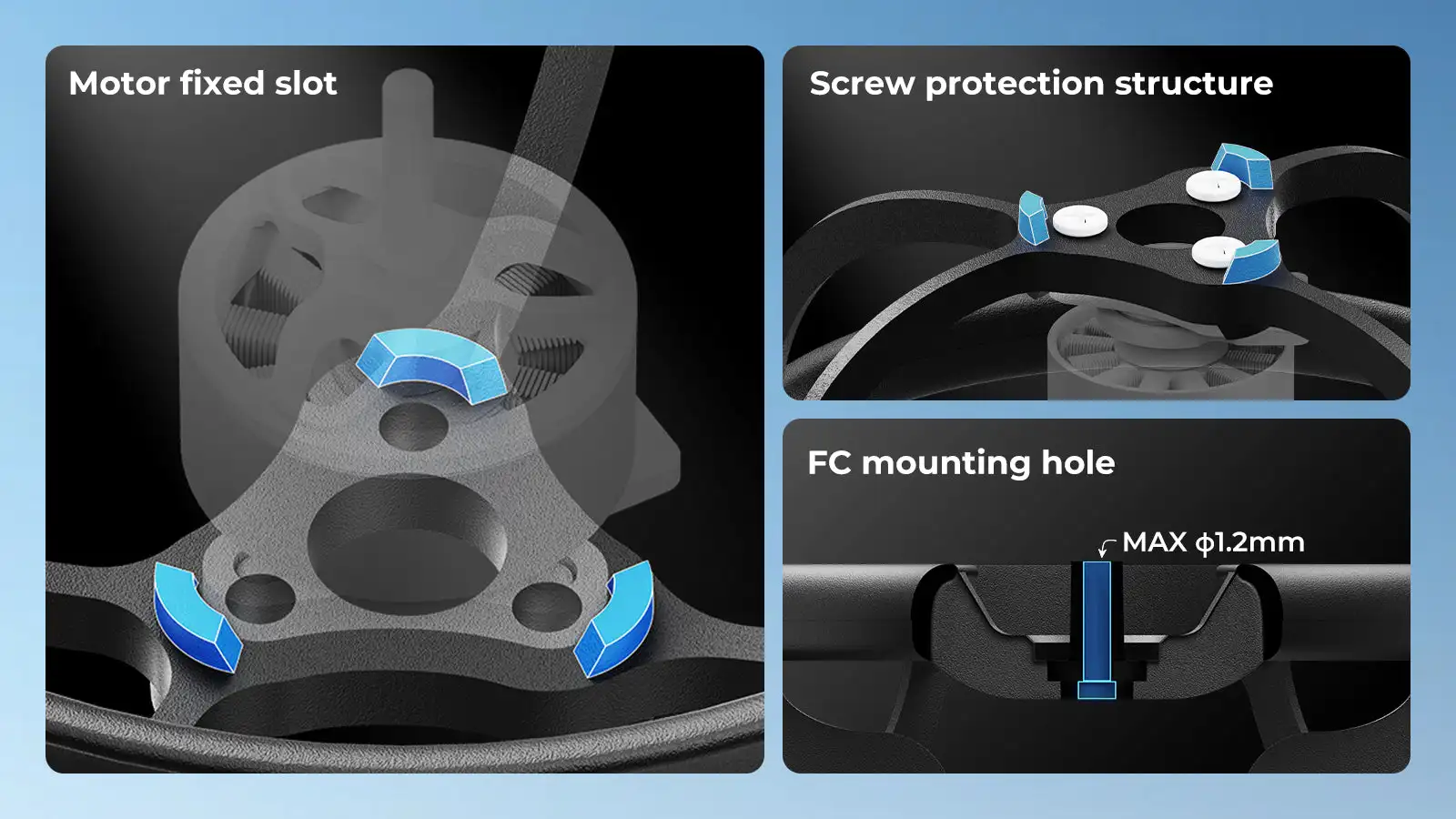

Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.

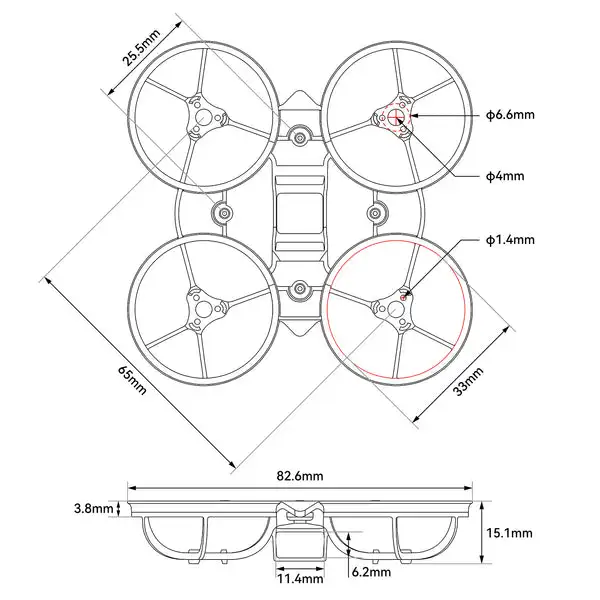

Specifications
Item: Air65 II Brushless Whoop Frame
Material: PP
Weight: 2.65g
Wheelbase: 65mm
Motor Mounting: 3-M1.4-6.6mm
Flight Controller Mounting Hole: 25.5×25.5mm
Battery Slot Size: 11.4×6.2mm
Maximum Size: 82.6*82.6*15.1mm

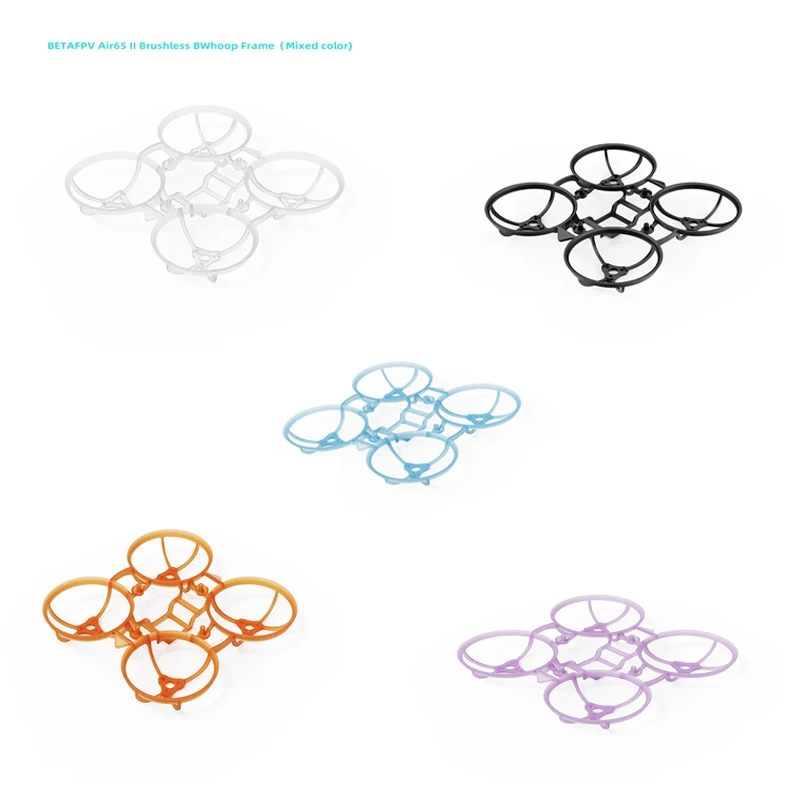

Color: Black, Transparent Blue, Transparent Orange, Transparent Purple, Transparent White
Air65 II Brushless Whoop Frame
Air65 Brushless Whoop Frame
Weight
2.65g
2.67g
Duct Diameter
33mm
32.3mm
Duct Height
3.8mm
