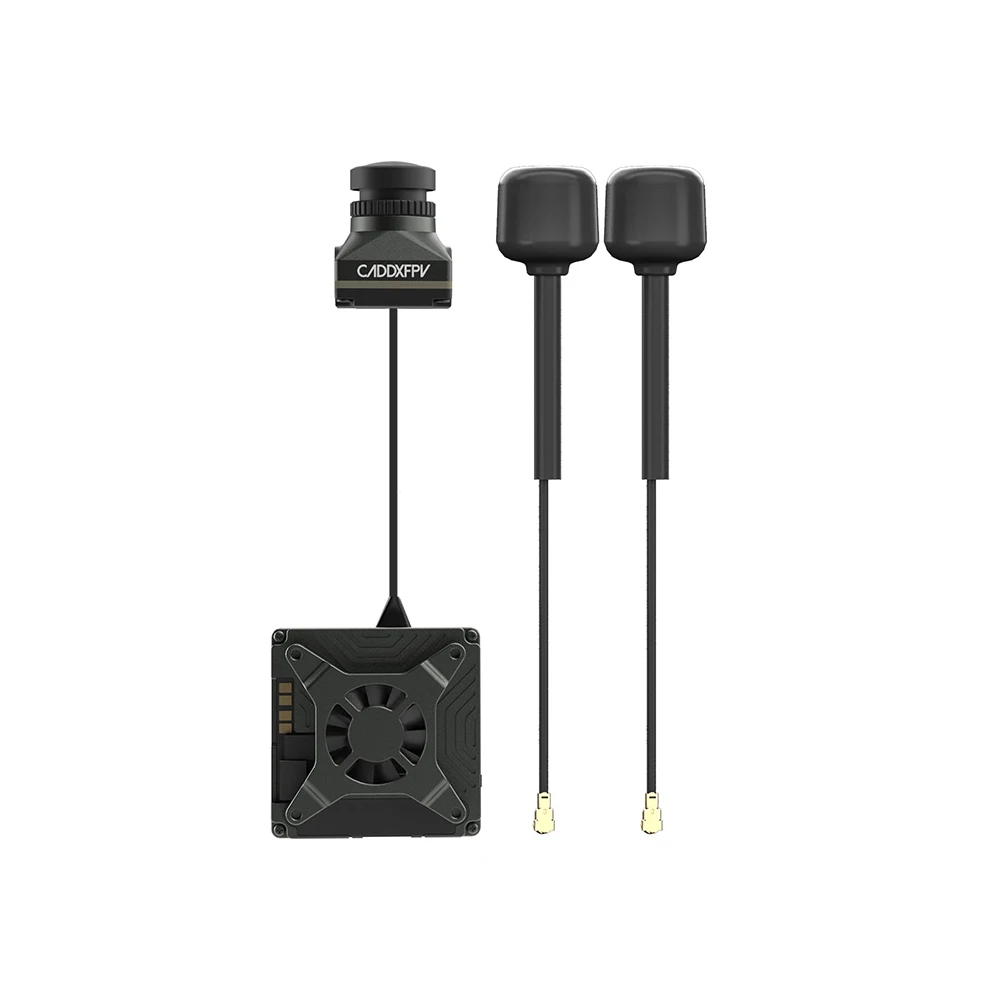

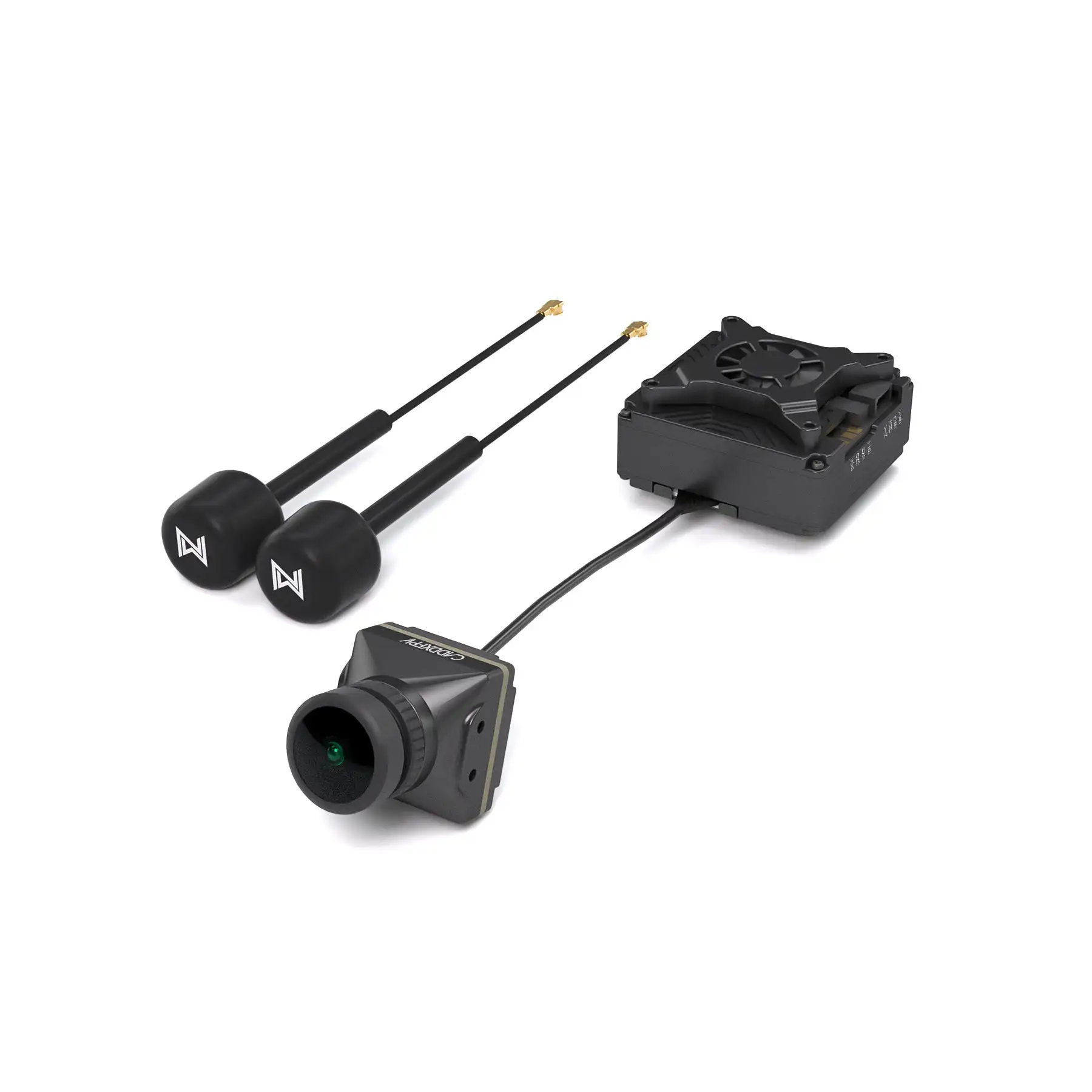

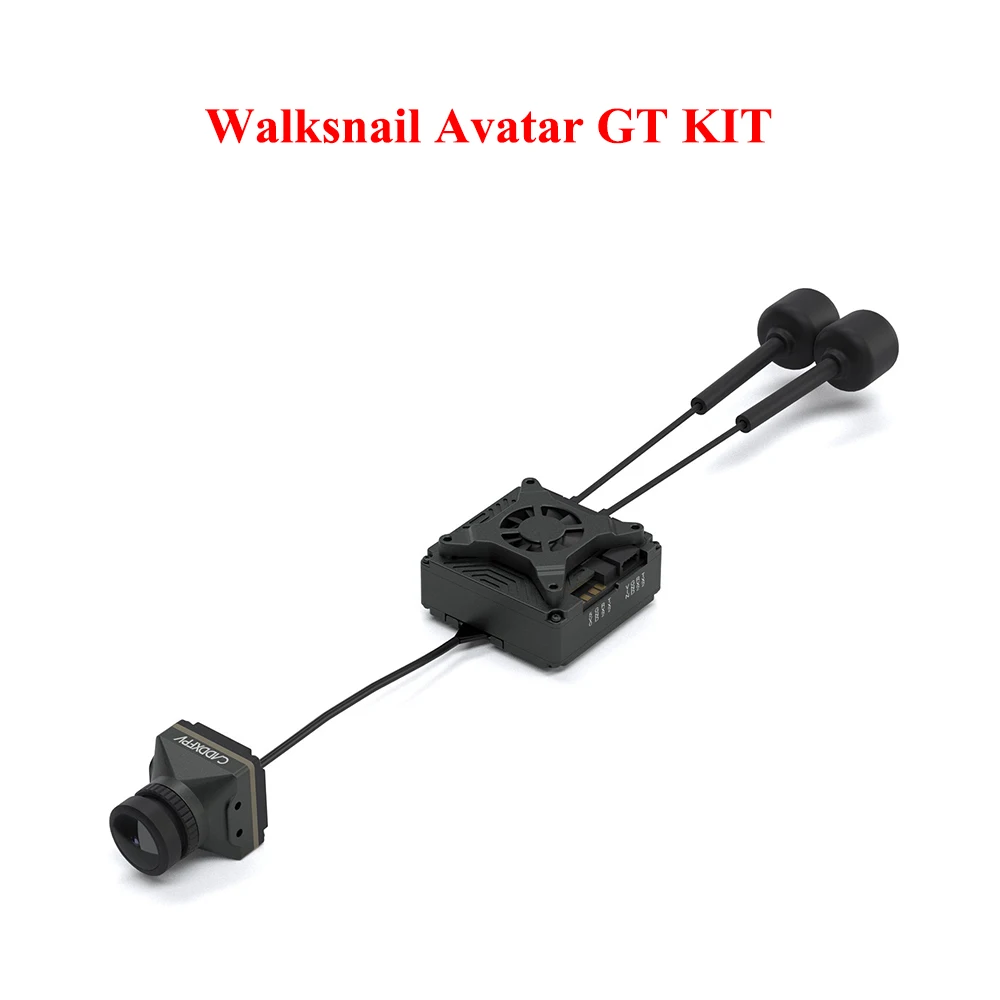

Walksnail Avatar GT KIT Avatar HD Pro Camera 1080P 160°FOV Gyro 1/1.8 Inch Camera Transmission FPV Ratio 16/9 4/3

Bullet Points:

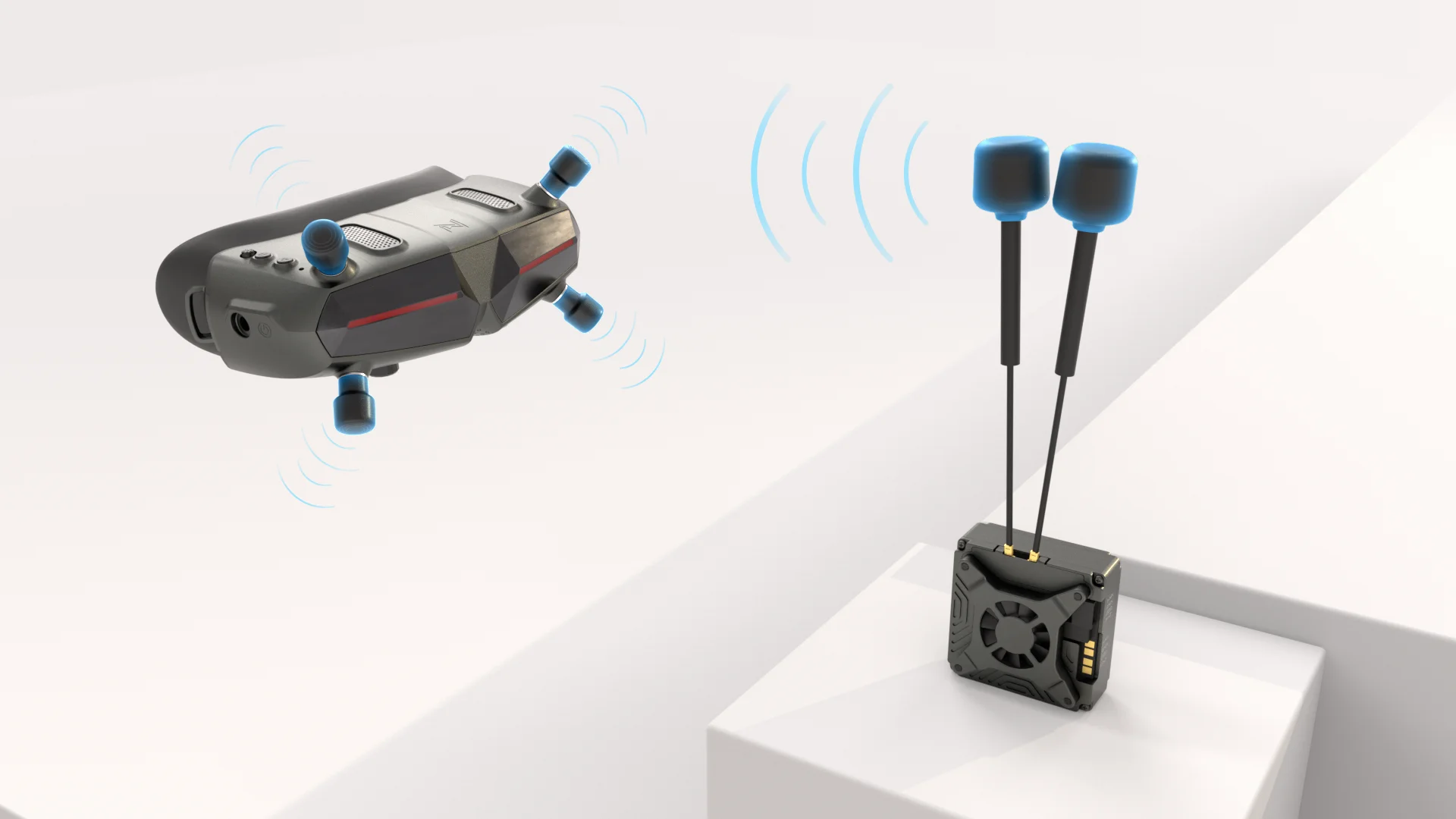

Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

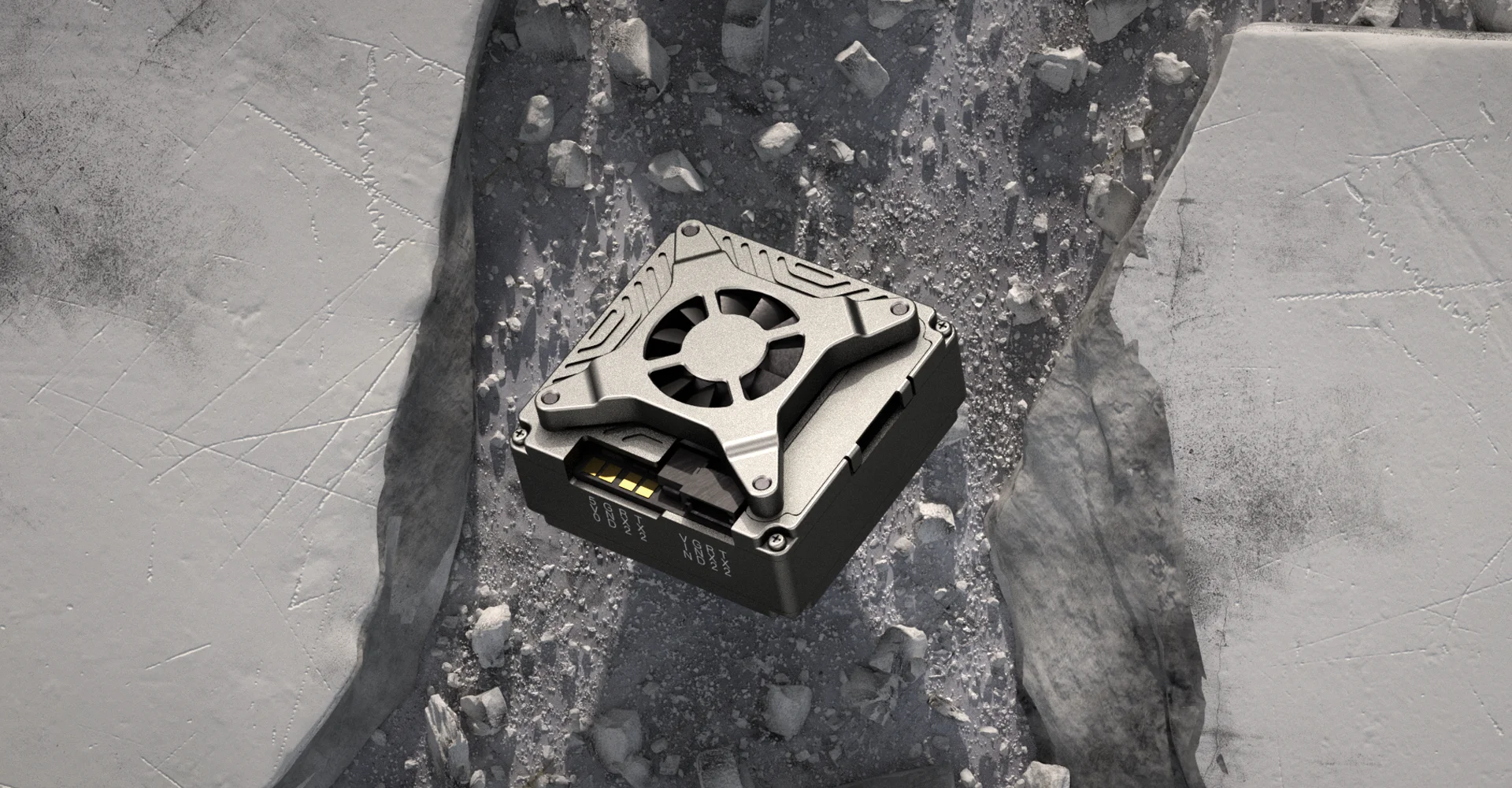

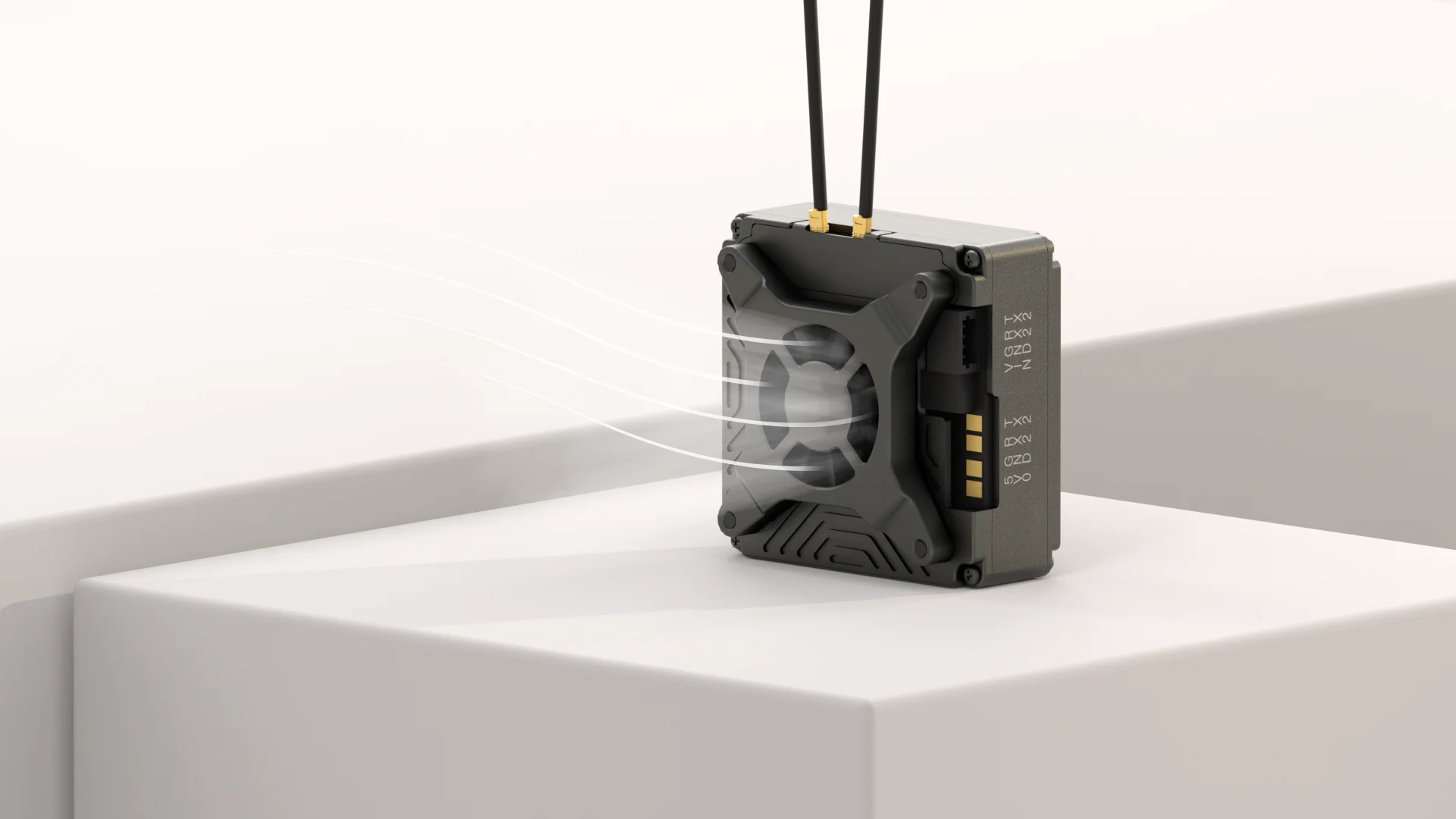

The Avatar GT features a top-mounted heatsink design, effectively dissipating heat to maintain optimal performance even during extended operation.

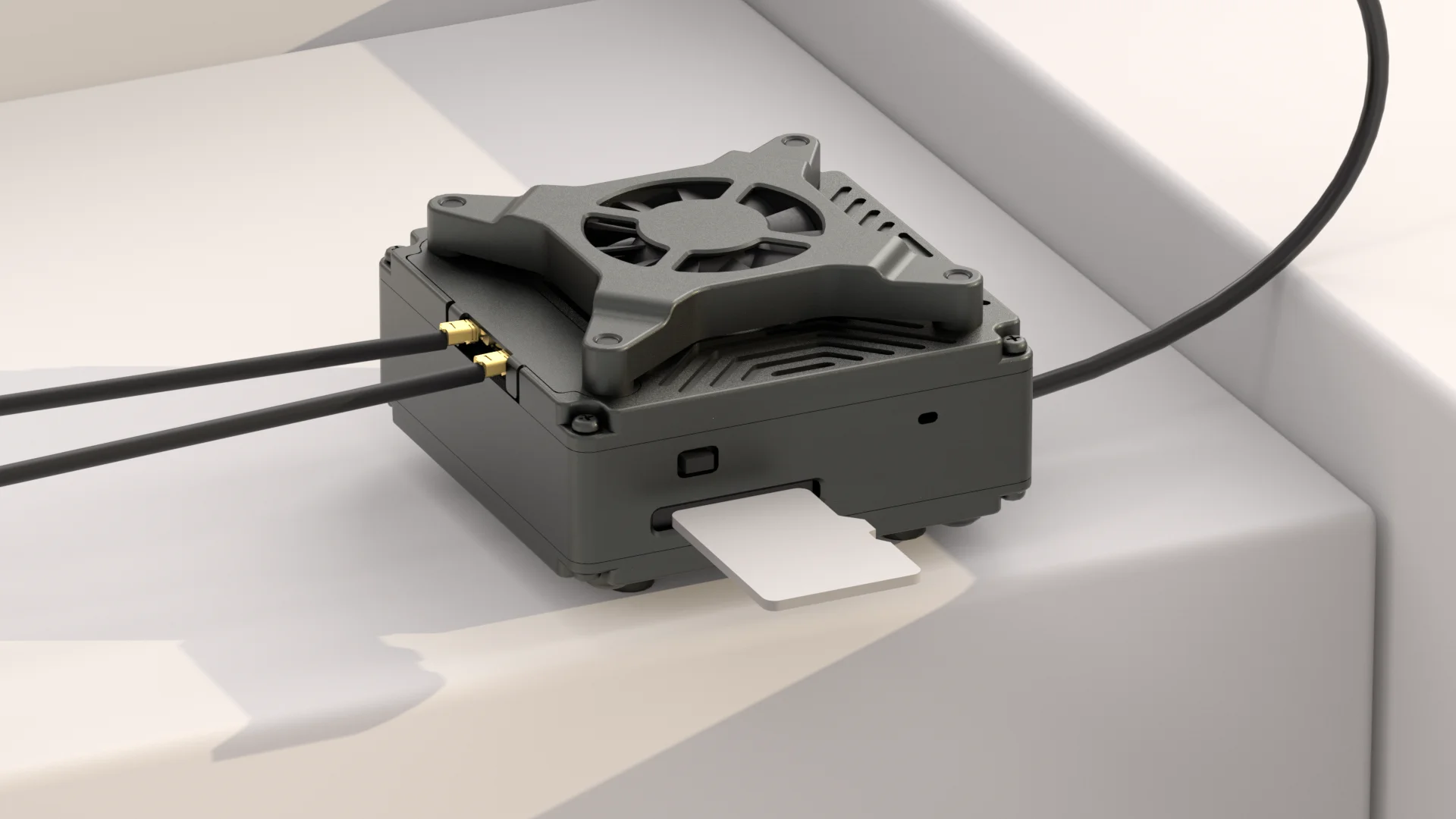

The Avatar GT is equipped with a Micro SD card slot, supporting up to 256GB of storage capacity, enabling uninterrupted recording of HD flight videos in either 1080p or 720p resolution.
The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.
The Walksnail Avatar GT KIT now features improved resistance to GPS interference, ensuring a more stable and reliable flight experience even in challenging environments.
Avatar GT comes with a Pro camera, equipped with a 1/1.8-inch Sony Starvis II sensor, providing excellent night vision capabilities with clarity comparable to daytime.
The camera supports Gyroflow, take you smooth and stable video quality.

It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

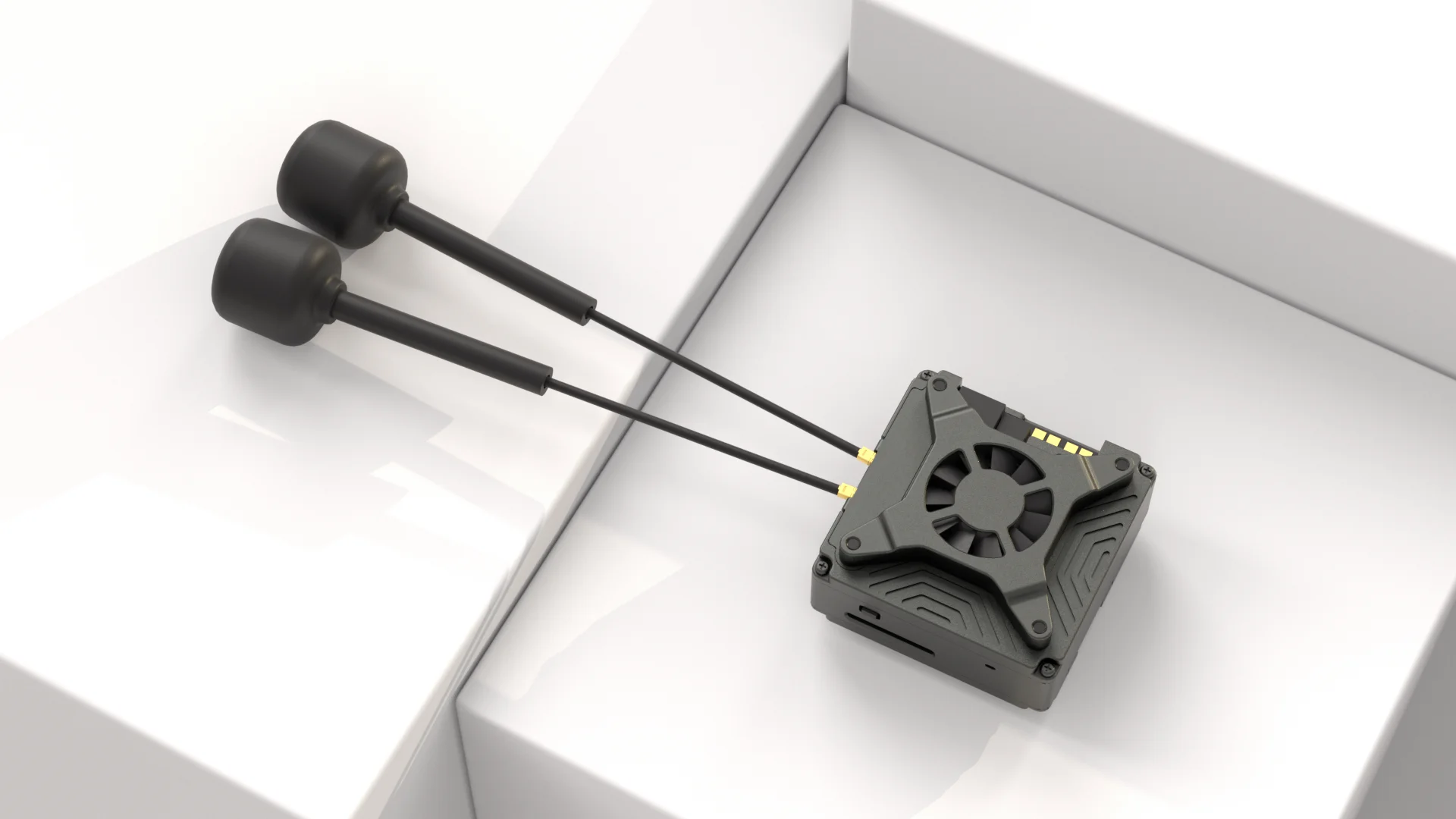

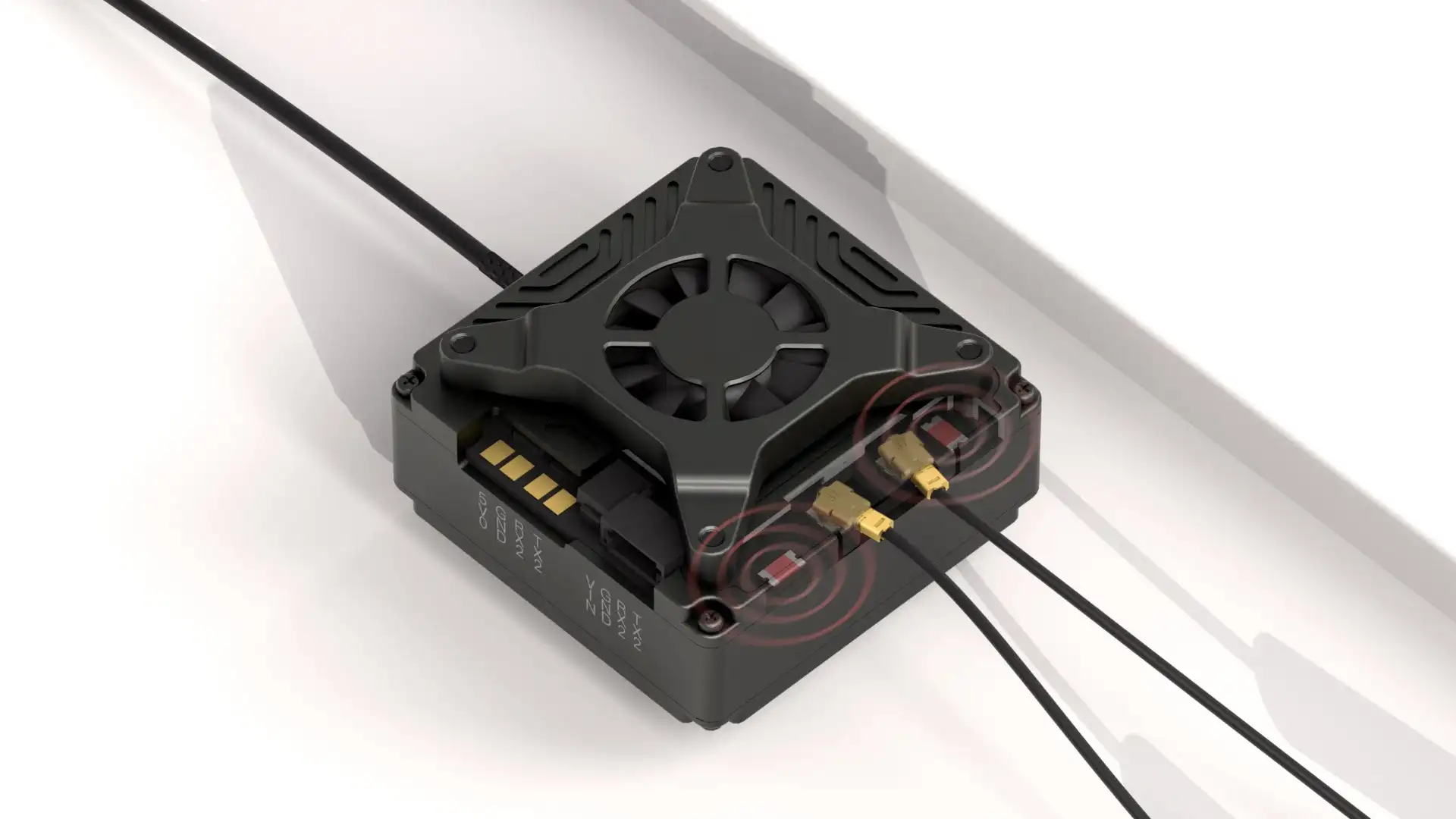

Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
Specification
Camera
Model Avatar HD Pro Camera

Image Sensor 1/1.8-Inch Sony Starvis Ⅱ sensor

Resolution 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps;

Ratio 16/9; 4/3

Lens 8Mp

FOV 160°

Aperture F1.6

Shutter Rolling shutter

Min.Illumination 0.00001Lux

Weight 9.5g

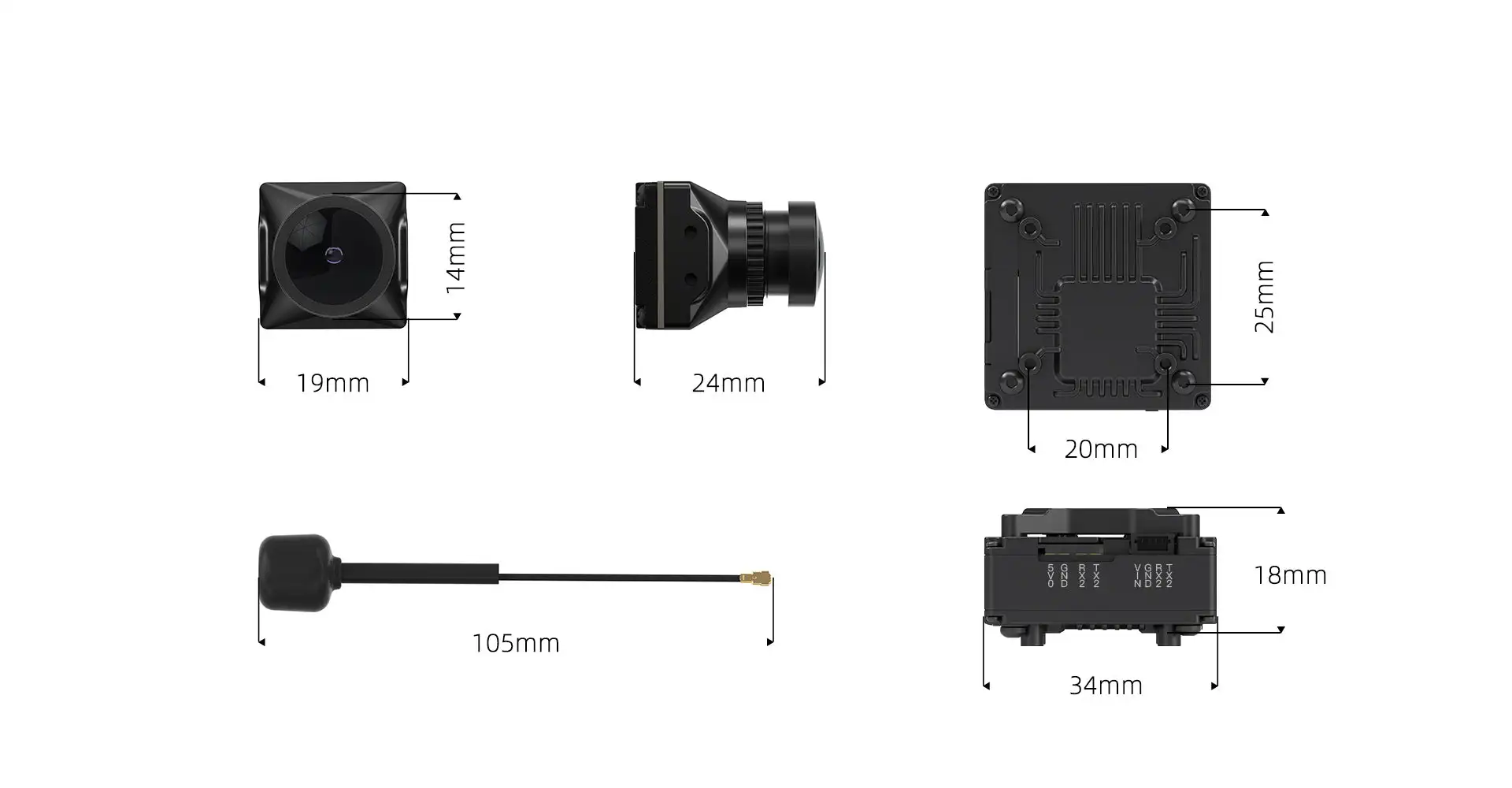

Dimensions 19*19*24mm

Coaxial Cable 140mm

Gyroflow supported

VTX
Model Avatar GT

Communication Frequency 5.725-5.850 GHz

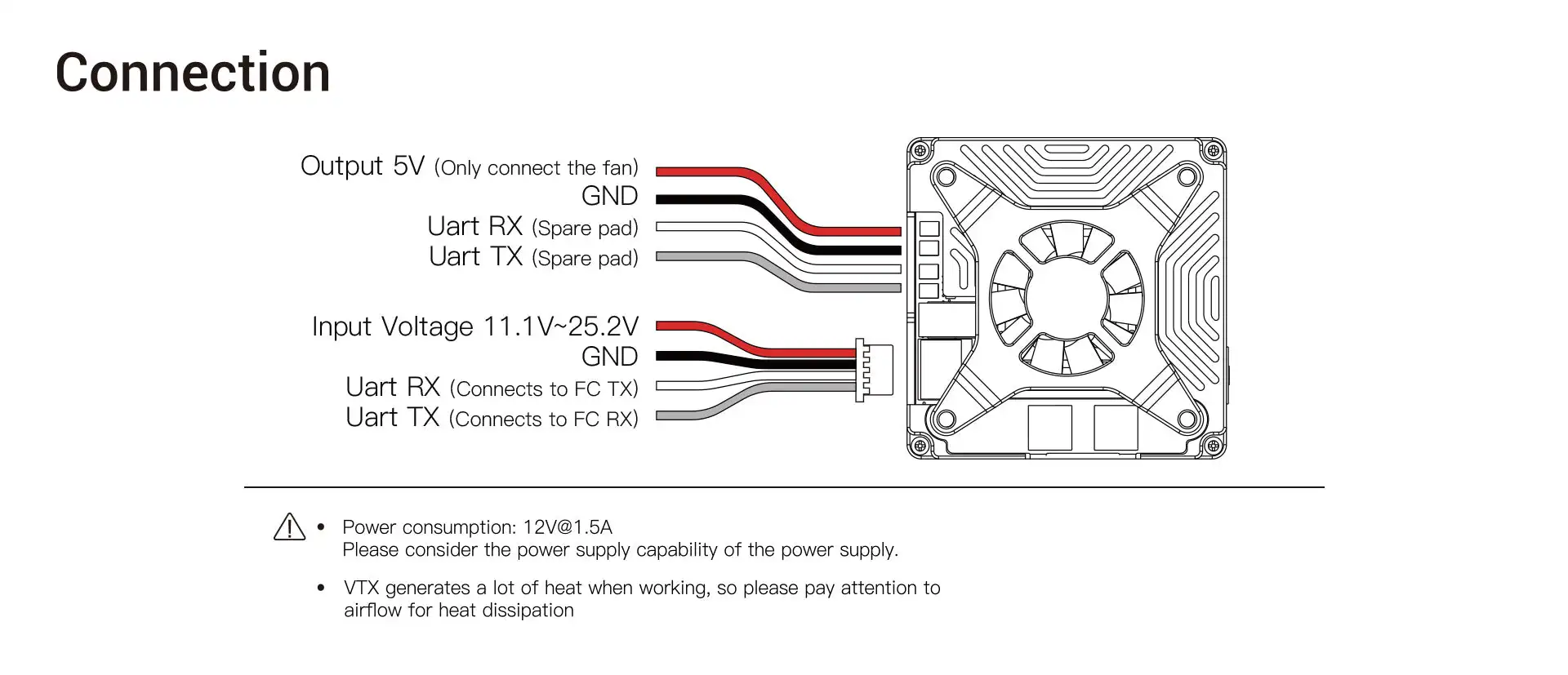

Transmitter Power (EIRP) FCC: <30dBm, MAX:33dBm ; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm I/O Interface Micro SD card slot; JST1.0*4(power cable) Supported SD Cards Micro SD (up to 256 GB) Mounting Holes 25.5*25.5mm; 20*20mm Dimensions 34*34*20mm Recording 1080p/720p Weight 41.6g (Antenna included) Operating Temperature -10-40℃ Channels 8 Wide Power Input 11.1V-25.2V Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPilot OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX)
Note:
Check area for risk of use before use.

Packing List：
1 x Walksnail Avatar GT KIT

1 x Quick Guide

2 x M2*4mm screws

2 x M2*5mm screws

2 x M2*6mm screws

2 x M2*5*0.5mm spacer

2 x SD card stickers

1 x 4pin power cord
