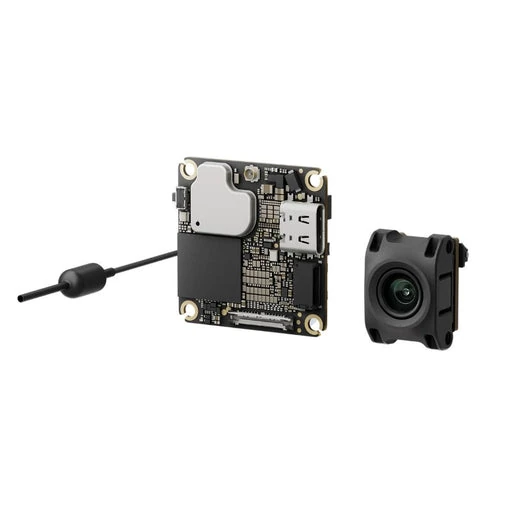

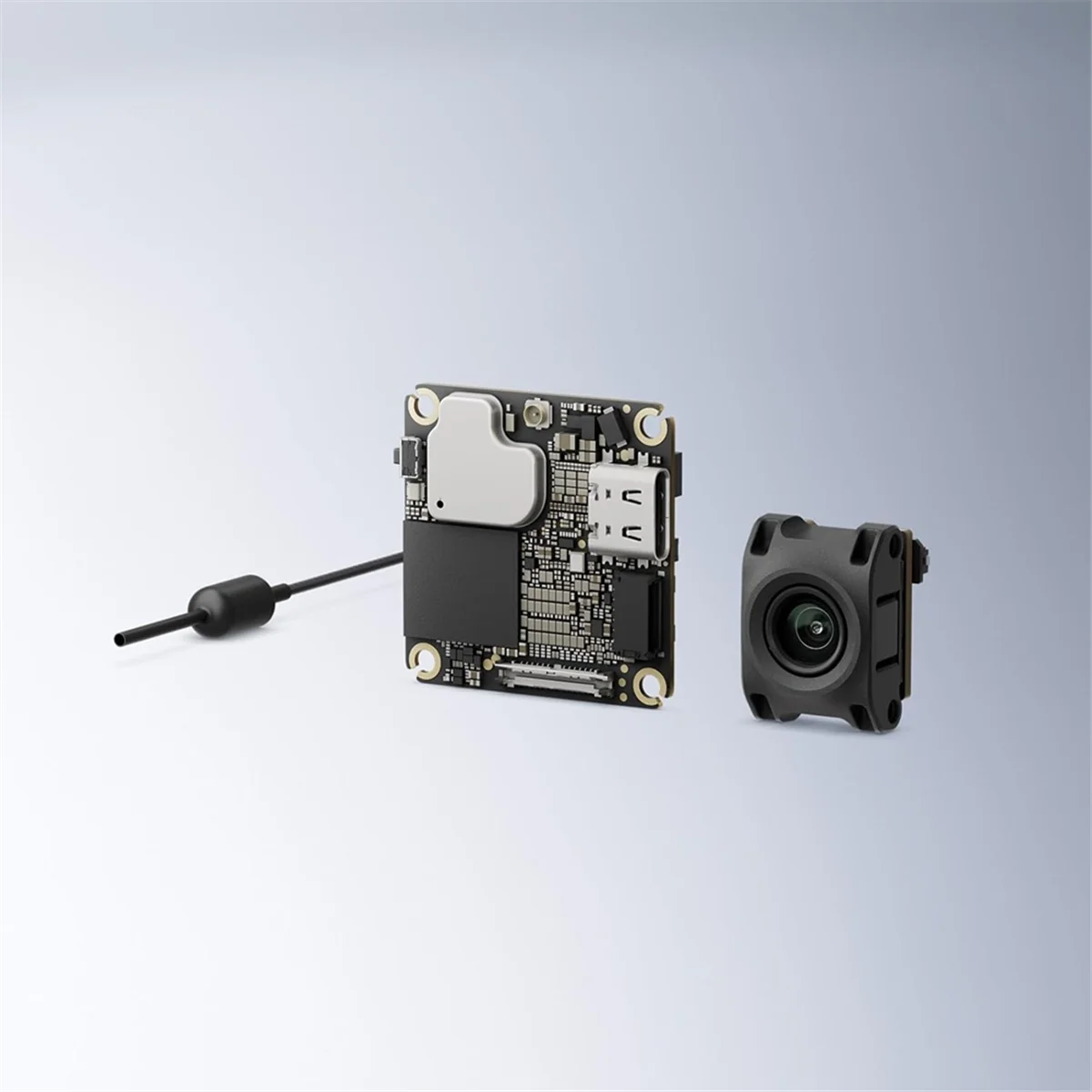

TFBC For O4 Air Unit for FPV Drone, Digital Transmission System, 20ms Low Latency, 10km Max Range

+ Free Shipping

Availability: 2999 in stock

Contact Us on WhatsApp

Features:

– Works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3.

– Compatible with DJI FPV Remote Controller 2 or 3.

– Lightweight FHD FPV Digital Video Transmission.

– 20 ms Low Latency, 10 km Rangee.

– 1/2-inch CMOS Image Sensor.

– 4K/60fps Video Recording.

– 1080p/100fps Live View.

– 8.2g Lightweight Body.

– Elevate Signal, Unlock Flight

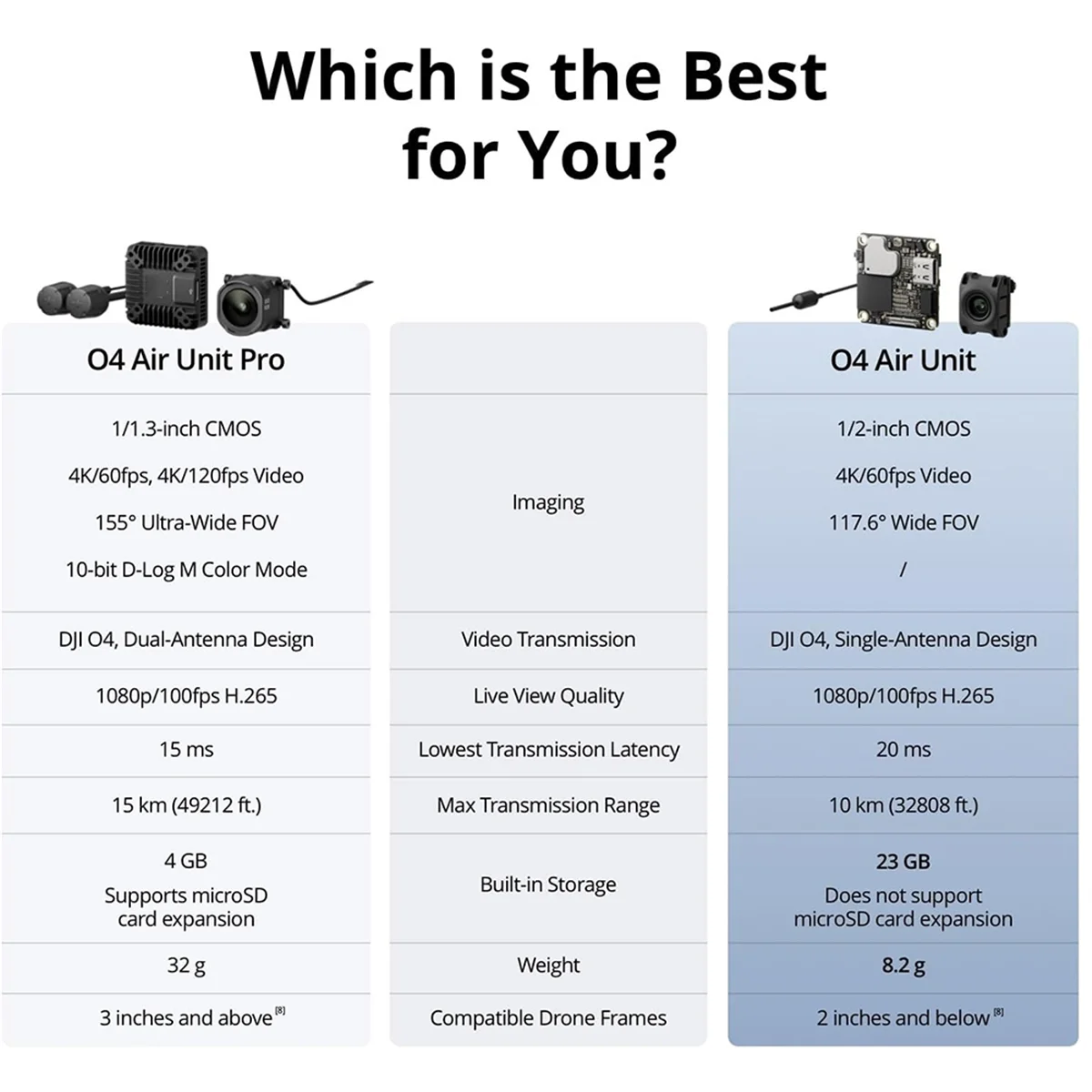

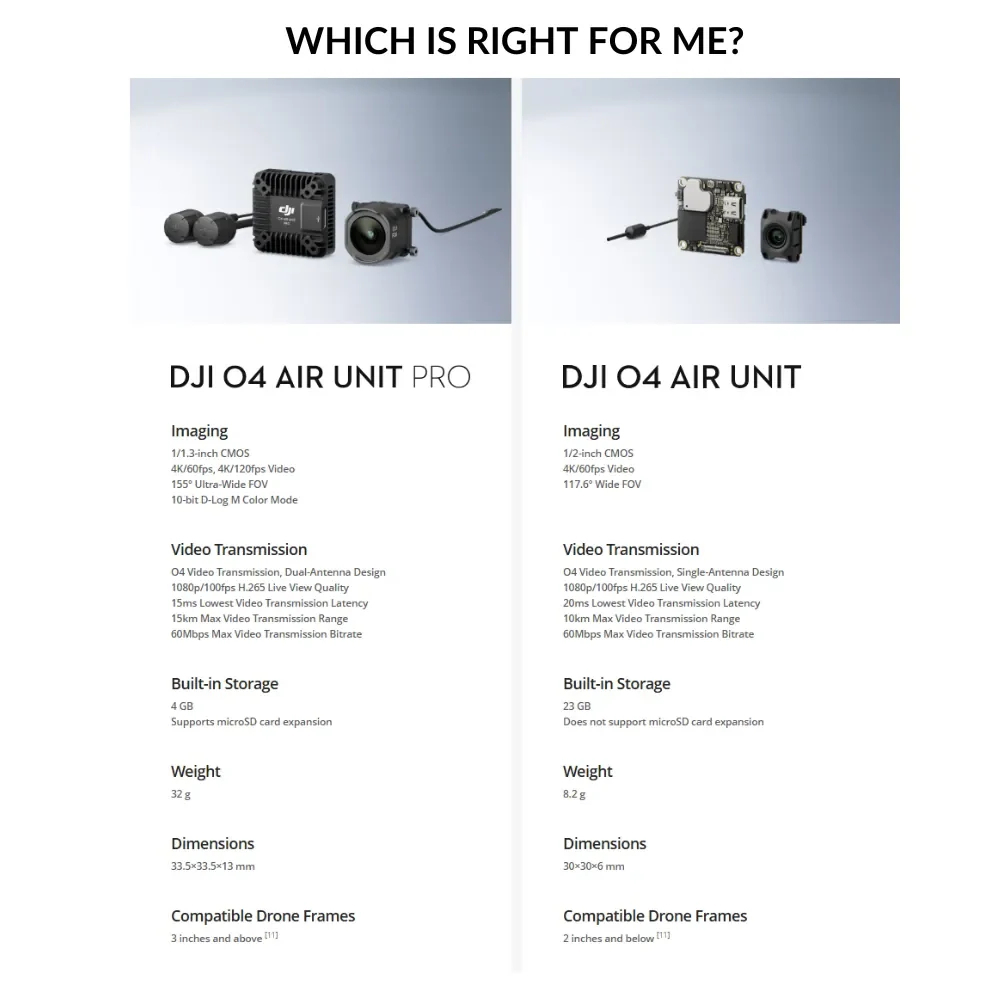

DJI O4 AirUnit Series: Ultra-low latency O4 transmission. O4 AirUnit Pro (dual antenna) achieves 15 km max range. Intelligent frequency hopping for rock-solid link indoors or out.

– Crisp 4K/60fps, Fluid 1080p/100fps HD
Record 4K/60fps. O4 transmission delivers 1080p/100fps real-time HD feed via H.265 encoding. View stays locked on fast maneuvers.

-Race Mode: 15ms Latency, 8-Aircraft Sync
New Race Mode: 15ms latency. Race up to 8 synchronized aircraft.

-Pro Imaging: Larger Sensors, Higher FPS
O4 AirUnit: 1/2-inch sensor, 4K/60fps.
O4 AirUnit Pro: 1/1.3-inch sensor, 4K/120fps. Ultra-wide cinematic footage—no extra cam needed.

– Harsh Light? ND Filters Supported (Pro)
O4 AirUnit Pro Camera works with DJI Avata 2 ND Filters (8/16/32). Perfect exposure & colors in bright light. Capture motion blur.

– Custom OSD: CanvasMode & Betaflight
Full screen control. Customize real-time data overlays via CanvasMode & Betaflight OSD.

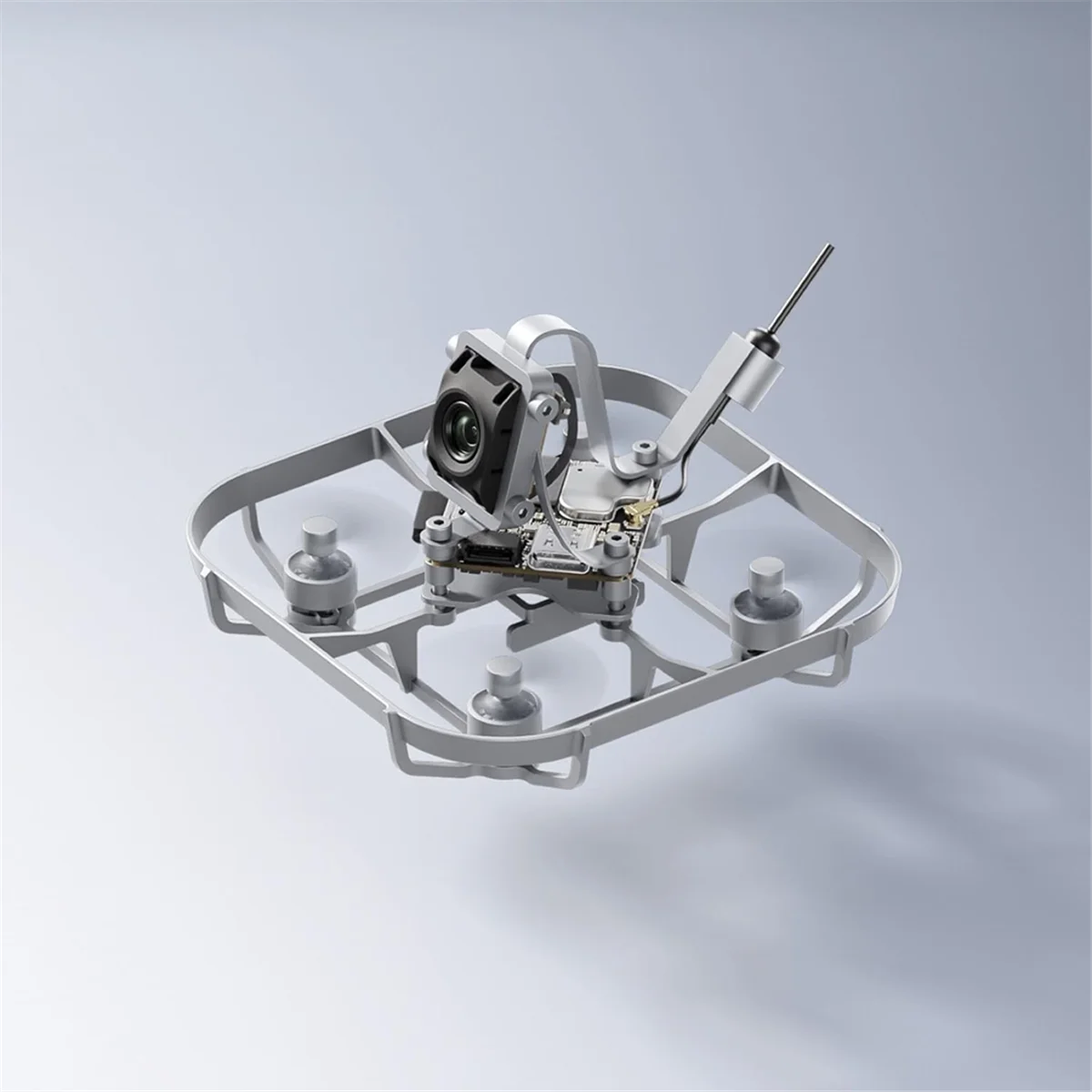

– Lightweight, Wide Compatibility
Compact design fits diverse builds. Standard O4 AirUnit ideal for frames ≤2-inch.

Specification:

Brand: DJI

Model: DJI O4 AIRUNIT

DJI O4 AIRUNIT Weight: AirUnit (camera module excluded): Approx. 5.1 g

AirUnit (camera module included): Approx. 8.2 g*

Antenna: Approx. 0.75 g

The lens mount is not included. With the lens mount, the weight is 9.2 grams.

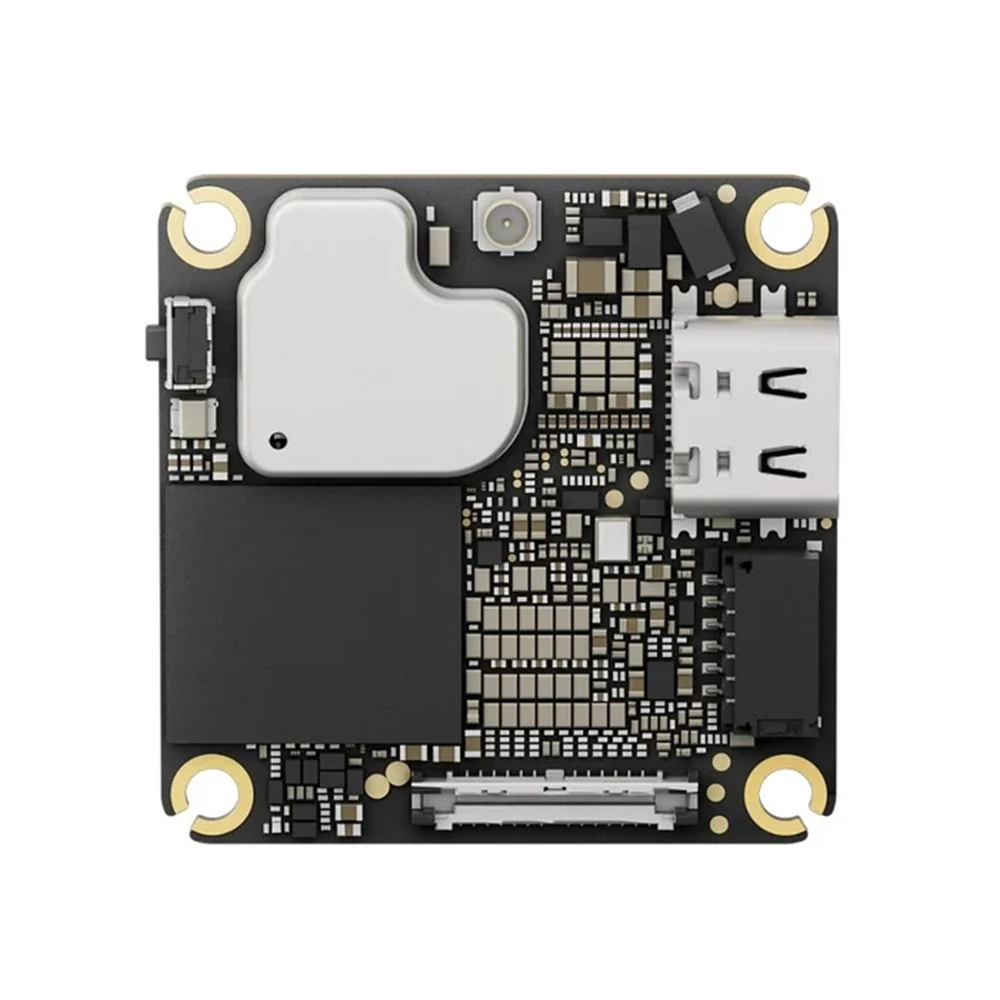

Dimensions: Transmission Module: 30×30×6 mm (L×W×H)

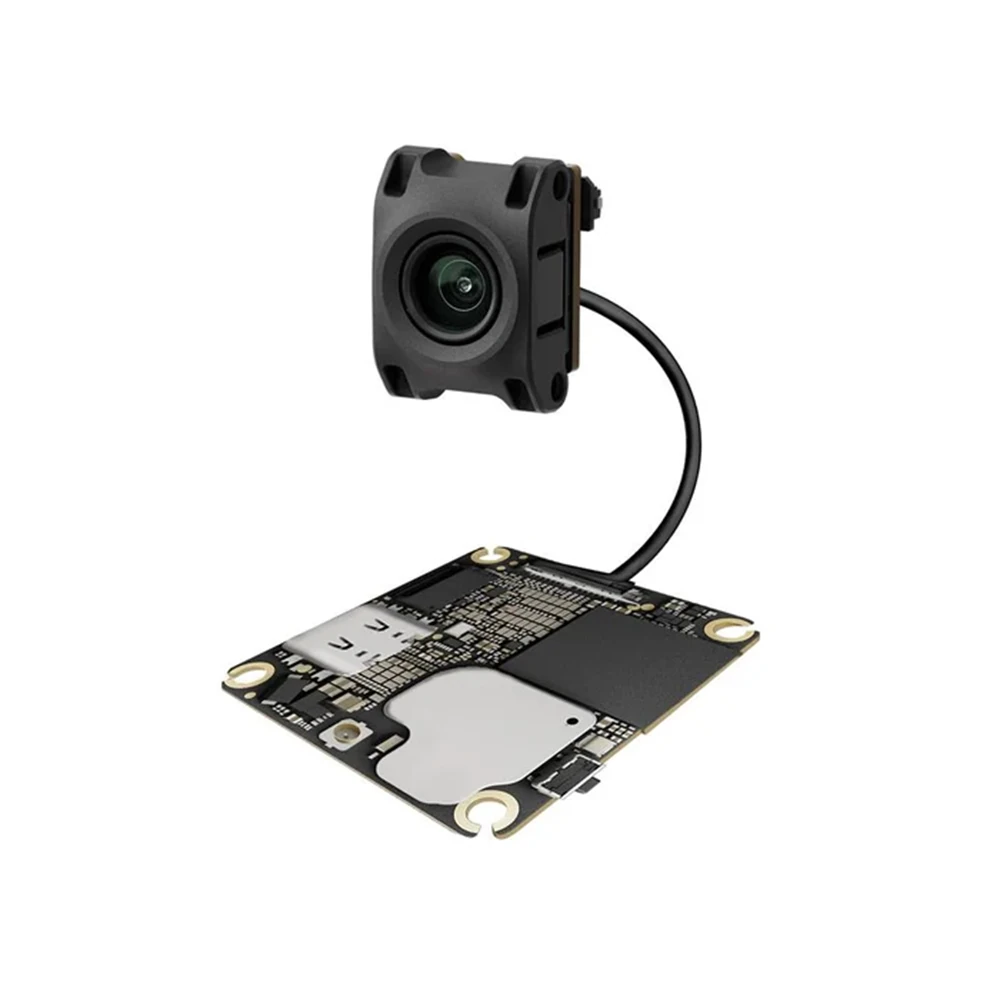

Camera Module: 13.44×12.36×16.50 mm (L×W×H)

Coaxial Cable: 50 mm

3-in-1 Cable: 50 mm

Antenna: 80 mm

VTX Mounting Pattern: 20x20mm
VIDEO TRANSMISSION Operating Frequency: 5.170-5.250 GHz

5.725-5.850 GHz

Operating frequency varies by region. Refer to local regulations.

Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE)

5.8 GHz:

<30 dBm (FCC)

<14 dBm (CE)

<30 dBm (SRRC)

Lowest Latency: DJI Goggles 3 (Racing Mode): 20 ms with 1080p/100fps

DJI Goggles N3 (Racing Mode): 24 ms with 1080p/100fps

DJI Goggles 2 / Goggles Integra: Less than 35 ms with 1080p/100fps

Latency data represents the minimu latency tested in open environments.

Max Video TransmissionRange: DJI Goggles 3 / DJI Goggles N3:

FCC: 10 km

CE: 6 km

SRRC: 6 km

Measured in unobstructed outdoor environments. Actual rangee varies based on flightendurance.

Live View Quality: 1080p at 30/50/60/100fps
Communication Bandwidth: Max 60 MHz
Antenna: 1 antenna, 1T1R
Channels: Auto Mode and Manual Mode Supported

With DJI Goggles 3 or DJI Goggles N3:

60 MHz: 1 channel

40 MHz: 1 channel

20 MHz: 3 channels

10 MHz: 3 channels

With DJI Goggles 2 or Goggles Integra:

40 MHz: 1 channel

20 MHz: 3 channels

10 MHz: 3 channels

Channel Info: FCC/SRRC/CE:

60 MHz / 40 MHz:

Channel 1: 5794.5 MHz

20 MHz / 10 MHz:

Channel 1: 5768.5 MHz

Channel 2: 5789.5 MHz

Channel 3: 5814.5 MHz

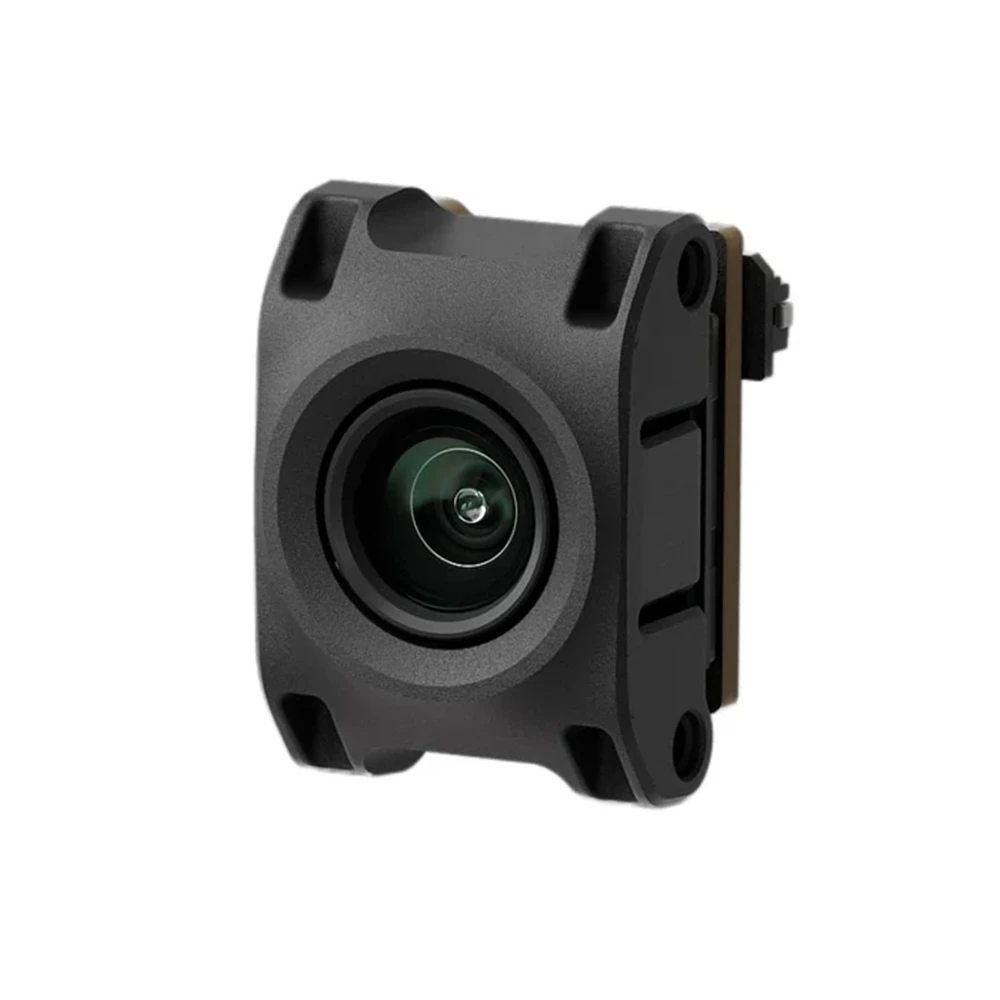

CAMERA Image Sensor: 1/2-inch CMOS Sensor
Lens: FOV: 117.6°

Equivalent Focal Length: 14 mm

Aperture: f/2.8

Focus: 0.6 m to ∞

ISO Rangee: 100-6400 (Auto)

100-12800 (Manual)

Video Resolution: 4K (4:3): 3840×2880@30/50/60fps

4K (16:9): 3840×2160@30/50/60fps

1080p (4:3): 1440×1080@30/50/60/100/120fps

1080p (16:9): 1920×1080@30/50/60/100/120fps

Video Format: MP4
Max Video Bitrate: 100 Mbps
Color Mode: Normal Mode
Camera FOV: Standard

Wide-Angle

EIS (Electronic Image Stabilization): RockSteady 3.0+

Stabilization function off (supports Gyroflow)

When RockSteady is enabled, only the standard shooting angle is supported.

HARDWARE Input-Voltag: 3.7-13.2 V
Operating Temperature: -10°C to 40°C
STORAGE Built-in : 23 GB
Supported SD Cards: Not supported
COMPATIBILITY Supported-Fligh Controller System: Betaflight 4.3.0 and higher

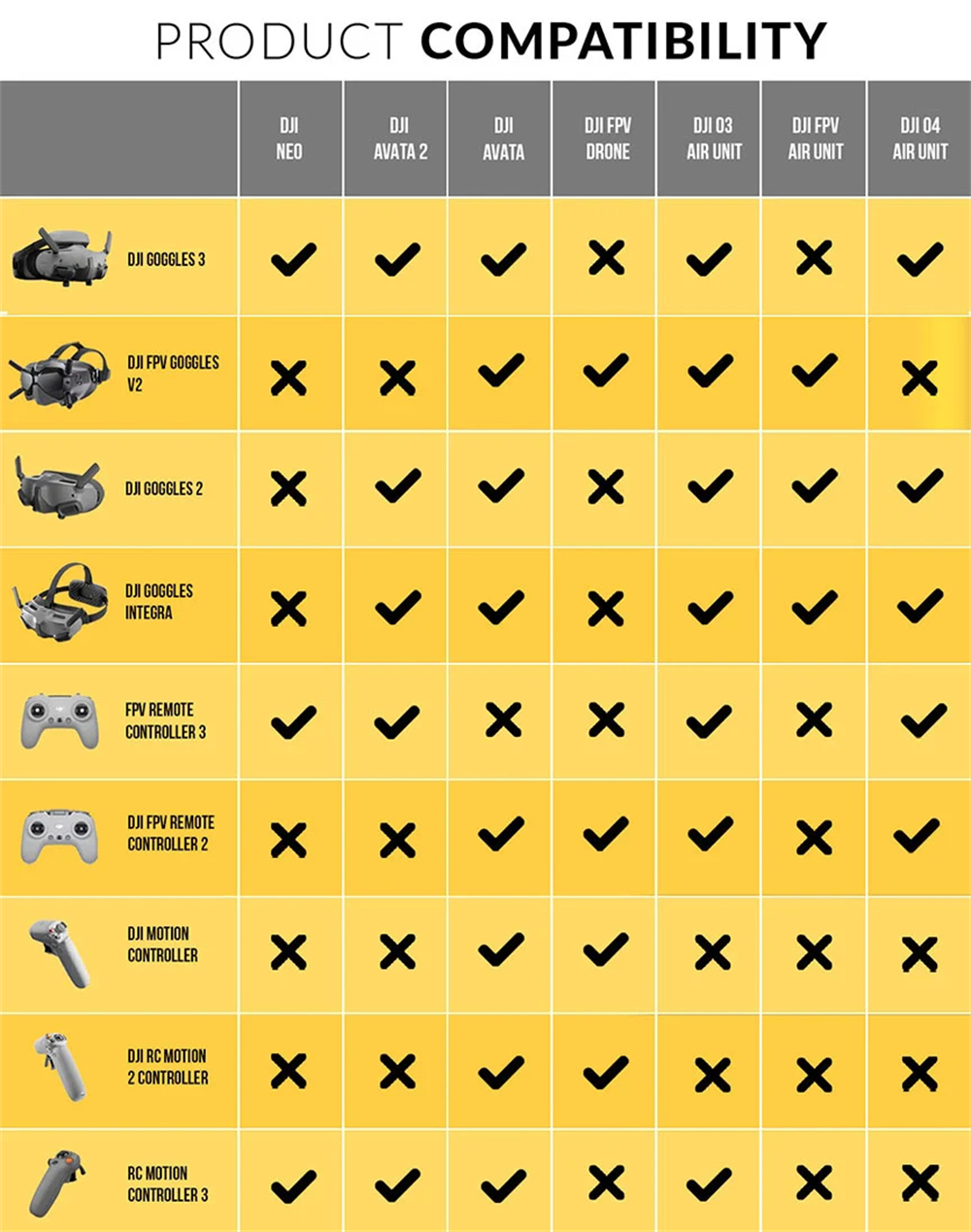

Supported DJI Goggles and Remote Controllers: DJI Goggles 3 + DJI FPV Remote Controller 3

DJI Goggles N3 + DJI FPV Remote Controller 3

DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2

Flightcontrol firmware must support the SBUS protocol to use the DJI FPV Remote Controller.

DJI O4 ANTENNA Weight: Approx. 0.75g
Length: 80 mm

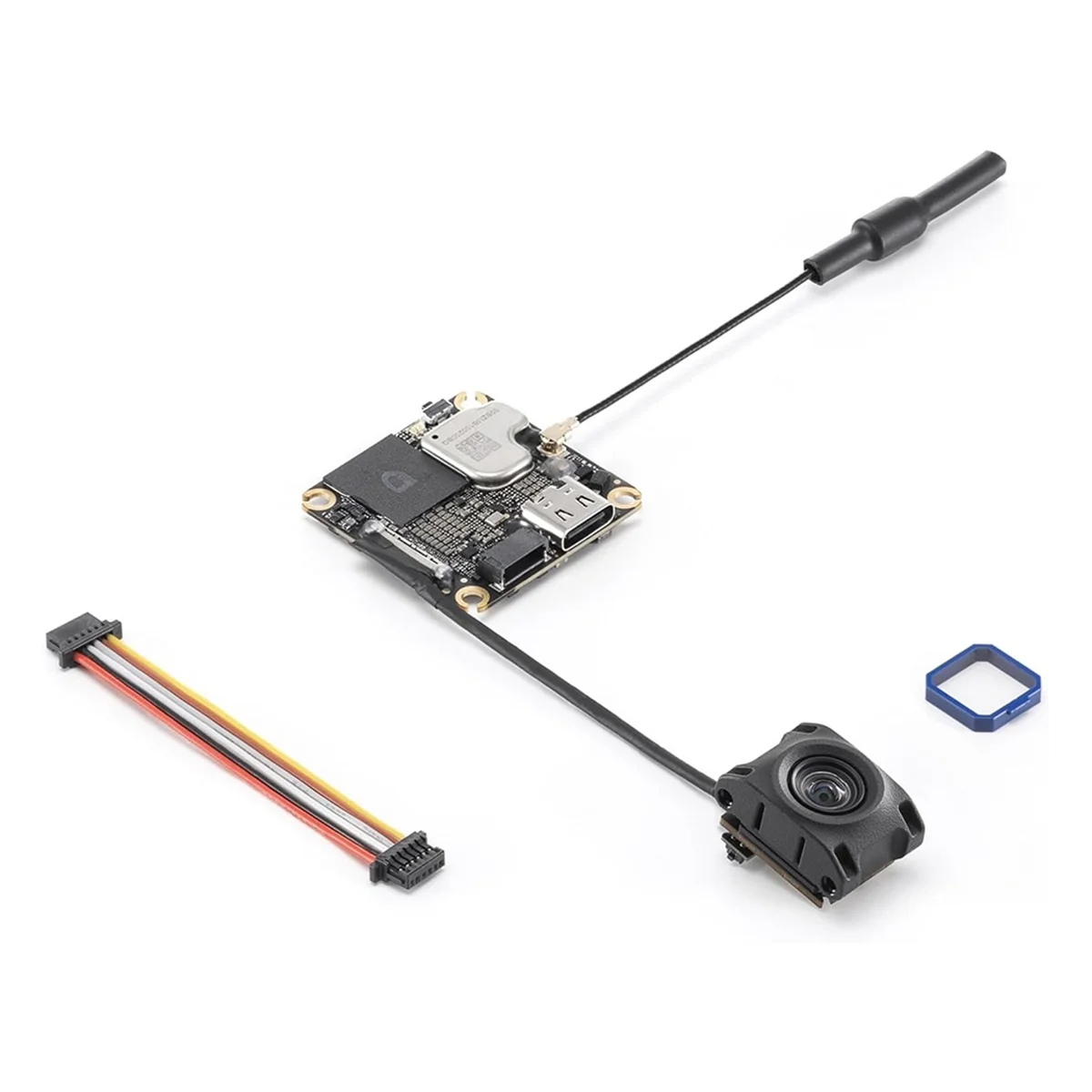

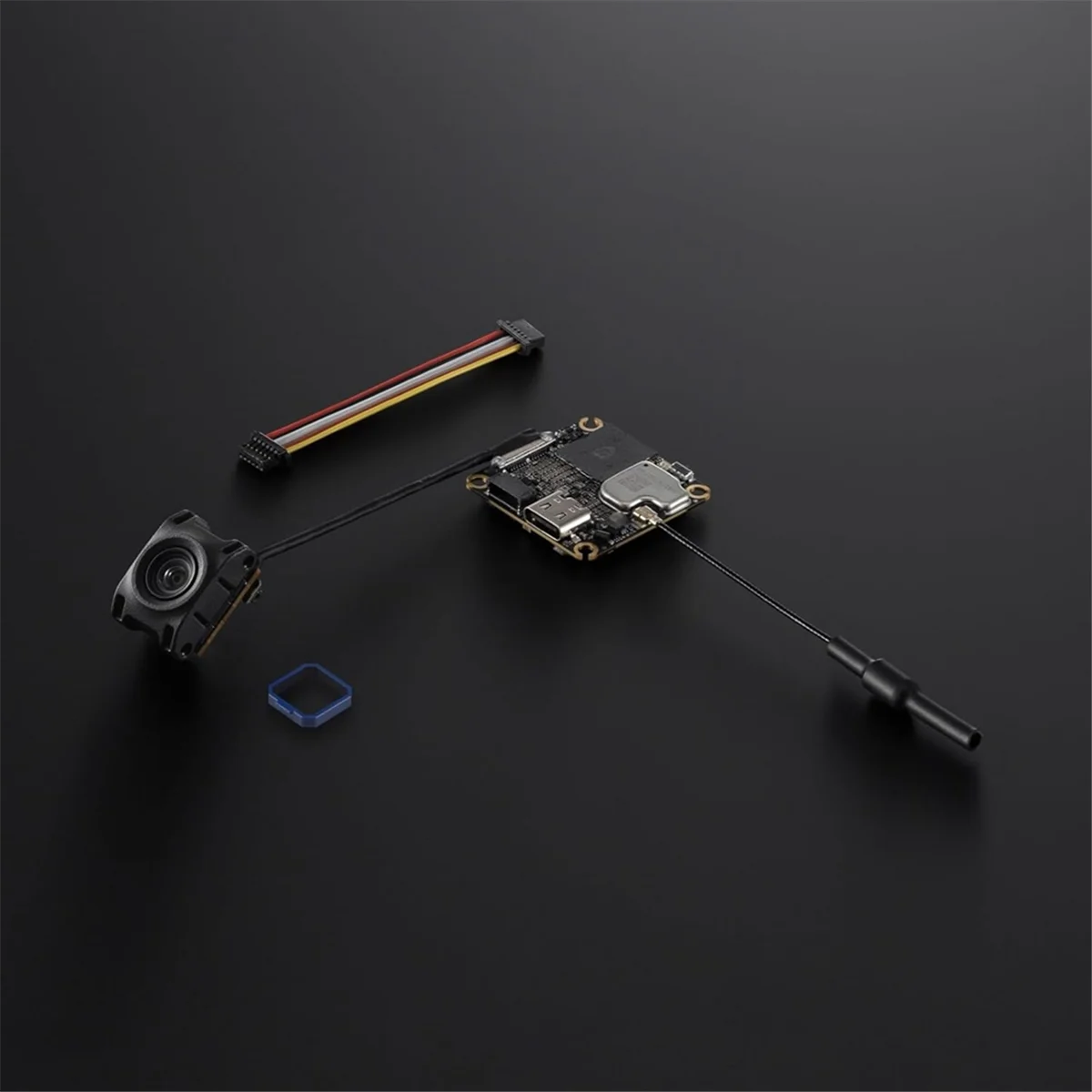

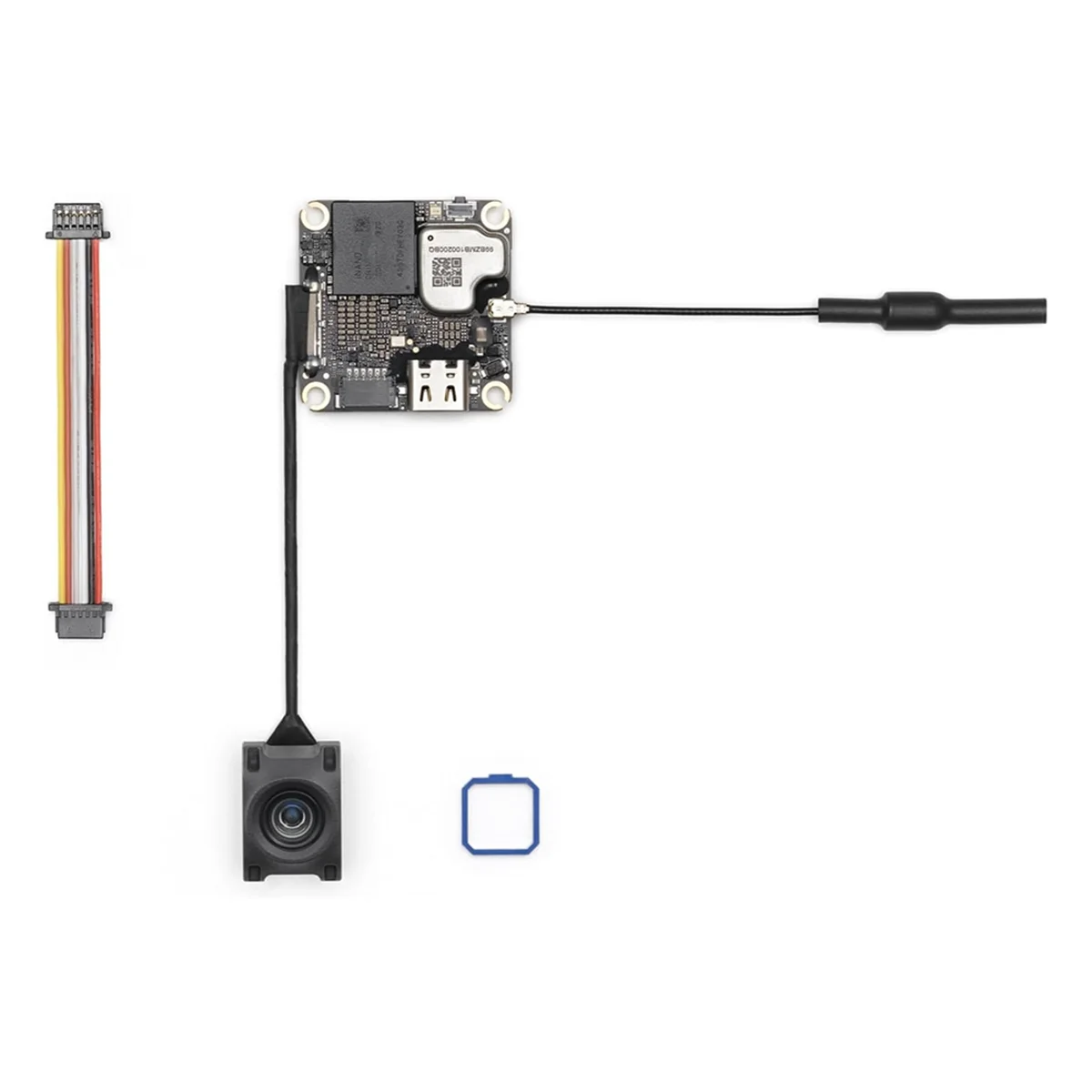

Package Included:

1 x DJI O4 AirUnit Camera Module

1 x DJI O4 AirUnit Transmission Module

2 x DJI O4 AirUnit Antenna

1 x DJI O4 AirUnit 3-in-1 Cable

Weight 0.038 kg
Dimensions 9 × 7 × 2 cm
