Product Description:

Catalog number: SCY-16303
Material: Hardware; Electron; plastic

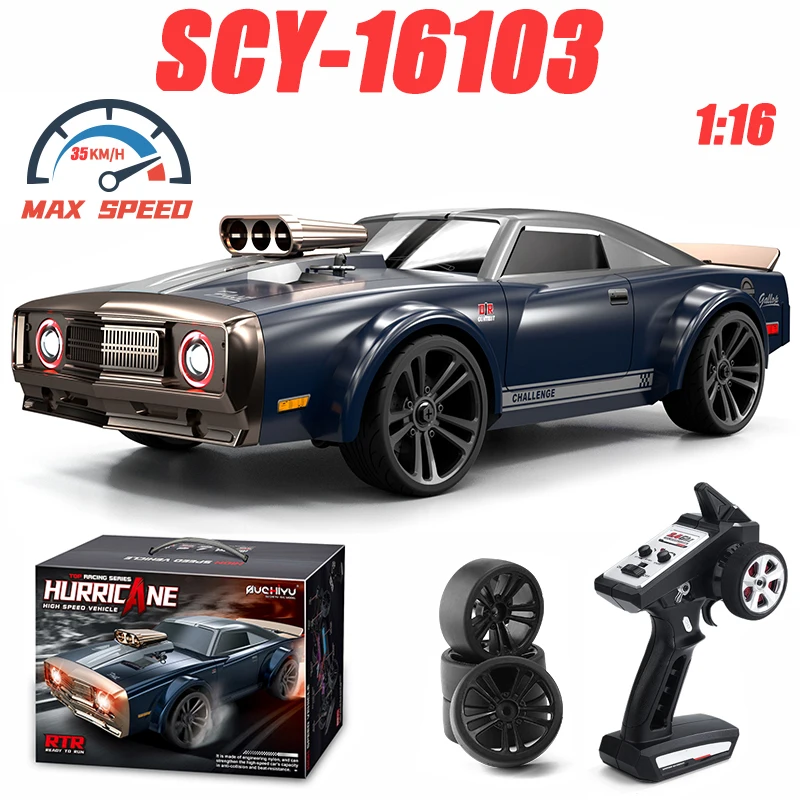

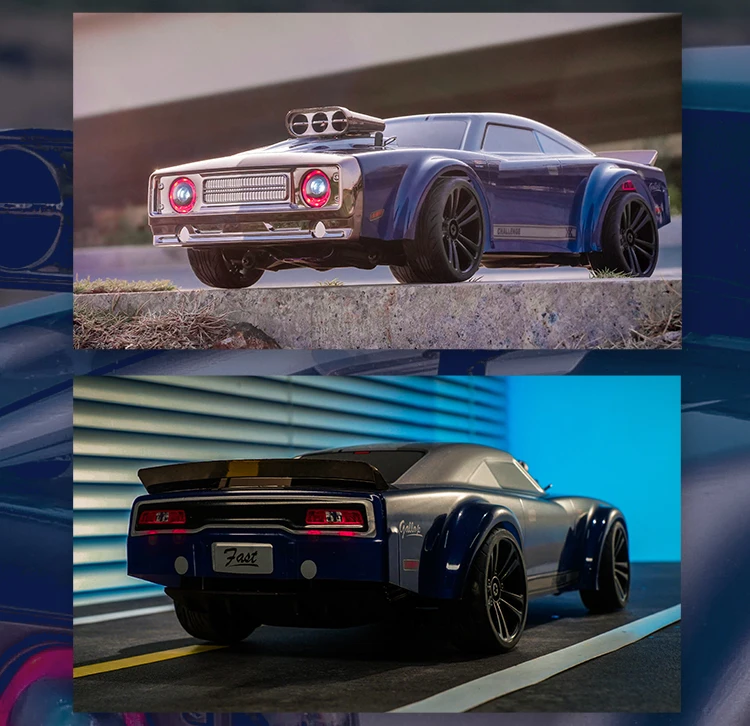

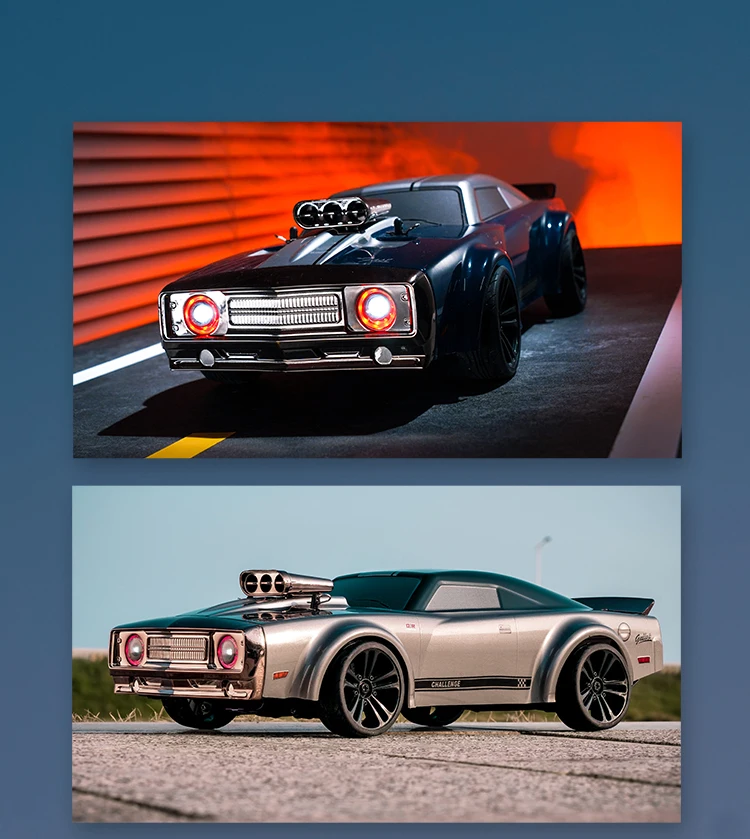

Name: 1/16 Electric 4WD Flat Running Drift Car (Muscle Car)

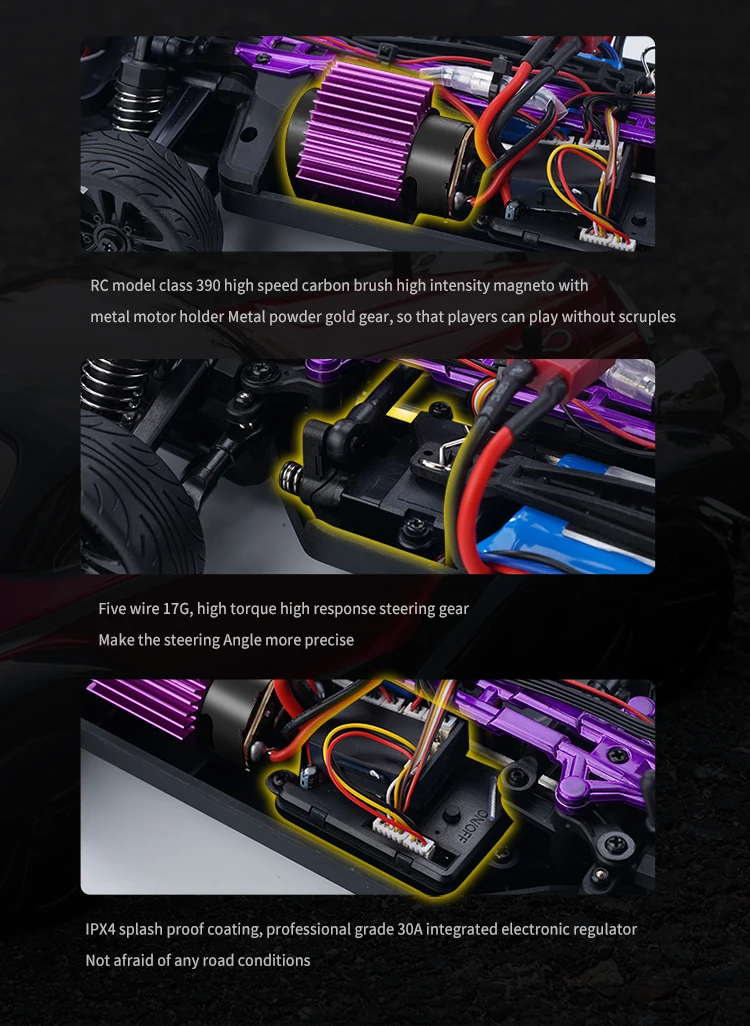

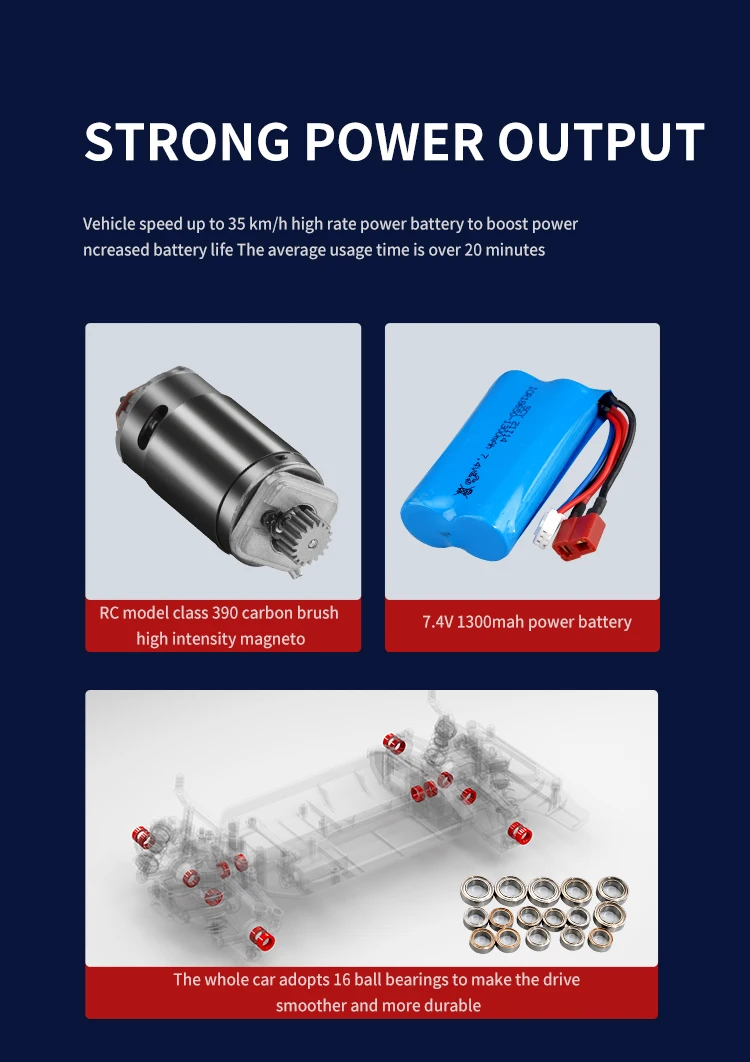

Motor: RC390 high-speed bearing carbon brush strong magnet (magnetic protection heat sink) blackened
Packing method: English portable unboxing color box
ESC/Reception: 30A 2S integrated control (splash proof)
Color: Royal Blue/Light Grey
Body Battery: 7.4V 1300mAH 10C Lithium Ion Battery (T Plug)
Servo: 5 wires, 17g

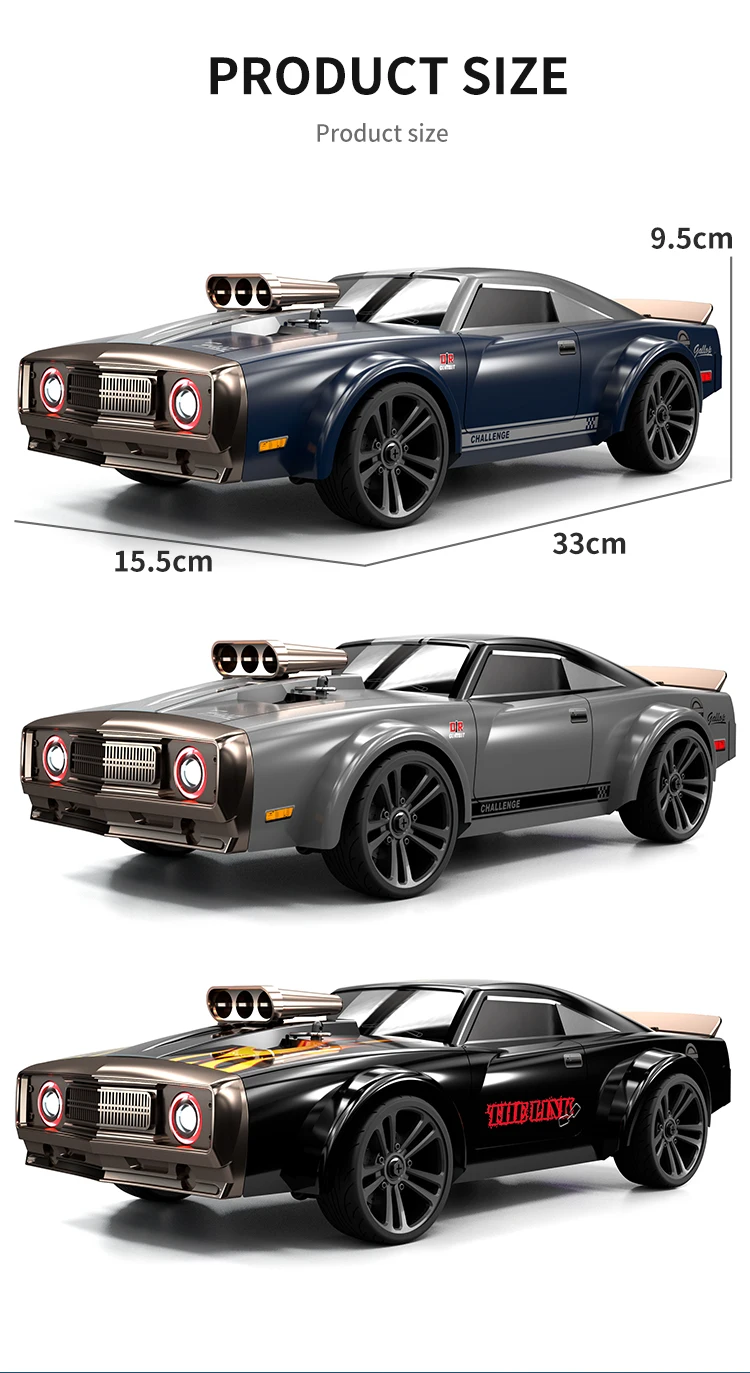

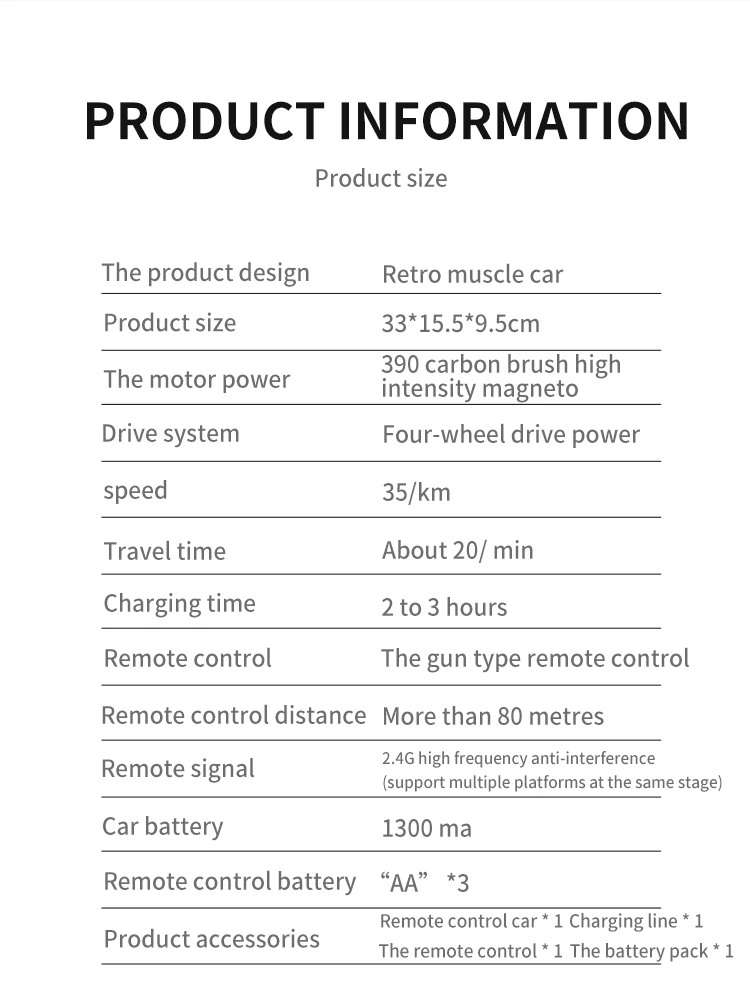

Product Specification: 33.5*15.5*9.5 CM
Remote control battery: 3 "AA" (not included)
Remote control specification: 13*7.5*21 CM
Charger: USB cable charger
Frequency: 2.4GHz (supports multiple vehicles to compete in the same field)
Remote control distance: ≥80 meters

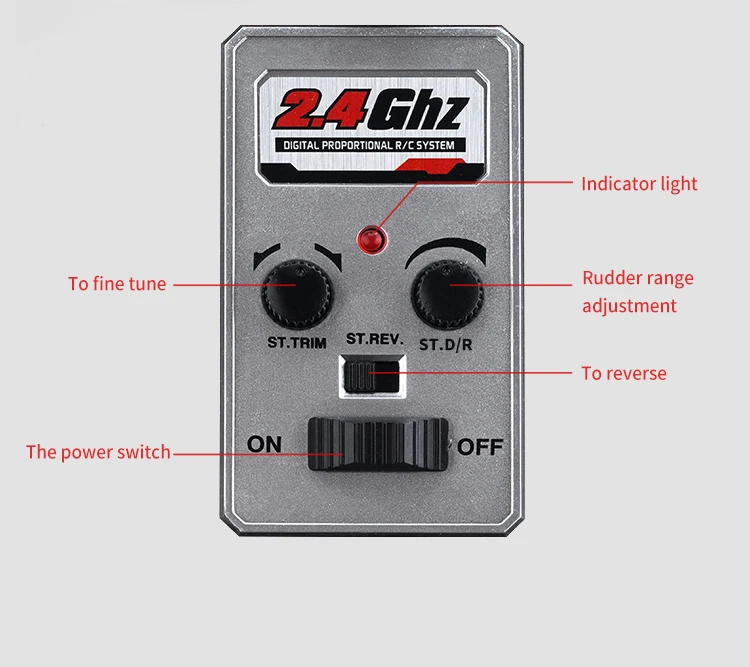

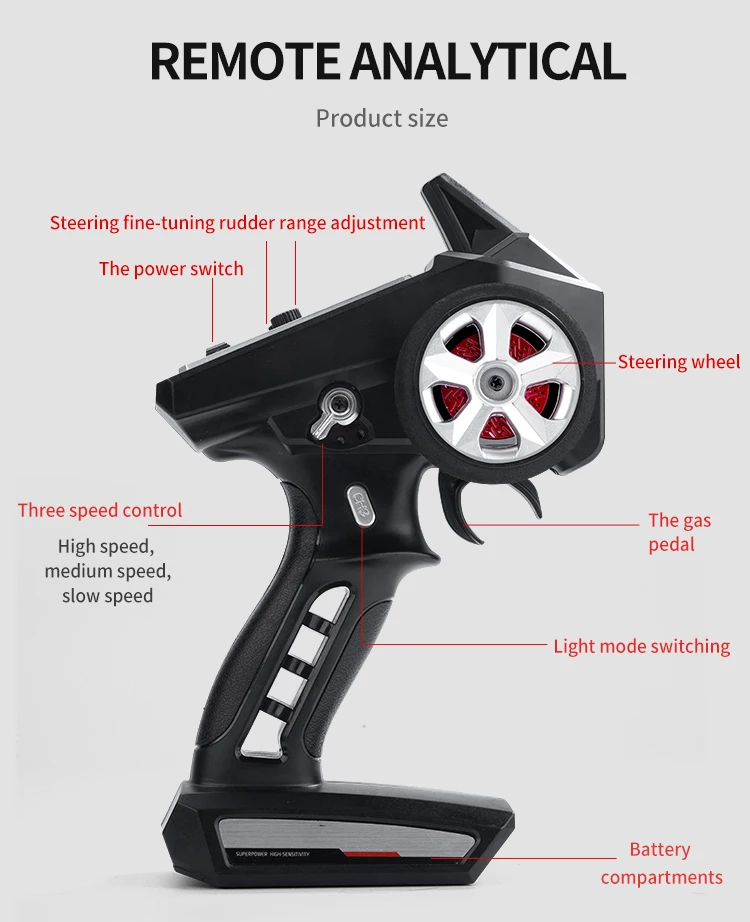

Remote Control Category: Full Proportion Synchronous Control System (Gun Control)
Body weight: 820g
Handling time: 15-18 minutes (continuous full speed)
Remote control weight: 170g
Charging Time: 3-3.5 hours (USB Balanced Charger)
Wheelbase parameters: wheelbase: 180mm; Track: 127mm; Wheel diameter: 50mm;

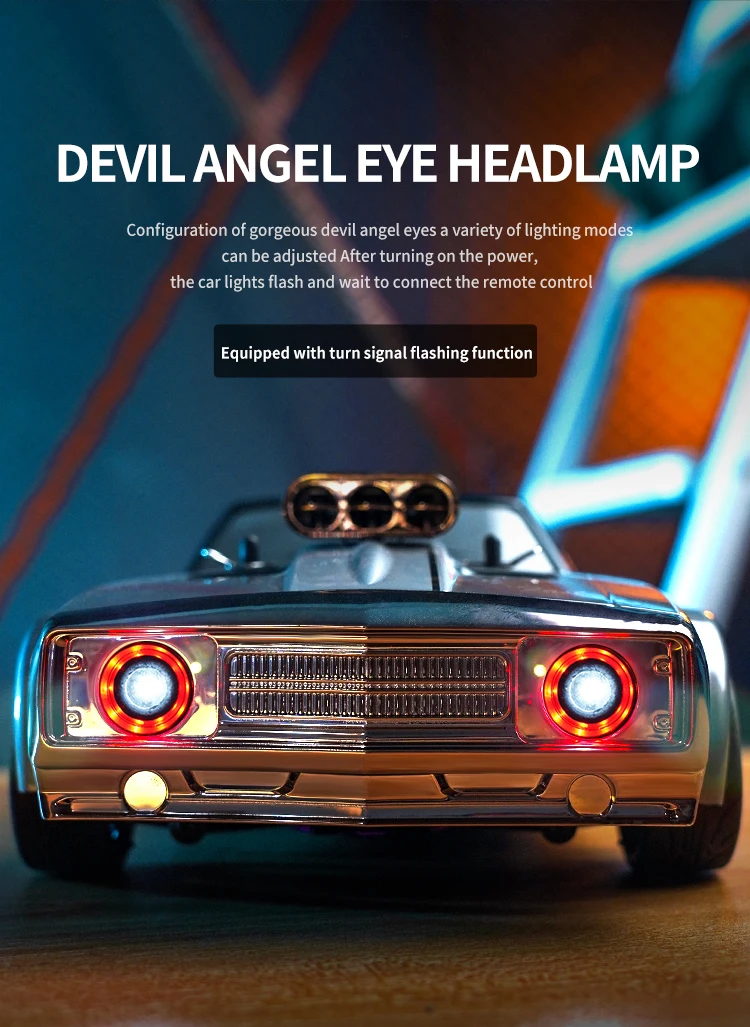

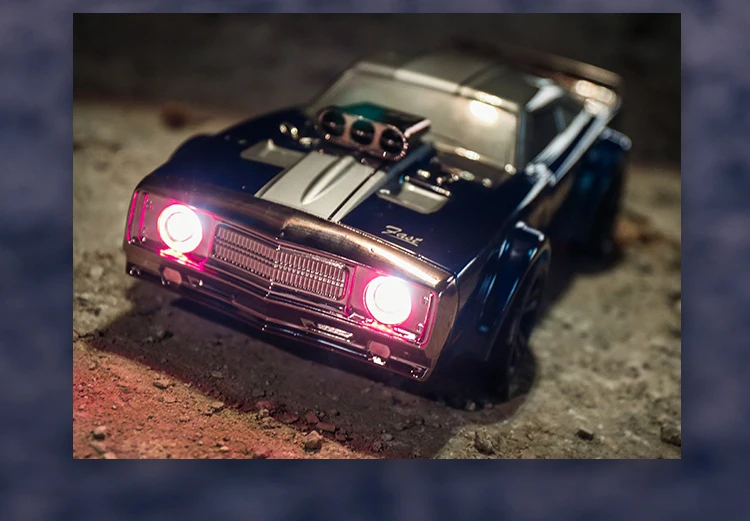

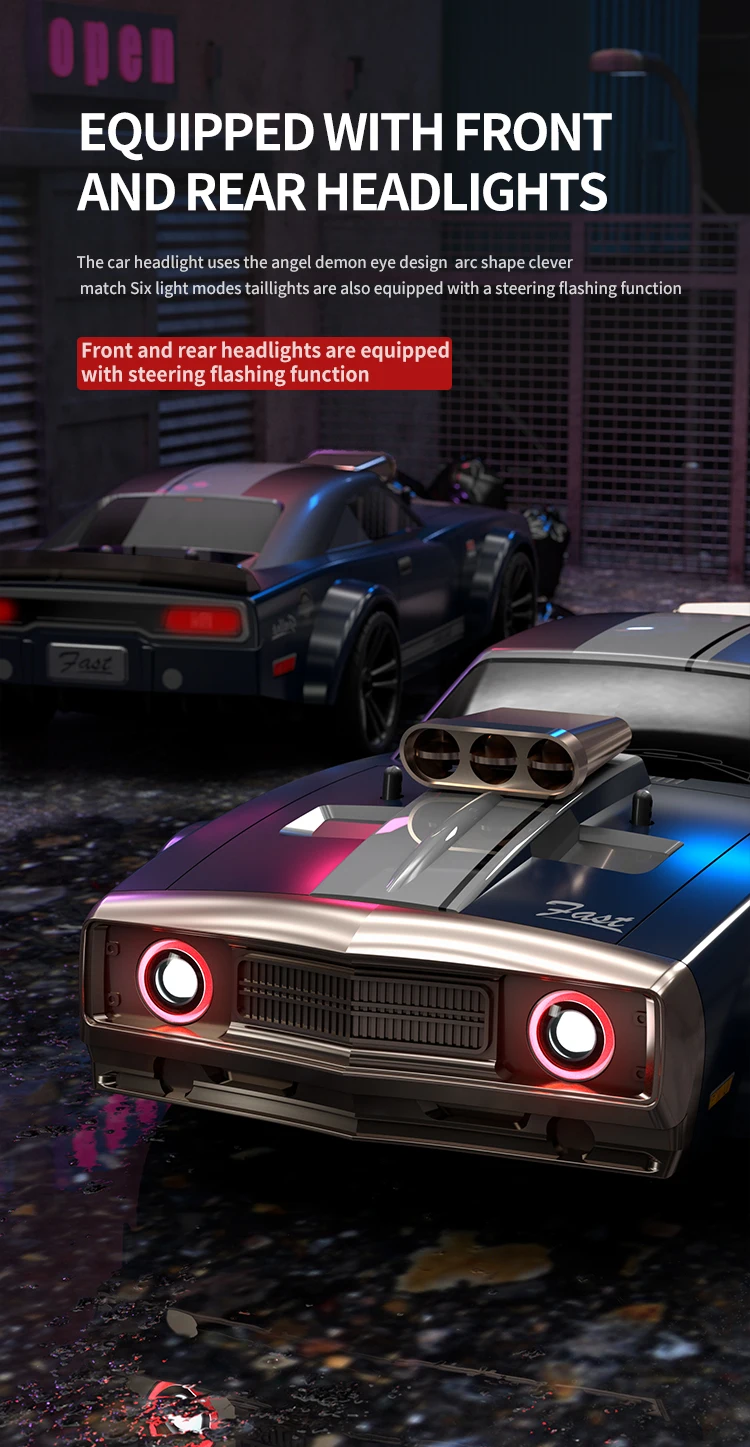

Light configuration: Demon Angel eye headlights (seven modes), taillights
Speed: 35 km/h

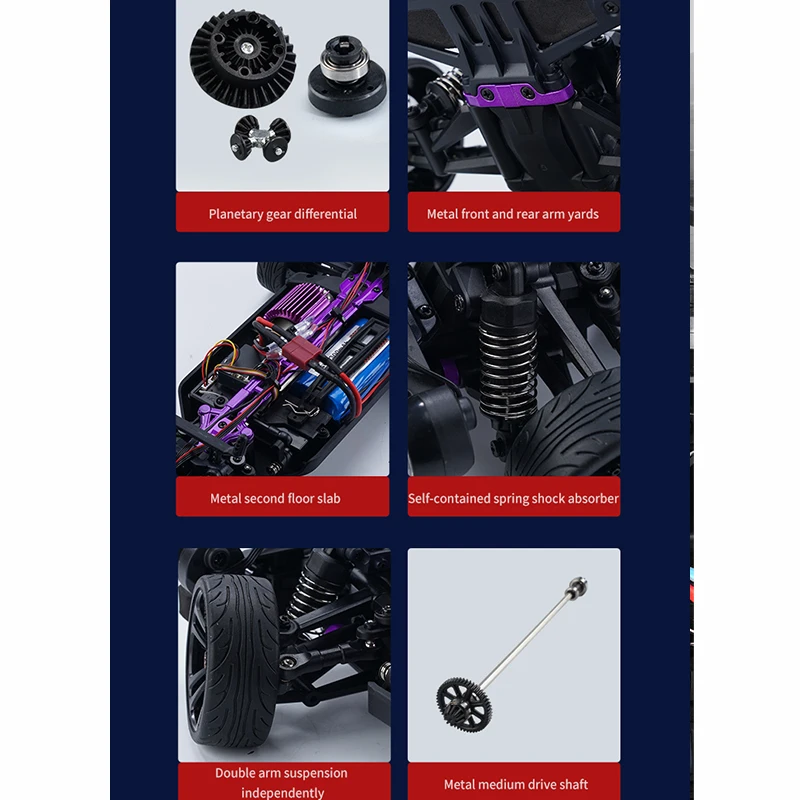

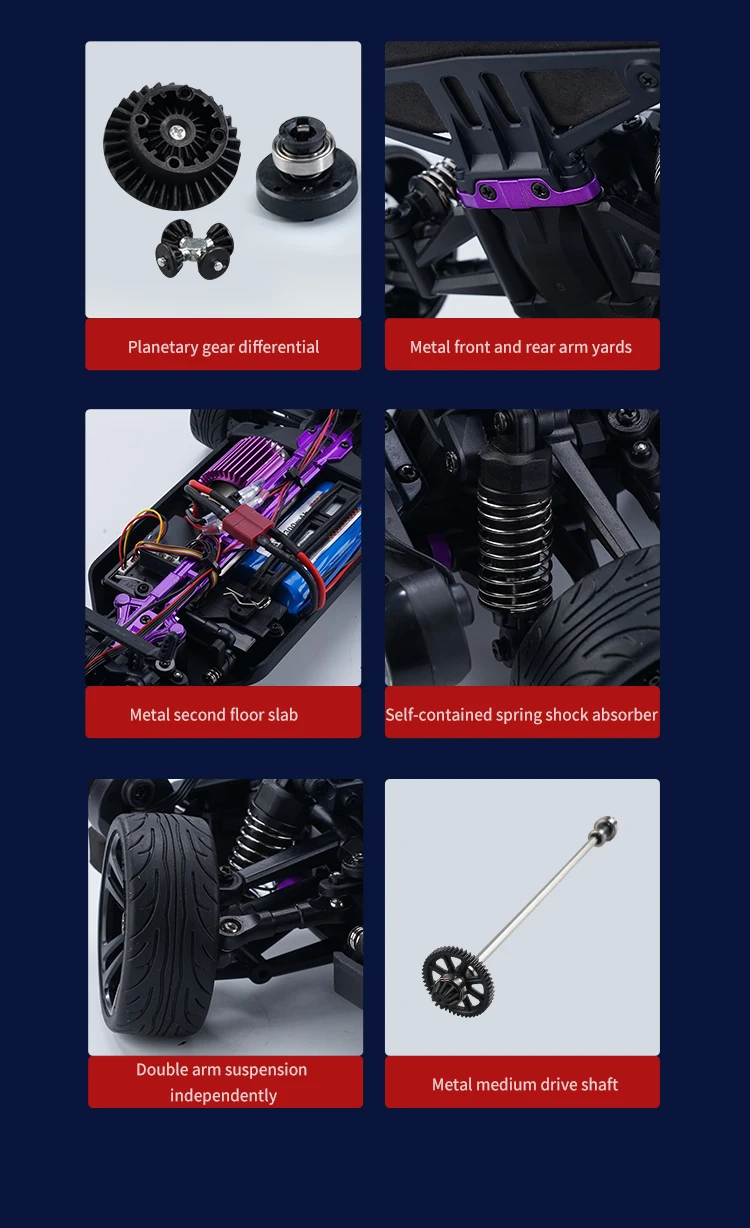

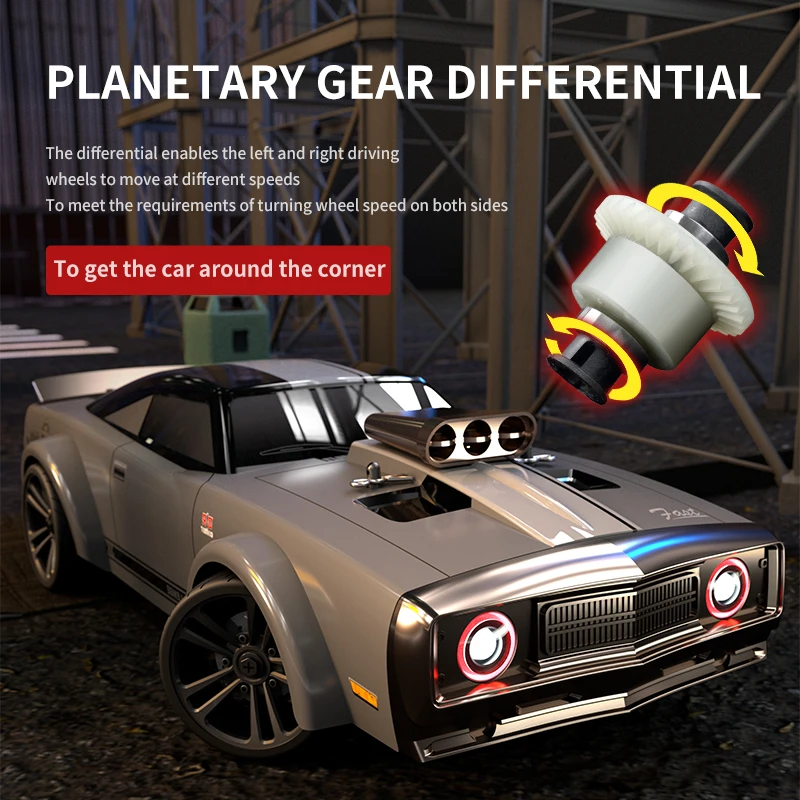

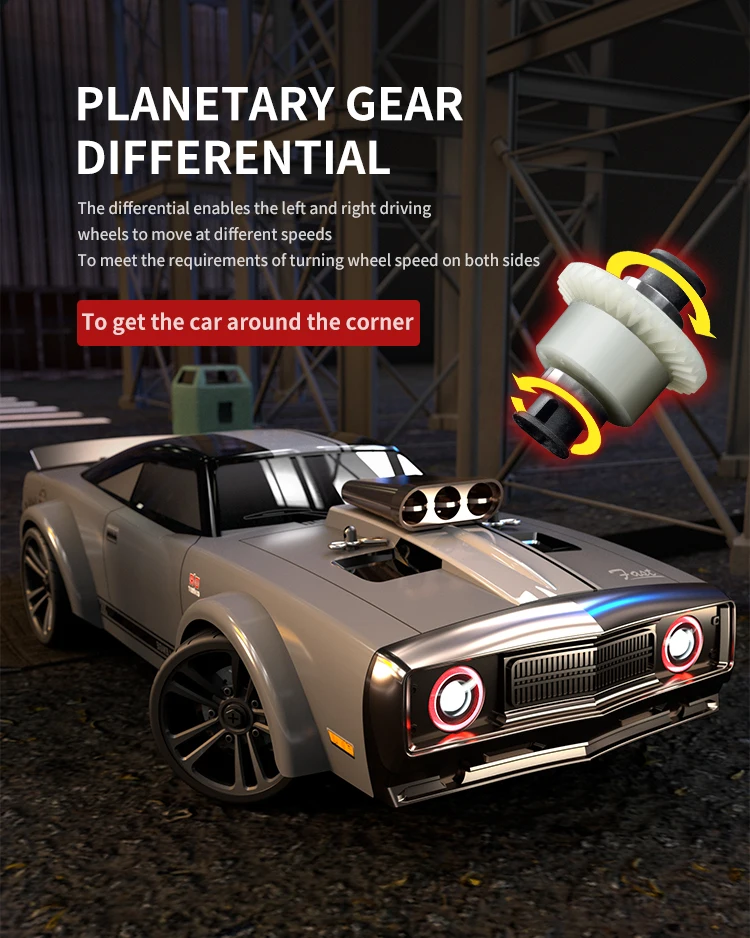

Differential Structure: Planetary Gear Differential (Nylon)
Protection functions: charging protection, stuck protection, high temperature protection, low voltage protection

Notes:

1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.
2: Motor anti-jamming protection: When overloaded, the motor stops working.
3: High temperature protection: When the working temperature is higher than the set, the drive control circuit stops working, and resumes work after the temperature drops to the safe value.
4: ESC low voltage power-off function, the battery is below about 6.3-6.4V, automatic power off, to prevent battery over-discharge and damage.

Product parameters Configure

1. Adopt simulation structure design, with the control feeling of a real car, to achieve full proportion stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
2. Applicable venues: flat roads, cement roads, asphalt roads, tracks;

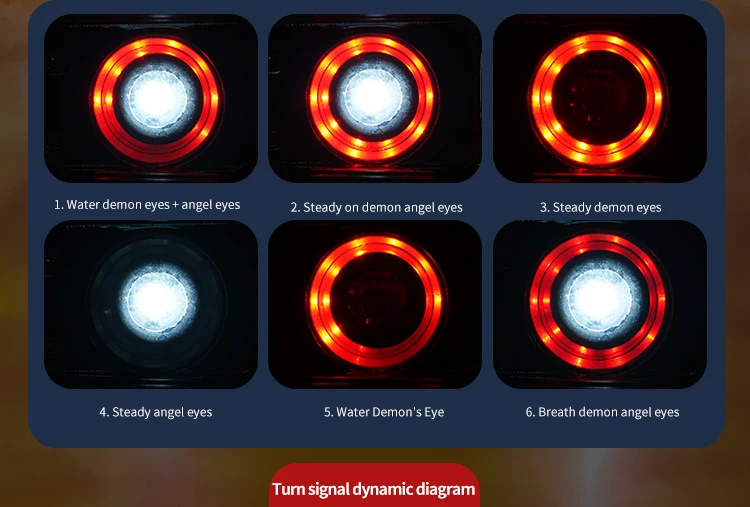

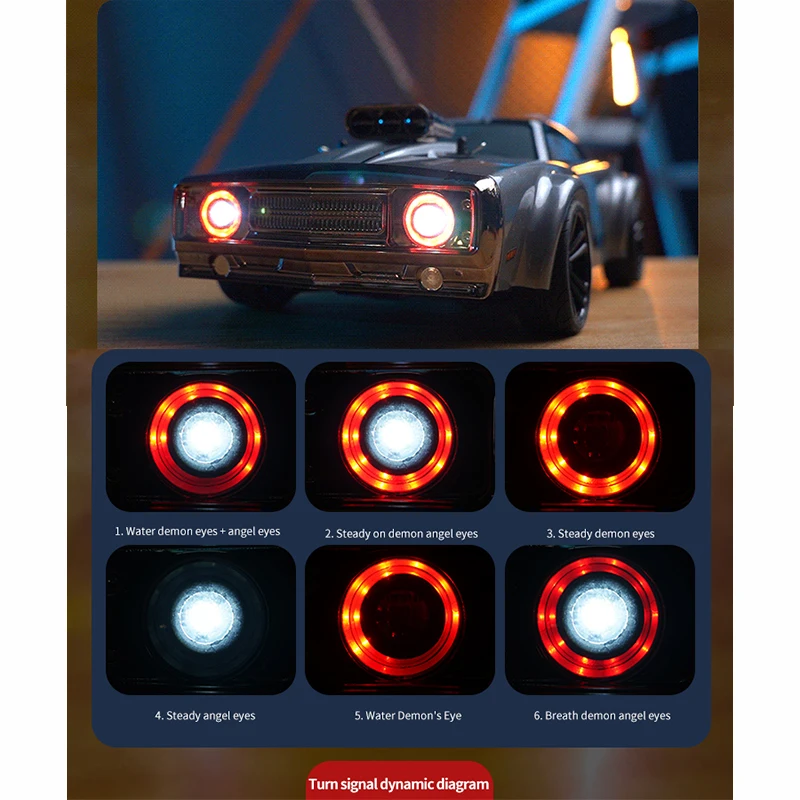

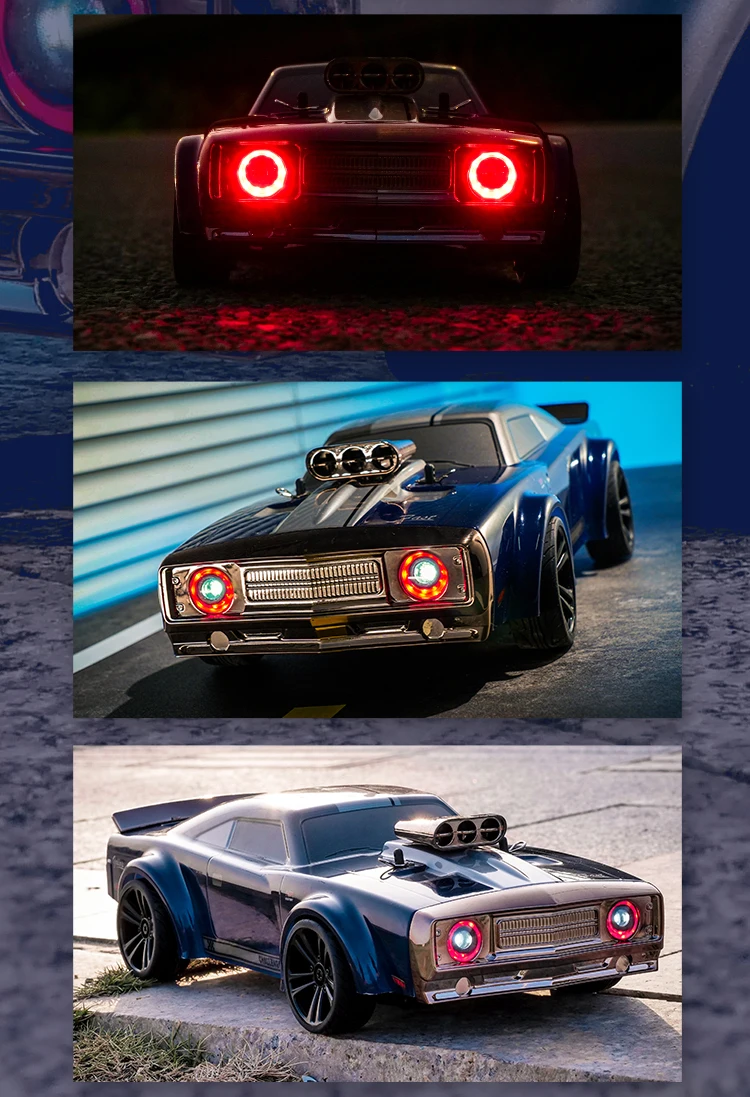

3. Demon Angel Eye Seven Mode Functions: Demon Angel Eye Running Water Lamp, Demon Angel Eye Always On, Demon Angel Eye Always On, Angel Eye Always On, Demon Running Water Lamp, Demon Angel Eye Breathing Light, Turn Signal (front and back flashing together);

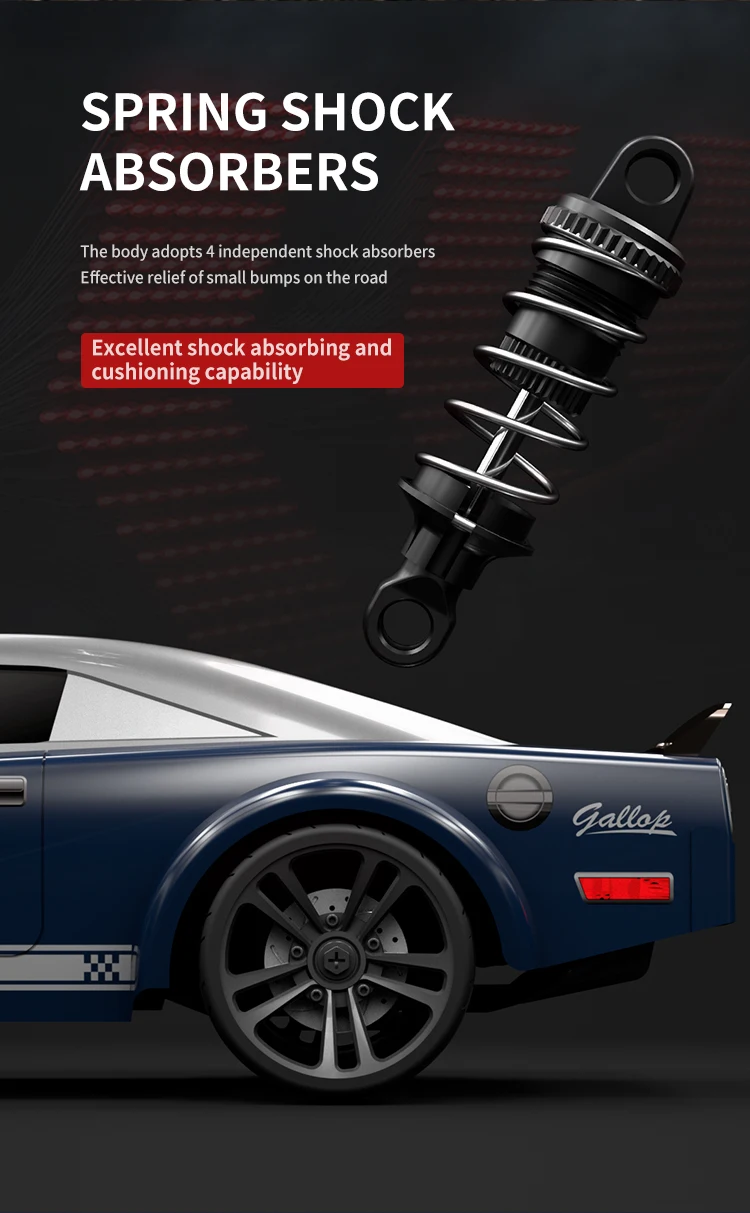

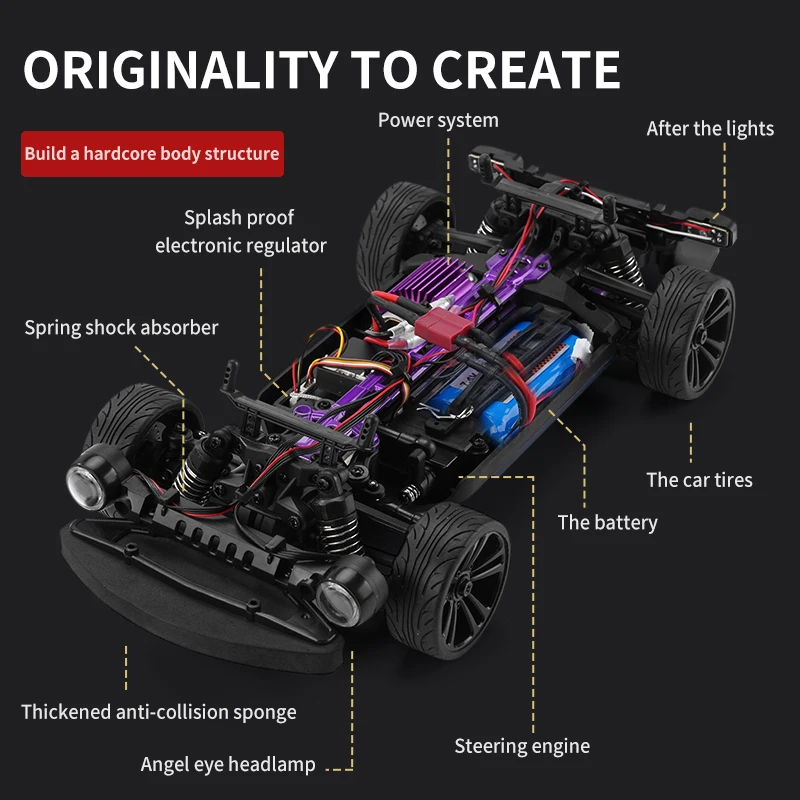

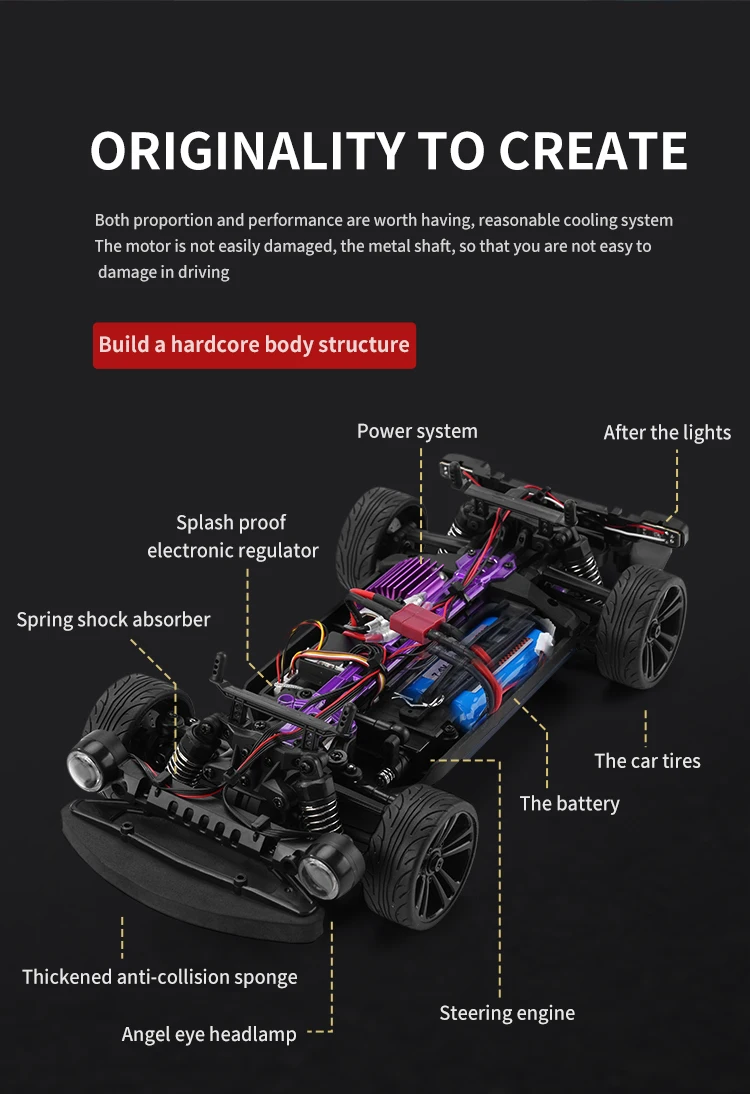

4. Four-wheel drive drive: front and rear upright spring shock absorption, double wishbone independent suspension system;

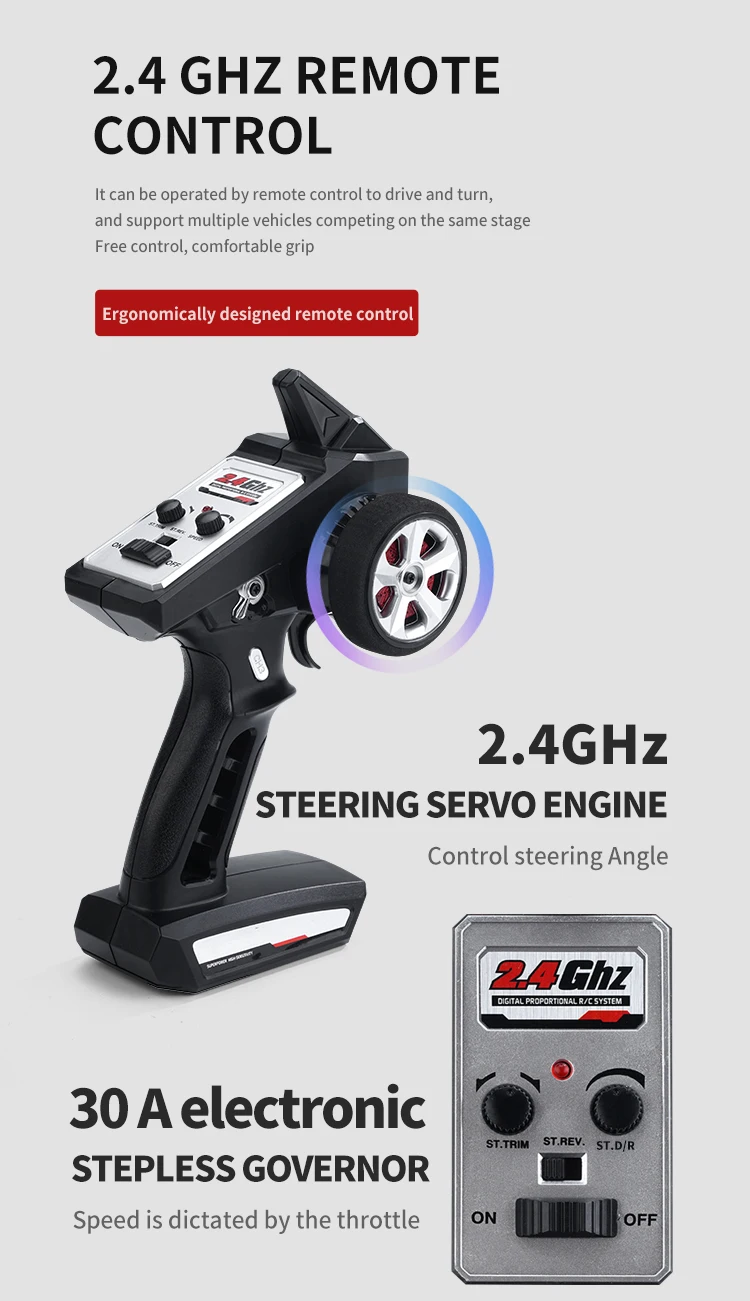

5. 2.4G full-scale synchronous remote control system. Full proportion throttle/steering;

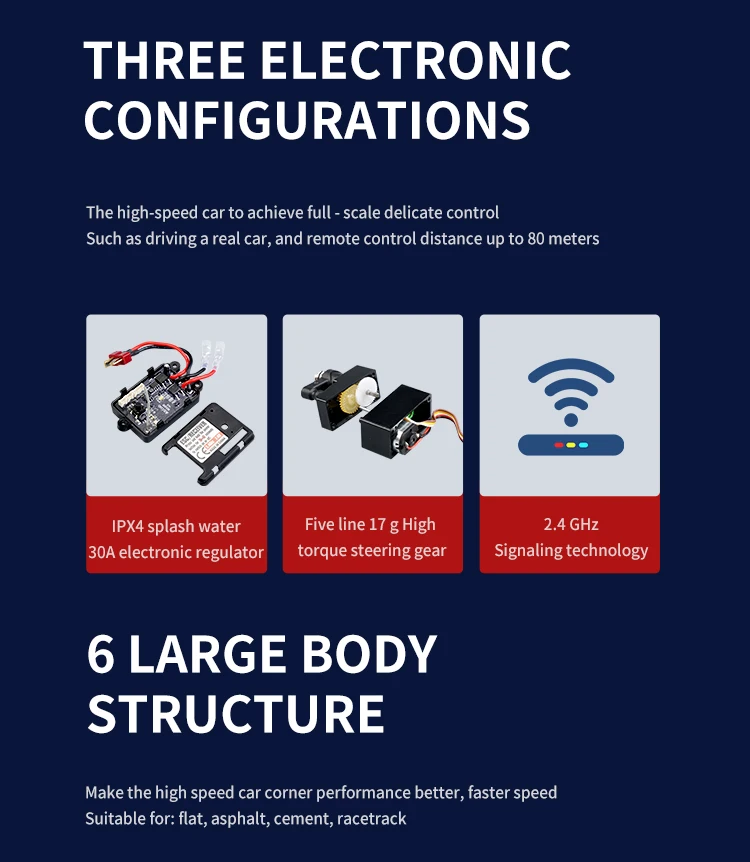

6. 2.4G splash-proof water cross-way 30A integrated ESC/reception;
7. Front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;
8. Five-line 17G servo;
9. Super battery power: 7.4V, 18650-1300mAh Li-ion battery, discharge rate 10C (T plug);
10. The whole vehicle adopts 16 ball bearings;
11. Metal second floor slab, metal front and rear arm code, metal middle drive shaft;
12. The car body adopts high-toughness explosion-proof PVC shell;
13. Simulated sports car tires, strong grip;

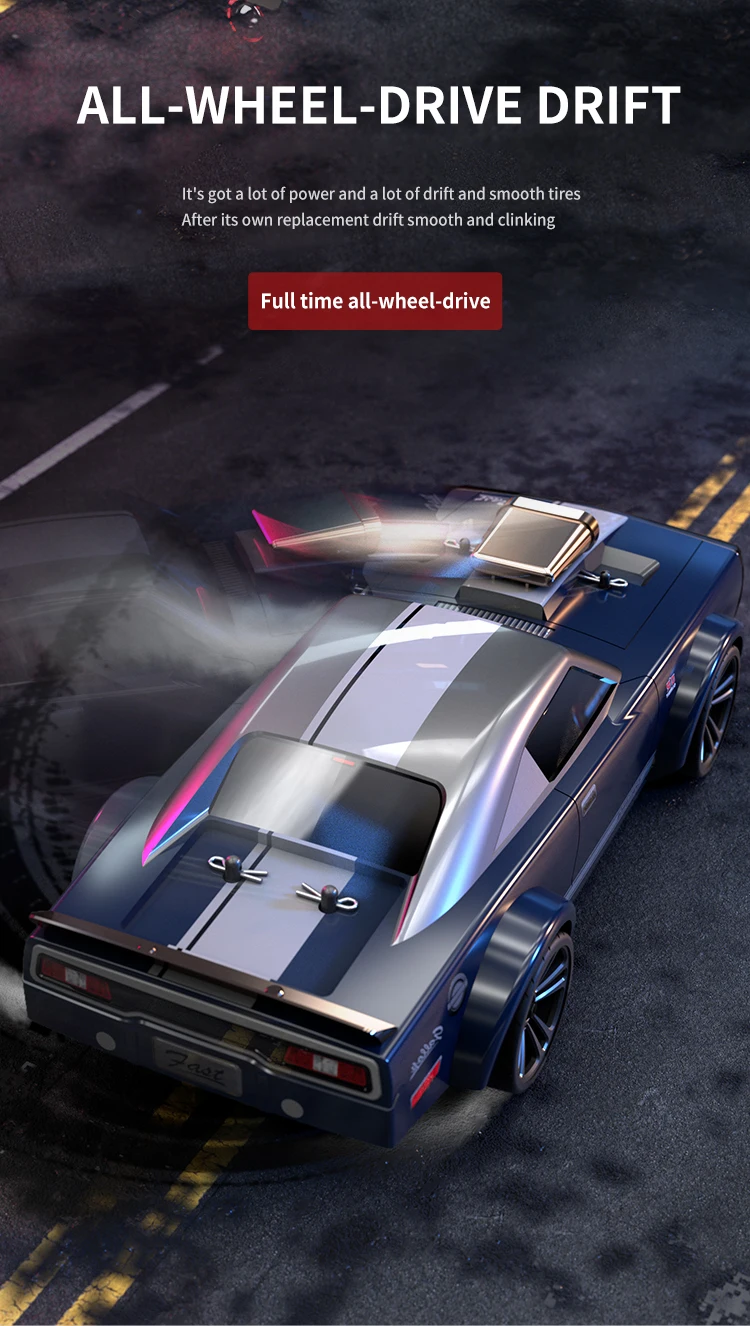

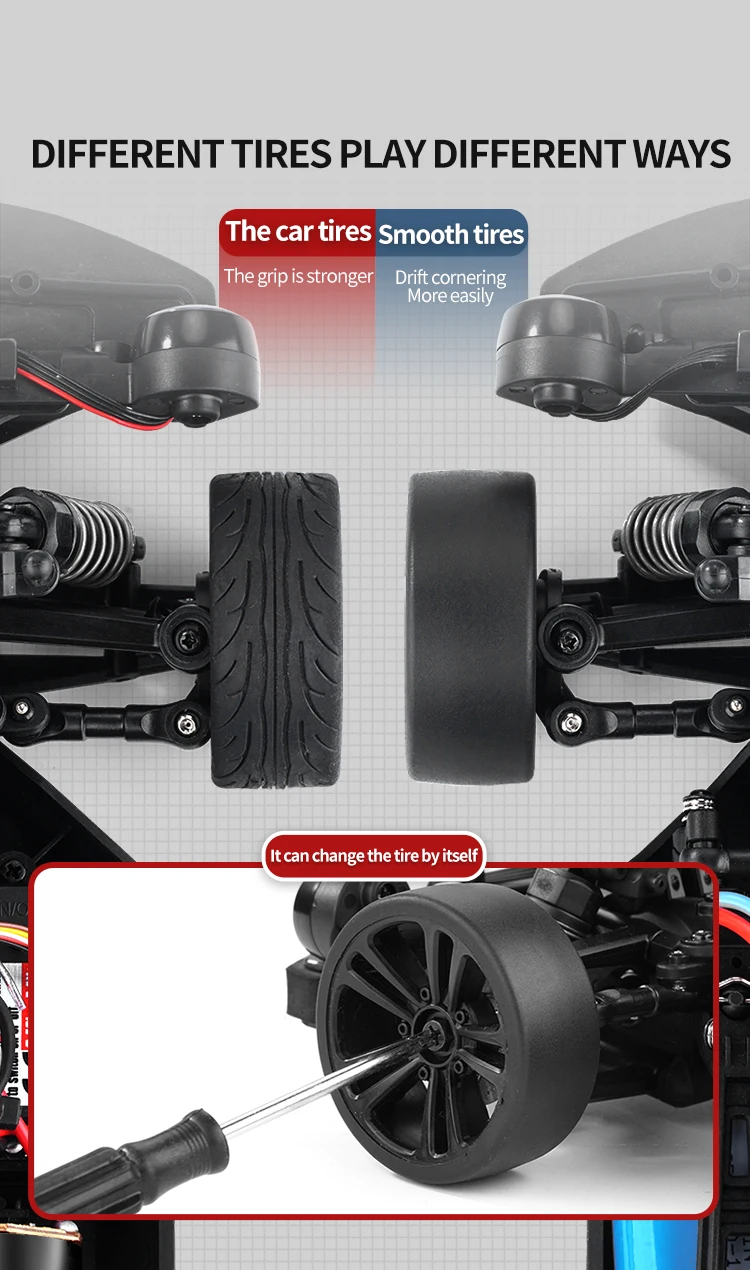

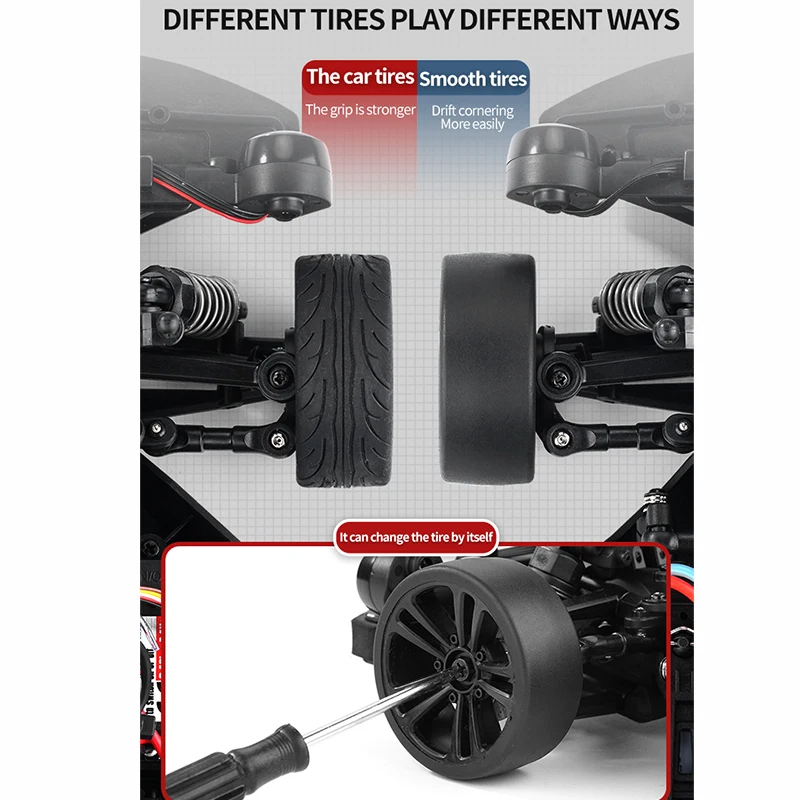

14. Equipped with a set of drift wheels (4 pieces), which can be used by players to enjoy the fun of drifting;
15. Two power connection ports are reserved on the power board for consumers to upgrade other accessories;
