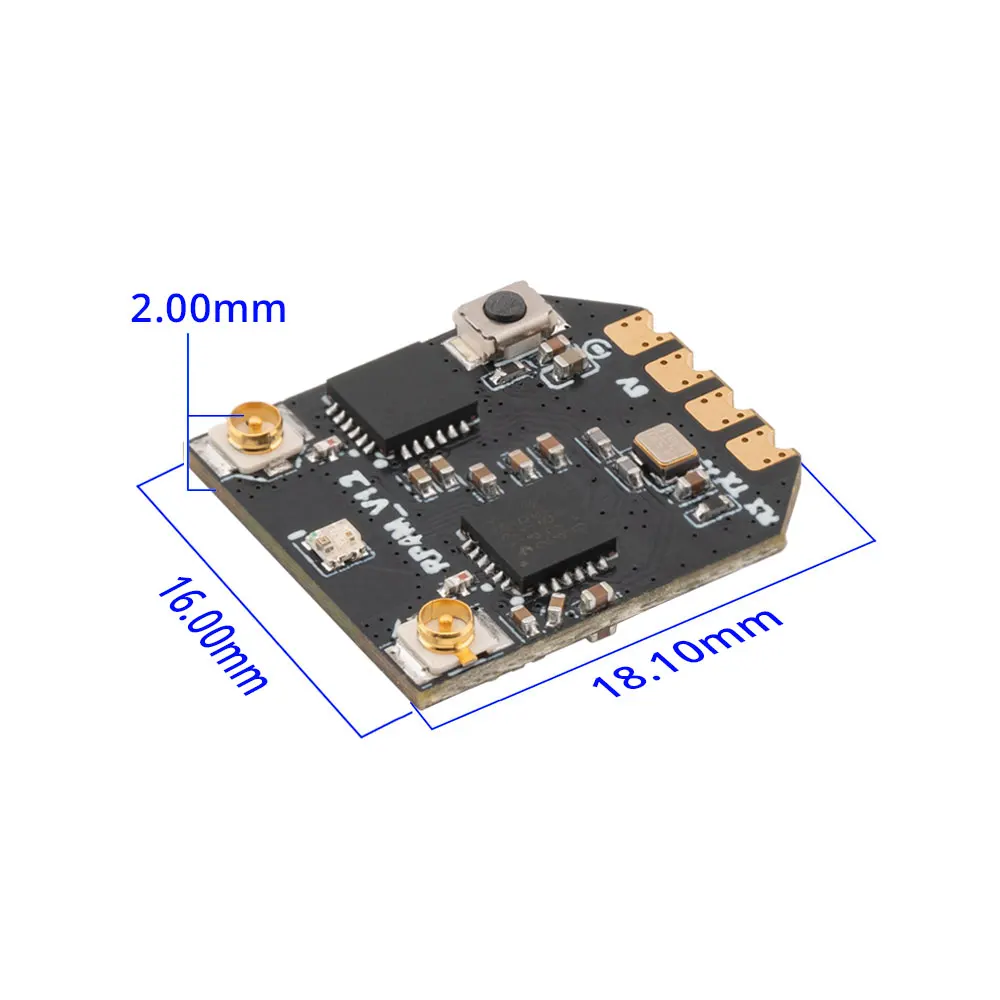

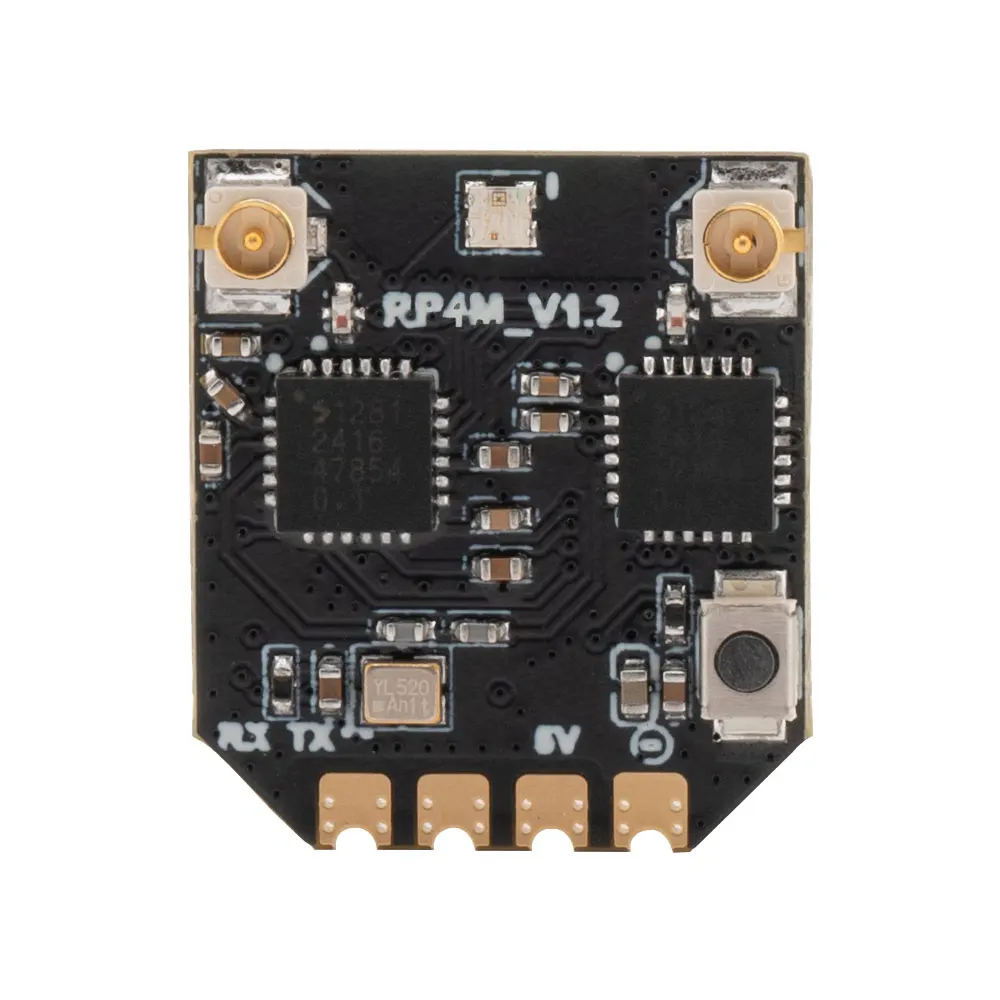

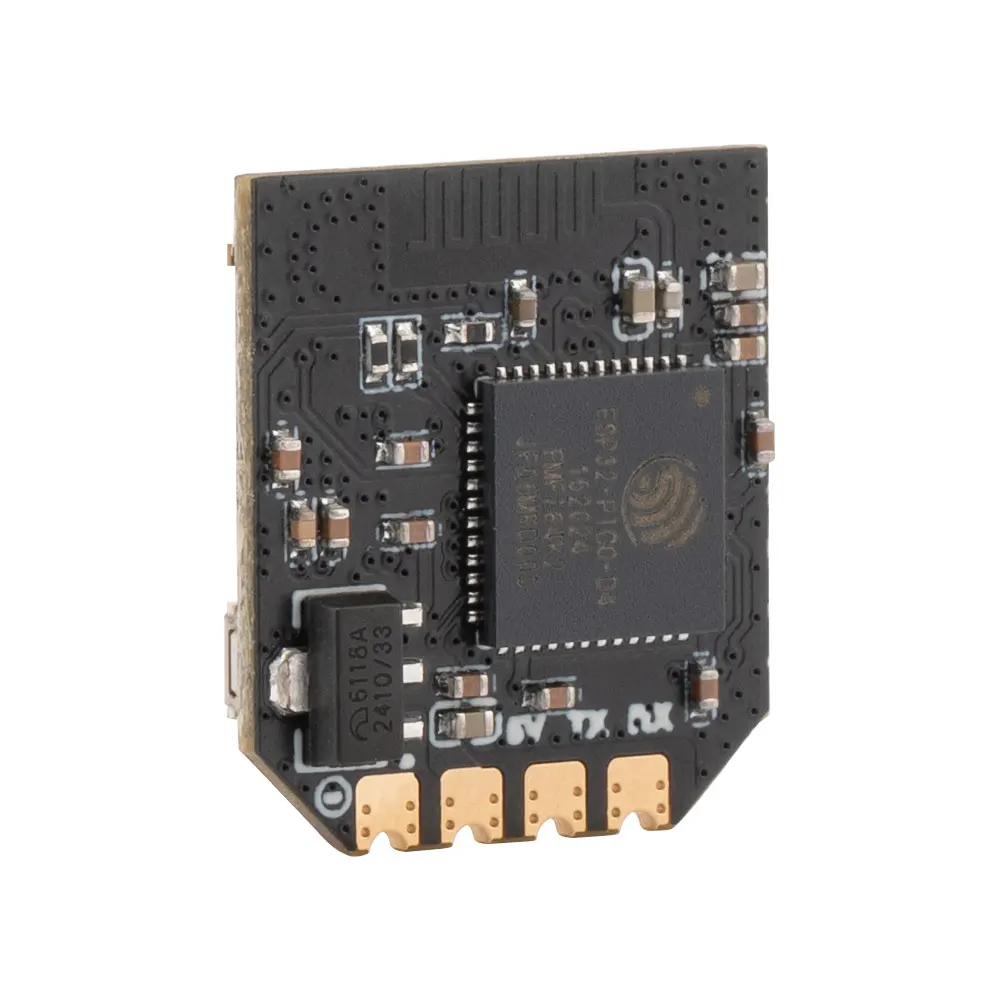

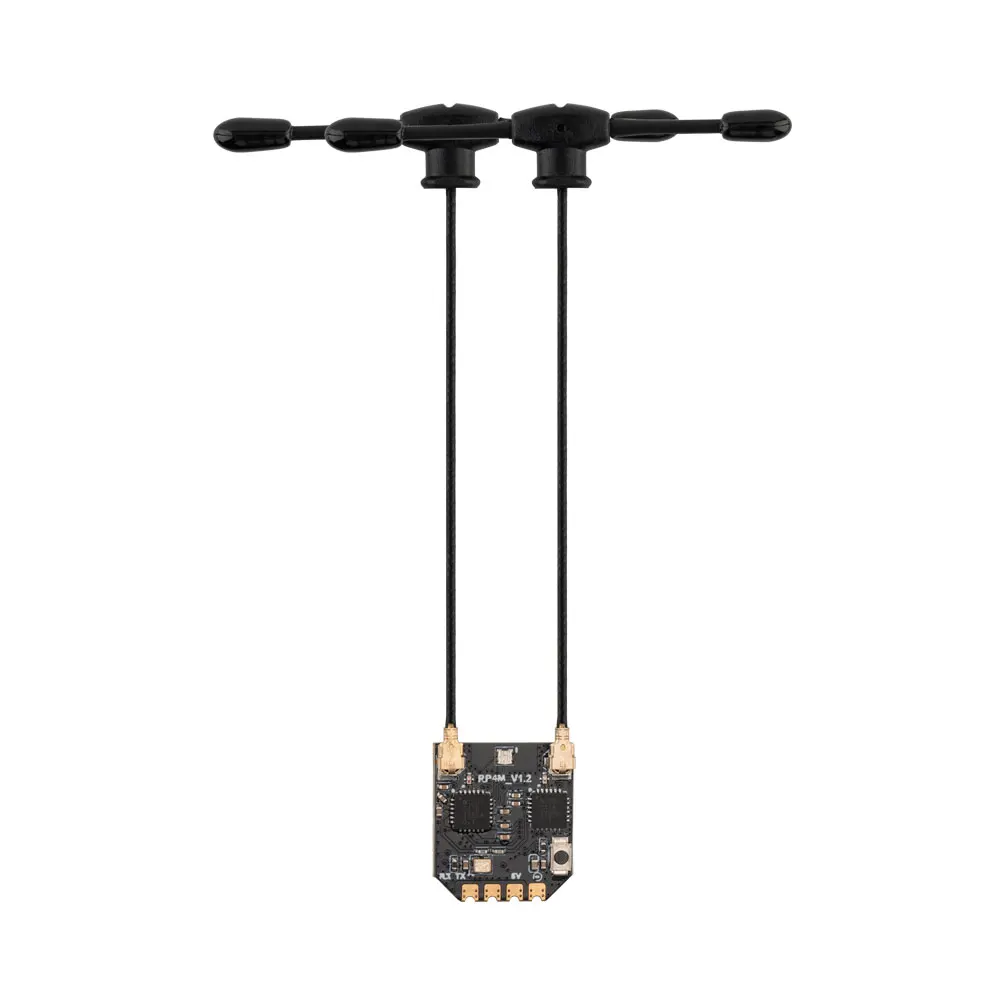

RadioMaster RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver

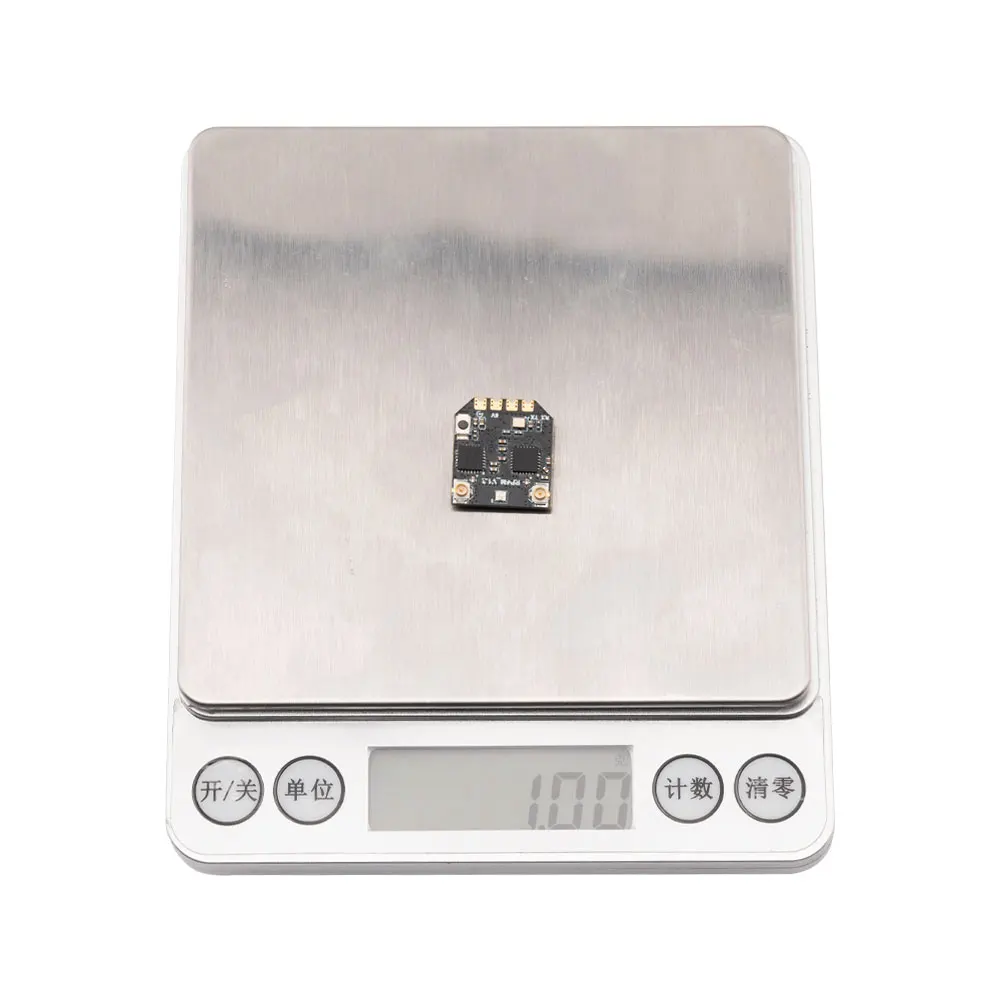

Introducing the Compact and Lightweight RP4TD-M! Building on the success of the RP4TD, we're excited to unveil the RP4TD-M—a compact and lightweight version designed for optimal performance. Weighing in at just 1 gram, this receiver is ideal for builds where minimizing weight is crucial, while still leveraging 'Gemini' technology for superior interference mitigation. Thanks to its optimized circuit design, the RP4TD-M features dual-channel 2.4GHz radios, delivering exceptional signal sensitivity, signal-to-noise ratio, and overall performance. Whether you're into racing drones or any application where every gram counts, the RP4TD-M stands out as a leader in its class.FeaturesMini size true diversity Gemini receiverClass leading SNR and RSSI performanceBuilt-in TCXO (temperature compensated crystal oscillator)Optimized PCB design for better heat dissipationUpgraded antenna with greater durability and performance2 x 10mW RF Telemetry power outputCompatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRSSpecificationsItem: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity ReceiverType: ISMMCU: ESP32RF Chip: SX1281 x 2Antenna: 65mm 2.4GHz T Antenna x 2Frequency Range: 2.4GHzMaximum Refresh Rate: 500Hz / F1000HzTelemetry RF Power: Max 2x 10mWWorking Voltage: DC 5.0VWifi Updates: YesWeight: 1.00g [Without antennas] / 3.30g [With antennas]Dimension: 18.10 x 16.0mmFirmware Version: ExpressLRS V3.4.3 pre-installedFW Target: RadioMaster RP4TD-M 2400 RXBus interface: CRSFTCXO (temperature compensated crystal oscillator) The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. WeightSizePackage Includes1 * RP4TD-M ExpressLRS True 2.4GHz Diversity Receiver1 * CRSF wire3 * Heat-Shrinkable Tube2 * 65mm 2.4GHz T Antenna (Installed on receiver)1 * User Manual
